pOpen-9N7polA

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pOpen-9N7polA
出品公司: Addgene
目录编号: 165500
存储实验室: Drew Endy, Jennifer Molloy, FreeGenes Project

载体骨架基本信息
载体名称: pBuild
载体出品公司: --
空载体大小: --
完整质粒大小: 4451 bp
载体修饰: --
载体类型: Synthetic Biology
筛选标记: --
载体抗性: 氨苄青霉素,100μg/mL
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: 9度N-7 DNA聚合酶
物种来源: Other
插入大小: --
基因突变: --
GenBank编号 --
启动子: --
标签/融合蛋白: --
克隆方法: 限制性内切酶
5’克隆位点: AATG(未知是否破坏)
3’克隆位点: GCTT(未知是否破坏)
5’测序引物 M13 forward
3’测序引物 M13 reverse

文献引用方法
材料和方法部分: pOpen-9N7polA was a gift from Drew Endy & Jennifer Molloy & FreeGenes Project (Addgene plasmid # 165500 ; http://n2t.net/addgene:165500 ; RRID:Addgene_165500)
参考文献部分: --

载体图谱质粒图谱和多克隆位点信息

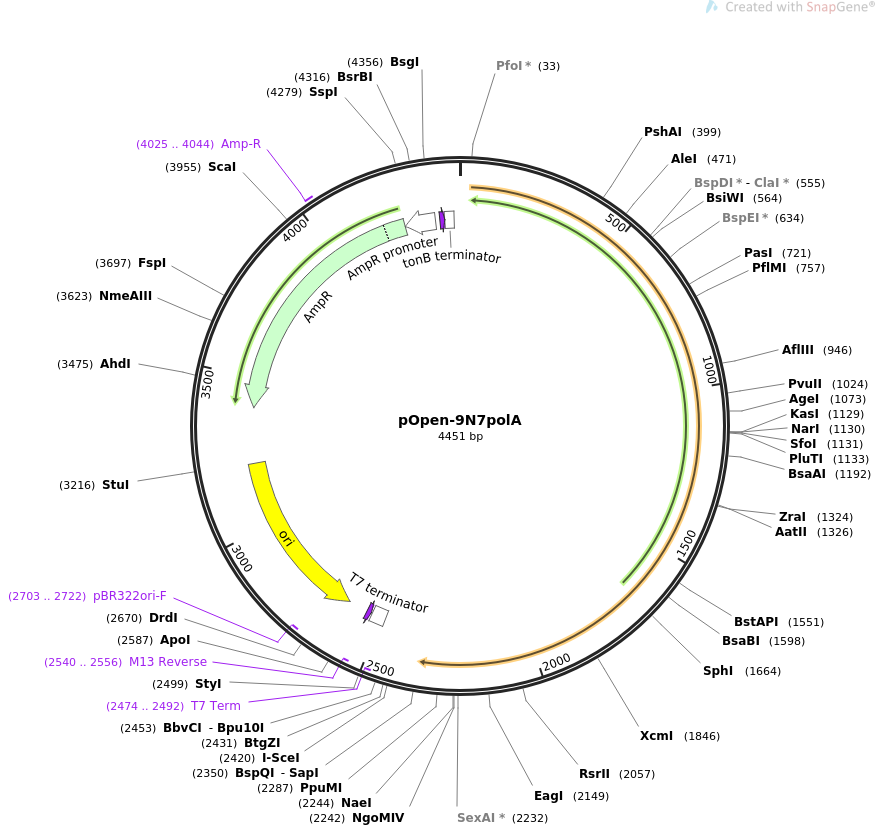

pOpen-9N7polA质粒图谱

载体简介

载体序列

LOCUS       pOpen-9N7polA                4451 bp ds-DNA     circular SYN 26-JUL-2021
DEFINITION  Thermophilic DNA polymerase; genetically engineered to have a
            decreased 3'-5' proofreading exonuclease activity.
ACCESSION   .
VERSION     .
KEYWORDS    pOpen-9N7polA
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4451)
  TITLE     Open Enzyme Collection
REFERENCE   2  (bases 1 to 4451)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 26, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4451
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(2474..2492)
                     /label=T7 Term
                     /note="T7 terminator, reverse primer"
     terminator      2488..2535
                     /label=T7 terminator
                     /note="transcription terminator for bacteriophage T7 RNA
                     polymerase"
     primer_bind     complement(2540..2556)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2540..2556)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     rep_origin      complement(2623..3211)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2703..2722)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(3402..4262)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     4025..4044
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(4263..4367)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     4383..4399
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     terminator      4400..4431
                     /label=tonB terminator
                     /note="bidirectional E. coli tonB-P14 transcription
                     terminator"
ORIGIN
        1 aaaggggccg tcaatatcag ggtctctaat gatcctggat actgattata tcaccgaaaa
       61 cggcaaacca gttatccgtg tgttcaaaaa agagaacggt gagtttaaaa tcgaatatga
      121 ccgtactttc gagccgtact tctacgctct gctgaaggat gattctgcca ttgaggatgt
      181 taaaaaagta accgctaagc gccacggtac ggtggtaaag gtcaaacgtg ctgaaaaagt
      241 tcagaaaaag ttcctcggtc gtccgattga agtttggaaa ctgtacttca accacccgca
      301 ggacgtaccg gcaattcgtg accgtattcg cgcacacccg gcggtcgtag atatctacga
      361 atatgatatt ccgtttgcta aacgctacct gatcgacaaa ggtctgatcc cgatggaagg
      421 tgatgaggag ctgaccatgc tcgcgttcga tatcgaaact ctgtaccacg aaggtgaaga
      481 gtttggtact ggtccgattc tgatgatttc ctacgccgac ggtagcgaag cgcgtgtgat
      541 cacttggaaa aaaatcgatc tgccgtacgt tgatgtggtt tctactgaaa aagaaatgat
      601 caaacgtttc ctgcgcgtgg tccgtgagaa agatccggac gtacttatca cttacaatgg
      661 cgacaatttc gattttgctt acctgaaaaa acgttgcgaa gaactgggca tcaagtttac
      721 cctgggtcgt gacgggagtg aacctaaaat ccagcgtatg ggcgatcgtt tcgctgtgga
      781 agtgaaaggt cgcattcatt tcgatctgta cccggttatt cgtcgcacta ttaacctccc
      841 gacctatact ctggaggcag tttacgaagc tgttttcggt aaaccgaaag aaaaagttta
      901 tgcggaagaa attgcacaag cttgggaatc cggcgaaggt ctggaacgtg ttgcgcgcta
      961 tagcatggag gacgcgaaag ttacctatga actgggtcgt gagttttttc cgatggaagc
     1021 tcagctgagc cgtctgatcg gtcagtctct ttgggacgtt tctcgcagct ctaccggtaa
     1081 cctcgttgaa tggtttctgc tgcgtaaggc gtacaaacgt aacgaactgg cgccgaacaa
     1141 accggatgag cgtgaactgg ctcgtcgtcg tggtggctac gcaggtggct acgtgaaaga
     1201 gccggaacgt ggtctgtggg acaacatcgt ttacctggat ttccgtagcc tgtacccgag
     1261 tattatcatt acccacaacg taagcccgga taccctcaac cgcgaagggt gcaaagaata
     1321 tgacgtcgca cctgaagttg gccacaagtt ttgtaaggac ttcccgggct tcatcccgag
     1381 cctgctgggt gacctgctgg aagaacgcca gaaaatcaag cgcaaaatga aagccaccgt
     1441 ggacccgctg gaaaagaaac tgctggacta ccgccagcgc gctattaaaa tcctggccaa
     1501 ctctttctac ggttactatg ggtacgcaaa agcacgttgg tactgcaaag agtgcgctga
     1561 atctgtgacc gcgtggggtc gtgaatatat cgagatggtt atccgtgaac ttgaagaaaa
     1621 gttcggcttc aaagttctgt atgcggacac cgacggcctg catgcgacta tccctggcgc
     1681 ggacgcagaa accgttaaga aaaaagcaaa agagttctta aagtacatta acccaaaact
     1741 cccgggcctg ctggaactgg agtacgaggg tttctatgtt cgtggattct ttgttacgaa
     1801 aaaaaaatac gcagttatcg acgaagaagg caaaatcacc acccgtggcc tggagatcgt
     1861 gcgtcgtgat tggtctgaaa tcgctaaaga aacccaggcg cgcgttctgg aagcgattct
     1921 gaaacacggt gacgttgaag aagccgttcg cattgtaaag gaagttacgg agaagctttc
     1981 taaatacgaa gttccgccgg aaaaactggt tatccacgaa cagatcactc gtgatctgcg
     2041 tgactacaag gcgaccggac cgcatgtggc ggtcgcaaaa cgcctggctg ctcgtggtgt
     2101 aaaaatccgt ccgggcacgg tcatcagcta catcgtgctg aagggcagcg gccgtatcgg
     2161 cgatcgtgct atcccagcgg acgagttcga cccgaccaaa caccgctatg atgctgagta
     2221 ttatatcgaa aaccaggtac tgccggcggt tgaacgtatc ctgaaagcgt ttggctatcg
     2281 taaagaggac ctgcgttatc agaaaaccaa acaggtaggt ctgggtgcgt ggctgaaagt
     2341 caaaggcaaa aagtgaagag ctttgagacc acagaacgaa caggcactac atcaaggcat
     2401 ggaacccatc atagggataa cagggtaatt gccttccttc ttaggcatcg cgctgaggtg
     2461 tcaatcgtcg gagccgctga gcaataacta gcataacccc ttggggcctc taaacgggtc
     2521 ttgaggggtt ttttgcatgg tcatagctgt ttcctgagag cttggcaggt gatgacacac
     2581 attaacaaat ttcgtgagga gtctccagaa gaatgccatt aatttccata ggctccgccc
     2641 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
     2701 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
     2761 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
     2821 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
     2881 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
     2941 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
     3001 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
     3061 aagaacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
     3121 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
     3181 gcagattaca cgcagaaaaa aaggatctca agaaggccta ctattagcaa caacgatcct
     3241 ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg
     3301 gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt
     3361 aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt
     3421 gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc
     3481 gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg
     3541 cgagaaccac gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc
     3601 gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg
     3661 gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca
     3721 ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga
     3781 tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct
     3841 ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg
     3901 cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca
     3961 accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata
     4021 cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct
     4081 tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact
     4141 cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa
     4201 acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc
     4261 atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga
     4321 tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac ctgcaccagt
     4381 cagtaaaacg acggccagta gtcaaaagcc tccgaccgga ggcttttgac ttggttcagg
     4441 tggagtggga g
//
