pPD49_83

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pPD4983载体基本信息

质粒名称: pPD49_83
出品公司: 爱迪基因
目录编号: 1448
存储实验室: Andrew Fire

载体骨架基本信息
载体名称: --
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 3826 bp
完整质粒大小: --
载体修饰: --
载体类型: 蠕虫表达式
筛选标记: --
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: hsp16-25', hsp16-415', IVSA, rf2128
克隆方法: 限制性内切酶
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pPD49_83 was a gift from Andrew Fire (Addgene plasmid # 1448 ; http://n2t.net/addgene:1448 ; RRID:Addgene_1448)

pPD4983载体图谱质粒图谱和多克隆位点信息

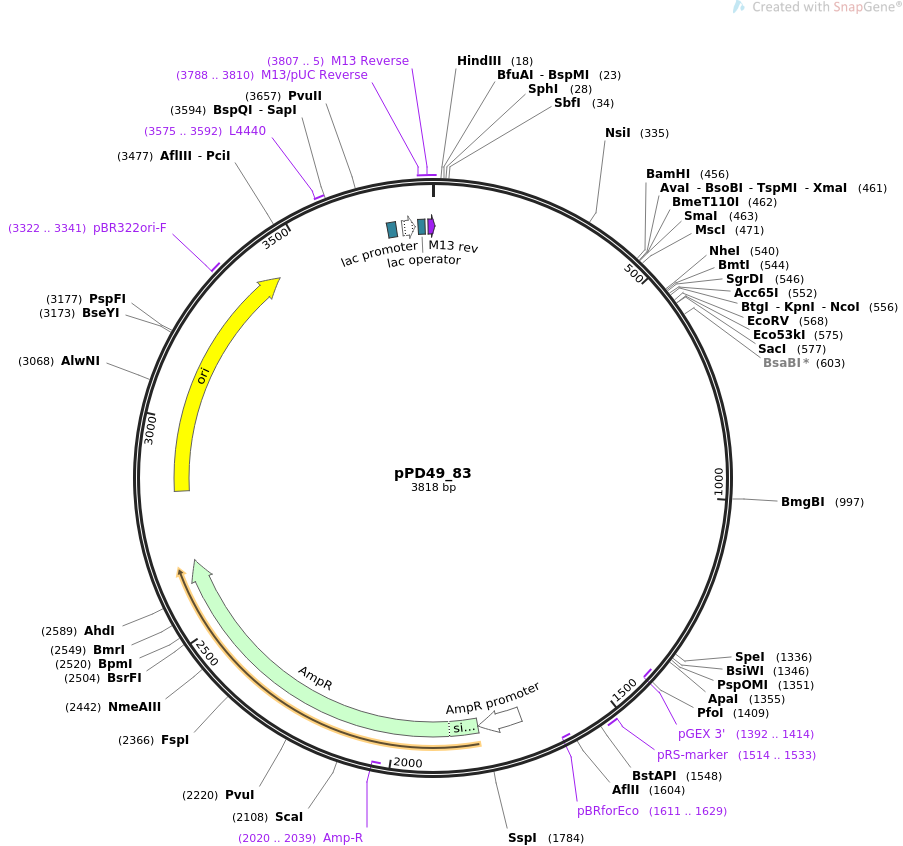

pPD49_83质粒图谱

pPD4983载体简介

pPD4983载体序列

LOCUS       pPD49_83                3818 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pPD49_83
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3818)
  AUTHORS   Fire A et al
  TITLE     Fire Lab C. Elegans Vector Kit 1995
REFERENCE   2  (bases 1 to 3818)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..3818
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(1392..1414)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     1514..1533
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     complement(1611..1629)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        1697..1801
                     /gene="bla"
                     /label=AmpR promoter
     CDS             1802..2662
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(2020..2039)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      2833..3421
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     3322..3341
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     3575..3592
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    3709..3730
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        3745..3775
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3783..3799
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     3788..3810
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     3807..5
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     3807..5
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
ORIGIN
        1 atgaccatga ttacgccaag cttgcatgcc tgcaggtcga ctctagagga tcaccaaaaa
       61 cggaacgttg agctggacgg aaatagtggt aaagtgacat gattatagtt tgaagatttc
      121 taatttcaca attagagcaa atgttgttcg gtatttattt tcaacggtat ttatactatt
      181 ttccaccttt ttctagaaca ttcgagctgc ttgttgcaaa aggagggcga ctcacattcg
      241 gtacatggaa aagtagtgta cacaataaag agacccagat acattttccg tctgcgtctc
      301 tttgcaccca ccgggagtat tttcaaacga atgcatctag gaccttctag aacattctgt
      361 aaggctgcag aatgcgggta tataaggaaa gcgggctcag aggaagccaa cacgctttgt
      421 tctagtgcat ctaaaaaact tcgaaaatcc tcatcggatc cccgggattg gccaaaggac
      481 ccaaaggtat gtttcgaatg atactaacat aacatagaac attttcagga ggacccttgg
      541 ctagcgtcga cggtaccatg gtattgatat ctgagctccg catcggccgc tgtcatcaga
      601 tcgccatctc gcgcccgtgc ctctgacttc taagtccaat tactcttcaa catccctaca
      661 tgctctttct ccctgtgctc ccacccccta tttttgttat tatcaaaaaa cttctcttaa
      721 tttctttgtt ttttagcttc ttttaagtca cctctaacaa tgaaattgtg tagattcaaa
      781 aatagaatta attcgtaata aaaagtcgaa aaaaattgtg ctccctcccc ccattaataa
      841 taattctatc ccaaaatcta cacaatgttc tgtgtacact tcttatgttt tttacttctg
      901 ataaattttt ttgaaacatc atagaaaaaa ccgcacacaa aataccttat catatgttac
      961 gtttcagttt atgaccgcaa tttttatttc ttcgcacgtc tgggcctctc atgacgtcaa
     1021 atcatgctca tcgtgaaaaa gttttggagt atttttggaa tttttcaatc aagtgaaagt
     1081 ttatgaaatt aattttcctg cttttgcttt ttggggtttc ccctattgtt tgtcaagatt
     1141 tcgaggacgg cgtttttctt gctaaaatca caagtattga tgagcacgat gcaagaaaga
     1201 tcggaagaag gtttgggttt gaggctcagt ggaaggtgag tagaagttga taatttgaaa
     1261 gtggagtagt gtctatgggg tttttgcctt aaatgacaga atacattccc aatataccaa
     1321 acataactgt ttcctactag tcggccgtac gggccctttc gtctcgcgcg tttcggtgat
     1381 gacggtgaaa acctctgaca catgcagctc ccggagacgg tcacagcttg tctgtaagcg
     1441 gatgccggga gcagacaagc ccgtcagggc gcgtcagcgg gtgttggcgg gtgtcggggc
     1501 tggcttaact atgcggcatc agagcagatt gtactgagag tgcaccatat gcggtgtgaa
     1561 ataccgcaca gatgcgtaag gagaaaatac cgcatcaggc ggccttaagg gcctcgtgat
     1621 acgcctattt ttataggtta atgtcatgat aataatggtt tcttagacgt caggtggcac
     1681 ttttcgggga aatgtgcgcg gaacccctat ttgtttattt ttctaaatac attcaaatat
     1741 gtatccgctc atgagacaat aaccctgata aatgcttcaa taatattgaa aaaggaagag
     1801 tatgagtatt caacatttcc gtgtcgccct tattcccttt tttgcggcat tttgccttcc
     1861 tgtttttgct cacccagaaa cgctggtgaa agtaaaagat gctgaagatc agttgggtgc
     1921 acgagtgggt tacatcgaac tggatctcaa cagcggtaag atccttgaga gttttcgccc
     1981 cgaagaacgt tttccaatga tgagcacttt taaagttctg ctatgtggcg cggtattatc
     2041 ccgtattgac gccgggcaag agcaactcgg tcgccgcata cactattctc agaatgactt
     2101 ggttgagtac tcaccagtca cagaaaagca tcttacggat ggcatgacag taagagaatt
     2161 atgcagtgct gccataacca tgagtgataa cactgcggcc aacttacttc tgacaacgat
     2221 cggaggaccg aaggagctaa ccgctttttt gcacaacatg ggggatcatg taactcgcct
     2281 tgatcgttgg gaaccggagc tgaatgaagc cataccaaac gacgagcgtg acaccacgat
     2341 gcctgtagca atggcaacaa cgttgcgcaa actattaact ggcgaactac ttactctagc
     2401 ttcccggcaa caattaatag actggatgga ggcggataaa gttgcaggac cacttctgcg
     2461 ctcggccctt ccggctggct ggtttattgc tgataaatct ggagccggtg agcgtgggtc
     2521 tcgcggtatc attgcagcac tggggccaga tggtaagccc tcccgtatcg tagttatcta
     2581 cacgacgggg agtcaggcaa ctatggatga acgaaataga cagatcgctg agataggtgc
     2641 ctcactgatt aagcattggt aactgtcaga ccaagtttac tcatatatac tttagattga
     2701 tttaaaactt catttttaat ttaaaaggat ctaggtgaag atcctttttg ataatctcat
     2761 gaccaaaatc ccttaacgtg agttttcgtt ccactgagcg tcagaccccg tagaaaagat
     2821 caaaggatct tcttgagatc ctttttttct gcgcgtaatc tgctgcttgc aaacaaaaaa
     2881 accaccgcta ccagcggtgg tttgtttgcc ggatcaagag ctaccaactc tttttccgaa
     2941 ggtaactggc ttcagcagag cgcagatacc aaatactgtc cttctagtgt agccgtagtt
     3001 aggccaccac ttcaagaact ctgtagcacc gcctacatac ctcgctctgc taatcctgtt
     3061 accagtggct gctgccagtg gcgataagtc gtgtcttacc gggttggact caagacgata
     3121 gttaccggat aaggcgcagc ggtcgggctg aacggggggt tcgtgcacac agcccagctt
     3181 ggagcgaacg acctacaccg aactgagata cctacagcgt gagcattgag aaagcgccac
     3241 gcttcccgaa gggagaaagg cggacaggta tccggtaagc ggcagggtcg gaacaggaga
     3301 gcgcacgagg gagcttccag ggggaaacgc ctggtatctt tatagtcctg tcgggtttcg
     3361 ccacctctga cttgagcgtc gatttttgtg atgctcgtca ggggggcgga gcctatggaa
     3421 aaacgccagc aacgcggcct ttttacggtt cctggccttt tgctggcctt ttgctcacat
     3481 gttctttcct gcgttatccc ctgattctgt ggataaccgt attaccgcct ttgagtgagc
     3541 tgataccgct cgccgcagcc gaacgaccga gcgcagcgag tcagtgagcg aggaagcgga
     3601 agagcgccca atacgcaaac cgcctctccc cgcgcgttgg ccgattcatt aatgcagctg
     3661 gcacgacagg tttcccgact ggaaagcggg cagtgagcgc aacgcaatta atgtgagtta
     3721 gctcactcat taggcacccc aggctttaca ctttatgctt ccggctcgta tgttgtgtgg
     3781 aattgtgagc ggataacaat ttcacacagg aaacagct
//

pPD4983载体图谱质粒图谱pdf版和相关资料下载

pPD4983载体质粒应用举例
