pRRLSIN.cPPT.PGK-GFP.WPRE

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pRRLSIN.cPPT.PGK-GFP.WPRE
出品公司: 爱迪基因
目录编号: 12252
存储实验室: Didier Trono

载体骨架基本信息
载体名称: pRRL
载体出品公司: Naldini lab
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳动物表达,Lentiviral
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 See map
3' 测序引物 --

文献引用方法
材料和方法部分: pRRLSIN.cPPT.PGK-GFP.WPRE was a gift from Didier Trono (Addgene plasmid # 12252 ; http://n2t.net/addgene:12252 ; RRID:Addgene_12252)

载体图谱质粒图谱和多克隆位点信息

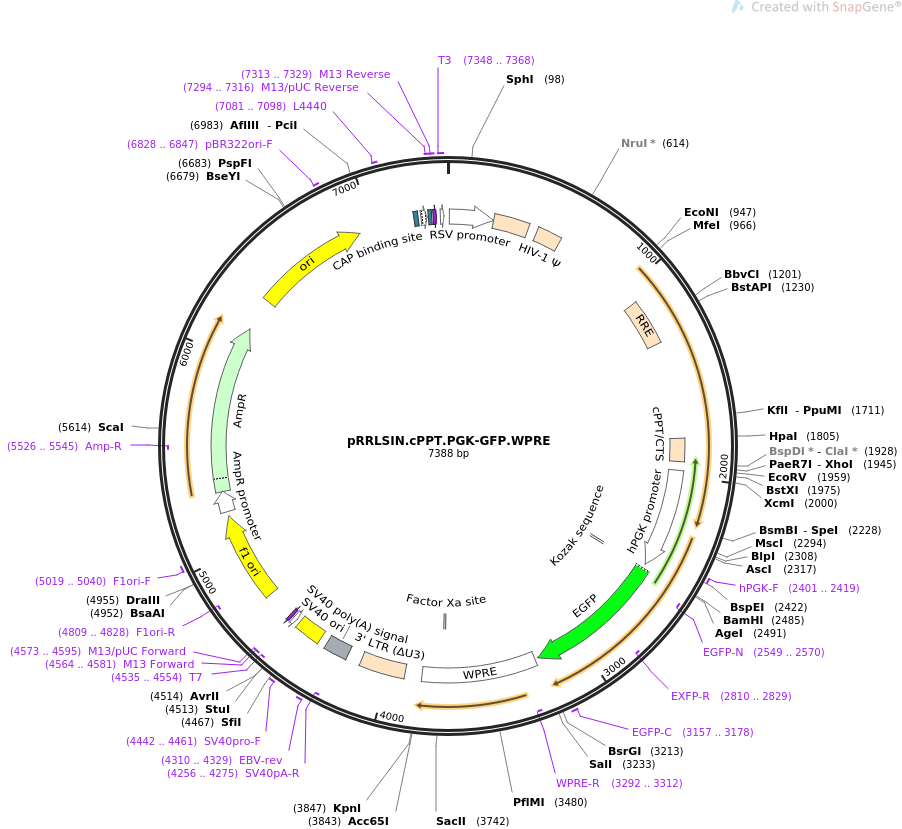

pRRLSIN.cPPT.PGK-GFP.WPRE质粒图谱

载体简介

载体序列

LOCUS       pRRLSIN.cPPT.PGK-GFP.WPRE                7388 bp ds-DNA     circular SYN 13-SEP-2018
DEFINITION  3rd generation lentiviral backbone.
ACCESSION   .
VERSION     .
KEYWORDS    pRRLSIN.cPPT.PGK-GFP.WPRE
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7388)
  TITLE     Trono Lab Misc Plasmids
REFERENCE   2  (bases 1 to 7388)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 13, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7388
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        8..234
                     /label=RSV promoter
                     /note="Rous sarcoma virus enhancer/promoter"
     LTR             235..415
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    462..587
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1080..1313
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1809..1926
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        1972..2482
                     /label=hPGK promoter
                     /note="human phosphoglycerate kinase 1 promoter"
     primer_bind     2401..2419
                     /label=hPGK-F
                     /note="Human PGK promoter, forward primer"
     regulatory      2498..2507
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             2504..3223
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(2549..2570)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(2810..2829)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     3157..3178
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     misc_feature    3239..3827
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(3292..3312)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(3710..3721)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             3914..4147
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4219..4340
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4256..4275)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4310..4329
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      4380..4515
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4442..4461
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(4535..4554)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(4536..4554)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(4564..4581)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(4564..4580)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4573..4595)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     rep_origin      4722..5177
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4809..4828)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     5019..5040
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     promoter        5203..5307
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5308..6168
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5526..5545)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      6339..6927
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6828..6847
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     7081..7098
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    7215..7236
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        7251..7281
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    7289..7305
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     7294..7316
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     7313..7329
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     7313..7329
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     7348..7368
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        7350..7368
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
ORIGIN
        1 agcttaatgt agtcttatgc aatactcttg tagtcttgca acatggtaac gatgagttag
       61 caacatgcct tacaaggaga gaaaaagcac cgtgcatgcc gattggtgga agtaaggtgg
      121 tacgatcgtg ccttattagg aaggcaacag acgggtctga catggattgg acgaaccact
      181 gaattgccgc attgcagaga tattgtattt aagtgcctag ctcgatacat aaacgggtct
      241 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt
      301 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac
      361 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc
      421 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc
      481 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa
      541 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg
      601 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata
      661 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc
      721 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga
      781 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc
      841 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca
      901 aaagtaagac caccgcacag caagcggccg ctgatcttca gacctggagg aggagatatg
      961 agggacaatt ggagaagtga attatataaa tataaagtag taaaaattga accattagga
     1021 gtagcaccca ccaaggcaaa gagaagagtg gtgcagagag aaaaaagagc agtgggaata
     1081 ggagctttgt tccttgggtt cttgggagca gcaggaagca ctatgggcgc agcgtcaatg
     1141 acgctgacgg tacaggccag acaattattg tctggtatag tgcagcagca gaacaatttg
     1201 ctgagggcta ttgaggcgca acagcatctg ttgcaactca cagtctgggg catcaagcag
     1261 ctccaggcaa gaatcctggc tgtggaaaga tacctaaagg atcaacagct cctggggatt
     1321 tggggttgct ctggaaaact catttgcacc actgctgtgc cttggaatgc tagttggagt
     1381 aataaatctc tggaacagat ttggaatcac acgacctgga tggagtggga cagagaaatt
     1441 aacaattaca caagcttaat acactcctta attgaagaat cgcaaaacca gcaagaaaag
     1501 aatgaacaag aattattgga attagataaa tgggcaagtt tgtggaattg gtttaacata
     1561 acaaattggc tgtggtatat aaaattattc ataatgatag taggaggctt ggtaggttta
     1621 agaatagttt ttgctgtact ttctatagtg aatagagtta ggcagggata ttcaccatta
     1681 tcgtttcaga cccacctccc aaccccgagg ggacccgaca ggcccgaagg aatagaagaa
     1741 gaaggtggag agagagacag agacagatcc attcgattag tgaacggatc tcgacggtat
     1801 cggttaactt ttaaaagaaa aggggggatt ggggggtaca gtgcagggga aagaatagta
     1861 gacataatag caacagacat acaaactaaa gaattacaaa aacaaattac aaaaattcaa
     1921 aattttatcg atcacgagac tagcctcgag aagcttgata tcgaattcca cggggttggg
     1981 gttgcgcctt ttccaaggca gccctgggtt tgcgcaggga cgcggctgct ctgggcgtgg
     2041 ttccgggaaa cgcagcggcg ccgaccctgg gtctcgcaca ttcttcacgt ccgttcgcag
     2101 cgtcacccgg atcttcgccg ctacccttgt gggccccccg gcgacgcttc ctgctccgcc
     2161 cctaagtcgg gaaggttcct tgcggttcgc ggcgtgccgg acgtgacaaa cggaagccgc
     2221 acgtctcact agtaccctcg cagacggaca gcgccaggga gcaatggcag cgcgccgacc
     2281 gcgatgggct gtggccaata gcggctgctc agcagggcgc gccgagagca gcggccggga
     2341 aggggcggtg cgggaggcgg ggtgtggggc ggtagtgtgg gccctgttcc tgcccgcgcg
     2401 gtgttccgca ttctgcaagc ctccggagcg cacgtcggca gtcggctccc tcgttgaccg
     2461 aatcaccgac ctctctcccc agggggatcc accggtcgcc accatggtga gcaagggcga
     2521 ggagctgttc accggggtgg tgcccatcct ggtcgagctg gacggcgacg taaacggcca
     2581 caagttcagc gtgtccggcg agggcgaggg cgatgccacc tacggcaagc tgaccctgaa
     2641 gttcatctgc accaccggca agctgcccgt gccctggccc accctcgtga ccaccctgac
     2701 ctacggcgtg cagtgcttca gccgctaccc cgaccacatg aagcagcacg acttcttcaa
     2761 gtccgccatg cccgaaggct acgtccagga gcgcaccatc ttcttcaagg acgacggcaa
     2821 ctacaagacc cgcgccgagg tgaagttcga gggcgacacc ctggtgaacc gcatcgagct
     2881 gaagggcatc gacttcaagg aggacggcaa catcctgggg cacaagctgg agtacaacta
     2941 caacagccac aacgtctata tcatggccga caagcagaag aacggcatca aggtgaactt
     3001 caagatccgc cacaacatcg aggacggcag cgtgcagctc gccgaccact accagcagaa
     3061 cacccccatc ggcgacggcc ccgtgctgct gcccgacaac cactacctga gcacccagtc
     3121 cgccctgagc aaagacccca acgagaagcg cgatcacatg gtcctgctgg agttcgtgac
     3181 cgccgccggg atcactctcg gcatggacga gctgtacaag taaagcggcc gcgtcgacaa
     3241 tcaacctctg gattacaaaa tttgtgaaag attgactggt attcttaact atgttgctcc
     3301 ttttacgcta tgtggatacg ctgctttaat gcctttgtat catgctattg cttcccgtat
     3361 ggctttcatt ttctcctcct tgtataaatc ctggttgctg tctctttatg aggagttgtg
     3421 gcccgttgtc aggcaacgtg gcgtggtgtg cactgtgttt gctgacgcaa cccccactgg
     3481 ttggggcatt gccaccacct gtcagctcct ttccgggact ttcgctttcc ccctccctat
     3541 tgccacggcg gaactcatcg ccgcctgcct tgcccgctgc tggacagggg ctcggctgtt
     3601 gggcactgac aattccgtgg tgttgtcggg gaagctgacg tcctttccat ggctgctcgc
     3661 ctgtgttgcc acctggattc tgcgcgggac gtccttctgc tacgtccctt cggccctcaa
     3721 tccagcggac cttccttccc gcggcctgct gccggctctg cggcctcttc cgcgtcttcg
     3781 ccttcgccct cagacgagtc ggatctccct ttgggccgcc tccccgcctg gaattcgagc
     3841 tcggtacctt taagaccaat gacttacaag gcagctgtag atcttagcca ctttttaaaa
     3901 gaaaaggggg gactggaagg gctaattcac tcccaacgaa gacaagatct gctttttgct
     3961 tgtactgggt ctctctggtt agaccagatc tgagcctggg agctctctgg ctaactaggg
     4021 aacccactgc ttaagcctca ataaagcttg ccttgagtgc ttcaagtagt gtgtgcccgt
     4081 ctgttgtgtg actctggtaa ctagagatcc ctcagaccct tttagtcagt gtggaaaatc
     4141 tctagcagta gtagttcatg tcatcttatt attcagtatt tataacttgc aaagaaatga
     4201 atatcagaga gtgagaggaa cttgtttatt gcagcttata atggttacaa ataaagcaat
     4261 agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg tggtttgtcc
     4321 aaactcatca atgtatctta tcatgtctgg ctctagctat cccgccccta actccgccca
     4381 tcccgcccct aactccgccc agttccgccc attctccgcc ccatggctga ctaatttttt
     4441 ttatttatgc agaggccgag gccgcctcgg cctctgagct attccagaag tagtgaggag
     4501 gcttttttgg aggcctaggg acgtacccaa ttcgccctat agtgagtcgt attacgcgcg
     4561 ctcactggcc gtcgttttac aacgtcgtga ctgggaaaac cctggcgtta cccaacttaa
     4621 tcgccttgca gcacatcccc ctttcgccag ctggcgtaat agcgaagagg cccgcaccga
     4681 tcgcccttcc caacagttgc gcagcctgaa tggcgaatgg gacgcgccct gtagcggcgc
     4741 attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg ccagcgccct
     4801 agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg gctttccccg
     4861 tcaagctcta aatcgggggc tccctttagg gttccgattt agtgctttac ggcacctcga
     4921 ccccaaaaaa cttgattagg gtgatggttc acgtagtggg ccatcgccct gatagacggt
     4981 ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt tccaaactgg
     5041 aacaacactc aaccctatct cggtctattc ttttgattta taagggattt tgccgatttc
     5101 ggcctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt ttaacaaaat
     5161 attaacgctt acaatttagg tggcactttt cggggaaatg tgcgcggaac ccctatttgt
     5221 ttatttttct aaatacattc aaatatgtat ccgctcatga gacaataacc ctgataaatg
     5281 cttcaataat attgaaaaag gaagagtatg agtattcaac atttccgtgt cgcccttatt
     5341 cccttttttg cggcattttg ccttcctgtt tttgctcacc cagaaacgct ggtgaaagta
     5401 aaagatgctg aagatcagtt gggtgcacga gtgggttaca tcgaactgga tctcaacagc
     5461 ggtaagatcc ttgagagttt tcgccccgaa gaacgttttc caatgatgag cacttttaaa
     5521 gttctgctat gtggcgcggt attatcccgt attgacgccg ggcaagagca actcggtcgc
     5581 cgcatacact attctcagaa tgacttggtt gagtactcac cagtcacaga aaagcatctt
     5641 acggatggca tgacagtaag agaattatgc agtgctgcca taaccatgag tgataacact
     5701 gcggccaact tacttctgac aacgatcgga ggaccgaagg agctaaccgc ttttttgcac
     5761 aacatggggg atcatgtaac tcgccttgat cgttgggaac cggagctgaa tgaagccata
     5821 ccaaacgacg agcgtgacac cacgatgcct gtagcaatgg caacaacgtt gcgcaaacta
     5881 ttaactggcg aactacttac tctagcttcc cggcaacaat taatagactg gatggaggcg
     5941 gataaagttg caggaccact tctgcgctcg gcccttccgg ctggctggtt tattgctgat
     6001 aaatctggag ccggtgagcg tgggtctcgc ggtatcattg cagcactggg gccagatggt
     6061 aagccctccc gtatcgtagt tatctacacg acggggagtc aggcaactat ggatgaacga
     6121 aatagacaga tcgctgagat aggtgcctca ctgattaagc attggtaact gtcagaccaa
     6181 gtttactcat atatacttta gattgattta aaacttcatt tttaatttaa aaggatctag
     6241 gtgaagatcc tttttgataa tctcatgacc aaaatccctt aacgtgagtt ttcgttccac
     6301 tgagcgtcag accccgtaga aaagatcaaa ggatcttctt gagatccttt ttttctgcgc
     6361 gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag cggtggtttg tttgccggat
     6421 caagagctac caactctttt tccgaaggta actggcttca gcagagcgca gataccaaat
     6481 actgttcttc tagtgtagcc gtagttaggc caccacttca agaactctgt agcaccgcct
     6541 acatacctcg ctctgctaat cctgttacca gtggctgctg ccagtggcga taagtcgtgt
     6601 cttaccgggt tggactcaag acgatagtta ccggataagg cgcagcggtc gggctgaacg
     6661 gggggttcgt gcacacagcc cagcttggag cgaacgacct acaccgaact gagataccta
     6721 cagcgtgagc tatgagaaag cgccacgctt cccgaaggga gaaaggcgga caggtatccg
     6781 gtaagcggca gggtcggaac aggagagcgc acgagggagc ttccaggggg aaacgcctgg
     6841 tatctttata gtcctgtcgg gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc
     6901 tcgtcagggg ggcggagcct atggaaaaac gccagcaacg cggccttttt acggttcctg
     6961 gccttttgct ggccttttgc tcacatgttc tttcctgcgt tatcccctga ttctgtggat
     7021 aaccgtatta ccgcctttga gtgagctgat accgctcgcc gcagccgaac gaccgagcgc
     7081 agcgagtcag tgagcgagga agcggaagag cgcccaatac gcaaaccgcc tctccccgcg
     7141 cgttggccga ttcattaatg cagctggcac gacaggtttc ccgactggaa agcgggcagt
     7201 gagcgcaacg caattaatgt gagttagctc actcattagg caccccaggc tttacacttt
     7261 atgcttccgg ctcgtatgtt gtgtggaatt gtgagcggat aacaatttca cacaggaaac
     7321 agctatgacc atgattacgc caagcgcgca attaaccctc actaaaggga acaaaagctg
     7381 gagctgca
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
