pT2/SVNeo

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pT2/SVNeo
出品公司: 爱迪基因
目录编号: 26553
存储实验室: Perry Hackett

载体骨架基本信息
载体名称: pUC19
载体出品公司: Invitrogen
载体抗性: 氨苄西林
空载体大小: 3712 bp
载体类型: 细菌表达
筛选标记: 新霉素(用G418选择)
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: pT2/SVNeo
插入大小: 4928bp
基因突变: 增加了RMUT(80、87、D101)
克隆方法: 限制性酶
5' 克隆位点: Ecori(未销毁)
3' 克隆位点: 八木(未销毁)
5' 测序引物 M13(-20)前进
3' 测序引物 M13 Reverse

文献引用方法
材料和方法部分: pT2/SVNeo was a gift from Perry Hackett (Addgene plasmid # 26553 ; http://n2t.net/addgene:26553 ; RRID:Addgene_26553)
参考文献部分: Structure-function analysis of the inverted terminal repeats of the sleeping beauty transposon. Cui Z, Geurts AM, Liu G, Kaufman CD, Hackett PB. J Mol Biol. 2002 May 17. 318(5):1221-35. 10.1016/S0022-2836(02)00237-1 PubMed 12083513

载体图谱质粒图谱和多克隆位点信息

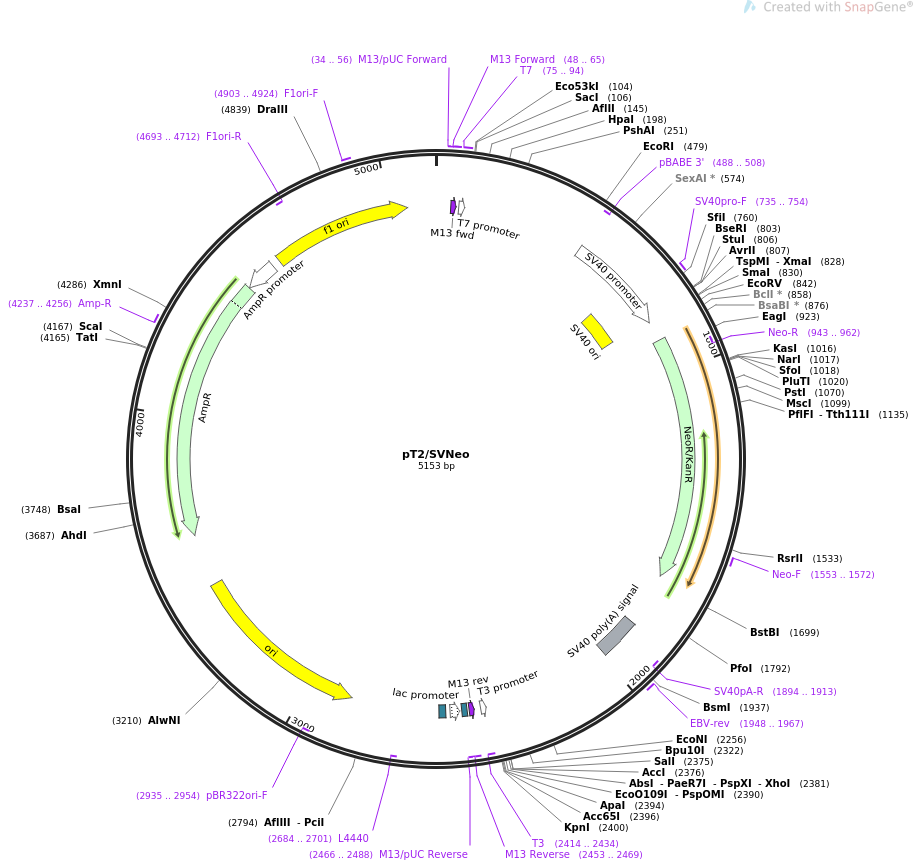

pT2-SVNeo质粒图谱

载体简介

载体序列

LOCUS       pT2/SVNeo                5153 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pT2/SVNeo
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5153)
  AUTHORS   Cui Z, Geurts AM, Liu G, Kaufman CD, Hackett PB
  TITLE     Structure-function analysis of the inverted terminal repeats of the
            sleeping beauty transposon.
  JOURNAL   J Mol Biol. 2002 May 17. 318(5):1221-35.
  PUBMED    12083513
REFERENCE   2  (bases 1 to 5153)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5153
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     34..56
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     48..65
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     49..65
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     75..94
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        75..93
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(488..508)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        493..822
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      673..808
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     735..754
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             889..1683
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(943..962)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     1553..1572
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    1857..1991
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1894..1913)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1948..1967
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(2414..2434)
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        complement(2414..2432)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(2453..2469)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2453..2469)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(2466..2488)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    2477..2493
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(2501..2531)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    2546..2567
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(2684..2701)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(2855..3443)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2935..2954)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(3614..4474)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     4237..4256
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(4475..4579)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      4606..5061
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4693..4712)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4903..4924
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
ORIGIN
        1 caaggcgatt aagttgggta acgccagggt tttcccagtc acgacgttgt aaaacgacgg
       61 ccagtgagcg cgcgtaatac gactcactat agggcgaatt ggagctcgga tccctataca
      121 gttgaagtcg gaagtttaca tacacttaag ttggagtcat taaaactcgt ttttcaacta
      181 ctccacaaat ttcttgttaa caaacaatag ttttggcaag tcagttagga catctacttt
      241 gtgcatgaca caagtcattt ttccaacaat tgtttacaga cagattattt cacttataat
      301 tcactgtatc acaattccag tgggtcagaa gtttacatac actaagttga ctgtgccttt
      361 aaacagcttg gaaaattcca gaaaatgatg tcatggcttt agaagcttcc cacaataagt
      421 tgggtgaatt ttggctcatt cctcctttct ataggattga ggtcagagct ttgtgatgga
      481 attctgtgga atgtgtgtca gttagggtgt ggaaagtccc caggctcccc agcaggcaga
      541 agtatgcaaa gcatgcatct caattagtca gcaaccaggt gtggaaagtc cccaggctcc
      601 ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccat agtcccgccc
      661 ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc gccccatggc
      721 tgactaattt tttttattta tgcagaggcc gaggccgcct cggcctctga gctattccag
      781 aagtagtgag gaggcttttt tggaggccta ggcttttgca aaaagctccc gggagcttgg
      841 atatccattt tcggatctga tcaagagaca ggatgaggat cgtttcgcat gattgaacaa
      901 gatggattgc acgcaggttc tccggccgct tgggtggaga ggctattcgg ctatgactgg
      961 gcacaacaga caatcggctg ctctgatgcc gccgtgttcc ggctgtcagc gcaggggcgc
     1021 ccggttcttt ttgtcaagac cgacctgtcc ggtgccctga atgaactgca ggacgaggca
     1081 gcgcggctat cgtggctggc cacgacgggc gttccttgcg cagctgtgct cgacgttgtc
     1141 actgaagcgg gaagggactg gctgctattg ggcgaagtgc cggggcagga tctcctgtca
     1201 tctcaccttg ctcctgccga gaaagtatcc atcatggctg atgcaatgcg gcggctgcat
     1261 acgcttgatc cggctacctg cccattcgac caccaagcga aacatcgcat cgagcgagca
     1321 cgtactcgga tggaagccgg tcttgtcgat caggatgatc tggacgaaga gcatcagggg
     1381 ctcgcgccag ccgaactgtt cgccaggctc aaggcgcgca tgcccgacgg cgaggatctc
     1441 gtcgtgaccc atggcgatgc ctgcttgccg aatatcatgg tggaaaatgg ccgcttttct
     1501 ggattcatcg actgtggccg gctgggtgtg gcggaccgct atcaggacat agcgttggct
     1561 acccgtgata ttgctgaaga gcttggcggc gaatgggctg accgcttcct cgtgctttac
     1621 ggtatcgccg ctcccgattc gcagcgcatc gccttctatc gccttcttga cgagttcttc
     1681 tgagcgggac tctggggttc gaaatgaccg accaagcgac gcccaacctg ccatcacgag
     1741 atttcgattc caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg
     1801 ccggctggat gatcctccag cgcggggatc tcatgctgga gttcttcgcc caccccaact
     1861 tgtttattgc agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata
     1921 aagcattttt ttcactgcat tctagttgtg gtttgtccaa actcatcaat gtatcttatc
     1981 atgtctggat cccttgaaat acatccacag gtacacctcc aattgactca aatgatgtca
     2041 attagtctat cagaagcttg tggaaggcta ctcgaaatgt ttgacccaag ttaaacaatt
     2101 taaaggcaat gctaccaaat actaattgag tgtatgtaaa cttctgaccc actgggaatg
     2161 tgatgaaaga aataaaagct gaaatgaatc attctctcta ctattattct gatatttcac
     2221 attcttaaaa taaagtggtg atcctaactg acctaagaca gggaattttt actaggatta
     2281 aatgtcagga attgtgaaaa agtgagttta aatgtatttg gctaaggtgt atgtaaactt
     2341 ccgacttcaa ctgtataggg atcctctagc tagagtcgac ctcgaggggg ggcccggtac
     2401 ccagcttttg ttccctttag tgagggttaa ttgcgcgctt ggcgtaatca tggtcatagc
     2461 tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga gccggaagca
     2521 taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt gcgttgcgct
     2581 cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac
     2641 gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc
     2701 tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt
     2761 tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg
     2821 ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg
     2881 agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat
     2941 accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta
     3001 ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct
     3061 gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc
     3121 ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa
     3181 gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg
     3241 taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact agaaggacag
     3301 tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt
     3361 gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta
     3421 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc
     3481 agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca
     3541 cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa
     3601 cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat
     3661 ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct
     3721 taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt
     3781 tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat
     3841 ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta
     3901 atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg
     3961 gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt
     4021 tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg
     4081 cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg
     4141 taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc
     4201 ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa
     4261 ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac
     4321 cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt
     4381 ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg
     4441 gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa
     4501 gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata
     4561 aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgcg ccctgtagcg
     4621 gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt gaccgctaca cttgccagcg
     4681 ccctagcgcc cgctcctttc gctttcttcc cttcctttct cgccacgttc gccggctttc
     4741 cccgtcaagc tctaaatcgg gggctccctt tagggttccg atttagtgct ttacggcacc
     4801 tcgaccccaa aaaacttgat tagggtgatg gttcacgtag tgggccatcg ccctgataga
     4861 cggtttttcg ccctttgacg ttggagtcca cgttctttaa tagtggactc ttgttccaaa
     4921 ctggaacaac actcaaccct atctcggtct attcttttga tttataaggg attttgccga
     4981 tttcggccta ttggttaaaa aatgagctga tttaacaaaa atttaacgcg aattttaaca
     5041 aaatattaac gcttacaatt tccattcgcc attcaggctg cgcaactgtt gggaagggcg
     5101 atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa gggggatgtg ctg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
