pmGFP

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pmGFP
出品公司: 爱迪基因
目录编号: 117926
存储实验室: Kumiko Ui-Tei

载体骨架基本信息
载体名称: pcDNA3.1
载体出品公司: Thermo Fisher Scientific
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pmGFP was a gift from Kumiko Ui-Tei (Addgene plasmid # 117926 ; http://n2t.net/addgene:117926 ; RRID:Addgene_117926)
参考文献部分: Differential Binding of Three Major Human ADAR Isoforms to Coding and Long Non-Coding Transcripts. Galipon J, Ishii R, Suzuki Y, Tomita M, Ui-Tei K. Genes (Basel). 2017 Feb 11;8(2). pii: genes8020068. doi: 10.3390/genes8020068. 10.3390/genes8020068 PubMed 28208661

载体图谱质粒图谱和多克隆位点信息

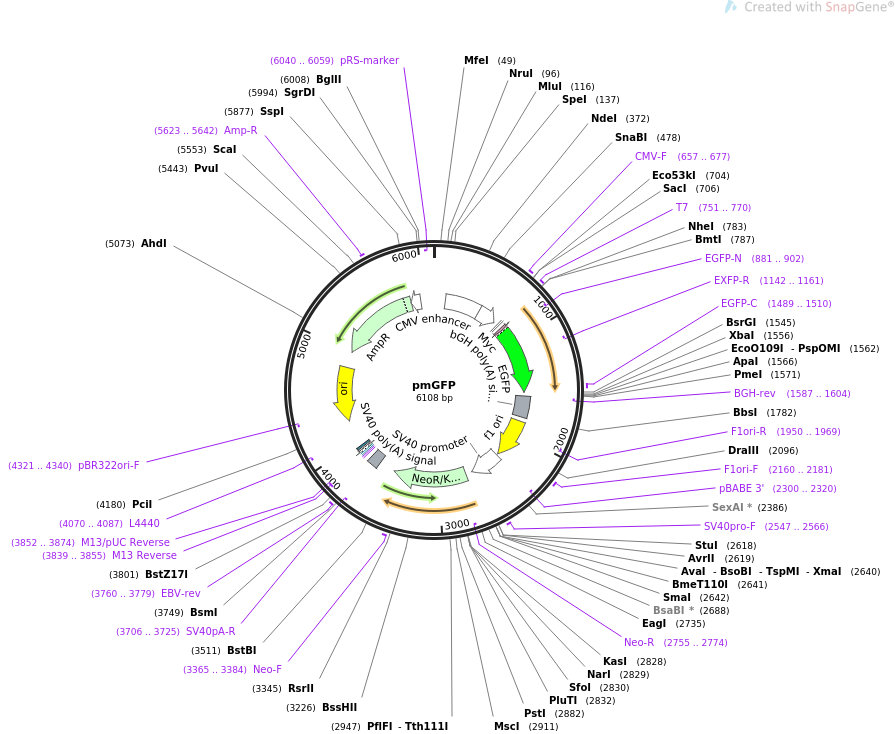

pmGFP质粒图谱

载体简介

载体序列

LOCUS       pmGFP                6108 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Control plasmid expressing myc-GFP..
ACCESSION   .
VERSION     .
KEYWORDS    pmGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6108)
  AUTHORS   Galipon J, Ishii R, Suzuki Y, Tomita M, Ui-Tei K
  TITLE     Differential Binding of Three Major Human ADAR Isoforms to Coding
            and Long Non-Coding Transcripts.
  JOURNAL   Genes (Basel). 2017 Feb 11;8(2). pii: genes8020068. doi:
            10.3390/genes8020068.
  PUBMED    28208661
REFERENCE   2  (bases 1 to 6108)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6108
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        123..502
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        503..706
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     657..677
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     751..770
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        751..769
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             797..826
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     CDS             836..1552
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(881..902)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(1142..1161)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     1489..1510
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     primer_bind     complement(1587..1604)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    1593..1817
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1863..2291
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1950..1969)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     2160..2181
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(2300..2320)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2305..2634
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2485..2620
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2547..2566
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2701..3495
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2755..2774)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3365..3384
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    3669..3790
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3706..3725)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3760..3779
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3839..3855)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3839..3855)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3852..3874)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3863..3879
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3887..3917)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3932..3953
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4070..4087)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4241..4829)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4321..4340)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5000..5860)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5623..5642
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5861..5965)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(6040..6059)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
ORIGIN
        1 gtagtgcgcg agcaaaattt aagctacaac aaggcaaggc ttgaccgaca attgcatgaa
       61 gaatctgctt agggttaggc gttttgcgct gcttcgcgat gtacgggcca gatatacgcg
      121 ttgacattga ttattgacta gttattaata gtaatcaatt acggggtcat tagttcatag
      181 cccatatatg gagttccgcg ttacataact tacggtaaat ggcccgcctg gctgaccgcc
      241 caacgacccc cgcccattga cgtcaataat gacgtatgtt cccatagtaa cgccaatagg
      301 gactttccat tgacgtcaat gggtggagta tttacggtaa actgcccact tggcagtaca
      361 tcaagtgtat catatgccaa gtacgccccc tattgacgtc aatgacggta aatggcccgc
      421 ctggcattat gcccagtaca tgaccttatg ggactttcct acttggcagt acatctacgt
      481 attagtcatc gctattacca tggtgatgcg gttttggcag tacatcaatg ggcgtggata
      541 gcggtttgac tcacggggat ttccaagtct ccaccccatt gacgtcaatg ggagtttgtt
      601 ttggcaccaa aatcaacggg actttccaaa atgtcgtaac aactccgccc cattgacgca
      661 aatgggcggt aggcgtgtac ggtgggaggt ctatataagc agagctctct ggctaactag
      721 agaacccact gcttactggc ttatcgaaat taatacgact cactataggg agacccaagc
      781 tggctagccc accatggaac aaaaactcat ctcagaagag gatctgtccg gcggcatggt
      841 gagcaagggc gaggagctgt tcaccggggt ggtgcccatc ctggtcgagc tggacggcga
      901 cgtaaacggc cacaagttca gcgtgtccgg cgagggcgag ggcgatgcca cctacggcaa
      961 gctgaccctg aagttcatct gcaccaccgg caagctgccc gtgccctggc ccaccctcgt
     1021 gaccaccctg acctacggcg tgcagtgctt cagccgctac cccgaccaca tgaagcagca
     1081 cgacttcttc aagtccgcca tgcccgaagg ctacgtccag gagcgcacca tcttcttcaa
     1141 ggacgacggc aactacaaga cccgcgccga ggtgaagttc gagggcgaca ccctggtgaa
     1201 ccgcatcgag ctgaagggca tcgacttcaa ggaggacggc aacatcctgg ggcacaagct
     1261 ggagtacaac tacaacagcc acaacgtcta tatcatggcc gacaagcaga agaacggcat
     1321 caaggtgaac ttcaagatcc gccacaacat cgaggacggc agcgtgcagc tcgccgacca
     1381 ctaccagcag aacaccccca tcggcgacgg ccccgtgctg ctgcccgaca accactacct
     1441 gagcacccag tccgccctga gcaaagaccc caacgagaag cgcgatcaca tggtcctgct
     1501 ggagttcgtg accgccgccg ggatcactct cggcatggac gagctgtaca agtagtctag
     1561 agggcccgtt taaacccgct gatcagcctc gactgtgcct tctagttgcc agccatctgt
     1621 tgtttgcccc tcccccgtgc cttccttgac cctggaaggt gccactccca ctgtcctttc
     1681 ctaataaaat gaggaaattg catcgcattg tctgagtagg tgtcattcta ttctgggggg
     1741 tggggtgggg caggacagca agggggagga ttgggaagac aatagcaggc atgctgggga
     1801 tgcggtgggc tctatggctt ctgaggcgga aagaaccagc tggggctcta gggggtatcc
     1861 ccacgcgccc tgtagcggcg cattaagcgc ggcgggtgtg gtggttacgc gcagcgtgac
     1921 cgctacactt gccagcgccc tagcgcccgc tcctttcgct ttcttccctt cctttctcgc
     1981 cacgttcgcc ggctttcccc gtcaagctct aaatcggggg ctccctttag ggttccgatt
     2041 tagtgcttta cggcacctcg accccaaaaa acttgattag ggtgatggtt cacgtagtgg
     2101 gccatcgccc tgatagacgg tttttcgccc tttgacgttg gagtccacgt tctttaatag
     2161 tggactcttg ttccaaactg gaacaacact caaccctatc tcggtctatt cttttgattt
     2221 ataagggatt ttgccgattt cggcctattg gttaaaaaat gagctgattt aacaaaaatt
     2281 taacgcgaat taattctgtg gaatgtgtgt cagttagggt gtggaaagtc cccaggctcc
     2341 ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccag gtgtggaaag
     2401 tccccaggct ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaacc
     2461 atagtcccgc ccctaactcc gcccatcccg cccctaactc cgcccagttc cgcccattct
     2521 ccgccccatg gctgactaat tttttttatt tatgcagagg ccgaggccgc ctctgcctct
     2581 gagctattcc agaagtagtg aggaggcttt tttggaggcc taggcttttg caaaaagctc
     2641 ccgggagctt gtatatccat tttcggatct gatcaagaga caggatgagg atcgtttcgc
     2701 atgattgaac aagatggatt gcacgcaggt tctccggccg cttgggtgga gaggctattc
     2761 ggctatgact gggcacaaca gacaatcggc tgctctgatg ccgccgtgtt ccggctgtca
     2821 gcgcaggggc gcccggttct ttttgtcaag accgacctgt ccggtgccct gaatgaactg
     2881 caggacgagg cagcgcggct atcgtggctg gccacgacgg gcgttccttg cgcagctgtg
     2941 ctcgacgttg tcactgaagc gggaagggac tggctgctat tgggcgaagt gccggggcag
     3001 gatctcctgt catctcacct tgctcctgcc gagaaagtat ccatcatggc tgatgcaatg
     3061 cggcggctgc atacgcttga tccggctacc tgcccattcg accaccaagc gaaacatcgc
     3121 atcgagcgag cacgtactcg gatggaagcc ggtcttgtcg atcaggatga tctggacgaa
     3181 gagcatcagg ggctcgcgcc agccgaactg ttcgccaggc tcaaggcgcg catgcccgac
     3241 ggcgaggatc tcgtcgtgac ccatggcgat gcctgcttgc cgaatatcat ggtggaaaat
     3301 ggccgctttt ctggattcat cgactgtggc cggctgggtg tggcggaccg ctatcaggac
     3361 atagcgttgg ctacccgtga tattgctgaa gagcttggcg gcgaatgggc tgaccgcttc
     3421 ctcgtgcttt acggtatcgc cgctcccgat tcgcagcgca tcgccttcta tcgccttctt
     3481 gacgagttct tctgagcggg actctggggt tcgaaatgac cgaccaagcg acgcccaacc
     3541 tgccatcacg agatttcgat tccaccgccg ccttctatga aaggttgggc ttcggaatcg
     3601 ttttccggga cgccggctgg atgatcctcc agcgcgggga tctcatgctg gagttcttcg
     3661 cccaccccaa cttgtttatt gcagcttata atggttacaa ataaagcaat agcatcacaa
     3721 atttcacaaa taaagcattt ttttcactgc attctagttg tggtttgtcc aaactcatca
     3781 atgtatctta tcatgtctgt ataccgtcga cctctagcta gagcttggcg taatcatggt
     3841 catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac atacgagccg
     3901 gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca ttaattgcgt
     3961 tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg
     4021 gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg
     4081 actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca aaggcggtaa
     4141 tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca aaaggccagc
     4201 aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg ctccgccccc
     4261 ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg acaggactat
     4321 aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc
     4381 cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt tctcatagct
     4441 cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg
     4501 aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc
     4561 cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt agcagagcga
     4621 ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc tacactagaa
     4681 gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa agagttggta
     4741 gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt tgcaagcagc
     4801 agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct acggggtctg
     4861 acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta tcaaaaagga
     4921 tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa agtatatatg
     4981 agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc tcagcgatct
     5041 gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact acgatacggg
     5101 agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc tcaccggctc
     5161 cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt ggtcctgcaa
     5221 ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta agtagttcgc
     5281 cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg tcacgctcgt
     5341 cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt acatgatccc
     5401 ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc agaagtaagt
     5461 tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt actgtcatgc
     5521 catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc tgagaatagt
     5581 gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc gcgccacata
     5641 gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa ctctcaagga
     5701 tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac tgatcttcag
     5761 catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa
     5821 aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt tttcaatatt
     5881 attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa tgtatttaga
     5941 aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct gacgtcgacg
     6001 gatcgggaga tctcccgatc ccctatggtg cactctcagt acaatctgct ctgatgccgc
     6061 atagttaagc cagtatctgc tccctgcttg tgtgttggag gtcgctga
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
