sfGFP-C1

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: sfGFP-C1
出品公司: addgene
目录编号: 54579
存储实验室: Michael Davidson, Geoffrey Waldo

载体骨架基本信息
载体名称: sfGFP-C1
空载体大小: 4750bp
完整质粒大小: 4731 bp
载体类型: 哺乳细胞表达
筛选标记: sfGFP (N terminal on backbone)
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: NO
标签/融合蛋白: sfGFP (N terminal on backbone)

文献引用方法
材料和方法部分:
参考文献部分:

载体图谱质粒图谱和多克隆位点信息

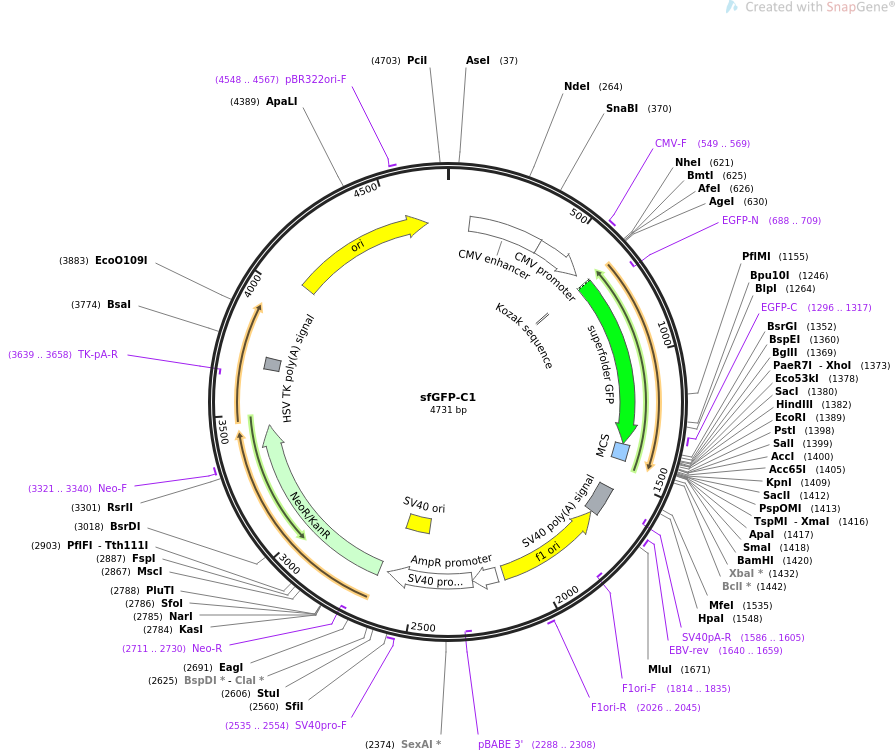

sfGFP-C1质粒图谱

载体简介

载体序列

LOCUS        sfGFP-C1                4731 bp ds-DNA     circular SYN 16-AUG-2021
DEFINITION  Localization: C1 Cloning Vector, Excitation: 485, Emission: 507.
ACCESSION   .
VERSION     .
KEYWORDS    sfGFP-C1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4731)
  AUTHORS   Pedelacq JD, Cabantous S, Tran T, Terwilliger TC, Waldo GS
  TITLE     Engineering and characterization of a superfolder green fluorescent
            protein.
  JOURNAL   Nat Biotechnol. 2006 Jan . 24(1):79-88.
  PUBMED    16369541
REFERENCE   2  (bases 1 to 4731)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 16, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4731
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        91..394
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        395..598
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     549..569
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      637..646
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             643..1359
                     /codon_start=1
                     /product="GFP variant that folds robustly even when fused
                     to poorly folded proteins (Pedelacq et al., 2006)"
                     /label=superfolder GFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDD
                     GTYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIK
                     ANFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLL
                     EFVTAAGITHGMDELYK"
     primer_bind     complement(688..709)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     1296..1317
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     misc_feature    1360..1425
                     /label=MCS
                     /note="multiple cloning site"
     polyA_signal    1549..1670
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1586..1605)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1640..1659
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(1677..2132)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1814..1835)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2026..2045
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2159..2263
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2265..2622
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2288..2308)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2473..2608
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2535..2554
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2657..3451
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2711..2730)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3321..3340
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3639..3658)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    3683..3730
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4059..4647
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4548..4567
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tctgtggata accgtattac cgccatgcat tagttattaa tagtaatcaa ttacggggtc
       61 attagttcat agcccatata tggagttccg cgttacataa cttacggtaa atggcccgcc
      121 tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg ttcccatagt
      181 aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt aaactgccca
      241 cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg tcaatgacgg
      301 taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc ctacttggca
      361 gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc agtacatcaa
      421 tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca ttgacgtcaa
      481 tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta acaactccgc
      541 cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa gcagagctgg
      601 tttagtgaac cgtcagatcc gctagcgcta ccggtcgcca ccatggtgag caagggcgag
      661 gagctgttca ccggggtggt gcccatcctg gtcgagctgg acggcgacgt aaacggccac
      721 aagttcagcg tgcgcggcga gggcgagggc gatgccacca acggcaagct gaccctgaag
      781 ttcatctgca ccaccggcaa gctgcccgtg ccctggccca ccctcgtgac caccctgacc
      841 tacggcgtgc agtgcttcag ccgctacccc gaccacatga agcgccacga cttcttcaag
      901 tccgccatgc ccgaaggcta cgtccaggag cgcaccatca gcttcaagga cgacggcacc
      961 tacaagaccc gcgccgaggt gaagttcgag ggcgacaccc tggtgaaccg catcgagctg
     1021 aagggcatcg acttcaagga ggacggcaac atcctggggc acaagctgga gtacaacttc
     1081 aacagccaca acgtctatat caccgccgac aagcagaaga acggcatcaa ggccaacttc
     1141 aagatccgcc acaacgtgga ggacggcagc gtgcagctcg ccgaccacta ccagcagaac
     1201 acccccatcg gcgacggccc cgtgctgctg cccgacaacc actacctgag cacccagtcc
     1261 gtgctgagca aagaccccaa cgagaagcgc gatcacatgg tcctgctgga gttcgtgacc
     1321 gccgccggga tcactcacgg catggacgag ctgtacaagt ccggactcag atctcgagct
     1381 caagcttcga attctgcagt cgacggtacc gcgggcccgg gatccaccgg atctagataa
     1441 ctgatcataa tcagccatac cacatttgta gaggttttac ttgctttaaa aaacctccca
     1501 cacctccccc tgaacctgaa acataaaatg aatgcaattg ttgttgttaa cttgtttatt
     1561 gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt
     1621 ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta acgcgtaaat
     1681 tgtaagcgtt aatattttgt taaaattcgc gttaaatttt tgttaaatca gctcattttt
     1741 taaccaatag gccgaaatcg gcaaaatccc ttataaatca aaagaataga ccgagatagg
     1801 gttgagtgtt gttccagttt ggaacaagag tccactatta aagaacgtgg actccaacgt
     1861 caaagggcga aaaaccgtct atcagggcga tggcccacta cgtgaaccat caccctaatc
     1921 aagttttttg gggtcgaggt gccgtaaagc actaaatcgg aaccctaaag ggagcccccg
     1981 atttagagct tgacggggaa agccggcgaa cgtggcgaga aaggaaggga agaaagcgaa
     2041 aggagcgggc gctagggcgc tggcaagtgt agcggtcacg ctgcgcgtaa ccaccacacc
     2101 cgccgcgctt aatgcgccgc tacagggcgc gtcaggtggc acttttcggg gaaatgtgcg
     2161 cggaacccct atttgtttat ttttctaaat acattcaaat atgtatccgc tcatgagaca
     2221 ataaccctga taaatgcttc aataatattg aaaaaggaag agtcctgagg cggaaagaac
     2281 cagctgtgga atgtgtgtca gttagggtgt ggaaagtccc caggctcccc agcaggcaga
     2341 agtatgcaaa gcatgcatct caattagtca gcaaccaggt gtggaaagtc cccaggctcc
     2401 ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccat agtcccgccc
     2461 ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc gccccatggc
     2521 tgactaattt tttttattta tgcagaggcc gaggccgcct cggcctctga gctattccag
     2581 aagtagtgag gaggcttttt tggaggccta ggcttttgca aagatcgatc aagagacagg
     2641 atgaggatcg tttcgcatga ttgaacaaga tggattgcac gcaggttctc cggccgcttg
     2701 ggtggagagg ctattcggct atgactgggc acaacagaca atcggctgct ctgatgccgc
     2761 cgtgttccgg ctgtcagcgc aggggcgccc ggttcttttt gtcaagaccg acctgtccgg
     2821 tgccctgaat gaactgcaag acgaggcagc gcggctatcg tggctggcca cgacgggcgt
     2881 tccttgcgca gctgtgctcg acgttgtcac tgaagcggga agggactggc tgctattggg
     2941 cgaagtgccg gggcaggatc tcctgtcatc tcaccttgct cctgccgaga aagtatccat
     3001 catggctgat gcaatgcggc ggctgcatac gcttgatccg gctacctgcc cattcgacca
     3061 ccaagcgaaa catcgcatcg agcgagcacg tactcggatg gaagccggtc ttgtcgatca
     3121 ggatgatctg gacgaagagc atcaggggct cgcgccagcc gaactgttcg ccaggctcaa
     3181 ggcgagcatg cccgacggcg aggatctcgt cgtgacccat ggcgatgcct gcttgccgaa
     3241 tatcatggtg gaaaatggcc gcttttctgg attcatcgac tgtggccggc tgggtgtggc
     3301 ggaccgctat caggacatag cgttggctac ccgtgatatt gctgaagagc ttggcggcga
     3361 atgggctgac cgcttcctcg tgctttacgg tatcgccgct cccgattcgc agcgcatcgc
     3421 cttctatcgc cttcttgacg agttcttctg agcgggactc tggggttcga aatgaccgac
     3481 caagcgacgc ccaacctgcc atcacgagat ttcgattcca ccgccgcctt ctatgaaagg
     3541 ttgggcttcg gaatcgtttt ccgggacgcc ggctggatga tcctccagcg cggggatctc
     3601 atgctggagt tcttcgccca ccctaggggg aggctaactg aaacacggaa ggagacaata
     3661 ccggaaggaa cccgcgctat gacggcaata aaaagacaga ataaaacgca cggtgttggg
     3721 tcgtttgttc ataaacgcgg ggttcggtcc cagggctggc actctgtcga taccccaccg
     3781 agaccccatt ggggccaata cgcccgcgtt tcttcctttt ccccacccca ccccccaagt
     3841 tcgggtgaag gcccagggct cgcagccaac gtcggggcgg caggccctgc catagcctca
     3901 ggttactcat atatacttta gattgattta aaacttcatt tttaatttaa aaggatctag
     3961 gtgaagatcc tttttgataa tctcatgacc aaaatccctt aacgtgagtt ttcgttccac
     4021 tgagcgtcag accccgtaga aaagatcaaa ggatcttctt gagatccttt ttttctgcgc
     4081 gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag cggtggtttg tttgccggat
     4141 caagagctac caactctttt tccgaaggta actggcttca gcagagcgca gataccaaat
     4201 actgttcttc tagtgtagcc gtagttaggc caccacttca agaactctgt agcaccgcct
     4261 acatacctcg ctctgctaat cctgttacca gtggctgctg ccagtggcga taagtcgtgt
     4321 cttaccgggt tggactcaag acgatagtta ccggataagg cgcagcggtc gggctgaacg
     4381 gggggttcgt gcacacagcc cagcttggag cgaacgacct acaccgaact gagataccta
     4441 cagcgtgagc tatgagaaag cgccacgctt cccgaaggga gaaaggcgga caggtatccg
     4501 gtaagcggca gggtcggaac aggagagcgc acgagggagc ttccaggggg aaacgcctgg
     4561 tatctttata gtcctgtcgg gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc
     4621 tcgtcagggg ggcggagcct atggaaaaac gccagcaacg cggccttttt acggttcctg
     4681 gccttttgct ggccttttgc tcacatgttc tttcctgcgt tatcccctga t
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
