LeGO-Y

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: LeGO-Y
出品公司: 爱迪基因
目录编号: 27357
存储实验室: Boris Fehse

载体骨架基本信息
载体名称: LeGO
载体抗性: 氨苄霉素
空载体大小: 6747 bp
载体类型: 哺乳细胞表达,慢病毒
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: U6 promoter, SFFV promoter, eYFP
插入大小: 720 bp
克隆方法: 限制性内切酶
5' 克隆位点: BamHI (未破坏)
3' 克隆位点: EcoRI (未破坏)
5' 测序引物 GAGCTCACAACCCCTCACTC

文献引用方法
材料和方法部分: LeGO-Y was a gift from Boris Fehse (Addgene plasmid # 27357)
参考文献部分:
A multicolor panel of novel lentiviral "gene ontology" (LeGO) vectors for functional gene analysis. Weber K, Bartsch U, Stocking C, Fehse B. Mol Ther. 2008 Apr . 16(4):698-706. 10.1038/mt.2008.6 PubMed 18362927

载体图谱质粒图谱和多克隆位点信息

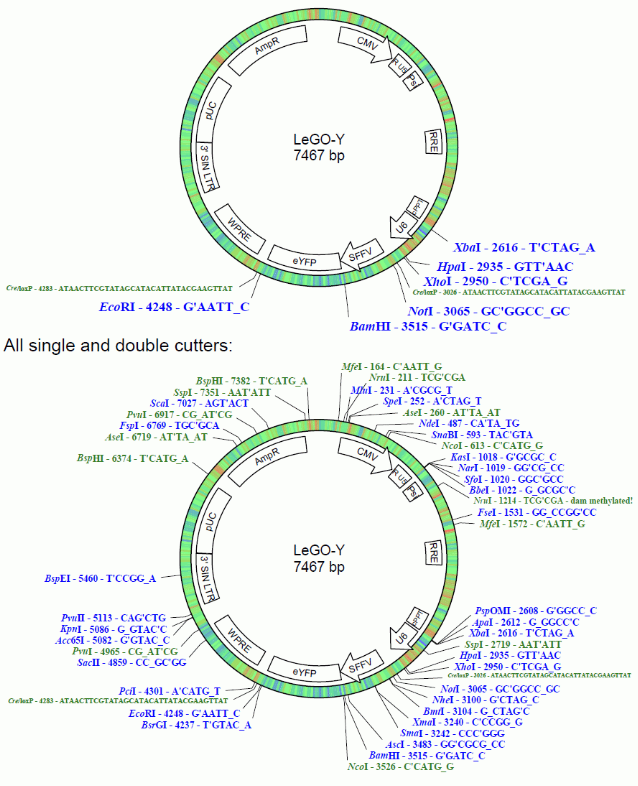

LeGO-Y载体图谱

载体简介

载体序列

LOCUS       LeGO-Y	7467 bp 	DNA	SYN
DEFINITION  LeGO-Y
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7467
                     /organism="LeGO-Y"
                     /mol_type="other DNA"
     promoter        239..815
                     /label="CMV_immearly_promoter"
     misc_feature    318..605
                     /label="CAG_enhancer"
     misc_feature    772..792
                     /label="CMV_fwd_primer"
     misc_feature    835..1015
                     /label="HIV-1_5_LTR"
     misc_feature    835..1015
                     /label="truncHIV-1_3_LTR"
     misc_feature    1126..1170
                     /label="HIV-1_psi_pack"
     CDS             1564..2451
                     /label="ORF frame 1"
     misc_feature    1686..1919
                     /label="RRE"
     misc_feature    2450..2465
                     /label="cPPT"
     misc_feature    2951..2967
                     /label="pBluescriptKS_primer"
     misc_feature    3010..3043
                     /label="loxP"
     CDS             complement(3408..4283)
                     /label="ORF frame 2"
     CDS             3528..4247
                     /label="ORF frame 3"
     gene            3531..4238
                     /label="EYFP"
                     /gene="EYFP"
     misc_feature    complement(3573..3594)
                     /label="EGFP_N_primer"
     misc_feature    4119..4157
                     /label="T203Y (EYFP)"
     misc_feature    4181..4202
                     /label="EGFP_C_primer"
     misc_feature    4267..4300
                     /label="loxP"
     misc_feature    4358..4945
                     /label="WPRE"
     CDS             4446..5000
                     /label="ORF frame 3"
     CDS             4459..5499
                     /label="ORF frame 1"
     misc_feature    complement(4948..4964)
                     /label="pBluescriptKS_primer"
     misc_feature    5136..5151
                     /label="cPPT"
     misc_feature    5136..5157
                     /label="U3PPT"
     misc_feature    5473..5653
                     /label="HIV-1_5_LTR"
     misc_feature    5473..5653
                     /label="truncHIV-1_3_LTR"
     gene            complement(6474..7334)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(6474..7334)
                     /label="ORF frame 2"
     promoter        complement(7376..7404)
                     /label="AmpR_promoter"
ORIGIN
    1 GTCGACGGAT CGGGAGATCT CCCGATCCCC TATGGTGCAC TCTCAGTACA ATCTGCTCTG
   61 ATGCCGCATA GTTAAGCCAG TATCTGCTCC CTGCTTGTGT GTTGGAGGTC GCTGAGTAGT
  121 GCGCGAGCAA AATTTAAGCT ACAACAAGGC AAGGCTTGAC CGACAATTGC ATGAAGAATC
  181 TGCTTAGGGT TAGGCGTTTT GCGCTGCTTC GCGATGTACG GGCCAGATAT ACGCGTTGAC
  241 ATTGATTATT GACTAGTTAT TAATAGTAAT CAATTACGGG GTCATTAGTT CATAGCCCAT
  301 ATATGGAGTT CCGCGTTACA TAACTTACGG TAAATGGCCC GCCTGGCTGA CCGCCCAACG
  361 ACCCCCGCCC ATTGACGTCA ATAATGACGT ATGTTCCCAT AGTAACGCCA ATAGGGACTT
  421 TCCATTGACG TCAATGGGTG GAGTATTTAC GGTAAACTGC CCACTTGGCA GTACATCAAG
  481 TGTATCATAT GCCAAGTACG CCCCCTATTG ACGTCAATGA CGGTAAATGG CCCGCCTGGC
  541 ATTATGCCCA GTACATGACC TTATGGGACT TTCCTACTTG GCAGTACATC TACGTATTAG
  601 TCATCGCTAT TACCATGGTG ATGCGGTTTT GGCAGTACAT CAATGGGCGT GGATAGCGGT
  661 TTGACTCACG GGGATTTCCA AGTCTCCACC CCATTGACGT CAATGGGAGT TTGTTTTGGC
  721 ACCAAAATCA ACGGGACTTT CCAAAATGTC GTAACAACTC CGCCCCATTG ACGCAAATGG
  781 GCGGTAGGCG TGTACGGTGG GAGGTCTATA TAAGCAGCGC GTTTTGCCTG TACTGGGTCT
  841 CTCTGGTTAG ACCAGATCTG AGCCTGGGAG CTCTCTGGCT AACTAGGGAA CCCACTGCTT
  901 AAGCCTCAAT AAAGCTTGCC TTGAGTGCTT CAAGTAGTGT GTGCCCGTCT GTTGTGTGAC
  961 TCTGGTAACT AGAGATCCCT CAGACCCTTT TAGTCAGTGT GGAAAATCTC TAGCAGTGGC
 1021 GCCCGAACAG GGACTTGAAA GCGAAAGGGA AACCAGAGGA GCTCTCTCGA CGCAGGACTC
 1081 GGCTTGCTGA AGCGCGCACG GCAAGAGGCG AGGGGCGGCG ACTGGTGAGT ACGCCAAAAA
 1141 TTTTGACTAG CGGAGGCTAG AAGGAGAGAG ATGGGTGCGA GAGCGTCAGT ATTAAGCGGG
 1201 GGAGAATTAG ATCGCGATGG GAAAAAATTC GGTTAAGGCC AGGGGGAAAG AAAAAATATA
 1261 AATTAAAACA TATAGTATGG GCAAGCAGGG AGCTAGAACG ATTCGCAGTT AATCCTGGCC
 1321 TGTTAGAAAC ATCAGAAGGC TGTAGACAAA TACTGGGACA GCTACAACCA TCCCTTCAGA
 1381 CAGGATCAGA AGAACTTAGA TCATTATATA ATACAGTAGC AACCCTCTAT TGTGTGCATC
 1441 AAAGGATAGA GATAAAAGAC ACCAAGGAAG CTTTAGACAA GATAGAGGAA GAGCAAAACA
 1501 AAAGTAAGAC CACCGCACAG CAAGCGGCCG GCCGCGCTGA TCTTCAGACC TGGAGGAGGA
 1561 GATATGAGGG ACAATTGGAG AAGTGAATTA TATAAATATA AAGTAGTAAA AATTGAACCA
 1621 TTAGGAGTAG CACCCACCAA GGCAAAGAGA AGAGTGGTGC AGAGAGAAAA AAGAGCAGTG
 1681 GGAATAGGAG CTTTGTTCCT TGGGTTCTTG GGAGCAGCAG GAAGCACTAT GGGCGCAGCG
 1741 TCAATGACGC TGACGGTACA GGCCAGACAA TTATTGTCTG GTATAGTGCA GCAGCAGAAC
 1801 AATTTGCTGA GGGCTATTGA GGCGCAACAG CATCTGTTGC AACTCACAGT CTGGGGCATC
 1861 AAGCAGCTCC AGGCAAGAAT CCTGGCTGTG GAAAGATACC TAAAGGATCA ACAGCTCCTG
 1921 GGGATTTGGG GTTGCTCTGG AAAACTCATT TGCACCACTG CTGTGCCTTG GAATGCTAGT
 1981 TGGAGTAATA AATCTCTGGA ACAGATTTGG AATCACACGA CCTGGATGGA GTGGGACAGA
 2041 GAAATTAACA ATTACACAAG CTTAATACAC TCCTTAATTG AAGAATCGCA AAACCAGCAA
 2101 GAAAAGAATG AACAAGAATT ATTGGAATTA GATAAATGGG CAAGTTTGTG GAATTGGTTT
 2161 AACATAACAA ATTGGCTGTG GTATATAAAA TTATTCATAA TGATAGTAGG AGGCTTGGTA
 2221 GGTTTAAGAA TAGTTTTTGC TGTACTTTCT ATAGTGAATA GAGTTAGGCA GGGATATTCA
 2281 CCATTATCGT TTCAGACCCA CCTCCCAACC CCGAGGGGAC CCGACAGGCC CGAAGGAATA
 2341 GAAGAAGAAG GTGGAGAGAG AGACAGAGAC AGATCCATTC GATTAGTGAA CGGATCGGCA
 2401 CTGCGTGCGC CAATTCTGCA GACAAATGGC AGTATTCATC CACAATTTTA AAAGAAAAGG
 2461 GGGGATTGGG GGGTACAGTG CAGGGGAAAG AATAGTAGAC ATAATAGCAA CAGACATACA
 2521 AACTAAAGAA TTACAAAAAC AAATTACAAA AATTCAAAAT TTTCGGGTTT ATTACAGGGA
 2581 CAGCAGAGAT CCAGTTTGGT TAGTACCGGG CCCGCTCTAG AGATCCGACG CCGCCATCTC
 2641 TAGGCCCGCG CCGGCCCCCT CGCACAGACT TGTGGGAGAA GCTCGGCTAC TCCCCTGCCC
 2701 CGGTTAATTT GCATATAATA TTTCCTAGTA ACTATAGAGG CTTAATGTGC GATAAAAGAC
 2761 AGATAATCTG TTCTTTTTAA TACTAGCTAC ATTTTACATG ATAGGCTTGG ATTTCTATAA
 2821 GAGATACAAA TACTAAATTA TTATTTTAAA AAACAGCACA AAAGGAAACT CACCCTAACT
 2881 GTAAAGTAAT TGTGTGTTTT GAGACTATAA ATATCCCTTG GAGAAAAGCC TTGTTAACGC
 2941 GCGGTGACCC TCGAGGTCGA CGGTATCGAT AAGCTCGCTT CACGAGATTC CAGCAGGTCG
 3001 AGGGACCTAA TAACTTCGTA TAGCATACAT TATACGAAGT TATATTAAGG GTTCCAAGCT
 3061 TAAGCGGCCG CTGAAAGACC CCACCTGTAG GTTTGGCAAG CTAGCTGCAG TAACGCCATT
 3121 TTGCAAGGCA TGGAAAAATA CCAAACCAAG AATAGAGAAG TTCAGATCAA GGGCGGGTAC
 3181 ATGAAAATAG CTAACGTTGG GCCAAACAGG ATATCTGCGG TGAGCAGTTT CGGCCCCGGC
 3241 CCGGGGCCAA GAACAGATGG TCACCGCAGT TTCGGCCCCG GCCCGAGGCC AAGAACAGAT
 3301 GGTCCCCAGA TATGGCCCAA CCCTCAGCAG TTTCTTAAGA CCCATCAGAT GTTTCCAGGC
 3361 TCCCCCAAGG ACCTGAAATG ACCCTGCGCC TTATTTGAAT TAACCAATCA GCCTGCTTCT
 3421 CGCTTCTGTT CGCGCGCTTC TGCTTCCCGA GCTCTATAAA AGAGCTCACA ACCCCTCACT
 3481 CGGCGCGCCA GTCCTCCGAT TGACTGAGTC GCCCGGATCC CGCCACCATG GTGAGCAAGG
 3541 GCGAGGAGCT GTTCACCGGG GTGGTGCCCA TCCTGGTCGA GCTGGACGGC GACGTAAACG
 3601 GCCACAAGTT CAGCGTGTCC GGCGAGGGCG AGGGCGATGC CACCTACGGC AAGCTGACCC
 3661 TGAAGTTCAT CTGCACCACC GGCAAGCTGC CCGTGCCCTG GCCCACCCTC GTGACCACCT
 3721 TCGGCTACGG CCTGCAGTGC TTCGCCCGCT ACCCCGACCA CATGAAGCAG CACGACTTCT
 3781 TCAAGTCCGC CATGCCCGAA GGCTACGTCC AGGAGCGCAC CATCTTCTTC AAGGACGACG
 3841 GCAACTACAA GACCCGCGCC GAGGTGAAGT TCGAGGGCGA CACCCTGGTG AACCGCATCG
 3901 AGCTGAAGGG CATCGACTTC AAGGAGGACG GCAACATCCT GGGGCACAAG CTGGAGTACA
 3961 ACTACAACAG CCACAACGTC TATATCATGG CCGACAAGCA GAAGAACGGC ATCAAGGTGA
 4021 ACTTCAAGAT CCGCCACAAC ATCGAGGACG GCAGCGTGCA GCTCGCCGAC CACTACCAGC
 4081 AGAACACCCC CATCGGCGAC GGCCCCGTGC TGCTGCCCGA CAACCACTAC CTGAGCTACC
 4141 AGTCCGCCCT GAGCAAAGAC CCCAACGAGA AGCGCGATCA CATGGTCCTG CTGGAGTTCG
 4201 TGACCGCCGC CGGGATCACT CTCGGCATGG ACGAGCTGTA CAAGTAAGAA TTCGTCGAGG
 4261 GACCTAATAA CTTCGTATAG CATACATTAT ACGAAGTTAT ACATGTTTAA GGGTTCCGGT
 4321 TCCACTAGGT ACAATTCGAT ATCAAGCTTA TCGATAATCA ACCTCTGGAT TACAAAATTT
 4381 GTGAAAGATT GACTGGTATT CTTAACTATG TTGCTCCTTT TACGCTATGT GGATACGCTG
 4441 CTTTAATGCC TTTGTATCAT GCTATTGCTT CCCGTATGGC TTTCATTTTC TCCTCCTTGT
 4501 ATAAATCCTG GTTGCTGTCT CTTTATGAGG AGTTGTGGCC CGTTGTCAGG CAACGTGGCG
 4561 TGGTGTGCAC TGTGTTTGCT GACGCAACCC CCACTGGTTG GGGCATTGCC ACCACCTGTC
 4621 AGCTCCTTTC CGGGACTTTC GCTTTCCCCC TCCCTATTGC CACGGCGGAA CTCATCGCCG
 4681 CCTGCCTTGC CCGCTGCTGG ACAGGGGCTC GGCTGTTGGG CACTGACAAT TCCGTGGTGT
 4741 TGTCGGGGAA ATCATCGTCC TTTCCTTGGC TGCTCGCCTG TGTTGCCACC TGGATTCTGC
 4801 GCGGGACGTC CTTCTGCTAC GTCCCTTCGG CCCTCAATCC AGCGGACCTT CCTTCCCGCG
 4861 GCCTGCTGCC GGCTCTGCGG CCTCTTCCGC GTCTTCGCCT TCGCCCTCAG ACGAGTCGGA
 4921 TCTCCCTTTG GGCCGCCTCC CCGCATCGAT ACCGTCGACC TCGATCGAGA CCTAGAAAAA
 4981 CATGGAGCAA TCACAAGTAG CAATACAGCA GCTACCAATG CTGATTGTGC CTGGCTAGAA
 5041 GCACAAGAGG AGGAGGAGGT GGGTTTTCCA GTCACACCTC AGGTACCTTT AAGACCAATG
 5101 ACTTACAAGG CAGCTGTAGA TCTTAGCCAC TTTTTAAAAG AAAAGGGGGG ACTGGAAGGG
 5161 CTAATTCACT CCCAACGAAG ACAAGATATC CTTGATCTGT GGATCTACCA CACACAAGGC
 5221 TACTTCCCTG ATTGGCAGAA CTACACACCA GGGCCAGGGA TCAGATATCC ACTGACCTTT
 5281 GGATGGTGCT ACAAGCTAGT ACCAGTTGAG CAAGAGAAGG TAGAAGAAGC CAATGAAGGA
 5341 GAGAACACCC GCTTGTTACA CCCTGTGAGC CTGCATGGGA TGGATGACCC GGAGAGAGAA
 5401 GTATTAGAGT GGAGGTTTGA CAGCCGCCTA GCATTTCATC ACATGGCCCG AGAGCTGCAT
 5461 CCGGACTGTA CTGGGTCTCT CTGGTTAGAC CAGATCTGAG CCTGGGAGCT CTCTGGCTAA
 5521 CTAGGGAACC CACTGCTTAA GCCTCAATAA AGCTTGCCTT GAGTGCTTCA AGTAGTGTGT
 5581 GCCCGTCTGT TGTGTGACTC TGGTAACTAG AGATCCCTCA GACCCTTTTA GTCAGTGTGG
 5641 AAAATCTCTA GCAGCATGTG AGCAAAAGGC CAGCAAAAGG CCAGGAACCG TAAAAAGGCC
 5701 GCGTTGCTGG CGTTTTTCCA TAGGCTCCGC CCCCCTGACG AGCATCACAA AAATCGACGC
 5761 TCAAGTCAGA GGTGGCGAAA CCCGACAGGA CTATAAAGAT ACCAGGCGTT TCCCCCTGGA
 5821 AGCTCCCTCG TGCGCTCTCC TGTTCCGACC CTGCCGCTTA CCGGATACCT GTCCGCCTTT
 5881 CTCCCTTCGG GAAGCGTGGC GCTTTCTCAT AGCTCACGCT GTAGGTATCT CAGTTCGGTG
 5941 TAGGTCGTTC GCTCCAAGCT GGGCTGTGTG CACGAACCCC CCGTTCAGCC CGACCGCTGC
 6001 GCCTTATCCG GTAACTATCG TCTTGAGTCC AACCCGGTAA GACACGACTT ATCGCCACTG
 6061 GCAGCAGCCA CTGGTAACAG GATTAGCAGA GCGAGGTATG TAGGCGGTGC TACAGAGTTC
 6121 TTGAAGTGGT GGCCTAACTA CGGCTACACT AGAAGAACAG TATTTGGTAT CTGCGCTCTG
 6181 CTGAAGCCAG TTACCTTCGG AAAAAGAGTT GGTAGCTCTT GATCCGGCAA ACAAACCACC
 6241 GCTGGTAGCG GTGGTTTTTT TGTTTGCAAG CAGCAGATTA CGCGCAGAAA AAAAGGATCT
 6301 CAAGAAGATC CTTTGATCTT TTCTACGGGG TCTGACGCTC AGTGGAACGA AAACTCACGT
 6361 TAAGGGATTT TGGTCATGAG ATTATCAAAA AGGATCTTCA CCTAGATCCT TTTAAATTAA
 6421 AAATGAAGTT TTAAATCAAT CTAAAGTATA TATGAGTAAA CTTGGTCTGA CAGTTACCAA
 6481 TGCTTAATCA GTGAGGCACC TATCTCAGCG ATCTGTCTAT TTCGTTCATC CATAGTTGCC
 6541 TGACTCCCCG TCGTGTAGAT AACTACGATA CGGGAGGGCT TACCATCTGG CCCCAGTGCT
 6601 GCAATGATAC CGCGAGACCC ACGCTCACCG GCTCCAGATT TATCAGCAAT AAACCAGCCA
 6661 GCCGGAAGGG CCGAGCGCAG AAGTGGTCCT GCAACTTTAT CCGCCTCCAT CCAGTCTATT
 6721 AATTGTTGCC GGGAAGCTAG AGTAAGTAGT TCGCCAGTTA ATAGTTTGCG CAACGTTGTT
 6781 GCCATTGCTA CAGGCATCGT GGTGTCACGC TCGTCGTTTG GTATGGCTTC ATTCAGCTCC
 6841 GGTTCCCAAC GATCAAGGCG AGTTACATGA TCCCCCATGT TGTGCAAAAA AGCGGTTAGC
 6901 TCCTTCGGTC CTCCGATCGT TGTCAGAAGT AAGTTGGCCG CAGTGTTATC ACTCATGGTT
 6961 ATGGCAGCAC TGCATAATTC TCTTACTGTC ATGCCATCCG TAAGATGCTT TTCTGTGACT
 7021 GGTGAGTACT CAACCAAGTC ATTCTGAGAA TAGTGTATGC GGCGACCGAG TTGCTCTTGC
 7081 CCGGCGTCAA TACGGGATAA TACCGCGCCA CATAGCAGAA CTTTAAAAGT GCTCATCATT
 7141 GGAAAACGTT CTTCGGGGCG AAAACTCTCA AGGATCTTAC CGCTGTTGAG ATCCAGTTCG
 7201 ATGTAACCCA CTCGTGCACC CAACTGATCT TCAGCATCTT TTACTTTCAC CAGCGTTTCT
 7261 GGGTGAGCAA AAACAGGAAG GCAAAATGCC GCAAAAAAGG GAATAAGGGC GACACGGAAA
 7321 TGTTGAATAC TCATACTCTT CCTTTTTCAA TATTATTGAA GCATTTATCA GGGTTATTGT
 7381 CTCATGAGCG GATACATATT TGAATGTATT TAGAAAAATA AACAAATAGG GGTTCCGCGC
 7441 ACATTTCCCC GAAAAGTGCC ACCTGAC
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
