pAAP2

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pAAP2
出品公司: 爱迪基因
目录编号: 73211
存储实验室: Luk Vandenberghe

载体骨架基本信息
载体名称: pcDNA3
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳动物表达,AAV
筛选标记: 新霉素G418
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: AAP2
物种来源: AAV2
插入大小: 612 bp
基因突变: --
GenBank编号 --
启动子 CMV
标签/融合蛋白: --
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 T7
3' 测序引物 --

文献引用方法
材料和方法部分: pAAP2 was a gift from Luk Vandenberghe (Addgene plasmid # 73211 ; http://n2t.net/addgene:73211 ; RRID:Addgene_73211)
参考文献部分: In Silico Reconstruction of the Viral Evolutionary Lineage Yields a Potent Gene Therapy Vector. Zinn E, Pacouret S, Khaychuk V, Turunen HT, Carvalho LS, Andres-Mateos E, Shah S, Shelke R, Maurer AC, Plovie E, Xiao R, Vandenberghe LH. Cell Rep. 2015 Jul 28. pii: S2211-1247(15)00759-7. doi: 10.1016/j.celrep.2015.07.019. 10.1016/j.celrep.2015.07.019 PubMed 26235624

载体图谱质粒图谱和多克隆位点信息

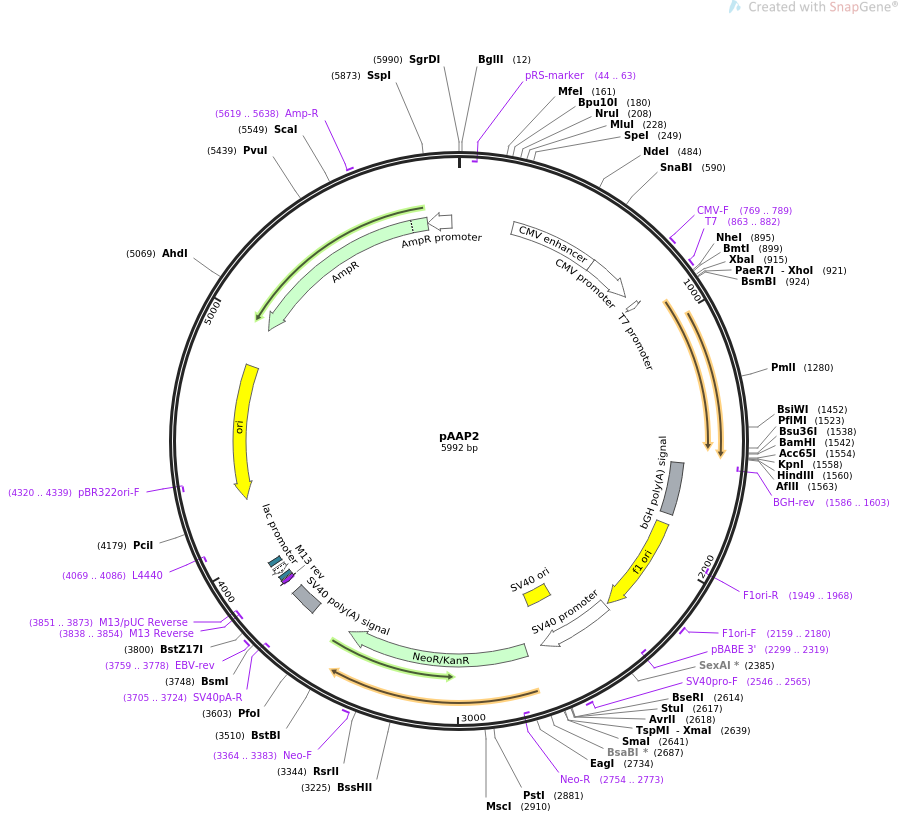

pAAP2质粒图谱

载体简介

载体序列

LOCUS       pAAP2               5992 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  express Assembly-activating protein (AAP) of adeno-associated virus
            serotype 2 (AAV2).
ACCESSION   .
VERSION     .
KEYWORDS    pAAP2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5992)
  AUTHORS   Zinn E, Pacouret S, Khaychuk V, Turunen HT, Carvalho LS,
            Andres-Mateos E, Shah S, Shelke R, Maurer AC, Plovie E, Xiao R,
            Vandenberghe LH
  TITLE     In Silico Reconstruction of the Viral Evolutionary Lineage Yields a
            Potent Gene Therapy Vector.
  JOURNAL   Cell Rep. 2015 Jul 28. pii: S2211-1247(15)00759-7. doi:
            10.1016/j.celrep.2015.07.019.
  PUBMED    26235624
REFERENCE   2  (bases 1 to 5992)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5992
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(44..63)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     769..789
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     863..882
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1586..1603)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    1592..1816
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1862..2290
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1949..1968)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     2159..2180
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(2299..2319)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2304..2633
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2484..2619
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2546..2565
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2700..3494
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2754..2773)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3364..3383
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    3668..3789
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3705..3724)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3759..3778
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3838..3854)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3838..3854)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3851..3873)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3862..3878
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3886..3916)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3931..3952
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4069..4086)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4240..4825)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4320..4339)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4996..5856)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5619..5638
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5857..5961)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaacgg gccctctaga ctcgagatgg agacgcagac tcagtacctg acccccagcc
      961 tctcggacag ccaccagcag ccccctctgg tctgggaact aatacgatgg ctacaggcag
     1021 tggcgcacca atggcagaca ataacgaggg cgccgacgga gtgggtaatt cctcgggaaa
     1081 ttggcattgc gattccacat ggatgggcga cagagtcatc accaccagca cccgaacctg
     1141 ggccctgccc acctacaaca accacctcta caaacaaatt tccagccaat caggagcctc
     1201 gaacgacaat cactactttg gctacagcac cccttggggg tattttgact tcaacagatt
     1261 ccactgccac ttttcaccac gtgactggca aagactcatc aacaacaact ggggattccg
     1321 acccaagaga ctcaacttca agctctttaa cattcaagtc aaagaggtca cgcagaatga
     1381 cggtacgacg acgattgcca ataaccttac cagcacggtt caggtgttta ctgactcgga
     1441 gtaccagctc ccgtacgtcc tcggctcggc gcatcaagga tgcctcccgc cgttcccagc
     1501 agacgtcttc atggtgccac agtatggata cctcaccctg aggatccgag ctcggtacca
     1561 agcttaagtt taaaccgctg atcagcctcg actgtgcctt ctagttgcca gccatctgtt
     1621 gtttgcccct cccccgtgcc ttccttgacc ctggaaggtg ccactcccac tgtcctttcc
     1681 taataaaatg aggaaattgc atcgcattgt ctgagtaggt gtcattctat tctggggggt
     1741 ggggtggggc aggacagcaa gggggaggat tgggaagaca atagcaggca tgctggggat
     1801 gcggtgggct ctatggcttc tgaggcggaa agaaccagct ggggctctag ggggtatccc
     1861 cacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc
     1921 gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc
     1981 acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt
     2041 agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc acgtagtggg
     2101 ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt
     2161 ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc ttttgattta
     2221 taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt
     2281 aacgcgaatt aattctgtgg aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc
     2341 cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccagg tgtggaaagt
     2401 ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca
     2461 tagtcccgcc cctaactccg cccatcccgc ccctaactcc gcccagttcc gcccattctc
     2521 cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc tctgcctctg
     2581 agctattcca gaagtagtga ggaggctttt ttggaggcct aggcttttgc aaaaagctcc
     2641 cgggagcttg tatatccatt ttcggatctg atcaagagac aggatgagga tcgtttcgca
     2701 tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag aggctattcg
     2761 gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc cggctgtcag
     2821 cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg aatgaactgc
     2881 aggacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc gcagctgtgc
     2941 tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg ccggggcagg
     3001 atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct gatgcaatgc
     3061 ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg aaacatcgca
     3121 tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat ctggacgaag
     3181 agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc atgcccgacg
     3241 gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg gtggaaaatg
     3301 gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc tatcaggaca
     3361 tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct gaccgcttcc
     3421 tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat cgccttcttg
     3481 acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga cgcccaacct
     3541 gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct tcggaatcgt
     3601 tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg agttcttcgc
     3661 ccaccccaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
     3721 tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa
     3781 tgtatcttat catgtctgta taccgtcgac ctctagctag agcttggcgt aatcatggtc
     3841 atagctgttt cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg
     3901 aagcataaag tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt
     3961 gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg
     4021 ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga
     4081 ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat
     4141 acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca
     4201 aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc
     4261 tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata
     4321 aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc
     4381 gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc
     4441 acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga
     4501 accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc
     4561 ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag
     4621 gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag
     4681 aacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag
     4741 ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtttt tttgtttgca agcagcagat
     4801 tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc
     4861 tcagtggaac gaaaactcac gttaagggat tttggtcatg agattatcaa aaaggatctt
     4921 cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta
     4981 aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct
     5041 atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg
     5101 cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga
     5161 tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt
     5221 atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt
     5281 taatagtttg cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt
     5341 tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat
     5401 gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc
     5461 cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc
     5521 cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat
     5581 gcggcgaccg agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag
     5641 aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt
     5701 accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc
     5761 ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa
     5821 gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg
     5881 aagcatttat cagggttatt gtctcatgag cggatacata tttgaatgta tttagaaaaa
     5941 taaacaaata ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg tc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
