pCHAC-mt-mKeima

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCHAC-mt-mKeima
出品公司: 爱迪基因
目录编号: 72342
存储实验室: Richard Youle

质粒骨架基本信息
质粒名称: pCHAC-MCS1-IRES-MCS2
质粒出品公司: AlleleBiotechnology
质粒抗性: 氨苄霉素
空质粒大小: 5632 bp
完整质粒大小: 6517 bp
质粒类型: 逆转录病毒
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: mt-mKeima
物种来源: stony coral Montipora
插入大小: 894 bp
GenBank编号 AB209969
克隆方法: 限制性内切酶
5' 克隆位点: XhoI(未破坏)
3' 克隆位点: SalI (未破坏)
5' 测序引物 TGACCTGGGAAGCCTTGGCT
3' 测序引物 TTGCCAAAAGACGGCAATAT

文献引用方法
材料和方法部分: pCHAC-mt-mKeima was a gift from Richard Youle (Addgene plasmid # 72342)
参考文献部分: The ubiquitin kinase PINK1 recruits autophagy receptors to induce mitophagy. Lazarou M, Sliter DA, Kane LA, Sarraf SA, Wang C, Burman JL, Sideris DP, Fogel AI, Youle RJ. Nature. 2015 Aug 20;524(7565):309-14. doi: 10.1038/nature14893. Epub 2015 Aug 12. 10.1038/nature14893 PubMed 26266977

载体图谱质粒图谱和多克隆位点信息

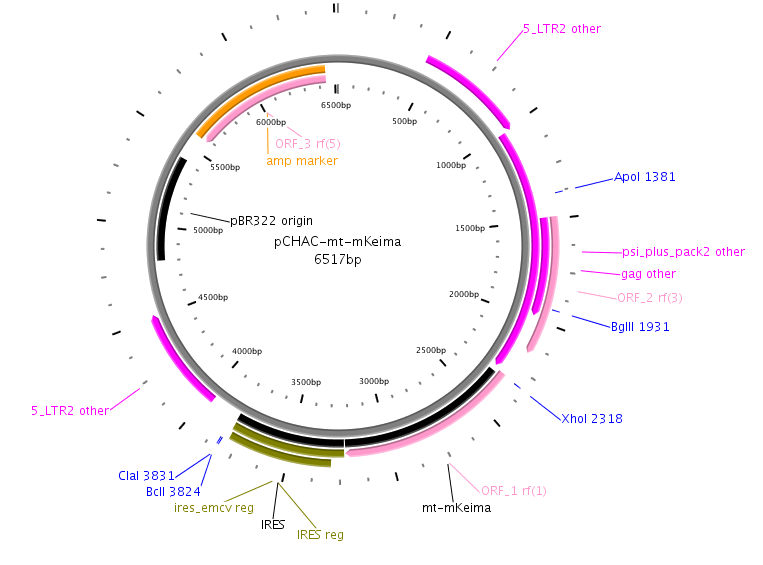

pCHAC-mt-mKeima载体图谱

载体简介

载体序列

LOCUS       pCHAC-mt-mKeima	6517 bp 	DNA	SYN
DEFINITION  pCHAC-mt-mKeima
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6517
                     /organism="pCHAC-mt-mKeima"
                     /mol_type="other DNA"
     misc_feature    431..1012
                     /label="3MoMuLV_LTR"
     misc_feature    461..1012
                     /label="5_LTR2"
     misc_feature    1012..2298
                     /label="psi_plus_pack2"
     misc_feature    1488..1982
                     /label="gag"
     CDS             1488..2162
                     /label="ORF frame 3"
     misc_feature    1843..1865
                     /label="MSCV_primer"
     misc_feature    1843..1865
                     /label="pLXSN_5_primer"
     misc_feature    1881..1897
                     /label="pBABE_5_primer"
     misc_feature    2234..2250
                     /label="pBMN_5_primer"
     CDS             2311..3222
                     /label="ORF frame 1"
     misc_feature    3229..3801
                     /label="IRES"
     misc_feature    3924..4517
                     /label="3MoMuLV_LTR"
     misc_feature    3966..4517
                     /label="5_LTR2"
     gene            complement(5581..6441)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(5581..6441)
                     /label="ORF frame 2"
ORIGIN
    1 ATCACGAGGC CCTTTCGTCT TCAAGAACAG CTTTGCTCTT AGGAGTTTCC TAATACATCC
   61 CAAACTCAAA TATATAAAGC ATTTGACTTG TTCTATGCCC TAGGGGGCGG GGGGAAGCTA
  121 AGCCAGCTTT TTTTAACATT TAAAATGTTA ATTCCATTTT AAATGCACAG ATGTTTTTAT
  181 TTCATAAGGG TTTCAATGTG CATGAATGCT GCAATATTCC TGTTACCAAA GCTAGTATAA
  241 ATAAAAATAG ATAAACGTGG AAATTACTTA GAGTTTCTGT CATTAACGTT TCCTTCCTCA
  301 GTTGACAACA TAAATGCGCT GCTGAGAAGC CAGTTTGCAT CTGTCAGGAT CAATTTCCCA
  361 TTATGCCAGT CATATTAATT ACTAGTCAAT TAGTTGATTT TTATTTTTGA CATATACATG
  421 TGAAAGACCC CACCTGTAGG TTTGGCAAGC TAGCTTAAGT AACGCCATTT TGCAAGGCAT
  481 GGAAAAATAC ATAACTGAGA ATAGAAAAGT TCAGATCAAG GTCAGGAACA GATGGAACAG
  541 CTGAATATGG GCCAAAGCGG ATATCTGTGG TAAGCAGTTC CTGCCCCGGC TCAGGGCCAA
  601 GAACAGATGG AACAGCTGAA TATGGGCCAA ACAGGATATC TGTGGTAAGC AGTTCCTGCC
  661 CCGGCTCAGG GCCAAGAACA GATGGTCCCC AGATGCGGTC CAGCCCTCAG CAGTTTCTAG
  721 AGAACCATCA GATGTTTCCA GGGTGCCCCA AGGACCTGAA ATGACCCTGT GCCTTATTTG
  781 AACTAACCAA TCAGTTCGCT TCTCGCTTCT GTTCGCGCGC TTCTGCTCCC CGAGCTCAAT
  841 AAAAGAGCCC ACAACCCCTC ACTCGGGGCG CCAGTCCTCC GATTGACTGA GTCGCCCGGG
  901 TACCCGTGTA TCCAATAAAC CCTCTTGCAG TTGCATCCGA CTTGTGGTCT CGCTGTTCCT
  961 TGGGAGGGTC TCCTCTGAGT GATTGACTAC CCGTCAGCGG GGGTCTTTCA TTTGGGGGCT
 1021 CGTCCGGGAT CGGGAGACCC CTGCCCAGGG ACCACCGACC CACCACCGGG AGGTAAGCTG
 1081 GCCAGCAACT TATCTGTGTC TGTCCGATTG TCTAGTGTCT ATGACTGATT TTATGCGCCT
 1141 GCGTCGGTAC TAGTTAGCTA ACTAGCTCTG TATCTGGCGG ACCCGTGGTG GAACTGACGA
 1201 GTTCGGAACA CCCGGCCGCA ACCCTGGGAG ACGTCCCAGG GACTTCGGGG GCCGTTTTTG
 1261 TGGCCCGACC TGAGTCCAAA AATCCCGATC GTTTTGGACT CTTTGGTGCA CCCCCCTTAG
 1321 AGGAGGGATA TGTGGTTCTG GTAGGAGACG AGAACCTAAA ACAGTTCCCG CCTCCGTCTG
 1381 AATTTTTGCT TTCGGTTTGG GACCGAAGCC GCGCCGCGCG TCTTGTCTGC TGCAGCATCG
 1441 TTCTGTGTTG TCTCTGTCTG ACTGTGTTTC TGTATTTGTC TGAAAATATG GGCCCGGGCC
 1501 AGACTGTTAC CACTCCCTTA AGTTTGACCT TAGGTCACTG GAAAGATGTC GAGCGGATCG
 1561 CTCACAACCA GTCGGTAGAT GTCAAGAAGA GACGTTGGGT TACCTTCTGC TCTGCAGAAT
 1621 GGCCAACCTT TAACGTCGGA TGGCCGCGAG ACGGCACCTT TAACCGAGAC CTCATCACCC
 1681 AGGTTAAGAT CAAGGTCTTT TCACCTGGCC CGCATGGACA CCCAGACCAG GTCCCCTACA
 1741 TCGTGACCTG GGAAGCCTTG GCTTTTGACC CCCCTCCCTG GGTCAAGCCC TTTGTACACC
 1801 CTAAGCCTCC GCCTCCTCTT CCTCCATCCG CCCCGTCTCT CCCCCTTGAA CCTCCTCGTT
 1861 CGACCCCGCC TCGATCCTCC CTTTATCCAG CCCTCACTCC TTCTCTAGGC GCCCCCATAT
 1921 GGCCATATGA GATCTTATAT GGGGCACCCC CGCCCCTTGT AAACTTCCCT GACCCTGACA
 1981 TGACAAGAGT TACTAACAGC CCCTCTCTCC AAGCTCACTT ACAGGCTCTC TACTTAGTCC
 2041 AGCACGAAGT CTGGAGACCT CTGGCGGCAC GTACCAAGAA CAACTGGACC GACCGGTGGT
 2101 ACCTCACCCT TACCGAGTCG GCGACACAGT GTGGGTCCGC CGACACCAGA CTAAGAACCT
 2161 AGAACCTCGC TGGAAAGGAC CTTACACAGT CCTGCTGACC ACCCCCACCG CCCTCAAAGT
 2221 AGACGGCATC GCAGCTTGGA TACACGCCGC CCACGTGAAG GCTGCCGACC CCGGGGGTGG
 2281 ACCATCCTCT AGACTGCCGG ATCCACGCGT ATGCATCTCG AGGCCACCAT GTCCGTCCTG
 2341 ACGCCGCTGC TGCTGCGGGG CTTGACAGGC TCGGCCCGGC GGCTCCCAGT GCCGCGCGCC
 2401 AAGATCCATT CGTTGCCGCC GGAGGGGAAG CTTGGGATGT CCGTCCTGAC GCCGCTGCTG
 2461 CTGCGGGGCT TGACAGGCTC GGCCCGGCGG CTCCCAGTGC CGCGCGCCAA GATCCATTCG
 2521 TTGCCGCCGG AGGGGAAGCT CGGGggatcc GCCATGGTGA GCGTGATCGC CAAGCAGATG
 2581 ACCTACAAGG TGTACATGAG CGGCACCGTG AACGGCCACT ACTTCGAGGT GGAGGGCGAC
 2641 GGCAAGGGCA AGCCCTACGA GGGCGAGCAG ACCGTGAAGC TGACCGTGAC CAAGGGTGGC
 2701 CCCCTGCCCT TCGCCTGGGA CATCCTGAGC CCCCAGCTCC AGTACGGCAG CATCCCCTTC
 2761 ACCAAGTACC CCGAGGACAT CCCCGACTAC TTCAAGCAGA GCTTCCCCGA GGGCTACACC
 2821 TGGGAGCGCA GCATGAACTT CGAGGACGGC GCCGTGTGCA CCGTGAGCAA CGACAGCAGC
 2881 ATCCAGGGCA ACTGCTTCAT CTACAACGTG AAGATCAGCG GCGAGAACTT CCCCCCCAAC
 2941 GGCCCCGTGA TGCAGAAGAA GACCCAGGGC TGGGAGCCCA GCACCGAGCG CCTGTTCGCC
 3001 CGCGACGGAA TGCTGATCGG CAACGACTAC ATGGCCCTGA AGCTGGAGGG CGGCGGCCAC
 3061 TACCTGTGCG AGTTCAAGAG CACCTACAAG GCCAAGAAGC CCGTGAGGAT GCCCGGCCGC
 3121 CACGAGATCG ACCGCAAGCT GGACGTGACC AGCCACAACC GCGACTACAC CAGCGTGGAG
 3181 CAGTGCGAGA TCGCCATCGC CCGCCACTCC CTGCTGGGCT AAGTCGACCC CCCCCCCCTA
 3241 ACGTTACTGG CCGAAGCCGC TTGGAATAAG GCCGGTGTGC GTTTGTCTAT ATGTTATTTT
 3301 CCACCATATT GCCGTCTTTT GGCAATGTGA GGGCCCGGAA ACCTGGCCCT GTCTTCTTGA
 3361 CGAGCATTCC TAGGGGTCTT TCCCCTCTCG CCAAAGGAAT GCAAGGTCTG TTGAATGTCG
 3421 TGAAGGAAGC AGTTCCTCTG GAAGCTTCTT GAAGACAAAC AACGTCTGTA GCGACCCTTT
 3481 GCAGGCAGCG GAACCCCCCA CCTGGCGACA GGTGCCTCTG CGGCCAAAAG CCACGTGTAT
 3541 AAGATACACC TGCAAAGGCG GCACAACCCC AGTGCCACGT TGTGAGTTGG ATAGTTGTGG
 3601 AAAGAGTCAA ATGGCTCTCC TCAAGCGTAT TCAACAAGGG GCTGAAGGAT GCCCAGAAGG
 3661 TACCCCATTG TATGGGATCT GATCTGGGGC CTCGGTGCAC ATGCTTTACA TGTGTTTAGT
 3721 CGAGGTTAAA AAAACGTCTA GGCCCCCCGA ACCACGGGGA CGTGGTTTTC CTTTGAAAAA
 3781 CACGATGATA ATATGGCCAC AACCATGGGG CGCGCCGTAT ACTGATCAAT CGATTCAATT
 3841 GCACCGGTGC CTGCAGGCCA TCCCCTTGGC GTCTCCTCGA CGATAAAATA AAAGATTTTA
 3901 TTTAGTCTCC AGAAAAAGGG GGGAATGAAA GACCCCACCT GTAGGTTTGG CAAGCTAGCT
 3961 TAAGTAACGC CATTTTGCAA GGCATGGAAA AATACATAAC TGAGAATAGA GAAGTTCAGA
 4021 TCAAGGTCAG GAACAGATGG AACAGCTGAA TATGGGCCAA ACAGGATATC TGTGGTAAGC
 4081 AGTTCCTGCC CCGGCTCAGG GCCAAGAACA GATGGAACAG CTGAATATGG GCCAAACAGG
 4141 ATATCTGTGG TAAGCAGTTC CTGCCCCGGC TCAGGGCCAA GAACAGATGG TCCCCAGATG
 4201 CGGTCCAGCC CTCAGCAGTT TCTAGAGAAC CATCAGATGT TTCCAGGGTG CCCCAAGGAC
 4261 CTGAAATGAC CCTGTGCCTT ATTTGAACTA ACCAATCAGT TCGCTTCTCG CTTCTGTTCG
 4321 CGCGCTTCTG CTCCCCGAGC TCAATAAAAG AGCCCACAAC CCCTCACTCG GGGCGCCAGT
 4381 CCTCCGATTG ACTGAGTCGC CCGGGTACCC GTGTATCCAA TAAACCCTCT TGCAGTTGCA
 4441 TCCGACTTGT GGTCTCGCTG TTCCTTGGGA GGGTCTCCTC TGAGTGATTG ACTACCCGTC
 4501 AGCGGGGGTC TTTCATTCAC ATGCAGCATG TATCAAAATT AATTTGGTTT TTTTTCTTAA
 4561 GTATTTACAT TAAATGGCCA TAGTTGCATT AATGAATCGG CCAACGCGCG GGGAGAGGCG
 4621 GTTTGCGTAT TGGCGCTCTT CCGCTTCCTC GCTCACTGAC TCGCTGCGCT CGGTCGTTCG
 4681 GCTGCGGCGA GCGGTATCAG CTCACTCAAA GGCGGTAATA CGGTTATCCA CAGAATCAGG
 4741 GGATAACGCA GGAAAGAACA TGTGAGCAAA AGGCCAGCAA AAGGCCAGGA ACCGTAAAAA
 4801 GGCCGCGTTG CTGGCGTTTT TCCATAGGCT CCGCCCCCCT GACGAGCATC ACAAAAATCG
 4861 ACGCTCAAGT CAGAGGTGGC GAAACCCGAC AGGACTATAA AGATACCAGG CGTTTCCCCC
 4921 TGGAAGCTCC CTCGTGCGCT CTCCTGTTCC GACCCTGCCG CTTACCGGAT ACCTGTCCGC
 4981 CTTTCTCCCT TCGGGAAGCG TGGCGCTTTC TCATAGCTCA CGCTGTAGGT ATCTCAGTTC
 5041 GGTGTAGGTC GTTCGCTCCA AGCTGGGCTG TGTGCACGAA CCCCCCGTTC AGCCCGACCG
 5101 CTGCGCCTTA TCCGGTAACT ATCGTCTTGA GTCCAACCCG GTAAGACACG ACTTATCGCC
 5161 ACTGGCAGCA GCCACTGGTA ACAGGATTAG CAGAGCGAGG TATGTAGGCG GTGCTACAGA
 5221 GTTCTTGAAG TGGTGGCCTA ACTACGGCTA CACTAGAAGG ACAGTATTTG GTATCTGCGC
 5281 TCTGCTGAAG CCAGTTACCT TCGGAAAAAG AGTTGGTAGC TCTTGATCCG GCAAACAAAC
 5341 CACCGCTGGT AGCGGTGGTT TTTTTGTTTG CAAGCAGCAG ATTACGCGCA GAAAAAAAGG
 5401 ATCTCAAGAA GATCCTTTGA TCTTTTCTAC GGGGTCTGAC GCTCAGTGGA ACGAAAACTC
 5461 ACGTTAAGGG ATTTTGGTCA TGAGATTATC AAAAAGGATC TTCACCTAGA TCCTTTTAAA
 5521 TTAAAAATGA AGTTTGCGCA AATCAATCTA AAGTATATAT GAGTAAACTT GGTCTGACAG
 5581 TTACCAATGC TTAATCAGTG AGGCACCTAT CTCAGCGATC TGTCTATTTC GTTCATCCAT
 5641 AGTTGCCTGA CTCCCCGTCG TGTAGATAAC TACGATACGG GAGGGCTTAC CATCTGGCCC
 5701 CAGTGCTGCA ATGATACCGC GAGACCCACG CTCACCGGCT CCAGATTTAT CAGCAATAAA
 5761 CCAGCCAGCC GGAAGGGCCG AGCGCAGAAG TGGTCCTGCA ACTTTATCCG CCTCCATCCA
 5821 GTCTATTAAT TGTTGCCGGG AAGCTAGAGT AAGTAGTTCG CCAGTTAATA GTTTGCGCAA
 5881 CGTTGTTGCC ATTGCTACAG GCATCGTGGT GTCACGCTCG TCGTTTGGTA TGGCTTCATT
 5941 CAGCTCCGGT TCCCAACGAT CAAGGCGAGT TACATGATCC CCCATGTTGT GCAAAAAAGC
 6001 GGTTAGCTCC TTCGGTCCTC CGATCGTTGT CAGAAGTAAG TTGGCCGCAG TGTTATCACT
 6061 CATGGTTATG GCAGCACTGC ATAATTCTCT TACTGTCATG CCATCCGTAA GATGCTTTTC
 6121 TGTGACTGGT GAGTACTCAA CCAAGTCATT CTGAGAATAG TGTATGCGGC GACCGAGTTG
 6181 CTCTTGCCCG GCGTCAACAC GGGATAATAC CGCGCCACAT AGCAGAACTT TAAAAGTGCT
 6241 CATCATTGGA AAACGTTCTT CGGGGCGAAA ACTCTCAAGG ATCTTACCGC TGTTGAGATC
 6301 CAGTTCGATG TAACCCACTC GTGCACCCAA CTGATCTTCA GCATCTTTTA CTTTCACCAG
 6361 CGTTTCTGGG TGAGCAAAAA CAGGAAGGCA AAATGCCGCA AAAAAGGGAA TAAGGGCGAC
 6421 ACGGAAATGT TGAATACTCA TACTCTTCCT TTTTCAATAT TATTGAAGCA TTTATCAGGG
 6481 TTATTGTCTC ATGACATTAA CCTATAAAAA TAGGCGT
//
