pBR322

价格:850元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: NEB
载体名称: pBR322
质粒类型: 克隆载体
高拷贝/低拷贝: --
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4361bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素(Ampicillian)
筛选标记: --
备注: --
产品目录号: 31344
稳定性: --
组成型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

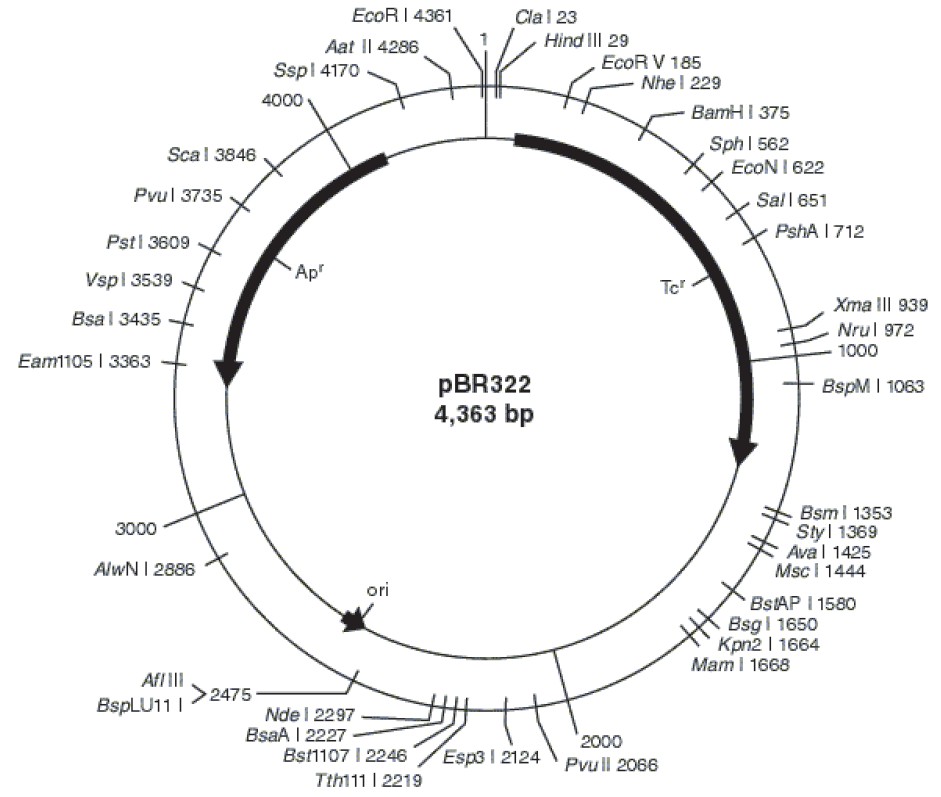

pBR322载体图谱

载体简介

载体序列

LOCUS       pBR322	4361 bp 	DNA	SYN
DEFINITION  pBR322
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4361
                     /organism="pBR322"
                     /mol_type="other DNA"
     gene            86..1276
                     /label="tet"
                     /gene="tet"
     CDS             86..1276
                     /label="ORF frame 2"
                     /translation="MKSNNALIVILGTVTLDAVGIGLVMPVLPGLLRDIVHSDSIASH
                     YGVLLALYALMQFLCAPVLGALSDRFGRRPVLLASLLGATIDYAIMATTPVLWILYAG
                     RIVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLH
                     APFLAAAVLNGLNLLLGCFLMQESHKGERRPMPLRAFNPVSSFRWARGMTIVAALMTV
                     FFIMQLVGQVPAALWVIFGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGE
                     KQAIIAGMAADALGYVLLAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQG
                     QLQGSLAALTSLTSITGPLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSR
                     ATST*"
     misc_feature    complement(438..457)
                     /label="pBRrevBam_primer"
                     /translation="MKSNNALIVILGTVTLDAVGIGLVMPVLPGLLRDIVHSDSIASH
                     YGVLLALYALMQFLCAPVLGALSDRFGRRPVLLASLLGATIDYAIMATTPVLWILYAG
                     RIVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLH
                     APFLAAAVLNGLNLLLGCFLMQESHKGERRPMPLRAFNPVSSFRWARGMTIVAALMTV
                     FFIMQLVGQVPAALWVIFGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGE
                     KQAIIAGMAADALGYVLLAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQG
                     QLQGSLAALTSLTSITGPLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSR
                     ATST*"
     CDS             complement(623..1081)
                     /label="ORF frame 2"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     misc_feature    1915..2106
                     /label="ROP"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     misc_feature    complement(2100..2122)
                     /label="pGEX_3_primer"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     gene            complement(3293..4153)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     CDS             complement(3293..4153)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(4195..4223)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 ttctcatgtt tgacagctta tcatcgataa gctttaatgc ggtagtttat cacagttaaa
   61 ttgctaacgc agtcaggcac cgtgtatgaa atctaacaat gcgctcatcg tcatcctcgg
  121 caccgtcacc ctggatgctg taggcatagg cttggttatg ccggtactgc cgggcctctt
  181 gcgggatatc gtccattccg acagcatcgc cagtcactat ggcgtgctgc tagcgctata
  241 tgcgttgatg caatttctat gcgcacccgt tctcggagca ctgtccgacc gctttggccg
  301 ccgcccagtc ctgctcgctt cgctacttgg agccactatc gactacgcga tcatggcgac
  361 cacacccgtc ctgtggatcc tctacgccgg acgcatcgtg gccggcatca ccggcgccac
  421 aggtgcggtt gctggcgcct atatcgccga catcaccgat ggggaagatc gggctcgcca
  481 cttcgggctc atgagcgctt gtttcggcgt gggtatggtg gcaggccccg tggccggggg
  541 actgttgggc gccatctcct tgcatgcacc attccttgcg gcggcggtgc tcaacggcct
  601 caacctacta ctgggctgct tcctaatgca ggagtcgcat aagggagagc gtcgaccgat
  661 gcccttgaga gccttcaacc cagtcagctc cttccggtgg gcgcggggca tgactatcgt
  721 cgccgcactt atgactgtct tctttatcat gcaactcgta ggacaggtgc cggcagcgct
  781 ctgggtcatt ttcggcgagg accgctttcg ctggagcgcg acgatgatcg gcctgtcgct
  841 tgcggtattc ggaatcttgc acgccctcgc tcaagccttc gtcactggtc ccgccaccaa
  901 acgtttcggc gagaagcagg ccattatcgc cggcatggcg gccgacgcgc tgggctacgt
  961 cttgctggcg ttcgcgacgc gaggctggat ggccttcccc attatgattc ttctcgcttc
 1021 cggcggcatc gggatgcccg cgttgcaggc catgctgtcc aggcaggtag atgacgacca
 1081 tcagggacag cttcaaggat cgctcgcggc tcttaccagc ctaacttcga tcactggacc
 1141 gctgatcgtc acggcgattt atgccgcctc ggcgagcaca tggaacgggt tggcatggat
 1201 tgtaggcgcc gccctatacc ttgtctgcct ccccgcgttg cgtcgcggtg catggagccg
 1261 ggccacctcg acctgaatgg aagccggcgg cacctcgcta acggattcac cactccaaga
 1321 attggagcca atcaattctt gcggagaact gtgaatgcgc aaaccaaccc ttggcagaac
 1381 atatccatcg cgtccgccat ctccagcagc cgcacgcggc gcatctcggg cagcgttggg
 1441 tcctggccac gggtgcgcat gatcgtgctc ctgtcgttga ggacccggct aggctggcgg
 1501 ggttgcctta ctggttagca gaatgaatca ccgatacgcg agcgaacgtg aagcgactgc
 1561 tgctgcaaaa cgtctgcgac ctgagcaaca acatgaatgg tcttcggttt ccgtgtttcg
 1621 taaagtctgg aaacgcggaa gtcagcgccc tgcaccatta tgttccggat ctgcatcgca
 1681 ggatgctgct ggctaccctg tggaacacct acatctgtat taacgaagcg ctggcattga
 1741 ccctgagtga tttttctctg gtcccgccgc atccataccg ccagttgttt accctcacaa
 1801 cgttccagta accgggcatg ttcatcatca gtaacccgta tcgtgagcat cctctctcgt
 1861 ttcatcggta tcattacccc catgaacaga aatccccctt acacggaggc atcagtgacc
 1921 aaacaggaaa aaaccgccct taacatggcc cgctttatca gaagccagac attaacgctt
 1981 ctggagaaac tcaacgagct ggacgcggat gaacaggcag acatctgtga atcgcttcac
 2041 gaccacgctg atgagcttta ccgcagctgc ctcgcgcgtt tcggtgatga cggtgaaaac
 2101 ctctgacaca tgcagctccc ggagacggtc acagcttgtc tgtaagcgga tgccgggagc
 2161 agacaagccc gtcagggcgc gtcagcgggt gttggcgggt gtcggggcgc agccatgacc
 2221 cagtcacgta gcgatagcgg agtgtatact ggcttaacta tgcggcatca gagcagattg
 2281 tactgagagt gcaccatatg cggtgtgaaa taccgcacag atgcgtaagg agaaaatacc
 2341 gcatcaggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc gttcggctgc
 2401 ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa tcaggggata
 2461 acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg
 2521 cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa aatcgacgct
 2581 caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt ccccctggaa
 2641 gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg tccgcctttc
 2701 tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc agttcggtgt
 2761 aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg
 2821 ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta tcgccactgg
 2881 cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct acagagttct
 2941 tgaagtggtg gcctaactac ggctacacta gaaggacagt atttggtatc tgcgctctgc
 3001 tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa caaaccaccg
 3061 ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa aaaggatctc
 3121 aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa aactcacgtt
 3181 aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa
 3241 aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac agttaccaat
 3301 gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc atagttgcct
 3361 gactccccgt cgtgtagata actacgatac gggagggctt accatctggc cccagtgctg
 3421 caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata aaccagccag
 3481 ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc cagtctatta
 3541 attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg
 3601 ccattgctgc aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg
 3661 gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa gcggttagct
 3721 ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca ctcatggtta
 3781 tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt tctgtgactg
 3841 gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc
 3901 cggcgtcaac acgggataat accgcgccac atagcagaac tttaaaagtg ctcatcattg
 3961 gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga tccagttcga
 4021 tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc agcgtttctg
 4081 ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg acacggaaat
 4141 gttgaatact catactcttc ctttttcaat attattgaag catttatcag ggttattgtc
 4201 tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg gttccgcgca
 4261 catttccccg aaaagtgcca cctgacgtct aagaaaccat tattatcatg acattaacct
 4321 ataaaaatag gcgtatcacg aggccctttc gtcttcaaga a
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
