| 出品公司: | Invitrogen |
|---|---|
| 载体名称: | pcDNA6/TR |
| 质粒类型: | 哺乳细胞表达；四环素调控载体 |
| 高拷贝/低拷贝: | -- |
| 启动子: | CMV |
| 克隆方法: | -- |
| 载体大小: | 6662bp |
| 5' 测序引物及序列: | pCAG-F; Bglob-intron-F |
| 3' 测序引物及序列: | BGH Reverse: 5-TAGAAGGCACAGTCGAGG-3 |
| 载体标签: | 无 |
| 载体抗性: | 氨苄青霉素 |
| 筛选标记: | Blasticidin |
| 克隆菌株: | TOP10F´, DH5aF´, JM109, and INVaF´ |
| 表达细胞（系）: |
T-REx-293 R710-07； T-REx-HeLa R714-07； T-REx-U2OS R712-07； T-REx-Jurkat R722-07 |
| 备注: |
pcDNA6/TR载体是四环素诱导系统的调控载体； pcDNA6/TR不能单独使用，必须与应答载体共转染细胞； 对应的应答载体（表达载体）是含CMV/TO启动子的表达载体如pcDNA4/TO/myc-His A,B,C |
| 产品目录号: | V1030-20 |
| 稳定性: | 瞬表达 或 稳表达 |
| 组成型: | 诱导型 |
| 病毒/非病毒: | 非病毒 |
买家导航

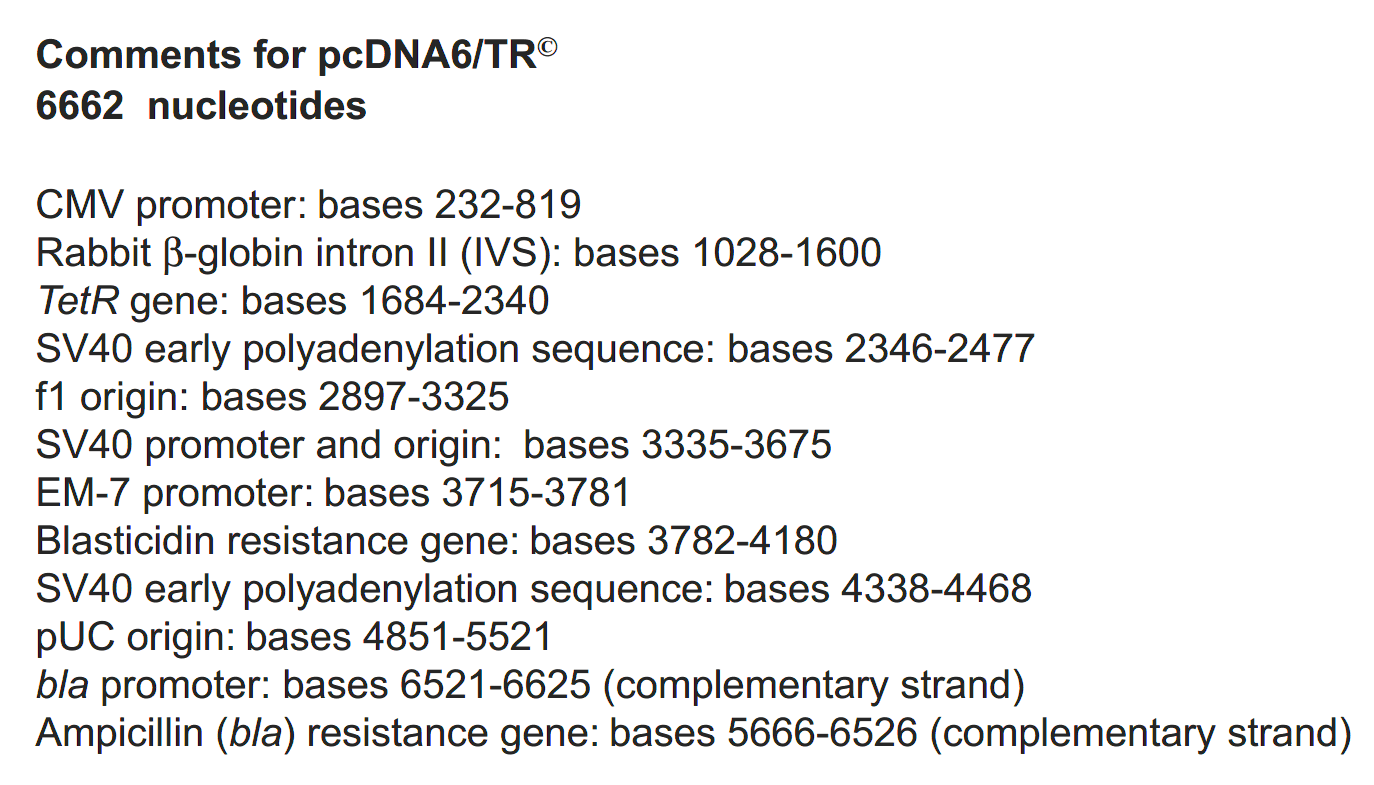

pcDNA6/TR载体质粒基本信息
pcDNA6/TR质粒图谱载体图谱和pcDNA6/TR载体序列质粒序列多克隆位点信息
pcDNA6/TR质粒载体简介
T-REx四环素诱导系统
A Tetracycline-Regulated Expression System without Viral Transactivators
The T-REx System yields higher levels of induced expression than any other regulated mammalian expression system. It utilizes the complete CMV promoter and adds control elements
from the bacterial tetracycline resistance operon to effectively repress and derepress transcription from one of the strongest mammalian promoter sequences known (1,2).
Specific Activation
The T-REx System uses a repressor mechanism that blocks transcription from the powerful CMV promoter in the absence of tetracycline. Because the T-REx System elements do not use
viral transactivators, you can achieve high-level expression from the complete CMV promoter without secondary, non-specific activation of host genes.
The T-REx Mechanism
The T-REx transcriptional control elements are illustrated in Figure 1. Two tetracycline operator sequences (TetO2) have been inserted between the TATA box of the CMV promoter and the transcriptional start site. The TetO2 sequence itself has no effect on expression. When the tetracycline repressor protein (TR) is present, it effectively binds the TetO2 sites and blocks transcription initiation. Tetracycline added to the culture medium binds to, and changes the conformation of, the TR protein. This change causes the TR protein to release the TetO2 sites, derepressing transcription from the CMV promoter. The result is high-level expression of the gene of interest (Figure 2). Expression levels can be modulated based on the tetracycline concentration and can be induced to levels that are achieved with constitutive CMV expression vectors.
T-REx is a powerful inducible mammalian expression system that allows you to regulate expression from the complete human cytomegalovirus (CMV) enhancer-promoter. T-RExinducible expression vectors offer the following features:
Complete CMV enhancer-promoter sequence containing two copies of the tetracycline operator TetO2 sequence for high-level regulated expression
Zeocin or hygromycin resistance gene for effective selection of stable mammalian cell lines
Large multiple cloning site to simplify cloning
In addition, pcDNA4/TO/myc-His offers a c-myc epitope for rapid detection of the recombinant protein with an Anti-myc Antibody and a polyhistidine (6xHis) sequence for simple purification of the recombinant protein with nickel-chelating resin and detection with Anti- His(C-term) Antibody.
The regulatory vector, pcDNA6/TR, is provided for high-level expression of the tetracycline repressor (TR) protein. This vector expresses the Blasticidin resistance gene for rapid selection of mammalian cell lines that stably express the TR protein.
pcDNA6/TR质粒序列载体序列
LOCUS pcDNA6/TR 6662 bp DNA SYN
DEFINITION pcDNA6/TR
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..6662
/organism="pcDNA6/TR"
/mol_type="other DNA"
promoter 236..852
/label="CMV_immearly_promoter"
misc_feature 315..602
/label="CAG_enhancer"
misc_feature 769..789
/label="CMV_fwd_primer"
promoter 863..881
/label="T7_promoter"
misc_feature 1028..1600
/label="bGlob_int"
misc_feature 1608..1627
/label="pCAG_F_primer"
promoter 1655..1673
/label="T7_promoter"
CDS 1684..2340
/label="ORF frame 1"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
misc_feature 1687..2298
/label="TetR"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
terminator 2349..2468
/label="SV40_PA_terminator"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
misc_feature 2437..2456
/label="EBV_rev_primer"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
misc_feature complement(2621..2638)
/label="BGH_rev_primer"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
terminator 2624..2851
/label="bGH_PA_terminator"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
rep_origin 2914..3220
/label="f1_origin"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
misc_feature complement(3334..3354)
/label="pBABE_3_primer"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
misc_feature complement(3340..3555)
/label="SV40_enhancer"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
promoter 3352..3620
/label="SV40_promoter"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
rep_origin 3519..3596
/label="SV40_origin"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
misc_feature 3581..3600
/label="SV40pro_F_primer"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
promoter 3714..3781
/label="EM7_promoter"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
gene 3782..4180
/label="blast"
/gene="blast"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
terminator 4341..4460
/label="SV40_PA_terminator"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
misc_feature 4429..4448
/label="EBV_rev_primer"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
promoter complement(4504..4522)
/label="M13_reverse_primer"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
misc_feature complement(4521..4543)
/label="M13_pUC_rev_primer"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
promoter complement(4557..4586)
/label="lac_promoter"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
gene complement(5666..6526)
/label="Ampicillin"
/gene="Ampicillin"
/translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWH
VKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERET
PTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGSAYSGSREFRSY
*"
CDS complement(5666..6526)
/label="ORF frame 2"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter complement(6568..6596)
/label="AmpR_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
ORIGIN
1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTGCACTCT CAGTACAATC TGCTCTGATG
61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC
721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA
841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGC
901 GTTTAAACTT AAGCTTGGTA CCCGGGGATC CTCTAGGGCC TCTGAGCTAT TCCAGAAGTA
961 GTGAAGAGGC TTTTTTGGAG GCCTAGGCTT TTGCAAAAAG CTCCGGATCG ATCCTGAGAA
1021 CTTCAGGGTG AGTTTGGGGA CCCTTGATTG TTCTTTCTTT TTCGCTATTG TAAAATTCAT
1081 GTTATATGGA GGGGGCAAAG TTTTCAGGGT GTTGTTTAGA ATGGGAAGAT GTCCCTTGTA
1141 TCACCATGGA CCCTCATGAT AATTTTGTTT CTTTCACTTT CTACTCTGTT GACAACCATT
1201 GTCTCCTCTT ATTTTCTTTT CATTTTCTGT AACTTTTTCG TTAAACTTTA GCTTGCATTT
1261 GTAACGAATT TTTAAATTCA CTTTTGTTTA TTTGTCAGAT TGTAAGTACT TTCTCTAATC
1321 ACTTTTTTTT CAAGGCAATC AGGGTATATT ATATTGTACT TCAGCACAGT TTTAGAGAAC
1381 AATTGTTATA ATTAAATGAT AAGGTAGAAT ATTTCTGCAT ATAAATTCTG GCTGGCGTGG
1441 AAATATTCTT ATTGGTAGAA ACAACTACAT CCTGGTCATC ATCCTGCCTT TCTCTTTATG
1501 GTTACAATGA TATACACTGT TTGAGATGAG GATAAAATAC TCTGAGTCCA AACCGGGCCC
1561 CTCTGCTAAC CATGTTCATG CCTTCTTCTT TTTCCTACAG CTCCTGGGCA ACGTGCTGGT
1621 TATTGTGCTG TCTCATCATT TTGGCAAAGA ATTGTAATAC GACTCACTAT AGGGCGAATT
1681 GATATGTCTA GATTAGATAA AAGTAAAGTG ATTAACAGCG CATTAGAGCT GCTTAATGAG
1741 GTCGGAATCG AAGGTTTAAC AACCCGTAAA CTCGCCCAGA AGCTAGGTGT AGAGCAGCCT
1801 ACATTGTATT GGCATGTAAA AAATAAGCGG GCTTTGCTCG ACGCCTTAGC CATTGAGATG
1861 TTAGATAGGC ACCATACTCA CTTTTGCCCT TTAGAAGGGG AAAGCTGGCA AGATTTTTTA
1921 CGTAATAACG CTAAAAGTTT TAGATGTGCT TTACTAAGTC ATCGCGATGG AGCAAAAGTA
1981 CATTTAGGTA CACGGCCTAC AGAAAAACAG TATGAAACTC TCGAAAATCA ATTAGCCTTT
2041 TTATGCCAAC AAGGTTTTTC ACTAGAGAAT GCATTATATG CACTCAGCGC TGTGGGGCAT
2101 TTTACTTTAG GTTGCGTATT GGAAGATCAA GAGCATCAAG TCGCTAAAGA AGAAAGGGAA
2161 ACACCTACTA CTGATAGTAT GCCGCCATTA TTACGACAAG CTATCGAATT ATTTGATCAC
2221 CAAGGTGCAG AGCCAGCCTT CTTATTCGGC CTTGAATTGA TCATATGCGG ATTAGAAAAA
2281 CAACTTAAAT GTGAAAGTGG GTCCGCGTAC AGCGGATCCC GGGAATTCAG ATCTTATTAA
2341 AGCAGAACTT GTTTATTGCA GCTTATAATG GTTACAAATA AAGCAATAGC ATCACAAATT
2401 TCACAAATAA AGCATTTTTT TCACTGCATT CTAGTTGTGG TTTGTCCAAA CTCATCAATG
2461 TATCTTATCA TGTCTGGTCG AATCCATCAC ACTGGCGGCC GCTCGAGTCT AGAGGGCCCG
2521 CGGTTCGAAG GTAAGCCTAT CCCTAACCCT CTCCTCGGTC TCGATTCTAC GCGTACCGGT
2581 CATCATCACC ATCACCATTG AGTTTAAACC CGCTGATCAG CCTCGACTGT GCCTTCTAGT
2641 TGCCAGCCAT CTGTTGTTTG CCCCTCCCCC GTGCCTTCCT TGACCCTGGA AGGTGCCACT
2701 CCCACTGTCC TTTCCTAATA AAATGAGGAA ATTGCATCGC ATTGTCTGAG TAGGTGTCAT
2761 TCTATTCTGG GGGGTGGGGT GGGGCAGGAC AGCAAGGGGG AGGATTGGGA AGACAATAGC
2821 AGGCATGCTG GGGATGCGGT GGGCTCTATG GCTTCTGAGG CGGAAAGAAC CAGCTGGGGC
2881 TCTAGGGGGT ATCCCCACGC GCCCTGTAGC GGCGCATTAA GCGCGGCGGG TGTGGTGGTT
2941 ACGCGCAGCG TGACCGCTAC ACTTGCCAGC GCCCTAGCGC CCGCTCCTTT CGCTTTCTTC
3001 CCTTCCTTTC TCGCCACGTT CGCCGGCTTT CCCCGTCAAG CTCTAAATCG GGGGCTCCCT
3061 TTAGGGTTCC GATTTAGTGC TTTACGGCAC CTCGACCCCA AAAAACTTGA TTAGGGTGAT
3121 GGTTCACGTA GTGGGCCATC GCCCTGATAG ACGGTTTTTC GCCCTTTGAC GTTGGAGTCC
3181 ACGTTCTTTA ATAGTGGACT CTTGTTCCAA ACTGGAACAA CACTCAACCC TATCTCGGTC
3241 TATTCTTTTG ATTTATAAGG GATTTTGCCG ATTTCGGCCT ATTGGTTAAA AAATGAGCTG
3301 ATTTAACAAA AATTTAACGC GAATTAATTC TGTGGAATGT GTGTCAGTTA GGGTGTGGAA
3361 AGTCCCCAGG CTCCCCAGCA GGCAGAAGTA TGCAAAGCAT GCATCTCAAT TAGTCAGCAA
3421 CCAGGTGTGG AAAGTCCCCA GGCTCCCCAG CAGGCAGAAG TATGCAAAGC ATGCATCTCA
3481 ATTAGTCAGC AACCATAGTC CCGCCCCTAA CTCCGCCCAT CCCGCCCCTA ACTCCGCCCA
3541 GTTCCGCCCA TTCTCCGCCC CATGGCTGAC TAATTTTTTT TATTTATGCA GAGGCCGAGG
3601 CCGCCTCTGC CTCTGAGCTA TTCCAGAAGT AGTGAGGAGG CTTTTTTGGA GGCCTAGGCT
3661 TTTGCAAAAA GCTCCCGGGA GCTTGTATAT CCATTTTCGG ATCTGATCAG CACGTGTTGA
3721 CAATTAATCA TCGGCATAGT ATATCGGCAT AGTATAATAC GACAAGGTGA GGAACTAAAC
3781 CATGGCCAAG CCTTTGTCTC AAGAAGAATC CACCCTCATT GAAAGAGCAA CGGCTACAAT
3841 CAACAGCATC CCCATCTCTG AAGACTACAG CGTCGCCAGC GCAGCTCTCT CTAGCGACGG
3901 CCGCATCTTC ACTGGTGTCA ATGTATATCA TTTTACTGGG GGACCTTGTG CAGAACTCGT
3961 GGTGCTGGGC ACTGCTGCTG CTGCGGCAGC TGGCAACCTG ACTTGTATCG TCGCGATCGG
4021 AAATGAGAAC AGGGGCATCT TGAGCCCCTG CGGACGGTGC CGACAGGTGC TTCTCGATCT
4081 GCATCCTGGG ATCAAAGCCA TAGTGAAGGA CAGTGATGGA CAGCCGACGG CAGTTGGGAT
4141 TCGTGAATTG CTGCCCTCTG GTTATGTGTG GGAGGGCTAA GCACTTCGTG GCCGAGGAGC
4201 AGGACTGACA CGTGCTACGA GATTTCGATT CCACCGCCGC CTTCTATGAA AGGTTGGGCT
4261 TCGGAATCGT TTTCCGGGAC GCCGGCTGGA TGATCCTCCA GCGCGGGGAT CTCATGCTGG
4321 AGTTCTTCGC CCACCCCAAC TTGTTTATTG CAGCTTATAA TGGTTACAAA TAAAGCAATA
4381 GCATCACAAA TTTCACAAAT AAAGCATTTT TTTCACTGCA TTCTAGTTGT GGTTTGTCCA
4441 AACTCATCAA TGTATCTTAT CATGTCTGTA TACCGTCGAC CTCTAGCTAG AGCTTGGCGT
4501 AATCATGGTC ATAGCTGTTT CCTGTGTGAA ATTGTTATCC GCTCACAATT CCACACAACA
4561 TACGAGCCGG AAGCATAAAG TGTAAAGCCT GGGGTGCCTA ATGAGTGAGC TAACTCACAT
4621 TAATTGCGTT GCGCTCACTG CCCGCTTTCC AGTCGGGAAA CCTGTCGTGC CAGCTGCATT
4681 AATGAATCGG CCAACGCGCG GGGAGAGGCG GTTTGCGTAT TGGGCGCTCT TCCGCTTCCT
4741 CGCTCACTGA CTCGCTGCGC TCGGTCGTTC GGCTGCGGCG AGCGGTATCA GCTCACTCAA
4801 AGGCGGTAAT ACGGTTATCC ACAGAATCAG GGGATAACGC AGGAAAGAAC ATGTGAGCAA
4861 AAGGCCAGCA AAAGGCCAGG AACCGTAAAA AGGCCGCGTT GCTGGCGTTT TTCCATAGGC
4921 TCCGCCCCCC TGACGAGCAT CACAAAAATC GACGCTCAAG TCAGAGGTGG CGAAACCCGA
4981 CAGGACTATA AAGATACCAG GCGTTTCCCC CTGGAAGCTC CCTCGTGCGC TCTCCTGTTC
5041 CGACCCTGCC GCTTACCGGA TACCTGTCCG CCTTTCTCCC TTCGGGAAGC GTGGCGCTTT
5101 CTCATAGCTC ACGCTGTAGG TATCTCAGTT CGGTGTAGGT CGTTCGCTCC AAGCTGGGCT
5161 GTGTGCACGA ACCCCCCGTT CAGCCCGACC GCTGCGCCTT ATCCGGTAAC TATCGTCTTG
5221 AGTCCAACCC GGTAAGACAC GACTTATCGC CACTGGCAGC AGCCACTGGT AACAGGATTA
5281 GCAGAGCGAG GTATGTAGGC GGTGCTACAG AGTTCTTGAA GTGGTGGCCT AACTACGGCT
5341 ACACTAGAAG AACAGTATTT GGTATCTGCG CTCTGCTGAA GCCAGTTACC TTCGGAAAAA
5401 GAGTTGGTAG CTCTTGATCC GGCAAACAAA CCACCGCTGG TAGCGGTTTT TTTGTTTGCA
5461 AGCAGCAGAT TACGCGCAGA AAAAAAGGAT CTCAAGAAGA TCCTTTGATC TTTTCTACGG
5521 GGTCTGACGC TCAGTGGAAC GAAAACTCAC GTTAAGGGAT TTTGGTCATG AGATTATCAA
5581 AAAGGATCTT CACCTAGATC CTTTTAAATT AAAAATGAAG TTTTAAATCA ATCTAAAGTA
5641 TATATGAGTA AACTTGGTCT GACAGTTACC AATGCTTAAT CAGTGAGGCA CCTATCTCAG
5701 CGATCTGTCT ATTTCGTTCA TCCATAGTTG CCTGACTCCC CGTCGTGTAG ATAACTACGA
5761 TACGGGAGGG CTTACCATCT GGCCCCAGTG CTGCAATGAT ACCGCGAGAC CCACGCTCAC
5821 CGGCTCCAGA TTTATCAGCA ATAAACCAGC CAGCCGGAAG GGCCGAGCGC AGAAGTGGTC
5881 CTGCAACTTT ATCCGCCTCC ATCCAGTCTA TTAATTGTTG CCGGGAAGCT AGAGTAAGTA
5941 GTTCGCCAGT TAATAGTTTG CGCAACGTTG TTGCCATTGC TACAGGCATC GTGGTGTCAC
6001 GCTCGTCGTT TGGTATGGCT TCATTCAGCT CCGGTTCCCA ACGATCAAGG CGAGTTACAT
6061 GATCCCCCAT GTTGTGCAAA AAAGCGGTTA GCTCCTTCGG TCCTCCGATC GTTGTCAGAA
6121 GTAAGTTGGC CGCAGTGTTA TCACTCATGG TTATGGCAGC ACTGCATAAT TCTCTTACTG
6181 TCATGCCATC CGTAAGATGC TTTTCTGTGA CTGGTGAGTA CTCAACCAAG TCATTCTGAG
6241 AATAGTGTAT GCGGCGACCG AGTTGCTCTT GCCCGGCGTC AATACGGGAT AATACCGCGC
6301 CACATAGCAG AACTTTAAAA GTGCTCATCA TTGGAAAACG TTCTTCGGGG CGAAAACTCT
6361 CAAGGATCTT ACCGCTGTTG AGATCCAGTT CGATGTAACC CACTCGTGCA CCCAACTGAT
6421 CTTCAGCATC TTTTACTTTC ACCAGCGTTT CTGGGTGAGC AAAAACAGGA AGGCAAAATG
6481 CCGCAAAAAA GGGAATAAGG GCGACACGGA AATGTTGAAT ACTCATACTC TTCCTTTTTC
6541 AATATTATTG AAGCATTTAT CAGGGTTATT GTCTCATGAG CGGATACATA TTTGAATGTA
6601 TTTAGAAAAA TAAACAAATA GGGGTTCCGC GCACATTTCC CCGAAAAGTG CCACCTGACG
6661 TC
//
