pLVX-mCherry-N1

LOCUS       pLVX-mCherry-N1   8778 bp    DNA   circular             7-OCT-2009
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 632562
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|

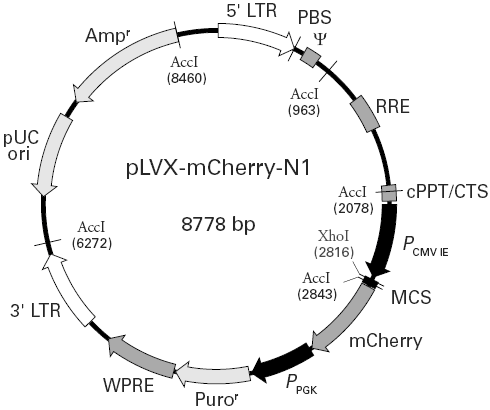

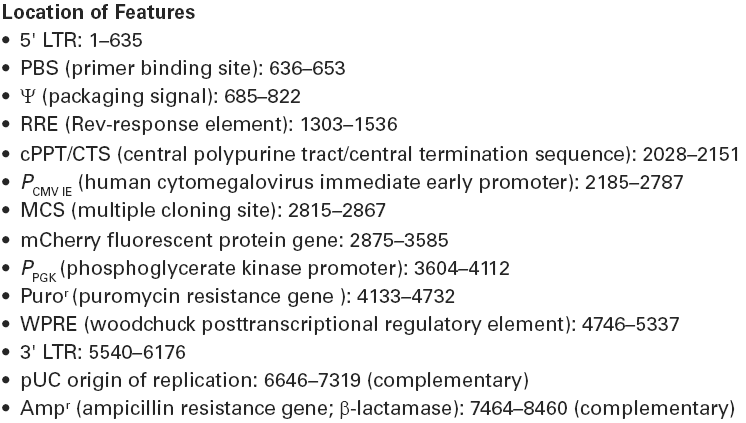

FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=packaging\signal
     misc_feature    4746..5337
                     /label=WPRE
     CDS             complement(7464..8460)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     LTR             5540..6176
                     /label=3'\LTR
     promoter        3604..4112
                     /label=PGK\Promoter
     CDS             4133..4732
                     /label=Puro(R)
     CDS             2875..3585
                     /label=mCherry
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     promoter        2185..2787
                     /label=CMV\IE\Promoter
     rep_origin      complement(6646..7319)
                     /label=pUC\ori
     misc_feature    2815..2867
                     /label=MCS
BASE COUNT     2178 a      2271 c      2335 g      1994 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacatcaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tactagagga tcgctagcgc taccggactc agatctcgag
     2821 ctcaagcttc gaattctgca gtcgacggta ccgcgggccc gggatccacc ggtcatggtg
     2881 agcaagggcg aggaggataa catggccatc atcaaggagt tcatgcgctt caaggtgcac
     2941 atggagggct ccgtgaacgg ccacgagttc gagatcgagg gcgagggcga gggccgcccc
     3001 tacgagggca cccagaccgc caagctgaag gtgaccaagg gtggccccct gcccttcgcc
     3061 tgggacatcc tgtcccctca gttcatgtac ggctccaagg cctacgtgaa gcaccccgcc
     3121 gacatccccg actacttgaa gctgtccttc cccgagggct tcaagtggga gcgcgtgatg
     3181 aacttcgagg acggcggcgt ggtgaccgtg acccaggact cctccctgca ggacggcgag
     3241 ttcatctaca aggtgaagct gcgcggcacc aacttcccct ccgacggccc cgtaatgcag
     3301 aagaagacca tgggctggga ggcctcctcc gagcggatgt accccgagga cggcgccctg
     3361 aagggcgaga tcaagcagag gctgaagctg aaggacggcg gccactacga cgctgaggtc
     3421 aagaccacct acaaggccaa gaagcccgtg cagctgcccg gcgcctacaa cgtcaacatc
     3481 aagttggaca tcacctccca caacgaggac tacaccatcg tggaacagta cgaacgcgcc
     3541 gagggccgcc actccaccgg cggcatggac gagctgtaca agtgagcggc cgcgactcta
     3601 gataattcta ccgggtaggg gaggcgcttt tcccaaggca gtctggagca tgcgctttag
     3661 cagccccgct gggcacttgg cgctacacaa gtggcctctg gcctcgcaca cattccacat
     3721 ccaccggtag gcgccaaccg gctccgttct ttggtggccc cttcgcgcca ccttctactc
     3781 ctcccctagt caggaagttc ccccccgccc cgcagctcgc gtcgtgcagg acgtgacaaa
     3841 tggaagtagc acgtctcact agtctcgtgc agatggacag caccgctgag caatggaagc
     3901 gggtaggcct ttggggcagc ggccaatagc agctttgctc cttcgctttc tgggctcaga
     3961 ggctgggaag gggtgggtcc gggggcgggc tcaggggcgg gctcaggggc ggggcgggcg
     4021 cccgaaggtc ctccggaggc ccggcattct gcacgcttca aaagcgcacg tctgccgcgc
     4081 tgttctcctc ttcctcatct ccgggccttt cgacctgcag cccaagctta ccatgaccga
     4141 gtacaagccc acggtgcgcc tcgccacccg cgacgacgtc cccagggccg tacgcaccct
     4201 cgccgccgcg ttcgccgact accccgccac gcgccacacc gtcgatccgg accgccacat
     4261 cgagcgggtc accgagctgc aagaactctt cctcacgcgc gtcgggctcg acatcggcaa
     4321 ggtgtgggtc gcggacgacg gcgccgcggt ggcggtctgg accacgccgg agagcgtcga
     4381 agcgggggcg gtgttcgccg agatcggccc gcgcatggcc gagttgagcg gttcccggct
     4441 ggccgcgcag caacagatgg aaggcctcct ggcgccgcac cggcccaagg agcccgcgtg
     4501 gttcctggcc accgtcggcg tctcgcccga ccaccagggc aagggtctgg gcagcgccgt
     4561 cgtgctcccc ggagtggagg cggccgagcg cgccggggtg cccgccttcc tggagacctc
     4621 cgcgccccgc aacctcccct tctacgagcg gctcggcttc accgtcaccg ccgacgtcga
     4681 ggtgcccgaa ggaccgcgca cctggtgcat gacccgcaag cccggtgcct gaccgcgtct
     4741 ggaacaatca acctctggat tacaaaattt gtgaaagatt gactggtatt cttaactatg
     4801 ttgctccttt tacgctatgt ggatacgctg ctttaatgcc tttgtatcat gctattgctt
     4861 cccgtatggc tttcattttc tcctccttgt ataaatcctg gttgctgtct ctttatgagg
     4921 agttgtggcc cgttgtcagg caacgtggcg tggtgtgcac tgtgtttgct gacgcaaccc
     4981 ccactggttg gggcattgcc accacctgtc agctcctttc cgggactttc gctttccccc
     5041 tccctattgc cacggcggaa ctcatcgccg cctgccttgc ccgctgctgg acaggggctc
     5101 ggctgttggg cactgacaat tccgtggtgt tgtcggggaa gctgacgtcc tttccatggc
     5161 tgctcgcctg tgttgccacc tggattctgc gcgggacgtc cttctgctac gtcccttcgg
     5221 ccctcaatcc agcggacctt ccttcccgcg gcctgctgcc ggctctgcgg cctcttccgc
     5281 gtcttcgcct tcgccctcag acgagtcgga tctccctttg ggccgcctcc ccgcctggaa
     5341 ttaattctgc agtcgagacc tagaaaaaca tggagcaatc acaagtagca atacagcagc
     5401 taccaatgct gattgtgcct ggctagaagc acaagaggag gaggaggtgg gttttccagt
     5461 cacacctcag gtacctttaa gaccaatgac ttacaaggca gctgtagatc ttagccactt
     5521 tttaaaagaa aagaggggac tggaagggct aattcactcc caacgaagac aagatatcct
     5581 tgatctgtgg atctaccaca cacaaggcta cttccctgat tagcagaact acacaccagg
     5641 gccaggggtc agatatccac tgacctttgg atggtgctac aagctagtac cagttgagcc
     5701 agataaggta gaagaggcca ataaaggaga gaacaccagc ttgttacacc ctgtgagcct
     5761 gcatgggatg gatgacccgg agagagaagt gttagagtgg aggtttgaca gccgcctagc
     5821 atttcatcac gtggcccgag agctgcatcc ggagtacttc aagaactgct gatatcgagc
     5881 ttgctacaag ggactttccg ctggggactt tccagggagg cgtggcctgg gcgggactgg
     5941 ggagtggcga gccctcagat cctgcatata agcagctgct ttttgcctgt actgggtctc
     6001 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
     6061 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
     6121 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtagta
     6181 gttcatgtca tcttattatt cagtatttat aacttgcaaa gaaatgaata tcagagagtg
     6241 agaggccttg acattgctag cgttttaccg tcgacctcta gctagagctt ggcgtaatca
     6301 tggtcatagc tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga
     6361 gccggaagca taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt
     6421 gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga
     6481 atcggccaac gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc
     6541 actgactcgc tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg
     6601 gtaatacggt tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc
     6661 cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc
     6721 ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga
     6781 ctataaagat accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc
     6841 ctgccgctta ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat
     6901 agctcacgct gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg
     6961 cacgaacccc ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc
     7021 aacccggtaa gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga
     7081 gcgaggtatg taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact
     7141 agaagaacag tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt
     7201 ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag
     7261 cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg
     7321 tctgacgctc agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa
     7381 aggatcttca cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata
     7441 tatgagtaaa cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg
     7501 atctgtctat ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata
     7561 cgggagggct taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg
     7621 gctccagatt tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct
     7681 gcaactttat ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt
     7741 tcgccagtta atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc
     7801 tcgtcgtttg gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga
     7861 tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt
     7921 aagttggccg cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc
     7981 atgccatccg taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa
     8041 tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca
     8101 catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca
     8161 aggatcttac cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct
     8221 tcagcatctt ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc
     8281 gcaaaaaagg gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa
     8341 tattattgaa gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt
     8401 tagaaaaata aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
     8461 gacggatcgg gagatcaact tgtttattgc agcttataat ggttacaaat aaagcaatag
     8521 catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg gtttgtccaa
     8581 actcatcaat gtatcttatc atgtctggat caactggata actcaagcta accaaaatca
     8641 tcccaaactt cccaccccat accctattac cactgccaat tacctgtggt ttcatttact
     8701 ctaaacctgt gattcctctg aattattttc attttaaaga aattgtattt gttaaatatg
     8761 tactacaaac ttagtagt
//
