pBAD-DEST49

价格：2000元

联系方式：I47-825O-882O

买家导航

载体基本信息

出品公司:	Invitrogen
载体名称:	pBAD-DEST49
质粒类型:	大肠杆菌表达载体；Gateway载体
高拷贝/低拷贝:	低拷贝
克隆方法:	Gateway
启动子:	araBAD
载体大小:	6160 bp
5' 测序引物及序列:	pBAD Forward
3' 测序引物及序列:	--
载体标签:	V5 Epitope Tag, Thioredoxin（N-端）, His Tag （C-端）
载体抗性:	氨苄青霉素（Ampicillin）、氯霉素（仅空载体）
克隆菌株:	DB3.1(空载体复制）；TOP10（表达载体复制）
表达菌株:	BL21系列
备注:	含EK (Enterokinase)切割位点，切除N-端的HP-thioredoxin标签。
产品目录号:	12283-016
稳定性:	稳表达
组成型/诱导型:	诱导型（阿拉伯糖)
病毒/非病毒:	非病毒

载体图谱质粒图谱和多克隆位点信息

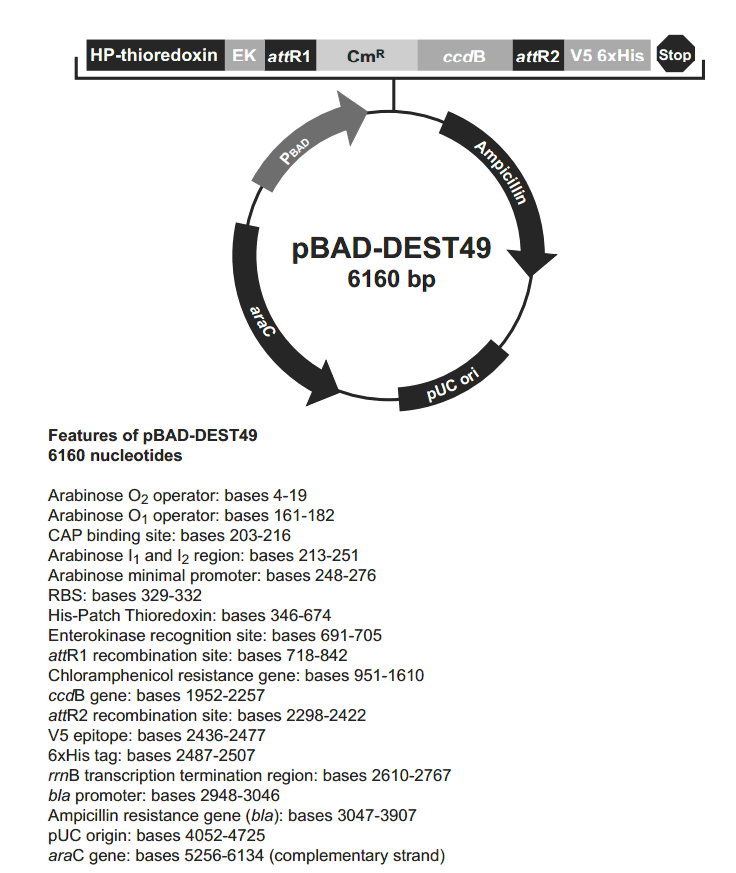

pBAD-DEST49载体图谱

载体简介

The pBAD-DEST49 Gateway destination vector is designed for rapid cloning with a Gateway entry clone using lambda phage site-specific recombination and subsequent high-level, tightly regulated expression in E. coli. The pBAD-DEST49 vector features:
 The araBAD promoter for tightly regulated expression in E. coli
 HP-thioredoxin fusion for improved protein yield and solubility
 Enterokinase cleavage site for efficient cleavage of the N-terminal fusion with EKMax
 C-terminal V5 and 6xHis tags for efficient detection and purification of fusion proteins
 R sites for efficient recombination with any attL-flanked Gateway entry vector

载体序列

LOCUS       pBAD-DEST49	6160 bp 	DNA	SYN
DEFINITION  pBAD-DEST49
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6160
                     /organism="pBAD-DEST49"
                     /mol_type="other DNA"
     misc_feature    4..19
                     /label="araO2"
     misc_feature    161..172
                     /label="araO1"
     misc_feature    203..216
                     /label="CAP_BS"
     misc_feature    208..227
                     /label="pBAD_fwd_primer"
     misc_feature    213..251
                     /label="AraI1I2"
     promoter        248..276
                     /label="ARA_promoter"
     misc_feature    317..333
                     /label="T7_transl_en_RBS"
     misc_feature    346..674
                     /label="His_patch_thio"
     misc_feature    691..705
                     /label="EK"
     misc_feature    718..842
                     /label="attR1"
     misc_feature    complement(742..842)
                     /label="attR2"
     promoter        867..890
                     /label="lac_promoter"
     gene            951..1610
                     /label="CAT/CamR"
                     /gene="CAT/CamR"
     CDS             951..1610
                     /label="ORF frame 3"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    1952..2257
                     /label="ccdB"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(2298..2405)
                     /label="attR1"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    2298..2398
                     /label="attR2"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(2560..2577)
                     /label="pBAD_rev_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(2560..2577)
                     /label="pTrcHis_rev_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     terminator      2610..2767
                     /label="rrnB_terminator"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     terminator      2733..2776
                     /label="rrnB_T1_terminator"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     terminator      2908..2935
                     /label="rrnB_T2_terminator"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     promoter        2977..3005
                     /label="AmpR_promoter"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     gene            3047..3907
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     CDS             3047..3907
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      4062..4681
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    5078..5100
                     /label="pGEX_3_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(5256..6134)
                     /label="AraC"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     CDS             complement(5256..25)
                     /label="ORF frame 1"
                     /translation="MQYGQLVSSLNGGSMKSMAEAQNDPLLPGYSFNAHLVAGLTPIE
                     ANGYLDFFIDRPLGMKGYILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRH
                     PEAREWYHQWVYFRPRAYWHEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQG
                     EGRYSELLAINLLEQLLLRRMEAINESLHPPMDNRVREACQYISDHLADSNFDIASVA
                     QHVCLSPSRLSHLFRQQLGISVLSWREDQRISQAKLLLSTTRMPIATVGRNVGFDDQL
                     YFSRVFKKCTGASPSEFRAGCEEKVNDVAVKLS*"
     CDS             complement(5256..6143)
                     /label="ORF frame 3"
                     /translation="MKSMAEAQNDPLLPGYSFNAHLVAGLTPIEANGYLDFFIDRPLG
                     MKGYILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRHPEAREWYHQWVYFR
                     PRAYWHEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQGEGRYSELLAINLLE
                     QLLLRRMEAINESLHPPMDNRVREACQYISDHLADSNFDIASVAQHVCLSPSRLSHLF
                     RQQLGISVLSWREDQRISQAKLLLSTTRMPIATVGRNVGFDDQLYFSRVFKKCTGASP
                     SEFRAGCEEKVNDVAVKLS*"
ORIGIN
    1 AAGAAACCAA TTGTCCATAT TGCATCAGAC ATTGCCGTCA CTGCGTCTTT TACTGGCTCT
   61 TCTCGCTAAC CAAACCGGTA ACCCCGCTTA TTAAAAGCAT TCTGTAACAA AGCGGGACCA
  121 AAGCCATGAC AAAAACGCGT AACAAAAGTG TCTATAATCA CGGCAGAAAA GTCCACATTG
  181 ATTATTTGCA CGGCGTCACA CTTTGCTATG CCATAGCATT TTTATCCATA AGATTAGCGG
  241 ATCCTACCTG ACGCTTTTTA TCGCAACTCT CTACTGTTTC TCCATACCCG TTTTTTTGGG
  301 CTAGAAATAA TTTTGTTTAA CTTTAAGAAG GAGATATACA TACCCATGGG ATCTGATAAA
  361 ATTATTCATC TGACTGATGA TTCTTTTGAT ACTGATGTAC TTAAGGCAGA TGGTGCAATC
  421 CTGGTTGATT TCTGGGCACA CTGGTGCGGT CCGTGCAAAA TGATCGCTCC GATTCTGGAT
  481 GAAATCGCTG ACGAATATCA GGGCAAACTG ACCGTTGCAA AACTGAACAT CGATCACAAC
  541 CCGGGCACTG CGCCGAAATA TGGCATCCGT GGTATCCCGA CTCTGCTGCT GTTCAAAAAC
  601 GGTGAAGTGG CGGCAACCAA AGTGGGTGCA CTGTCTAAAG GTCAGTTGAA AGAGTTCCTC
  661 GACGCTAACC TGGCCGGCTC TGGATCCGGT GATGACGATG ACAAGCTGGG AATTATCACA
  721 AGTTTGTACA AAAAAGCTGA ACGAGAAACG TAAAATGATA TAAATATCAA TATATTAAAT
  781 TAGATTTTGC ATAAAAAACA GACTACATAA TACTGTAAAA CACAACATAT CCAGTCACTA
  841 TGGCGGCCGC ATTAGGCACC CCAGGCTTTA CACTTTATGC TTCCGGCTCG TATAATGTGT
  901 GGATTTTGAG TTAGGATCCG GCGAGATTTT CAGGAGCTAA GGAAGCTAAA ATGGAGAAAA
  961 AAATCACTGG ATATACCACC GTTGATATAT CCCAATGGCA TCGTAAAGAA CATTTTGAGG
 1021 CATTTCAGTC AGTTGCTCAA TGTACCTATA ACCAGACCGT TCAGCTGGAT ATTACGGCCT
 1081 TTTTAAAGAC CGTAAAGAAA AATAAGCACA AGTTTTATCC GGCCTTTATT CACATTCTTG
 1141 CCCGCCTGAT GAATGCTCAT CCGGAATTCC GTATGGCAAT GAAAGACGGT GAGCTGGTGA
 1201 TATGGGATAG TGTTCACCCT TGTTACACCG TTTTCCATGA GCAAACTGAA ACGTTTTCAT
 1261 CGCTCTGGAG TGAATACCAC GACGATTTCC GGCAGTTTCT ACACATATAT TCGCAAGATG
 1321 TGGCGTGTTA CGGTGAAAAC CTGGCCTATT TCCCTAAAGG GTTTATTGAG AATATGTTTT
 1381 TCGTCTCAGC CAATCCCTGG GTGAGTTTCA CCAGTTTTGA TTTAAACGTG GCCAATATGG
 1441 ACAACTTCTT CGCCCCCGTT TTCACCATGG GCAAATATTA TACGCAAGGC GACAAGGTGC
 1501 TGATGCCGCT GGCGATTCAG GTTCATCATG CCGTCTGTGA TGGCTTCCAT GTCGGCAGAA
 1561 TGCTTAATGA ATTACAACAG TACTGCGATG AGTGGCAGGG CGGGGCGTAA ACGCGTGGAT
 1621 CCGGCTTACT AAAAGCCAGA TAACAGTATG CGTATTTGCG CGCTGATTTT TGCGGTATAA
 1681 GAATATATAC TGATATGTAT ACCCGAAGTA TGTCAAAAAG AGGTGTGCTA TGAAGCAGCG
 1741 TATTACAGTG ACAGTTGACA GCGACAGCTA TCAGTTGCTC AAGGCATATA TGATGTCAAT
 1801 ATCTCCGGTC TGGTAAGCAC AACCATGCAG AATGAAGCCC GTCGTCTGCG TGCCGAACGC
 1861 TGGAAAGCGG AAAATCAGGA AGGGATGGCT GAGGTCGCCC GGTTTATTGA AATGAACGGC
 1921 TCTTTTGCTG ACGAGAACAG GGACTGGTGA AATGCAGTTT AAGGTTTACA CCTATAAAAG
 1981 AGAGAGCCGT TATCGTCTGT TTGTGGATGT ACAGAGTGAT ATTATTGACA CGCCCGGGCG
 2041 ACGGATGGTG ATCCCCCTGG CCAGTGCACG TCTGCTGTCA GATAAAGTCT CCCGTGAACT
 2101 TTACCCGGTG GTGCATATCG GGGATGAAAG CTGGCGCATG ATGACCACCG ATATGGCCAG
 2161 TGTGCCGGTC TCCGTTATCG GGGAAGAAGT GGCTGATCTC AGCCACCGCG AAAATGACAT
 2221 CAAAAACGCC ATTAACCTGA TGTTCTGGGG AATATAAATG TCAGGCTCCG TTATACACAG
 2281 CCAGTCTGCA GGTCGACCAT AGTGACTGGA TATGTTGTGT TTTACAGTAT TATGTAGTCT
 2341 GTTTTTTATG CAAAATCTAA TTTAATATAT TGATATTTAT ATCATTTTAC GTTTCTCGTT
 2401 CAGCTTTCTT GTACAAAGTG GTGATCAAGC TTGAAGGTAA GCCTATCCCT AACCCTCTCC
 2461 TCGGTCTCGA TTCTACGCGT ACCGGTCATC ATCACCATCA CCATTGAGTT TAAACGGTCT
 2521 CCAGCTTGGC TGTTTTGGCG GATGAGAGAA GATTTTCAGC CTGATACAGA TTAAATCAGA
 2581 ACGCAGAAGC GGTCTGATAA AACAGAATTT GCCTGGCGGC AGTAGCGCGG TGGTCCCACC
 2641 TGACCCCATG CCGAACTCAG AAGTGAAACG CCGTAGCGCC GATGGTAGTG TGGGGTCTCC
 2701 CCATGCGAGA GTAGGGAACT GCCAGGCATC AAATAAAACG AAAGGCTCAG TCGAAAGACT
 2761 GGGCCTTTCG TTTTATCTGT TGTTTGTCGG TGAACGCTCT CCTGAGTAGG ACAAATCCGC
 2821 CGGGAGCGGA TTTGAACGTT GCGAAGCAAC GGCCCGGAGG GTGGCGGGCA GGACGCCCGC
 2881 CATAAACTGC CAGGCATCAA ATTAAGCAGA AGGCCATCCT GACGGATGGC CTTTTTGCGT
 2941 TTCTACAAAC TCTTTTTGTT TATTTTTCTA AATACATTCA AATATGTATC CGCTCATGAG
 3001 ACAATAACCC TGATAAATGC TTCAATAATA TTGAAAAAGG AAGAGTATGA GTATTCAACA
 3061 TTTCCGTGTC GCCCTTATTC CCTTTTTTGC GGCATTTTGC CTTCCTGTTT TTGCTCACCC
 3121 AGAAACGCTG GTGAAAGTAA AAGATGCTGA AGATCAGTTG GGTGCACGAG TGGGTTACAT
 3181 CGAACTGGAT CTCAACAGCG GTAAGATCCT TGAGAGTTTT CGCCCCGAAG AACGTTTTCC
 3241 AATGATGAGC ACTTTTAAAG TTCTGCTATG TGGCGCGGTA TTATCCCGTG TTGACGCCGG
 3301 GCAAGAGCAA CTCGGTCGCC GCATACACTA TTCTCAGAAT GACTTGGTTG AGTACTCACC
 3361 AGTCACAGAA AAGCATCTTA CGGATGGCAT GACAGTAAGA GAATTATGCA GTGCTGCCAT
 3421 AACCATGAGT GATAACACTG CGGCCAACTT ACTTCTGACA ACGATCGGAG GACCGAAGGA
 3481 GCTAACCGCT TTTTTGCACA ACATGGGGGA TCATGTAACT CGCCTTGATC GTTGGGAACC
 3541 GGAGCTGAAT GAAGCCATAC CAAACGACGA GCGTGACACC ACGATGCCTG TAGCAATGGC
 3601 AACAACGTTG CGCAAACTAT TAACTGGCGA ACTACTTACT CTAGCTTCCC GGCAACAATT
 3661 AATAGACTGG ATGGAGGCGG ATAAAGTTGC AGGACCACTT CTGCGCTCGG CCCTTCCGGC
 3721 TGGCTGGTTT ATTGCTGATA AATCTGGAGC CGGTGAGCGT GGGTCTCGCG GTATCATTGC
 3781 AGCACTGGGG CCAGATGGTA AGCCCTCCCG TATCGTAGTT ATCTACACGA CGGGGAGTCA
 3841 GGCAACTATG GATGAACGAA ATAGACAGAT CGCTGAGATA GGTGCCTCAC TGATTAAGCA
 3901 TTGGTAACTG TCAGACCAAG TTTACTCATA TATACTTTAG ATTGATTTAA AACTTCATTT
 3961 TTAATTTAAA AGGATCTAGG TGAAGATCCT TTTTGATAAT CTCATGACCA AAATCCCTTA
 4021 ACGTGAGTTT TCGTTCCACT GAGCGTCAGA CCCCGTAGAA AAGATCAAAG GATCTTCTTG
 4081 AGATCCTTTT TTTCTGCGCG TAATCTGCTG CTTGCAAACA AAAAAACCAC CGCTACCAGC
 4141 GGTGGTTTGT TTGCCGGATC AAGAGCTACC AACTCTTTTT CCGAAGGTAA CTGGCTTCAG
 4201 CAGAGCGCAG ATACCAAATA CTGTCCTTCT AGTGTAGCCG TAGTTAGGCC ACCACTTCAA
 4261 GAACTCTGTA GCACCGCCTA CATACCTCGC TCTGCTAATC CTGTTACCAG TGGCTGCTGC
 4321 CAGTGGCGAT AAGTCGTGTC TTACCGGGTT GGACTCAAGA CGATAGTTAC CGGATAAGGC
 4381 GCAGCGGTCG GGCTGAACGG GGGGTTCGTG CACACAGCCC AGCTTGGAGC GAACGACCTA
 4441 CACCGAACTG AGATACCTAC AGCGTGAGCT ATGAGAAAGC GCCACGCTTC CCGAAGGGAG
 4501 AAAGGCGGAC AGGTATCCGG TAAGCGGCAG GGTCGGAACA GGAGAGCGCA CGAGGGAGCT
 4561 TCCAGGGGGA AACGCCTGGT ATCTTTATAG TCCTGTCGGG TTTCGCCACC TCTGACTTGA
 4621 GCGTCGATTT TTGTGATGCT CGTCAGGGGG GCGGAGCCTA TGGAAAAACG CCAGCAACGC
 4681 GGCCTTTTTA CGGTTCCTGG CCTTTTGCTG GCCTTTTGCT CACATGTTCT TTCCTGCGTT
 4741 ATCCCCTGAT TCTGTGGATA ACCGTATTAC CGCCTTTGAG TGAGCTGATA CCGCTCGCCG
 4801 CAGCCGAACG ACCGAGCGCA GCGAGTCAGT GAGCGAGGAA GCGGAAGAGC GCCTGATGCG
 4861 GTATTTTCTC CTTACGCATC TGTGCGGTAT TTCACACCGC ATATGGTGCA CTCTCAGTAC
 4921 AATCTGCTCT GATGCCGCAT AGTTAAGCCA GTATACACTC CGCTATCGCT ACGTGACTGG
 4981 GTCATGGCTG CGCCCCGACA CCCGCCAACA CCCGCTGACG CGCCCTGACG GGCTTGTCTG
 5041 CTCCCGGCAT CCGCTTACAG ACAAGCTGTG ACCGTCTCCG GGAGCTGCAT GTGTCAGAGG
 5101 TTTTCACCGT CATCACCGAA ACGCGCGAGG CAGCAGATCA ATTCGCGCGC GAAGGCGAAG
 5161 CGGCATGCAT AATGTGCCTG TCAAATGGAC GAAGCAGGGA TTCTGCAAAC CCTATGCTAC
 5221 TCCGTCAAGC CGTCAATTGT CTGATTCGTT ACCAATTATG ACAACTTGAC GGCTACATCA
 5281 TTCACTTTTT CTTCACAACC GGCACGGAAC TCGCTCGGGC TGGCCCCGGT GCATTTTTTA
 5341 AATACCCGCG AGAAATAGAG TTGATCGTCA AAACCAACAT TGCGACCGAC GGTGGCGATA
 5401 GGCATCCGGG TGGTGCTCAA AAGCAGCTTC GCCTGGCTGA TACGTTGGTC CTCGCGCCAG
 5461 CTTAAGACGC TAATCCCTAA CTGCTGGCGG AAAAGATGTG ACAGACGCGA CGGCGACAAG
 5521 CAAACATGCT GTGCGACGCT GGCGATATCA AAATTGCTGT CTGCCAGGTG ATCGCTGATG
 5581 TACTGACAAG CCTCGCGTAC CCGATTATCC ATCGGTGGAT GGAGCGACTC GTTAATCGCT
 5641 TCCATGCGCC GCAGTAACAA TTGCTCAAGC AGATTTATCG CCAGCAGCTC CGAATAGCGC
 5701 CCTTCCCCTT GCCCGGCGTT AATGATTTGC CCAAACAGGT CGCTGAAATG CGGCTGGTGC
 5761 GCTTCATCCG GGCGAAAGAA CCCCGTATTG GCAAATATTG ACGGCCAGTT AAGCCATTCA
 5821 TGCCAGTAGG CGCGCGGACG AAAGTAAACC CACTGGTGAT ACCATTCGCG AGCCTCCGGA
 5881 TGACGACCGT AGTGATGAAT CTCTCCTGGC GGGAACAGCA AAATATCACC CGGTCGGCAA
 5941 ACAAATTCTC GTCCCTGATT TTTCACCACC CCCTGACCGC GAATGGTGAG ATTGAGAATA
 6001 TAACCTTTCA TTCCCAGCGG TCGGTCGATA AAAAAATCGA GATAACCGTT GGCCTCAATC
 6061 GGCGTTAAAC CCGCCACCAG ATGGGCATTA AACGAGTATC CCGGCAGCAG GGGATCATTT
 6121 TGCGCTTCAG CCATACTTTT CATACTCCCG CCATTCAGAG
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

上一篇：pET-DEST42
下一篇：pLenti6.4/R4R2/V5-DEST

pFastBac Dual	pPH3
pBad/Myc-His A	pDEST10
pcDNA4/HisMax A	pBApo-CMV-Pur
pSC101 and pKG2	pEF1/His B
pHIC-PI	pMYs-IRES-GFP
pcDNA3.1+P2A-eGFP	pacAd5 9.2-100
pCas-Guide-EF1a-GFP	pNIT-3
pSRE-Luc	pZeoSV2 (+)
pMIB/V5-His A	pFastBac-GST-C
pVW5JI	pLKO-DEST-EGFP
pB-gyrase_TA	pET-28a-EGFP
pLenti CMV/TO Neo empty (w215-1)	IR2
pYES2-EGFP	pXIS11
pYES2-kan	pPZP122
PX391	pE
pAc5.1-V5-His A	pTCK303
pGL4.83[hRlucP/Puro]	pOS1
pCB1535	pET-12c(+)
pSinRep5	pCas
pMV261	pGL4.25[luc2CP/minP]
pDP5rs	pTT5
pTALETF_v2 (NG)	pFB-hrGFP
pBT-5	pLVX-rHom-Sec1
pBHR68	pRS426
pET302/NT-His	pSW510
pKO11	pCMV5
pTrcHis2 C	pGL4.77[hRlucP/Hygro]
pIJ702-87del(78-86, 88-132)	pQE-32
pCR4-35	pcDNA4/V5-His B
pECFP-Nuc	pIB/V5-His
pCDF1-MCS2-EF1-Puro	pEF4/His B
pG5luc	pJW342
pcDNA6.2/V5-PL-DEST	p53-Luc
pMMB33	pCold-GST
pcDNA3.1/His B	pAX01-ComK
pGFP22	pET-32 EK/LIC
pAc5.1a	pCTAP-Shuttle-A
pFA1	pGL4.39[luc2P/ATF6 RE/Hygro]
VaD1	pHC79-2cos/tk
pMKO.1-GFP	pcDNA3.1+/N-GST(TEV)
pTYB2	pFtsH_TA
pGL101	pFN31K Nluc-CMV-neo-Flexi
phCMV1	pWW60-1
DR2	p3xFLAG-KV2.1
pCMV-3Tag-3a	pMSCG19
pCAMBIA3200	pME12::Tn5-259
pSilencer5.1-H1 Retro	pCambia1201
pLVX-Myc-MCS-Strep-IRES-Puro	pKLAC2
pUCDM	pIAβ8
pDR540	pFastBac1

pLV-puro-N-3HA-SREBP1-C-Flag	PG13-luc (wt p53 binding sites)
pGL3-mArg1 promoter/enhancer -31/-3810	pRN11
pcDNA3.1-mCherry	Stat3 Flag pRc/CMV
pBFC1207	pBAD18-Cm
pTK299	mTagBFP2-TOMM20-N-10
pDA077	pET21a-BirA
jk100 pSinEGdsp(p1:MAPPnL;p2:gfp:barcode	pcDNA3.1 myc-NL-GW
pMDIAI	DNMT3b KO Hyg
MSP2135	pHIV-iRFP720-E2A-Luc
EK0285 SFFV-mCherry-SG(s70587)SG-EGFP (F	pPBbsr2-4031NES
pCI neo-hEST2	pMaster1
pCMV-HsPeg10rc3	xCas9(3.6)-BE3
pLenti PGK Puro DEST (w529-2)	pmGFP
pHyo094 (eMutaT7)	Flag-TRIM24
pBS-hBAF60a	pEGFP-NMHC II-C
Plasmid L5 attB::Pleft* mCherry	pRJPaph-bjGFP
pC0055-CMV-dPspCas13b-GS-ADAR2DD(E488Q/T	pUCmini-iCAP-AAV.CAP-B22
pCMV-2NLS-Cas9-6XMS2	pPH37
pc DNA FRT TO- APPSwed/Ind	pCRISPR-aBEST
pGL4-ERSE2-luc2P-Hygro	pRK GFP Paxillin
pBabe-hygro PyMT	sfGFP-Cx43K258stop
hCas9_D10A	BECLIN-HA WT
pF151 pcDNA3.1(+)SOD1WT	pCMV-SynA
pC0061 PsmCas13 (B05) His6-TwinStrep-SUM	pGIPZ-PD-L1-EGFP
pHAtC	pR26 GFP Dest
pBECKP-km	pGM1202
TrkC-GFP	BCR/ABL P190 transgenic construct
MSP680	pET15b_Bst-LF
pSIN4-EF1a-LMO2-IRES-Puro	pBabe-puro-miR-10b sponge
cytoplasmic EKAR (Cerulean-Venus)	pLentipuro3/TO/V5-GW/EGFP-Firefly Lucife
pmScarlet_Giantin_C1	pCMVHA hEZH2
mTert-pBabe-puro	p415-GalL-Cas9-CYC1t
SIRT3 Flag	pAAV-EF1a-DIO-HTB
pNI3	pJQ200mp18
pCMVInt	CaV1.2
pHAGE2-TetOminiCMV-SKM	pSBbi-GN
pYLCRISPR/Cas9pUbi-N	pCAS9-TPC
pCAG Cas9-2A-Citrine	pY001 (pFnCpf1_full)
pcDNA3/Flag-METTL3	LentiGuide Cherry
pHIV-Luc-ZsGreen	pMXs-hc-MYC
pHAGE NFkB-TA-LUC-UBC-GFP-W	pSELECT-HA-mFOXO1
pFE-sfGFP	pEJS654 All-in-One AAV-sgRNA-hNmeCas9
pCMVR8.74	pEcgRNA
pAAV-EF1a-DIO-mCherry	pCMV-ABE7.9
pCas9	pGL3 2 kb prom. CD274
pNLF1W	pSLQ9926: pHR-PGK-SV40_NLS-dCasMINI-V4-V
pHAGE2-TetOminiCMV-mCherry	pTNT-B18R-6His
pRK5-p18-HA	Tcf/Lef:H2B-GFP
pminiTol2	FUGW-PercevalHR
pMSCV-FlagMLL-pl-ENL(5613)	pUAS:Cas9T2AGFP;U6:sgRNA1;U6:sgRNA2

热点推荐

生物资源

细胞培养

微生物与植物培养

蛋白抗体与激酶

技术服务

课题设计与论文发表

pBAD-DEST49

买家导航

载体基本信息

载体图谱质粒图谱和多克隆位点信息

载体简介

载体序列

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

全部载体分类

相关载体

相关文章

相关问答
