pLenti6.2/V5-DEST载体质粒基本信息

出品公司:	Invitrigen
载体名称:	pLenti6.2/V5-DEST
质粒类型:	Gateway载体；慢病毒表达载体
高拷贝/低拷贝:	高拷贝
启动子:	CMV
克隆方法:	Gateway
载体大小:	8813 bp
5' 测序引物及序列:	CMV Forward CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列:	--
载体标签:	V5 Epitope Tag（C-端）
载体抗性:	氨苄青霉素,氯霉素（仅空载体）
真核筛选标记:	Blasticidin
克隆菌株:	DB3.1 , Stbl3
宿主细胞（系）:	常规细胞系，293、CV-1、CHO等
备注:	--
产品目录号:	11809-019
稳定性:	稳表达
组成型/诱导型:	组成型
病毒/非病毒:	非病毒

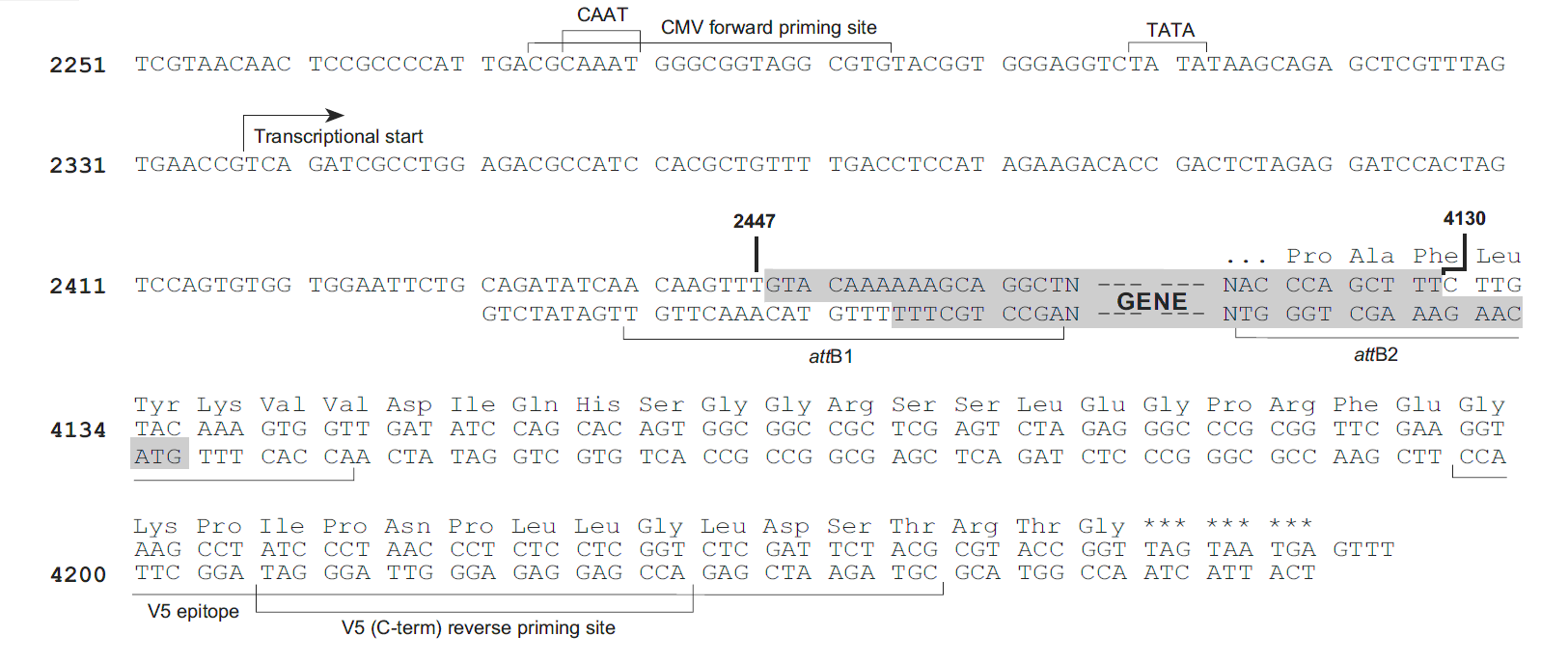

pLenti6.2/V5-DEST质粒图谱载体图谱和pLenti6.2/V5-DEST载体序列质粒序列多克隆位点信息

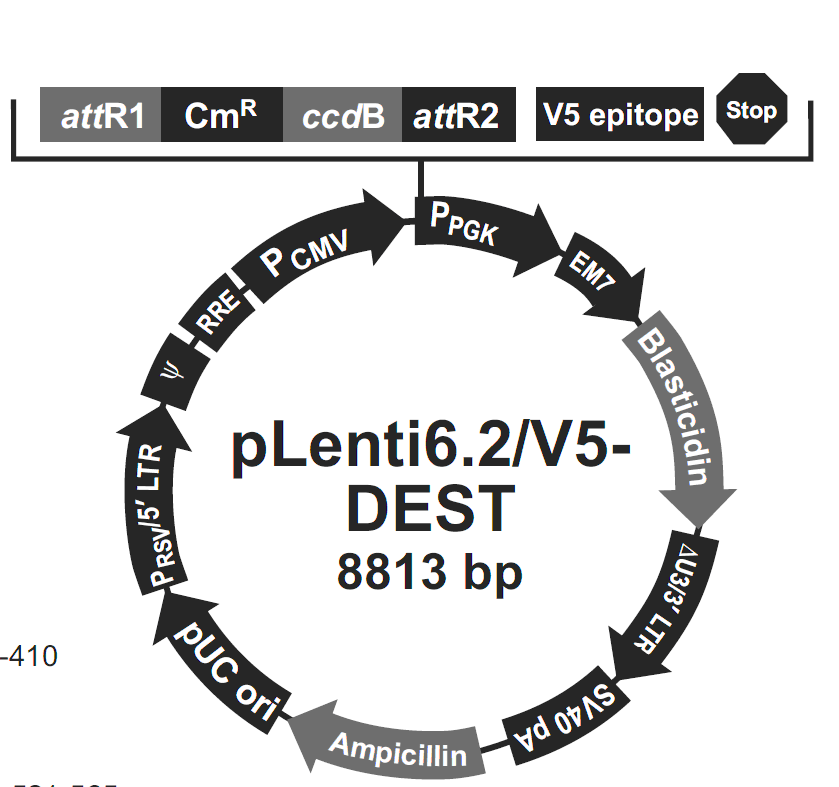

pLenti6.2-V5-DEST载体图谱

pLenti6.2/V5-DEST质粒载体简介

pLenti6.2/V5-DEST载体描述

The pLenti6.2/V5-DEST Gateway Vector is a Gateway-adapted ViraPower II lentiviral expression vector for lentiviral-based expression of a target gene in dividing and non-dividing mammalian cells. The vector has the CMV promoter for driving constitutive expression of the target gene and the PGK promoter for driving long-term, persistent expression of the Blasticidin stable selection marker.

pLenti6.2/V5-DEST载体优点

Stable expression
Long-term experiments
High-throughput screening
Accurate titer of functional virus (using Blasticidin method)
Flexible and versatile Gateway recombination cloning technology

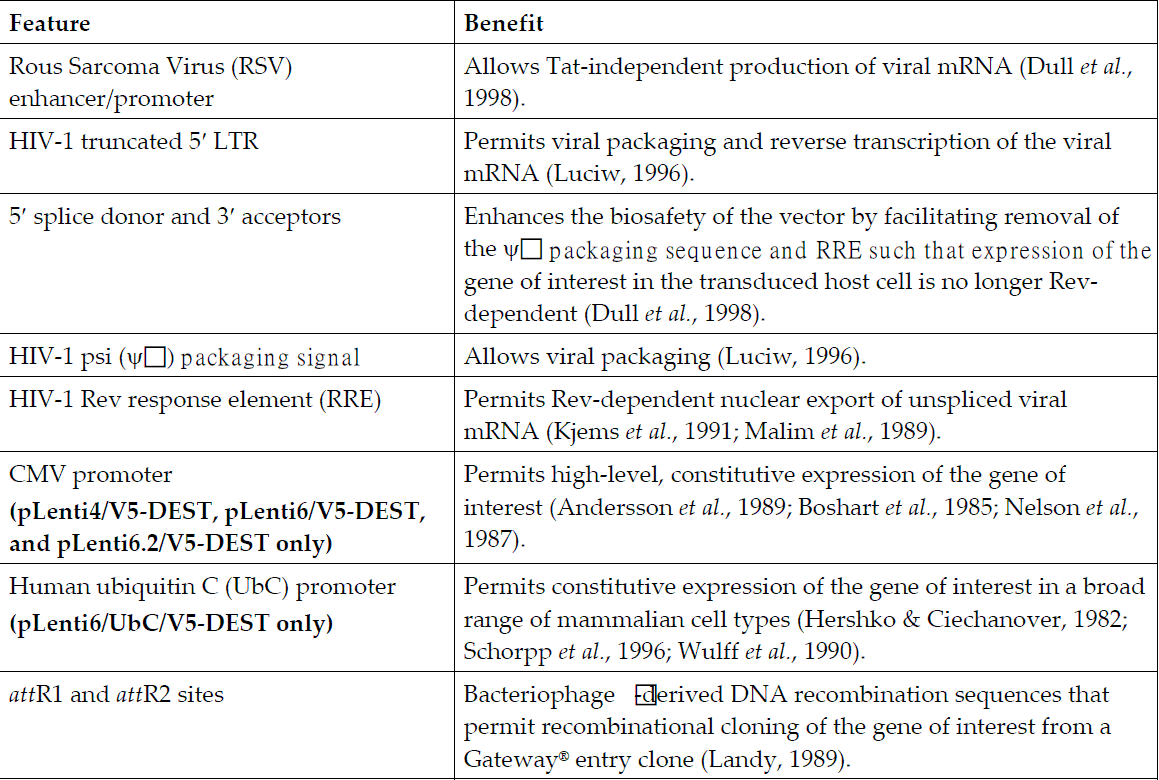

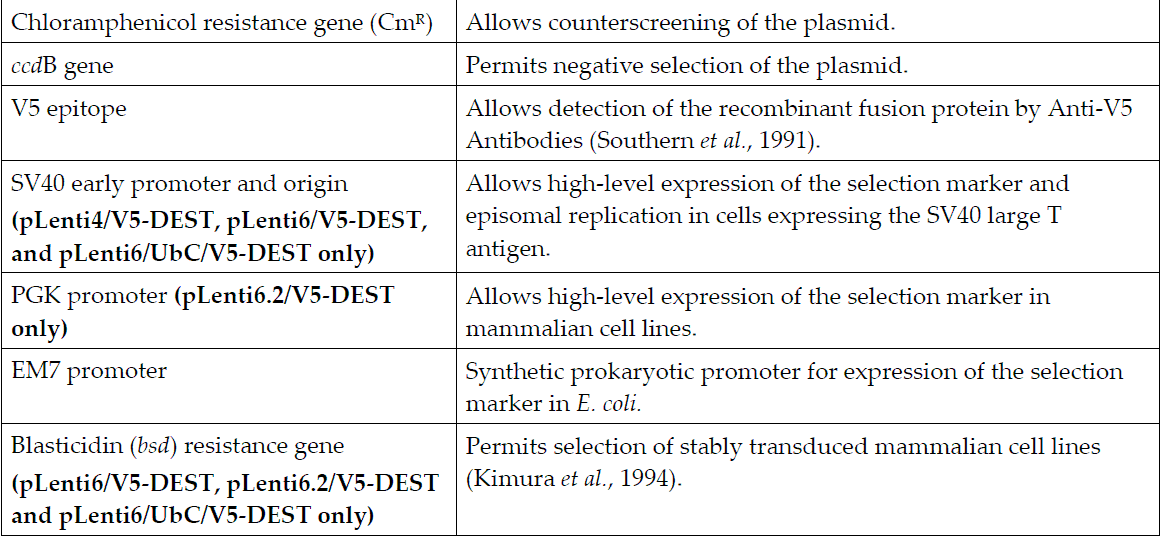

pLenti6.2/V5-DEST载体特征

Human cytomegalovirus (CMV) immediate early promoter to control high-level expression of the gene of interest
PKG Promoter for expression of Blasticidin selection marker

Gateway技术

The Gateway Technology is a universal cloning method that takes advantage of the site-specific recombination properties of bacteriophage lambda (Landy, 1989) to provide a rapid and highly efficient way to move your gene of interest into multiple vector systems. To express your gene of interest using
Gateway Technology, simply:
1. Generate entry clones containing your promoter and gene(s) of interest.
2. Generate an expression clone by performing an LR recombination reaction between the entry clone(s) and pcDNA6.2/V5-pL-DEST).
3. Transfect your expression clone into cells of your choice to transiently or stably express your gene of interest.

To fit all of your expression needs, Invitrogen offers state-of-the-art Gateway destination vectors for expression in E. coli, insect, yeast, or mammalian cells, as well as for production of native protein or N- or C-terminal fusion proteins. All Gateway destination vectors have attR sites for recombination with any attL-flanked fragment, regardless of whether it is an entry clone or an Ultimate ORF Clone. The following table lists a variety of available destination vectors.
Additional materials required, available separately: Gateway entry clone, appropriate Gateway LR Clonase enzyme mix, and reaction buffer.

所需材料

在着手开始实验前你需要准备一下材料：
Gateway entry clone, appropriate Gateway LR Clonase enzyme mix, and reaction buffer.
• Purified plasmid DNA of your entry clone(s) (10 fmoles each)
• pcDNA6.2/V5-pL-DEST (20 fmoles)
• LR Clonase II Plus enzyme mix (keep at –20°C until immediately before use)
• 1X TE Buffer, pH 8.0 (10 mM Tris-HCl, pH 8.0, 1 mM EDTA)
• 2 μg/μL Proteinase K solution (supplied with the enzyme mix; thaw and keep on ice until use)
• Appropriate competent E. coli host and growth media for expression
• S.O.C. Medium
• LB agar plates containing 100 μg/mL ampicillin

进行LR重组反应

值得注意的事项：
If you use E. coli cells with a transformation efficiency of ≥1 × 108 cfu/μg, a typical LR reaction should give >5,000 colonies if the entire reaction is transformed and plated.
For multiple fragment reactions, typical numbers of colonies (per 10 μL LR reaction) are:
• 2-fragment recombination reaction: 2,000–15,000
• 3-fragment recombination reaction: 1,000–5,000
• 4-fragment recombination reaction: 50–500

Confirming the Expression Clone

The ccdB gene mutates at a very low frequency, resulting in a very low number of false positives. True expression clones will be ampicillin-resistant and chloramphenicol-sensitive. Transformants containing a plasmid with a mutated ccdB gene will be both ampicillin- and chloramphenicol-resistant.
To check your putative expression clone, test for growth on LB plates containing 30 μg/mL chloramphenicol. A true expression clone will not grow in the presence of chloramphenicol.
Sequencing To confirm that your gene of interest is in frame with the C-terminal V5 epitope, you may sequence your expression construct, if desired. We suggest using the following primer sequences. Refer to the diagram on page 6 for the location of the primer binding sites.

pLenti6.2/V5-DEST质粒序列载体序列

LOCUS       pLenti6.2/V5-DEST	8813 bp 	DNA	SYN
DEFINITION  pLenti6.2/V5-DEST
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..8813
                     /organism="pLenti6.2/V5-DEST"
                     /mol_type="other DNA"
     misc_feature    230..410
                     /label="HIV-1_5_LTR"
     misc_feature    230..410
                     /label="truncHIV-1_3_LTR"
     misc_feature    521..565
                     /label="HIV-1_psi_pack"
     CDS             953..1801
                     /label="ORF frame 2"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     misc_feature    1075..1308
                     /label="RRE"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     promoter        1813..2317
                     /label="CMV_immearly_promoter"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     misc_feature    1820..2107
                     /label="CAG_enhancer"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     misc_feature    2274..2294
                     /label="CMV_fwd_primer"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     promoter        2275..2344
                     /label="CMV_promoter"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     misc_feature    2318..2337
                     /label="pCEP_fwd_primer"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     misc_feature    2320..2344
                     /label="LNCX_primer"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     misc_feature    2440..2564
                     /label="attR1"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     misc_feature    complement(2464..2564)
                     /label="attR2"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     promoter        2589..2612
                     /label="lac_promoter"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     gene            2673..3332
                     /label="CAT/CamR"
                     /gene="CAT/CamR"
                     /translation="MRDNWRSELYKYKVVKIEPLGVAPTKAKRRVVQREKRAVGIGAL
                     FLGFLGAAGSTMGAASMTLTVQARQLLSGIVQQQNNLLRAIEAQQHLLQLTVWGIKQL
                     QARILAVERYLKDQQLLGIWGCSGKLICTTAVPWNASWSNKSLEQIWNHTTWMEWDRE
                     INNYTSLIHSLIEESQNQQEKNEQELLELDKWASLWNWFNITNWLWYIKLFIMIVGGL
                     VGLRIVFAVLSIVNRVRQGYSPLSFQTHLPTPRGPDRPEGIEEEGGERDRDRSIRLVN
                     GSRRYR*"
     CDS             2673..3332
                     /label="ORF frame 3"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    3674..3979
                     /label="ccdB"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(4020..4127)
                     /label="attR1"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    4020..4120
                     /label="attR2"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(4306..4329)
                     /label="MSCV_rev_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    4702..4721
                     /label="mPGK_F_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     promoter        4781..4848
                     /label="EM7_promoter"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     gene            4849..5247
                     /label="blast"
                     /gene="blast"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    5317..5332
                     /label="cPPT"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    5317..5338
                     /label="U3PPT"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    5334..5386
                     /label="delta_U3"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    5387..5567
                     /label="HIV-1_5_LTR"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    5387..5567
                     /label="truncHIV-1_3_LTR"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     terminator      5642..5761
                     /label="SV40_PA_terminator"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    5730..5749
                     /label="EBV_rev_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     rep_origin      5779..5877
                     /label="SV40_origin"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    5862..5881
                     /label="SV40pro_F_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     promoter        complement(5956..5974)
                     /label="T7_promoter"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     promoter        complement(5984..6000)
                     /label="M13_forward20_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(5993..6015)
                     /label="M13_pUC_fwd_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    5993..6141
                     /label="lacZ_a"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     rep_origin      6159..6465
                     /label="f1_origin"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     promoter        6658..6686
                     /label="AmpR_promoter"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     gene            6728..7588
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     CDS             6728..7588
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      7743..8362
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        8671..8700
                     /label="lac_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    8714..8736
                     /label="M13_pUC_rev_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        8735..8753
                     /label="M13_reverse_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        8770..8789
                     /label="T3_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 AATGTAGTCT TATGCAATAC TCTTGTAGTC TTGCAACATG GTAACGATGA GTTAGCAACA
   61 TGCCTTACAA GGAGAGAAAA AGCACCGTGC ATGCCGATTG GTGGAAGTAA GGTGGTACGA
  121 TCGTGCCTTA TTAGGAAGGC AACAGACGGG TCTGACATGG ATTGGACGAA CCACTGAATT
  181 GCCGCATTGC AGAGATATTG TATTTAAGTG CCTAGCTCGA TACATAAACG GGTCTCTCTG
  241 GTTAGACCAG ATCTGAGCCT GGGAGCTCTC TGGCTAACTA GGGAACCCAC TGCTTAAGCC
  301 TCAATAAAGC TTGCCTTGAG TGCTTCAAGT AGTGTGTGCC CGTCTGTTGT GTGACTCTGG
  361 TAACTAGAGA TCCCTCAGAC CCTTTTAGTC AGTGTGGAAA ATCTCTAGCA GTGGCGCCCG
  421 AACAGGGACT TGAAAGCGAA AGGGAAACCA GAGGAGCTCT CTCGACGCAG GACTCGGCTT
  481 GCTGAAGCGC GCACGGCAAG AGGCGAGGGG CGGCGACTGG TGAGTACGCC AAAAATTTTG
  541 ACTAGCGGAG GCTAGAAGGA GAGAGATGGG TGCGAGAGCG TCAGTATTAA GCGGGGGAGA
  601 ATTAGATCGC GATGGGAAAA AATTCGGTTA AGGCCAGGGG GAAAGAAAAA ATATAAATTA
  661 AAACATATAG TATGGGCAAG CAGGGAGCTA GAACGATTCG CAGTTAATCC TGGCCTGTTA
  721 GAAACATCAG AAGGCTGTAG ACAAATACTG GGACAGCTAC AACCATCCCT TCAGACAGGA
  781 TCAGAAGAAC TTAGATCATT ATATAATACA GTAGCAACCC TCTATTGTGT GCATCAAAGG
  841 ATAGAGATAA AAGACACCAA GGAAGCTTTA GACAAGATAG AGGAAGAGCA AAACAAAAGT
  901 AAGACCACCG CACAGCAAGC GGCCGCTGAT CTTCAGACCT GGAGGAGGAG ATATGAGGGA
  961 CAATTGGAGA AGTGAATTAT ATAAATATAA AGTAGTAAAA ATTGAACCAT TAGGAGTAGC
 1021 ACCCACCAAG GCAAAGAGAA GAGTGGTGCA GAGAGAAAAA AGAGCAGTGG GAATAGGAGC
 1081 TTTGTTCCTT GGGTTCTTGG GAGCAGCAGG AAGCACTATG GGCGCAGCGT CAATGACGCT
 1141 GACGGTACAG GCCAGACAAT TATTGTCTGG TATAGTGCAG CAGCAGAACA ATTTGCTGAG
 1201 GGCTATTGAG GCGCAACAGC ATCTGTTGCA ACTCACAGTC TGGGGCATCA AGCAGCTCCA
 1261 GGCAAGAATC CTGGCTGTGG AAAGATACCT AAAGGATCAA CAGCTCCTGG GGATTTGGGG
 1321 TTGCTCTGGA AAACTCATTT GCACCACTGC TGTGCCTTGG AATGCTAGTT GGAGTAATAA
 1381 ATCTCTGGAA CAGATTTGGA ATCACACGAC CTGGATGGAG TGGGACAGAG AAATTAACAA
 1441 TTACACAAGC TTAATACACT CCTTAATTGA AGAATCGCAA AACCAGCAAG AAAAGAATGA
 1501 ACAAGAATTA TTGGAATTAG ATAAATGGGC AAGTTTGTGG AATTGGTTTA ACATAACAAA
 1561 TTGGCTGTGG TATATAAAAT TATTCATAAT GATAGTAGGA GGCTTGGTAG GTTTAAGAAT
 1621 AGTTTTTGCT GTACTTTCTA TAGTGAATAG AGTTAGGCAG GGATATTCAC CATTATCGTT
 1681 TCAGACCCAC CTCCCAACCC CGAGGGGACC CGACAGGCCC GAAGGAATAG AAGAAGAAGG
 1741 TGGAGAGAGA GACAGAGACA GATCCATTCG ATTAGTGAAC GGATCTCGAC GGTATCGATA
 1801 AGCTTGGGAG TTCCGCGTTA CATAACTTAC GGTAAATGGC CCGCCTGGCT GACCGCCCAA
 1861 CGACCCCCGC CCATTGACGT CAATAATGAC GTATGTTCCC ATAGTAACGC CAATAGGGAC
 1921 TTTCCATTGA CGTCAATGGG TGGAGTATTT ACGGTAAACT GCCCACTTGG CAGTACATCA
 1981 AGTGTATCAT ATGCCAAGTA CGCCCCCTAT TGACGTCAAT GACGGTAAAT GGCCCGCCTG
 2041 GCATTATGCC CAGTACATGA CCTTATGGGA CTTTCCTACT TGGCAGTACA TCTACGTATT
 2101 AGTCATCGCT ATTACCATGG TGATGCGGTT TTGGCAGTAC ATCAATGGGC GTGGATAGCG
 2161 GTTTGACTCA CGGGGATTTC CAAGTCTCCA CCCCATTGAC GTCAATGGGA GTTTGTTTTG
 2221 GCACCAAAAT CAACGGGACT TTCCAAAATG TCGTAACAAC TCCGCCCCAT TGACGCAAAT
 2281 GGGCGGTAGG CGTGTACGGT GGGAGGTCTA TATAAGCAGA GCTCGTTTAG TGAACCGTCA
 2341 GATCGCCTGG AGACGCCATC CACGCTGTTT TGACCTCCAT AGAAGACACC GACTCTAGAG
 2401 GATCCACTAG TCCAGTGTGG TGGAATTCTG CAGATATCAA CAAGTTTGTA CAAAAAAGCT
 2461 GAACGAGAAA CGTAAAATGA TATAAATATC AATATATTAA ATTAGATTTT GCATAAAAAA
 2521 CAGACTACAT AATACTGTAA AACACAACAT ATCCAGTCAC TATGGCGGCC GCATTAGGCA
 2581 CCCCAGGCTT TACACTTTAT GCTTCCGGCT CGTATAATGT GTGGATTTTG AGTTAGGATC
 2641 CGGCGAGATT TTCAGGAGCT AAGGAAGCTA AAATGGAGAA AAAAATCACT GGATATACCA
 2701 CCGTTGATAT ATCCCAATGG CATCGTAAAG AACATTTTGA GGCATTTCAG TCAGTTGCTC
 2761 AATGTACCTA TAACCAGACC GTTCAGCTGG ATATTACGGC CTTTTTAAAG ACCGTAAAGA
 2821 AAAATAAGCA CAAGTTTTAT CCGGCCTTTA TTCACATTCT TGCCCGCCTG ATGAATGCTC
 2881 ATCCGGAATT CCGTATGGCA ATGAAAGACG GTGAGCTGGT GATATGGGAT AGTGTTCACC
 2941 CTTGTTACAC CGTTTTCCAT GAGCAAACTG AAACGTTTTC ATCGCTCTGG AGTGAATACC
 3001 ACGACGATTT CCGGCAGTTT CTACACATAT ATTCGCAAGA TGTGGCGTGT TACGGTGAAA
 3061 ACCTGGCCTA TTTCCCTAAA GGGTTTATTG AGAATATGTT TTTCGTCTCA GCCAATCCCT
 3121 GGGTGAGTTT CACCAGTTTT GATTTAAACG TGGCCAATAT GGACAACTTC TTCGCCCCCG
 3181 TTTTCACCAT GGGCAAATAT TATACGCAAG GCGACAAGGT GCTGATGCCG CTGGCGATTC
 3241 AGGTTCATCA TGCCGTCTGT GATGGCTTCC ATGTCGGCAG AATGCTTAAT GAATTACAAC
 3301 AGTACTGCGA TGAGTGGCAG GGCGGGGCGT AAAGATCTGG ATCCGGCTTA CTAAAAGCCA
 3361 GATAACAGTA TGCGTATTTG CGCGCTGATT TTTGCGGTAT AAGAATATAT ACTGATATGT
 3421 ATACCCGAAG TATGTCAAAA AGAGGTGTGC TATGAAGCAG CGTATTACAG TGACAGTTGA
 3481 CAGCGACAGC TATCAGTTGC TCAAGGCATA TATGATGTCA ATATCTCCGG TCTGGTAAGC
 3541 ACAACCATGC AGAATGAAGC CCGTCGTCTG CGTGCCGAAC GCTGGAAAGC GGAAAATCAG
 3601 GAAGGGATGG CTGAGGTCGC CCGGTTTATT GAAATGAACG GCTCTTTTGC TGACGAGAAC
 3661 AGGGACTGGT GAAATGCAGT TTAAGGTTTA CACCTATAAA AGAGAGAGCC GTTATCGTCT
 3721 GTTTGTGGAT GTACAGAGTG ATATTATTGA CACGCCCGGG CGACGGATGG TGATCCCCCT
 3781 GGCCAGTGCA CGTCTGCTGT CAGATAAAGT CTCCCGTGAA CTTTACCCGG TGGTGCATAT
 3841 CGGGGATGAA AGCTGGCGCA TGATGACCAC CGATATGGCC AGTGTGCCGG TCTCCGTTAT
 3901 CGGGGAAGAA GTGGCTGATC TCAGCCACCG CGAAAATGAC ATCAAAAACG CCATTAACCT
 3961 GATGTTCTGG GGAATATAAA TGTCAGGCTC CGTTATACAC AGCCAGTCTG CAGGTCGACC
 4021 ATAGTGACTG GATATGTTGT GTTTTACAGT ATTATGTAGT CTGTTTTTTA TGCAAAATCT
 4081 AATTTAATAT ATTGATATTT ATATCATTTT ACGTTTCTCG TTCAGCTTTC TTGTACAAAG
 4141 TGGTTGATAT CCAGCACAGT GGCGGCCGCT CGAGTCTAGA GGGCCCGCGG TTCGAAGGTA
 4201 AGCCTATCCC TAACCCTCTC CTCGGTCTCG ATTCTACGCG TACCGGTTAG TAATGACGAT
 4261 GGTACCTACC GGGTAGGGGA GGCGCTTTTC CCAAGGCAGT CTGGAGCATG CGCTTTAGCA
 4321 GCCCCGCTGG GCACTTGGCG CTACACAAGT GGCCTCTGGC CTCGCACACA TTCCACATCC
 4381 ACCGGTAGGC GCCAACCGGC TCCGTTCTTT GGTGGCCCCT TCGCGCCACC TTCTACTCCT
 4441 CCCCTAGTCA GGAAGTTCCC CCCCGCCCCG CAGCTCGCGT CGTGCAGGAC GTGACAAATG
 4501 GAAGTAGCAC GTCTCACTAG TCTCGTGCAG ATGGACAGCA CCGCTGAGCA ATGGAAGCDG
 4561 GTAGGCCTTT GGGGCAGCGG CCAATAGCAG CTTTGCTCCT TCGCTTTCTG GGCTCAGAGG
 4621 CTGGGAAGGG GTGGGTCCGG GGGCGGGCTC AGGGGCGGGC TCAGGGGCGG GGCGGGCGCC
 4681 CGAAGTCCTC CGGAGGCCCG GCATTCTGCA CGCTTCAAAA GCGCACGTCT GCCGCGCTGT
 4741 TCTCCTCTTC CTCATCTCCG GGCCTTTCGA CTCTAGACAC GTGTTGACAA TTAATCATCG
 4801 GCATAGTATA TCGGCATAGT ATAATACGAC AAGGTGAGGA ACTAAACCAT GGCCAAGCCT
 4861 TTGTCTCAAG AAGAATCCAC CCTCATTGAA AGAGCAACGG CTACAATCAA CAGCATCCCC
 4921 ATCTCTGAAG ACTACAGCGT CGCCAGCGCA GCTCTCTCTA GCGACGGCCG CATCTTCACT
 4981 GGTGTCAATG TATATCATTT TACTGGGGGA CCTTGTGCAG AACTCGTGGT GCTGGGCACT
 5041 GCTGCTGCTG CGGCAGCTGG CAACCTGACT TGTATCGTCG CGATCGGAAA TGAGAACAGG
 5101 GGCATCTTGA GCCCCTGCGG ACGGTGCCGA CAGGTGCTTC TCGATCTGCA TCCTGGGATC
 5161 AAAGCCATAG TGAAGGACAG TGATGGACAG CCGACGGCAG TTGGGATTCG TGAATTGCTG
 5221 CCCTCTGGTT ATGTGTGGGA GGGCTAAGCA CAATTCGAGC TCGGTACCTT TAAGACCAAT
 5281 GACTTACAAG GCAGCTGTAG ATCTTAGCCA CTTTTTAAAA GAAAAGGGGG GACTGGAAGG
 5341 GCTAATTCAC TCCCAACGAA GACAAGATCT GCTTTTTGCT TGTACTGGGT CTCTCTGGTT
 5401 AGACCAGATC TGAGCCTGGG AGCTCTCTGG CTAACTAGGG AACCCACTGC TTAAGCCTCA
 5461 ATAAAGCTTG CCTTGAGTGC TTCAAGTAGT GTGTGCCCGT CTGTTGTGTG ACTCTGGTAA
 5521 CTAGAGATCC CTCAGACCCT TTTAGTCAGT GTGGAAAATC TCTAGCAGTA GTAGTTCATG
 5581 TCATCTTATT ATTCAGTATT TATAACTTGC AAAGAAATGA ATATCAGAGA GTGAGAGGAA
 5641 CTTGTTTATT GCAGCTTATA ATGGTTACAA ATAAAGCAAT AGCATCACAA ATTTCACAAA
 5701 TAAAGCATTT TTTTCACTGC ATTCTAGTTG TGGTTTGTCC AAACTCATCA ATGTATCTTA
 5761 TCATGTCTGG CTCTAGCTAT CCCGCCCCTA ACTCCGCCCA TCCCGCCCCT AACTCCGCCC
 5821 AGTTCCGCCC ATTCTCCGCC CCATGGCTGA CTAATTTTTT TTATTTATGC AGAGGCCGAG
 5881 GCCGCCTCGG CCTCTGAGCT ATTCCAGAAG TAGTGAGGAG GCTTTTTTGG AGGCCTAGGG
 5941 ACGTACCCAA TTCGCCCTAT AGTGAGTCGT ATTACGCGCG CTCACTGGCC GTCGTTTTAC
 6001 AACGTCGTGA CTGGGAAAAC CCTGGCGTTA CCCAACTTAA TCGCCTTGCA GCACATCCCC
 6061 CTTTCGCCAG CTGGCGTAAT AGCGAAGAGG CCCGCACCGA TCGCCCTTCC CAACAGTTGC
 6121 GCAGCCTGAA TGGCGAATGG GACGCGCCCT GTAGCGGCGC ATTAAGCGCG GCGGGTGTGG
 6181 TGGTTACGCG CAGCGTGACC GCTACACTTG CCAGCGCCCT AGCGCCCGCT CCTTTCGCTT
 6241 TCTTCCCTTC CTTTCTCGCC ACGTTCGCCG GCTTTCCCCG TCAAGCTCTA AATCGGGGGC
 6301 TCCCTTTAGG GTTCCGATTT AGTGCTTTAC GGCACCTCGA CCCCAAAAAA CTTGATTAGG
 6361 GTGATGGTTC ACGTAGTGGG CCATCGCCCT GATAGACGGT TTTTCGCCCT TTGACGTTGG
 6421 AGTCCACGTT CTTTAATAGT GGACTCTTGT TCCAAACTGG AACAACACTC AACCCTATCT
 6481 CGGTCTATTC TTTTGATTTA TAAGGGATTT TGCCGATTTC GGCCTATTGG TTAAAAAATG
 6541 AGCTGATTTA ACAAAAATTT AACGCGAATT TTAACAAAAT ATTAACGCTT ACAATTTAGG
 6601 TGGCACTTTT CGGGGAAATG TGCGCGGAAC CCCTATTTGT TTATTTTTCT AAATACATTC
 6661 AAATATGTAT CCGCTCATGA GACAATAACC CTGATAAATG CTTCAATAAT ATTGAAAAAG
 6721 GAAGAGTATG AGTATTCAAC ATTTCCGTGT CGCCCTTATT CCCTTTTTTG CGGCATTTTG
 6781 CCTTCCTGTT TTTGCTCACC CAGAAACGCT GGTGAAAGTA AAAGATGCTG AAGATCAGTT
 6841 GGGTGCACGA GTGGGTTACA TCGAACTGGA TCTCAACAGC GGTAAGATCC TTGAGAGTTT
 6901 TCGCCCCGAA GAACGTTTTC CAATGATGAG CACTTTTAAA GTTCTGCTAT GTGGCGCGGT
 6961 ATTATCCCGT ATTGACGCCG GGCAAGAGCA ACTCGGTCGC CGCATACACT ATTCTCAGAA
 7021 TGACTTGGTT GAGTACTCAC CAGTCACAGA AAAGCATCTT ACGGATGGCA TGACAGTAAG
 7081 AGAATTATGC AGTGCTGCCA TAACCATGAG TGATAACACT GCGGCCAACT TACTTCTGAC
 7141 AACGATCGGA GGACCGAAGG AGCTAACCGC TTTTTTGCAC AACATGGGGG ATCATGTAAC
 7201 TCGCCTTGAT CGTTGGGAAC CGGAGCTGAA TGAAGCCATA CCAAACGACG AGCGTGACAC
 7261 CACGATGCCT GTAGCAATGG CAACAACGTT GCGCAAACTA TTAACTGGCG AACTACTTAC
 7321 TCTAGCTTCC CGGCAACAAT TAATAGACTG GATGGAGGCG GATAAAGTTG CAGGACCACT
 7381 TCTGCGCTCG GCCCTTCCGG CTGGCTGGTT TATTGCTGAT AAATCTGGAG CCGGTGAGCG
 7441 TGGGTCTCGC GGTATCATTG CAGCACTGGG GCCAGATGGT AAGCCCTCCC GTATCGTAGT
 7501 TATCTACACG ACGGGGAGTC AGGCAACTAT GGATGAACGA AATAGACAGA TCGCTGAGAT
 7561 AGGTGCCTCA CTGATTAAGC ATTGGTAACT GTCAGACCAA GTTTACTCAT ATATACTTTA
 7621 GATTGATTTA AAACTTCATT TTTAATTTAA AAGGATCTAG GTGAAGATCC TTTTTGATAA
 7681 TCTCATGACC AAAATCCCTT AACGTGAGTT TTCGTTCCAC TGAGCGTCAG ACCCCGTAGA
 7741 AAAGATCAAA GGATCTTCTT GAGATCCTTT TTTTCTGCGC GTAATCTGCT GCTTGCAAAC
 7801 AAAAAAACCA CCGCTACCAG CGGTGGTTTG TTTGCCGGAT CAAGAGCTAC CAACTCTTTT
 7861 TCCGAAGGTA ACTGGCTTCA GCAGAGCGCA GATACCAAAT ACTGTTCTTC TAGTGTAGCC
 7921 GTAGTTAGGC CACCACTTCA AGAACTCTGT AGCACCGCCT ACATACCTCG CTCTGCTAAT
 7981 CCTGTTACCA GTGGCTGCTG CCAGTGGCGA TAAGTCGTGT CTTACCGGGT TGGACTCAAG
 8041 ACGATAGTTA CCGGATAAGG CGCAGCGGTC GGGCTGAACG GGGGGTTCGT GCACACAGCC
 8101 CAGCTTGGAG CGAACGACCT ACACCGAACT GAGATACCTA CAGCGTGAGC TATGAGAAAG
 8161 CGCCACGCTT CCCGAAGGGA GAAAGGCGGA CAGGTATCCG GTAAGCGGCA GGGTCGGAAC
 8221 AGGAGAGCGC ACGAGGGAGC TTCCAGGGGG AAACGCCTGG TATCTTTATA GTCCTGTCGG
 8281 GTTTCGCCAC CTCTGACTTG AGCGTCGATT TTTGTGATGC TCGTCAGGGG GGCGGAGCCT
 8341 ATGGAAAAAC GCCAGCAACG CGGCCTTTTT ACGGTTCCTG GCCTTTTGCT GGCCTTTTGC
 8401 TCACATGTTC TTTCCTGCGT TATCCCCTGA TTCTGTGGAT AACCGTATTA CCGCCTTTGA
 8461 GTGAGCTGAT ACCGCTCGCC GCAGCCGAAC GACCGAGCGC AGCGAGTCAG TGAGCGAGGA
 8521 AGCGGAAGAG CGCCCAATAC GCAAACCGCC TCTCCCCGCG CGTTGGCCGA TTCATTAATG
 8581 CAGCTGGCAC GACAGGTTTC CCGACTGGAA AGCGGGCAGT GAGCGCAACG CAATTAATGT
 8641 GAGTTAGCTC ACTCATTAGG CACCCCAGGC TTTACACTTT ATGCTTCCGG CTCGTATGTT
 8701 GTGTGGAATT GTGAGCGGAT AACAATTTCA CACAGGAAAC AGCTATGACC ATGATTACGC
 8761 CAAGCGCGCA ATTAACCCTC ACTAAAGGGA ACAAAAGCTG GAGCTGCAAG CTT

//

pLenti6.2/V5-DEST载体图谱质粒图谱pdf版和pLenti6.2/V5-DEST载体序列质粒序列等相关资料下载

pLenti6.2/V5-DEST质粒载体应用举例

上一篇：pLenti6.2/C-Lumio/V5-DEST
下一篇：pDEST12.2

pHB-1	pL-brevisGH3-MBP
pPIC ZαGB	pET-32a(+)
pGL4.41[luc2P/HSE/Hygro]	pMal-c4X
pcDNA5/FRT	pHSG422
pLLP-OmpA	pBad43
pTi	pCL-Ampho
pIC20H	pNEO
pET-41a(+)	pRB373
pSH65	pML21
pAcGFP1-N2	pENTR11-Dual
pGL4.38[luc2P/p53 RE/Hygro]	PX543
pPIC9	pHV23
pAN7-1	pNEO-ars
pUG6	pLNCX2
pCDH-CMV-MCS-EF1a-RFP+BSD	pPIC9k-His
pcDNA4/HisMax B	ISceI-GR-RFP
pcDNA6.2-DsRed2-MCS1 miR	pTP-4
pcDNA5/FRT/V5-His-TOPO	pHS85
pCREj-2	pDEST26
pCYM1	pBD-NF-kB
pATPase_TA	pEF1/V5-HisA
pSP72	pRSET-EGFP
pCRE-DD-AmCyan1	pJSC73
pBluescript II KS(-)	pMDLg/pRRE
pSUPER.neo+gfp	pDsRed-Monomer
c-Flag pcDNA3	pcDNA3.1(+)/CAT
pFA1	pdKeima-Red-S1
pUCTag	pcDNA3.1-GP130v1
Pgex-HRV3C	pET-32 EK/LIC
pCGN978	pAGO
pGL4.45[luc2P/ISRE/Hygro]	pET-12c(+)
pProLabel-C	pAD-SV40T
EWD299	pTet-Splice
pOM2	pOrf681_TA
pSC101	pFLAG-CMV2
pET-28a-BFP-C	pWF1
pFLAG-CMV-3	pEF6/myc-His B
pLVX-DD-ZsGreen1 Control	pBBR1MCS-2
pMTD1.3xA	pSUMO
pVPack-GP	pIJ702-del35-55
pMal-c2G	pSET152
pHY15	pBAD18
pDC515	pLexm
pGL4.72[hRlucCP]	pBT-4
pREP4	pCas9D10A-GFP
pIκB-EGFP	pMT-Bip-V5-HisA
pKLAC1	pET-21a(+)
pUC4-KISS	pALEX a,b,c
pSC101-EcoRImeth+	pACT-MyoD
pCH2	pCRE-MetLuc2-Reporter

pRC-CMV-Rev1b	pcDNA3.4_7C11-1 heavy chain
pSR47	BECLIN-HA WT
pMal-T-Avi-His/BirA	pFRT/TO/GFP-SCAF4 (CRISPR_resistant)
401 pSG5L	pQUAST>stop>mCD8-GFP
pHAGE-PTCH1	pLVX-M-puro
VVT1	pBHt2
pLentiV2-dCas9-VP64	pEGFP-LC3
EC1000	LeGO-G
Tet-O-FUW-Neurod1	pSELECT-HA-mFOXO1
p58sheLL	800 pSG5L HA PTEN wt
pCAS9-mCherry empty	MSCV-(pBabe mcs)- human p210BCR-ABL-IRES
pTRKH2	3XMEF2-luc
pCAG-GBP1-10gly-lexADBD	pLenti X2 Puro DEST (w16-1)
pNEU-hMbPylRS-4xU6M15	phage UbiC NLS HA stdMCP stdHalo
pAC1404-pCR8-mRuby2_NLSPUFa	pLJC5-3XHA-EGFP-PEX26
pAAV_hsyn_NES-his-CaMPARI2-F391W-WPRE-SV	pLenti-DsRed_IRES_MAPT:EGFP
PB_tre_Cas9	pCXLE-hOCT3/4
p201G Cas9	pJKR-L-tetR
GST-HA-GFP11-N1	pAraGFPCDF
BPK3082	pTRE Tight ArchT-GFP
pMSCV-hygro-STING	pLVX-EF1alpha-SARS-CoV-2-M-2xStrep-IRES-
pAAVS1-PDi-CRISPRn	pPPEM
pLVX-EF1alpha-SARS-CoV-2-nsp13-2xStrep-I	pAAV-EFS-CjCas9-eGFP-HIF1a
pT4-CMV-GFP	PVALB mAb_BCN14.1.1A2_HC_Mouse IgG2a
pICH86966::AtU6p::sgRNA_PDS	c-myc-PT3EF1a
pMSCV-IRES-GFP II (pMIG II)	pUCC001
pJSC131 - Bacterial expression plasmid f	pCMV-MMLVgag-3xNES-ABE8e
pMJ329: pCMV-MmeFz2	pET28a-At-TRL
TAL3393	AbVec1.1-IGKC
pLenti-EML4-ALK variant 3a	pGGA008
pFC334	pRAD1
pAc-sgRNA-Cas9	pDIRECT_23D
NM9-SpCas9-NLS3	EC2_3_dCas9_Mxi1_sgRNA
pCS2TAL3-RR	pM-Cas9
pGH335_MS2-AID*Δ-Hygro	pAAVS1-PC-GCaMP6f
pMXs-hOCT4 (Plath)	EC2_10_dCas9_VPR_HC_sgRNA
pAAV2/8	CKS2 gRNA (BRDN0001149143)
pGL3 2 kb prom. CD274	pCS2TAL3-DD
pSBtet-GP	pNK9
pCW-Cas9	pAc-Neo-OVA
pAAV-EF1a-FLEX-GTB	pCDH-puro-Bcl-XL
pYES-mtGFP	pT3-Neo-EF1a-GFP
Cbh_v5 AAV-CBE N-terminal	ilux pGEX(-)
pC003 - LshC2C2 locus into pACYC184 for	pNeae2
pM1s3AsR_TS-C7	pMonAID_nCas9-PmCDA_Hyg_ALS
pTEF:ATP	pEGFP-puro
pHR_Gal4UAS_humanTRAIL _IRES_mCherry_PGK	LB1366 (Bcl-2 promoter with MHS1234)
pCMV-hA3G-BE3	Lenti-luciferase-P2A-Neo
pNN9	1306 pSG5L HA FKHR wt
pXAT2	FUmGW

热点推荐

生物资源

细胞培养

微生物与植物培养

蛋白抗体与激酶

技术服务

课题设计与论文发表

pLenti6.2/V5-DEST

买家导航

pLenti6.2/V5-DEST载体质粒基本信息

pLenti6.2/V5-DEST质粒图谱载体图谱和pLenti6.2/V5-DEST载体序列质粒序列多克隆位点信息

pLenti6.2/V5-DEST质粒载体简介

pLenti6.2/V5-DEST质粒序列载体序列

pLenti6.2/V5-DEST载体图谱质粒图谱pdf版和pLenti6.2/V5-DEST载体序列质粒序列等相关资料下载

pLenti6.2/V5-DEST质粒载体应用举例

全部质粒载体分类

相关质粒载体

相关质粒载体文章

相关载体质粒问答
