pAsRed2-N1 encodes AsRed2, a variant of Anemonia sulcata red fluorescent protein (1, 2). AsRed2 has been engineered for brighter fluorescence (Clontech Laboratories, Inc., unpublished data). The AsRed2 coding sequence also contains a series of silent base-pair changes, which correspond to human codon-usage preferences, for optimal expression in mammalian cells (3). Additionally, an upstream sequence—located just 5' to the AsRed2 start codon—has been converted to a Kozak consensus translation initiation site (4) to further increase the translation efficiency in eukaryotic cells.

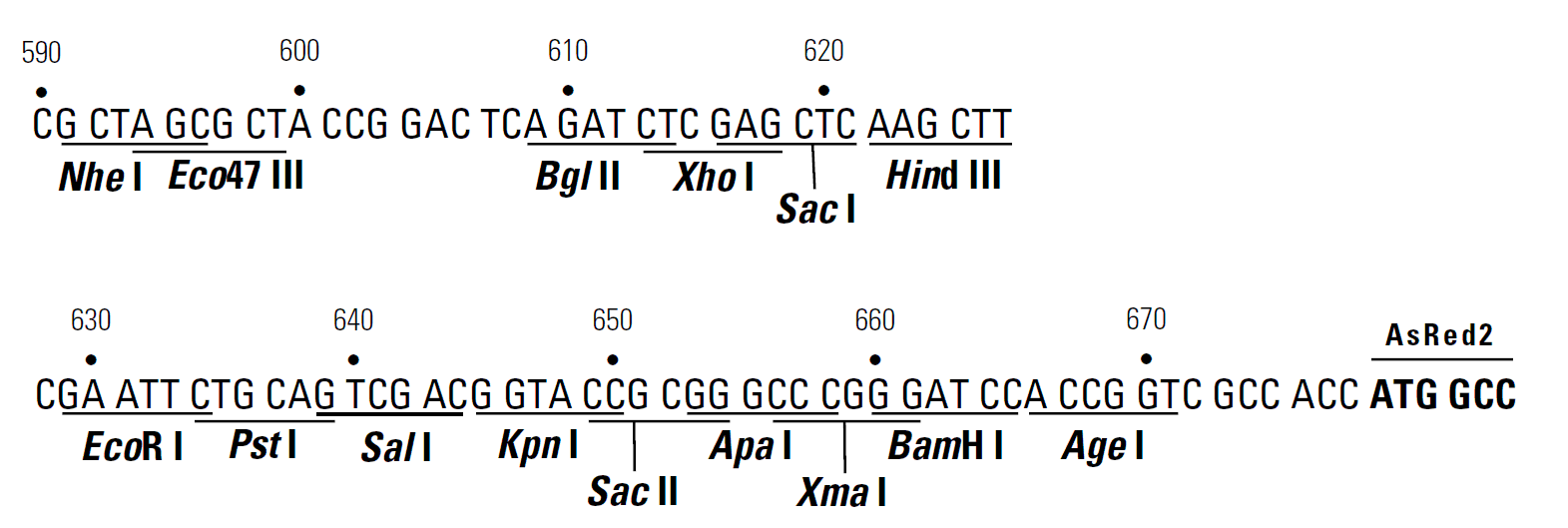

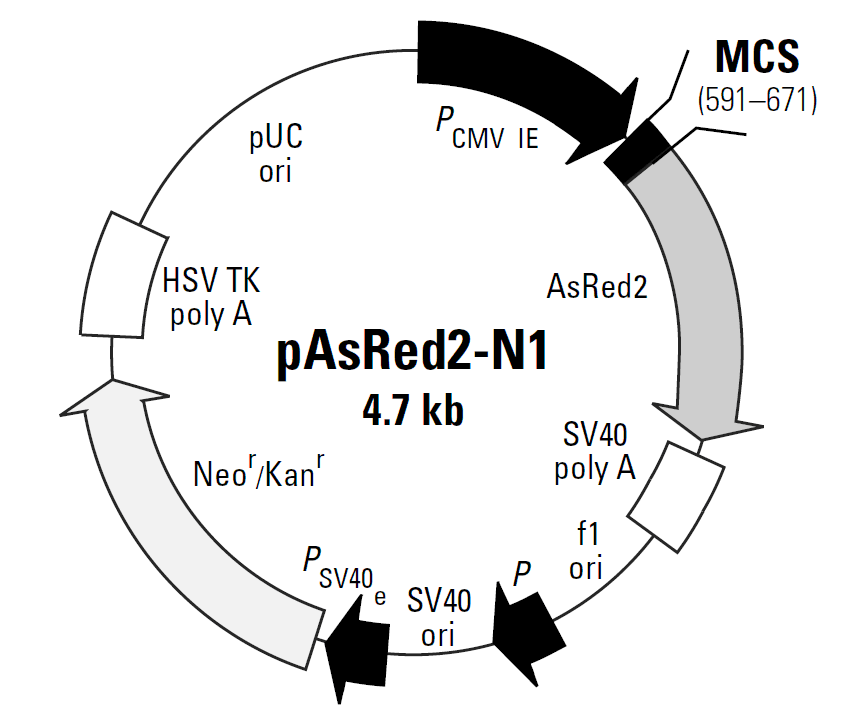

The multiple cloning site (MCS) in pAsRed2-N1 is positioned between the immediate-early promoter of cytomegalovirus (PCMV IE) and the AsRed2 coding sequence. Thus, genes cloned into the MCS will be expressed as fusions to the N-terminus of AsRed2 if they are in the same reading frame as AsRed2 and there are no intervening stop codons. The SV40 polyadenylation signals (SV40 poly A) downstream of the AsRed2 gene direct proper processing of the 3' end of AsRed2 mRNA. The vector backbone contains an SV40 origin (SV40 ori) for replication in mammalian cells that express the SV40 T antigen, a pUC origin of replication (pUC ori) for propagation in E. coli, and an f1 origin (f1 ori) for single-stranded DNA production. In addition, a neomycin-resistance cassette—consisting of the SV40 early promoter (PSV40e), the neomycin/kanamycin resistance gene of Tn5 (Neor/Kanr), and polyadenylation signals from the Herpes simplex virus thymidine kinase(HSV TK poly A) gene—allows stably transfected eukaryotic cells to be selected using G418 (5). A bacterial promoter (P) upstream of this cassette drives expression of the Neor/Kanr gene in E. coli hosts, which can be selected with kanamycin.
Fusions to the N terminus of AsRed2 retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo (AsRed2 excitation maximum = 576 nm; AsRed2 emission maximum = 592 nm). The target gene should be cloned into pAsRed2-N1 so that it is in frame with the AsRed2 coding sequence, with no intervening, in-frame stop codons. The inserted gene should include the initiating ATG codon. The recombinant pAsRed2-N1 vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (available from Clontech; Cat. Nos. 631307 & 631308). We recommend selecting mammalian cell cultures in 500–1,300 μg/ml G418, depending on the cell line. Be sure to establish a kill curve for each cell line and each lot of G418 to determine the optimal selection concentration. Unmodified (i.e., non-recombinant) pAsRed2-N1 can also be used simply to express AsRed2 in cells of interest (e.g., as a transfection marker).

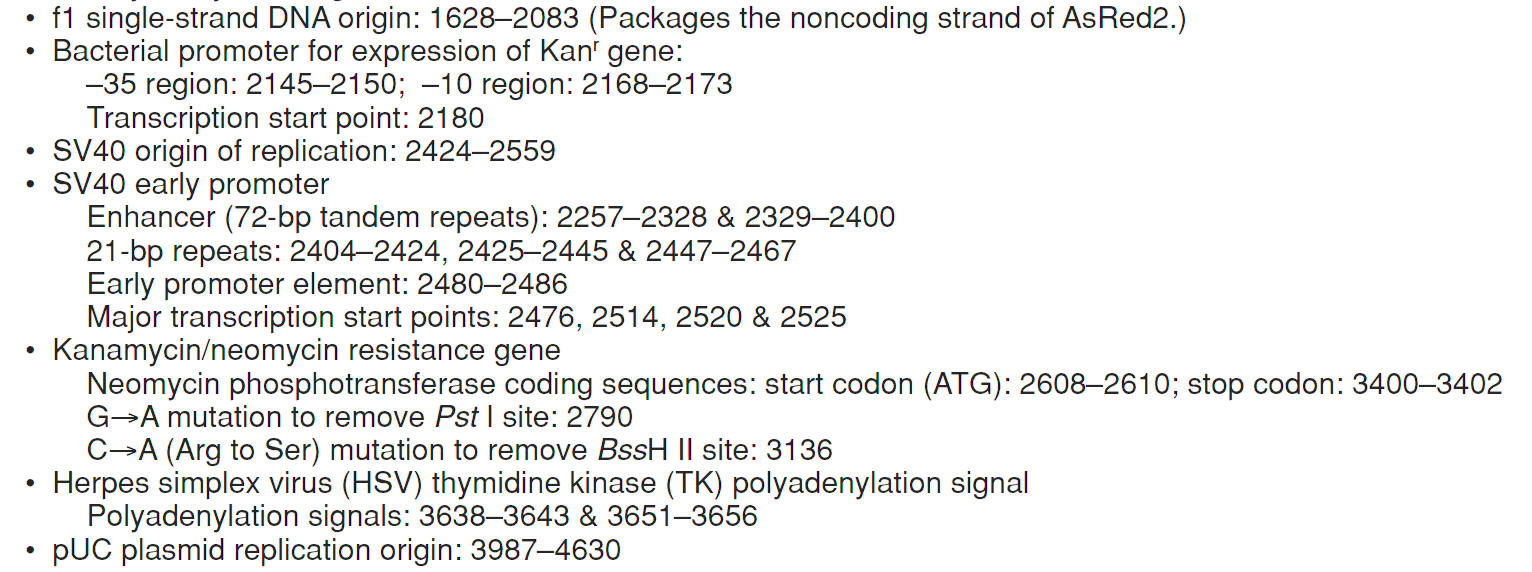

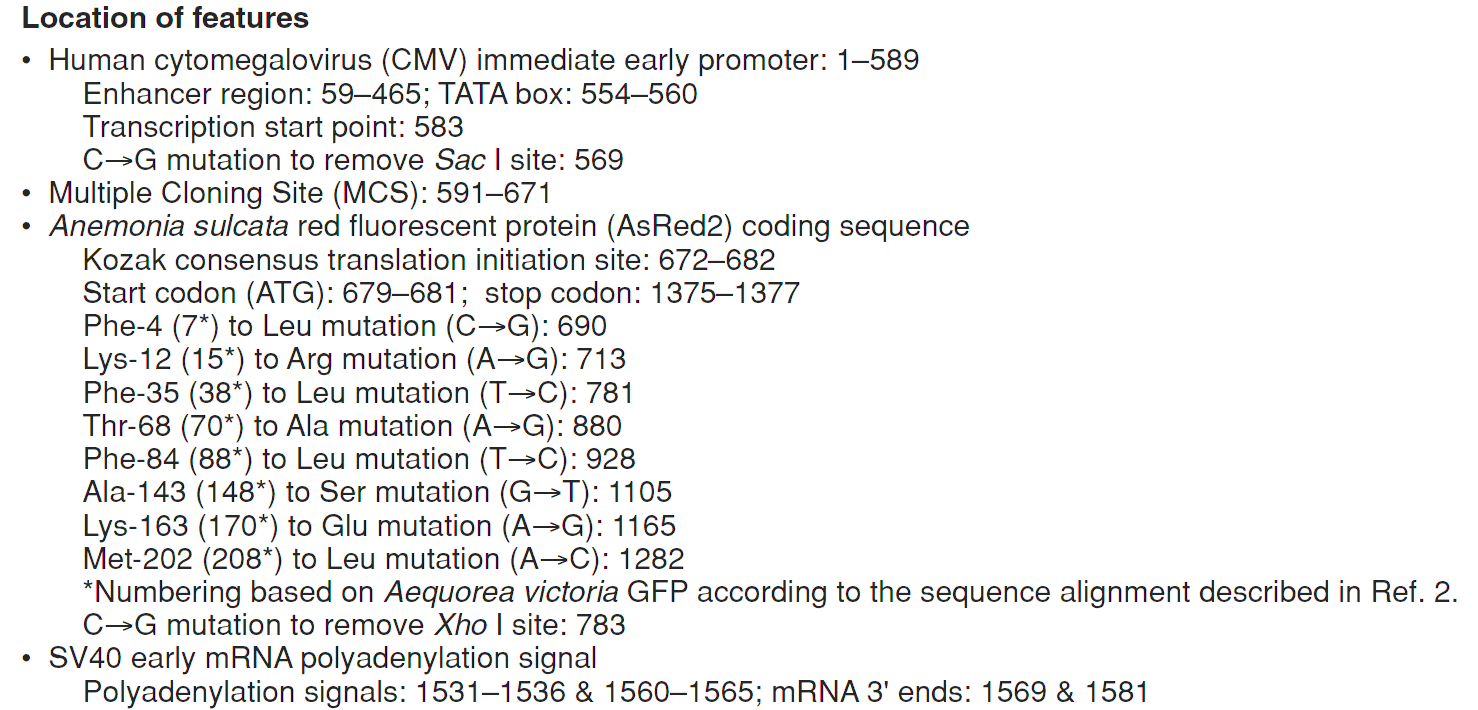

Propagation in E. coli
Suitable host strains: DH5α, HB101 and other general purpose strains. Single-stranded DNA production requires
a host containing an F plasmid such as JM101 or XL1-Blue.
Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) to E. coli hosts.
E. coli replication origin: pUC
Copy number: ~500
Plasmid incompatibility group: pMB1/Col E1
LOCUS pAsRed2-N1 4712 bp DNA SYN
DEFINITION pAsRed2-N1
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4712
/organism="pAsRed2-N1"
/mol_type="other DNA"
promoter 10..562
/label="CMV_immearly_promoter"
misc_feature 65..352
/label="CAG_enhancer"
misc_feature 519..539
/label="CMV_fwd_primer"
promoter 520..589
/label="CMV_promoter"
CDS 679..1377
/label="ORF frame 1"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
gene 682..1365
/label="AsRed2 (variant)"
/gene="AsRed2 (variant)"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
misc_feature 1591..1610
/label="EBV_rev_primer"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
rep_origin complement(1760..2066)
/label="f1_origin"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
promoter 2145..2173
/label="AmpR_promoter"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
misc_feature complement(2239..2259)
/label="pBABE_3_primer"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
misc_feature complement(2245..2460)
/label="SV40_enhancer"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
promoter 2257..2525
/label="SV40_promoter"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
rep_origin 2424..2501
/label="SV40_origin"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
misc_feature 2486..2505
/label="SV40pro_F_primer"
/translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
GRYCDAAPSKLGHN*"
CDS 2608..3402
/label="ORF frame 1"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
gene 2611..3399
/label="NeoR/KanR"
/gene="NeoR/KanR"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
CDS complement(2917..3453)
/label="ORF frame 3"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
terminator 3577..3846
/label="TK_PA_terminator"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
rep_origin 3994..4613
/label="pBR322_origin"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
ORIGIN
1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG
661 GATCCACCGG TCGCCACCAT GGCCTCTTTG CTGAAGAAGA CCATGCCCTT CAGGACCACC
721 ATCGAGGGCA CCGTGAACGG CCACTACTTC AAGTGCACCG GCAAGGGCGA GGGCAACCCC
781 CTGGAGGGCA CCCAGGAGAT GAAGATCGAG GTGATCGAGG GCGGCCCCCT GCCCTTCGCC
841 TTCCACATCC TGTCCACCTC CTGCATGTAC GGCTCCAAGG CCTTCATCAA GTACGTGTCC
901 GGCATCCCCG ACTACTTCAA GCAGTCCCTC CCCGAGGGCT TCACCTGGGA GCGCACCACC
961 ACCTACGAGG ACGGCGGCTT CCTGACCGCC CACCAGGACA CCTCCCTGGA CGGCGACTGC
1021 CTGGTGTACA AGGTGAAGAT CCTGGGCAAC AACTTCCCCG CCGACGGCCC CGTGATGCAG
1081 AACAAGGCCG GCCGCTGGGA GCCCTCCACC GAGATCGTGT ACGAGGTGGA CGGCGTGCTG
1141 CGCGGCCAGT CCCTGATGGC CCTGGAGTGC CCCGGCGGTC GCCACCTGAC CTGCCACCTG
1201 CACACCACCT ACCGCTCCAA GAAGCCCGCC TCCGCCCTGA AGATGCCCGG CTTCCACTTC
1261 GAGGACCACC GCATCGAGAT CCTGGAGGAG GTGGAGAAGG GCAAGTGCTA CAAGCAGTAC
1321 GAGGCCGCCG TGGGCCGCTA CTGCGACGCC GCCCCCTCCA AGCTGGGCCA CAACTGAAGC
1381 GGCCGCGACT CTAGATCATA ATCAGCCATA CCACATTTGT AGAGGTTTTA CTTGCTTTAA
1441 AAAACCTCCC ACACCTCCCC CTGAACCTGA AACATAAAAT GAATGCAATT GTTGTTGTTA
1501 ACTTGTTTAT TGCAGCTTAT AATGGTTACA AATAAAGCAA TAGCATCACA AATTTCACAA
1561 ATAAAGCATT TTTTTCACTG CATTCTAGTT GTGGTTTGTC CAAACTCATC AATGTATCTT
1621 AAGGCGTAAA TTGTAAGCGT TAATATTTTG TTAAAATTCG CGTTAAATTT TTGTTAAATC
1681 AGCTCATTTT TTAACCAATA GGCCGAAATC GGCAAAATCC CTTATAAATC AAAAGAATAG
1741 ACCGAGATAG GGTTGAGTGT TGTTCCAGTT TGGAACAAGA GTCCACTATT AAAGAACGTG
1801 GACTCCAACG TCAAAGGGCG AAAAACCGTC TATCAGGGCG ATGGCCCACT ACGTGAACCA
1861 TCACCCTAAT CAAGTTTTTT GGGGTCGAGG TGCCGTAAAG CACTAAATCG GAACCCTAAA
1921 GGGAGCCCCC GATTTAGAGC TTGACGGGGA AAGCCGGCGA ACGTGGCGAG AAAGGAAGGG
1981 AAGAAAGCGA AAGGAGCGGG CGCTAGGGCG CTGGCAAGTG TAGCGGTCAC GCTGCGCGTA
2041 ACCACCACAC CCGCCGCGCT TAATGCGCCG CTACAGGGCG CGTCAGGTGG CACTTTTCGG
2101 GGAAATGTGC GCGGAACCCC TATTTGTTTA TTTTTCTAAA TACATTCAAA TATGTATCCG
2161 CTCATGAGAC AATAACCCTG ATAAATGCTT CAATAATATT GAAAAAGGAA GAGTCCTGAG
2221 GCGGAAAGAA CCAGCTGTGG AATGTGTGTC AGTTAGGGTG TGGAAAGTCC CCAGGCTCCC
2281 CAGCAGGCAG AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCAGG TGTGGAAAGT
2341 CCCCAGGCTC CCCAGCAGGC AGAAGTATGC AAAGCATGCA TCTCAATTAG TCAGCAACCA
2401 TAGTCCCGCC CCTAACTCCG CCCATCCCGC CCCTAACTCC GCCCAGTTCC GCCCATTCTC
2461 CGCCCCATGG CTGACTAATT TTTTTTATTT ATGCAGAGGC CGAGGCCGCC TCGGCCTCTG
2521 AGCTATTCCA GAAGTAGTGA GGAGGCTTTT TTGGAGGCCT AGGCTTTTGC AAAGATCGAT
2581 CAAGAGACAG GATGAGGATC GTTTCGCATG ATTGAACAAG ATGGATTGCA CGCAGGTTCT
2641 CCGGCCGCTT GGGTGGAGAG GCTATTCGGC TATGACTGGG CACAACAGAC AATCGGCTGC
2701 TCTGATGCCG CCGTGTTCCG GCTGTCAGCG CAGGGGCGCC CGGTTCTTTT TGTCAAGACC
2761 GACCTGTCCG GTGCCCTGAA TGAACTGCAA GACGAGGCAG CGCGGCTATC GTGGCTGGCC
2821 ACGACGGGCG TTCCTTGCGC AGCTGTGCTC GACGTTGTCA CTGAAGCGGG AAGGGACTGG
2881 CTGCTATTGG GCGAAGTGCC GGGGCAGGAT CTCCTGTCAT CTCACCTTGC TCCTGCCGAG
2941 AAAGTATCCA TCATGGCTGA TGCAATGCGG CGGCTGCATA CGCTTGATCC GGCTACCTGC
3001 CCATTCGACC ACCAAGCGAA ACATCGCATC GAGCGAGCAC GTACTCGGAT GGAAGCCGGT
3061 CTTGTCGATC AGGATGATCT GGACGAAGAG CATCAGGGGC TCGCGCCAGC CGAACTGTTC
3121 GCCAGGCTCA AGGCGAGCAT GCCCGACGGC GAGGATCTCG TCGTGACCCA TGGCGATGCC
3181 TGCTTGCCGA ATATCATGGT GGAAAATGGC CGCTTTTCTG GATTCATCGA CTGTGGCCGG
3241 CTGGGTGTGG CGGACCGCTA TCAGGACATA GCGTTGGCTA CCCGTGATAT TGCTGAAGAG
3301 CTTGGCGGCG AATGGGCTGA CCGCTTCCTC GTGCTTTACG GTATCGCCGC TCCCGATTCG
3361 CAGCGCATCG CCTTCTATCG CCTTCTTGAC GAGTTCTTCT GAGCGGGACT CTGGGGTTCG
3421 AAATGACCGA CCAAGCGACG CCCAACCTGC CATCACGAGA TTTCGATTCC ACCGCCGCCT
3481 TCTATGAAAG GTTGGGCTTC GGAATCGTTT TCCGGGACGC CGGCTGGATG ATCCTCCAGC
3541 GCGGGGATCT CATGCTGGAG TTCTTCGCCC ACCCTAGGGG GAGGCTAACT GAAACACGGA
3601 AGGAGACAAT ACCGGAAGGA ACCCGCGCTA TGACGGCAAT AAAAAGACAG AATAAAACGC
3661 ACGGTGTTGG GTCGTTTGTT CATAAACGCG GGGTTCGGTC CCAGGGCTGG CACTCTGTCG
3721 ATACCCCACC GAGACCCCAT TGGGGCCAAT ACGCCCGCGT TTCTTCCTTT TCCCCACCCC
3781 ACCCCCCAAG TTCGGGTGAA GGCCCAGGGC TCGCAGCCAA CGTCGGGGCG GCAGGCCCTG
3841 CCATAGCCTC AGGTTACTCA TATATACTTT AGATTGATTT AAAACTTCAT TTTTAATTTA
3901 AAAGGATCTA GGTGAAGATC CTTTTTGATA ATCTCATGAC CAAAATCCCT TAACGTGAGT
3961 TTTCGTTCCA CTGAGCGTCA GACCCCGTAG AAAAGATCAA AGGATCTTCT TGAGATCCTT
4021 TTTTTCTGCG CGTAATCTGC TGCTTGCAAA CAAAAAAACC ACCGCTACCA GCGGTGGTTT
4081 GTTTGCCGGA TCAAGAGCTA CCAACTCTTT TTCCGAAGGT AACTGGCTTC AGCAGAGCGC
4141 AGATACCAAA TACTGTCCTT CTAGTGTAGC CGTAGTTAGG CCACCACTTC AAGAACTCTG
4201 TAGCACCGCC TACATACCTC GCTCTGCTAA TCCTGTTACC AGTGGCTGCT GCCAGTGGCG
4261 ATAAGTCGTG TCTTACCGGG TTGGACTCAA GACGATAGTT ACCGGATAAG GCGCAGCGGT
4321 CGGGCTGAAC GGGGGGTTCG TGCACACAGC CCAGCTTGGA GCGAACGACC TACACCGAAC
4381 TGAGATACCT ACAGCGTGAG CTATGAGAAA GCGCCACGCT TCCCGAAGGG AGAAAGGCGG
4441 ACAGGTATCC GGTAAGCGGC AGGGTCGGAA CAGGAGAGCG CACGAGGGAG CTTCCAGGGG
4501 GAAACGCCTG GTATCTTTAT AGTCCTGTCG GGTTTCGCCA CCTCTGACTT GAGCGTCGAT
4561 TTTTGTGATG CTCGTCAGGG GGGCGGAGCC TATGGAAAAA CGCCAGCAAC GCGGCCTTTT
4621 TACGGTTCCT GGCCTTTTGC TGGCCTTTTG CTCACATGTT CTTTCCTGCG TTATCCCCTG
4681 ATTCTGTGGA TAACCGTATT ACCGCCATGC AT
//
