| 出品公司: | Clontech |
|---|---|
| 载体名称: | pBI-CMV4 |
| 质粒类型: | 哺乳细胞表达载体 ； 双向表达载体；荧光报告载体 |
| 高拷贝/低拷贝: | -- |
| 启动子: | 弱启动子minCMV |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 3779 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | -- |
| 载体抗性: | 氨苄青霉素（Ampicillin ） |
| 筛选标记: | -- |
| 备注: | pBI-CMV4表达红色荧光蛋白。 |
| 产品目录号: | #631633 |
| 稳定性: | -- |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航
载体基本信息

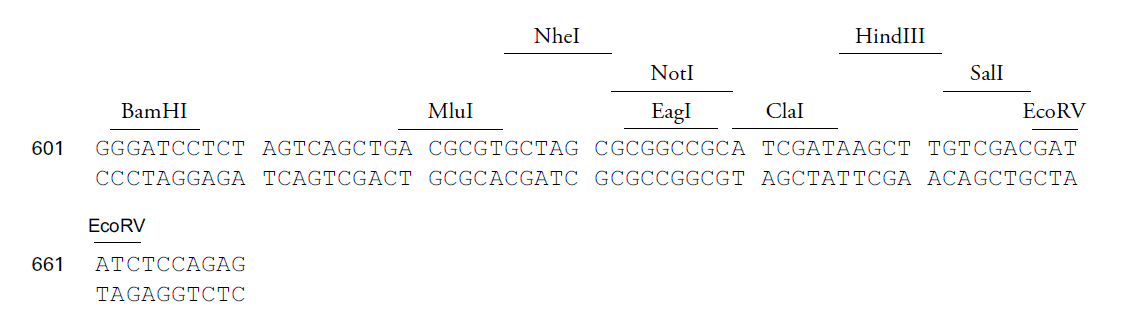

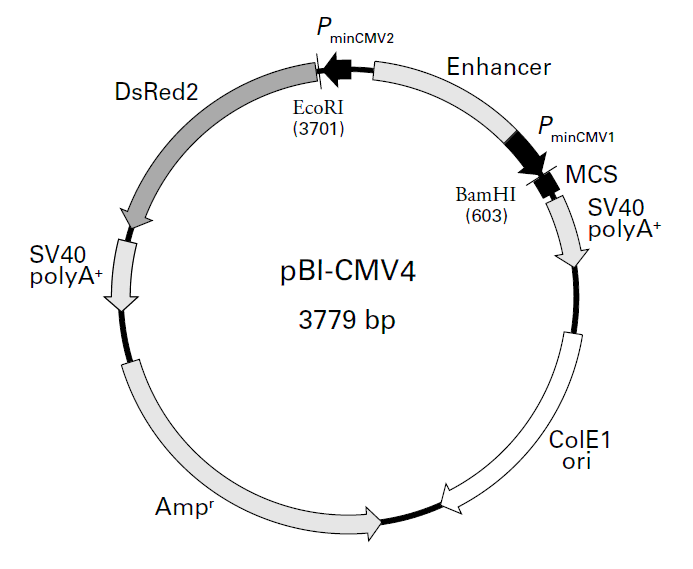

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pBI-CMV4 3779 bp DNA SYN
DEFINITION pBI-CMV4
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..3779
/organism="pBI-CMV4"
/mol_type="other DNA"
promoter 4..568
/label="CMV_immearly_promoter"
misc_feature 71..358
/label="CAG_enhancer"
misc_feature 525..545
/label="CMV_fwd_primer"
promoter 526..595
/label="CMV_promoter"
gene complement(1799..2659)
/label="Ampicillin"
/gene="Ampicillin"
CDS complement(1799..2659)
/label="ORF frame 2"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter complement(2701..2729)
/label="AmpR_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
CDS complement(2987..3778)
/label="ORF frame 2"
/translation="MSRWRVRWEAYISRARLVNRQIAWRIRHHGLLRERHHRVHALQG
AHGGHRERPRVRDRGRGRGPPLRGPQHREAEGDQGRPPALRLGHPVPPVPVRLQGVRE
APRRHPRLQEAVLPRGLQVGARDELRGRRRGDRDPGLLPAGRLLHLQGEVHRRELPLR
RPRDAEEDHGLGGLHRAPVPPRRRAEGRDPQGPEAEGRRPLPGGVQVHLHGQEARAAA
RLLLRGRQAGHHLPQRGLHHRGAVRAHRGPPPPVPVGPRSPEAAV*"
CDS complement(3016..3693)
/label="ORF frame 3"
/translation="MASSENVITEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTV
KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVATVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE
THKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDAKLDITSHNEDYTIVEQYERTE
GRHHLFL*"
misc_feature complement(3078..3101)
/label="dsRed1_C_primer"
/translation="MASSENVITEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTV
KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVATVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE
THKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDAKLDITSHNEDYTIVEQYERTE
GRHHLFL*"
misc_feature 3493..3513
/label="dsRed1_N_primer"
/translation="MASSENVITEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTV
KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVATVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE
THKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDAKLDITSHNEDYTIVEQYERTE
GRHHLFL*"
misc_feature complement(3713..3737)
/label="LNCX_primer"
/translation="MASSENVITEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTV
KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVATVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE
THKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDAKLDITSHNEDYTIVEQYERTE
GRHHLFL*"
misc_feature complement(3720..3739)
/label="pCEP_fwd_primer"
/translation="MASSENVITEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTV
KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVATVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE
THKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDAKLDITSHNEDYTIVEQYERTE
GRHHLFL*"
ORIGIN
1 ctcgagtagt tattaatagt aatcaattac ggggtcatta gttcatagcc catatatgga
61 gttccgcgtt acataactta cggtaaatgg cccgcctggc tgaccgccca acgacccccg
121 cccattgacg tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg
181 acgtcaatgg gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca
241 tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc
301 ccagtacatg accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc
361 tattaccatg gtgatgcggt tttggcagta catcaatggg cgtggatagc ggtttgactc
421 acggggattt ccaagtctcc accccattga cgtcaatggg agtttgtttt ggcaccaaaa
481 tcaacgggac tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa tgggcggtag
541 gcgtgtacgg tgggaggtct atataagcag agctggttta gtgaaccgtc agatccgcta
601 gggatcctct agtcagctga cgcgtgctag cgcggccgca tcgataagct tgtcgacgat
661 atctccagag gatcataatc agccatacca catttgtaga ggttttactt gctttaaaaa
721 acctcccaca cctccccctg aacctgaaac ataaaatgaa tgcaattgtt gttgttaact
781 tgtttattgc agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata
841 aagcattttt ttcactgccc cgagcttcct cgctcactga ctcgctgcgc tcggtcgttc
901 ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc acagaatcag
961 gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa
1021 aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat cacaaaaatc
1081 gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag gcgtttcccc
1141 ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga tacctgtccg
1201 cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg tatctcagtt
1261 cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt cagcccgacc
1321 gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac gacttatcgc
1381 cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc ggtgctacag
1441 agttcttgaa gtggtggcct aactacggct acactagaag aacagtattt ggtatctgcg
1501 ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa
1561 ccaccgctgg tagcggtggt ttttttgttt gcaagcagca gattacgcgc agaaaaaaag
1621 gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg aacgaaaact
1681 cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag atccttttaa
1741 attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg tctgacagtt
1801 accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt tcatccatag
1861 ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca tctggcccca
1921 gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca gcaataaacc
1981 agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc tccatccagt
2041 ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt ttgcgcaacg
2101 ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg gcttcattca
2161 gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc aaaaaagcgg
2221 ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg ttatcactca
2281 tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga tgcttttctg
2341 tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga ccgagttgct
2401 cttgcccggc gtcaacacgg gataataccg cgccacatag cagaacttta aaagtgctca
2461 tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg ttgagatcca
2521 gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact ttcaccagcg
2581 tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata agggcgacac
2641 ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt tatcagggtt
2701 attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa ataggggttc
2761 cgcgcacatt tccccgaaaa gtgccacctg acgtcggcag tgaaaaaaat gctttatttg
2821 tgaaatttgt gatgctattg ctttatttgt aaccattata agctgcaata aacaagttaa
2881 caacaacaat tgcattcatt ttatgtttca ggttcagggg gaggtgtggg aggtttttta
2941 aagcaagtaa aacctctaca aatgtggtat ggctgattat gatcctctag actgcagcct
3001 caggagatct gggccctaca ggaacaggtg gtggcggccc tcggtgcgct cgtactgctc
3061 cacgatggtg tagtcctcgt tgtgggaggt gatgtccagc ttggcgtcca cgtagtagta
3121 gccgggcagc tgcacgggct tcttggccat gtagatggac ttgaactcca ccaggtagtg
3181 gccgccgtcc ttcagcttca gggccttgtg ggtctcgccc ttcagcacgc cgtcgcgggg
3241 gtacaggcgc tcggtggagg cctcccagcc catggtcttc ttctgcatca cggggccgtc
3301 ggaggggaag ttcacgccga tgaacttcac cttgtagatg aagcagccgt cctgcaggga
3361 ggagtcctgg gtcacggtcg ccacgccgcc gtcctcgaag ttcatcacgc gctcccactt
3421 gaagccctcg gggaaggaca gcttcttgta gtcggggatg tcggcggggt gcttcacgta
3481 caccttggag ccgtactgga actgggggga caggatgtcc caggcgaagg gcagggggcc
3541 gcccttggtc accttcagct tcacggtgtt gtggccctcg taggggcggc cctcgccctc
3601 gccctcgatc tcgaactcgt ggccgttcac ggtgccctcc atgcgcacct tgaagcgcat
3661 gaactcggtg atgacgttct cggaggaggc catggtggcg aattctccag gcgatctgac
3721 ggttcactaa acgagctctg cttatatagg cctcccaccg tacacgccac ctcgacata
//
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
