pBK-RSV

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pBK-RSV载体质粒基本信息

出品公司: Agilent
载体名称: pBK-RSV Phagemid vector
质粒类型: 真核原核双系统表达载体;克隆载体;噬粒载体
高拷贝/低拷贝: 高拷贝
克隆方法: 多克隆位点,限制性内切酶
启动子: 原核启动子lac;真核启动子RSV
载体大小: 4452 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 卡那霉素Kanamycin
筛选标记: 新霉素Neomycin
克隆宿主菌: XL1-Blue
备注: 原核细胞的阳性克隆可用蓝白斑筛选法。
货号: 已停产
组成型/诱导型: 真核细胞组成型表达,原核细胞诱导型表达
病毒/非病毒: 非病毒

pBK-RSV质粒图谱载体图谱和pBK-RSV载体序列质粒序列多克隆位点信息

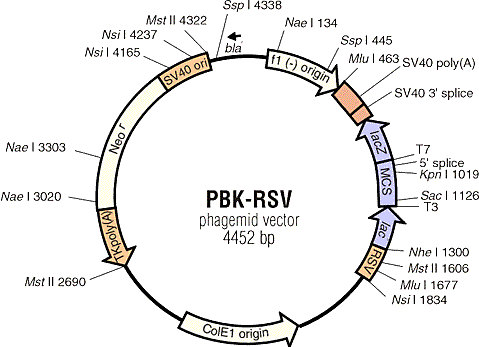

pBK-RSV载体图谱



pBK-RSV质粒载体简介

pBK-RSV质粒序列载体序列

LOCUS       pBK-RSV	4452 bp 	DNA	SYN
DEFINITION  pBK-RSV
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4452
                     /organism="pBK-RSV"
                     /mol_type="other DNA"
     rep_origin      24..330
                     /label="f1_origin"
     misc_feature    complement(480..499)
                     /label="EBV_rev_primer"
     misc_feature    complement(748..807)
                     /label="SV40_3_splice"
     misc_feature    complement(823..971)
                     /label="lacZ_a"
     misc_feature    937..959
                     /label="M13_pUC_fwd_primer"
     promoter        952..968
                     /label="M13_forward20_primer"
     promoter        975..993
                     /label="T7_promoter"
     promoter        complement(1139..1158)
                     /label="T3_promoter"
     misc_feature    complement(1192..1214)
                     /label="M13_pUC_rev_primer"
     promoter        complement(1308..1829)
                     /label="RSV_promoter"
     misc_feature    complement(1338..1356)
                     /label="pREP_fwd_primer"
     CDS             1413..1871
                     /label="ORF frame 3"
                     /translation="MSDPSVAFLIRHDRTTLLPPIGMHGAFSLLVRHVANSSLPCCKT
                     TRVLHKTTFPPPYAKAKLLYPEGTPNRVQPKPRFSPKHTLVPSDTRISGPYIAKQRKT
                     PNPKQILHAIVGQALPCCSLNFARALLSDLQHTSREQMHGGNTVIHRIRG*"
     rep_origin      complement(1929..2548)
                     /label="pBR322_origin"
                     /translation="MSDPSVAFLIRHDRTTLLPPIGMHGAFSLLVRHVANSSLPCCKT
                     TRVLHKTTFPPPYAKAKLLYPEGTPNRVQPKPRFSPKHTLVPSDTRISGPYIAKQRKT
                     PNPKQILHAIVGQALPCCSLNFARALLSDLQHTSREQMHGGNTVIHRIRG*"
     terminator      complement(2696..2965)
                     /label="TK_PA_terminator"
                     /translation="MSDPSVAFLIRHDRTTLLPPIGMHGAFSLLVRHVANSSLPCCKT
                     TRVLHKTTFPPPYAKAKLLYPEGTPNRVQPKPRFSPKHTLVPSDTRISGPYIAKQRKT
                     PNPKQILHAIVGQALPCCSLNFARALLSDLQHTSREQMHGGNTVIHRIRG*"
     CDS             3089..3625
                     /label="ORF frame 2"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     CDS             complement(3140..3934)
                     /label="ORF frame 3"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            complement(3143..3922)
                     /label="NeoR/KanR (variant)"
                     /gene="NeoR/KanR (variant)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     promoter        complement(4017..4285)
                     /label="SV40_promoter"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    complement(4037..4056)
                     /label="SV40pro_F_primer"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     rep_origin      complement(4041..4118)
                     /label="SV40_origin"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    4088..4303
                     /label="SV40_enhancer"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    4283..4303
                     /label="pBABE_3_primer"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     promoter        complement(4369..4397)
                     /label="AmpR_promoter"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
ORIGIN
    1 CACCTGACGC GCCCTGTAGC GGCGCATTAA GCGCGGCGGG TGTGGTGGTT ACGCGCAGCG
   61 TGACCGCTAC ACTTGCCAGC GCCCTAGCGC CCGCTCCTTT CGCTTTCTTC CCTTCCTTTC
  121 TCGCCACGTT CGCCGGCTTT CCCCGTCAAG CTCTAAATCG GGGGCTCCCT TTAGGGTTCC
  181 GATTTAGTGC TTTACGGCAC CTCGACCCCA AAAAACTTGA TTAGGGTGAT GGTTCACGTA
  241 GTGGGCCATC GCCCTGATAG ACGGTTTTTC GCCCTTTGAC GTTGGAGTCC ACGTTCTTTA
  301 ATAGTGGACT CTTGTTCCAA ACTGGAACAA CACTCAACCC TATCTCGGTC TATTCTTTTG
  361 ATTTATAAGG GATTTTGCCG ATTTCGGCCT ATTGGTTAAA AAATGAGCTG ATTTAACAAA
  421 AATTTAACGC GAATTTTAAC AAAATATTAA CGCTTACAAT TTACGCGTTA AGATACATTG
  481 ATGAGTTTGG ACAAACCACA ACTAGAATGC AGTGAAAAAA ATGCTTTATT TGTGAAATTT
  541 GTGATGCTAT TGCTTTATTT GTAACCATTA TAAGCTGCAA TAAACAAGTT AACAACAACA
  601 ATTGCATTCA TTTTATGTTT CAGGTTCAGG GGGAGGTGTG GGAGGTTTTT TAAAGCAAGT
  661 AAAACCTCTA CAAATGTGGT ATGGCTGATT ATGATCATGA ACAGACTGTG AGGACTGAGG
  721 GGCCTGAAAT GAGCCTTGGG ACTGTGAATC TAAAATACAC AAACAATTAG AATCAGTAGT
  781 TTAACACATT ATACACTTAA AAATTGGATC TCCATTCGCC ATTCAGGCTG CGCAACTGTT
  841 GGGAAGGGCG ATCGGTGCGG GCCTCTTCGC TATTACGCCA GCTGGCGAAA GGGGGATGTG
  901 CTGCAAGGCG ATTAAGTTGG GTAACGCCAG GGTTTTCCCA GTCACGACGT TGTAAAACGA
  961 CGGCCAGTGA ATTGTAATAC GACTCACTAT AGGGCGAATT GGGTACACTT ACCTGGTACC
 1021 CCACCCGGGT GGAAAATCGA TGGGCCCGCG GCCGCTCTAG AAGTACTCTC GAGAAGCTTT
 1081 TTGAATTCTT TGGATCCACT AGTGTCGACC TGCAGGCGCG CGAGCTCCAG CTTTTGTTCC
 1141 CTTTAGTGAG GGTTAATTTC GAGCTTGGCG TAATCAAGGT CATAGCTGTT TCCTGTGTGA
 1201 AATTGTTATC CGCTCACAAT TCCACACAAT ATACGAGCCG GAAGTATAAA GTGTAAAGCC
 1261 TGGGGTGCCT AATGAGTGAG CTAACTCACA GTAATTGCGG CTAGCCAGGT GCACACCAAT
 1321 GTGGTGAATG GTCAAATGGC GTTTATTGTA TCGAGCTAGG CACTTAAATA CAATTATCTC
 1381 TGCAATGCGG TATTCAGTGG TTCGTCCAAT CCATGTCAGA CCCGTCTGTT GCCTTCCTAA
 1441 TAAGGCACGA TCGTACCACC TTACTTCCAC CAATCGGCAT GCACGGTGCT TTTTCTCTCC
 1501 TTGTAAGGCA TGTTGCTAAC TCATCGTTAC CATGTTGCAA GACTACAAGA GTATTGCATA
 1561 AGACTACATT TCCCCCTCCC TATGCAAAAG CGAAACTACT ATATCCTGAG GGGACTCCTA
 1621 ACCGCGTACA ACCGAAGCCC CGCTTTTCGC CTAAACACAC CCTAGTCCCC TCAGATACGC
 1681 GTATATCTGG CCCGTACATC GCGAAGCAGC GCAAAACGCC TAACCCTAAG CAGATTCTTC
 1741 ATGCAATTGT CGGTCAAGCC TTGCCTTGTT GTAGCTTAAA TTTTGCTCGC GCACTACTCA
 1801 GCGACCTCCA ACACACAAGC AGGGAGCAGA TGCATGGCGG TAATACGGTT ATCCACAGAA
 1861 TCAGGGGATA ACGCAGGAAA GAACATGTGA GCAAAAGGCC AGCAAAAGGC CAGGAACCGT
 1921 AAAAAGGCCG CGTTGCTGGC GTTTTTCCAT AGGCTCCGCC CCCCTGACGA GCATCACAAA
 1981 AATCGACGCT CAAGTCAGAG GTGGCGAAAC CCGACAGGAC TATAAAGATA CCAGGCGTTT
 2041 CCCCCTGGAA GCTCCCTCGT GCGCTCTCCT GTTCCGACCC TGCCGCTTAC CGGATACCTG
 2101 TCCGCCTTTC TCCCTTCGGG AAGCGTGGCG CTTTCTCATA GCTCACGCTG TAGGTATCTC
 2161 AGTTCGGTGT AGGTCGTTCG CTCCAAGCTG GGCTGTGTGC ACGAACCCCC CGTTCAGCCC
 2221 GACCGCTGCG CCTTATCCGG TAACTATCGT CTTGAGTCCA ACCCGGTAAG ACACGACTTA
 2281 TCGCCACTGG CAGCAGCCAC TGGTAACAGG ATTAGCAGAG CGAGGTATGT AGGCGGTGCT
 2341 ACAGAGTTCT TGAAGTGGTG GCCTAACTAC GGCTACACTA GAAGGACAGT ATTTGGTATC
 2401 TGCGCTCTGC TGAAGCCAGT TACCTTCGGA AAAAGAGTTG GTAGCTCTTG ATCCGGCAAA
 2461 CAAACCACCG CTGGTAGCGG TGGTTTTTTT GTTTGCAAGC AGCAGATTAC GCGCAGAAAA
 2521 AAAGGATCTC AAGAAGATCC TTTGATCTTT TCTACGGGGT CTGACGCTCA GTGGAACGAA
 2581 AACTCACGTT AAGGGATTTT GGTCATGAGA TTATCAAAAA GGATCTTCAC CTAGATCCTT
 2641 TTAAATTAAA AATGAAGTTT TAAATCAATC TAAAGTATAT ATGAGTAACC TGAGGCTATG
 2701 GCAGGGCCTG CCGCCCCGAC GTTGGCTGCG AGCCCTGGGC CTTCACCCGA ACTTGGGGGG
 2761 TGGGGTGGGG AAAAGGAAGA AACGCGGGCG TATTGGCCCC AATGGGGTCT CGGTGGGGTA
 2821 TCGACAGAGT GCCAGCCCTG GGACCGAACC CCGCGTTTAT GAACAAACGA CCCAACACCG
 2881 TGCGTTTTAT TCTGTCTTTT TATTGCCGTC ATAGCGCGGG TTCCTTCCGG TATTGTCTCC
 2941 TTCCGTGTTT CAGTTAGCCT CCCCCTAGGG TGGGCGAAGA ACTCCAGCAT GAGATCCCCG
 3001 CGCTGGAGGA TCATCCAGCC GGCGTCCCGG AAAACGATTC CGAAGCCCAA CCTTTCATAG
 3061 AAGGCGGCGG TGGAATCGAA ATCTCGTGAT GGCAGGTTGG GCGTCGCTTG GTCGGTCATT
 3121 TCGAACCCCA GAGTCCCGCT CAGAAGAACT CGTCAAGAAG GCGATAGAAG GCGATGCGCT
 3181 GCGAATCGGG AGCGGCGATA CCGTAAAGCA CGAGGAAGCG GTCAGCCCAT TCGCCGCCAA
 3241 GCTCTTCAGC AATATCACGG GTAGCCAACG CTATGTCCTG ATAGCGGTCC GCCACACCCA
 3301 GCCGGCCACA GTCGATGAAT CCAGAAAAGC GGCCATTTTC CACCATGATA TTCGGCAAGC
 3361 AGGCATCGCC ATGGGTCACG ACGAGATCCT CGCCGTCGGG CATGCTCGCC TTGAGCCTGG
 3421 CGAACAGTTC GGCTGGCGCG AGCCCCTGAT GCTCTTCGTC CAGATCATCC TGATCGACAA
 3481 GACCGGCTTC CATCCGAGTA CGTGCTCGCT CGATGCGATG TTTCGCTTGG TGGTCGAATG
 3541 GGCAGGTAGC CGGATCAAGC GTATGCAGCC GCCGCATTGC ATCAGCCATG ATGGATACTT
 3601 TCTCGGCAGG AGCAAGGTGA GATGACAGGA GATCCTGCCC CGGCACTTCG CCCAATAGCA
 3661 GCCAGTCCCT TCCCGCTTCA GTGACAACGT CGAGCACAGC TGCGCAAGGA ACGCCCGTCG
 3721 TGGCCAGCCA CGATAGCCGC GCTGCCTCGT CTTGCAGTTC ATTCAGGGCA CCGGACAGGT
 3781 CGGTCTTGAC AAAAAGAACC GGGCGCCCCT GCGCTGACAG CCGGAACACG GCGGCATCAG
 3841 AGCAGCCGAT TGTCTGTTGT GCCCAGTCAT AGCCGAATAG CCTCTCCACC CAAGCGGCCG
 3901 GAGAACCTGC GTGCAATCCA TCTTGTTCAA TCATGCGAAA CGATCCTCAT CCTGTCTCTT
 3961 GATCGATCTT TGCAAAAGCC TAGGCCTCCA AAAAAGCCTC CTCACTACTT CTGGAATAGC
 4021 TCAGAGGCCG AGGCGGCCTC GGCCTCTGCA TAAATAAAAA AAATTAGTCA GCCATGGGGC
 4081 GGAGAATGGG CGGAACTGGG CGGAGTTAGG GGCGGGATGG GCGGAGTTAG GGGCGGGACT
 4141 ATGGTTGCTG ACTAATTGAG ATGCATGCTT TGCATACTTC TGCCTGCTGG GGAGCCTGGG
 4201 GACTTTCCAC ACCTGGTTGC TGACTAATTG AGATGCATGC TTTGCATACT TCTGCCTGCT
 4261 GGGGAGCCTG GGGACTTTCC ACACCCTAAC TGACACACAT TCCACAGCTG GTTCTTTCCG
 4321 CCTCAGGACT CTTCCTTTTT CAATATTATT GAAGCATTTA TCAGGGTTAT TGTCTCATGA
 4381 GCGGATACAT ATTTGAATGT ATTTAGAAAA ATAAACAAAT AGGGGTTCCG CGCACATTTC
 4441 CCCGAAAAGT GC
//

pBK-RSV载体图谱质粒图谱pdf版和pBK-RSV载体序列质粒序列等相关资料下载

pBK-RSV质粒载体应用举例
