| 出品公司: | Stratagene |
|---|---|
| 载体名称: | pCMV-Tag 3B ; pCMV-Tag3B |
| 质粒类型: | 哺乳动物表达载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 多克隆位点；限制性内切酶 |
| 启动子: | CMV |
| 载体大小: | 4327 bp |
| 5' 测序引物及序列: | CMV Forward：CGCAAATGGGCGGTAGGCGTG |
| 3' 测序引物及序列: | -- |
| 载体标签: | c-myc tag (N-末端） |
| 载体抗性: | 卡那霉素 |
| 筛选标记: | Neomycin |
| 克隆菌株: | XL1-Blue |
| 宿主细胞（系）: | -- |
| 备注: |
c-myc标签含10个氨基酸残基(EQKLISEEDL)； CMV启动子驱动目的蛋白的高水平表达； pCMV-Tag 3B,B,C的差别仅在于读码框（阅读框）处。 |
| 产品目录号: | 211173 |
| 稳定性: | 瞬表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航
载体基本信息

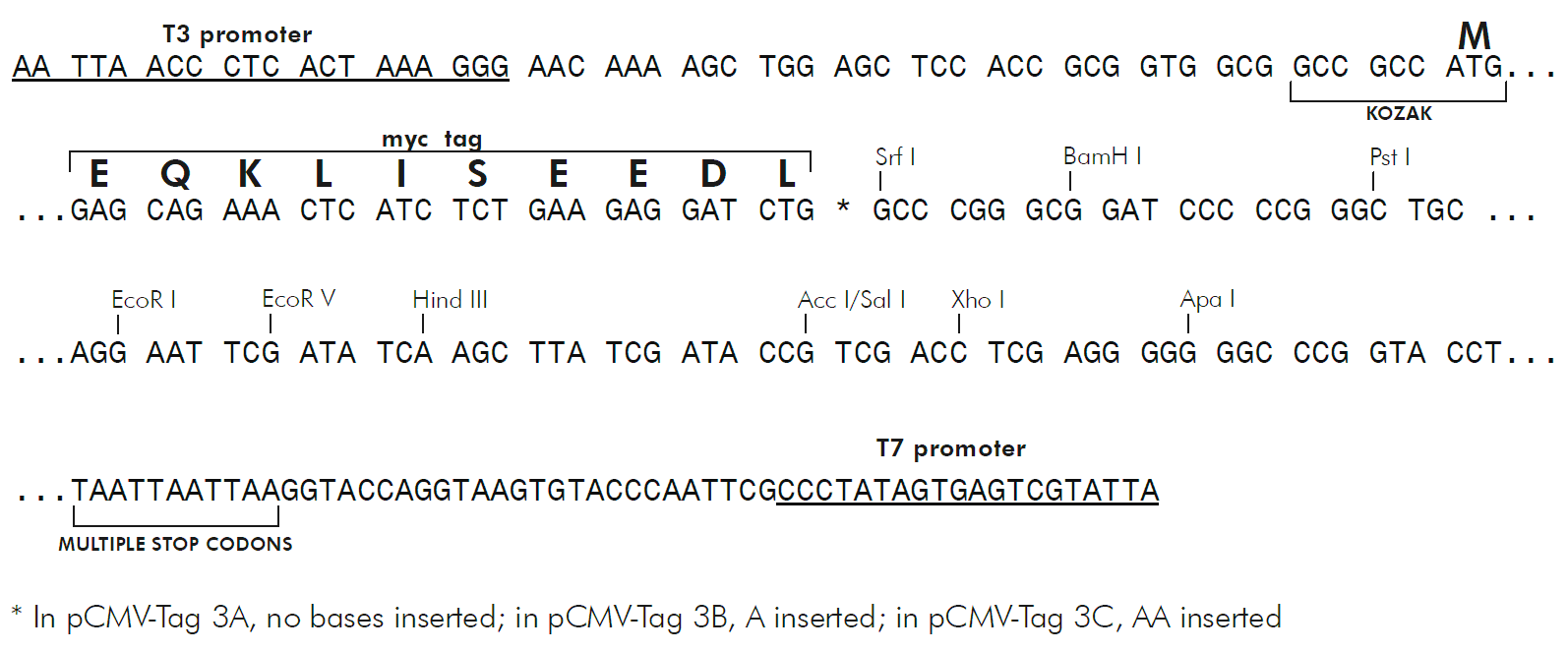

载体图谱质粒图谱和多克隆位点信息
载体简介
ADDITIONAL MATERIALS REQUIRED
T4 DNA ligase
Taq DNA polymerase
Taq DNA polymerase buffer
TE buffer
CIAP
Falcon 2059 polypropylene tubes (15-ml)
Water baths (37°C and 42°C)
XL1-Blue Genotype: recA1 endA1 gyrA96 thi-1 hsdR17 supE44 relA1 lac [F′ proAB lacIqZΔM15 Tn10 (Tetr)].
The XL1-Blue cells supplied with the pCMV-Tag vectors are not competent cells. Refer to Hanahan (1983) for a protocol for producing competent cells.
载体序列
LOCUS pCMV-Tag 3B 4327 bp DNA SYN
DEFINITION pCMV-Tag 3B
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4327
/organism="pCMV-Tag 3B"
/mol_type="other DNA"
promoter 16..568
/label="CMV_immearly_promoter"
misc_feature 71..358
/label="CAG_enhancer"
misc_feature 525..545
/label="CMV_fwd_primer"
promoter 526..595
/label="CMV_promoter"
promoter 620..639
/label="T3_promoter"
misc_feature complement(757..773)
/label="pBluescriptKS_primer"
promoter complement(829..847)
/label="T7_promoter"
misc_feature 904..963
/label="SV40_3_splice"
terminator 1014..1242
/label="SV40_PA_terminator"
misc_feature 1212..1231
/label="EBV_rev_primer"
rep_origin complement(1381..1687)
/label="f1_origin"
promoter 1766..1794
/label="AmpR_promoter"
misc_feature complement(1860..1880)
/label="pBABE_3_primer"
misc_feature complement(1866..2081)
/label="SV40_enhancer"
promoter 1878..2146
/label="SV40_promoter"
rep_origin 2045..2122
/label="SV40_origin"
misc_feature 2107..2126
/label="SV40pro_F_primer"
CDS 2229..3023
/label="ORF frame 3"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
gene 2232..3020
/label="NeoR/KanR (variant)"
/gene="NeoR/KanR (variant)"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
CDS complement(2538..3074)
/label="ORF frame 3"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
terminator 3198..3467
/label="TK_PA_terminator"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
rep_origin 3615..4234
/label="pBR322_origin"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
ORIGIN
1 ATGCATTAGT TATTAATAGT AATCAATTAC GGGGTCATTA GTTCATAGCC CATATATGGA
61 GTTCCGCGTT ACATAACTTA CGGTAAATGG CCCGCCTGGC TGACCGCCCA ACGACCCCCG
121 CCCATTGACG TCAATAATGA CGTATGTTCC CATAGTAACG CCAATAGGGA CTTTCCATTG
181 ACGTCAATGG GTGGAGTATT TACGGTAAAC TGCCCACTTG GCAGTACATC AAGTGTATCA
241 TATGCCAAGT ACGCCCCCTA TTGACGTCAA TGACGGTAAA TGGCCCGCCT GGCATTATGC
301 CCAGTACATG ACCTTATGGG ACTTTCCTAC TTGGCAGTAC ATCTACGTAT TAGTCATCGC
361 TATTACCATG GTGATGCGGT TTTGGCAGTA CATCAATGGG CGTGGATAGC GGTTTGACTC
421 ACGGGGATTT CCAAGTCTCC ACCCCATTGA CGTCAATGGG AGTTTGTTTT GGCACCAAAA
481 TCAACGGGAC TTTCCAAAAT GTCGTAACAA CTCCGCCCCA TTGACGCAAA TGGGCGGTAG
541 GCGTGTACGG TGGGAGGTCT ATATAAGCAG AGCTGGTTTA GTGAACCGTC AGATCCGCTA
601 GCGATTACGC CAAGCTCGAA ATTAACCCTC ACTAAAGGGA ACAAAAGCTG GAGCTCCACC
661 GCGGTGGCGG CCGCCATGGA GCAGAAACTC ATCTCTGAAG AGGATCTGAG CCCGGGCGGA
721 TCCCCCGGGC TGCAGGAATT CGATATCAAG CTTATCGATA CCGTCGACCT CGAGGGGGGG
781 CCCGGTACCT TAATTAATTA AGGTACCAGG TAAGTGTACC CAATTCGCCC TATAGTGAGT
841 CGTATTACAA TTCACTCGAT CGCCCTTCCC AACAGTTGCG CAGCCTGAAT GGCGAATGGA
901 GATCCAATTT TTAAGTGTAT AATGTGTTAA ACTACTGATT CTAATTGTTT GTGTATTTTA
961 GATTCACAGT CCCAAGGCTC ATTTCAGGCC CCTCAGTCCT CACAGTCTGT TCATGATCAT
1021 AATCAGCCAT ACCACATTTG TAGAGGTTTT ACTTGCTTTA AAAAACCTCC CACACCTCCC
1081 CCTGAACCTG AAACATAAAA TGAATGCAAT TGTTGTTGTT AACTTGTTTA TTGCAGCTTA
1141 TAATGGTTAC AAATAAAGCA ATAGCATCAC AAATTTCACA AATAAAGCAT TTTTTTCACT
1201 GCATTCTAGT TGTGGTTTGT CCAAACTCAT CAATGTATCT TAACGCGTAA ATTGTAAGCG
1261 TTAATATTTT GTTAAAATTC GCGTTAAATT TTTGTTAAAT CAGCTCATTT TTTAACCAAT
1321 AGGCCGAAAT CGGCAAAATC CCTTATAAAT CAAAAGAATA GACCGAGATA GGGTTGAGTG
1381 TTGTTCCAGT TTGGAACAAG AGTCCACTAT TAAAGAACGT GGACTCCAAC GTCAAAGGGC
1441 GAAAAACCGT CTATCAGGGC GATGGCCCAC TACGTGAACC ATCACCCTAA TCAAGTTTTT
1501 TGGGGTCGAG GTGCCGTAAA GCACTAAATC GGAACCCTAA AGGGAGCCCC CGATTTAGAG
1561 CTTGACGGGG AAAGCCGGCG AACGTGGCGA GAAAGGAAGG GAAGAAAGCG AAAGGAGCGG
1621 GCGCTAGGGC GCTGGCAAGT GTAGCGGTCA CGCTGCGCGT AACCACCACA CCCGCCGCGC
1681 TTAATGCGCC GCTACAGGGC GCGTCAGGTG GCACTTTTCG GGGAAATGTG CGCGGAACCC
1741 CTATTTGTTT ATTTTTCTAA ATACATTCAA ATATGTATCC GCTCATGAGA CAATAACCCT
1801 GATAAATGCT TCAATAATAT TGAAAAAGGA AGAATCCTGA GGCGGAAAGA ACCAGCTGTG
1861 GAATGTGTGT CAGTTAGGGT GTGGAAAGTC CCCAGGCTCC CCAGCAGGCA GAAGTATGCA
1921 AAGCATGCAT CTCAATTAGT CAGCAACCAG GTGTGGAAAG TCCCCAGGCT CCCCAGCAGG
1981 CAGAAGTATG CAAAGCATGC ATCTCAATTA GTCAGCAACC ATAGTCCCGC CCCTAACTCC
2041 GCCCATCCCG CCCCTAACTC CGCCCAGTTC CGCCCATTCT CCGCCCCATG GCTGACTAAT
2101 TTTTTTTATT TATGCAGAGG CCGAGGCCGC CTCGGCCTCT GAGCTATTCC AGAAGTAGTG
2161 AGGAGGCTTT TTTGGAGGCC TAGGCTTTTG CAAAGATCGA TCAAGAGACA GGATGAGGAT
2221 CGTTTCGCAT GATTGAACAA GATGGATTGC ACGCAGGTTC TCCGGCCGCT TGGGTGGAGA
2281 GGCTATTCGG CTATGACTGG GCACAACAGA CAATCGGCTG CTCTGATGCC GCCGTGTTCC
2341 GGCTGTCAGC GCAGGGGCGC CCGGTTCTTT TTGTCAAGAC CGACCTGTCC GGTGCCCTGA
2401 ATGAACTGCA AGACGAGGCA GCGCGGCTAT CGTGGCTGGC CACGACGGGC GTTCCTTGCG
2461 CAGCTGTGCT CGACGTTGTC ACTGAAGCGG GAAGGGACTG GCTGCTATTG GGCGAAGTGC
2521 CGGGGCAGGA TCTCCTGTCA TCTCACCTTG CTCCTGCCGA GAAAGTATCC ATCATGGCTG
2581 ATGCAATGCG GCGGCTGCAT ACGCTTGATC CGGCTACCTG CCCATTCGAC CACCAAGCGA
2641 AACATCGCAT CGAGCGAGCA CGTACTCGGA TGGAAGCCGG TCTTGTCGAT CAGGATGATC
2701 TGGACGAAGA ACATCAGGGG CTCGCGCCAG CCGAACTGTT CGCCAGGCTC AAGGCGAGCA
2761 TGCCCGACGG CGAGGATCTC GTCGTGACCC ATGGCGATGC CTGCTTGCCG AATATCATGG
2821 TGGAAAATGG CCGCTTTTCT GGATTCATCG ACTGTGGCCG GCTGGGTGTG GCGGACCGCT
2881 ATCAGGACAT AGCGTTGGCT ACCCGTGATA TTGCTGAAGA ACTTGGCGGC GAATGGGCTG
2941 ACCGCTTCCT CGTGCTTTAC GGTATCGCCG CTCCCGATTC GCAGCGCATC GCCTTCTATC
3001 GCCTTCTTGA CGAGTTCTTC TGAGCGGGAC TCTGGGGTTC GAAATGACCG ACCAAGCGAC
3061 GCCCAACCTG CCATCACGAG ATTTCGATTC CACCGCCGCC TTCTATGAAA GGTTGGGCTT
3121 CGGAATCGTT TTCCGGGACG CCGGCTGGAT GATCCTCCAG CGCGGGGATC TCATGCTGGA
3181 GTTCTTCGCC CACCCTAGGG GGAGGCTAAC TGAAACACGG AAGGAGACAA TACCGGAAGG
3241 AACCCGCGCT ATGACGGCAA TAAAAAGACA GAATAAAACG CACGGTGTTG GGTCGTTTGT
3301 TCATAAACGC GGGGTTCGGT CCCAGGGCTG GCACTCTGTC GATACCCCAC CGAGACCCCA
3361 TTGGGGCCAA TACGCCCGCG TTTCTTCCTT TTCCCCACCC CACCCCCCAA GTTCGGGTGA
3421 AGGCCCAGGG CTCGCAGCCA ACGTCGGGGC GGCAGGCCCT GCCATAGCCT CAGGTTACTC
3481 ATATATACTT TAGATTGATT TAAAACTTCA TTTTTAATTT AAAAGGATCT AGGTGAAGAT
3541 CCTTTTTGAT AATCTCATGA CCAAAATCCC TTAACGTGAG TTTTCGTTCC ACTGAGCGTC
3601 AGACCCCGTA GAAAAGATCA AAGGATCTTC TTGAGATCCT TTTTTTCTGC GCGTAATCTG
3661 CTGCTTGCAA ACAAAAAAAC CACCGCTACC AGCGGTGGTT TGTTTGCCGG ATCAAGAGCT
3721 ACCAACTCTT TTTCCGAAGG TAACTGGCTT CAGCAGAGCG CAGATACCAA ATACTGTCCT
3781 TCTAGTGTAG CCGTAGTTAG GCCACCACTT CAAGAACTCT GTAGCACCGC CTACATACCT
3841 CGCTCTGCTA ATCCTGTTAC CAGTGGCTGC TGCCAGTGGC GATAAGTCGT GTCTTACCGG
3901 GTTGGACTCA AGACGATAGT TACCGGATAA GGCGCAGCGG TCGGGCTGAA CGGGGGGTTC
3961 GTGCACACAG CCCAGCTTGG AGCGAACGAC CTACACCGAA CTGAGATACC TACAGCGTGA
4021 GCTATGAGAA AGCGCCACGC TTCCCGAAGG GAGAAAGGCG GACAGGTATC CGGTAAGCGG
4081 CAGGGTCGGA ACAGGAGAGC GCACGAGGGA GCTTCCAGGG GGAAACGCCT GGTATCTTTA
4141 TAGTCCTGTC GGGTTTCGCC ACCTCTGACT TGAGCGTCGA TTTTTGTGAT GCTCGTCAGG
4201 GGGGCGGAGC CTATGGAAAA ACGCCAGCAA CGCGGCCTTT TTACGGTTCC TGGCCTTTTG
4261 CTGGCCTTTT GCTCACATGT TCTTTCCTGC GTTATCCCCT GATTCTGTGG ATAACCGTAT
4321 TACCGCC
//
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
