| 出品公司: | Clontech |
|---|---|
| 载体名称: | pDsRed2-C1 |
| 质粒类型: | 哺乳细胞表达载体；荧光蛋白报告系统 |
| 高拷贝/低拷贝: | -- |
| 启动子: | CMV |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 4675bp |
| 5' 测序引物及序列: | DsRed1-C: 5'd[AGCTGGACATCACCTCCCACAACG] |
| 3' 测序引物及序列: | -- |
| 载体标签: | DsRed2 (Nterm) |
| 载体抗性: | Kanamycin |
| 筛选标记: | Neomycin |
| 备注: | -- |
| 产品目录号: | 632407 |
| 稳定性: | 稳表达 |
| 组成型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航

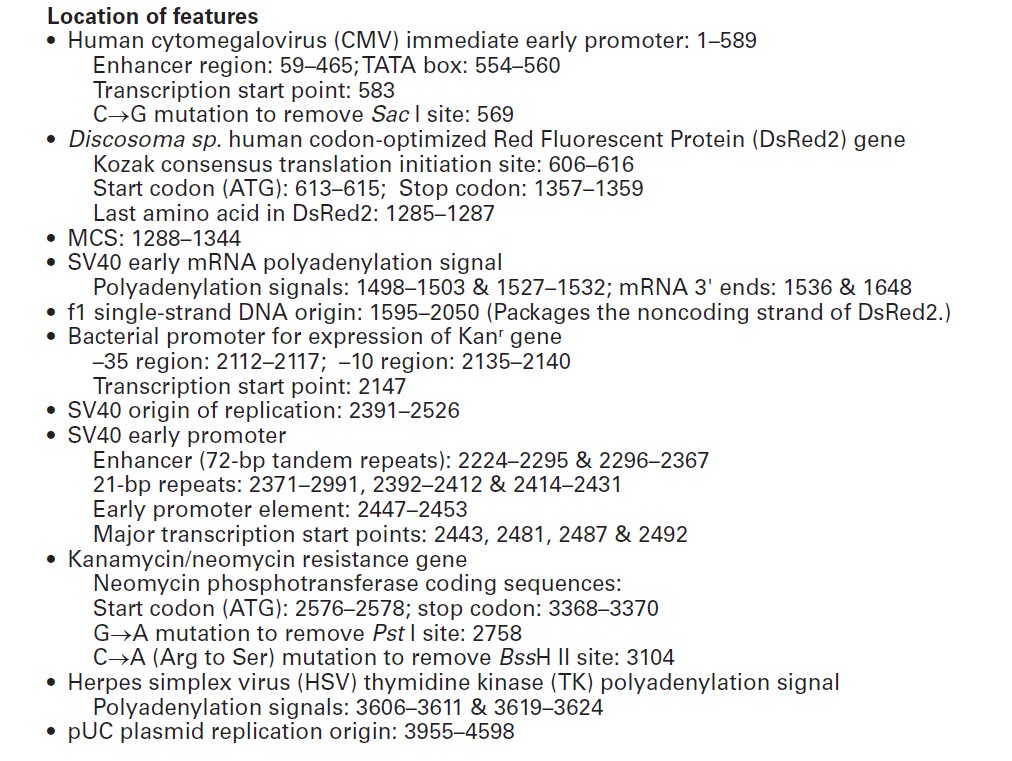

pDsRed2-C1载体质粒基本信息

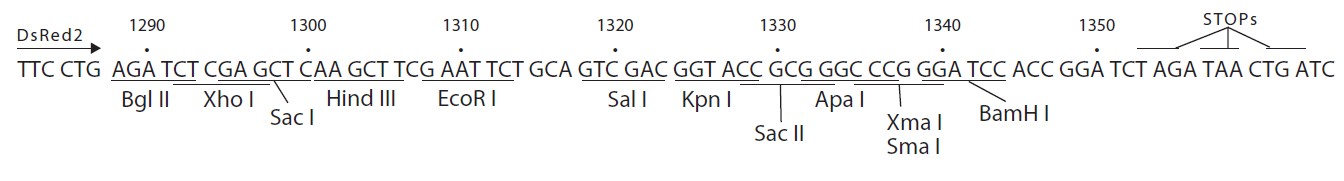

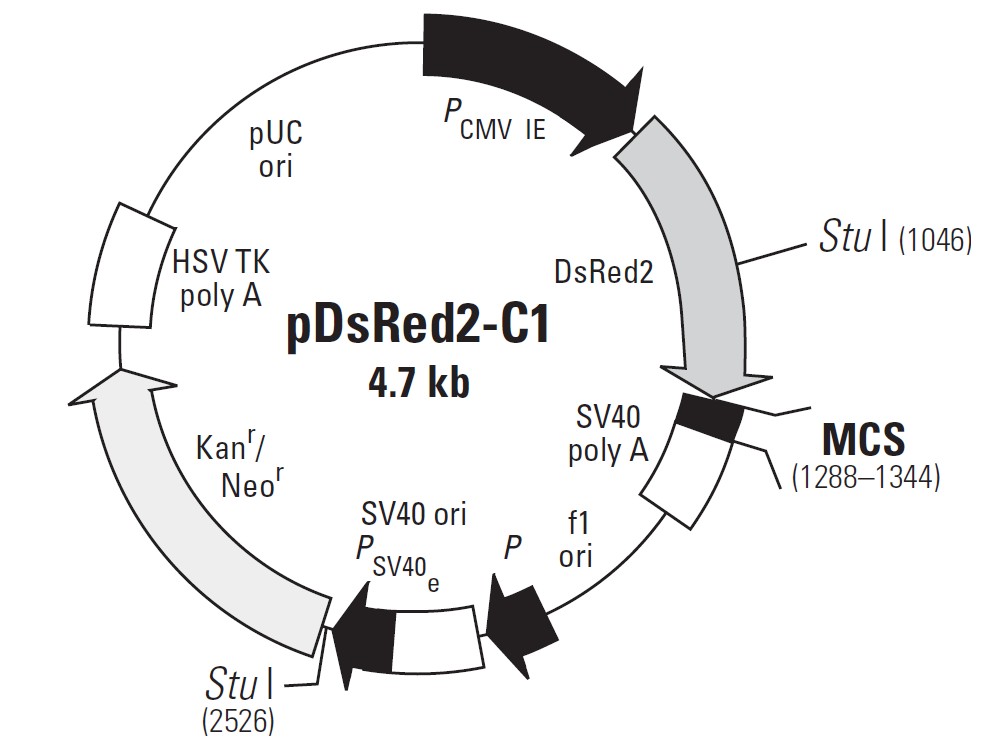

pDsRed2-C1质粒图谱载体图谱和pDsRed2-C1载体序列质粒序列多克隆位点信息
pDsRed2-C1质粒载体简介
pDsRed2-C1质粒序列载体序列
LOCUS pDsRed2-C1 4675 bp DNA SYN
DEFINITION pDsRed2-C1
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
COMMENT This file is created by Vector NTI
http://www.biofeng.com/
COMMENT VNTAUTHORNAME|biofeng.com|
FEATURES Location/Qualifiers
source 1..4675
/organism="pDsRed2-C1"
/mol_type="other DNA"
promoter 10..562
/label="CMV_immearly_promoter"
misc_feature 65..352
/label="CAG_enhancer"
misc_feature 519..539
/label="CMV_fwd_primer"
promoter 520..589
/label="CMV_promoter"
CDS complement(598..1377)
/label="ORF frame 2"
CDS 613..1359
/label="ORF frame 1"
gene 616..1287
/label="DsRed2"
/gene="DsRed2"
misc_feature complement(793..813)
/label="dsRed1_N_primer"
misc_feature 1205..1228
/label="dsRed1_C_primer"
terminator 1361..1589
/label="SV40_PA_terminator"
misc_feature 1559..1578
/label="EBV_rev_primer"
rep_origin complement(1728..2034)
/label="f1_origin"
promoter 2113..2141
/label="AmpR_promoter"
misc_feature complement(2207..2227)
/label="pBABE_3_primer"
misc_feature complement(2213..2428)
/label="SV40_enhancer"
promoter 2225..2493
/label="SV40_promoter"
rep_origin 2392..2469
/label="SV40_origin"
misc_feature 2454..2473
/label="SV40pro_F_primer"
CDS 2576..3370
/label="ORF frame 2"
gene 2579..3367
/label="NeoR/KanR"
/gene="NeoR/KanR"
CDS complement(2885..3421)
/label="ORF frame 1"
terminator 3545..3814
/label="TK_PA_terminator"
rep_origin 3962..4581
/label="pBR322_origin"
ORIGIN
1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
601 CCGGTCGCCA CCATGGCCTC CTCCGAGAAC GTCATCACCG AGTTCATGCG CTTCAAGGTG
661 CGCATGGAGG GCACCGTGAA CGGCCACGAG TTCGAGATCG AGGGCGAGGG CGAGGGCCGC
721 CCCTACGAGG GCCACAACAC CGTGAAGCTG AAGGTGACCA AGGGCGGCCC CCTGCCCTTC
781 GCCTGGGACA TCCTGTCCCC CCAGTTCCAG TACGGCTCCA AGGTGTACGT GAAGCACCCC
841 GCCGACATCC CCGACTACAA GAAGCTGTCC TTCCCCGAGG GCTTCAAGTG GGAGCGCGTG
901 ATGAACTTCG AGGACGGCGG CGTGGCGACC GTGACCCAGG ACTCCTCCCT GCAGGACGGC
961 TGCTTCATCT ACAAGGTGAA GTTCATCGGC GTGAACTTCC CCTCCGACGG CCCCGTGATG
1021 CAGAAGAAGA CCATGGGCTG GGAGGCCTCC ACCGAGCGCC TGTACCCCCG CGACGGCGTG
1081 CTGAAGGGCG AGACCCACAA GGCCCTGAAG CTGAAGGACG GCGGCCACTA CCTGGTGGAG
1141 TTCAAGTCCA TCTACATGGC CAAGAAGCCC GTGCAGCTGC CCGGCTACTA CTACGTGGAC
1201 GCCAAGCTGG ACATCACCTC CCACAACGAG GACTACACCA TCGTGGAGCA GTACGAGCGC
1261 ACCGAGGGCC GCCACCACCT GTTCCTGAGA TCTCGAGCTC AAGCTTCGAA TTCTGCAGTC
1321 GACGGTACCG CGGGCCCGGG ATCCACCGGA TCTAGATAAC TGATCATAAT CAGCCATACC
1381 ACATTTGTAG AGGTTTTACT TGCTTTAAAA AACCTCCCAC ACCTCCCCCT GAACCTGAAA
1441 CATAAAATGA ATGCAATTGT TGTTGTTAAC TTGTTTATTG CAGCTTATAA TGGTTACAAA
1501 TAAAGCAATA GCATCACAAA TTTCACAAAT AAAGCATTTT TTTCACTGCA TTCTAGTTGT
1561 GGTTTGTCCA AACTCATCAA TGTATCTTAA CGCGTAAATT GTAAGCGTTA ATATTTTGTT
1621 AAAATTCGCG TTAAATTTTT GTTAAATCAG CTCATTTTTT AACCAATAGG CCGAAATCGG
1681 CAAAATCCCT TATAAATCAA AAGAATAGAC CGAGATAGGG TTGAGTGTTG TTCCAGTTTG
1741 GAACAAGAGT CCACTATTAA AGAACGTGGA CTCCAACGTC AAAGGGCGAA AAACCGTCTA
1801 TCAGGGCGAT GGCCCACTAC GTGAACCATC ACCCTAATCA AGTTTTTTGG GGTCGAGGTG
1861 CCGTAAAGCA CTAAATCGGA ACCCTAAAGG GAGCCCCCGA TTTAGAGCTT GACGGGGAAA
1921 GCCGGCGAAC GTGGCGAGAA AGGAAGGGAA GAAAGCGAAA GGAGCGGGCG CTAGGGCGCT
1981 GGCAAGTGTA GCGGTCACGC TGCGCGTAAC CACCACACCC GCCGCGCTTA ATGCGCCGCT
2041 ACAGGGCGCG TCAGGTGGCA CTTTTCGGGG AAATGTGCGC GGAACCCCTA TTTGTTTATT
2101 TTTCTAAATA CATTCAAATA TGTATCCGCT CATGAGACAA TAACCCTGAT AAATGCTTCA
2161 ATAATATTGA AAAAGGAAGA GTCCTGAGGC GGAAAGAACC AGCTGTGGAA TGTGTGTCAG
2221 TTAGGGTGTG GAAAGTCCCC AGGCTCCCCA GCAGGCAGAA GTATGCAAAG CATGCATCTC
2281 AATTAGTCAG CAACCAGGTG TGGAAAGTCC CCAGGCTCCC CAGCAGGCAG AAGTATGCAA
2341 AGCATGCATC TCAATTAGTC AGCAACCATA GTCCCGCCCC TAACTCCGCC CATCCCGCCC
2401 CTAACTCCGC CCAGTTCCGC CCATTCTCCG CCCCATGGCT GACTAATTTT TTTTATTTAT
2461 GCAGAGGCCG AGGCCGCCTC GGCCTCTGAG CTATTCCAGA AGTAGTGAGG AGGCTTTTTT
2521 GGAGGCCTAG GCTTTTGCAA AGATCGATCA AGAGACAGGA TGAGGATCGT TTCGCATGAT
2581 TGAACAAGAT GGATTGCACG CAGGTTCTCC GGCCGCTTGG GTGGAGAGGC TATTCGGCTA
2641 TGACTGGGCA CAACAGACAA TCGGCTGCTC TGATGCCGCC GTGTTCCGGC TGTCAGCGCA
2701 GGGGCGCCCG GTTCTTTTTG TCAAGACCGA CCTGTCCGGT GCCCTGAATG AACTGCAAGA
2761 CGAGGCAGCG CGGCTATCGT GGCTGGCCAC GACGGGCGTT CCTTGCGCAG CTGTGCTCGA
2821 CGTTGTCACT GAAGCGGGAA GGGACTGGCT GCTATTGGGC GAAGTGCCGG GGCAGGATCT
2881 CCTGTCATCT CACCTTGCTC CTGCCGAGAA AGTATCCATC ATGGCTGATG CAATGCGGCG
2941 GCTGCATACG CTTGATCCGG CTACCTGCCC ATTCGACCAC CAAGCGAAAC ATCGCATCGA
3001 GCGAGCACGT ACTCGGATGG AAGCCGGTCT TGTCGATCAG GATGATCTGG ACGAAGAGCA
3061 TCAGGGGCTC GCGCCAGCCG AACTGTTCGC CAGGCTCAAG GCGAGCATGC CCGACGGCGA
3121 GGATCTCGTC GTGACCCATG GCGATGCCTG CTTGCCGAAT ATCATGGTGG AAAATGGCCG
3181 CTTTTCTGGA TTCATCGACT GTGGCCGGCT GGGTGTGGCG GACCGCTATC AGGACATAGC
3241 GTTGGCTACC CGTGATATTG CTGAAGAGCT TGGCGGCGAA TGGGCTGACC GCTTCCTCGT
3301 GCTTTACGGT ATCGCCGCTC CCGATTCGCA GCGCATCGCC TTCTATCGCC TTCTTGACGA
3361 GTTCTTCTGA GCGGGACTCT GGGGTTCGAA ATGACCGACC AAGCGACGCC CAACCTGCCA
3421 TCACGAGATT TCGATTCCAC CGCCGCCTTC TATGAAAGGT TGGGCTTCGG AATCGTTTTC
3481 CGGGACGCCG GCTGGATGAT CCTCCAGCGC GGGGATCTCA TGCTGGAGTT CTTCGCCCAC
3541 CCTAGGGGGA GGCTAACTGA AACACGGAAG GAGACAATAC CGGAAGGAAC CCGCGCTATG
3601 ACGGCAATAA AAAGACAGAA TAAAACGCAC GGTGTTGGGT CGTTTGTTCA TAAACGCGGG
3661 GTTCGGTCCC AGGGCTGGCA CTCTGTCGAT ACCCCACCGA GACCCCATTG GGGCCAATAC
3721 GCCCGCGTTT CTTCCTTTTC CCCACCCCAC CCCCCAAGTT CGGGTGAAGG CCCAGGGCTC
3781 GCAGCCAACG TCGGGGCGGC AGGCCCTGCC ATAGCCTCAG GTTACTCATA TATACTTTAG
3841 ATTGATTTAA AACTTCATTT TTAATTTAAA AGGATCTAGG TGAAGATCCT TTTTGATAAT
3901 CTCATGACCA AAATCCCTTA ACGTGAGTTT TCGTTCCACT GAGCGTCAGA CCCCGTAGAA
3961 AAGATCAAAG GATCTTCTTG AGATCCTTTT TTTCTGCGCG TAATCTGCTG CTTGCAAACA
4021 AAAAAACCAC CGCTACCAGC GGTGGTTTGT TTGCCGGATC AAGAGCTACC AACTCTTTTT
4081 CCGAAGGTAA CTGGCTTCAG CAGAGCGCAG ATACCAAATA CTGTCCTTCT AGTGTAGCCG
4141 TAGTTAGGCC ACCACTTCAA GAACTCTGTA GCACCGCCTA CATACCTCGC TCTGCTAATC
4201 CTGTTACCAG TGGCTGCTGC CAGTGGCGAT AAGTCGTGTC TTACCGGGTT GGACTCAAGA
4261 CGATAGTTAC CGGATAAGGC GCAGCGGTCG GGCTGAACGG GGGGTTCGTG CACACAGCCC
4321 AGCTTGGAGC GAACGACCTA CACCGAACTG AGATACCTAC AGCGTGAGCT ATGAGAAAGC
4381 GCCACGCTTC CCGAAGGGAG AAAGGCGGAC AGGTATCCGG TAAGCGGCAG GGTCGGAACA
4441 GGAGAGCGCA CGAGGGAGCT TCCAGGGGGA AACGCCTGGT ATCTTTATAG TCCTGTCGGG
4501 TTTCGCCACC TCTGACTTGA GCGTCGATTT TTGTGATGCT CGTCAGGGGG GCGGAGCCTA
4561 TGGAAAAACG CCAGCAACGC GGCCTTTTTA CGGTTCCTGG CCTTTTGCTG GCCTTTTGCT
4621 CACATGTTCT TTCCTGCGTT ATCCCCTGAT TCTGTGGATA ACCGTATTAC CGCCA
//
pDsRed2-C1载体图谱质粒图谱pdf版和pDsRed2-C1载体序列质粒序列等相关资料下载
pDsRed2-C1质粒载体应用举例
