pEF1/myc-His B

价格:2500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pEF1/myc-His B载体 pEF1/mycHisB质粒基本信息

出品公司:
Invitrogen
载体名称: pcDNA3.1(+)/Myc HisB
质粒类型: 哺乳细胞表达系统载体
高拷贝/低拷贝: 高拷贝
启动子: EF-1a
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6169bp
5' 测序引物及序列: T7 Fwd:5'd[TAATACGACTCACTATAGGG]3'
3' 测序引物及序列: --
载体标签: 6X His, myc
载体抗性: Ampicillin
筛选标记: Neomycin
备注: 容易克隆到其他载体里面去
产品目录号: V92120
稳定性: 瞬表达
组成型: 组成型
病毒/非病毒: 非病毒

pEF1/myc-His B质粒图谱 pEF1/mycHisB载体图谱和pEF1/myc-His B载体序列 pEF1/mycHisB质粒序列多克隆位点信息

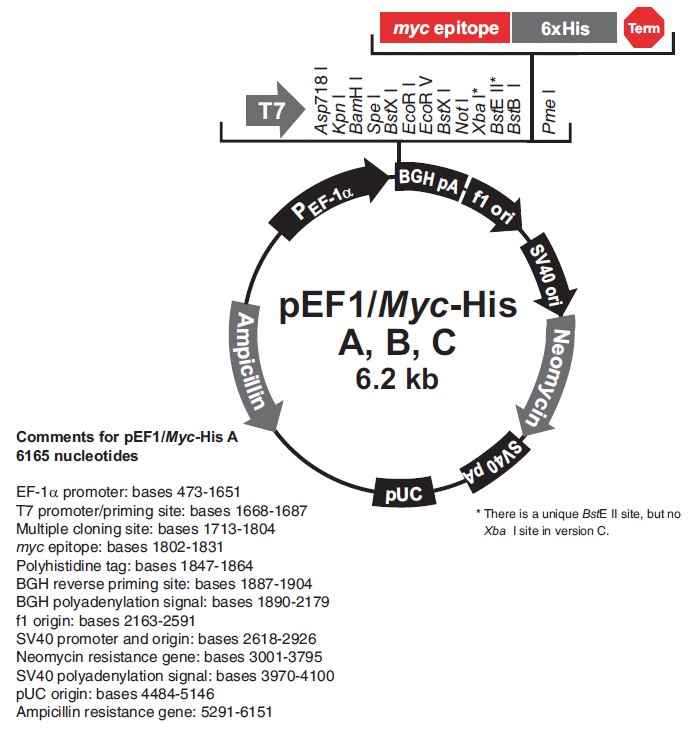

pEF1/myc-His B载体图谱



pEF1/myc-His B多克隆位点

pEF1/myc-His B载体特征

pEF1/myc-His B质粒 pEF1/mycHisB载体简介

pEF1/myc-His B质粒序列 pEF1/mycHisB载体序列

LOCUS       pEF1/myc-His B	6169 bp 	DNA	SYN
DEFINITION  pEF1/myc-His B
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6169
                     /organism="pEF1/myc-His B"
                     /mol_type="other DNA"
     promoter        complement(28..56)
                     /label="AmpR_promoter"
     promoter        480..1651
                     /label="EF1a_promoter"
     CDS             complement(771..1391)
                     /label="ORF frame 3"
     misc_feature    1599..1619
                     /label="EF1a_fwd_primer"
     promoter        1668..1686
                     /label="T7_promoter"
     misc_feature    complement(1891..1908)
                     /label="BGH_rev_primer"
     terminator      1894..2121
                     /label="bGH_PA_terminator"
     rep_origin      2184..2490
                     /label="f1_origin"
     misc_feature    complement(2604..2624)
                     /label="pBABE_3_primer"
     misc_feature    complement(2610..2825)
                     /label="SV40_enhancer"
     promoter        2622..2890
                     /label="SV40_promoter"
     rep_origin      2789..2866
                     /label="SV40_origin"
     misc_feature    2851..2870
                     /label="SV40pro_F_primer"
     CDS             3005..3799
                     /label="ORF frame 2"
     gene            3008..3796
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
     terminator      3978..4097
                     /label="SV40_PA_terminator"
     misc_feature    4066..4085
                     /label="EBV_rev_primer"
     promoter        complement(4141..4159)
                     /label="M13_reverse_primer"
     misc_feature    complement(4158..4180)
                     /label="M13_pUC_rev_primer"
     promoter        complement(4194..4223)
                     /label="lac_promoter"
     gene            complement(5295..6155)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(5295..6155)
                     /label="ORF frame 3"
ORIGIN
    1 AATATTATTG AAGCATTTAT CAGGGTTATT GTCTCATGAG CGGATACATA TTTGAATGTA
   61 TTTAGAAAAA TAAACAAATA GGGGTTCCGC GCACATTTCC CCGAAAAGTG CCACCTGACG
  121 TCGACGGATC GGGAGATCTC CCGATCCCCT ATGGTGCACT CTCAGTACAA TCTGCTCTGA
  181 TGCCGCATAG TTAAGCCAGT ATCTGCTCCC TGCTTGTGTG TTGGAGGTCG CTGAGTAGTG
  241 CGCGAGCAAA ATTTAAGCTA CAACAAGGCA AGGCTTGACC GACAATTGCA TGAAGAATCT
  301 GCTTAGGGTT AGGCGTTTTG CGCTGCTTCG CGATGTACGG GCCAGATATA CGCGTTGACA
  361 TTGATTATTG ACTAGGCTTT TGCAAAAAGC TTTGCAAAGA TGGATAAAGT TTTAAACAGA
  421 GAGGAATCTT TGCAGCTAAT GGACCTTCTA GGTCTTGAAA GGAGTGGGAA TTGGCTCCGG
  481 TGCCCGTCAG TGGGCAGAGC GCACATCGCC CACAGTCCCC GAGAAGTTGG GGGGAGGGGT
  541 CGGCAATTGA ACCGGTGCCT AGAGAAGGTG GCGCGGGGTA AACTGGGAAA GTGATGTCGT
  601 GTACTGGCTC CGCCTTTTTC CCGAGGGTGG GGGAGAACCG TATATAAGTG CAGTAGTCGC
  661 CGTGAACGTT CTTTTTCGCA ACGGGTTTGC CGCCAGAACA CAGGTAAGTG CCGTGTGTGG
  721 TTCCCGCGGG CCTGGCCTCT TTACGGGTTA TGGCCCTTGC GTGCCTTGAA TTACTTCCAC
  781 CTGGCTGCAG TACGTGATTC TTGATCCCGA GCTTCGGGTT GGAAGTGGGT GGGAGAGTTC
  841 GAGGCCTTGC GCTTAAGGAG CCCCTTCGCC TCGTGCTTGA GTTGAGGCCT GGCCTGGGCG
  901 CTGGGGCCGC CGCGTGCGAA TCTGGTGGCA CCTTCGCGCC TGTCTCGCTG CTTTCGATAA
  961 GTCTCTAGCC ATTTAAAATT TTTGATGACC TGCTGCGACG CTTTTTTTCT GGCAAGATAG
 1021 TCTTGTAAAT GCGGGCCAAG ATCTGCACAC TGGTATTTCG GTTTTTGGGG CCGCGGGCGG
 1081 CGACGGGGCC CGTGCGTCCC AGCGCACATG TTCGGCGAGG CGGGGCCTGC GAGCGCGGCC
 1141 ACCGAGAATC GGACGGGGGT AGTCTCAAGC TGGCCGGCCT GCTCTGGTGC CTGGCCTCGC
 1201 GCCGCCGTGT ATCGCCCCGC CCTGGGCGGC AAGGCTGGCC CGGTCGGCAC CAGTTGCGTG
 1261 AGCGGAAAGA TGGCCGCTTC CCGGCCCTGC TGCAGGGAGC TCAAAATGGA GGACGCGGCG
 1321 CTCGGGAGAG CGGGCGGGTG AGTCACCCAC ACAAAGGAAA AGGGCCTTTC CGTCCTCAGC
 1381 CGTCGCTTCA TGTGACTCCA CGGAGTACCG GGCGCCGTCC AGGCACCTCG ATTAGTTCTC
 1441 GAGCTTTTGG AGTACGTCGT CTTTAGGTTG GGGGGAGGGG TTTTATGCGA TGGAGTTTCC
 1501 CCACACTGAG TGGGTGGAGA CTGAAGTTAG GCCAGCTTGG CACTTGATGT AATTCTCCTT
 1561 GGAATTTGCC CTTTTTGAGT TTGGATCTTG GTTCATTCTC AAGCCTCAGA CAGTGGTTCA
 1621 AAGTTTTTTT CTTCCATTTC AGGTGTCGTG AGGAATTAGC TTGGTACTAA TACGACTCAC
 1681 TATAGGGAGA CCCAAGCTGG CTAGGTAAGC TTGGTACCGA GCTCGGATCC ACTAGTCCAG
 1741 TGTGGTGGAA TTCTGCAGAT ATCCAGCACA GTGGCGGCCG CTCGAGTCTA GAGGGCCCGC
 1801 GGTTCGAACA AAAACTCATC TCAGAAGAGG ATCTGAATAT GCATACCGGT CATCATCACC
 1861 ATCACCATTG AGTTTAAACC CGCTGATCAG CCTCGACTGT GCCTTCTAGT TGCCAGCCAT
 1921 CTGTTGTTTG CCCCTCCCCC GTGCCTTCCT TGACCCTGGA AGGTGCCACT CCCACTGTCC
 1981 TTTCCTAATA AAATGAGGAA ATTGCATCGC ATTGTCTGAG TAGGTGTCAT TCTATTCTGG
 2041 GGGGTGGGGT GGGGCAGGAC AGCAAGGGGG AGGATTGGGA AGACAATAGC AGGCATGCTG
 2101 GGGATGCGGT GGGCTCTATG GCTTCTGAGG CGGAAAGAAC CAGCTGGGGC TCTAGGGGGT
 2161 ATCCCCACGC GCCCTGTAGC GGCGCATTAA GCGCGGCGGG TGTGGTGGTT ACGCGCAGCG
 2221 TGACCGCTAC ACTTGCCAGC GCCCTAGCGC CCGCTCCTTT CGCTTTCTTC CCTTCCTTTC
 2281 TCGCCACGTT CGCCGGCTTT CCCCGTCAAG CTCTAAATCG GGGGCTCCCT TTAGGGTTCC
 2341 GATTTAGTGC TTTACGGCAC CTCGACCCCA AAAAACTTGA TTAGGGTGAT GGTTCACGTA
 2401 GTGGGCCATC GCCCTGATAG ACGGTTTTTC GCCCTTTGAC GTTGGAGTCC ACGTTCTTTA
 2461 ATAGTGGACT CTTGTTCCAA ACTGGAACAA CACTCAACCC TATCTCGGTC TATTCTTTTG
 2521 ATTTATAAGG GATTTTGCCG ATTTCGGCCT ATTGGTTAAA AAATGAGCTG ATTTAACAAA
 2581 AATTTAACGC GAATTAATTC TGTGGAATGT GTGTCAGTTA GGGTGTGGAA AGTCCCCAGG
 2641 CTCCCCAGCA GGCAGAAGTA TGCAAAGCAT GCATCTCAAT TAGTCAGCAA CCAGGTGTGG
 2701 AAAGTCCCCA GGCTCCCCAG CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC
 2761 AACCATAGTC CCGCCCCTAA CTCCGCCCAT CCCGCCCCTA ACTCCGCCCA GTTCCGCCCA
 2821 TTCTCCGCCC CATGGCTGAC TAATTTTTTT TATTTATGCA GAGGCCGAGG CCGCCTCTGC
 2881 CTCTGAGCTA TTCCAGAAGT AGTGAGGAGG CTTTTTTGGA GGCCTAGGCT TTTGCAAAAA
 2941 GCTCCCGGGA GCTTGTATAT CCATTTTCGG ATCTGATCAA GAGACAGGAT GAGGATCGTT
 3001 TCGCATGATT GAACAAGATG GATTGCACGC AGGTTCTCCG GCCGCTTGGG TGGAGAGGCT
 3061 ATTCGGCTAT GACTGGGCAC AACAGACAAT CGGCTGCTCT GATGCCGCCG TGTTCCGGCT
 3121 GTCAGCGCAG GGGCGCCCGG TTCTTTTTGT CAAGACCGAC CTGTCCGGTG CCCTGAATGA
 3181 ACTGCAGGAC GAGGCAGCGC GGCTATCGTG GCTGGCCACG ACGGGCGTTC CTTGCGCAGC
 3241 TGTGCTCGAC GTTGTCACTG AAGCGGGAAG GGACTGGCTG CTATTGGGCG AAGTGCCGGG
 3301 GCAGGATCTC CTGTCATCTC ACCTTGCTCC TGCCGAGAAA GTATCCATCA TGGCTGATGC
 3361 AATGCGGCGG CTGCATACGC TTGATCCGGC TACCTGCCCA TTCGACCACC AAGCGAAACA
 3421 TCGCATCGAG CGAGCACGTA CTCGGATGGA AGCCGGTCTT GTCGATCAGG ATGATCTGGA
 3481 CGAAGAGCAT CAGGGGCTCG CGCCAGCCGA ACTGTTCGCC AGGCTCAAGG CGCGCATGCC
 3541 CGACGGCGAG GATCTCGTCG TGACCCATGG CGATGCCTGC TTGCCGAATA TCATGGTGGA
 3601 AAATGGCCGC TTTTCTGGAT TCATCGACTG TGGCCGGCTG GGTGTGGCGG ACCGCTATCA
 3661 GGACATAGCG TTGGCTACCC GTGATATTGC TGAAGAGCTT GGCGGCGAAT GGGCTGACCG
 3721 CTTCCTCGTG CTTTACGGTA TCGCCGCTCC CGATTCGCAG CGCATCGCCT TCTATCGCCT
 3781 TCTTGACGAG TTCTTCTGAG CGGGACTCTG GGGTTCGCGA AATGACCGAC CAAGCGACGC
 3841 CCAACCTGCC ATCACGAGAT TTCGATTCCA CCGCCGCCTT CTATGAAAGG TTGGGCTTCG
 3901 GAATCGTTTT CCGGGACGCC GGCTGGATGA TCCTCCAGCG CGGGGATCTC ATGCTGGAGT
 3961 TCTTCGCCCA CCCCAACTTG TTTATTGCAG CTTATAATGG TTACAAATAA AGCAATAGCA
 4021 TCACAAATTT CACAAATAAA GCATTTTTTT CACTGCATTC TAGTTGTGGT TTGTCCAAAC
 4081 TCATCAATGT ATCTTATCAT GTCTGTATAC CGTCGACCTC TAGCTAGAGC TTGGCGTAAT
 4141 CATGGTCATA GCTGTTTCCT GTGTGAAATT GTTATCCGCT CACAATTCCA CACAACATAC
 4201 GAGCCGGAAG CATAAAGTGT AAAGCCTGGG GTGCCTAATG AGTGAGCTAA CTCACATTAA
 4261 TTGCGTTGCG CTCACTGCCC GCTTTCCAGT CGGGAAACCT GTCGTGCCAG CTGCATTAAT
 4321 GAATCGGCCA ACGCGCGGGG AGAGGCGGTT TGCGTATTGG GCGCTCTTCC GCTTCCTCGC
 4381 TCACTGACTC GCTGCGCTCG GTCGTTCGGC TGCGGCGAGC GGTATCAGCT CACTCAAAGG
 4441 CGGTAATACG GTTATCCACA GAATCAGGGG ATAACGCAGG AAAGAACATG TGAGCAAAAG
 4501 GCCAGGAACC GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC ATAGGCTCCG CCCCCCTGAC
 4561 GAGCATCACA AAAATCGACG CTCAAGTCAG AGGTGGCGAA ACCCGACAGG ACTATAAAGA
 4621 TACCAGGCGT TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC CTGTTCCGAC CCTGCCGCTT
 4681 ACCGGATACC TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG CGCTTTCTCA TAGCTCACGC
 4741 TGTAGGTATC TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC TGGGCTGTGT GCACGAACCC
 4801 CCCGTTCAGC CCGACCGCTG CGCCTTATCC GGTAACTATC GTCTTGAGTC CAACCCGGTA
 4861 AGACACGACT TATCGCCACT GGCAGCAGCC ACTGGTAACA GGATTAGCAG AGCGAGGTAT
 4921 GTAGGCGGTG CTACAGAGTT CTTGAAGTGG TGGCCTAACT ACGGCTACAC TAGAAGAACA
 4981 GTATTTGGTA TCTGCGCTCT GCTGAAGCCA GTTACCTTCG GAAAAAGAGT TGGTAGCTCT
 5041 TGATCCGGCA AACAAACCAC CGCTGGTAGC GGTGGTTTTT TTGTTTGCAA GCAGCAGATT
 5101 ACGCGCAGAA AAAAAGGATC TCAAGAAGAT CCTTTGATCT TTTCTACGGG GTCTGACGCT
 5161 CAGTGGAACG AAAACTCACG TTAAGGGATT TTGGTCATGA GATTATCAAA AAGGATCTTC
 5221 ACCTAGATCC TTTTAAATTA AAAATGAAGT TTTAAATCAA TCTAAAGTAT ATATGAGTAA
 5281 ACTTGGTCTG ACAGTTACCA ATGCTTAATC AGTGAGGCAC CTATCTCAGC GATCTGTCTA
 5341 TTTCGTTCAT CCATAGTTGC CTGACTCCCC GTCGTGTAGA TAACTACGAT ACGGGAGGGC
 5401 TTACCATCTG GCCCCAGTGC TGCAATGATA CCGCGAGACC CACGCTCACC GGCTCCAGAT
 5461 TTATCAGCAA TAAACCAGCC AGCCGGAAGG GCCGAGCGCA GAAGTGGTCC TGCAACTTTA
 5521 TCCGCCTCCA TCCAGTCTAT TAATTGTTGC CGGGAAGCTA GAGTAAGTAG TTCGCCAGTT
 5581 AATAGTTTGC GCAACGTTGT TGCCATTGCT ACAGGCATCG TGGTGTCACG CTCGTCGTTT
 5641 GGTATGGCTT CATTCAGCTC CGGTTCCCAA CGATCAAGGC GAGTTACATG ATCCCCCATG
 5701 TTGTGCAAAA AAGCGGTTAG CTCCTTCGGT CCTCCGATCG TTGTCAGAAG TAAGTTGGCC
 5761 GCAGTGTTAT CACTCATGGT TATGGCAGCA CTGCATAATT CTCTTACTGT CATGCCATCC
 5821 GTAAGATGCT TTTCTGTGAC TGGTGAGTAC TCAACCAAGT CATTCTGAGA ATAGTGTATG
 5881 CGGCGACCGA GTTGCTCTTG CCCGGCGTCA ATACGGGATA ATACCGCGCC ACATAGCAGA
 5941 ACTTTAAAAG TGCTCATCAT TGGAAAACGT TCTTCGGGGC GAAAACTCTC AAGGATCTTA
 6001 CCGCTGTTGA GATCCAGTTC GATGTAACCC ACTCGTGCAC CCAACTGATC TTCAGCATCT
 6061 TTTACTTTCA CCAGCGTTTC TGGGTGAGCA AAAACAGGAA GGCAAAATGC CGCAAAAAAG
 6121 GGAATAAGGG CGACACGGAA ATGTTGAATA CTCATACTCT TCCTTTTTC
//

pEF1/myc-His B载体图谱 pEF1/mycHisB质粒图谱pdf版和pEF1/myc-His B载体序列 pEF1/mycHisB质粒序列等相关资料下载

pEF1/myc-His B质粒 pEF1/mycHisB载体应用举例
