pNFkB-DD-tdTomato

价格:3640元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pNFkB-DD-tdTomato载体质粒基本信息

出品公司: Clontech
载体名称: pNFkB-DD-tdTomato
质粒类型: 哺乳动物细胞表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: TA
载体大小: 5475 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: DD tag (N-端)
载体抗性: 卡那霉素
筛选标记: 新霉素(Neomycin)
克隆菌株: DH5α 等
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 哺乳动物细胞表达载体pNFkB-DD-tdTomato表达DD-tdTomato;
DD-tdTomato与tdTomato相比,N端融合了ProteoTuner destabilization domain (DD)去稳定结构域,导致tdTomato在细胞内很快被蛋白酶降解,降低了背景荧光,是研究启动子及其它顺式转录元件活性的理想报告基因。
产品目录号: 631081
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

pNFkB-DD-tdTomato质粒图谱载体图谱和pNFkB-DD-tdTomato载体序列质粒序列多克隆位点信息

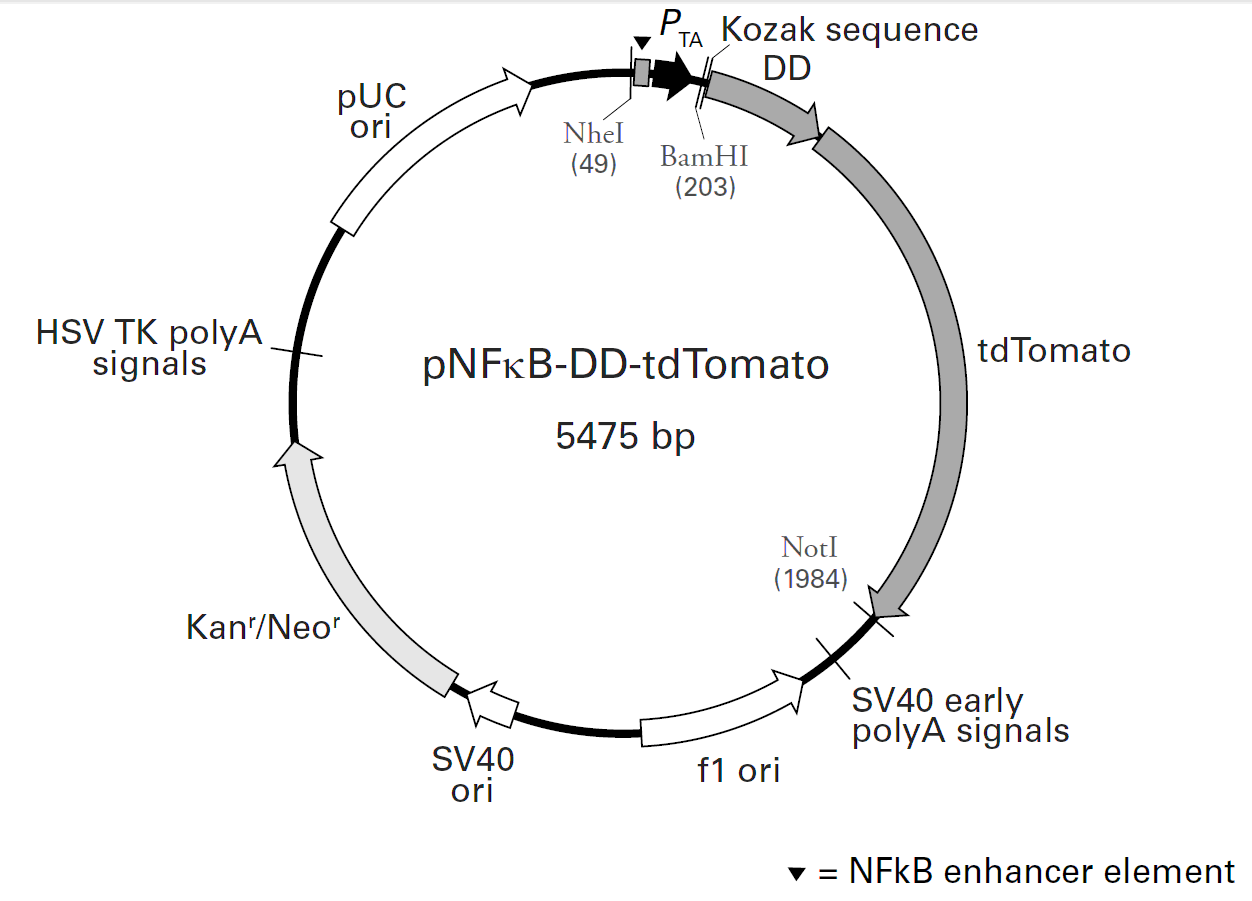

pNFkB-DD-tdTomato载体图谱

pNFkB-DD-tdTomato 载体特征

pNFkB-DD-tdTomato质粒载体简介


pNFkB-DD-tdTomato载体描述

pNFkB-DD-tdTomato is a reporter vector that allows you to monitor NFkB activation in mammalian cells. The vector contains an NFkB enhancer element (composed of four tandem copies of the NFkB consensus binding sequence; 1) upstream of a minimal TA promoter (PTA), which consists of the TATA box from the herpes simplex virus thymidine kinase (HSV-TK) promoter. The vector encodes the reporter protein DD-tdTomato, a ligand-dependent, destabilized red fluorescent protein that minimizes background fluorescence from leaky promoters.
tdTomato is a member of the family of fruit fluorescent proteins derived from the Discosoma sp. red fluorescent protein, DsRed (excitation and emission maxima: 554 and 581 nm, respectively; 1, 2). DD-tdTomato is a modified version of tdTomato that is tagged on its N-terminus with the ProteoTuner? destabilization domain (DD; 3). The presence of this destabilization domain causes rapid, proteasomal degradation of the fluorescent fusion protein; however, when the membrane permeant ligand Shield1 is added to the medium, it binds to the destabilization domain and protects the fusion protein from degradation.
In the absence of Shield1, the destabilization domain causes the degradation of any DD-tdTomato reporter protein produced prior to promoter activation, thus reducing background fluorescence. In order to analyze NFκB activation, an inducer of choice is added to the medium along with the Shield1 stabilizing ligand, which effectively stabilizes the reporter protein, allowing it to accumulate. As a result, only the reporter molecules expressed during promoter induction will contribute to the fluorescence signal, providing a considerably higher signal-to-noise ratio than that obtained with non-destabilized or constitutively destabilized reporter systems. The high signal-to-noise ratio also allows the monitoring of NFκB activation during discrete windows of time when Shield1 is added to the cell medium for discrete periods of time.
The vector backbone contains an SV40 origin for replication in mammalian cells expressing the SV40 large T antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin-resistance cassette (Neor) allows stably transfected eukaryotic cells to be selected using G418 (4). This cassette consists of the SV40 early promoter, a Tn5 kanamycin/neomycin resistance gene, and herpes simplex virus thymidine kinase (HSV TK) polyadenylation signals. A bacterial promoter upstream of the cassette expresses kanamycin resistance in E. coli.

The pNFkB-DD-tdTomato Reporter vector, available as part of the NFkB DD Red Reporter System (Cat. No. 631081), can be used to monitor NFkB activation in live cells as well as in vivo. pNFkB-DD-tdTomato can be transfected into mammalian cells using any standard transfection method. If required, stable transfectants can be selected using G418.

Propagation in E. coli
 Recommended host strains: DH5α?, HB101, and other general purpose strains. Single-stranded DNA production
requires a host containing an F plasmid such as JM109 or XL1-Blue.
 Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) in E. coli hosts.
 E. coli replication origin: pUC
 Copy number: high
 Plasmid incompatibility group: pMB1/ColE1

Excitation and emission maxima of tdTomato
 Excitation maximum = 554 nm
 Emission maximum = 581 nm

References
1. Pessara, U. & Koch, N. (1990) Mol. Cell Biol. 10(8):4146–4154.
2. Shaner, N. C., et al. (2004) Nature Biotech. 22(12):1567-1572.
3. Campbell, R. E. et al. (2002) Proc. Natl. Acad. Sci. USA 99(12):7877–7882.
4. Banaszynski, L. et al. (2006) Cell 126(5):995–1004.
5. Gorman, C. (1985) In DNA Cloning: A Practical Approach, Vol. II. Ed. D. M. Glover. (IRL Press, Oxford, U.K.), pp. 143–190.
Note: The vector sequence was compiled from information in the sequence databases, published literature, and other sources, together with partial sequences obtained by Clontech. This vector has not been completely sequenced.

pNFkB-DD-tdTomato质粒序列载体序列

LOCUS       pNFkB-DD-tdTomato   5475 bp    DNA   circular            21-DEC-2009
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     Cat. No. 631082,631081
FEATURES             Location/Qualifiers
     enhancer        54..93
                     /label=NFkB\enhancer\element
     promoter        113..119
                     /label=TA\minimal\promoter
     CDS             3211..4005
                     /label=Kan(R)/Neo(R)
     rep_origin      complement(2231..2686)
                     /label=f1\origin
     rep_origin      3027..3165
                     /label=SV40\origin
     rep_origin      4590..5233
                     /label=pUC\origin
     CDS             221..544
                     /label=DD
     CDS             551..1978
                     /label=tdTomato
     misc_feature    1979..1981
                     /label=Stop\codon
     polyA_signal    2134..2168
                     /label=SV40\early\polyA\signals
     polyA_signal    4241..4259
                     /label=HSV\TK\polyA\signals
     misc_signal     214..224
                     /label=Kozak\sequence
BASE COUNT     1298 a      1512 c      1495 g      1170 t
ORIGIN
        1 tagttattac tagcgctacc ggactcagat ctcgagctct tacgcgtgct agcgggaatt
       61 tccgggaatt tccgggaatt tccgggaatt tccagatcta gactctagag ggtatataat
      121 ggaagctcga attccagctt ggcattccgg tactgttggt aaaaagcttc gaattctgca
      181 gtcgacggta ccgcgggccc gggatccacc ggtcgccacc atgggagtgc aggtggaaac
      241 catctcccca ggagacgggc gcaccttccc caagcgcggc cagacctgtg tggtgcacta
      301 caccgggatg cttgaagatg gaaagaaagt cgattcctcc cgggacagaa acaagccctt
      361 taagtttatg ctaggcaagc aggaggtgat ccgaggctgg gaagaagggg ttgctcagat
      421 gagtgtgggt cagagagcca aactgactat atctccagat tatgcctatg gtgccactgg
      481 gcacccaggc atcatcccac cacatgccac tctcgtcttc gatgtggagc ttctaaaacc
      541 ggaaagatct atggtgagca agggcgagga ggtcatcaaa gagttcatgc gcttcaaggt
      601 gcgcatggag ggctccatga acggccacga gttcgagatc gagggcgagg gcgagggccg
      661 cccctacgag ggcacccaga ccgccaagct gaaggtgacc aagggcggcc ccctgccctt
      721 cgcctgggac atcctgtccc cccagttcat gtacggctcc aaggcgtacg tgaagcaccc
      781 cgccgacatc cccgattaca agaagctgtc cttccccgag ggcttcaagt gggagcgcgt
      841 gatgaacttc gaggacggcg gtctggtgac cgtgacccag gactcctccc tgcaggacgg
      901 cacgctgatc tacaaggtga agatgcgcgg caccaacttc ccccccgacg gccccgtaat
      961 gcagaagaag accatgggct gggaggcctc caccgagcgc ctgtaccccc gcgacggcgt
     1021 gctgaagggc gagatccacc aggccctgaa gctgaaggac ggcggccact acctggtgga
     1081 gttcaagacc atctacatgg ccaagaagcc cgtgcaactg cccggctact actacgtgga
     1141 caccaagctg gacatcacct cccacaacga ggactacacc atcgtggaac agtacgagcg
     1201 ctccgagggc cgccaccacc tgttcctggg gcatggcacc ggcagcaccg gcagcggcag
     1261 ctccggcacc gcctcctccg aggacaacaa catggccgtc atcaaagagt tcatgcgctt
     1321 caaggtgcgc atggagggct ccatgaacgg ccacgagttc gagatcgagg gcgagggcga
     1381 gggccgcccc tacgagggca cccagaccgc caagctgaag gtgaccaagg gcggccccct
     1441 gcccttcgcc tgggacatcc tgtcccccca gttcatgtac ggctccaagg cgtacgtgaa
     1501 gcaccccgcc gacatccccg attacaagaa gctgtccttc cccgagggct tcaagtggga
     1561 gcgcgtgatg aacttcgagg acggcggtct ggtgaccgtg acccaggact cctccctgca
     1621 ggacggcacg ctgatctaca aggtgaagat gcgcggcacc aacttccccc ccgacggccc
     1681 cgtaatgcag aagaagacca tgggctggga ggcctccacc gagcgcctgt acccccgcga
     1741 cggcgtgctg aagggcgaga tccaccaggc cctgaagctg aaggacggcg gccactacct
     1801 ggtggagttc aagaccatct acatggccaa gaagcccgtg caactgcccg gctactacta
     1861 cgtggacacc aagctggaca tcacctccca caacgaggac tacaccatcg tggaacagta
     1921 cgagcgctcc gagggccgcc accacctgtt cctgtacggc atggacgagc tgtacaagta
     1981 ggcggccgcg actctagatc ataatcagcc ataccacatt tgtagaggtt ttacttgctt
     2041 taaaaaacct cccacacctc cccctgaacc tgaaacataa aatgaatgca attgttgttg
     2101 ttaacttgtt tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca
     2161 caaataaagc atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat
     2221 cttaaggcgt aaattgtaag cgttaatatt ttgttaaaat tcgcgttaaa tttttgttaa
     2281 atcagctcat tttttaacca ataggccgaa atcggcaaaa tcccttataa atcaaaagaa
     2341 tagaccgaga tagggttgag tgttgttcca gtttggaaca agagtccact attaaagaac
     2401 gtggactcca acgtcaaagg gcgaaaaacc gtctatcagg gcgatggccc actacgtgaa
     2461 ccatcaccct aatcaagttt tttggggtcg aggtgccgta aagcactaaa tcggaaccct
     2521 aaagggagcc cccgatttag agcttgacgg ggaaagccgg cgaacgtggc gagaaaggaa
     2581 gggaagaaag cgaaaggagc gggcgctagg gcgctggcaa gtgtagcggt cacgctgcgc
     2641 gtaaccacca cacccgccgc gcttaatgcg ccgctacagg gcgcgtcagg tggcactttt
     2701 cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc aaatatgtat
     2761 ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag gaagagtcct
     2821 gaggcggaaa gaaccagctg tggaatgtgt gtcagttagg gtgtggaaag tccccaggct
     2881 ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaacc aggtgtggaa
     2941 agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa
     3001 ccatagtccc gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt
     3061 ctccgcccca tggctgacta atttttttta tttatgcaga ggccgaggcc gcctcggcct
     3121 ctgagctatt ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaagatc
     3181 gatcaagaga caggatgagg atcgtttcgc atgattgaac aagatggatt gcacgcaggt
     3241 tctccggccg cttgggtgga gaggctattc ggctatgact gggcacaaca gacaatcggc
     3301 tgctctgatg ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct ttttgtcaag
     3361 accgacctgt ccggtgccct gaatgaactg caagacgagg cagcgcggct atcgtggctg
     3421 gccacgacgg gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc gggaagggac
     3481 tggctgctat tgggcgaagt gccggggcag gatctcctgt catctcacct tgctcctgcc
     3541 gagaaagtat ccatcatggc tgatgcaatg cggcggctgc atacgcttga tccggctacc
     3601 tgcccattcg accaccaagc gaaacatcgc atcgagcgag cacgtactcg gatggaagcc
     3661 ggtcttgtcg atcaggatga tctggacgaa gagcatcagg ggctcgcgcc agccgaactg
     3721 ttcgccaggc tcaaggcgag catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat
     3781 gcctgcttgc cgaatatcat ggtggaaaat ggccgctttt ctggattcat cgactgtggc
     3841 cggctgggtg tggcggaccg ctatcaggac atagcgttgg ctacccgtga tattgctgaa
     3901 gagcttggcg gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat
     3961 tcgcagcgca tcgccttcta tcgccttctt gacgagttct tctgagcggg actctggggt
     4021 tcgaaatgac cgaccaagcg acgcccaacc tgccatcacg agatttcgat tccaccgccg
     4081 ccttctatga aaggttgggc ttcggaatcg ttttccggga cgccggctgg atgatcctcc
     4141 agcgcgggga tctcatgctg gagttcttcg cccaccctag ggggaggcta actgaaacac
     4201 ggaaggagac aataccggaa ggaacccgcg ctatgacggc aataaaaaga cagaataaaa
     4261 cgcacggtgt tgggtcgttt gttcataaac gcggggttcg gtcccagggc tggcactctg
     4321 tcgatacccc accgagaccc cattggggcc aatacgcccg cgtttcttcc ttttccccac
     4381 cccacccccc aagttcgggt gaaggcccag ggctcgcagc caacgtcggg gcggcaggcc
     4441 ctgccatagc ctcaggttac tcatatatac tttagattga tttaaaactt catttttaat
     4501 ttaaaaggat ctaggtgaag atcctttttg ataatctcat gaccaaaatc ccttaacgtg
     4561 agttttcgtt ccactgagcg tcagaccccg tagaaaagat caaaggatct tcttgagatc
     4621 ctttttttct gcgcgtaatc tgctgcttgc aaacaaaaaa accaccgcta ccagcggtgg
     4681 tttgtttgcc ggatcaagag ctaccaactc tttttccgaa ggtaactggc ttcagcagag
     4741 cgcagatacc aaatactgtt cttctagtgt agccgtagtt aggccaccac ttcaagaact
     4801 ctgtagcacc gcctacatac ctcgctctgc taatcctgtt accagtggct gctgccagtg
     4861 gcgataagtc gtgtcttacc gggttggact caagacgata gttaccggat aaggcgcagc
     4921 ggtcgggctg aacggggggt tcgtgcacac agcccagctt ggagcgaacg acctacaccg
     4981 aactgagata cctacagcgt gagctatgag aaagcgccac gcttcccgaa gggagaaagg
     5041 cggacaggta tccggtaagc ggcagggtcg gaacaggaga gcgcacgagg gagcttccag
     5101 ggggaaacgc ctggtatctt tatagtcctg tcgggtttcg ccacctctga cttgagcgtc
     5161 gatttttgtg atgctcgtca ggggggcgga gcctatggaa aaacgccagc aacgcggcct
     5221 ttttacggtt cctggccttt tgctggcctt ttgctcacat gtagagaaat gttctggcac
     5281 ctgcacttgc actggggaca gcctattttg ctagtttgtt ttgtttcgtt ttgttttgat
     5341 ggagagcgta tgttagtact atcgattcac acaaaaaacc aacacacaga tgtaatgaaa
     5401 ataaagatat tttattacat gttctttcct gcgttatccc ctgattctgt ggataaccgt
     5461 attaccgcca tgcat
//

pNFkB-DD-tdTomato载体图谱质粒图谱pdf版和pNFkB-DD-tdTomato载体序列质粒序列等相关资料下载

pNFkB-DD-tdTomato质粒载体应用举例
