pSG5

价格:1200元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司:
Agilent Technologies
载体名称: pSG5
质粒类型: 哺乳细胞表达系统载体
高拷贝/低拷贝: 高拷贝
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4076bp
5' 测序引物及序列: T7 F
3' 测序引物及序列: --
载体标签: --
载体抗性: Ampicillin
筛选标记: --
备注: 宿主细胞:E.coli AG1,真核细胞
产品目录号: #216201
稳定性: --
组成型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

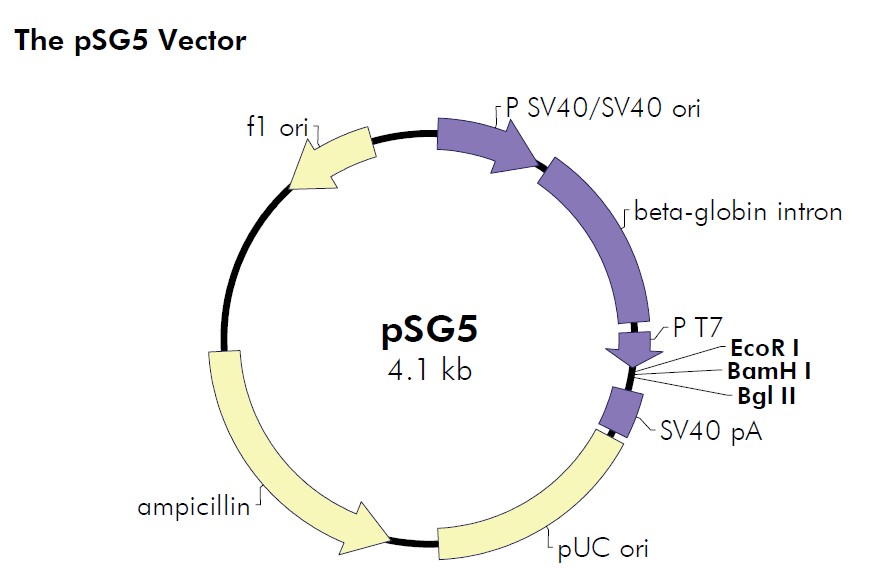

pSG5载体图谱



pSG5多克隆位点

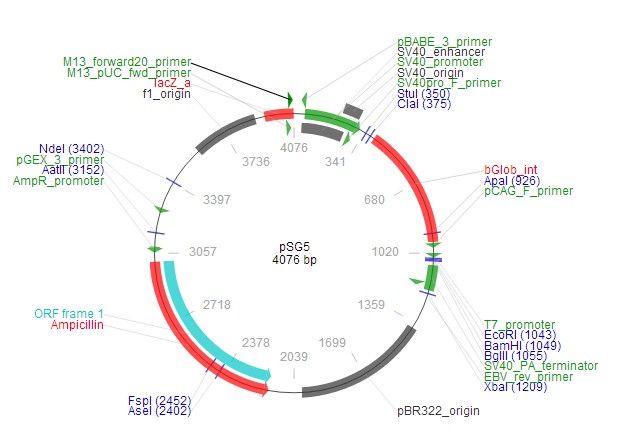

pSG5载体特征

载体简介

载体序列

LOCUS       pSG5	4076 bp 	DNA	SYN
DEFINITION  pSG5
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4076
                     /organism="pSG5"
                     /mol_type="other DNA"
     misc_feature    complement(32..52)
                     /label="pBABE_3_primer"
     misc_feature    complement(38..253)
                     /label="SV40_enhancer"
     promoter        50..318
                     /label="SV40_promoter"
     rep_origin      217..294
                     /label="SV40_origin"
     misc_feature    279..298
                     /label="SV40pro_F_primer"
     misc_feature    395..967
                     /label="bGlob_int"
     misc_feature    975..994
                     /label="pCAG_F_primer"
     promoter        1022..1040
                     /label="T7_promoter"
     terminator      1075..1194
                     /label="SV40_PA_terminator"
     misc_feature    1163..1182
                     /label="EBV_rev_primer"
     rep_origin      complement(1383..2002)
                     /label="pBR322_origin"
     gene            complement(2157..3017)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(2157..3017)
                     /label="ORF frame 1"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(3059..3087)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(3247..3269)
                     /label="pGEX_3_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      complement(3587..3893)
                     /label="f1_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(3938..4074)
                     /label="lacZ_a"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    4040..4062
                     /label="M13_pUC_fwd_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        4055..4071
                     /label="M13_forward20_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GTCGACTTCT GAGGCGGAAA GAACCAGCTG TGGAATGTGT GTCAGTTAGG GTGTGGAAAG
   61 TCCCCAGGCT CCCCAGCAGG CAGAAGTATG CAAAGCATGC ATCTCAATTA GTCAGCAACC
  121 AGGTGTGGAA AGTCCCCAGG CTCCCCAGCA GGCAGAAGTA TGCAAAGCAT GCATCTCAAT
  181 TAGTCAGCAA CCATAGTCCC GCCCCTAACT CCGCCCATCC CGCCCCTAAC TCCGCCCAGT
  241 TCCGCCCATT CTCCGCCCCA TGGCTGACTA ATTTTTTTTA TTTATGCAGA GGCCGAGGCC
  301 GCCTCGGCCT CTGAGCTATT CCAGAAGTAG TGAGGAGGCT TTTTTGGAGG CCTAGGCTTT
  361 TGCAAAAAGC TGGATCGATC CTGAGAACTT CAGGGTGAGT TTGGGGACCC TTGATTGTTC
  421 TTTCTTTTTC GCTATTGTAA AATTCATGTT ATATGGAGGG GGCAAAGTTT TCAGGGTGTT
  481 GTTTAGAATG GGAAGATGTC CCTTGTATCA CCATGGACCC TCATGATAAT TTTGTTTCTT
  541 TCACTTTCTA CTCTGTTGAC AACCATTGTC TCCTCTTATT TTCTTTTCAT TTTCTGTAAC
  601 TTTTTCGTTA AACTTTAGCT TGCATTTGTA ACGAATTTTT AAATTCACTT TTGTTTATTT
  661 GTCAGATTGT AAGTACTTTC TCTAATCACT TTTTTTTCAA GGCAATCAGG GTATATTATA
  721 TTGTACTTCA GCACAGTTTT AGAGAACAAT TGTTATAATT AAATGATAAG GTAGAATATT
  781 TCTGCATATA AATTCTGGCT GGCGTGGAAA TATTCTTATT GGTAGAAACA ACTACATCCT
  841 GGTCATCATC CTGCCTTTCT CTTTATGGTT ACAATGATAT ACACTGTTTG AGATGAGGAT
  901 AAAATACTCT GAGTCCAAAC CGGGCCCCTC TGCTAACCAT GTTCATGCCT TCTTCTTTTT
  961 CCTACAGCTC CTGGGCAACG TGCTGGTTAT TGTGCTGTCT CATCATTTTG GCAAAGAATT
 1021 GTAATACGAC TCACTATAGG GCGAATTCGG ATCCAGATCT TATTAAAGCA GAACTTGTTT
 1081 ATTGCAGCTT ATAATGGTTA CAAATAAAGC AATAGCATCA CAAATTTCAC AAATAAAGCA
 1141 TTTTTTTCAC TGCATTCTAG TTGTGGTTTG TCCAAACTCA TCAATGTATC TTATCATGTC
 1201 TGGTCGACTC TAGACTCTTC CGCTTCCTCG CTCACTGACT CGCTGCGCTC GGTCGTTCGG
 1261 CTGCGGCGAG CGGTATCAGC TCACTCAAAG GCGGTAATAC GGTTATCCAC AGAATCAGGG
 1321 GATAACGCAG GAAAGAACAT GTGAGCAAAA GGCCAGCAAA AGGCCAGGAA CCGTAAAAAG
 1381 GCCGCGTTGC TGGCGTTTTT CCATAGGCTC CGCCCCCCTG ACGAGCATCA CAAAAATCGA
 1441 CGCTCAAGTC AGAGGTGGCG AAACCCGACA GGACTATAAA GATACCAGGC GTTTCCCCCT
 1501 GGAAGCTCCC TCGTGCGCTC TCCTGTTCCG ACCCTGCCGC TTACCGGATA CCTGTCCGCC
 1561 TTTCTCCCTT CGGGAAGCGT GGCGCTTTCT CAATGCTCAC GCTGTAGGTA TCTCAGTTCG
 1621 GTGTAGGTCG TTCGCTCCAA GCTGGGCTGT GTGCACGAAC CCCCCGTTCA GCCCGACCGC
 1681 TGCGCCTTAT CCGGTAACTA TCGTCTTGAG TCCAACCCGG TAAGACACGA CTTATCGCCA
 1741 CTGGCAGCAG CCACTGGTAA CAGGATTAGC AGAGCGAGGT ATGTAGGCGG TGCTACAGAG
 1801 TTCTTGAAGT GGTGGCCTAA CTACGGCTAC ACTAGAAGGA CAGTATTTGG TATCTGCGCT
 1861 CTGCTGAAGC CAGTTACCTT CGGAAAAAGA GTTGGTAGCT CTTGATCCGG CAAACAAACC
 1921 ACCGCTGGTA GCGGTGGTTT TTTTGTTTGC AAGCAGCAGA TTACGCGCAG AAAAAAAGGA
 1981 TCTCAAGAAG ATCCTTTGAT CTTTTCTACG GGGTCTGACG CTCAGTGGAA CGAAAACTCA
 2041 CGTTAAGGGA TTTTGGTCAT GAGATTATCA AAAAGGATCT TCACCTAGAT CCTTTTAAAT
 2101 TAAAAATGAA GTTTTAAATC AATCTAAAGT ATATATGAGT AAACTTGGTC TGACAGTTAC
 2161 CAATGCTTAA TCAGTGAGGC ACCTATCTCA GCGATCTGTC TATTTCGTTC ATCCATAGTT
 2221 GCCTGACTCC CCGTCGTGTA GATAACTACG ATACGGGAGG GCTTACCATC TGGCCCCAGT
 2281 GCTGCAATGA TACCGCGAGA CCCACGCTCA CCGGCTCCAG ATTTATCAGC AATAAACCAG
 2341 CCAGCCGGAA GGGCCGAGCG CAGAAGTGGT CCTGCAACTT TATCCGCCTC CATCCAGTCT
 2401 ATTAATTGTT GCCGGGAAGC TAGAGTAAGT AGTTCGCCAG TTAATAGTTT GCGCAACGTT
 2461 GTTGCCATTG CTACAGGCAT CGTGGTGTCA CGCTCGTCGT TTGGTATGGC TTCATTCAGC
 2521 TCCGGTTCCC AACGATCAAG GCGAGTTACA TGATCCCCCA TGTTGTGCAA AAAAGCGGTT
 2581 AGCTCCTTCG GTCCTCCGAT CGTTGTCAGA AGTAAGTTGG CCGCAGTGTT ATCACTCATG
 2641 GTTATGGCAG CACTGCATAA TTCTCTTACT GTCATGCCAT CCGTAAGATG CTTTTCTGTG
 2701 ACTGGTGAGT ACTCAACCAA GTCATTCTGA GAATAGTGTA TGCGGCGACC GAGTTGCTCT
 2761 TGCCCGGCGT CAATACGGGA TAATACCGCG CCACATAGCA GAACTTTAAA AGTGCTCATC
 2821 ATTGGAAAAC GTTCTTCGGG GCGAAAACTC TCAAGGATCT TACCGCTGTT GAGATCCAGT
 2881 TCGATGTAAC CCACTCGTGC ACCCAACTGA TCTTCAGCAT CTTTTACTTT CACCAGCGTT
 2941 TCTGGGTGAG CAAAAACAGG AAGGCAAAAT GCCGCAAAAA AGGGAATAAG GGCGACACGG
 3001 AAATGTTGAA TACTCATACT CTTCTTTTTT CAATATTATT GAAGCATTTA TCAGGGTTAT
 3061 TGTCTCATGA GCGGATACAT ATTTGAATGT ATTTAGAAAA ATAAACAAAT AGGGGTTCCG
 3121 CGCACATTTC CCCGAAAAGT GCCACCTGAC GTCTAAGAAA CCATTATTAT CATGACATTA
 3181 ACCTATAAAA ATAGGCGTAT CACGAGGCCC CTTTCGTCTC GCGCGTTTCG GTGATGACGG
 3241 TGAAAACCTC TGACACATGC AGCTCCCGGA GACGGTCACA GCTTGTCTGT AAGCGGATGC
 3301 CGGGAGCAGA CAAGCCCGTC AGGGCGCGTC AGCGGGTGTT GGCGGGTGTC GGGGCTGGCT
 3361 TAACTATGCG GCATCAGAGC AGATTGTACT GAGAGTGCAC CATATGCGGT GTGAAATACC
 3421 GCACAGATGC GTAAGGAGAA AATACCGCAT CAGGAAATTG TAAACGTTAA TATTTTGTTA
 3481 AAATTCGCGT TAAATTTTTG TTAAATCAGC TCATTTTTTA ACCAATAGGC CGAAATCGGC
 3541 AAAATCCCTT ATAAATCAAA AGAATAGACC GAGATAGGGT TGAGTGTTGT TCCAGTTTGG
 3601 AACAAGAGTC CACTATTAAA GAACGTGGAC TCCAACGTCA AAGGGCGAAA AACCGTCTAT
 3661 CAGGGCGATG GCCCACTACG TGAACCATCA CCCTAATCAA GTTTTTTGGG GTCGAGGTGC
 3721 CGTAAAGCAC TAAATCGGAA CCCTAAAGGG AGCCCCCGAT TTAGAGCTTG ACGGGGAAAG
 3781 CCGGCGAACG TGGCGAGAAA GGAAGGGAAG AAAGCGAAAG GAGCGGGCGC TAGGGCGCTG
 3841 GCAAGTGTAG CGGTCACGCT GCGCGTAACC ACCACACCCG CCGCGCTTAA TGCGCCGCTA
 3901 CAGGGCGCGT CGCGCCATTC GCCATTCAGG CTACGCAACT GTTGGGAAGG GCGATCGGTG
 3961 CGGGCCTCTT CGCTATTACG CCAGCTGGCG AAGGGGGGAT GTGCTGCAAG GCGATTAAGT
 4021 TGGGTAACGC CAGGGTTTTC CCAGTCACGA CGTTGTAAAA CGACGGCCAG TGAATT

//

载体质粒图谱pdf版和相关资料下载
