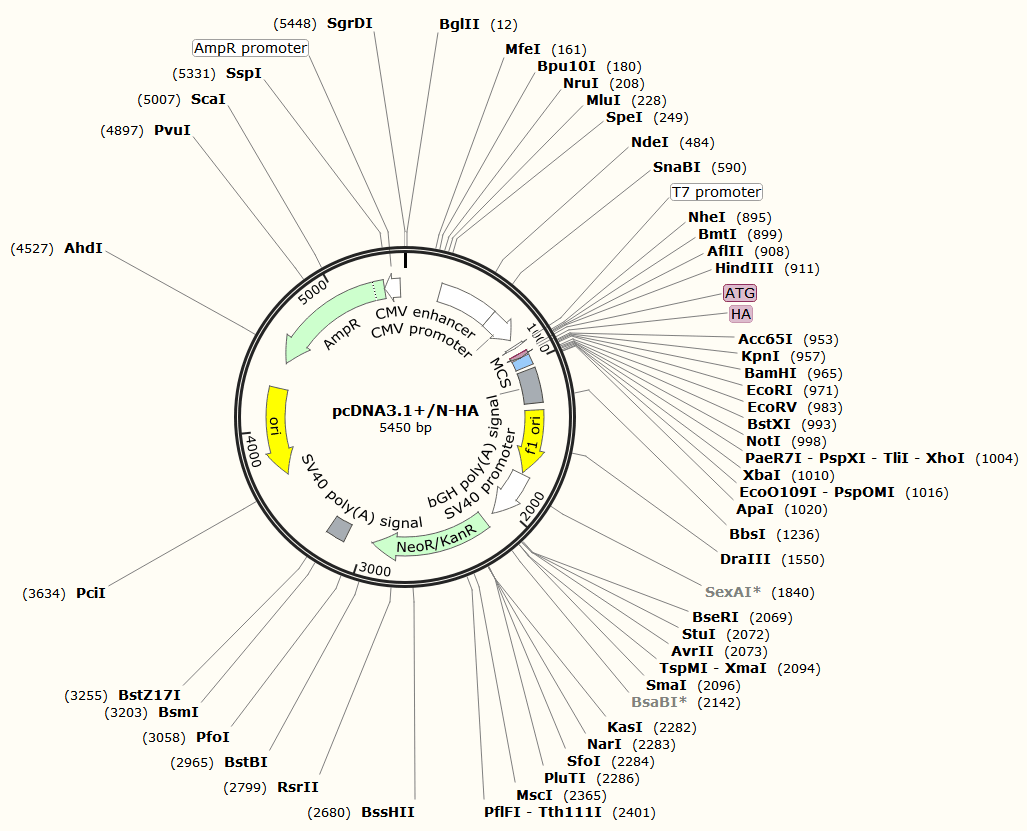

pcDNA3.1+N-HA

LOCUS       pcDNA3.1+ N-HA                5450 bp ds-DNA     circular SYN 21-MAY-2015
DEFINITION  Mammalian vector with a CMV promoter for expressing N-terminally
            HA-tagged proteins.
ACCESSION   .
VERSION     .
KEYWORDS    pcDNA3.1+ N-HA
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5450)
  AUTHORS   GenScript
  TITLE     Direct Submission
  JOURNAL   Exported Tuesday, February 4, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5450
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        235..614
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             923..925
                     /codon_start=1
                     /product="start codon"
                     /note="ATG"
                     /translation="M"
     CDS             926..952
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /note="HA"
                     /translation="YPYDVPDYA"
     misc_feature    953..1021
                     /note="MCS"
     polyA_signal    1047..1271
                     /note="bGH poly(A) signal"
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1317..1745
                     /direction=RIGHT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        1759..2088
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      1939..2074
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             2155..2949
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3123..3244
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(3695..4283)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4454..5314)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5315..5419)
                     /gene="bla"
                     /note="AmpR promoter"
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatgtaccc atacgatgtt ccagattacg ctggtaccga
      961 gctcggatcc gaattctgca gatatccagc acagtggcgg ccgctcgagt ctagagggcc
     1021 cgtttaaacc cgctgatcag cctcgactgt gccttctagt tgccagccat ctgttgtttg
     1081 cccctccccc gtgccttcct tgaccctgga aggtgccact cccactgtcc tttcctaata
     1141 aaatgaggaa attgcatcgc attgtctgag taggtgtcat tctattctgg ggggtggggt
     1201 ggggcaggac agcaaggggg aggattggga agacaatagc aggcatgctg gggatgcggt
     1261 gggctctatg gcttctgagg cggaaagaac cagctggggc tctagggggt atccccacgc
     1321 gccctgtagc ggcgcattaa gcgcggcggg tgtggtggtt acgcgcagcg tgaccgctac
     1381 acttgccagc gccctagcgc ccgctccttt cgctttcttc ccttcctttc tcgccacgtt
     1441 cgccggcttt ccccgtcaag ctctaaatcg ggggctccct ttagggttcc gatttagtgc
     1501 tttacggcac ctcgacccca aaaaacttga ttagggtgat ggttcacgta gtgggccatc
     1561 gccctgatag acggtttttc gccctttgac gttggagtcc acgttcttta atagtggact
     1621 cttgttccaa actggaacaa cactcaaccc tatctcggtc tattcttttg atttataagg
     1681 gattttgccg atttcggcct attggttaaa aaatgagctg atttaacaaa aatttaacgc
     1741 gaattaattc tgtggaatgt gtgtcagtta gggtgtggaa agtccccagg ctccccagca
     1801 ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccaggtgtgg aaagtcccca
     1861 ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc aaccatagtc
     1921 ccgcccctaa ctccgcccat cccgccccta actccgccca gttccgccca ttctccgccc
     1981 catggctgac taattttttt tatttatgca gaggccgagg ccgcctctgc ctctgagcta
     2041 ttccagaagt agtgaggagg cttttttgga ggcctaggct tttgcaaaaa gctcccggga
     2101 gcttgtatat ccattttcgg atctgatcaa gagacaggat gaggatcgtt tcgcatgatt
     2161 gaacaagatg gattgcacgc aggttctccg gccgcttggg tggagaggct attcggctat
     2221 gactgggcac aacagacaat cggctgctct gatgccgccg tgttccggct gtcagcgcag
     2281 gggcgcccgg ttctttttgt caagaccgac ctgtccggtg ccctgaatga actgcaggac
     2341 gaggcagcgc ggctatcgtg gctggccacg acgggcgttc cttgcgcagc tgtgctcgac
     2401 gttgtcactg aagcgggaag ggactggctg ctattgggcg aagtgccggg gcaggatctc
     2461 ctgtcatctc accttgctcc tgccgagaaa gtatccatca tggctgatgc aatgcggcgg
     2521 ctgcatacgc ttgatccggc tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag
     2581 cgagcacgta ctcggatgga agccggtctt gtcgatcagg atgatctgga cgaagagcat
     2641 caggggctcg cgccagccga actgttcgcc aggctcaagg cgcgcatgcc cgacggcgag
     2701 gatctcgtcg tgacccatgg cgatgcctgc ttgccgaata tcatggtgga aaatggccgc
     2761 ttttctggat tcatcgactg tggccggctg ggtgtggcgg accgctatca ggacatagcg
     2821 ttggctaccc gtgatattgc tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg
     2881 ctttacggta tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct tcttgacgag
     2941 ttcttctgag cgggactctg gggttcgaaa tgaccgacca agcgacgccc aacctgccat
     3001 cacgagattt cgattccacc gccgccttct atgaaaggtt gggcttcgga atcgttttcc
     3061 gggacgccgg ctggatgatc ctccagcgcg gggatctcat gctggagttc ttcgcccacc
     3121 ccaacttgtt tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca
     3181 caaataaagc atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat
     3241 cttatcatgt ctgtataccg tcgacctcta gctagagctt ggcgtaatca tggtcatagc
     3301 tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga gccggaagca
     3361 taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt gcgttgcgct
     3421 cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac
     3481 gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc
     3541 tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt
     3601 tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg
     3661 ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg
     3721 agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat
     3781 accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta
     3841 ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct
     3901 gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc
     3961 ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa
     4021 gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg
     4081 taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact agaagaacag
     4141 tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt
     4201 gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta
     4261 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc
     4321 agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca
     4381 cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa
     4441 cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat
     4501 ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct
     4561 taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt
     4621 tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat
     4681 ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta
     4741 atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg
     4801 gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt
     4861 tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg
     4921 cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg
     4981 taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc
     5041 ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa
     5101 ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac
     5161 cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt
     5221 ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg
     5281 gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa
     5341 gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata
     5401 aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
//
