pcDNA5/TO载体质粒基本信息

出品公司: Invitrogen
载体名称: pcDNA5/TO
质粒类型: 哺乳动物细胞表达载体;cDNA表达载体;四环素调控载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMVTO
载体大小: 5667 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: 无标签
载体抗性: 氨苄青霉素
筛选标记: 潮霉素(Hygromycin)
克隆菌株: TOP10 ,DH5-T1R
宿主细胞(系): Invitrogen公司出品的T-REx细胞系,293、Hella、CHO、Jurkat等
备注: pcDNA5/TO载体是cDNA的表达与克隆载体;
CMVTO启动子受四环素调控;
pcDNA5/TO载体作为应答载体与调控载体pcDNA6/TR共同使用。
产品目录号: V1033-20
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 诱导型
病毒/非病毒: 非病毒

pcDNA5/TO质粒图谱载体图谱和pcDNA5/TO载体序列质粒序列多克隆位点信息

pcDNA5-TO载体图谱

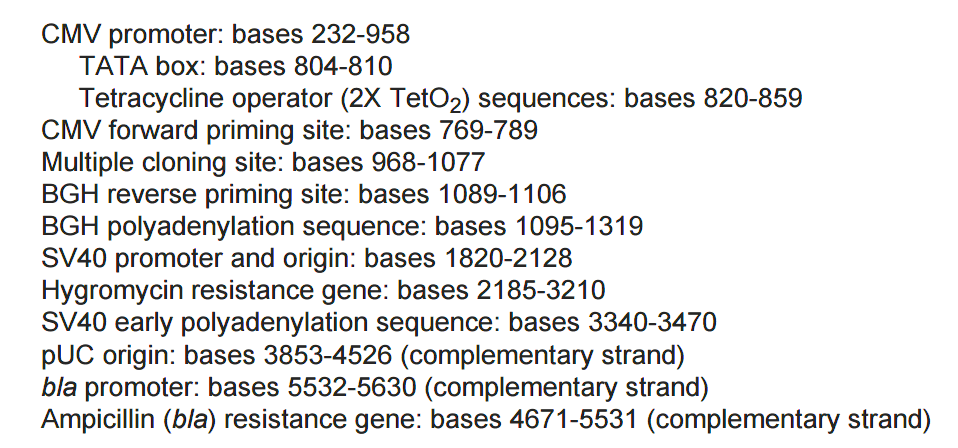

pcDNA5-TO特征位点

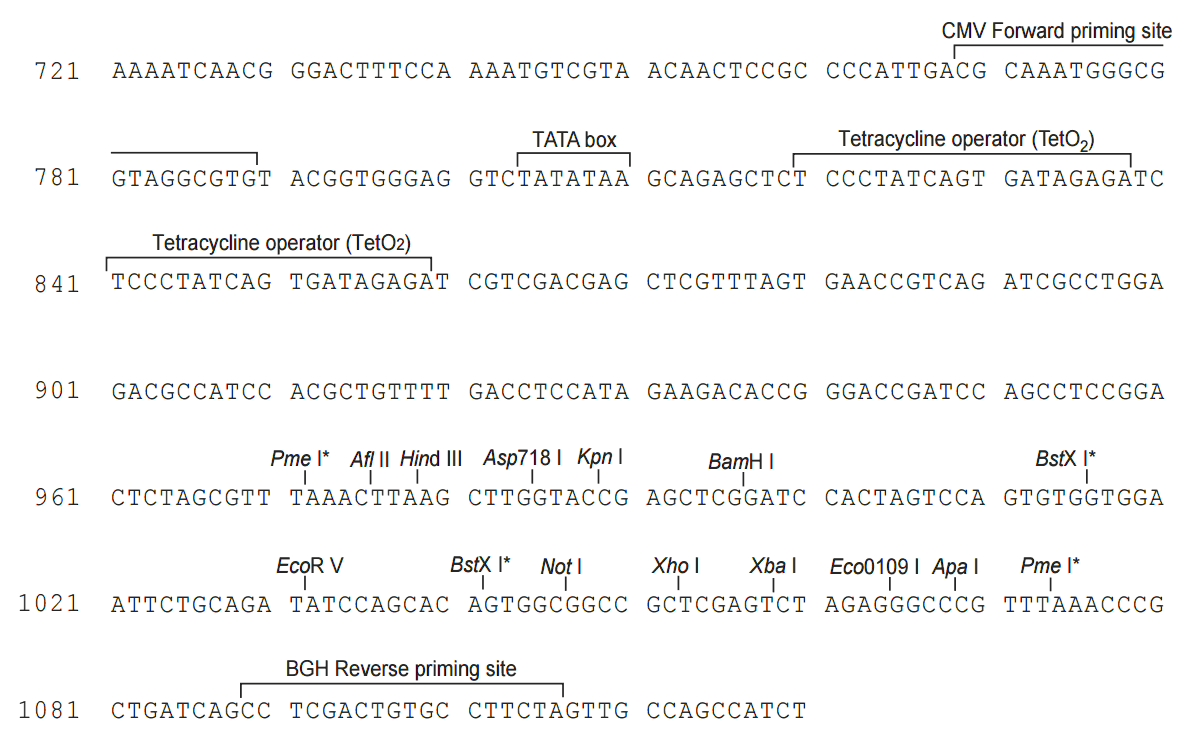

pcDNA5-TO 多克隆位点

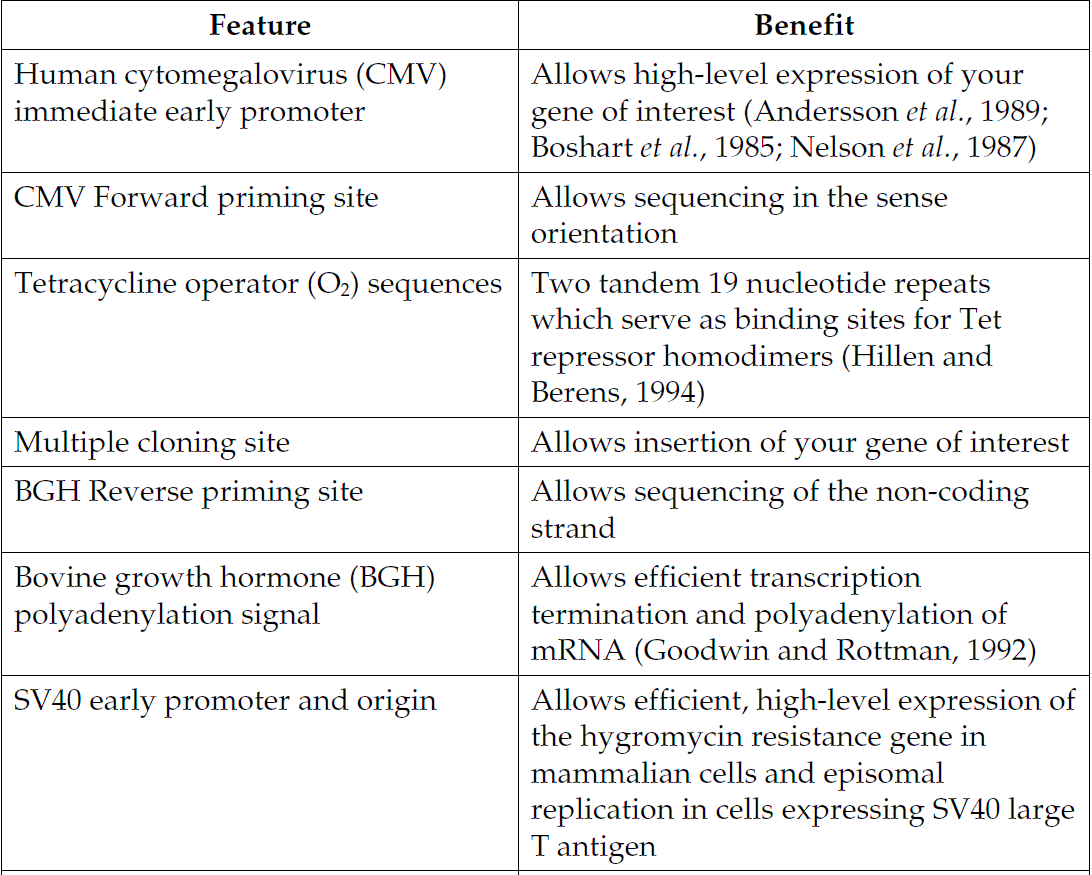

pcDNA5-TO 载体特征1

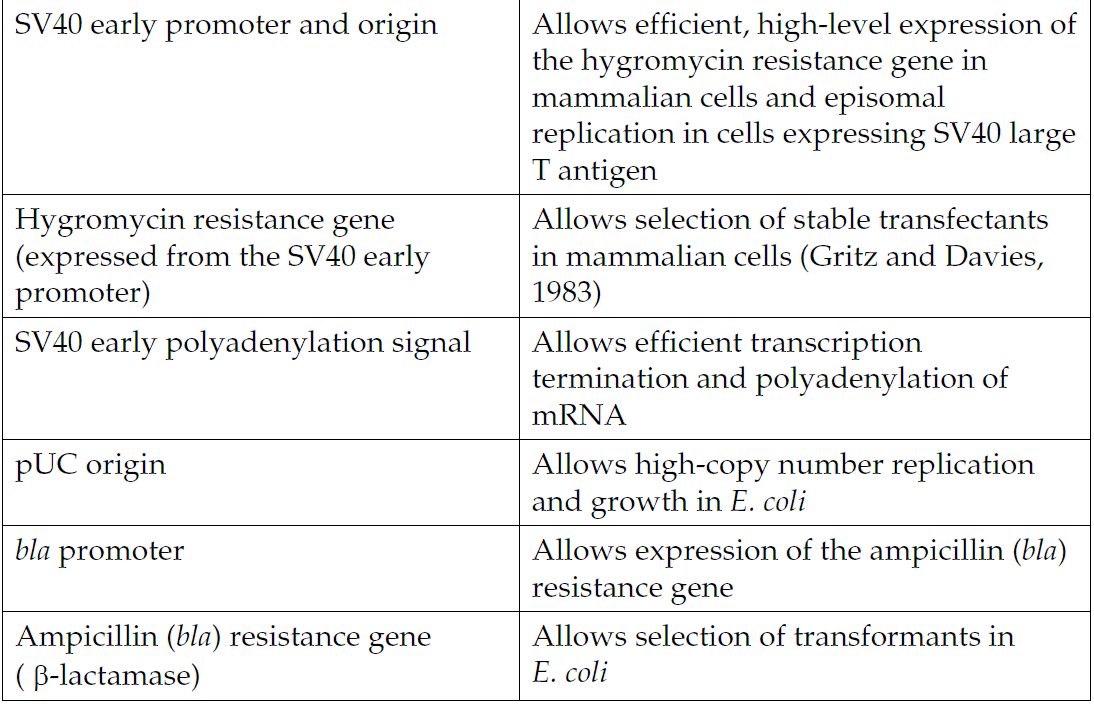

pcDNA5-TO 载体特征2

pcDNA5/TO质粒载体简介


简介
 pcDNA5/TO is a 5.7 kb expression vector designed for use with the T-REx System (Catalog Nos. K1020-01 and K1020-02) available from Life Technologies. The vector allows tetracycline-regulated expression of the gene of interest in mammalian host cells expressing the Tet repressor (TetR) from the pcDNA6/TR vector (Catalog No. V1025-20). The T-REx System yields higher levels of induced expression than any other regulated mammalian expression system. It utilizes the complete CMV promoter and adds control elements from the bacterial tetracycline resistance operon to effectively repress and derepress transcription from one of the strongest mammalian promoter sequences known.

pcDNA5/TO 载体含有以下元件:
 Hybrid promoter consisting of the human cytomegalovirus immediate-early (CMV) promoter and tetracycline operator 2 (TetO2) sites for high-level tetracycline-regulated expression in a wide range of mammalian cells
 Hygromycin resistance gene for selection of stable cell lines The control plasmid, pcDNA5/TO/lacZ, is included for use as a positive control for transfection and tetracycline-regulated expression in the cell line of choice.


关于pcDNA5/TO 载体的注意事项
The pcDNA5/TO vector contains two tetracycline operator 2 (TetO2) sites within the human cytomegalovirus immediate-early (CMV) promoter for tetracyclineregulated expression of your gene of interest (Yao et al., 1998). The TetO2 sequences serve as binding sites for 4 Tet repressor molecules (comprising two Tet repressor homodimers) and confer tetracycline-responsiveness to your gene of interest. The Tet repressor is expressed from the pcDNA6/TR plasmid. For more information about the TetO2 sequences, see the next page. For more information about the pcDNA6/TR plasmid and the Tet repressor, refer to the T-REx System manual.

In the absence of tetracycline, expression of your gene of interest is repressed by the binding of Tet repressor homodimers to the TetO2 sequences. Addition of tetracycline to the cells derepresses the hybrid CMV/TetO2 promoter in pcDNA5/TO and allows expression of your gene of interest


Tet 操纵子序列
The promoters of bacterial tet genes contain two types of operator sequences, O1 and O2, that serve as high affinity binding sites for the Tet repressor (Hillen and Berens, 1994; Hillen et al., 1983). Each O1 and O2 site binds to one Tet repressor homodimer. While Tet repressor homodimers bind to both tet operators with high affinity, studies have shown that the affinity of the Tet repressor homodimer for O2 is three- to five-fold higher than it is for O1 (Hillen and Berens, 1994).

Tet operators have been incorporated into heterologous eukaryotic promoters to allow tetracycline-regulated gene expression in mammalian cells (Gossen and Bujard, 1992; Yao et al., 1998). In the T-REx System, two copies of the O2 operator sequence (TetO2) were inserted into the strong CMV promoter of pcDNA5/TO to allow regulated expression of your gene of interest by tetracycline. We use the TetO2 operator sequence in pcDNA5/TO to maximize repression of basal gene expression. For more detailed information about tet operators, refer to Hillen and Berens (1994).Yao et al. (1998) have recently demonstrated that the location of tet operator sequences in relation to the TATA box of a heterologous promoter is critical to the function of the tet operator. Regulation by tetracycline is only conferred upon a heterologous promoter by proper spacing of the TetO2 sequences from the TATA box (Yao et al., 1998). For this reason, the first nucleotide of the TetO2 operator sequence has been placed 10 nucleotides after the last nucleotide of the TATA element in the CMV promoter in pcDNA5/TO.

In other tetracycline-regulated systems, the TetO2 sequences are located upstream of the TATA element in the promoter of the inducible expression vector (Gossen and Bujard, 1992). These systems differ substantially from the T-REx System in that they use regulatory molecules composed of the Tet repressor fused to a viral transactivation domain. The presence of viral transactivation domains appears to overcome the requirement for specific positioning of the TetO2 sequences in relation to the TATA box of the heterologous promoter. However, the presence of viral transactivation domains has been found to have deleterious effects in some mammalian cell lines.

T-REx 细胞系
For your convenience, Life Technologies has available several mammalian cell lines that stably express the Tet repressor. T-REx-293 cells, T-REx-HeLa cells, T-REx CHO cells, and T-REx-Jurkat cells express the Tet repressor from pcDNA6/TR and should be maintained in medium containing blasticidin. Expression of your gene of interest from pcDNA5/TO may be assayed by transfection of your pcDNA5/TO construct into any of the T-REx cell lines and induction with tetracycline.

pcDNA5/TO质粒序列载体序列

pcDNA5/TO  5667 bp

GACGGATCGGGAGATCTCCCGATCCCCTATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTT
AAGCCAGTATCTGCTCCCTGCTTGTGTGTTGGAGGTCGCTGAGTAGTGCGCGAGCAAAATTTAAGCTACA
ACAAGGCAAGGCTTGACCGACAATTGCATGAAGAATCTGCTTAGGGTTAGGCGTTTTGCGCTGCTTCGCG
ATGTACGGGCCAGATATACGCGTTGACATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGGGTC
ATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCCGCCTGGCTGACCG
CCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCATAGTAACGCCAATAGGGACTTTCC
ATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGCCCACTTGGCAGTACATCAAGTGTATCATATGCC
AAGTACGCCCCCTATTGACGTCAATGACGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTA
TGGGACTTTCCTACTTGGCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGC
AGTACATCAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGTCAA
TGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAACAACTCCGCCCCATTGACG
CAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGCTCTCCCTATCAGTGATAGAGATC
TCCCTATCAGTGATAGAGATCGTCGACGAGCTCGTTTAGTGAACCGTCAGATCGCCTGGAGACGCCATCC
ACGCTGTTTTGACCTCCATAGAAGACACCGGGACCGATCCAGCCTCCGGACTCTAGCGTTTAAACTTAAG
CTTGGTACCGAGCTCGGATCCACTAGTCCAGTGTGGTGGAATTCTGCAGATATCCAGCACAGTGGCGGCC
GCTCGAGTCTAGAGGGCCCGTTTAAACCCGCTGATCAGCCTCGACTGTGCCTTCTAGTTGCCAGCCATCT
GTTGTTTGCCCCTCCCCCGTGCCTTCCTTGACCCTGGAAGGTGCCACTCCCACTGTCCTTTCCTAATAAA
ATGAGGAAATTGCATCGCATTGTCTGAGTAGGTGTCATTCTATTCTGGGGGGTGGGGTGGGGCAGGACAG
CAAGGGGGAGGATTGGGAAGACAATAGCAGGCATGCTGGGGATGCGGTGGGCTCTATGGCTTCTGAGGCG
GAAAGAACCAGCTGGGGCTCTAGGGGGTATCCCCACGCGCCCTGTAGCGGCGCATTAAGCGCGGCGGGTG
TGGTGGTTACGCGCAGCGTGACCGCTACACTTGCCAGCGCCCTAGCGCCCGCTCCTTTCGCTTTCTTCCC
TTCCTTTCTCGCCACGTTCGCCGGCTTTCCCCGTCAAGCTCTAAATCGGGGGCTCCCTTTAGGGTTCCGA
TTTAGTGCTTTACGGCACCTCGACCCCAAAAAACTTGATTAGGGTGATGGTTCACGTAGTGGGCCATCGC
CCTGATAGACGGTTTTTCGCCCTTTGACGTTGGAGTCCACGTTCTTTAATAGTGGACTCTTGTTCCAAAC
TGGAACAACACTCAACCCTATCTCGGTCTATTCTTTTGATTTATAAGGGATTTTGCCGATTTCGGCCTAT
TGGTTAAAAAATGAGCTGATTTAACAAAAATTTAACGCGAATTAATTCTGTGGAATGTGTGTCAGTTAGG
GTGTGGAAAGTCCCCAGGCTCCCCAGCAGGCAGAAGTATGCAAAGCATGCATCTCAATTAGTCAGCAACC
AGGTGTGGAAAGTCCCCAGGCTCCCCAGCAGGCAGAAGTATGCAAAGCATGCATCTCAATTAGTCAGCAA
CCATAGTCCCGCCCCTAACTCCGCCCATCCCGCCCCTAACTCCGCCCAGTTCCGCCCATTCTCCGCCCCA
TGGCTGACTAATTTTTTTTATTTATGCAGAGGCCGAGGCCGCCTCTGCCTCTGAGCTATTCCAGAAGTAG
TGAGGAGGCTTTTTTGGAGGCCTAGGCTTTTGCAAAAAGCTCCCGGGAGCTTGTATATCCATTTTCGGAT
CTGATCAGCACGTGATGAAAAAGCCTGAACTCACCGCGACGTCTGTCGAGAAGTTTCTGATCGAAAAGTT
CGACAGCGTCTCCGACCTGATGCAGCTCTCGGAGGGCGAAGAATCTCGTGCTTTCAGCTTCGATGTAGGA
GGGCGTGGATATGTCCTGCGGGTAAATAGCTGCGCCGATGGTTTCTACAAAGATCGTTATGTTTATCGGC
ACTTTGCATCGGCCGCGCTCCCGATTCCGGAAGTGCTTGACATTGGGGAATTCAGCGAGAGCCTGACCTA
TTGCATCTCCCGCCGTGCACAGGGTGTCACGTTGCAAGACCTGCCTGAAACCGAACTGCCCGCTGTTCTG
CAGCCGGTCGCGGAGGCCATGGATGCGATCGCTGCGGCCGATCTTAGCCAGACGAGCGGGTTCGGCCCAT
TCGGACCGCAAGGAATCGGTCAATACACTACATGGCGTGATTTCATATGCGCGATTGCTGATCCCCATGT
GTATCACTGGCAAACTGTGATGGACGACACCGTCAGTGCGTCCGTCGCGCAGGCTCTCGATGAGCTGATG
CTTTGGGCCGAGGACTGCCCCGAAGTCCGGCACCTCGTGCACGCGGATTTCGGCTCCAACAATGTCCTGA
CGGACAATGGCCGCATAACAGCGGTCATTGACTGGAGCGAGGCGATGTTCGGGGATTCCCAATACGAGGT
CGCCAACATCTTCTTCTGGAGGCCGTGGTTGGCTTGTATGGAGCAGCAGACGCGCTACTTCGAGCGGAGG
CATCCGGAGCTTGCAGGATCGCCGCGGCTCCGGGCGTATATGCTCCGCATTGGTCTTGACCAACTCTATC
AGAGCTTGGTTGACGGCAATTTCGATGATGCAGCTTGGGCGCAGGGTCGATGCGACGCAATCGTCCGATC
CGGAGCCGGGACTGTCGGGCGTACACAAATCGCCCGCAGAAGCGCGGCCGTCTGGACCGATGGCTGTGTA
GAAGTACTCGCCGATAGTGGAAACCGACGCCCCAGCACTCGTCCGAGGGCAAAGGAATAGCACGTGCTAC
GAGATTTCGATTCCACCGCCGCCTTCTATGAAAGGTTGGGCTTCGGAATCGTTTTCCGGGACGCCGGCTG
GATGATCCTCCAGCGCGGGGATCTCATGCTGGAGTTCTTCGCCCACCCCAACTTGTTTATTGCAGCTTAT
AATGGTTACAAATAAAGCAATAGCATCACAAATTTCACAAATAAAGCATTTTTTTCACTGCATTCTAGTT
GTGGTTTGTCCAAACTCATCAATGTATCTTATCATGTCTGTATACCGTCGACCTCTAGCTAGAGCTTGGC
GTAATCATGGTCATAGCTGTTTCCTGTGTGAAATTGTTATCCGCTCACAATTCCACACAACATACGAGCC
GGAAGCATAAAGTGTAAAGCCTGGGGTGCCTAATGAGTGAGCTAACTCACATTAATTGCGTTGCGCTCAC
TGCCCGCTTTCCAGTCGGGAAACCTGTCGTGCCAGCTGCATTAATGAATCGGCCAACGCGCGGGGAGAGG
CGGTTTGCGTATTGGGCGCTCTTCCGCTTCCTCGCTCACTGACTCGCTGCGCTCGGTCGTTCGGCTGCGG
CGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGA
ACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAG
GCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTA
TAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCG
GATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAG
TTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCC
TTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTG
GTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGG
CTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGT
AGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTTGGTTTTTTGTTTGCAAGCAGCAGATTACGC
GCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAA
CTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAA
TGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGGTCTGACAGTTACCAATGCTTAATCAGTG
AGGCACCTATCTCAGCGATCTGTCTATTTCGTTCATCCATAGTTGCCTGACTCCCCGTCGTGTAGATAAC
TACGATACGGGAGGGCTTACCATCTGGCCCCAGTGCTGCAATGATACCGCGAGACCCACGCTCACCGGCT
CCAGATTTATCAGCAATAAACCAGCCAGCCGGAAGGGCCGAGCGCAGAAGTGGTCCTGCAACTTTATCCG
CCTCCATCCAGTCTATTAATTGTTGCCGGGAAGCTAGAGTAAGTAGTTCGCCAGTTAATAGTTTGCGCAA
CGTTGTTGCCATTGCTACAGGCATCGTGGTGTCACGCTCGTCGTTTGGTATGGCTTCATTCAGCTCCGGT
TCCCAACGATCAAGGCGAGTTACATGATCCCCCATGTTGTGCAAAAAAGCGGTTAGCTCCTTCGGTCCTC
CGATCGTTGTCAGAAGTAAGTTGGCCGCAGTGTTATCACTCATGGTTATGGCAGCACTGCATAATTCTCT
TACTGTCATGCCATCCGTAAGATGCTTTTCTGTGACTGGTGAGTACTCAACCAAGTCATTCTGAGAATAG
TGTATGCGGCGACCGAGTTGCTCTTGCCCGGCGTCAATACGGGATAATACCGCGCCACATAGCAGAACTT
TAAAAGTGCTCATCATTGGAAAACGTTCTTCGGGGCGAAAACTCTCAAGGATCTTACCGCTGTTGAGATC
CAGTTCGATGTAACCCACTCGTGCACCCAACTGATCTTCAGCATCTTTTACTTTCACCAGCGTTTCTGGG
TGAGCAAAAACAGGAAGGCAAAATGCCGCAAAAAAGGGAATAAGGGCGACACGGAAATGTTGAATACTCA
TACTCTTCCTTTTTCAATATTATTGAAGCATTTATCAGGGTTATTGTCTCATGAGCGGATACATATTTGA
ATGTATTTAGAAAAATAAACAAATAGGGGTTCCGCGCACATTTCCCCGAAAAGTGCCACCTGACGTC
