| 出品公司: | Clontech |
|---|---|
| 载体名称: | pmCherry-N1 |
| 质粒类型: | 哺乳细胞表达载体；荧光蛋白报告系统 |
| 高拷贝/低拷贝: | -- |
| 启动子: | CMV |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 4722bp |
| 5' 测序引物及序列: | CMV-F: CGCAAATGGGCGGTAGGCGTG |
| 3' 测序引物及序列: | mCherry-R: TTGGTCACCTTCAGCTTGG |
| 载体标签: | mCherry |
| 载体抗性: | Kanamycin |
| 筛选标记: | Neomycin |
| 备注: | -- |
| 产品目录号: | 632523 |
| 稳定性: | -- |
| 组成型: | -- |
| 病毒/非病毒: | 非病毒 |
买家导航
pmCherry-N1载体质粒基本信息

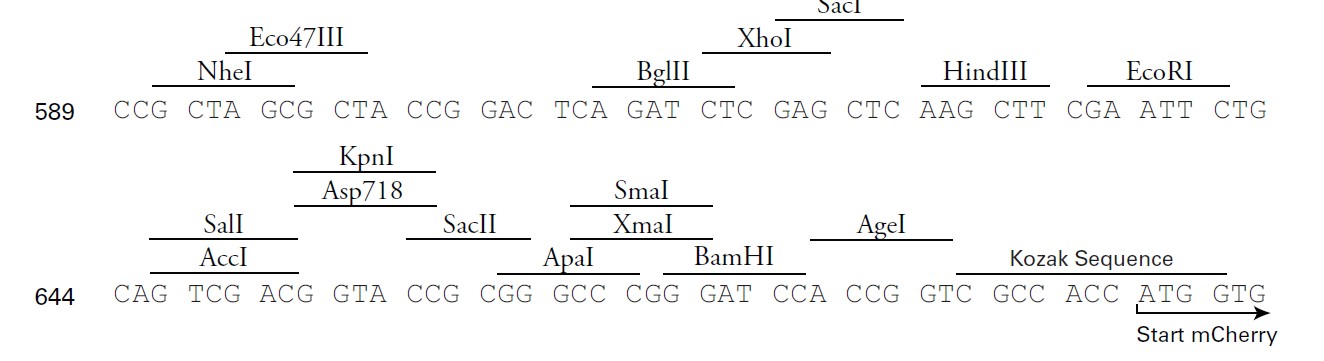

pmCherry-N1质粒图谱载体图谱和pmCherry-N1载体序列质粒序列多克隆位点信息
pmCherry-N1质粒载体简介
pmCherry-N1质粒序列载体序列
LOCUS pmCherry-N1 4722 bp DNA SYN
DEFINITION pmCherry-N1
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4722
/organism="pmCherry-N1"
/mol_type="other DNA"
promoter 10..562
/label="CMV_immearly_promoter"
misc_feature 65..352
/label="CAG_enhancer"
misc_feature 519..539
/label="CMV_fwd_primer"
promoter 520..589
/label="CMV_promoter"
CDS complement(607..1419)
/label="ORF frame 1"
CDS 679..1389
/label="ORF frame 1"
gene 682..1386
/label="mCherry"
/gene="mCherry"
misc_feature 859..912
/label="Q66M (mCherry)"
misc_feature 1601..1620
/label="EBV_rev_primer"
rep_origin complement(1770..2076)
/label="f1_origin"
promoter 2155..2183
/label="AmpR_promoter"
misc_feature complement(2249..2269)
/label="pBABE_3_primer"
misc_feature complement(2255..2470)
/label="SV40_enhancer"
promoter 2267..2535
/label="SV40_promoter"
rep_origin 2434..2511
/label="SV40_origin"
misc_feature 2496..2515
/label="SV40pro_F_primer"
CDS 2618..3412
/label="ORF frame 2"
gene 2621..3409
/label="NeoR/KanR"
/gene="NeoR/KanR"
CDS complement(2927..3463)
/label="ORF frame 3"
terminator 3587..3856
/label="TK_PA_terminator"
rep_origin 4004..4623
/label="pBR322_origin"
ORIGIN
1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG
661 GATCCACCGG TCGCCACCAT GGTGAGCAAG GGCGAGGAGG ATAACATGGC CATCATCAAG
721 GAGTTCATGC GCTTCAAGGT GCACATGGAG GGCTCCGTGA ACGGCCACGA GTTCGAGATC
781 GAGGGCGAGG GCGAGGGCCG CCCCTACGAG GGCACCCAGA CCGCCAAGCT GAAGGTGACC
841 AAGGGTGGCC CCCTGCCCTT CGCCTGGGAC ATCCTGTCCC CTCAGTTCAT GTACGGCTCC
901 AAGGCCTACG TGAAGCACCC CGCCGACATC CCCGACTACT TGAAGCTGTC CTTCCCCGAG
961 GGCTTCAAGT GGGAGCGCGT GATGAACTTC GAGGACGGCG GCGTGGTGAC CGTGACCCAG
1021 GACTCCTCCC TGCAGGACGG CGAGTTCATC TACAAGGTGA AGCTGCGCGG CACCAACTTC
1081 CCCTCCGACG GCCCCGTAAT GCAGAAGAAG ACCATGGGCT GGGAGGCCTC CTCCGAGCGG
1141 ATGTACCCCG AGGACGGCGC CCTGAAGGGC GAGATCAAGC AGAGGCTGAA GCTGAAGGAC
1201 GGCGGCCACT ACGACGCTGA GGTCAAGACC ACCTACAAGG CCAAGAAGCC CGTGCAGCTG
1261 CCCGGCGCCT ACAACGTCAA CATCAAGTTG GACATCACCT CCCACAACGA GGACTACACC
1321 ATCGTGGAAC AGTACGAACG CGCCGAGGGC CGCCACTCCA CCGGCGGCAT GGACGAGCTG
1381 TACAAGTAGC GGCCGCGACT CTAGATCATA ATCAGCCATA CCACATTTGT AGAGGTTTTA
1441 CTTGCTTTAA AAAACCTCCC ACACCTCCCC CTGAACCTGA AACATAAAAT GAATGCAATT
1501 GTTGTTGTTA ACTTGTTTAT TGCAGCTTAT AATGGTTACA AATAAAGCAA TAGCATCACA
1561 AATTTCACAA ATAAAGCATT TTTTTCACTG CATTCTAGTT GTGGTTTGTC CAAACTCATC
1621 AATGTATCTT AAGGCGTAAA TTGTAAGCGT TAATATTTTG TTAAAATTCG CGTTAAATTT
1681 TTGTTAAATC AGCTCATTTT TTAACCAATA GGCCGAAATC GGCAAAATCC CTTATAAATC
1741 AAAAGAATAG ACCGAGATAG GGTTGAGTGT TGTTCCAGTT TGGAACAAGA GTCCACTATT
1801 AAAGAACGTG GACTCCAACG TCAAAGGGCG AAAAACCGTC TATCAGGGCG ATGGCCCACT
1861 ACGTGAACCA TCACCCTAAT CAAGTTTTTT GGGGTCGAGG TGCCGTAAAG CACTAAATCG
1921 GAACCCTAAA GGGAGCCCCC GATTTAGAGC TTGACGGGGA AAGCCGGCGA ACGTGGCGAG
1981 AAAGGAAGGG AAGAAAGCGA AAGGAGCGGG CGCTAGGGCG CTGGCAAGTG TAGCGGTCAC
2041 GCTGCGCGTA ACCACCACAC CCGCCGCGCT TAATGCGCCG CTACAGGGCG CGTCAGGTGG
2101 CACTTTTCGG GGAAATGTGC GCGGAACCCC TATTTGTTTA TTTTTCTAAA TACATTCAAA
2161 TATGTATCCG CTCATGAGAC AATAACCCTG ATAAATGCTT CAATAATATT GAAAAAGGAA
2221 GAGTCCTGAG GCGGAAAGAA CCAGCTGTGG AATGTGTGTC AGTTAGGGTG TGGAAAGTCC
2281 CCAGGCTCCC CAGCAGGCAG AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCAGG
2341 TGTGGAAAGT CCCCAGGCTC CCCAGCAGGC AGAAGTATGC AAAGCATGCA TCTCAATTAG
2401 TCAGCAACCA TAGTCCCGCC CCTAACTCCG CCCATCCCGC CCCTAACTCC GCCCAGTTCC
2461 GCCCATTCTC CGCCCCATGG CTGACTAATT TTTTTTATTT ATGCAGAGGC CGAGGCCGCC
2521 TCGGCCTCTG AGCTATTCCA GAAGTAGTGA GGAGGCTTTT TTGGAGGCCT AGGCTTTTGC
2581 AAAGATCGAT CAAGAGACAG GATGAGGATC GTTTCGCATG ATTGAACAAG ATGGATTGCA
2641 CGCAGGTTCT CCGGCCGCTT GGGTGGAGAG GCTATTCGGC TATGACTGGG CACAACAGAC
2701 AATCGGCTGC TCTGATGCCG CCGTGTTCCG GCTGTCAGCG CAGGGGCGCC CGGTTCTTTT
2761 TGTCAAGACC GACCTGTCCG GTGCCCTGAA TGAACTGCAA GACGAGGCAG CGCGGCTATC
2821 GTGGCTGGCC ACGACGGGCG TTCCTTGCGC AGCTGTGCTC GACGTTGTCA CTGAAGCGGG
2881 AAGGGACTGG CTGCTATTGG GCGAAGTGCC GGGGCAGGAT CTCCTGTCAT CTCACCTTGC
2941 TCCTGCCGAG AAAGTATCCA TCATGGCTGA TGCAATGCGG CGGCTGCATA CGCTTGATCC
3001 GGCTACCTGC CCATTCGACC ACCAAGCGAA ACATCGCATC GAGCGAGCAC GTACTCGGAT
3061 GGAAGCCGGT CTTGTCGATC AGGATGATCT GGACGAAGAG CATCAGGGGC TCGCGCCAGC
3121 CGAACTGTTC GCCAGGCTCA AGGCGAGCAT GCCCGACGGC GAGGATCTCG TCGTGACCCA
3181 TGGCGATGCC TGCTTGCCGA ATATCATGGT GGAAAATGGC CGCTTTTCTG GATTCATCGA
3241 CTGTGGCCGG CTGGGTGTGG CGGACCGCTA TCAGGACATA GCGTTGGCTA CCCGTGATAT
3301 TGCTGAAGAG CTTGGCGGCG AATGGGCTGA CCGCTTCCTC GTGCTTTACG GTATCGCCGC
3361 TCCCGATTCG CAGCGCATCG CCTTCTATCG CCTTCTTGAC GAGTTCTTCT GAGCGGGACT
3421 CTGGGGTTCG AAATGACCGA CCAAGCGACG CCCAACCTGC CATCACGAGA TTTCGATTCC
3481 ACCGCCGCCT TCTATGAAAG GTTGGGCTTC GGAATCGTTT TCCGGGACGC CGGCTGGATG
3541 ATCCTCCAGC GCGGGGATCT CATGCTGGAG TTCTTCGCCC ACCCTAGGGG GAGGCTAACT
3601 GAAACACGGA AGGAGACAAT ACCGGAAGGA ACCCGCGCTA TGACGGCAAT AAAAAGACAG
3661 AATAAAACGC ACGGTGTTGG GTCGTTTGTT CATAAACGCG GGGTTCGGTC CCAGGGCTGG
3721 CACTCTGTCG ATACCCCACC GAGACCCCAT TGGGGCCAAT ACGCCCGCGT TTCTTCCTTT
3781 TCCCCACCCC ACCCCCCAAG TTCGGGTGAA GGCCCAGGGC TCGCAGCCAA CGTCGGGGCG
3841 GCAGGCCCTG CCATAGCCTC AGGTTACTCA TATATACTTT AGATTGATTT AAAACTTCAT
3901 TTTTAATTTA AAAGGATCTA GGTGAAGATC CTTTTTGATA ATCTCATGAC CAAAATCCCT
3961 TAACGTGAGT TTTCGTTCCA CTGAGCGTCA GACCCCGTAG AAAAGATCAA AGGATCTTCT
4021 TGAGATCCTT TTTTTCTGCG CGTAATCTGC TGCTTGCAAA CAAAAAAACC ACCGCTACCA
4081 GCGGTGGTTT GTTTGCCGGA TCAAGAGCTA CCAACTCTTT TTCCGAAGGT AACTGGCTTC
4141 AGCAGAGCGC AGATACCAAA TACTGTCCTT CTAGTGTAGC CGTAGTTAGG CCACCACTTC
4201 AAGAACTCTG TAGCACCGCC TACATACCTC GCTCTGCTAA TCCTGTTACC AGTGGCTGCT
4261 GCCAGTGGCG ATAAGTCGTG TCTTACCGGG TTGGACTCAA GACGATAGTT ACCGGATAAG
4321 GCGCAGCGGT CGGGCTGAAC GGGGGGTTCG TGCACACAGC CCAGCTTGGA GCGAACGACC
4381 TACACCGAAC TGAGATACCT ACAGCGTGAG CTATGAGAAA GCGCCACGCT TCCCGAAGGG
4441 AGAAAGGCGG ACAGGTATCC GGTAAGCGGC AGGGTCGGAA CAGGAGAGCG CACGAGGGAG
4501 CTTCCAGGGG GAAACGCCTG GTATCTTTAT AGTCCTGTCG GGTTTCGCCA CCTCTGACTT
4561 GAGCGTCGAT TTTTGTGATG CTCGTCAGGG GGGCGGAGCC TATGGAAAAA CGCCAGCAAC
4621 GCGGCCTTTT TACGGTTCCT GGCCTTTTGC TGGCCTTTTG CTCACATGTT CTTTCCTGCG
4681 TTATCCCCTG ATTCTGTGGA TAACCGTATT ACCGCCATGC AT
//
pmCherry-N1载体图谱质粒图谱pdf版和pmCherry-N1载体序列质粒序列等相关资料下载
pmCherry-N1质粒载体应用举例
