pK19mobsacB

价格:1500元

联系方式:I47-825O-882O

买家导航

ATCC87098载体基本信息

产品公司: ATCC
载体名称: pK19mobsacB、pK19mobsacB载体、pK19mobsacB质粒
产品编号: 87098
生长条件: 37°C 1 day(s)
生物安全等级: 1级
骨架载体名称:
原核抗性: 卡那抗性
真核抗性: SacB
DNA: genomic
建议宿主菌:
插入基因名:
插入基因源:
载体大小(kb): 5.7
插入基因大小: 1.9
载体序列: Genbank: LC257601.1
说明: pK19mobsacB载体是谷氨酸棒杆菌基因敲除载体,Corynebacterium glutamicum gene Knockout vector。
参考文献:
P446
1994. Small mobilizable multi-purpose cloning vectors derived from the Escherichia coli plasmids pK18 and pK19: selection of defined deletions in the chromosome of Corynebacterium glutamicum. Gene 145(1): 69-73.

ATCC87098载体质粒图谱和多克隆位点信息

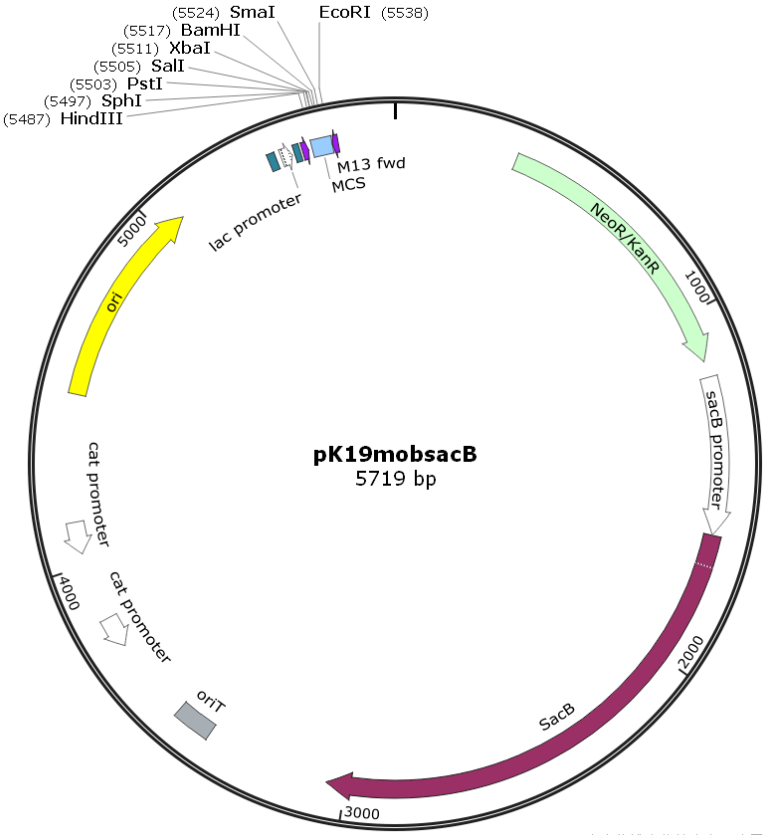

pK19mobsacB载体图谱

ATCC87098载体简介

ATCC87098载体序列

LOCUS       pK19mobsacB               5719 bp ds-DNA     circular SYN 18-SEP-2018
DEFINITION  synthetic circular DNA
KEYWORDS    pK19mobsacB
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5719)
  TITLE     Direct Submission
FEATURES             Location/Qualifiers
     source          1..5719
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             346..1140
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="Kan"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     promoter        1186..1631
                     /gene="sacR"
                     /note="sacB promoter"
                     /note="sacB promoter and control region"
     CDS             1632..3053
                     /codon_start=1
                     /gene="Bacillus subtilis sacB"
                     /product="secreted levansucrase that renders bacterial
                     growth sensitive to sucrose"
                     /note="SacB"
                     /note="negative selection marker"
                     /translation="MNIKKFAKQATVLTFTTALLAGGATQAFAKETNQKPYKETYGISH
                     ITRHDMLQIPEQQKNEKYQVSEFDSSTIKNISSAKGLDVWDSWPLQNADGTVANYHGYH
                     IVFALAGDPKNADDTSIYMFYQKVGETSIDSWKNAGRVFKDSDKFDANDSILKDQTQEW
                     SGSATFTSDGKIRLFYTDFSGKHYGKQTLTTAQVNVSASDSSLNINGVEDYKSIFDGDG
                     KTYQNVQQFIDEGNYSSGDNHTLRDPHYVEDKGHKYLVFEANTGTEDGYQGEESLFNKA
                     YYGKSTSFFRQESQKLLQSDKKRTAELANGALGMIELNDDYTLKKVMKPLIASNTVTDE
                     IERANVFKMNGKWYLFTDSRGSKMTIDGITSNDIYMLGYVSNSLTGPYKPLNKTGLVLK
                     MDLDPNDVTFTYSHFAVPQAKGNNVVITSYMTNRGFYADKQSTFAPSFLLNIKGKKTSV
                     VKDSILEQGQLTVNK"
     oriT            3407..3516
                     /note="incP origin of transfer"
     rep_origin      4485..5073
                     /direction=RIGHT
                     /note="oriV"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     misc_feature    5487..5543
                     /note="MCS"
                     /note="pUC18/19 multiple cloning site"
ORIGIN
        1 tgccgcaagc actcagggcg caagggctgc taaaggaagc ggaacacgta gaaagccagt
       61 ccgcagaaac ggtgctgacc ccggatgaat gtcagctact gggctatctg gacaagggaa
      121 aacgcaagcg caaagagaaa gcaggtagct tgcagtgggc ttacatggcg atagctagac
      181 tgggcggttt tatggacagc aagcgaaccg gaattgccag ctggggcgcc ctctggtaag
      241 gttgggaagc cctgcaaagt aaactggatg gctttcttgc cgccaaggat ctgatggcgc
      301 aggggatcaa gatctgatca agagacagga tgaggatcgt ttcgcatgat tgaacaagat
      361 ggattgcacg caggttctcc ggccgcttgg gtggagaggc tattcggcta tgactgggca
      421 caacagacaa tcggctgctc tgatgccgcc gtgttccggc tgtcagcgca ggggcgcccg
      481 gttctttttg tcaagaccga cctgtccggt gccctgaatg aactccaaga cgaggcagcg
      541 cggctatcgt ggctggccac gacgggcgtt ccttgcgcag ctgtgctcga cgttgtcact
      601 gaagcgggaa gggactggct gctattgggc gaagtgccgg ggcaggatct cctgtcatct
      661 caccttgctc ctgccgagaa agtatccatc atggctgatg caatgcggcg gctgcatacg
      721 cttgatccgg ctacctgccc attcgaccac caagcgaaac atcgcatcga gcgagcacgt
      781 actcggatgg aagccggtct tgtcgatcag gatgatctgg acgaagagca tcaggggctc
      841 gcgccagccg aactgttcgc caggctcaag gcgcggatgc ccgacggcga ggatctcgtc
      901 gtgacccatg gcgatgcctg cttgccgaat atcatggtgg aaaatggccg cttttctgga
      961 ttcatcgact gtggccggct gggtgtggcg gaccgctatc aggacatagc gttggctacc
     1021 cgtgatattg ctgaagagct tggcggcgaa tgggctgacc gcttcctcgt gctttacggt
     1081 atcgccgctc ccgattcgca gcgcatcgcc ttctatcgcc ttcttgacga gttcttctga
     1141 gcgggactct ggggttcgct agaggatcga tcctttttaa cccatcacat atacctgccg
     1201 ttcactatta tttagtgaaa tgagatatta tgatattttc tgaattgtga ttaaaaaggc
     1261 aactttatgc ccatgcaaca gaaactataa aaaatacaga gaatgaaaag aaacagatag
     1321 attttttagt tctttaggcc cgtagtctgc aaatcctttt atgattttct atcaaacaaa
     1381 agaggaaaat agaccagttg caatccaaac gagagtctaa tagaatgagg tcgaaaagta
     1441 aatcgcgcgg gtttgttact gataaagcag gcaagaccta aaatgtgtaa agggcaaagt
     1501 gtatactttg gcgtcacccc ttacatattt taggtctttt tttattgtgc gtaactaact
     1561 tgccatcttc aaacaggagg gctggaagaa gcagaccgct aacacagtac ataaaaaagg
     1621 agacatgaac gatgaacatc aaaaagtttg caaaacaagc aacagtatta acctttacta
     1681 ccgcactgct ggcaggaggc gcaactcaag cgtttgcgaa agaaacgaac caaaagccat
     1741 ataaggaaac atacggcatt tcccatatta cacgccatga tatgctgcaa atccctgaac
     1801 agcaaaaaaa tgaaaaatat caagtttctg aatttgattc gtccacaatt aaaaatatct
     1861 cttctgcaaa aggcctggac gtttgggaca gctggccatt acaaaacgct gacggcactg
     1921 tcgcaaacta tcacggctac cacatcgtct ttgcattagc cggagatcct aaaaatgcgg
     1981 atgacacatc gatttacatg ttctatcaaa aagtcggcga aacttctatt gacagctgga
     2041 aaaacgctgg ccgcgtcttt aaagacagcg acaaattcga tgcaaatgat tctatcctaa
     2101 aagaccaaac acaagaatgg tcaggttcag ccacatttac atctgacgga aaaatccgtt
     2161 tattctacac tgatttctcc ggtaaacatt acggcaaaca aacactgaca actgcacaag
     2221 ttaacgtatc agcatcagac agctctttga acatcaacgg tgtagaggat tataaatcaa
     2281 tctttgacgg tgacggaaaa acgtatcaaa atgtacagca gttcatcgat gaaggcaact
     2341 acagctcagg cgacaaccat acgctgagag atcctcacta cgtagaagat aaaggccaca
     2401 aatacttagt atttgaagca aacactggaa ctgaagatgg ctaccaaggc gaagaatctt
     2461 tatttaacaa agcatactat ggcaaaagca catcattctt ccgtcaagaa agtcaaaaac
     2521 ttctgcaaag cgataaaaaa cgcacggctg agttagcaaa cggcgctctc ggtatgattg
     2581 agctaaacga tgattacaca ctgaaaaaag tgatgaaacc gctgattgca tctaacacag
     2641 taacagatga aattgaacgc gcgaacgtct ttaaaatgaa cggcaaatgg tacctgttca
     2701 ctgactcccg cggatcaaaa atgacgattg acggcattac gtctaacgat atttacatgc
     2761 ttggttatgt ttctaattct ttaactggcc catacaagcc gctgaacaaa actggccttg
     2821 tgttaaaaat ggatcttgat cctaacgatg taacctttac ttactcacac ttcgctgtac
     2881 ctcaagcgaa aggaaacaat gtcgtgatta caagctatat gacaaacaga ggattctacg
     2941 cagacaaaca atcaacgttt gcgccgagct tcctgctgaa catcaaaggc aagaaaacat
     3001 ctgttgtcaa agacagcatc cttgaacaag gacaattaac agttaacaaa taaaaacgca
     3061 aaagaaaatg ccgatgggta ccgagcgaaa tgaccgacca agcgacgccc aacctgccat
     3121 cacgagattt cgattccacc gccgccttct atgaaaggtt gggcttcgga atcgttttcc
     3181 gggacgccct cgcggacgtg ctcatagtcc acgacgcccg tgattttgta gccctggccg
     3241 acggccagca ggtaggccga caggctcatg ccggccgccg ccgccttttc ctcaatcgct
     3301 cttcgttcgt ctggaaggca gtacaccttg ataggtgggc tgcccttcct ggttggcttg
     3361 gtttcatcag ccatccgctt gccctcatct gttacgccgg cggtagccgg ccagcctcgc
     3421 agagcaggat tcccgttgag caccgccagg tgcgaataag ggacagtgaa gaaggaacac
     3481 ccgctcgcgg gtgggcctac ttcacctatc ctgcccggct gacgccgttg gatacaccaa
     3541 ggaaagtcta cacgaaccct ttggcaaaat cctgtatatc gtgcgaaaaa ggatggatat
     3601 accgaaaaaa tcgctataat gaccccgaag cagggttatg cagcggaaaa gcgctgcttc
     3661 cctgctgttt tgtggaatat ctaccgactg gaaacaggca aatgcaggaa attactgaac
     3721 tgaggggaca ggcgagagac gatgccaaag agctcctgaa aatctcgata actcaaaaaa
     3781 tacgcccggt agtgatctta tttcattatg gtgaaagttg gaacctctta cgtgccgatc
     3841 aacgtctcat tttcgccaaa agttggccca gggcttcccg gtatcaacag ggacaccagg
     3901 atttatttat tctgcgaagt gatcttccgt cacaggtatt tattcggcgc aaagtgcgtc
     3961 gggtgatgct gccaacttac tgatttagtg tatgatggtg tttttgaggt gctccagtgg
     4021 cttctgtttc tatcagctcc tgaaaatctc gataactcaa aaaatacgcc cggtagtgat
     4081 cttatttcat tatggtgaaa gttggaacct cttacgtgcc gatcaacgtc tcattttcgc
     4141 caaaagttgg cccagggctt cccggtatca acagggacac caggatttat ttattctgcg
     4201 aagtgatctt ccgtcacagg tatttattcg gcgcaaagtg cgtcgggtga tgctgccaac
     4261 ttactgattt agtgtatgat ggtgtttttg aggtgctcca gtggcttctg tttctatcag
     4321 ggctggatga tcctccagcg cggggatctc atgctggagt tcttcgccca ccccaaaagg
     4381 atctaggtga agatcctttt tgataatctc atgaccaaaa tcccttaacg tgagttttcg
     4441 ttccactgag cgtcagaccc cgtagaaaag atcaaaggat cttcttgaga tccttttttt
     4501 ctgcgcgtaa tctgctgctt gcaaacaaaa aaaccaccgc taccagcggt ggtttgtttg
     4561 ccggatcaag agctaccaac tctttttccg aaggtaactg gcttcagcag agcgcagata
     4621 ccaaatactg ttcttctagt gtagccgtag ttaggccacc acttcaagaa ctctgtagca
     4681 ccgcctacat acctcgctct gctaatcctg ttaccagtgg ctgctgccag tggcgataag
     4741 tcgtgtctta ccgggttgga ctcaagacga tagttaccgg ataaggcgca gcggtcgggc
     4801 tgaacggggg gttcgtgcac acagcccagc ttggagcgaa cgacctacac cgaactgaga
     4861 tacctacagc gtgagctatg agaaagcgcc acgcttcccg aagggagaaa ggcggacagg
     4921 tatccggtaa gcggcagggt cggaacagga gagcgcacga gggagcttcc agggggaaac
     4981 gcctggtatc tttatagtcc tgtcgggttt cgccacctct gacttgagcg tcgatttttg
     5041 tgatgctcgt caggggggcg gagcctatgg aaaaacgcca gcaacgcggc ctttttacgg
     5101 ttcctggcct tttgctggcc ttttgctcac atgttctttc ctgcgttatc ccctgattct
     5161 gtggataacc gtattaccgc ctttgagtga gctgataccg ctcgccgcag ccgaacgacc
     5221 gagcgcagcg agtcagtgag cgaggaagcg gaagagcgcc caatacgcaa accgcctctc
     5281 cccgcgcgtt ggccgattca ttaatgcagc tggcacgaca ggtttcccga ctggaaagcg
     5341 ggcagtgagc gcaacgcaat taatgtgagt tagctcactc attaggcacc ccaggcttta
     5401 cactttatgc ttccggctcg tatgttgtgt ggaattgtga gcggataaca atttcacaca
     5461 ggaaacagct atgacatgat tacgccaagc ttgcatgcct gcaggtcgac tctagaggat
     5521 ccccgggtac cgagctcgaa ttcactggcc gtcgttttac aacgtcgtga ctgggaaaac
     5581 cctggcgtta cccaacttaa tcgccttgca gcacatcccc ctttcgccag ctggcgtaat
     5641 agcgaagagg cccgcaccga tcgcccttcc caacagttgc gcagcctgaa tggcgaatgg
     5701 cgataagcta gcttcacgc
//

ATCC87098载体质粒图谱pdf版和相关资料下载

ATCC87098载体应用举例
