| 出品公司: | Invitrogen |
|---|---|
| 载体名称: | pPIC3.5K, pPIC 3.5K |
| 质粒类型: | 毕赤酵母蛋白表达载体 |
| 表达水平: | 高拷贝 |
| 启动子: | AOX1 |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 9004 bp |
| 5' 测序引物及序列: | 5´ AOX1:5´-GACTGGTTCCAATTGACAAGC-3´ |
| 3' 测序引物及序列: | 3´ AOX1:5´-GCAAATGGCATTCTGACATCC-3´ |
| 载体标签: | / |
| 载体抗性: | Ampicillin |
| 筛选标记: | HIS4 |
| 备注: |
插入基因是必需包含起始密码子ATG。
|
| 产品目录号: | K173-20 |
| 稳定性: | 稳定 Stable |
| 组成型: | 组成型 Constitutive |
| 病毒/非病毒: | 非病毒 |
买家导航
pPIC3.5K载体质粒基本信息

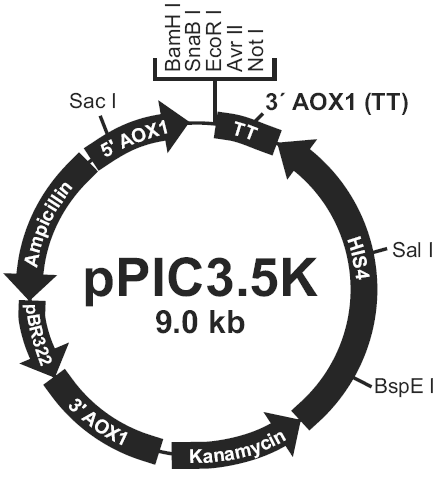

pPIC3.5K质粒图谱载体图谱和pPIC3.5K载体序列质粒序列多克隆位点信息
pPIC3.5K质粒载体简介
pPIC3.5K是一个鉴定多拷贝基因插入到毕赤酵母基因组中的载体。
1. pPIC3.5K载体大小为9004 bp。
2. 在多克隆位点区域，拥有5个单一的限制性酶切位点：BamH I，Snab I，EcoR I，Avr II和Not I。
3.胞内表达。
4.载体构建时，需要包含一个ATG启动子，同时需要加入Kozak序列。 (Cavener and Stuart, 1991; Kozak, 1987; Kozak, 1990)
5. 毕赤酵母中使用HIS4基因筛选。
6. 将基因插入GS115和KM71的AOX1中，需要使用Sac I线性化质粒(GS115产生的基因型为His+ Mut+，KM71酵母产生的基因型为His+ MutS)。
7. 将基因插入GS115和KM71的HIS4中，需要使用Sal I线性化质粒(GS115产生的基因型为His+ Mut+，KM71酵母产生的基因型为His+ MutS)。
8. 将基因插入GS115的AOX1基因中，也可以使用Bgl II 限制酶线性化质粒，产生的酵母基因型为His+ MutS。
pPIC3.5K质粒序列载体序列
LOCUS pPIC3.5K 9004 bp DNA circular SYN
DEFINITION pPIC3.5K
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
COMMENT This file is created by Vector NTI
http://www.biofeng.com/
COMMENT VNTAUTHORNAME|biofeng.com|
FEATURES Location/Qualifiers
source 1..9004
/organism="pPIC3.5K"
/mol_type="other DNA"
misc_feature complement(1055..1075)
/label="3_AOX1_primer"
CDS complement(1708..4242)
/label="ORF frame 2"
/translation="MTFPLLPAYASVAEFDNSLSLVGKAVFPYAADQLHNLIKFTQST
ELQVNVQVESSVTEDQFEELIDNLLKLYNNGINEVILDLDLAERVVQRMIPGARVIYR
TLVDKVASLPANASIAVPFSSPLGDLKSFTNGGSRTVYAFSETAKLVDVTSTVASGII
PIIDARQLTTEYELSEDVKKFPVSEILLASLTTDRPDGLFTTLVADSSNYSLGLVYSS
KKSIPEAIRTQTGVYQSRRHGLWYKGATSGATQKLLGIELDCDGDCLKFVVEQTGVGF
CHLERTSCFGQSKGLRAMEATLWDRKSNAPEGSYTKRLFDDEVLLNAKIREEADELAE
AKSKEDIAWECADLFYFALVRCAKYGVTLDEVERNLDMKSLKVTRRKGDAKPGYTKEQ
PKEESKPKEVPSEGRIELCKIDVSKASSQEIEDALRRPIQKTEQIMELVKPIVDNVRQ
NGDKALLELTAKFDGVALKTPVLEAPFPEELMQLPDNVKRAIDLSIDNVRKFHEAQLT
ETLQVETCPGVVCSRFARPIEKVGLYIPGGTAILPSTSLMLGVPAKVAGCKEIVFASP
PKKDGTLTPEVIYVAHKVGAKCIVLAGGAQAVAAMAYGTETVPKCDKIFGPGNQFVTA
AKMMVQNDTSALCSIDMPAGPSEVLVIADKYADPDFVASDLLSQAEHGIDSQVILLAV
DMTDKELARIEDAVHNQAVQLPRVEIVRKCIAHSTTLSVATYEQALEMSNQYAPEHLI
LQIENASSYVDQVQHAGSVFVGAYSPESCGDYSSGTNHTLPTYGYARQYSGVNTATFQ
KFITSQDVTPEGLKHIGQAVMDLAAVEGLDAHRNAVKVRMEKLGLI*"
gene complement(4656..5471)
/label="KanR2"
/gene="KanR2"
/translation="MTFPLLPAYASVAEFDNSLSLVGKAVFPYAADQLHNLIKFTQST
ELQVNVQVESSVTEDQFEELIDNLLKLYNNGINEVILDLDLAERVVQRMIPGARVIYR
TLVDKVASLPANASIAVPFSSPLGDLKSFTNGGSRTVYAFSETAKLVDVTSTVASGII
PIIDARQLTTEYELSEDVKKFPVSEILLASLTTDRPDGLFTTLVADSSNYSLGLVYSS
KKSIPEAIRTQTGVYQSRRHGLWYKGATSGATQKLLGIELDCDGDCLKFVVEQTGVGF
CHLERTSCFGQSKGLRAMEATLWDRKSNAPEGSYTKRLFDDEVLLNAKIREEADELAE
AKSKEDIAWECADLFYFALVRCAKYGVTLDEVERNLDMKSLKVTRRKGDAKPGYTKEQ
PKEESKPKEVPSEGRIELCKIDVSKASSQEIEDALRRPIQKTEQIMELVKPIVDNVRQ
NGDKALLELTAKFDGVALKTPVLEAPFPEELMQLPDNVKRAIDLSIDNVRKFHEAQLT
ETLQVETCPGVVCSRFARPIEKVGLYIPGGTAILPSTSLMLGVPAKVAGCKEIVFASP
PKKDGTLTPEVIYVAHKVGAKCIVLAGGAQAVAAMAYGTETVPKCDKIFGPGNQFVTA
AKMMVQNDTSALCSIDMPAGPSEVLVIADKYADPDFVASDLLSQAEHGIDSQVILLAV
DMTDKELARIEDAVHNQAVQLPRVEIVRKCIAHSTTLSVATYEQALEMSNQYAPEHLI
LQIENASSYVDQVQHAGSVFVGAYSPESCGDYSSGTNHTLPTYGYARQYSGVNTATFQ
KFITSQDVTPEGLKHIGQAVMDLAAVEGLDAHRNAVKVRMEKLGLI*"
CDS complement(4656..5471)
/label="ORF frame 3"
/translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLY
GKPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIP
GKTAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGL
VDASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVG
RVGIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
misc_feature complement(5636..5655)
/label="pBRrevBam_primer"
/translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLY
GKPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIP
GKTAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGL
VDASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVG
RVGIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
CDS complement(5637..6359)
/label="ORF frame 3"
/translation="MTSKHEHTIVSFKTALAWINSRQTTLISLDSEWFERNSNVVTEV
GISIYKPYIPLEGPEGKHLPAPFLPDISTLHFIVQGTEKVRNKKFVPDNKDFFIGGTS
FTVSKKDISAVITEIVSQFESTDDQKSEKFTMKSPPPVALVGHNLIGDLKTLKNAGIT
IPILPIIDTRRSPLCDSCIRKQPSSRLRPLSTAAARNGACKEMAPNSPPATGPATIPT
PKQALMSPKWRARSSPSVMSAI*"
misc_feature complement(6641..6663)
/label="pGEX_3_primer"
/translation="MTSKHEHTIVSFKTALAWINSRQTTLISLDSEWFERNSNVVTEV
GISIYKPYIPLEGPEGKHLPAPFLPDISTLHFIVQGTEKVRNKKFVPDNKDFFIGGTS
FTVSKKDISAVITEIVSQFESTDDQKSEKFTMKSPPPVALVGHNLIGDLKTLKNAGIT
IPILPIIDTRRSPLCDSCIRKQPSSRLRPLSTAAARNGACKEMAPNSPPATGPATIPT
PKQALMSPKWRARSSPSVMSAI*"
rep_origin complement(7060..7679)
/label="pBR322_origin"
/translation="MTSKHEHTIVSFKTALAWINSRQTTLISLDSEWFERNSNVVTEV
GISIYKPYIPLEGPEGKHLPAPFLPDISTLHFIVQGTEKVRNKKFVPDNKDFFIGGTS
FTVSKKDISAVITEIVSQFESTDDQKSEKFTMKSPPPVALVGHNLIGDLKTLKNAGIT
IPILPIIDTRRSPLCDSCIRKQPSSRLRPLSTAAARNGACKEMAPNSPPATGPATIPT
PKQALMSPKWRARSSPSVMSAI*"
gene complement(7834..8694)
/label="Ampicillin"
/gene="Ampicillin"
/translation="MTSKHEHTIVSFKTALAWINSRQTTLISLDSEWFERNSNVVTEV
GISIYKPYIPLEGPEGKHLPAPFLPDISTLHFIVQGTEKVRNKKFVPDNKDFFIGGTS
FTVSKKDISAVITEIVSQFESTDDQKSEKFTMKSPPPVALVGHNLIGDLKTLKNAGIT
IPILPIIDTRRSPLCDSCIRKQPSSRLRPLSTAAARNGACKEMAPNSPPATGPATIPT
PKQALMSPKWRARSSPSVMSAI*"
CDS complement(7834..8694)
/label="ORF frame 2"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter complement(8736..8764)
/label="AmpR_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
ORIGIN
1 AGATCTAACA TCCAAAGACG AAAGGTTGAA TGAAACCTTT TTGCCATCCG ACATCCACAG
61 GTCCATTCTC ACACATAAGT GCCAAACGCA ACAGGAGGGG ATACACTAGC AGCAGACCGT
121 TGCAAACGCA GGACCTCCAC TCCTCTTCTC CTCAACACCC ACTTTTGCCA TCGAAAAACC
181 AGCCCAGTTA TTGGGCTTGA TTGGAGCTCG CTCATTCCAA TTCCTTCTAT TAGGCTACTA
241 ACACCATGAC TTTATTAGCC TGTCTATCCT GGCCCCCCTG GCGAGGTTCA TGTTTGTTTA
301 TTTCCGAATG CAACAAGCTC CGCATTACAC CCGAACATCA CTCCAGATGA GGGCTTTCTG
361 AGTGTGGGGT CAAATAGTTT CATGTTCCCC AAATGGCCCA AAACTGACAG TTTAAACGCT
421 GTCTTGGAAC CTAATATGAC AAAAGCGTGA TCTCATCCAA GATGAACTAA GTTTGGTTCG
481 TTGAAATGCT AACGGCCAGT TGGTCAAAAA GAAACTTCCA AAAGTCGCCA TACCGTTTGT
541 CTTGTTTGGT ATTGATTGAC GAATGCTCAA AAATAATCTC ATTAATGCTT AGCGCAGTCT
601 CTCTATCGCT TCTGAACCCC GGTGCACCTG TGCCGAAACG CAAATGGGGA AACACCCGCT
661 TTTTGGATGA TTATGCATTG TCTCCACATT GTATGCTTCC AAGATTCTGG TGGGAATACT
721 GCTGATAGCC TAACGTTCAT GATCAAAATT TAACTGTTCT AACCCCTACT TGACAGCAAT
781 ATATAAACAG AAGGAAGCTG CCCTGTCTTA AACCTTTTTT TTTATCATCA TTATTAGCTT
841 ACTTTCATAA TTGCGACTGG TTCCAATTGA CAAGCTTTTG ATTTTAACGA CTTTTAACGA
901 CAACTTGAGA AGATCAAAAA ACAACTAATT ATTCGAAGGA TCCTACGTAG AATTCCCTAG
961 GGCGGCCGCG AATTAATTCG CCTTAGACAT GACTGTTCCT CAGTTCAAGT TGGGCACTTA
1021 CGAGAAGACC GGTCTTGCTA GATTCTAATC AAGAGGATGT CAGAATGCCA TTTGCCTGAG
1081 AGATGCAGGC TTCATTTTTG ATACTTTTTT ATTTGTAACC TATATAGTAT AGGATTTTTT
1141 TTGTCATTTT GTTTCTTCTC GTACGAGCTT GCTCCTGATC AGCCTATCTC GCAGCTGATG
1201 AATATCTTGT GGTAGGGGTT TGGGAAAATC ATTCGAGTTT GATGTTTTTC TTGGTATTTC
1261 CCACTCCTCT TCAGAGTACA GAAGATTAAG TGAGAAGTTC GTTTGTGCAA GCTTATCGAT
1321 AAGCTTTAAT GCGGTAGTTT ATCACAGTTA AATTGCTAAC GCAGTCAGGC ACCGTGTATG
1381 AAATCTAACA ATGCGCTCAT CGTCATCCTC GGCACCGTCA CCCTGGATGC TGTAGGCATA
1441 GGCTTGGTTA TGCCGGTACT GCCGGGCCTC TTGCGGGATA TCGTCCATTC CGACAGCATC
1501 GCCAGTCACT ATGGCGTGCT GCTAGCGCTA TATGCGTTGA TGCAATTTCT ATGCGCACCC
1561 GTTCTCGGAG CACTGTCCGA CCGCTTTGGC CGCCGCCCAG TCCTGCTCGC TTCGCTACTT
1621 GGAGCCACTA TCGACTACGC GATCATGGCG ACCACACCCG TCCTGTGGAT CTATCGAATC
1681 TAAATGTAAG TTAAAATCTC TAAATAATTA AATAAGTCCC AGTTTCTCCA TACGAACCTT
1741 AACAGCATTG CGGTGAGCAT CTAGACCTTC AACAGCAGCC AGATCCATCA CTGCTTGGCC
1801 AATATGTTTC AGTCCCTCAG GAGTTACGTC TTGTGAAGTG ATGAACTTCT GGAAGGTTGC
1861 AGTGTTAACT CCGCTGTATT GACGGGCATA TCCGTACGTT GGCAAAGTGT GGTTGGTACC
1921 GGAGGAGTAA TCTCCACAAC TCTCTGGAGA GTAGGCACCA ACAAACACAG ATCCAGCGTG
1981 TTGTACTTGA TCAACATAAG AAGAAGCATT CTCGATTTGC AGGATCAAGT GTTCAGGAGC
2041 GTACTGATTG GACATTTCCA AAGCCTGCTC GTAGGTTGCA ACCGATAGGG TTGTAGAGTG
2101 TGCAATACAC TTGCGTACAA TTTCAACCCT TGGCAACTGC ACAGCTTGGT TGTGAACAGC
2161 ATCTTCAATT CTGGCAAGCT CCTTGTCTGT CATATCGACA GCCAACAGAA TCACCTGGGA
2221 ATCAATACCA TGTTCAGCTT GAGACAGAAG GTCTGAGGCA ACGAAATCTG GATCAGCGTA
2281 TTTATCAGCA ATAACTAGAA CTTCAGAAGG CCCAGCAGGC ATGTCAATAC TACACAGGGC
2341 TGATGTGTCA TTTTGAACCA TCATCTTGGC AGCAGTAACG AACTGGTTTC CTGGACCAAA
2401 TATTTTGTCA CACTTAGGAA CAGTTTCTGT TCCGTAAGCC ATAGCAGCTA CTGCCTGGGC
2461 GCCTCCTGCT AGCACGATAC ACTTAGCACC AACCTTGTGG GCAACGTAGA TGACTTCTGG
2521 GGTAAGGGTA CCATCCTTCT TAGGTGGAGA TGCAAAAACA ATTTCTTTGC AACCAGCAAC
2581 TTTGGCAGGA ACACCCAGCA TCAGGGAAGT GGAAGGCAGA ATTGCGGTTC CACCAGGAAT
2641 ATAGAGGCCA ACTTTCTCAA TAGGTCTTGC AAAACGAGAG CAGACTACAC CAGGGCAAGT
2701 CTCAACTTGC AACGTCTCCG TTAGTTGAGC TTCATGGAAT TTCCTGACGT TATCTATAGA
2761 GAGATCAATG GCTCTCTTAA CGTTATCTGG CAATTGCATA AGTTCCTCTG GGAAAGGAGC
2821 TTCTAACACA GGTGTCTTCA AAGCGACTCC ATCAAACTTG GCAGTTAGTT CTAAAAGGGC
2881 TTTGTCACCA TTTTGACGAA CATTGTCGAC AATTGGTTTG ACTAATTCCA TAATCTGTTC
2941 CGTTTTCTGG ATAGGACGAC GAAGGGCATC TTCAATTTCT TGTGAGGAGG CCTTAGAAAC
3001 GTCAATTTTG CACAATTCAA TACGACCTTC AGAAGGGACT TCTTTAGGTT TGGATTCTTC
3061 TTTAGGTTGT TCCTTGGTGT ATCCTGGCTT GGCATCTCCT TTCCTTCTAG TGACCTTTAG
3121 GGACTTCATA TCCAGGTTTC TCTCCACCTC GTCCAACGTC ACACCGTACT TGGCACATCT
3181 AACTAATGCA AAATAAAATA AGTCAGCACA TTCCCAGGCT ATATCTTCCT TGGATTTAGC
3241 TTCTGCAAGT TCATCAGCTT CCTCCCTAAT TTTAGCGTTC AACAAAACTT CGTCGTCAAA
3301 TAACCGTTTG GTATAAGAAC CTTCTGGAGC ATTGCTCTTA CGATCCCACA AGGTGGCTTC
3361 CATGGCTCTA AGACCCTTTG ATTGGCCAAA ACAGGAAGTG CGTTCCAAGT GACAGAAACC
3421 AACACCTGTT TGTTCAACCA CAAATTTCAA GCAGTCTCCA TCACAATCCA ATTCGATACC
3481 CAGCAACTTT TGAGTTGCTC CAGATGTAGC ACCTTTATAC CACAAACCGT GACGACGAGA
3541 TTGGTAGACT CCAGTTTGTG TCCTTATAGC CTCCGGAATA GACTTTTTGG ACGAGTACAC
3601 CAGGCCCAAC GAGTAATTAG AAGAGTCAGC CACCAAAGTA GTGAATAGAC CATCGGGGCG
3661 GTCAGTAGTC AAAGACGCCA ACAAAATTTC ACTGACAGGG AACTTTTTGA CATCTTCAGA
3721 AAGTTCGTAT TCAGTAGTCA ATTGCCGAGC ATCAATAATG GGGATTATAC CAGAAGCAAC
3781 AGTGGAAGTC ACATCTACCA ACTTTGCGGT CTCAGAAAAA GCATAAACAG TTCTACTACC
3841 GCCATTAGTG AAACTTTTCA AATCGCCCAG TGGAGAAGAA AAAGGCACAG CGATACTAGC
3901 ATTAGCGGGC AAGGATGCAA CTTTATCAAC CAGGGTCCTA TAGATAACCC TAGCGCCTGG
3961 GATCATCCTT TGGACAACTC TTTCTGCCAA ATCTAGGTCC AAAATCACTT CATTGATACC
4021 ATTATTGTAC AACTTGAGCA AGTTGTCGAT CAGCTCCTCA AATTGGTCCT CTGTAACGGA
4081 TGACTCAACT TGCACATTAA CTTGAAGCTC AGTCGATTGA GTGAACTTGA TCAGGTTGTG
4141 CAGCTGGTCA GCAGCATAGG GAAACACGGC TTTTCCTACC AAACTCAAGG AATTATCAAA
4201 CTCTGCAACA CTTGCGTATG CAGGTAGCAA GGGAAATGTC ATACTTGAAG TCGGACAGTG
4261 AGTGTAGTCT TGAGAAATTC TGAAGCCGTA TTTTTATTAT CAGTGAGTCA GTCATCAGGA
4321 GATCCTCTAC GCCGGACGCA TCGTGGCCGA CCTGCAGGGG GGGGGGGGGC GCTGAGGTCT
4381 GCCTCGTGAA GAAGGTGTTG CTGACTCATA CCAGGCCTGA ATCGCCCCAT CATCCAGCCA
4441 GAAAGTGAGG GAGCCACGGT TGATGAGAGC TTTGTTGTAG GTGGACCAGT TGGTGATTTT
4501 GAACTTTTGC TTTGCCACGG AACGGTCTGC GTTGTCGGGA AGATGCGTGA TCTGATCCTT
4561 CAACTCAGCA AAAGTTCGAT TTATTCAACA AAGCCGCCGT CCCGTCAAGT CAGCGTAATG
4621 CTCTGCCAGT GTTACAACCA ATTAACCAAT TCTGATTAGA AAAACTCATC GAGCATCAAA
4681 TGAAACTGCA ATTTATTCAT ATCAGGATTA TCAATACCAT ATTTTTGAAA AAGCCGTTTC
4741 TGTAATGAAG GAGAAAACTC ACCGAGGCAG TTCCATAGGA TGGCAAGATC CTGGTATCGG
4801 TCTGCGATTC CGACTCGTCC AACATCAATA CAACCTATTA ATTTCCCCTC GTCAAAAATA
4861 AGGTTATCAA GTGAGAAATC ACCATGAGTG ACGACTGAAT CCGGTGAGAA TGGCAAAAGC
4921 TTATGCATTT CTTTCCAGAC TTGTTCAACA GGCCAGCCAT TACGCTCGTC ATCAAAATCA
4981 CTCGCATCAA CCAAACCGTT ATTCATTCGT GATTGCGCCT GAGCGAGACG AAATACGCGA
5041 TCGCTGTTAA AAGGACAATT ACAAACAGGA ATCGAATGCA ACCGGCGCAG GAACACTGCC
5101 AGCGCATCAA CAATATTTTC ACCTGAATCA GGATATTCTT CTAATACCTG GAATGCTGTT
5161 TTCCCGGGGA TCGCAGTGGT GAGTAACCAT GCATCATCAG GAGTACGGAT AAAATGCTTG
5221 ATGGTCGGAA GAGGCATAAA TTCCGTCAGC CAGTTTAGTC TGACCATCTC ATCTGTAACA
5281 TCATTGGCAA CGCTACCTTT GCCATGTTTC AGAAACAACT CTGGCGCATC GGGCTTCCCA
5341 TACAATCGAT AGATTGTCGC ACCTGATTGC CCGACATTAT CGCGAGCCCA TTTATACCCA
5401 TATAAATCAG CATCCATGTT GGAATTTAAT CGCGGCCTCG AGCAAGACGT TTCCCGTTGA
5461 ATATGGCTCA TAACACCCCT TGTATTACTG TTTATGTAAG CAGACAGTTT TATTGTTCAT
5521 GATGATATAT TTTTATCTTG TGCAATGTAA CATCAGAGAT TTTGAGACAC AACGTGGCTT
5581 TCCCCCCCCC CCCTGCAGGT CGGCATCACC GGCGCCACAG GTGCGGTTGC TGGCGCCTAT
5641 ATCGCCGACA TCACCGATGG GGAAGATCGG GCTCGCCACT TCGGGCTCAT GAGCGCTTGT
5701 TTCGGCGTGG GTATGGTGGC AGGCCCCGTG GCCGGGGGAC TGTTGGGCGC CATCTCCTTG
5761 CATGCACCAT TCCTTGCGGC GGCGGTGCTC AACGGCCTCA ACCTACTACT GGGCTGCTTC
5821 CTAATGCAGG AGTCGCATAA GGGAGAGCGT CGAGTATCTA TGATTGGAAG TATGGGAATG
5881 GTGATACCCG CATTCTTCAG TGTCTTGAGG TCTCCTATCA GATTATGCCC AACTAAAGCA
5941 ACCGGAGGAG GAGATTTCAT GGTAAATTTC TCTGACTTTT GGTCATCAGT AGACTCGAAC
6001 TGTGAGACTA TCTCGGTTAT GACAGCAGAA ATGTCCTTCT TGGAGACAGT AAATGAAGTC
6061 CCACCAATAA AGAAATCCTT GTTATCAGGA ACAAACTTCT TGTTTCGAAC TTTTTCGGTG
6121 CCTTGAACTA TAAAATGTAG AGTGGATATG TCGGGTAGGA ATGGAGCGGG CAAATGCTTA
6181 CCTTCTGGAC CTTCAAGAGG TATGTAGGGT TTGTAGATAC TGATGCCAAC TTCAGTGACA
6241 ACGTTGCTAT TTCGTTCAAA CCATTCCGAA TCCAGAGAAA TCAAAGTTGT TTGTCTACTA
6301 TTGATCCAAG CCAGTGCGGT CTTGAAACTG ACAATAGTGT GCTCGTGTTT TGAGGTCATC
6361 TTTGTATGAA TAAATCTAGT CTTTGATCTA AATAATCTTG ACGAGCCAAG GCGATAAATA
6421 CCCAAATCTA AAACTCTTTT AAAACGTTAA AAGGACAAGT ATGTCTGCCT GTATTAAACC
6481 CCAAATCAGC TCGTAGTCTG ATCCTCATCA ACTTGAGGGG CACTATCTTG TTTTAGAGAA
6541 ATTTGCGGAG ATGCGATATC GAGAAAAAGG TACGCTGATT TTAAACGTGA AATTTATCTC
6601 AAGATCTCTG CCTCGCGCGT TTCGGTGATG ACGGTGAAAA CCTCTGACAC ATGCAGCTCC
6661 CGGAGACGGT CACAGCTTGT CTGTAAGCGG ATGCCGGGAG CAGACAAGCC CGTCAGGGCG
6721 CGTCAGCGGG TGTTGGCGGG TGTCGGGGCG CAGCCATGAC CCAGTCACGT AGCGATAGCG
6781 GAGTGTATAC TGGCTTAACT ATGCGGCATC AGAGCAGATT GTACTGAGAG TGCACCATAT
6841 GCGGTGTGAA ATACCGCACA GATGCGTAAG GAGAAAATAC CGCATCAGGC GCTCTTCCGC
6901 TTCCTCGCTC ACTGACTCGC TGCGCTCGGT CGTTCGGCTG CGGCGAGCGG TATCAGCTCA
6961 CTCAAAGGCG GTAATACGGT TATCCACAGA ATCAGGGGAT AACGCAGGAA AGAACATGTG
7021 AGCAAAAGGC CAGCAAAAGG CCAGGAACCG TAAAAAGGCC GCGTTGCTGG CGTTTTTCCA
7081 TAGGCTCCGC CCCCCTGACG AGCATCACAA AAATCGACGC TCAAGTCAGA GGTGGCGAAA
7141 CCCGACAGGA CTATAAAGAT ACCAGGCGTT TCCCCCTGGA AGCTCCCTCG TGCGCTCTCC
7201 TGTTCCGACC CTGCCGCTTA CCGGATACCT GTCCGCCTTT CTCCCTTCGG GAAGCGTGGC
7261 GCTTTCTCAA TGCTCACGCT GTAGGTATCT CAGTTCGGTG TAGGTCGTTC GCTCCAAGCT
7321 GGGCTGTGTG CACGAACCCC CCGTTCAGCC CGACCGCTGC GCCTTATCCG GTAACTATCG
7381 TCTTGAGTCC AACCCGGTAA GACACGACTT ATCGCCACTG GCAGCAGCCA CTGGTAACAG
7441 GATTAGCAGA GCGAGGTATG TAGGCGGTGC TACAGAGTTC TTGAAGTGGT GGCCTAACTA
7501 CGGCTACACT AGAAGGACAG TATTTGGTAT CTGCGCTCTG CTGAAGCCAG TTACCTTCGG
7561 AAAAAGAGTT GGTAGCTCTT GATCCGGCAA ACAAACCACC GCTGGTAGCG GTGGTTTTTT
7621 TGTTTGCAAG CAGCAGATTA CGCGCAGAAA AAAAGGATCT CAAGAAGATC CTTTGATCTT
7681 TTCTACGGGG TCTGACGCTC AGTGGAACGA AAACTCACGT TAAGGGATTT TGGTCATGAG
7741 ATTATCAAAA AGGATCTTCA CCTAGATCCT TTTAAATTAA AAATGAAGTT TTAAATCAAT
7801 CTAAAGTATA TATGAGTAAA CTTGGTCTGA CAGTTACCAA TGCTTAATCA GTGAGGCACC
7861 TATCTCAGCG ATCTGTCTAT TTCGTTCATC CATAGTTGCC TGACTCCCCG TCGTGTAGAT
7921 AACTACGATA CGGGAGGGCT TACCATCTGG CCCCAGTGCT GCAATGATAC CGCGAGACCC
7981 ACGCTCACCG GCTCCAGATT TATCAGCAAT AAACCAGCCA GCCGGAAGGG CCGAGCGCAG
8041 AAGTGGTCCT GCAACTTTAT CCGCCTCCAT CCAGTCTATT AATTGTTGCC GGGAAGCTAG
8101 AGTAAGTAGT TCGCCAGTTA ATAGTTTGCG CAACGTTGTT GCCATTGCTG CAGGCATCGT
8161 GGTGTCACGC TCGTCGTTTG GTATGGCTTC ATTCAGCTCC GGTTCCCAAC GATCAAGGCG
8221 AGTTACATGA TCCCCCATGT TGTGCAAAAA AGCGGTTAGC TCCTTCGGTC CTCCGATCGT
8281 TGTCAGAAGT AAGTTGGCCG CAGTGTTATC ACTCATGGTT ATGGCAGCAC TGCATAATTC
8341 TCTTACTGTC ATGCCATCCG TAAGATGCTT TTCTGTGACT GGTGAGTACT CAACCAAGTC
8401 ATTCTGAGAA TAGTGTATGC GGCGACCGAG TTGCTCTTGC CCGGCGTCAA CACGGGATAA
8461 TACCGCGCCA CATAGCAGAA CTTTAAAAGT GCTCATCATT GGAAAACGTT CTTCGGGGCG
8521 AAAACTCTCA AGGATCTTAC CGCTGTTGAG ATCCAGTTCG ATGTAACCCA CTCGTGCACC
8581 CAACTGATCT TCAGCATCTT TTACTTTCAC CAGCGTTTCT GGGTGAGCAA AAACAGGAAG
8641 GCAAAATGCC GCAAAAAAGG GAATAAGGGC GACACGGAAA TGTTGAATAC TCATACTCTT
8701 CCTTTTTCAA TATTATTGAA GCATTTATCA GGGTTATTGT CTCATGAGCG GATACATATT
8761 TGAATGTATT TAGAAAAATA AACAAATAGG GGTTCCGCGC ACATTTCCCC GAAAAGTGCC
8821 ACCTGACGTC TAAGAAACCA TTATTATCAT GACATTAACC TATAAAAATA GGCGTATCAC
8881 GAGGCCCTTT CGTCTTCAAG AATTAATTCT CATGTTTGAC AGCTTATCAT CGATAAGCTG
8941 ACTCATGTTG GTATTGTGAA ATAGACGCAG ATCGGGAACA CTGAAAAATA ACAGTTATTA
9001 TTCG
//
