pYC2/NT B载体质粒基本信息

出品公司: Invitrogen
载体名称: pYC2/NT B
质粒类型: 酿酒酵母表达载体;营养缺陷型筛选载体; 中心粒型质粒
克隆方法: 多克隆位点,限制性内切酶
启动子: GAL1
载体大小: 4703 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: His Tag (N-端),Xpress tag(N-端);V5 tag (C-端),His tag(C-端)
载体抗性: Ampicillin
真核筛选标记: URA3
克隆菌株: DH5、TOP10
表达菌株: INVSc1
备注: pYC2/NT A,B,C载体之间仅读码框不同,相互间相差一个碱基对;pYC2/NT 载体是营养缺陷型筛选载体。
产品目录号: V8252-20
组成型/诱导型: 组成型

pYC2/NT B质粒图谱载体图谱和pYC2/NT B载体序列质粒序列多克隆位点信息

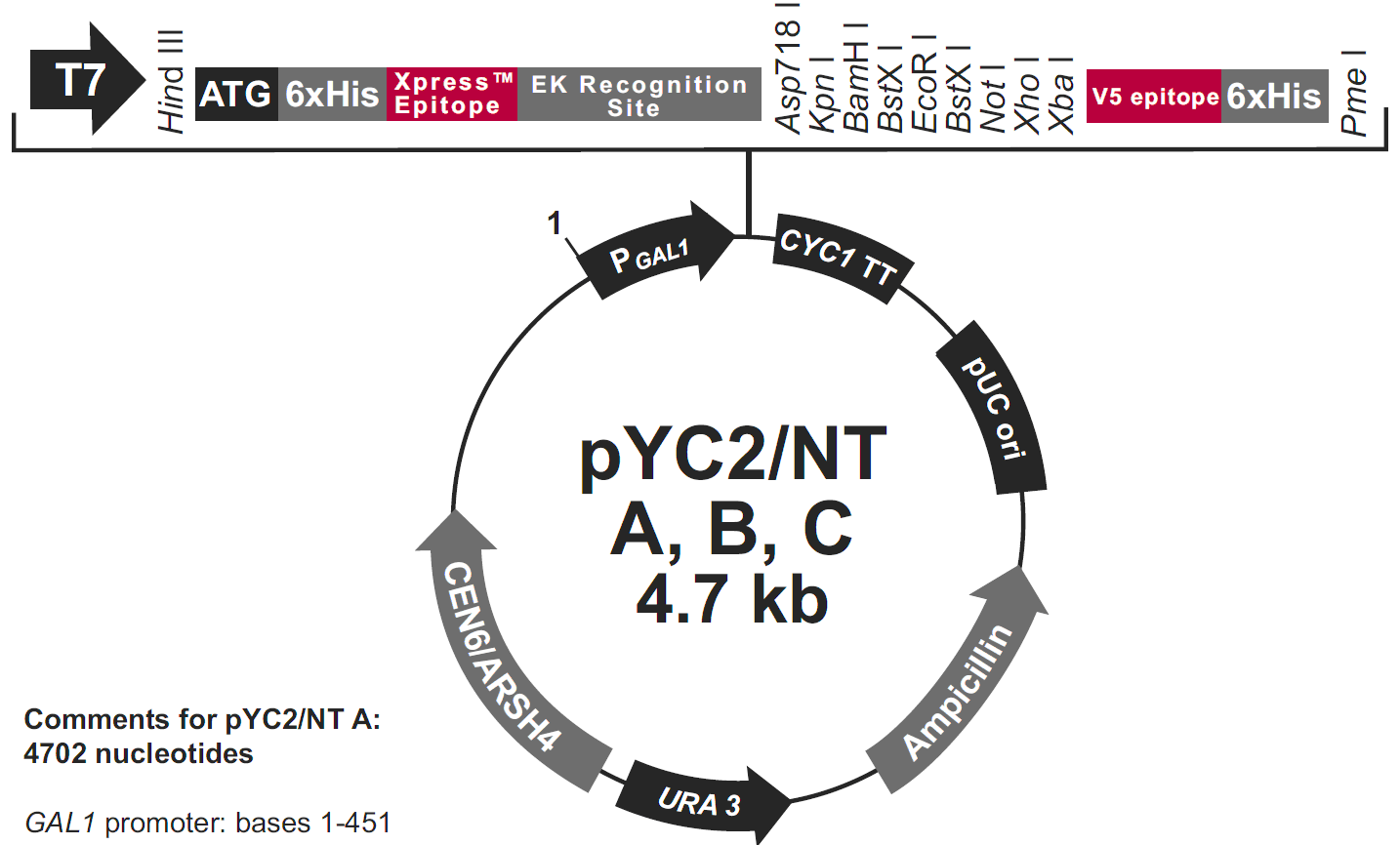

pYC2/NT B载体图谱

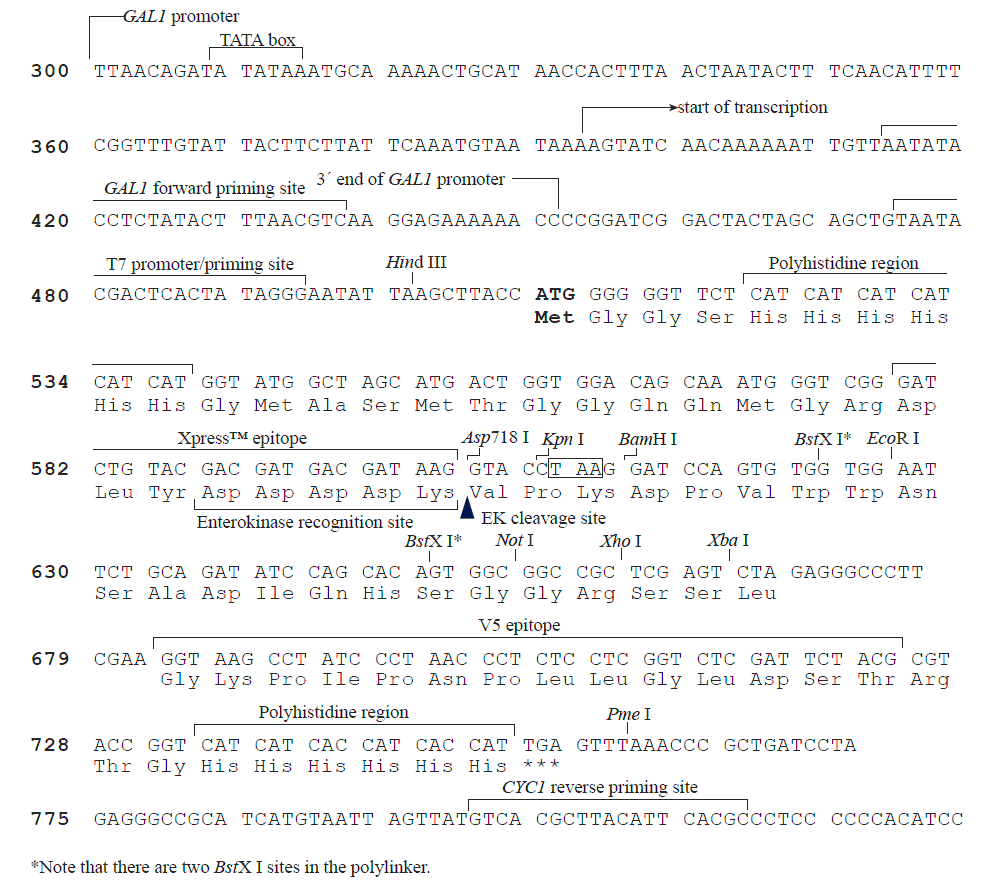

pYC2/NT B 多克隆位点

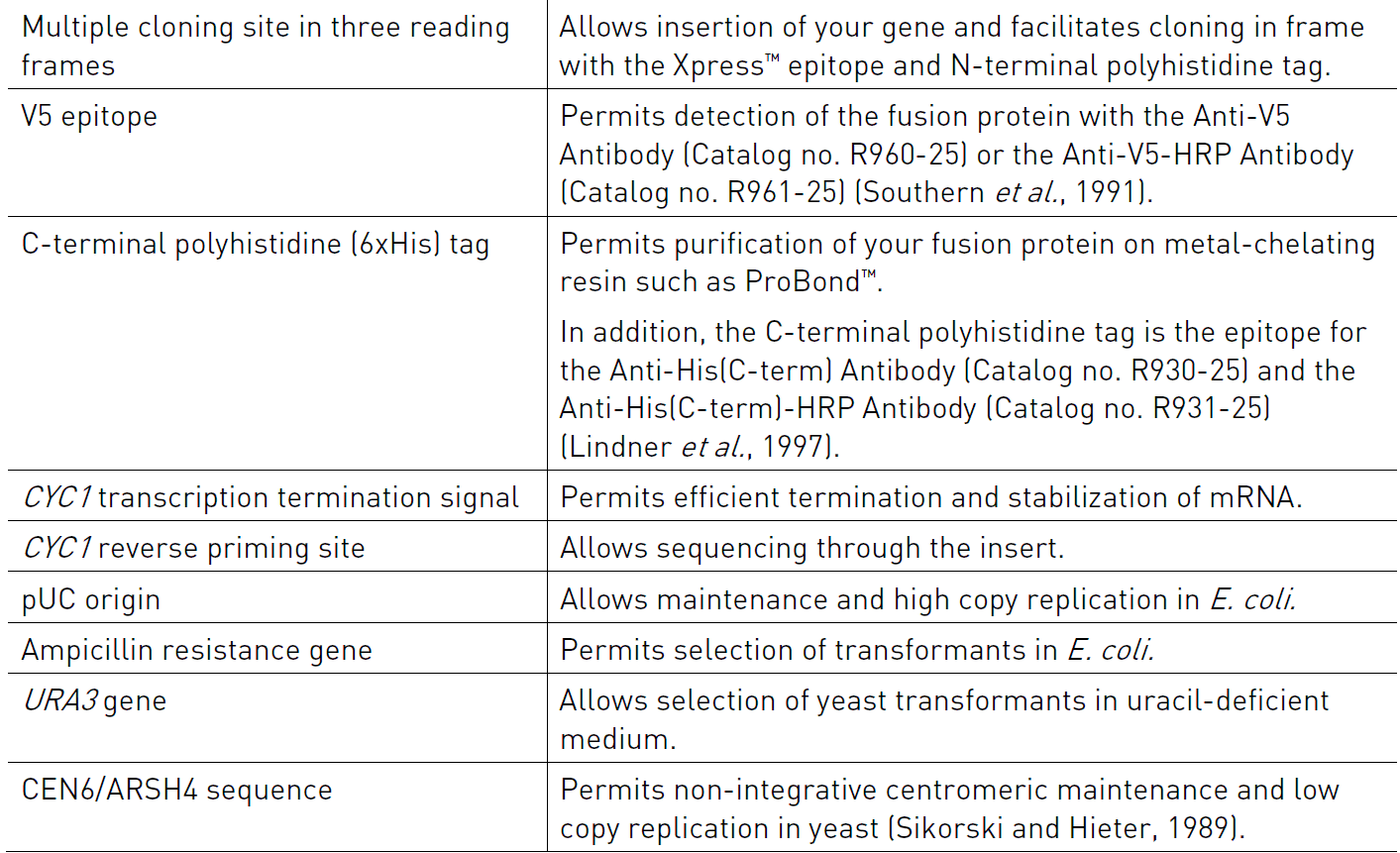

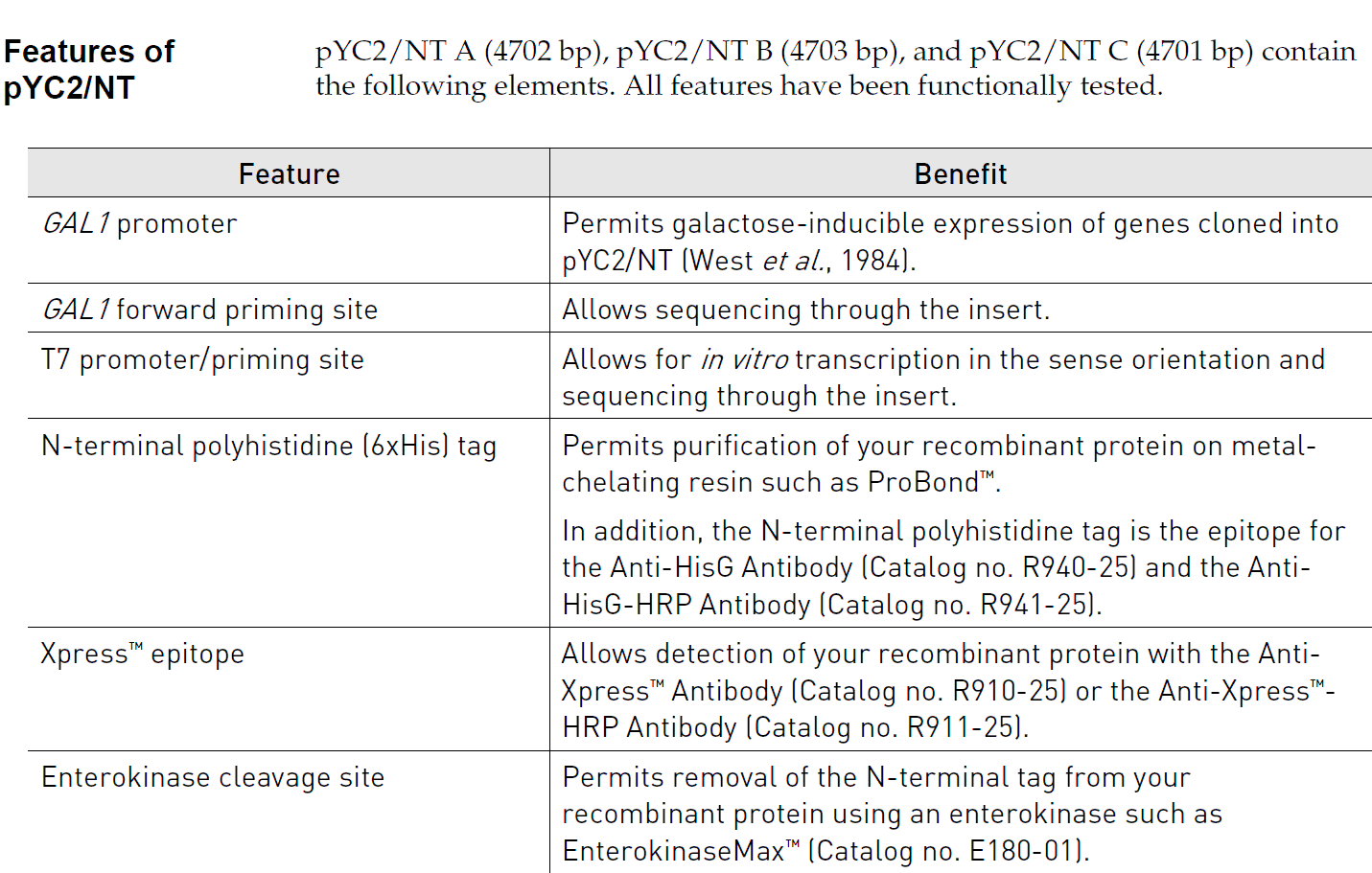

pYC2/NT B 载体特征
pYC2/NT B 载体特征

pYC2/NT B质粒载体简介

pYES2/NT A, B, and C and pYC2/NT A, B, and C are 6.0 kb and 4.7 kb vectors,respectively, designed for inducible expression of recombinant proteins in Saccharomyces cerevisiae. Features of the vectors allow purification and detection of expressed proteins.
The vectors contain the following elements:
• Yeast GAL1 promoter for high level inducible protein expression in yeast by galactose and repression by glucose (Giniger et al., 1985; West et al., 1984).
• Three reading frames to facilitate in-frame cloning with an N-terminal peptide encoding the Xpress™ epitope and a polyhistidine (6xHis) tag.
• C-terminal peptide encoding the V5 epitope and a polyhistidine tag for purification and detection of a recombinant fusion protein, if desired.
• 2μ origin (pYES2/NT only) for episomal maintenance and high copy replication of the plasmid in yeast.
• CEN6/ARSH4 sequence (pYC2/NT only) for non-integrative centromeric maintenance and low copy replication of the plasmid in yeast.
• URA3 auxotrophic marker for selection of yeast transformants.
• Ampicillin resistance gene for selection in E. coli.

pYC2/NT B质粒序列载体序列

ACGGATTAGAAGCCGCCGAGCGGGTGACAGCCCTCCGAAGGAAGACTCTCCTCCGTGCGTCCTCGTCTTC
ACCGGTCGCGTTCCTGAAACGCAGATGTGCCTCGCGCCGCACTGCTCCGAACAATAAAGATTCTACAATA
CTAGCTTTTATGGTTATGAAGAGGAAAAATTGGCAGTAACCTGGCCCCACAAACCTTCAAATGAACGAAT
CAAATTAACAACCATAGGATGATAATGCGATTAGTTTTTTAGCCTTATTTCTGGGGTAATTAATCAGCGA
AGCGATGATTTTTGATCTATTAACAGATATATAAATGCAAAAACTGCATAACCACTTTAACTAATACTTT
CAACATTTTCGGTTTGTATTACTTCTTATTCAAATGTAATAAAAGTATCAACAAAAAATTGTTAATATAC
CTCTATACTTTAACGTCAAGGAGAAAAAACCCCGGATCGGACTACTAGCAGCTGTAATACGACTCACTAT
AGGGAATATTAAGCTTACCATGGGGGGTTCTCATCATCATCATCATCATGGTATGGCTAGCATGACTGGT
GGACAGCAAATGGGTCGGGATCTGTACGACGATGACGATAAGGTACCTAAGGATCCAGTGTGGTGGAATT
CTGCAGATATCCAGCACAGTGGCGGCCGCTCGAGTCTAGAGGGCCCTTCGAAGGTAAGCCTATCCCTAAC
CCTCTCCTCGGTCTCGATTCTACGCGTACCGGTCATCATCACCATCACCATTGAGTTTAAACCCGCTGAT
CCTAGAGGGCCGCATCATGTAATTAGTTATGTCACGCTTACATTCACGCCCTCCCCCCACATCCGCTCTA
ACCGAAAAGGAAGGAGTTAGACAACCTGAAGTCTAGGTCCCTATTTATTTTTTTATAGTTATGTTAGTAT
TAAGAACGTTATTTATATTTCAAATTTTTCTTTTTTTTCTGTACAGACGCGTGTACGCATGTAACATTAT
ACTGAAAACCTTGCTTGAGAAGGTTTTGGGACGCTCGAAGGCTTTAATTTGCAAGCTGCGGCCCTGCATT
AATGAATCGGCCAACGCGCGGGGAGAGGCGGTTTGCGTATTGGGCGCTCTTCCGCTTCCTCGCTCACTGA
CTCGCTGCGCTCGGTCGTTCGGCTGCGGCGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCC
ACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGCCCAGGAACCGTAAAA
AGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAG
TCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGC
TCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTT
CTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGA
ACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACAC
GACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAG
AGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAA
GCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGT
TTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATCTTTTCTA
CGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGAT
CTTCACCTAGATCCTTTTAAATTAAAAATGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGG
TCTGACAGTTACCAATGCTTAATCAGTGAGGCACCTATCTCAGCGATCTGTCTATTTCGTTCATCCATAG
TTGCCTGACTCCCCGTCGTGTAGATAACTACGATACGGGAGCGCTTACCATCTGGCCCCAGTGCTGCAAT
GATACCGCGAGACCCACGCTCACCGGCTCCAGATTTATCAGCAATAAACCAGCCAGCCGGAAGGGCCGAG
CGCAGAAGTGGTCCTGCAACTTTATCCGCCTCCATCCAGTCTATTAATTGTTGCCGGGAAGCTAGAGTAA
GTAGTTCGCCAGTTAATAGTTTGCGCAACGTTGTTGGCATTGCTACAGGCATCGTGGTGTCACTCTCGTC
GTTTGGTATGGCTTCATTCAGCTCCGGTTCCCAACGATCAAGGCGAGTTACATGATCCCCCATGTTGTGC
AAAAAAGCGGTTAGCTCCTTCGGTCCTCCGATCGTTGTCAGAAGTAAGTTGGCCGCAGTGTTATCACTCA
TGGTTATGGCAGCACTGCATAATTCTCTTACTGTCATGCCATCCGTAAGATGCTTTTCTGTGACTGGTGA
GTACTCAACCAAGTCATTCTGAGAATAGTGTATGCGGCGACCGAGTTGCTCTTGCCCGGCGTCAATACGG
GATAATAGTGTATCACATAGCAGAACTTTAAAAGTGCTCATCATTGGAAAACGTTCTTCGGGGCGAAAAC
TCTCAAGGATCTTACCGCTGTTGAGATCCAGTTCGATGTAACCCACTCGTGCACCCAACTGATCTTCAGC
ATCTTTTACTTTCACCAGCGTTTCTGGGTGAGCAAAAACAGGAAGGCAAAATGCCGCAAAAAAGGGAATA
AGGGCGACACGGAAATGTTGAATACTCATACTCTTCCTTTTTCAATGGGTAATAACTGATATAATTAAAT
TGAAGCTCTAATTTGTGAGTTTAGTATACATGCATTTACTTATAATACAGTTTTTTAGTTTTGCTGGCCG
CATCTTCTCAAATATGCTTCCCAGCCTGCTTTTCTGTAACGTTCACCCTCTACCTTAGCATCCCTTCCCT
TTGCAAATAGTCCTCTTCCAACAATAATAATGTCAGATCCTGTAGAGACCACATCATCCACGGTTCTATA
CTGTTGACCCAATGCGTCTCCCTTGTCATCTAAACCCACACCGGGTGTCATAATCAACCAATCGTAACCT
TCATCTCTTCCACCCATGTCTCTTTGAGCAATAAAGCCGATAACAAAATCTTTGTCGCTCTTCGCAATGT
CAACAGTACCCTTAGTATATTCTCCAGTAGATAGGGAGCCCTTGCATGACAATTCTGCTAACATCAAAAG
GCCTCTAGGTTCCTTTGTTACTTCTTCTGCCGCCTGCTTCAAACCGCTAACAATACCTGGGCCCACCACA
CCGTGTGCATTCGTAATGTCTGCCCATTCTGCTATTCTGTATACACCCGCAGAGTACTGCAATTTGACTG
TATTACCAATGTCAGCAAATTTTCTGTCTTCGAAGAGTAAAAAATTGTACTTGGCGGATAATGCCTTTAG
CGGCTTAACTGTGCCCTCCATGGAAAAATCAGTCAAGATATCCACATGTGTTTTTAGTAAACAAATTTTG
GGACCTAATGCTTCAACTAACTCCAGTAATTCCTTGGTGGTACGAACATCCAATGAAGCACACAAGTTTG
TTTGCTTTTCGTGCATGATATTAAATAGCTTGGCAGCAACAGGACTAGGATGAGTAGCAGCACGTTCCTT
ATATGTAGCTTTCGACATGATTTATCTTCGTTTCCTGCAGGTTTTTGTTCTGTGCAGTTGGGTTAAGAAT
ACTGGGCAATTTCATGTTTCTTCAACACTACATATGCGTATATATACCAATCTAAGTCTGTGCTCCTTCC
TTCGTTCTTCCTTCTGTTCGGAGATTACCGAATCAAAAAAATTTCAAAGAAACCGAAATCAAAAAAAAGA
ATAAAAAAAAAATGATGAATTGAATTGAAAAGCTAGCTTATCGATGGGTCCTTTTCATCACGTGCTATAA
AAATAATTATAATTTAAATTTTTTAATATAAATATATAAATTAAAAATAGAAAGTAAAAAAAGAAATTAA
AGAAAAAATAGTTTTTGTTTTCCGAAGATGTAAAAGACTCTAGGGGGATCGCCAACAAATACTACCTTTT
ATCTTGCTCTTCCTGCTCTCAGGTATTAATGCCGAATTGTTTCATCTTGTCTGTGTAGAAGACCACACAC
GAAAATCCTGTGATTTTACATTTTACTTATCGTTAATCGAATGTATATCTATTTAATCTGCTTTTCTTGT
CTAATAAATATATATGTAAAGTACGCTTTTTGTTGAAATTTTTTAAACCTTTGTTTATTTTTTTTTCTTC
ATTCCGTAACTCTTCTACCTTCTTTATTTACTTTCTAAAATCCAAATACAAAACATAAAAATAAATAAAC
ACAGAGTAAATTCCCAAATTATTCCATCATTAAAAGATACGAGGCGCGTGTAAGTTACAGGCAAGCGATC
CGTCCGCCGGCGAACGTGGCGAGAAAGGAAGGGAAGAAAGCGAAAGGAGCGGGGGCTAGGGCGGTGGGAA
GTGTAGGGGTCACGCTGGGCGTAACCACCACACCCGCCGCGCTTAATGGGGCGCTACAGGGCGCGTGGGG
ATGATCCACTAGT

pYC2/NT B载体图谱质粒图谱pdf版和pYC2/NT B载体序列质粒序列等相关资料下载

pYC2/NT B质粒载体应用举例
