| 出品人: | Irene Castano Navarro（2015） |
|---|---|
| 载体名称: | pYC46 |
| 质粒类型: | 酿酒酵母表达载体；整合型载体；FLP/FRT系统载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | -- |
| 载体大小: | 6017 bp |
| 5' 测序引物及序列: | M13 primer 5’TGTAAAACGACGGCCAGT 3’ |
| 3' 测序引物及序列: | -- |
| 载体标签: | 3XFLAG tag （C ter） |
| 载体抗性: | 氨苄青霉素 |
| 筛选标记: | URA3，Nourseothricin |
| 克隆菌株: | DH10B感受态细胞 ,30°C |
| 宿主细胞（系）: | 出芽酵母（酿酒酵母）、白色念珠菌 |
| 备注: | -- |
| 产品目录号: | 63904 |
| 稳定性: | 瞬表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航
pYC46载体质粒基本信息

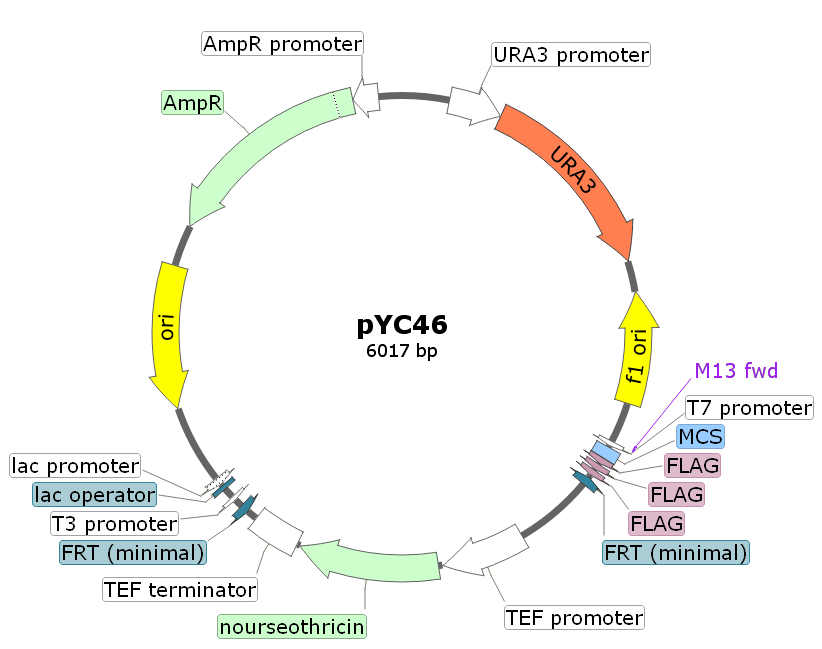

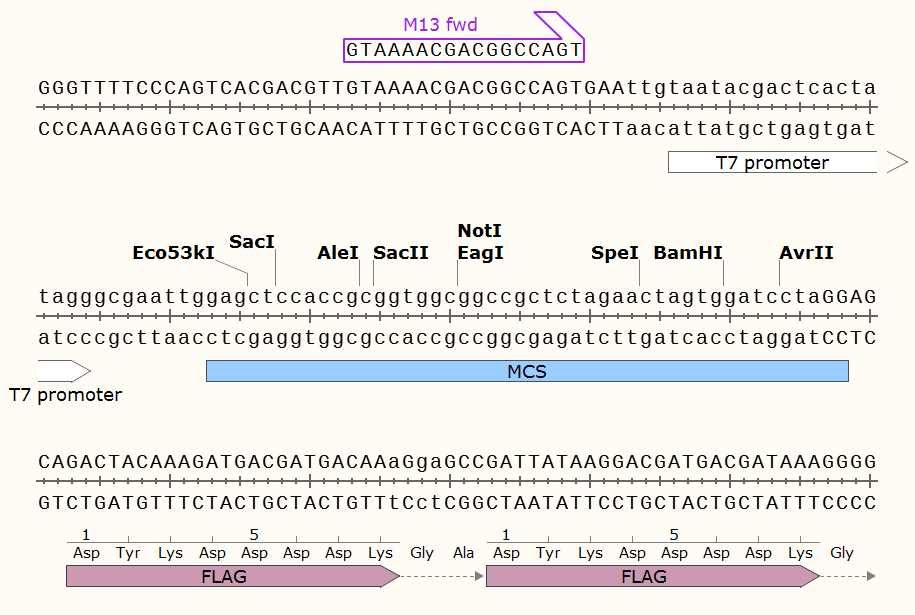

pYC46质粒图谱载体图谱和pYC46载体序列质粒序列多克隆位点信息
pYC46质粒载体简介
pYC46质粒序列载体序列
LOCUS pYC46 6017 bp DNA SYN
DEFINITION pYC46
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..6017
/organism="pYC46"
/mol_type="other DNA"
misc_feature complement(29..51)
/label="pGEX_3_primer"
promoter 196..409
/label="URA3_promoter"
gene 411..1211
/label="URA3"
/gene="URA3"
CDS 411..1214
/label="ORF frame 3"
/translation="MSKATYKERAATHPSPVAAKLFNIMHEKQTNLCASLDVRTTKEL
LELVEALGPKICLLKTHVDILTDFSMEGTVKPLKALSAKYNFLLFEDRKFADIGNTVK
LQYSAGVYRIAEWADITNAHGVVGPGIVSGLKQAAEEVTKEPRGLLMLAELSCKGSLS
TGEYTKGTVDIAKSDKDFVIGFIAQRDMGGRDEGYDWLIMTPGVGLDDKGDALGQQYR
TVDDVVSTGSDIIIVGRGLFAKGRDAKVEGERYRKAGWEAYLRRCGQQN*"
CDS complement(446..922)
/label="ORF frame 2"
/translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
misc_feature complement(1814..1962)
/label="lacZ_a"
/translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
misc_feature 1928..1950
/label="M13_pUC_fwd_primer"
/translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
promoter 1943..1959
/label="M13_forward20_primer"
/translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
promoter 1966..1984
/label="T7_promoter"
/translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
misc_feature 2017..2033
/label="pBluescriptSK_primer"
/translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
misc_feature 2052..2063
/label="EK"
/translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
misc_feature 2112..2126
/label="EK"
/translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
CDS complement(2823..3326)
/label="ORF frame 1"
/translation="MNSWSINIGNFQPQMTSTSFSGEFSSQTHQSSTNTMTSMFWSNF
NIFNSQSSVPTRIRNNNETSQITIITISNESSRIWITIFTSIGFIIGFIIWENLSQWW
INWNFSQSETITSSSNSKNSIGSERTIQSFNSFSITWNRSSVSISSIIQSSRHNCRID
PVVYVRM*"
CDS 2862..3434
/label="ORF frame 3"
/translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
promoter complement(3756..3775)
/label="T3_promoter"
/translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
promoter complement(3792..3810)
/label="M13_reverse_primer"
/translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
misc_feature complement(3809..3831)
/label="M13_pUC_rev_primer"
/translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
rep_origin complement(4183..4802)
/label="pBR322_origin"
/translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
gene complement(4957..5817)
/label="Ampicillin"
/gene="Ampicillin"
/translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
CDS complement(4957..5817)
/label="ORF frame 3"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFFHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter complement(5859..5887)
/label="AmpR_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFFHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
ORIGIN
1 Tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
181 accacgcttt tcaattcaat tcatcatttt ttttttattc ttttttttga tttcggtttc
241 tttgaaattt ttttgattcg gtaatctccg aacagaagga agaacgaagg aaggagcaca
301 gacttagatt ggtatatata cgcatatgta gtgttgaaga aacatgaaat tgcccagtat
361 tcttaaccca actgcacaga acaaaaacct gcaggaaacg aagataaatc ATGTCGAAAG
421 CTACATATAA GGAACGTGCT GCTACTCATC CTAGTCCTGT TGCTGCCAAG CTATTTAATA
481 TCATGCACGA AAAGCAAACA AACTTGTGTG CTTCATTGGA TGTTCGTACC ACCAAGGAAT
541 TACTGGAGTT AGTTGAAGCA TTAGGTCCCA AAATTTGTTT ACTAAAAACA CATGTGGATA
601 TCTTGACTGA TTTTTCCATG GAGGGCACAG TTAAGCCGCT AAAGGCATTA TCCGCCAAGT
661 ACAATTTTTT ACTCTTCGAA GACAGAAAAT TTGCTGACAT TGGTAATACA GTCAAATTGC
721 AGTACTCTGC GGGTGTATAC AGAATAGCAG AATGGGCAGA CATTACGAAT GCACACGGTG
781 TGGTGGGCCC AGGTATTGTT AGCGGTTTGA AGCAGGCGGC AGAAGAAGTA ACAAAGGAAC
841 CTAGAGGCCT TTTGATGTTA GCAGAATTGT CATGCAAGGG CTCCCTATCT ACTGGAGAAT
901 ATACTAAGGG TACTGTTGAC ATTGCGAAGA GCGACAAAGA TTTTGTTATC GGCTTTATTG
961 CTCAAAGAGA CATGGGTGGA AGAGATGAAG GTTACGATTG GTTGATTATG ACACCCGGTG
1021 TGGGTTTAGA TGACAAGGGA GACGCATTGG GTCAACAGTA TAGAACCGTG GATGATGTGG
1081 TCTCTACAGG ATCTGACATT ATTATTGTTG GAAGAGGACT ATTTGCAAAG GGAAGGGATG
1141 CTAAGGTAGA GGGTGAACGT TACAGAAAAG CAGGCTGGGA AGCATATTTG AGAAGATGCG
1201 GCCAGCAAAA CTAAaaaact gtattataag taaatgcatg tatactaaac tcacaaatta
1261 gagcttcaat ttaattatat cagttattac cctgcggtgt gaaataccgc acagatgcgt
1321 aaggagaaaa taccgcatca ggaaattgta aacgttaata ttttgttaaa attcgcgtta
1381 aatttttgtt aaatcagctc attttttaac caataggccg aaatcggcaa aatcccttat
1441 aaatcaaaag aatagaccga gatagggttg agtgTTGTTC CAGTTTGGAA CAAGAGTCCA
1501 CTATTAAAGA ACGTGGACTC CAACGTCAAA GGGCGAAAAA CCGTCTATCA GGGCGATGGC
1561 CCACTACGTG AACCATCACC CTAATCAAGT TTTTTGGGGT CGAGGTGCCG TAAAGCACTA
1621 AATCGGAACC CTAAAGGGAG CCCCCGATTT AGAGCTTGAC GGGGAAAGCC GGCGAACGTG
1681 GCGAGAAAGG AAGGGAAGAA AGCGAAAGGA GCGGGCGCTA GGGCGCTGGC AAGTGTAGCG
1741 GTCACGCTGC GCGTAACCAC CACACCCGCC GCGCTTAATG Cgccgctaca gggcgcgtcg
1801 cgCCATTCGC CATTCAGGCT GCGCAACTGT TGGGAAGGGC GATCGGTGCG GGCCTCTTCG
1861 CTATTACGCC AGCTGGCGAA GGGGGGATGT GCTGCAAGGC GATTAAGTTG GGTAACGCCA
1921 GGGTTTTCCC AGTCACGACG TTGTAAAACG ACGGCCAGTG AAttgtaata cgactcacta
1981 tagggcgaat tggagctcca ccgcggtggc ggccgctcta gaactagtgg atcctaGGAG
2041 CAGACTACAA AGATGACGAT GACAAaGgaG CCGATTATAA GGACGATGAC GATAAAGGGG
2101 CTGACTACAA AGATGACGAT GACAAGtgat aagatccGAA GTTCCTATAC TTTCTAGAGA
2161 ATAGGAACTT Cgtgcgcttt tgaaccacgt aaagtgctgt aaaCcagctc tattcaatga
2221 ggtaaatgat aaagtttata agagaccaaa aaattcaaaa aaaaaattga aaaattatat
2281 tggtatttat atgaaacaat agttcagttc aaagcgctag cttttctcat ctcaactaac
2341 cggtattagg tgggtattta tttaatatgg gaacaagaaa tgtgacaTta atgttcatgt
2401 ttttattttc attatttatt ctatatggtt tgggacttga tgttatgtct taattcatag
2461 aGATCCgctt gcctcgtccc cgccgggtca cccggccagc gacatggagg cccagaatac
2521 cctccttgac agtcttgacg tgcgcagctc aggggcatga tgtgactgtc gcccgtacat
2581 ttagcccata catccccatg tataatcatt tgcatccata cattttgatg gccgcacggc
2641 gcgaagcaaa aattacggct cctcgctgca gacctgcgag cagggaaacg ctcccctcac
2701 agacgcgttg aattgtcccc acgccgcgcc cctgtagaga aatataaaag gttaggattt
2761 gccactgagg ttcttctttc atatacttcc ttttaaaatc ttgctaggat acagttctca
2821 catcacatcc gaacataaac aaccgGATCg atcctacaat tATGTCTACT ACTTTGGATG
2881 ATACTGCTTA TAGATACAGA ACTTCTGTTC CAGGTGATGC TGAAGCTATT GAAGCTTTGG
2941 ATGGTTCTTT CACTACCGAT ACTGTTTTTA GAGTTACTGC TACTGGTGAT GGTTTCACTT
3001 TGAGAGAAGT TCCAGTTGAT CCACCATTGA CTAAGGTTTT CCCAGATGAT GAATCCGATG
3061 ATGAATCCGA TGCTGGTGAA GATGGTGATC CAGATTCTAG AACTTTCGTT GCTTATGGTG
3121 ATGATGGTGA TTTGGCTGGT TTCGTTGTTG TTTCTTATTC TGGTTGGAAC AGAAGATTGA
3181 CTGTTGAAGA TATTGAAGTT GCTCCAGAAC ATAGAGGTCA TGGTGTTGGT AGAGCTTTGA
3241 TGGGTTTGGC TACTGAATTC GCCAGAGAAA GAGGTGCTGG TCATTTGTGG TTGGAAGTTA
3301 CCAATGTTAA TGCTCCAGCT ATTCATGCTT ATAGAAGAAT GGGTTTCACT TTGTGTGGTT
3361 TGGATACTGC TTTATACGAT GGTACTGCTT CCGATGGTGA ACAAGCTTTG TATATGTCTA
3421 TGCCATGTCC ATAAtaacTC GACcagtact gacaataaaa agattcttgt tttcaagaac
3481 ttgtcatttg tatagttttt ttatattgta gttgttctat tttaatcaaa tgttagcgtg
3541 atttatattt tttttcgcct cgacatcatc tgcccagatg cgaagttaag tgcgcagaaa
3601 gtaatatcat gcgtcaatcg tatgtgaatg ctggtcgcta tactgctgtc gattcgatac
3661 taacgccgcc atccagtgTC GAtcgacGAA GTTCCTATAC TTTCTAGAGA ATAGGAACTT
3721 CGTCctcgag ggggggcccg gtaccagctt ttgttccctt tagtgagggt taattccgag
3781 cttggcgtaa tcatggtcat agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc
3841 acacaacata ggagccggaa gcataaagtg taaagcctgg ggtgcctaat gagtgaggta
3901 actcacatta attgcgttgc gctcactgcc cgctttccag tcgggaaacc tgtcgtgcca
3961 gctgcattaa tgaatcggcc aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc
4021 cgcttcctcg ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc
4081 tcactcaaag gcggtaatac ggttatccac agaatcaggg gataacgcag gaaagaacat
4141 gtgagcaaaa ggccagcaaa aggccaggaa ccgtaaaaag gcCGCGTTGC TGGCGTTTTT
4201 CCATAGGCTC GGCCCCCCTG ACGAGCATCA CAAAAATCGA CGCTCAAGTC AGAGGTGGCG
4261 AAACCCGACA GGACTATAAA GATACCAGGC GTTCCCCCCT GGAAGCTCCC TCGTGCGCTC
4321 TCCTGTTCCG ACCCTGCCGC TTACCGGATA CCTGTCCGCC TTTCTCCCTT CGGGAAGCGT
4381 GGCGCTTTCT CAATGCTCAC GCTGTAGGTA TCTCAGTTCG GTGTAGGTCG TTCGCTCCAA
4441 GCTGGGCTGT GTGCACGAAC CCCCCGTTCA GCCCGACCGC TGCGCCTTAT CCGGTAACTA
4501 TCGTCTTGAG TCCAACCCGG TAAGACACGA CTTATCGCCA CTGGCAGCAG CCACTGGTAA
4561 CAGGATTAGC AGAGCGAGGT ATGTAGGCGG TGCTACAGAG TTCTTGAAGT GGTGGCCTAA
4621 CTACGGCTAC ACTAGAAGGA CAGTATTTGG TATCTGCGCT CTGCTGAAGC CAGTTACCTT
4681 CGGAAAAAGA GTTGGTAGCT CTTGATCCGG CAAACAAACC ACCGCTGGTA GCGGTGGTTT
4741 TTTTGTTTGC AAGCAGCAGA TTACGCGCAG AAAAAAAGGA TCTCAAGAAG ATCCTTTGAT
4801 CTtttctacg gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat
4861 gagattatca aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc
4921 aatctaaagt atatatgagt aaacttggtc tgacagTTAC CAATGCTTAA TCAGTGAGGC
4981 ACCTATCTCA GCGATCTGTC TATTTCGTTC ATCCATAGTT GCCTGACTGC CCGTCGTGTA
5041 GATAACTACG ATACGGGAGG GCTTACCATC TGGCCCCAGT GCTGCAATGA TACCGCGAGA
5101 CCCACGCTCA CCGGCTCCAG ATTTATCAGC AATAAACCAG CCAGCCGGAA GGGCCGAGCG
5161 CAGAAGTGGT CCTGCAACTT TATCCGCCTC CATCCAGTCT ATTAATTGTT GCCGGGAAGC
5221 TAGAGTAAGT AGTTCGCCAG TTAATAGTTT GCGCAACGTT GTTGCCATTG CTACAGGCAT
5281 CGTGGTGTCA CGCTCGTCGT TTGGTATGGC TTCATTCAGC TCCGGTTCCC AACGATCAAG
5341 GCGAGTTACA TGATCCCCCA TGTTGTGAAA AAAAGCGGTT AGCTCCTTCG GTCCTCCGAT
5401 CGTTGTCAGA AGTAAGTTGG CCGCAGTGTT ATCACTCATG GTTATGGCAG CACTGCATAA
5461 TTCTCTTACT GTCATGCCAT CCGTAAGATG CTTTTCTGTG ACTGGTGAGT ACTCAACCAA
5521 GTCATTCTGA GAATAGTGTA TGCGGCGACC GAGTTGCTCT TGCCCGGCGT CAATACGGGA
5581 TAATACCGCG CCACATAGCA GAACTTTAAA AGTGCTCATC ATTGGAAAAC GTTCTTCGGG
5641 GCGAAAACTC TCAAGGATCT TACCGCTGTT GAGATCCAGT TCGATGTAAC CCACTCGTGC
5701 ACCCAACTGA TCTTCAGCAT CTTTTACTTT CACCAGCGTT TCTGGGTGAG CAAAAACAGG
5761 AAGGCAAAAT GCCGCAAAAA AGGGAATAAG GGCGACACGG AAATGTTGAA TACTCATact
5821 cttccttttt caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat
5881 atttgaatgt atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt
5941 gccacctgac gtctaagaaa ccattattat catgacatta acctataaaa ataggcgtat
6001 cacgaggccc tttcgtc
//
