| 出品公司: | Novagen (EMD Millipore) |
|---|---|
| 载体名称: | pBAC™-1 |
| 质粒类型: | 昆虫细胞载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | -- |
| 启动子: | -- |
| 载体大小: | 5259 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | -- |
| 载体抗性: | 氨苄青霉素 |
| 筛选标记: | -- |
| 克隆菌株: | -- |
| 宿主细胞（系）: | -- |
| 备注: | -- |
| 产品目录号: | -- |
| 稳定性: | -- |
| 组成型/诱导型: | -- |
| 病毒/非病毒: | -- |
买家导航
pBAC™1载体基本信息

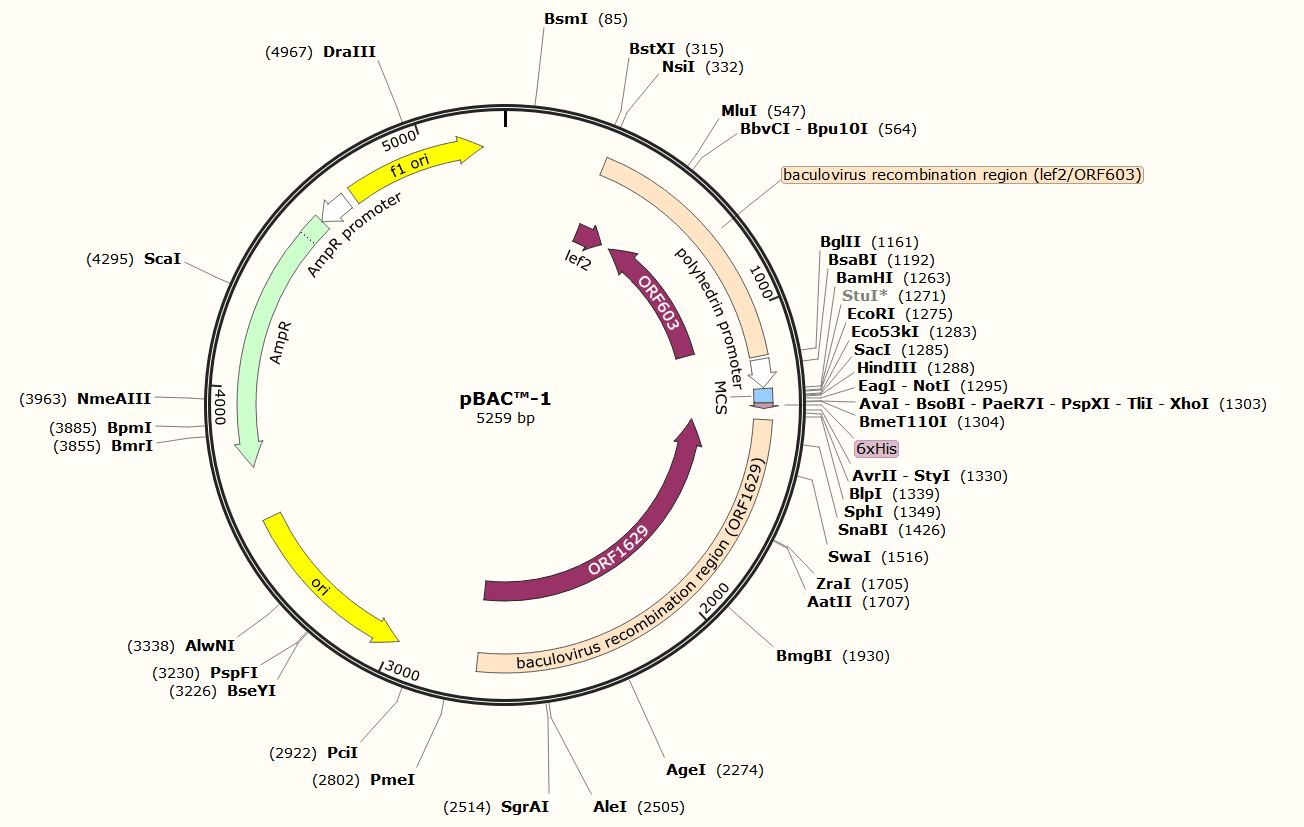

pBAC™1载体图谱质粒图谱和多克隆位点信息
pBAC™1载体简介
pBAC™1载体序列
LOCUS pBAC-1 5259 bp ds-DNA circular SYN 23-OCT-2018
DEFINITION Baculovirus transfer plasmid with the polyhedrin promoter, encoding
an optional C-terminal 6xHis tag.
ACCESSION .
VERSION .
KEYWORDS pBAC-1
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 5259)
AUTHORS MilliporeSigma (Novagen)
TITLE Direct Submission
JOURNAL Exported Thursday, February 6, 2020 from SnapGene Viewer 3.1.4
http://www.snapgene.com
FEATURES Location/Qualifiers
source 1..5259
/organism="synthetic DNA construct"
/lab_host="Insect Cells"
/mol_type="other DNA"
misc_recomb 329..1156
/note="baculovirus recombination region (lef2/ORF603)"
/note="contains ORF603 and part of lef2"
CDS 329..453
/codon_start=3
/product="baculovirus late expression factor 2"
/note="lef2"
/translation="HLLIKSQDVYKPPNCQKMKTVDKLCPFAGNCKGLNPICNY"
CDS complement(491..1096)
/codon_start=1
/product="baculovirus ORF603 protein"
/note="ORF603"
/translation="MAVIFNNKQLLADNSIEKGGELFLFNGSYNILESYVNPVLLKNGV
IELEEAAYYAGNILYKTDDPKFIDYINLIIKATHSEELPENSTVVNYRKTMRSGTIHPI
KKDIYIYDNKKFTLYDRYIYGYDNNYVNFYEEKNEKEKEYEEEDDKASSLCENKIILSQ
INCESFENDFKYYLSDYNYAFSIIDNTTNVLVAFGLYR"
promoter 1168..1259
/gene="polh from Autographa californica"
/note="polyhedrin promoter"
/note="promoter for the baculovirus polyhedrin gene"
misc_feature 1263..1308
/note="MCS"
/note="multiple cloning site"
CDS 1309..1326
/codon_start=1
/product="6xHis affinity tag"
/note="6xHis"
/translation="HHHHHH"
misc_recomb 1363..2720
/note="baculovirus recombination region (ORF1629)"
/note="contains part of ORF1629"
CDS complement(1379..2720)
/codon_start=2
/product="baculovirus capsid-associated protein"
/note="ORF1629"
/note="required for viral replication"
/translation="PSLRQSLYNTIAYIERLLNIGTVNDSEITMLIADFYDLYSNYNIE
LPPPQALPRSRRPSVVQPAAPAPVPTIVREQTKPEQIIPAAPPPPPSPVPNIPAPPPPP
PPSMSELPPAPPMPTEPQPAAPLDDRQQLLEAIRNEKNRTRLRPVKPKTAPETSTIVEV
PTVLPKETFEPKPPSASPPPPPPPPPPPAPPAPPPMVDLSSAPPPPPLVDLPSEMLPPP
APSLSNVLSELKSGTVRLKPAQKRPQSEIIPKSSTTNLIADVLADTINRRRVAMAKSSS
EATSNDEGWDDDDNRPNKANTPDVKYVQALFNVFTSSQLYTNDSDERNTKAHNILNDVE
PLLQNKTQTNIDKARLLLQDLASFVALSENPLDSPAIGSEKQPLFETNRNLFYKSIEDL
IFKFRYKDAENHLIFALTYHPKDYKFNELLKYVQQLSVNQQRTESSA"
rep_origin complement(2983..3571)
/direction=LEFT
/note="ori"
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
CDS complement(3742..4602)
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/note="AmpR"
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
promoter complement(4603..4707)
/gene="bla"
/note="AmpR promoter"
rep_origin 4734..5189
/direction=RIGHT
/note="f1 ori"
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
ORIGIN
1 ggaacggctc cgcccactat taatgaaatt aaaaattcca attttaaaaa acgcagcaag
61 agaaacattt gtatgaaaga atgcgtagaa ggaaagaaaa atgtcgtcga catgctgaac
121 aacaagatta atatgcctcc gtgtataaaa aaaatattga acgatttgaa agaaaacaat
181 gtaccgcgcg gcggtatgta caggaagagg tttatactaa actgttacat tgcaaacgtg
241 gtttcgtgtg ccaagtgtga aaaccgatgt ttaatcaagg ctctgacgca tttctacaac
301 cacgactcca agtgtgtggg tgaagtcatg catcttttaa tcaaatccca agatgtgtat
361 aaaccaccaa actgccaaaa aatgaaaact gtcgacaagc tctgtccgtt tgctggcaac
421 tgcaagggtc tcaatcctat ttgtaattat tgaataataa aacaattata aatgctaaat
481 ttgtttttta ttaacgatac aaaccaaacg caacaagaac atttgtagta ttatctataa
541 ttgaaaacgc gtagttataa tcgctgaggt aatatttaaa atcattttca aatgattcac
601 agttaatttg cgacaatata attttatttt cacataaact agacgccttg tcgtcttctt
661 cttcgtattc cttctctttt tcatttttct cttcataaaa attaacatag ttattatcgt
721 atccatatat gtatctatcg tatagagtaa attttttgtt gtcataaata tatatgtctt
781 ttttaatggg gtgtatagta ccgctgcgca tagtttttct gtaatttaca acagtgctat
841 tttctggtag ttcttcggag tgtgttgctt taattattaa atttatataa tcaatgaatt
901 tgggatcgtc ggttttgtac aatatgttgc cggcatagta cgcagcttct tctagttcaa
961 ttacaccatt ttttagcagc accggattaa cataactttc caaaatgttg tacgaaccgt
1021 taaacaaaaa cagttcacct cccttttcta tactattgtc tgcgagcagt tgtttgttgt
1081 taaaaataac agccattgta atgagacgca caaactaata tcacaaactg gaaatgtcta
1141 tcaatatata gttgctgatc agatctgatc atggagataa ttaaaatgat aaccatctcg
1201 caaataaata agtattttac tgttttcgta acagttttgt aataaaaaaa cctataaata
1261 taggatccag gcctgaattc gagctccaag cttgcggccg cactcgagca ccaccaccac
1321 caccactaac ctaggtagct gagcgcatgc aagctgatcc gggttattag tacatttatt
1381 aagcgctaga ttctgtgcgt tgttgattta cagacaattg ttgtacgtat tttaataatt
1441 cattaaattt ataatcttta gggtggtatg ttagagcgaa aatcaaatga ttttcagcgt
1501 ctttatatct gaatttaaat attaaatcct caatagattt gtaaaatagg tttcgattag
1561 tttcaaacaa gggttgtttt tccgaaccga tggctggact atctaatgga ttttcgctca
1621 acgccacaaa acttgccaaa tcttgtagca gcaatctagc tttgtcgata ttcgtttgtg
1681 ttttgttttg taataaaggt tcgacgtcgt tcaaaatatt atgcgctttt gtatttcttt
1741 catcactgtc gttagtgtac aattgactcg acgtaaacac gttaaataga gcttggacat
1801 atttaacatc gggcgtgtta gctttattag gccgattatc gtcgtcgtcc caaccctcgt
1861 cgttagaagt tgcttccgaa gacgattttg ccatagccac acgacgccta ttaattgtgt
1921 cggctaacac gtccgcgatc aaatttgtag ttgagctttt tggaattatt tctgattgcg
1981 ggcgtttttg ggcgggtttc aatctaactg tgcccgattt taattcagac aacacgttag
2041 aaagcgatgg tgcaggcggt ggtaacattt cagacggcaa atctactaat ggcggcggtg
2101 gtggagctga tgataaatct accatcggtg gaggcgcagg cggggctggc ggcggaggcg
2161 gaggcggagg tggtggcggt gatgcagacg gcggtttagg ctcaaatgtc tctttaggca
2221 acacagtcgg cacctcaact attgtactgg tttcgggcgc cgtttttggt ttgaccggtc
2281 tgagacgagt gcgatttttt tcgtttctaa tagcttccaa caattgttgt ctgtcgtcta
2341 aaggtgcagc gggttgaggt tccgtcggca ttggtggagc gggcggcaat tcagacatcg
2401 atggtggtgg tggtggtgga ggcgctggaa tgttaggcac gggagaaggt ggtggcggcg
2461 gtgccgccgg tataatttgt tctggtttag tttgttcgcg cacgattgtg ggcaccggcg
2521 caggcgccgc tggctgcaca acggaaggtc gtctgcttcg aggcagcgct tggggtggtg
2581 gcaattcaat attataattg gaatacaaat cgtaaaaatc tgctataagc attgtaattt
2641 cgctatcgtt taccgtgccg atatttaaca accgctcaat gtaagcaatt gtattgtaaa
2701 gagattgtct caagctcgga tcgatcccgc acgccgataa caagcctttt catttttact
2761 acagcattgt agtggcgaga cacttcgctg tcgtcgaggt ttaaacgctt cctcgctcac
2821 tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt
2881 aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca
2941 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
3001 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
3061 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
3121 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
3181 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
3241 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
3301 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
3361 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
3421 aaggacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
3481 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
3541 gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc
3601 tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag
3661 gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata
3721 tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat
3781 ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg
3841 ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc
3901 tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc
3961 aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc
4021 gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc
4081 gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc
4141 ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa
4201 gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat
4261 gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata
4321 gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca
4381 tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag
4441 gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc
4501 agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc
4561 aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata
4621 ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta
4681 gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac ctgacgcgcc
4741 ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg cgcagcgtga ccgctacact
4801 tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct tcctttctcg ccacgttcgc
4861 cggctttccc cgtcaagctc taaatcgggg gctcccttta gggttccgat ttagtgcttt
4921 acggcacctc gaccccaaaa aacttgatta gggtgatggt tcacgtagtg ggccatcgcc
4981 ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg ttctttaata gtggactctt
5041 gttccaaact ggaacaacac tcaaccctat ctcggtctat tcttttgatt tataagggat
5101 tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt taacaaaaat ttaacgcgaa
5161 ttttaacaaa atattaacgt ttacaatttc ccattcgcca ttcaggctgc gcaactgttg
5221 ggaagggcga tcggtgcggg cctcttcgct attacgcca
//
