pHAGE-CMV-MCS-IRES-ZsGreen

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pHAGE-CMV-MCS-IRES-ZsGreen载体质粒基本信息

出品公司: --
载体名称: pHAGE-CMV-MCS-IRES-ZsGreen
质粒类型: 慢病毒载体
高拷贝/低拷贝: --
克隆方法: --
启动子: CMV
载体大小: 7742 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: --
宿主细胞(系): --
备注: 具有内部CMV启动子的慢病毒载体,具有IRES-ZsGreen(IRES荧光标签);安培电阻 限制酶克隆。
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

pHAGE-CMV-MCS-IRES-ZsGreen质粒图谱载体图谱和pHAGE-CMV-MCS-IRES-ZsGreen载体序列质粒序列多克隆位点信息

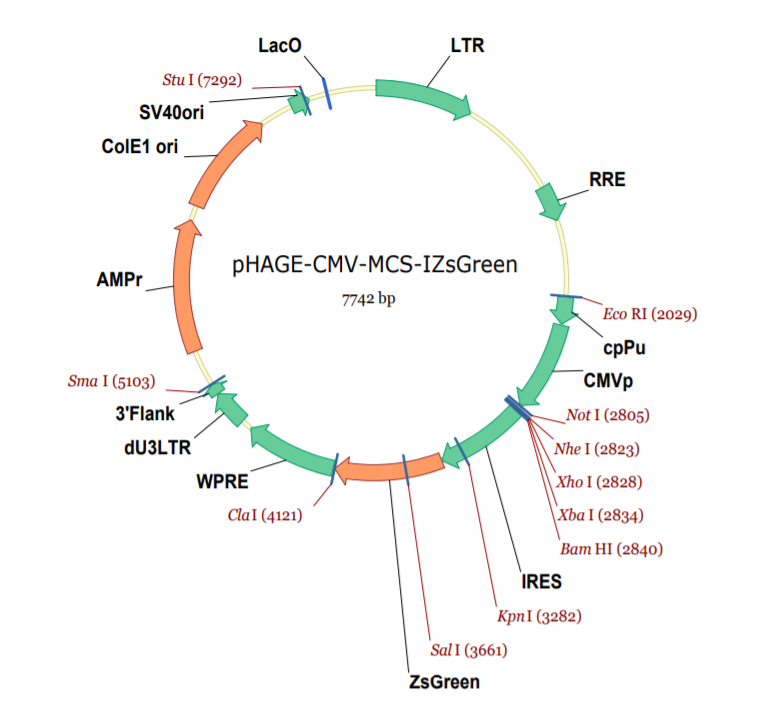

pHAGE-CMV-MCS-IRES-ZsGreen载体图谱

pHAGE-CMV-MCS-IRES-ZsGreen质粒载体简介

pHAGE-CMV-MCS-IRES-ZsGreen质粒序列载体序列

LOCUS       pHAGE-CMV-MCS-IRES-ZsGreen        7742 bp ds-DNA     circular SYN 25-OCT-2021
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7742)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Monday, Oct 25, 2021 from SnapGene Viewer 5.1.4.1 to Vector
            NTI(R) format
            https://www.biofeng.com
COMMENT     VNTDATE|964310400|
COMMENT     VNTDBDATE|964310400|
COMMENT     VNTNAME|pHAGE-CMV-MCS-IRES-ZsGreen|
FEATURES             Location/Qualifiers
     LTR             1..634
                     /label=3' LTR
                     /note="3' long terminal repeat (LTR) from HIV-1"
     misc_feature    681..806
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1303..1536
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             1721..1765
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
     misc_feature    2058..2175
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        2227..2530
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2531..2734
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    2842..3409
                     /label=IRES
                     /note="internal ribosome entry site (IRES) of the
                     encephalomyocarditis virus (EMCV)"
     misc_feature    2859..3411
                     /label=IRES
                     /note="internal ribosome entry site (IRES) of the
                     encephalomyocarditis virus (EMCV)"
     CDS             3423..4118
                     /codon_start=1
                     /product="Zoanthus green fluorescent protein"
                     /label=ZsGreen1
                     /note="mammalian codon-optimized"
     misc_feature    4132..4720
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4603..4614)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
     LTR             4795..5028
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     promoter        5233..5337
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5338..6198
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
     rep_origin      6369..6957
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     protein_bind    7368..7389
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        7404..7434
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    7442..7458
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     7466..7482
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccgaa ttcacaaatg
     2041 gcagtattca tccacaattt taaaagaaaa ggggggattg gggggtacag tgcaggggaa
     2101 agaatagtag acataatagc aacagacata caaactaaag aattacaaaa acaaattaca
     2161 aaaattcaaa attttcgggt ttattacagg gacagcagag atccagtttg gactagtgga
     2221 gttccgcgtt acataactta cggtaaatgg cccgcctggc tgaccgccca acgacccccg
     2281 cccattgacg tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg
     2341 acgtcaatgg gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca
     2401 tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc
     2461 ccagtacatg accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc
     2521 tattaccatg gtgatgcggt tttggcagta catcaatggg cgtggatagc ggtttgactc
     2581 acggggattt ccaagtctcc accccattga cgtcaatggg agtttgtttt ggcaccaaaa
     2641 tcaacgggac tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa tgggcggtag
     2701 gcgtgtacgg tgggaggtct atataagcag agctcgttta gtgaaccgtc agatcgcctg
     2761 gagacgccat ccacgctgtt ttgacctcca tagaagacac cggcggccgc accggtctgc
     2821 agctagctcg agtctagagg atccctcccc cccccctaac gttactggcc gaagccgctt
     2881 ggaataaggc cggtgtgcgt ttgtctatat gttattttcc accatattgc cgtcttttgg
     2941 caatgtgagg gcccggaaac ctggccctgt cttcttgacg agcattccta ggggtctttc
     3001 ccctctcgcc aaaggaatgc aaggtctgtt gaatgtcgtg aaggaagcag ttcctctgga
     3061 agcttcttga agacaaacaa cgtctgtagc gaccctttgc aggcagcgga accccccacc
     3121 tggcgacagg tgcctctgcg gccaaaagcc acgtgtataa gatacacctg caaaggcggc
     3181 acaaccccag tgccacgttg tgagttggat agttgtggaa agagtcaaat ggctctcctc
     3241 aagcgtattc aacaaggggc tgaaggatgc ccagaaggta ccccattgta tgggatctga
     3301 tctggggcct cggtgcacat gctttacatg tgtttagtcg aggttaaaaa aacgtctagg
     3361 ccccccgaac cacggggacg tggttttcct ttgaaaaaca cgatgataat atggccacac
     3421 atatggccca gtccaagcac ggcctgacca aggagatgac catgaagtac cgcatggagg
     3481 gctgcgtgga cggccacaag ttcgtgatca ccggcgaggg catcggctac cccttcaagg
     3541 gcaagcaggc catcaacctg tgcgtggtgg agggcggccc cttgcccttc gccgaggaca
     3601 tcttgtccgc cgccttcatg tacggcaacc gcgtgttcac cgagtacccc caggacatcg
     3661 tcgactactt caagaactcc tgccccgccg gctacacctg ggaccgctcc ttcctgttcg
     3721 aggacggcgc cgtgtgcatc tgcaacgccg acatcaccgt gagcgtggag gagaactgca
     3781 tgtaccacga gtccaagttc tacggcgtga acttccccgc cgacggcccc gtgatgaaga
     3841 agatgaccga caactgggag ccctcctgcg agaagatcat ccccgtgccc aagcagggca
     3901 tcttgaaggg cgacgtgagc atgtacctgc tgctgaagga cggtggccgc ttgcgctgcc
     3961 agttcgacac cgtgtacaag gccaagtccg tgccccgcaa gatgcccgac tggcacttca
     4021 tccagcacaa gctgacccgc gaggaccgca gcgacgccaa gaaccagaag tggcacctga
     4081 ccgagcacgc catcgcctcc ggctccgcct tgccctgaat cgatagatcc taatcaacct
     4141 ctggattaca aaatttgtga aagattgact ggtattctta actatgttgc tccttttacg
     4201 ctatgtggat acgctgcttt aatgcctttg tatcatgcta ttgcttcccg tatggctttc
     4261 attttctcct ccttgtataa atcctggttg ctgtctcttt atgaggagtt gtggcccgtt
     4321 gtcaggcaac gtggcgtggt gtgcactgtg tttgctgacg caacccccac tggttggggc
     4381 attgccacca cctgtcagct cctttccggg actttcgctt tccccctccc tattgccacg
     4441 gcggaactca tcgccgcctg ccttgcccgc tgctggacag gggctcggct gttgggcact
     4501 gacaattccg tggtgttgtc ggggaaatca tcgtcctttc cttggctgct cgcctgtgtt
     4561 gccacctgga ttctgcgcgg gacgtccttc tgctacgtcc cttcggccct caatccagcg
     4621 gaccttcctt cccgcggcct gctgccggct ctgcggcctc ttccgcgtct tcgccttcgc
     4681 cctcagacga gtcggatctc cctttgggcc gcctccccgc ctgagatcct ttaagaccaa
     4741 tgacttacaa ggcagctgta gatcttagcc actttttaaa agaaaagggg ggactggaag
     4801 ggctaattca ctcccaacga agacaagatc tgctttttgc ttgtactggg tctctctggt
     4861 tagaccagat ctgagcctgg gagctctctg gctaactagg gaacccactg cttaagcctc
     4921 aataaagctt gccttgagtg cttcaagtag tgtgtgcccg tctgttgtgt gactctggta
     4981 actagagatc cctcagaccc ttttagtcag tgtggaaaat ctctagcagt agtagttcat
     5041 gtcatcttat tattcagtat ttataacttg caaagaaatg aatatcagag agtgagaggc
     5101 ccgggttaat taaggaaagg gctagatcat tcttgaagac gaaagggcct cgtgatacgc
     5161 ctatttttat aggttaatgt catgataata atggtttctt agacgtcagg tggcactttt
     5221 cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc aaatatgtat
     5281 ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag gaagagtatg
     5341 agtattcaac atttccgtgt cgcccttatt cccttttttg cggcattttg ccttcctgtt
     5401 tttgctcacc cagaaacgct ggtgaaagta aaagatgctg aagatcagtt gggtgcacga
     5461 gtgggttaca tcgaactgga tctcaacagc ggtaagatcc ttgagagttt tcgccccgaa
     5521 gaacgttttc caatgatgag cacttttaaa gttctgctat gtggcgcggt attatcccgt
     5581 gttgacgccg ggcaagagca actcggtcgc cgcatacact attctcagaa tgacttggtt
     5641 gagtactcac cagtcacaga aaagcatctt acggatggca tgacagtaag agaattatgc
     5701 agtgctgcca taaccatgag tgataacact gcggccaact tacttctgac aacgatcgga
     5761 ggaccgaagg agctaaccgc ttttttgcac aacatggggg atcatgtaac tcgccttgat
     5821 cgttgggaac cggagctgaa tgaagccata ccaaacgacg agcgtgacac cacgatgcct
     5881 gtagcaatgg caacaacgtt gcgcaaacta ttaactggcg aactacttac tctagcttcc
     5941 cggcaacaat taatagactg gatggaggcg gataaagttg caggaccact tctgcgctcg
     6001 gcccttccgg ctggctggtt tattgctgat aaatctggag ccggtgagcg tgggtctcgc
     6061 ggtatcattg cagcactggg gccagatggt aagccctccc gtatcgtagt tatctacacg
     6121 acggggagtc aggcaactat ggatgaacga aatagacaga tcgctgagat aggtgcctca
     6181 ctgattaagc attggtaact gtcagaccaa gtttactcat atatacttta gattgattta
     6241 aaacttcatt tttaatttaa aaggatctag gtgaagatcc tttttgataa tctcatgacc
     6301 aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag accccgtaga aaagatcaaa
     6361 ggatcttctt gagatccttt ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca
     6421 ccgctaccag cggtggtttg tttgccggat caagagctac caactctttt tccgaaggta
     6481 actggcttca gcagagcgca gataccaaat actgttcttc tagtgtagcc gtagttaggc
     6541 caccacttca agaactctgt agcaccgcct acatacctcg ctctgctaat cctgttacca
     6601 gtggctgctg ccagtggcga taagtcgtgt cttaccgggt tggactcaag acgatagtta
     6661 ccggataagg cgcagcggtc gggctgaacg gggggttcgt gcacacagcc cagcttggag
     6721 cgaacgacct acaccgaact gagataccta cagcgtgagc tatgagaaag cgccacgctt
     6781 cccgaaggga gaaaggcgga caggtatccg gtaagcggca gggtcggaac aggagagcgc
     6841 acgagggagc ttccaggggg aaacgcctgg tatctttata gtcctgtcgg gtttcgccac
     6901 ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct atggaaaaac
     6961 gccagcaacg cggccttttt acggttcctg gccttttgct ggccttttgc tcacatgttc
     7021 tttcctgcgt tatcccctga ttctgtggat aaccgtatta ccgcctttga gtgagctgat
     7081 accgctcgcc gcagccgaac gaccgagcgc agcgagtcag tgagcgagga agcggaagag
     7141 cgcccaatac gcaaaccgcc tctccccgcg cgttggccga ttcattaatg cagcaagctc
     7201 atggctgact aatttttttt atttatgcag aggccgaggc cgcctcggcc tctgagctat
     7261 tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag ctccccgtgg
     7321 cacgacaggt ttcccgactg gaaagcgggc agtgagcgca acgcaattaa tgtgagttag
     7381 ctcactcatt aggcacccca ggctttacac tttatgcttc cggctcgtat gttgtgtgga
     7441 attgtgagcg gataacaatt tcacacagga aacagctatg acatgattac gaatttcaca
     7501 aataaagcat ttttttcact gcattctagt tgtggtttgt ccaaactcat caatgtatct
     7561 tatcatgtct ggatcaactg gataactcaa gctaaccaaa atcatcccaa acttcccacc
     7621 ccatacccta ttaccactgc caattacctg tggtttcatt tactctaaac ctgtgattcc
     7681 tctgaattat tttcatttta aagaaattgt atttgttaaa tatgtactac aaacttagta
     7741 gt
//

pHAGE-CMV-MCS-IRES-ZsGreen载体图谱质粒图谱pdf版和pHAGE-CMV-MCS-IRES-ZsGreen载体序列质粒序列等相关资料下载

pHAGE-CMV-MCS-IRES-ZsGreen质粒载体应用举例

分享到:

全部质粒载体分类

相关质粒载体

相关质粒载体文章

相关载体质粒问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
