| 出品公司: | Clontech |
|---|---|
| 载体名称: | pRetroQ-AcGFP1-C1 |
| 质粒类型: | 逆病毒载体；荧光报告载体 |
| 高拷贝/低拷贝: | 低拷贝 |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | CMV IE |
| 载体大小: | 7614 BP |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | AcGFP1(N-端） |
| 载体抗性: | 氨苄青霉素 |
| 筛选标记: | 嘌呤霉素（Puromycin） |
| 克隆菌株: | DH5α |
| 宿主细胞（系）: | 常规细胞系（293、CV-1、CHO等）；原代细胞 |
| 备注: |
pRetroQ-AcGFP1-C1载体是自我失活型逆病毒载体，表达N端AcGFP1融合蛋白； pRetroQ-AcGFP1-C1载体能够高效递送目的基因到靶细胞中，尤其适用于原代细胞和其它难转染的细胞系。 |
| 产品目录号: | 632506 |
| 稳定性: | 稳表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 逆转录病毒 |
买家导航
载体基本信息

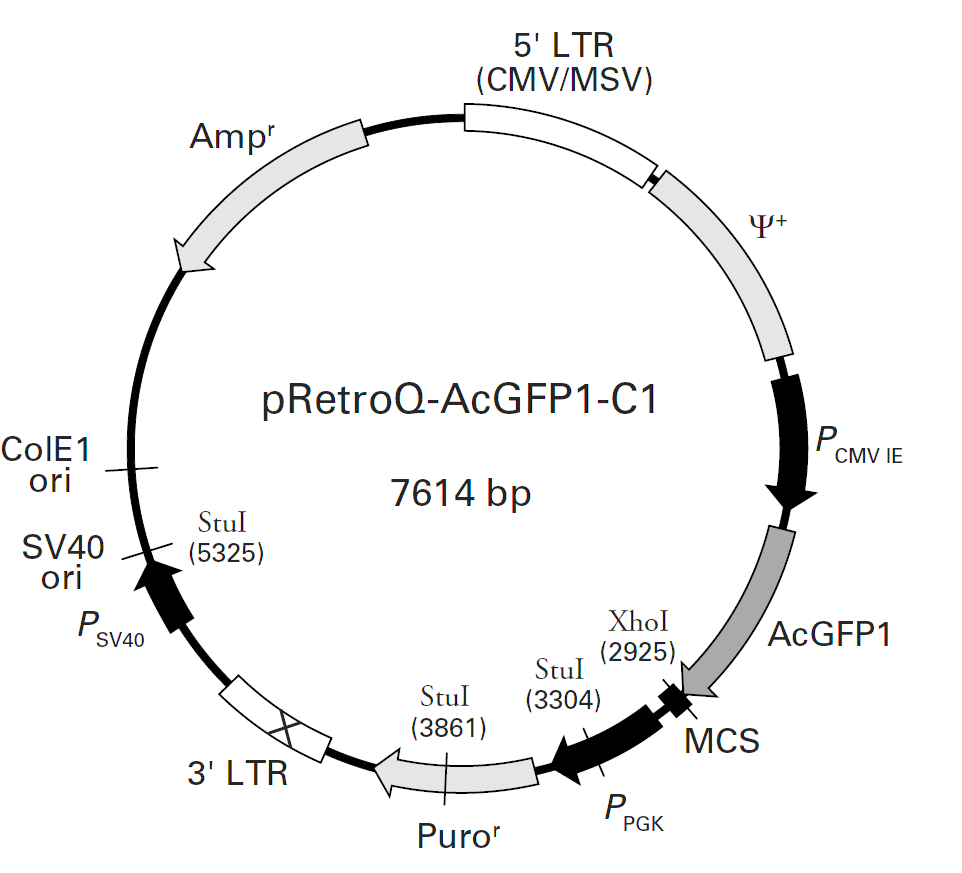

载体图谱质粒图谱和多克隆位点信息
载体简介
pRetroQ-AcGFP1-C1载体描述
pRetroQ-AcGFP1-C1 is a high-titer, self-inactivating retroviral vector that facilitates efficient delivery and expression of AcGFP1, as well as C-terminal fusions of AcGFP1, to target cells. AcGFP1 is the green fluorescent protein from Aequorea coerulescens (AcGFP1; Excitation maximum = 475 nm; emission maximum = 505 nm).
The AcGFP1 coding sequence contains silent base changes, which correspond to human codon-usage preferences (1). The multiple cloning site (MCS) in pRetroQAcGFP1-C1 follows the AcGFP1 coding sequence. Genes cloned into the MCS are expressed as fusions to the C-terminus of AcGFP1 when they are in the same reading frame as AcGFP1 and there are no intervening stop codons.
The RetroQ retroviral vector backbone incorporates several unique features. This vector contains a puromycin resistance cassette (Puror) driven by the PGK promoter (PPGK) for selection of positively-infected cells (2).The hybrid 5’ long terminal repeats (LTR) consists of the CMV type I enhancer and the murine sarcoma virus (MSV) promoter. This vector demonstrates high levels of transcription in HEK 293-based packaging cell lines due, in part, to the presence of adenoviral E1A (3–6) in these cells. The self-inactivating feature of the vector is provided by a deletion in the 3’ LTR enhancer region (U3). During reverse transcription of the retroviral RNA, the inactivated 3’ LTR is copied and replaces the 5’ LTR CMV enhancer sequences. This can reduce the phenomenon known as promoter interference (7) and allow more efficient expression.
Additionally, the viral genomic transcript contains the necessary viral RNA processing elements, including the LTRs, packaging signal (ψ+), and tRNA primer-binding site. pRetroQ-AcGFP1-C1 contains a bacterial origin of replication, an E. coli Ampr gene for propagation and selection in bacteria, and an SV40 origin for replication in mammalian cells expressing the SV40 large T antigen.
pRetroQ-AcGFP1-C1 is designed to efficiently deliver and express fusions to the C terminus of AcGFP1 into primary cells or cells that are difficult to transfect. Fusions to the C terminus of AcGFP1 retain the fluorescent properties of the native protein, allowing the in vivo localization of the fusion protein. The target gene should be cloned into pRetroQ- AcGFP1-C1 so that it is in frame with the AcGFP1 coding sequences, with no intervening in-frame stop codons. The inserted gene should include the initiating ATG codon. The recombinant AcGFP1 vector can be infected or transfected into mammalian cells. If required, stable transformants can be selected using Puromycin. pRetroQ-AcGFP1-C1 can also be used simply to express AcGFP1 in a cell line of interest (e.g., as an infection marker).
Once pRetroQ-AcGFP1-C1 is transfected into a packaging cell line (such as the RetroPack PT67 Cell line, AmphoPack-293 , EcoPack2-293, Pantropic Expression System, or Retro-X Universal Packaging System, RNA from the vector is packaged into non-infectious, replication-incompetent retroviral particles, since pRetroQ-AcGFP1-C1 lacks the structural genes (gag, pol, and env) necessary for particle formation and replication. These genes, however, are stably integrated as part of the packaging cell genome. Once a high-titer supernatant is produced, these retroviral particles can infect target cells and transmit the gene of interest but cannot replicate within these cells due to the absence of viral structural genes. The separate introduction and integration of the structural genes into the packaging cell line minimizes the chances of producing replication-competent virus due to recombination events during cell proliferation.
Propagation in E. coli
Suitable host strains: DH5α, Fusion Blue, and other general purpose strains.
Selectable marker: plasmid confers resistance to ampicillin (100 μg/ml) in E. coli hosts.
E. coli replication origin: ColE1
Copy number: low
载体序列
LOCUS pRetroQ-AcGFP1-C1 7614 bp DNA SYN
DEFINITION pRetroQ-AcGFP1-C1
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..7614
/organism="pRetroQ-AcGFP1-C1"
/mol_type="other DNA"
promoter 2..506
/label="CMV_immearly_promoter"
misc_feature 6..688
/label="5_LTR"
misc_feature 9..296
/label="CAG_enhancer"
misc_feature 463..483
/label="CMV_fwd_primer"
misc_feature 758..1567
/label="psi_plus_pack"
misc_feature 1154..1561
/label="gag"
misc_feature 1497..1519
/label="MSCV_primer"
misc_feature 1497..1519
/label="pLXSN_5_primer"
misc_feature 1535..1551
/label="pBABE_5_primer"
promoter 1591..2143
/label="CMV_immearly_promoter"
misc_feature 1646..1933
/label="CAG_enhancer"
misc_feature 2100..2120
/label="CMV_fwd_primer"
promoter 2101..2170
/label="CMV_promoter"
CDS 2194..2991
/label="ORF frame 1"
/translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT
LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE
DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN
GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
MIYFGFVTAAAITHGMDELYKSGLRSRAQASNSAVDGTAGPGSTGSR*"
gene 2197..2910
/label="AcGFP1"
/gene="AcGFP1"
/translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT
LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE
DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN
GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
MIYFGFVTAAAITHGMDELYKSGLRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature complement(3044..3067)
/label="MSCV_rev_primer"
/translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT
LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE
DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN
GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
MIYFGFVTAAAITHGMDELYKSGLRSRAQASNSAVDGTAGPGSTGSR*"
CDS 3289..4128
/label="ORF frame 1"
/translation="MEAGRPLGQRPIAALLLRFLGSEAGKGWVRGRAQGRAQGRGGRP
KVLRRPGILHASKAHVCRAVLLFLISGPFDLQPKLTMTEYKPTVRLATRDDVPRAVRT
LAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPE
SVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKG
LGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFTVTADVEVPEGPRTWCMTRK
PGA*"
misc_feature 3441..3460
/label="mPGK_F_primer"
/translation="MEAGRPLGQRPIAALLLRFLGSEAGKGWVRGRAQGRAQGRGGRP
KVLRRPGILHASKAHVCRAVLLFLISGPFDLQPKLTMTEYKPTVRLATRDDVPRAVRT
LAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPE
SVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKG
LGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFTVTADVEVPEGPRTWCMTRK
PGA*"
CDS complement(3454..4179)
/label="ORF frame 1"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
gene 3529..4128
/label="puro (variant)"
/gene="puro (variant)"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
misc_feature complement(4848..4870)
/label="pGEX_3_primer"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
misc_feature complement(5006..5026)
/label="pBABE_3_primer"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
misc_feature complement(5012..5227)
/label="SV40_enhancer"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
promoter 5024..5292
/label="SV40_promoter"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
rep_origin 5191..5268
/label="SV40_origin"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
misc_feature 5253..5272
/label="SV40pro_F_primer"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
gene complement(6392..7252)
/label="Ampicillin"
/gene="Ampicillin"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
CDS complement(6392..7252)
/label="ORF frame 3"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter complement(7294..7322)
/label="AmpR_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter 7544..506
/label="CMV_immearly_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
misc_feature 7608..688
/label="5_LTR"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
ORIGIN
1 TCCGCGTTAC ATAACTTACG GTAAATGGCC CGCCTGGCTG ACCGCCCAAC GACCCCCGCC
61 CATTGACGTC AATAATGACG TATGTTCCCA TAGTAACGCC AATAGGGACT TTCCATTGAC
121 GTCAATGGGT GGAGTATTTA CGGTAAACTG CCCACTTGGC AGTACATCAA GTGTATCATA
181 TGCCAAGTAC GCCCCCTATT GACGTCAATG ACGGTAAATG GCCCGCCTGG CATTATGCCC
241 AGTACATGAC CTTATGGGAC TTTCCTACTT GGCAGTACAT CTACGTATTA GTCATCGCTA
301 TTACCATGGT GATGCGGTTT TGGCAGTACA TCAATGGGCG TGGATAGCGG TTTGACTCAC
361 GGGGATTTCC AAGTCTCCAC CCCATTGACG TCAATGGGAG TTTGTTTTGG CACCAAAATC
421 AACGGGACTT TCCAAAATGT CGTAACAACT CCGCCCCATT GACGCAAATG GGCGGTAGGC
481 GTGTACGGTG GGAGGTCTAT ATAAGCAGAG CTCAATAAAA GAGCCCACAA CCCCTCACTC
541 GGCGCGCCAG TCTTCCGATA GACTGCGTCG CCCGGGTACC CGTATTCCCA ATAAAGCCTC
601 TTGCTGTTTG CATCCGAATC GTGGTCTCGC TGTTCCTTGG GAGGGTCTCC TCTGAGTGAT
661 TGACTACCCA CGACGGGGGT CTTTCATTTG GGGGCTCGTC CGGGATTTGG AGACCCCTGC
721 CCAGGGACCA CCGACCCACC ACCGGGAGGT AAGCTGGCCA GCAACTTATC TGTGTCTGTC
781 CGATTGTCTA GTGTCTATGT TTGATGTTAT GCGCCTGCGT CTGTACTAGT TAGCTAACTA
841 GCTCTGTATC TGGCGGACCC GTGGTGGAAC TGACGAGTTC TGAACACCCG GCCGCAACCC
901 TGGGAGACGT CCCAGGGACT TTGGGGGCCG TTTTTGTGGC CCGACCTGAG GAAGGGAGTC
961 GATGTGGAAT CCGACCCCGT CAGGATATGT GGTTCTGGTA GGAGACGAGA ACCTAAAACA
1021 GTTCCCGCCT CCGTCTGAAT TTTTGCTTTC GGTTTGGAAC CGAAGCCGCG CGTCTTGTCT
1081 GCTGCAGCGC TGCAGCATCG TTCTGTGTTG TCTCTGTCTG ACTGTGTTTC TGTATTTGTC
1141 TGAAAATTAG GGCCAGACTG TTACCACTCC CTTAAGTTTG ACCTTAGGTC ACTGGAAAGA
1201 TGTCGAGCGG ATCGCTCACA ACCAGTCGGT AGATGTCAAG AAGAGACGTT GGGTTACCTT
1261 CTGCTCTGCA GAATGGCCAA CCTTTAACGT CGGATGGCCG CGAGACGGCA CCTTTAACCG
1321 AGACCTCATC ACCCAGGTTA AGATCAAGGT CTTTTCACCT GGCCCGCATG GACACCCAGA
1381 CCAGGTCCCC TACATCGTGA CCTGGGAAGC CTTGGCTTTT GACCCCCCTC CCTGGGTCAA
1441 GCCCTTTGTA CACCCTAAGC CTCCGCCTCC TCTTCCTCCA TCCGCCCCGT CTCTCCCCCT
1501 TGAACCTCCT CGTTCGACCC CGCCTCGATC CTCCCTTTAT CCAGCCCTCA CTCCTTCTCT
1561 AGGCGCCGGA ATTGAAGATC ATAGTTATTA ATAGTAATCA ATTACGGGGT CATTAGTTCA
1621 TAGCCCATAT ATGGAGTTCC GCGTTACATA ACTTACGGTA AATGGCCCGC CTGGCTGACC
1681 GCCCAACGAC CCCCGCCCAT TGACGTCAAT AATGACGTAT GTTCCCATAG TAACGCCAAT
1741 AGGGACTTTC CATTGACGTC AATGGGTGGA GTATTTACGG TAAACTGCCC ACTTGGCAGT
1801 ACATCAAGTG TATCATATGC CAAGTACGCC CCCTATTGAC GTCAATGACG GTAAATGGCC
1861 CGCCTGGCAT TATGCCCAGT ACATGACCTT ATGGGACTTT CCTACTTGGC AGTACATCTA
1921 CGTATTAGTC ATCGCTATTA CCATGGTGAT GCGGTTTTGG CAGTACATCA ATGGGCGTGG
1981 ATAGCGGTTT GACTCACGGG GATTTCCAAG TCTCCACCCC ATTGACGTCA ATGGGAGTTT
2041 GTTTTGGCAC CAAAATCAAC GGGACTTTCC AAAATGTCGT AACAACTCCG CCCCATTGAC
2101 GCAAATGGGC GGTAGGCGTG TACGGTGGGA GGTCTATATA AGCAGAGCTG GTTTAGTGAA
2161 CCGTCAGATC CGCTAGCGCT ACCGGTCGCC ACCATGGTGA GCAAGGGCGC CGAGCTGTTC
2221 ACCGGCATCG TGCCCATCCT GATCGAGCTG AATGGCGATG TGAATGGCCA CAAGTTCAGC
2281 GTGAGCGGCG AGGGCGAGGG CGATGCCACC TACGGCAAGC TGACCCTGAA GTTCATCTGC
2341 ACCACCGGCA AGCTGCCTGT GCCCTGGCCC ACCCTGGTGA CCACCCTGAG CTACGGCGTG
2401 CAGTGCTTCT CACGCTACCC CGATCACATG AAGCAGCACG ACTTCTTCAA GAGCGCCATG
2461 CCTGAGGGCT ACATCCAGGA GCGCACCATC TTCTTCGAGG ATGACGGCAA CTACAAGTCG
2521 CGCGCCGAGG TGAAGTTCGA GGGCGATACC CTGGTGAATC GCATCGAGCT GACCGGCACC
2581 GATTTCAAGG AGGATGGCAA CATCCTGGGC AATAAGATGG AGTACAACTA CAACGCCCAC
2641 AATGTGTACA TCATGACCGA CAAGGCCAAG AATGGCATCA AGGTGAACTT CAAGATCCGC
2701 CACAACATCG AGGATGGCAG CGTGCAGCTG GCCGACCACT ACCAGCAGAA TACCCCCATC
2761 GGCGATGGCC CTGTGCTGCT GCCCGATAAC CACTACCTGT CCACCCAGAG CGCCCTGTCC
2821 AAGGACCCCA ACGAGAAGCG CGATCACATG ATCTACTTCG GCTTCGTGAC CGCCGCCGCC
2881 ATCACCCACG GCATGGATGA GCTGTACAAG TCCGGACTCA GATCTCGAGC TCAAGCTTCG
2941 AATTCTGCAG TCGACGGTAC CGCGGGCCCG GGATCCACCG GATCTAGATA ACTGATCATA
3001 ATTCTACCGG GTAGGGGAGG CGCTTTTCCC AAGGCAGTCT GGAGCATGCG CTTTAGCAGC
3061 CCCGCTGGGC ACTTGGCGCT ACACAAGTGG CCTCTGGCCT CGCACACATT CCACATCCAC
3121 CGGTAGGCGC CAACCGGCTC CGTTCTTTGG TGGCCCCTTC GCGCCACCTT CTACTCCTCC
3181 CCTAGTCAGG AAGTTCCCCC CCGCCCCGCA GCTCGCGTCG TGCAGGACGT GACAAATGGA
3241 AGTAGCACGT CTCACTAGTC TCGTGCAGAT GGACAGCACC GCTGAGCAAT GGAAGCGGGT
3301 AGGCCTTTGG GGCAGCGGCC AATAGCAGCT TTGCTCCTTC GCTTTCTGGG CTCAGAGGCT
3361 GGGAAGGGGT GGGTCCGGGG GCGGGCTCAG GGGCGGGCTC AGGGGCGGGG CGGGCGCCCG
3421 AAGGTCCTCC GGAGGCCCGG CATTCTGCAC GCTTCAAAAG CGCACGTCTG CCGCGCTGTT
3481 CTCCTCTTCC TCATCTCCGG GCCTTTCGAC CTGCAGCCCA AGCTTACCAT GACCGAGTAC
3541 AAGCCCACGG TGCGCCTCGC CACCCGCGAC GACGTCCCCA GGGCCGTACG CACCCTCGCC
3601 GCCGCGTTCG CCGACTACCC CGCCACGCGC CACACCGTCG ATCCGGACCG CCACATCGAG
3661 CGGGTCACCG AGCTGCAAGA ACTCTTCCTC ACGCGCGTCG GGCTCGACAT CGGCAAGGTG
3721 TGGGTCGCGG ACGACGGCGC CGCGGTGGCG GTCTGGACCA CGCCGGAGAG CGTCGAAGCG
3781 GGGGCGGTGT TCGCCGAGAT CGGCCCGCGC ATGGCCGAGT TGAGCGGTTC CCGGCTGGCC
3841 GCGCAGCAAC AGATGGAAGG CCTCCTGGCG CCGCACCGGC CCAAGGAGCC CGCGTGGTTC
3901 CTGGCCACCG TCGGCGTCTC GCCCGACCAC CAGGGCAAGG GTCTGGGCAG CGCCGTCGTG
3961 CTCCCCGGAG TGGAGGCGGC CGAGCGCGCC GGGGTGCCCG CCTTCCTGGA GACCTCCGCG
4021 CCCCGCAACC TCCCCTTCTA CGAGCGGCTC GGCTTCACCG TCACCGCCGA CGTCGAGGTG
4081 CCCGAAGGAC CGCGCACCTG GTGCATGACC CGCAAGCCCG GTGCCTGACG CCCGCCCCAC
4141 GACCCGCAGC GCCCGACCGA AAGGAGCGCA CGACCCCATG CATCGGCGTC TCGATCGAGA
4201 TATCAGTGGT CCAGGCTCTA GTTTTGACTC AACAATATCA CCAGCTGAAG CCTATAGAGT
4261 ACGAGCCATA GATAAAATAA AAGATTTTAT TTAGTCTCCA GAAAAAGGGG GGAATGAAAG
4321 ACCCCACCTG TAGGTTTGGC AAGCTACTAG CTTAAGTAAC GCCATTTTGC AAGGCATGGA
4381 AAAATACATA ACTGAGAATA GAGAAGTTCA GATCAAGGTC AGGAACAGAT GGAACAGGGT
4441 CGATCGACCC TAGAGAACCA TCAGATGTTT CCAGGGTGCC CCAAGGACCT GAAATGACCC
4501 TGTGCCTTAT TTGAACTAAC CAATCAGTTC GCTTCTCGCT TCTGTTCGCG CGCTTCTGCT
4561 CCCCGAGCTC AATAAAAGAG CCCACAACCC CTCACTCGGG GCGCCAGTCC TCCGATTGAC
4621 TGAGTCGCCC GGGTACCCGT GTATCCAATA AACCCTCTTG CAGTTGCATC CGACTTGTGG
4681 TCTCGCTGTT CCTTGGGAGG GTCTCCTCTG AGTGATTGAC TACCCGTCAG CGGGGGTCTT
4741 TCATTTGGGG GCTCGTCCGG GATCGGGAGA CCCCTGCCCA GGGACCACCG ACCCACCACC
4801 GGGAGGTAAG CTGGCTGCCT CGCGCGTTTC GGTGATGACG GTGAAAACCT CTGACACATG
4861 CAGCTCCCGG AGACGGTCAC AGCTTGTCTG TAAGCGGATG CCGGGAGCAG ACAAGCCCGT
4921 CAGGGCGCGT CAGCGGGTGT TGGCGGGTGT CGGGGCGCAG CCATGACCCA GTCACGTAGC
4981 GATAGCGGAG TGTAGATCCG GCTGTGGAAT GTGTGTCAGT TAGGGTGTGG AAAGTCCCCA
5041 GGCTCCCCAG CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC AACCAGGTGT
5101 GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA
5161 GCAACCATAG TCCCGCCCCT AACTCCGCCC ATCCCGCCCC TAACTCCGCC CAGTTCCGCC
5221 CATTCTCCGC CCCATGGCTG ACTAATTTTT TTTATTTATG CAGAGGCCGA GGCCGCCTCG
5281 GCCTCTGAGC TATTCCAGAA GTAGTGAGGA GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA
5341 AAGCTTACTG GCTTAACTAT GCGGCATCAG AGCAGATTGT ACTGAGAGTG CACCATATGC
5401 GGTGTGAAAT ACCGCACAGA TGCGTAAGGA GAAAATACCG CATCAGGCGC TCTTCCGCTT
5461 CCTCGCTCAC TGACTCGCTG CGCTCGGTCG TTCGGCTGCG GCGAGCGGTA TCAGCTCACT
5521 CAAAGGCGGT AATACGGTTA TCCACAGAAT CAGGGGATAA CGCAGGAAAG AACATGTGAG
5581 CAAAAGGCCA GCAAAAGGCC AGGAACCGTA AAAAGGCCGC GTTGCTGGCG TTTTTCCATA
5641 GGCTCCGCCC CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG TGGCGAAACC
5701 CGACAGGACT ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG CGCTCTCCTG
5761 TTCCGACCCT GCCGCTTACC GGATACCTGT CCGCCTTTCT CCCTTCGGGA AGCGTGGCGC
5821 TTTCTCATAG CTCACGCTGT AGGTATCTCA GTTCGGTGTA GGTCGTTCGC TCCAAGCTGG
5881 GCTGTGTGCA CGAACCCCCC GTTCAGCCCG ACCGCTGCGC CTTATCCGGT AACTATCGTC
5941 TTGAGTCCAA CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT GGTAACAGGA
6001 TTAGCAGAGC GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG CCTAACTACG
6061 GCTACACTAG AAGGACAGTA TTTGGTATCT GCGCTCTGCT GAAGCCAGTT ACCTTCGGAA
6121 AAAGAGTTGG TAGCTCTTGA TCCGGCAAAC AAACCACCGC TGGTAGCGGT GGTTTTTTTG
6181 TTTGCAAGCA GCAGATTACG CGCAGAAAAA AAGGATCTCA AGAAGATCCT TTGATCTTTT
6241 CTACGGGGTC TGACGCTCAG TGGAACGAAA ACTCACGTTA AGGGATTTTG GTCATGAGAT
6301 TATCAAAAAG GATCTTCACC TAGATCCTTT TAAATTAAAA ATGAAGTTTT AAATCAATCT
6361 AAAGTATATA TGAGTAAACT TGGTCTGACA GTTACCAATG CTTAATCAGT GAGGCACCTA
6421 TCTCAGCGAT CTGTCTATTT CGTTCATCCA TAGTTGCCTG ACTCCCCGTC GTGTAGATAA
6481 CTACGATACG GGAGGGCTTA CCATCTGGCC CCAGTGCTGC AATGATACCG CGAGACCCAC
6541 GCTCACCGGC TCCAGATTTA TCAGCAATAA ACCAGCCAGC CGGAAGGGCC GAGCGCAGAA
6601 GTGGTCCTGC AACTTTATCC GCCTCCATCC AGTCTATTAA TTGTTGCCGG GAAGCTAGAG
6661 TAAGTAGTTC GCCAGTTAAT AGTTTGCGCA ACGTTGTTGC CATTGCTGCA GGCATCGTGG
6721 TGTCACGCTC GTCGTTTGGT ATGGCTTCAT TCAGCTCCGG TTCCCAACGA TCAAGGCGAG
6781 TTACATGATC CCCCATGTTG TGCAAAAAAG CGGTTAGCTC CTTCGGTCCT CCGATCGTTG
6841 TCAGAAGTAA GTTGGCCGCA GTGTTATCAC TCATGGTTAT GGCAGCACTG CATAATTCTC
6901 TTACTGTCAT GCCATCCGTA AGATGCTTTT CTGTGACTGG TGAGTACTCA ACCAAGTCAT
6961 TCTGAGAATA GTGTATGCGG CGACCGAGTT GCTCTTGCCC GGCGTCAACA CGGGATAATA
7021 CCGCGCCACA TAGCAGAACT TTAAAAGTGC TCATCATTGG AAAACGTTCT TCGGGGCGAA
7081 AACTCTCAAG GATCTTACCG CTGTTGAGAT CCAGTTCGAT GTAACCCACT CGTGCACCCA
7141 ACTGATCTTC AGCATCTTTT ACTTTCACCA GCGTTTCTGG GTGAGCAAAA ACAGGAAGGC
7201 AAAATGCCGC AAAAAAGGGA ATAAGGGCGA CACGGAAATG TTGAATACTC ATACTCTTCC
7261 TTTTTCAATA TTATTGAAGC ATTTATCAGG GTTATTGTCT CATGAGCGGA TACATATTTG
7321 AATGTATTTA GAAAAATAAA CAAATAGGGG TTCCGCGCAC ATTTCCCCGA AAAGTGCCAC
7381 CTGACGTCTA AGAAACCATT ATTATCATGA CATTAACCTA TAAAAATAGG CGTATCACGA
7441 GGCCCTTTCG TCTTCAAGAA TTAGCTTGGC CATTGCATAC GTTGTATCCA TATCATAATA
7501 TGTACATTTA TATTGGCTCA TGTCCAACAT TACCGCCATG TTGACATTGA TTATTGACTA
7561 GTTATTAATA GTAATCAATT ACGGGGTCAT TAGTTCATAG CCCATATATG GAGT
//
