| 出品公司: | Clontech |
|---|---|
| 载体名称: | pRetroQ-mCherry-N1 |
| 质粒类型: | 逆病毒载体；荧光报告载体 |
| 高拷贝/低拷贝: | 低拷贝 |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | CMV IE |
| 载体大小: | 7597 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | mCherry(C-端） |
| 载体抗性: | 氨苄青霉素 |
| 筛选标记: | 嘌呤霉素（Puromycin） |
| 克隆菌株: | DH5α |
| 宿主细胞（系）: | 常规细胞系（293、CV-1、CHO等）、原代细胞 |
| 备注: |
pRetroQ-mCherry-N1载体是自我失活型逆病毒载体，表达C端mCherry融合蛋白； pRetroQ-mCherry-N1载体能够高效递送目的基因到靶细胞中，尤其适用于原代细胞和其 它难转染的细胞系。 |
| 产品目录号: | 632568 |
| 稳定性: | 稳表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 逆转录病毒 |
买家导航
pRetroQ-mCherry-N1载体质粒基本信息

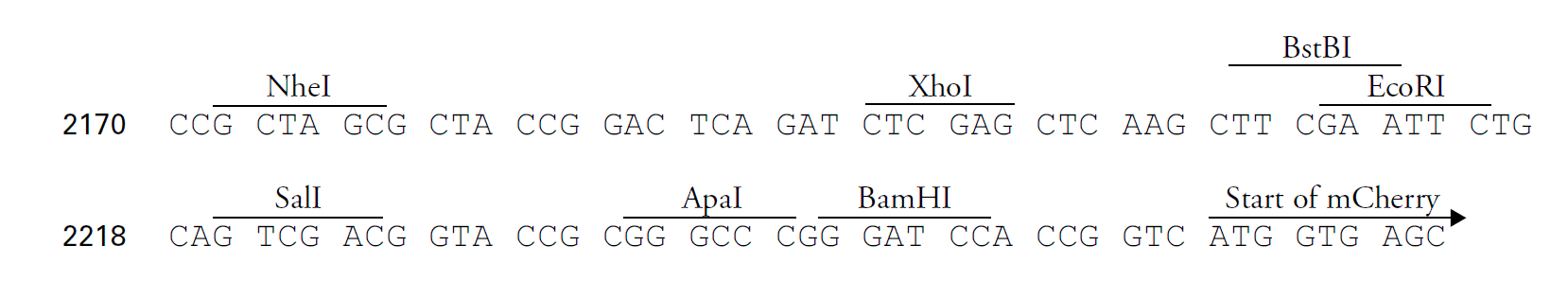

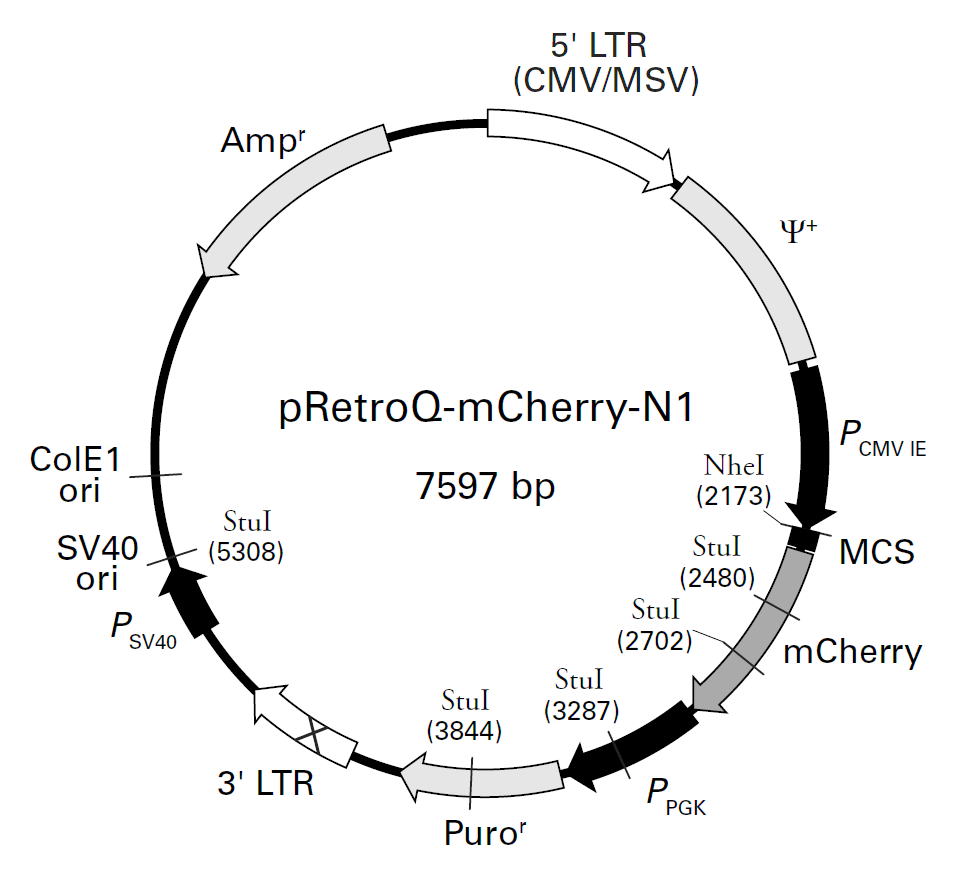

pRetroQ-mCherry-N1质粒图谱载体图谱和pRetroQ-mCherry-N1载体序列质粒序列多克隆位点信息
pRetroQ-mCherry-N1质粒载体简介
pRetroQ-mCherry-N1载体描述
pRetroQ-mCherry-N1 is a high-titer, self-inactivating retroviral vector that facilitates efficient delivery and expression of mCherry, or N-terminal mCherry fusions, to target cells. mCherry is a mutant fluorescent protein derived from the tetrameric Discosoma sp. red fluorescent protein, DsRed (1). The excitation and emission maxima of the native mCherry protein are 587 nm and 610 nm, respectively.
The MCS in pRetroQ-mCherry-N1 lies between the human cytomegalovirus immediate-early promoter (PCMV IE) and the mCherry coding sequences. Genes cloned into the MCS are expressed as N-terminal mCherry fusion proteins when they are in the same reading frame as mCherry and there are no intervening stop codons.
The RetroQ retroviral vector backbone incorporates several unique features. This vector contains a puromycin resistance cassette (Puror) driven by the PGK promoter (PPGK) for selection of positively-infected cells (2).The hybrid 5’ long terminal repeat (LTR) consists of the CMV type I enhancer and the murine sarcoma virus (MSV) promoter. This vector demonstrates high levels of transcription in HEK 293-based packaging cell lines due, in part, to the presence of adenoviral E1A (3–6) in these cells. The self-inactivating feature of the vector is provided by a deletion in the 3’ LTR enhancer region (U3). During reverse transcription of the retroviral RNA, the inactivated 3’ LTR is copied and replaces the5’ LTR CMV enhancer sequences. This can reduce the phenomenon known as promoter interference (7) and allow more efficient expression.
Additionally, the viral genomic transcript contains the necessary viral RNA processing elements, including the LTRs, packaging signal (ψ+), and tRNA primer binding site. pRetroQ-mCherry-N1 contains a bacterial origin of replication, an E. coli Ampr gene for propagation and selection in bacteria, and an SV40 origin for replication in mammalian cells expressing the SV40 large T antigen.
pRetroQ-mCherry-N1 is designed to efficiently deliver and express N-terminal mCherry fusions into primary cells or cells that are difficult to transfect. N-terminal mCherry fusion proteins retain the fluorescent properties of the native protein, allowing the in vivo localization of the fusion protein. The gene of interest should be cloned into pRetroQ mCherry-N1 so that it is in frame with the mCherry coding sequence. The inserted gene should include an initiation codon (ATG) and lack in-frame stop codons. The recombinant mCherry vector can be transduced or transfected into mammalian cells. If required, stable transformants can be selected using puromycin. pRetroQ-mCherry-N1 can also be used simply to express mCherry in a cell line of interest (e.g., as an infection marker).
Before pRetroQ-mCherry-N1 can be transduced into mammalian cells, it must be transfected into a packaging cell line (such as the RetroPack PT67 Cell line, AmphoPack-293, EcoPack2-293, Pantropic Expression System, or Retro-X Universal Packaging System. The packaging cell line supplies the viral structural genes (gag, pol, and env) necessary for particle formation and replication that pRetroQ-mCherry-N1 lacks, allowing RNA from the vector to be packaged into non-infectious, replication-incompetent retroviral particles. Once a high-titer supernatant is produced, these retroviral particles can infect target cells and transmit the gene of interest, but they cannot replicate within the target cells due to the absence of viral structural genes. The separate introduction and integration of the structural genes into the packaging cell line minimizes the chances of producing replication-competent virus caused by recombination events during cell proliferation.
Propagation in E. coli
Suitable host strains: DH5α, Fusion Blue, and other general-purpose strains.
Selectable marker: plasmid confers resistance to ampicillin (100 μg/ml) in E. coli hosts.
E. coli replication origin: ColE1
Copy number: low
Excitation and emission maxima of mCherry
Excitation maximum = 587 nm
Emission maximum = 610 nm
pRetroQ-mCherry-N1质粒序列载体序列
LOCUS pRetroQ-mCherry-N1 7597 bp DNA SYN
DEFINITION pRetroQ-mCherry-N1
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.

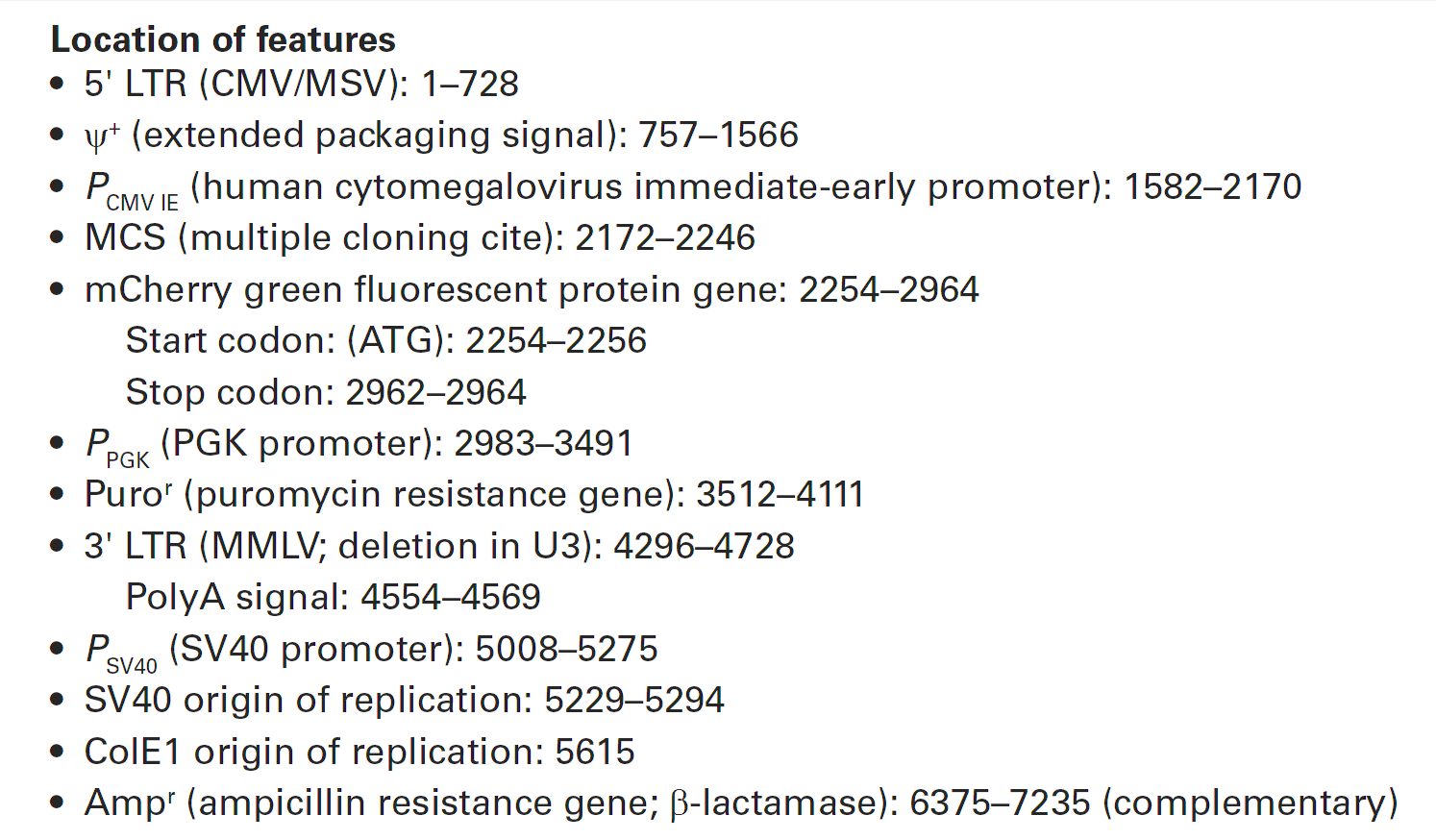

FEATURES Location/Qualifiers
source 1..7597
/organism="pRetroQ-mCherry-N1"
/mol_type="other DNA"
promoter 2..506
/label="CMV_immearly_promoter"
misc_feature 6..688
/label="5_LTR"
misc_feature 9..296
/label="CAG_enhancer"
misc_feature 463..483
/label="CMV_fwd_primer"
misc_feature 758..1567
/label="psi_plus_pack"
misc_feature 1154..1561
/label="gag"
misc_feature 1497..1519
/label="MSCV_primer"
misc_feature 1497..1519
/label="pLXSN_5_primer"
misc_feature 1535..1551
/label="pBABE_5_primer"
promoter 1591..2143
/label="CMV_immearly_promoter"
misc_feature 1646..1933
/label="CAG_enhancer"
misc_feature 2100..2120
/label="CMV_fwd_primer"
promoter 2101..2170
/label="CMV_promoter"
CDS 2254..2964
/label="ORF frame 1"
/translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
YERAEGRHSTGGMDELYK*"
gene 2257..2961
/label="mCherry"
/gene="mCherry"
/translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
YERAEGRHSTGGMDELYK*"
misc_feature 2434..2487
/label="Q66M (mCherry)"
/translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
YERAEGRHSTGGMDELYK*"
misc_feature complement(3027..3050)
/label="MSCV_rev_primer"
/translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
YERAEGRHSTGGMDELYK*"
CDS 3272..4111
/label="ORF frame 2"
/translation="MEAGRPLGQRPIAALLLRFLGSEAGKGWVRGRAQGRAQGRGGRP
KVLRRPGILHASKAHVCRAVLLFLISGPFDLQPKLTMTEYKPTVRLATRDDVPRAVRT
LAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPE
SVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKG
LGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFTVTADVEVPEGPRTWCMTRK
PGA*"
misc_feature 3424..3443
/label="mPGK_F_primer"
/translation="MEAGRPLGQRPIAALLLRFLGSEAGKGWVRGRAQGRAQGRGGRP
KVLRRPGILHASKAHVCRAVLLFLISGPFDLQPKLTMTEYKPTVRLATRDDVPRAVRT
LAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPE
SVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKG
LGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFTVTADVEVPEGPRTWCMTRK
PGA*"
CDS complement(3437..4162)
/label="ORF frame 1"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
gene 3512..4111
/label="puro (variant)"
/gene="puro (variant)"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
misc_feature complement(4831..4853)
/label="pGEX_3_primer"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
misc_feature complement(4989..5009)
/label="pBABE_3_primer"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
misc_feature complement(4995..5210)
/label="SV40_enhancer"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
promoter 5007..5275
/label="SV40_promoter"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
rep_origin 5174..5251
/label="SV40_origin"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
misc_feature 5236..5255
/label="SV40pro_F_primer"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
gene complement(6375..7235)
/label="Ampicillin"
/gene="Ampicillin"
/translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
KLGLQVERPGDEEEENSAADVRF*"
CDS complement(6375..7235)
/label="ORF frame 3"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter complement(7277..7305)
/label="AmpR_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter 7527..506
/label="CMV_immearly_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
misc_feature 7591..688
/label="5_LTR"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
ORIGIN
1 TCCGCGTTAC ATAACTTACG GTAAATGGCC CGCCTGGCTG ACCGCCCAAC GACCCCCGCC
61 CATTGACGTC AATAATGACG TATGTTCCCA TAGTAACGCC AATAGGGACT TTCCATTGAC
121 GTCAATGGGT GGAGTATTTA CGGTAAACTG CCCACTTGGC AGTACATCAA GTGTATCATA
181 TGCCAAGTAC GCCCCCTATT GACGTCAATG ACGGTAAATG GCCCGCCTGG CATTATGCCC
241 AGTACATGAC CTTATGGGAC TTTCCTACTT GGCAGTACAT CTACGTATTA GTCATCGCTA
301 TTACCATGGT GATGCGGTTT TGGCAGTACA TCAATGGGCG TGGATAGCGG TTTGACTCAC
361 GGGGATTTCC AAGTCTCCAC CCCATTGACG TCAATGGGAG TTTGTTTTGG CACCAAAATC
421 AACGGGACTT TCCAAAATGT CGTAACAACT CCGCCCCATT GACGCAAATG GGCGGTAGGC
481 GTGTACGGTG GGAGGTCTAT ATAAGCAGAG CTCAATAAAA GAGCCCACAA CCCCTCACTC
541 GGCGCGCCAG TCTTCCGATA GACTGCGTCG CCCGGGTACC CGTATTCCCA ATAAAGCCTC
601 TTGCTGTTTG CATCCGAATC GTGGTCTCGC TGTTCCTTGG GAGGGTCTCC TCTGAGTGAT
661 TGACTACCCA CGACGGGGGT CTTTCATTTG GGGGCTCGTC CGGGATTTGG AGACCCCTGC
721 CCAGGGACCA CCGACCCACC ACCGGGAGGT AAGCTGGCCA GCAACTTATC TGTGTCTGTC
781 CGATTGTCTA GTGTCTATGT TTGATGTTAT GCGCCTGCGT CTGTACTAGT TAGCTAACTA
841 GCTCTGTATC TGGCGGACCC GTGGTGGAAC TGACGAGTTC TGAACACCCG GCCGCAACCC
901 TGGGAGACGT CCCAGGGACT TTGGGGGCCG TTTTTGTGGC CCGACCTGAG GAAGGGAGTC
961 GATGTGGAAT CCGACCCCGT CAGGATATGT GGTTCTGGTA GGAGACGAGA ACCTAAAACA
1021 GTTCCCGCCT CCGTCTGAAT TTTTGCTTTC GGTTTGGAAC CGAAGCCGCG CGTCTTGTCT
1081 GCTGCAGCGC TGCAGCATCG TTCTGTGTTG TCTCTGTCTG ACTGTGTTTC TGTATTTGTC
1141 TGAAAATTAG GGCCAGACTG TTACCACTCC CTTAAGTTTG ACCTTAGGTC ACTGGAAAGA
1201 TGTCGAGCGG ATCGCTCACA ACCAGTCGGT AGATGTCAAG AAGAGACGTT GGGTTACCTT
1261 CTGCTCTGCA GAATGGCCAA CCTTTAACGT CGGATGGCCG CGAGACGGCA CCTTTAACCG
1321 AGACCTCATC ACCCAGGTTA AGATCAAGGT CTTTTCACCT GGCCCGCATG GACACCCAGA
1381 CCAGGTCCCC TACATCGTGA CCTGGGAAGC CTTGGCTTTT GACCCCCCTC CCTGGGTCAA
1441 GCCCTTTGTA CACCCTAAGC CTCCGCCTCC TCTTCCTCCA TCCGCCCCGT CTCTCCCCCT
1501 TGAACCTCCT CGTTCGACCC CGCCTCGATC CTCCCTTTAT CCAGCCCTCA CTCCTTCTCT
1561 AGGCGCCGGA ATTGAAGATC ATAGTTATTA ATAGTAATCA ATTACGGGGT CATTAGTTCA
1621 TAGCCCATAT ATGGAGTTCC GCGTTACATA ACTTACGGTA AATGGCCCGC CTGGCTGACC
1681 GCCCAACGAC CCCCGCCCAT TGACGTCAAT AATGACGTAT GTTCCCATAG TAACGCCAAT
1741 AGGGACTTTC CATTGACGTC AATGGGTGGA GTATTTACGG TAAACTGCCC ACTTGGCAGT
1801 ACATCAAGTG TATCATATGC CAAGTACGCC CCCTATTGAC GTCAATGACG GTAAATGGCC
1861 CGCCTGGCAT TATGCCCAGT ACATGACCTT ATGGGACTTT CCTACTTGGC AGTACATCTA
1921 CGTATTAGTC ATCGCTATTA CCATGGTGAT GCGGTTTTGG CAGTACATCA ATGGGCGTGG
1981 ATAGCGGTTT GACTCACGGG GATTTCCAAG TCTCCACCCC ATTGACGTCA ATGGGAGTTT
2041 GTTTTGGCAC CAAAATCAAC GGGACTTTCC AAAATGTCGT AACAACTCCG CCCCATTGAC
2101 GCAAATGGGC GGTAGGCGTG TACGGTGGGA GGTCTATATA AGCAGAGCTG GTTTAGTGAA
2161 CCGTCAGATC CGCTAGCGCT ACCGGACTCA GATCTCGAGC TCAAGCTTCG AATTCTGCAG
2221 TCGACGGTAC CGCGGGCCCG GGATCCACCG GTCATGGTGA GCAAGGGCGA GGAGGATAAC
2281 ATGGCCATCA TCAAGGAGTT CATGCGCTTC AAGGTGCACA TGGAGGGCTC CGTGAACGGC
2341 CACGAGTTCG AGATCGAGGG CGAGGGCGAG GGCCGCCCCT ACGAGGGCAC CCAGACCGCC
2401 AAGCTGAAGG TGACCAAGGG TGGCCCCCTG CCCTTCGCCT GGGACATCCT GTCCCCTCAG
2461 TTCATGTACG GCTCCAAGGC CTACGTGAAG CACCCCGCCG ACATCCCCGA CTACTTGAAG
2521 CTGTCCTTCC CCGAGGGCTT CAAGTGGGAG CGCGTGATGA ACTTCGAGGA CGGCGGCGTG
2581 GTGACCGTGA CCCAGGACTC CTCCCTGCAG GACGGCGAGT TCATCTACAA GGTGAAGCTG
2641 CGCGGCACCA ACTTCCCCTC CGACGGCCCC GTAATGCAGA AGAAGACCAT GGGCTGGGAG
2701 GCCTCCTCCG AGCGGATGTA CCCCGAGGAC GGCGCCCTGA AGGGCGAGAT CAAGCAGAGG
2761 CTGAAGCTGA AGGACGGCGG CCACTACGAC GCTGAGGTCA AGACCACCTA CAAGGCCAAG
2821 AAGCCCGTGC AGCTGCCCGG CGCCTACAAC GTCAACATCA AGTTGGACAT CACCTCCCAC
2881 AACGAGGACT ACACCATCGT GGAACAGTAC GAACGCGCCG AGGGCCGCCA CTCCACCGGC
2941 GGCATGGACG AGCTGTACAA GTGAGCGGCC GCGACTCTAG ATAATTCTAC CGGGTAGGGG
3001 AGGCGCTTTT CCCAAGGCAG TCTGGAGCAT GCGCTTTAGC AGCCCCGCTG GGCACTTGGC
3061 GCTACACAAG TGGCCTCTGG CCTCGCACAC ATTCCACATC CACCGGTAGG CGCCAACCGG
3121 CTCCGTTCTT TGGTGGCCCC TTCGCGCCAC CTTCTACTCC TCCCCTAGTC AGGAAGTTCC
3181 CCCCCGCCCC GCAGCTCGCG TCGTGCAGGA CGTGACAAAT GGAAGTAGCA CGTCTCACTA
3241 GTCTCGTGCA GATGGACAGC ACCGCTGAGC AATGGAAGCG GGTAGGCCTT TGGGGCAGCG
3301 GCCAATAGCA GCTTTGCTCC TTCGCTTTCT GGGCTCAGAG GCTGGGAAGG GGTGGGTCCG
3361 GGGGCGGGCT CAGGGGCGGG CTCAGGGGCG GGGCGGGCGC CCGAAGGTCC TCCGGAGGCC
3421 CGGCATTCTG CACGCTTCAA AAGCGCACGT CTGCCGCGCT GTTCTCCTCT TCCTCATCTC
3481 CGGGCCTTTC GACCTGCAGC CCAAGCTTAC CATGACCGAG TACAAGCCCA CGGTGCGCCT
3541 CGCCACCCGC GACGACGTCC CCAGGGCCGT ACGCACCCTC GCCGCCGCGT TCGCCGACTA
3601 CCCCGCCACG CGCCACACCG TCGATCCGGA CCGCCACATC GAGCGGGTCA CCGAGCTGCA
3661 AGAACTCTTC CTCACGCGCG TCGGGCTCGA CATCGGCAAG GTGTGGGTCG CGGACGACGG
3721 CGCCGCGGTG GCGGTCTGGA CCACGCCGGA GAGCGTCGAA GCGGGGGCGG TGTTCGCCGA
3781 GATCGGCCCG CGCATGGCCG AGTTGAGCGG TTCCCGGCTG GCCGCGCAGC AACAGATGGA
3841 AGGCCTCCTG GCGCCGCACC GGCCCAAGGA GCCCGCGTGG TTCCTGGCCA CCGTCGGCGT
3901 CTCGCCCGAC CACCAGGGCA AGGGTCTGGG CAGCGCCGTC GTGCTCCCCG GAGTGGAGGC
3961 GGCCGAGCGC GCCGGGGTGC CCGCCTTCCT GGAGACCTCC GCGCCCCGCA ACCTCCCCTT
4021 CTACGAGCGG CTCGGCTTCA CCGTCACCGC CGACGTCGAG GTGCCCGAAG GACCGCGCAC
4081 CTGGTGCATG ACCCGCAAGC CCGGTGCCTG ACGCCCGCCC CACGACCCGC AGCGCCCGAC
4141 CGAAAGGAGC GCACGACCCC ATGCATCGGC GTCTCGATCG AGATATCAGT GGTCCAGGCT
4201 CTAGTTTTGA CTCAACAATA TCACCAGCTG AAGCCTATAG AGTACGAGCC ATAGATAAAA
4261 TAAAAGATTT TATTTAGTCT CCAGAAAAAG GGGGGAATGA AAGACCCCAC CTGTAGGTTT
4321 GGCAAGCTAC TAGCTTAAGT AACGCCATTT TGCAAGGCAT GGAAAAATAC ATAACTGAGA
4381 ATAGAGAAGT TCAGATCAAG GTCAGGAACA GATGGAACAG GGTCGATCGA CCCTAGAGAA
4441 CCATCAGATG TTTCCAGGGT GCCCCAAGGA CCTGAAATGA CCCTGTGCCT TATTTGAACT
4501 AACCAATCAG TTCGCTTCTC GCTTCTGTTC GCGCGCTTCT GCTCCCCGAG CTCAATAAAA
4561 GAGCCCACAA CCCCTCACTC GGGGCGCCAG TCCTCCGATT GACTGAGTCG CCCGGGTACC
4621 CGTGTATCCA ATAAACCCTC TTGCAGTTGC ATCCGACTTG TGGTCTCGCT GTTCCTTGGG
4681 AGGGTCTCCT CTGAGTGATT GACTACCCGT CAGCGGGGGT CTTTCATTTG GGGGCTCGTC
4741 CGGGATCGGG AGACCCCTGC CCAGGGACCA CCGACCCACC ACCGGGAGGT AAGCTGGCTG
4801 CCTCGCGCGT TTCGGTGATG ACGGTGAAAA CCTCTGACAC ATGCAGCTCC CGGAGACGGT
4861 CACAGCTTGT CTGTAAGCGG ATGCCGGGAG CAGACAAGCC CGTCAGGGCG CGTCAGCGGG
4921 TGTTGGCGGG TGTCGGGGCG CAGCCATGAC CCAGTCACGT AGCGATAGCG GAGTGTAGAT
4981 CCGGCTGTGG AATGTGTGTC AGTTAGGGTG TGGAAAGTCC CCAGGCTCCC CAGCAGGCAG
5041 AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCAGG TGTGGAAAGT CCCCAGGCTC
5101 CCCAGCAGGC AGAAGTATGC AAAGCATGCA TCTCAATTAG TCAGCAACCA TAGTCCCGCC
5161 CCTAACTCCG CCCATCCCGC CCCTAACTCC GCCCAGTTCC GCCCATTCTC CGCCCCATGG
5221 CTGACTAATT TTTTTTATTT ATGCAGAGGC CGAGGCCGCC TCGGCCTCTG AGCTATTCCA
5281 GAAGTAGTGA GGAGGCTTTT TTGGAGGCCT AGGCTTTTGC AAAAAGCTTA CTGGCTTAAC
5341 TATGCGGCAT CAGAGCAGAT TGTACTGAGA GTGCACCATA TGCGGTGTGA AATACCGCAC
5401 AGATGCGTAA GGAGAAAATA CCGCATCAGG CGCTCTTCCG CTTCCTCGCT CACTGACTCG
5461 CTGCGCTCGG TCGTTCGGCT GCGGCGAGCG GTATCAGCTC ACTCAAAGGC GGTAATACGG
5521 TTATCCACAG AATCAGGGGA TAACGCAGGA AAGAACATGT GAGCAAAAGG CCAGCAAAAG
5581 GCCAGGAACC GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC ATAGGCTCCG CCCCCCTGAC
5641 GAGCATCACA AAAATCGACG CTCAAGTCAG AGGTGGCGAA ACCCGACAGG ACTATAAAGA
5701 TACCAGGCGT TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC CTGTTCCGAC CCTGCCGCTT
5761 ACCGGATACC TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG CGCTTTCTCA TAGCTCACGC
5821 TGTAGGTATC TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC TGGGCTGTGT GCACGAACCC
5881 CCCGTTCAGC CCGACCGCTG CGCCTTATCC GGTAACTATC GTCTTGAGTC CAACCCGGTA
5941 AGACACGACT TATCGCCACT GGCAGCAGCC ACTGGTAACA GGATTAGCAG AGCGAGGTAT
6001 GTAGGCGGTG CTACAGAGTT CTTGAAGTGG TGGCCTAACT ACGGCTACAC TAGAAGGACA
6061 GTATTTGGTA TCTGCGCTCT GCTGAAGCCA GTTACCTTCG GAAAAAGAGT TGGTAGCTCT
6121 TGATCCGGCA AACAAACCAC CGCTGGTAGC GGTGGTTTTT TTGTTTGCAA GCAGCAGATT
6181 ACGCGCAGAA AAAAAGGATC TCAAGAAGAT CCTTTGATCT TTTCTACGGG GTCTGACGCT
6241 CAGTGGAACG AAAACTCACG TTAAGGGATT TTGGTCATGA GATTATCAAA AAGGATCTTC
6301 ACCTAGATCC TTTTAAATTA AAAATGAAGT TTTAAATCAA TCTAAAGTAT ATATGAGTAA
6361 ACTTGGTCTG ACAGTTACCA ATGCTTAATC AGTGAGGCAC CTATCTCAGC GATCTGTCTA
6421 TTTCGTTCAT CCATAGTTGC CTGACTCCCC GTCGTGTAGA TAACTACGAT ACGGGAGGGC
6481 TTACCATCTG GCCCCAGTGC TGCAATGATA CCGCGAGACC CACGCTCACC GGCTCCAGAT
6541 TTATCAGCAA TAAACCAGCC AGCCGGAAGG GCCGAGCGCA GAAGTGGTCC TGCAACTTTA
6601 TCCGCCTCCA TCCAGTCTAT TAATTGTTGC CGGGAAGCTA GAGTAAGTAG TTCGCCAGTT
6661 AATAGTTTGC GCAACGTTGT TGCCATTGCT GCAGGCATCG TGGTGTCACG CTCGTCGTTT
6721 GGTATGGCTT CATTCAGCTC CGGTTCCCAA CGATCAAGGC GAGTTACATG ATCCCCCATG
6781 TTGTGCAAAA AAGCGGTTAG CTCCTTCGGT CCTCCGATCG TTGTCAGAAG TAAGTTGGCC
6841 GCAGTGTTAT CACTCATGGT TATGGCAGCA CTGCATAATT CTCTTACTGT CATGCCATCC
6901 GTAAGATGCT TTTCTGTGAC TGGTGAGTAC TCAACCAAGT CATTCTGAGA ATAGTGTATG
6961 CGGCGACCGA GTTGCTCTTG CCCGGCGTCA ACACGGGATA ATACCGCGCC ACATAGCAGA
7021 ACTTTAAAAG TGCTCATCAT TGGAAAACGT TCTTCGGGGC GAAAACTCTC AAGGATCTTA
7081 CCGCTGTTGA GATCCAGTTC GATGTAACCC ACTCGTGCAC CCAACTGATC TTCAGCATCT
7141 TTTACTTTCA CCAGCGTTTC TGGGTGAGCA AAAACAGGAA GGCAAAATGC CGCAAAAAAG
7201 GGAATAAGGG CGACACGGAA ATGTTGAATA CTCATACTCT TCCTTTTTCA ATATTATTGA
7261 AGCATTTATC AGGGTTATTG TCTCATGAGC GGATACATAT TTGAATGTAT TTAGAAAAAT
7321 AAACAAATAG GGGTTCCGCG CACATTTCCC CGAAAAGTGC CACCTGACGT CTAAGAAACC
7381 ATTATTATCA TGACATTAAC CTATAAAAAT AGGCGTATCA CGAGGCCCTT TCGTCTTCAA
7441 GAATTAGCTT GGCCATTGCA TACGTTGTAT CCATATCATA ATATGTACAT TTATATTGGC
7501 TCATGTCCAA CATTACCGCC ATGTTGACAT TGATTATTGA CTAGTTATTA ATAGTAATCA
7561 ATTACGGGGT CATTAGTTCA TAGCCCATAT ATGGAGT
//
pRetroQ-mCherry-N1载体图谱质粒图谱pdf版和pRetroQ-mCherry-N1载体序列质粒序列等相关资料下载
pRetroQ-mCherry-N1质粒载体应用举例
- 上一篇：pRetroQ-mCherry-C1
- 下一篇：pRetroX-G1-Red
