| 出品公司: | Clontech |
|---|---|
| 载体名称: | pDsRed-Express2-1 |
| 质粒类型: | 无启动子载体；荧光报告载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | 无启动子 |
| 载体大小: | 4107 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | 红色荧光蛋白DsRed-Express2 |
| 载体抗性: | 卡那霉素 |
| 筛选标记: | 新霉素（Neomycin） |
| 克隆菌株: | DH5α, HB101 |
| 宿主细胞（系）: | 真核细胞 |
| 备注: | pDsRed-Express2-1载体不含启动子，将待研究的目的启动子插入MCS区，用于研究启动子及顺式转录元件在细胞内的 作用水平。 |
| 产品目录号: | 632536 |
| 稳定性: | 瞬表达 或 稳表达 |
| 组成型/诱导型: | -- |
| 病毒/非病毒: | 非病毒 |
买家导航
pDsRed-Express2-1载体质粒基本信息
pDsRed-Express2-1质粒图谱载体图谱和pDsRed-Express2-1载体序列质粒序列多克隆位点信息
pDsRed-Express2-1质粒载体简介
pDsRed-Express2-1载体描述
pDsRed-Express2-1 is a promoterless reporter vector that allows the functional analysis of promoters and promoter/enhancer combinations cloned into its multiple cloning site (MCS). The vector encodes DsRed-Express2, a variant of the Discosoma sp. red fluorescent protein, DsRed (1). DsRed-Express2 retains the fast maturation and high photostability characteristic of its predecessor, DsRed-Express (2), and has been engineered (through additional amino acid substitutions) for increased solubility (3). Although it most likely forms the same tetrameric structure as wild-type DsRed, DsRed-Express2 displays a greatly reduced tendency to aggregate, resulting in reduced cyto- and phototoxicity, and making DsRed-Express2 much better suited for in vivo applications involving sensitive cells, such as primary or stem cells. DsRed-Express2 also exhibits extremely low residual green fluorescence, which allows cells expressing the protein to be effectively separated from other fluorescently labeled cell populations by flow cytometry.
The sequence immediately upstream of DsRed-Express2 has been converted to a Kozak consensus sequence (4) to enhance translational efficiency in eukaryotic cells. SV40 polyadenylation signals down-stream of the DsRed-Express2 gene direct proper processing of the 3' end of the DsRed-Express2 mRNA. The vector backbone contains an SV40 origin for replication in mammalian cells expressing the SV40 large T antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin-resistance cassette (Neor) allows stably transfected eukaryotic cells to be selected using G418 (5). This cassette consists of the SV40 early promoter, a Tn5 kanamycin/neomycin resistance gene, and herpes simplex virus thymidine kinase (HSV TK) polyadenylation signals. A bacterial promoter upstream of the cassette expresses kanamycin resistance in E. coli.
pDsRed-Express2-1 is designed to be used as an in vivo reporter of gene expression. Promoters should be cloned into the pDsRed-Express2-1 MCS, located upstream of the DsRed-Express2 coding sequence. Without the addition of a functional promoter, this vector will not express DsRed-Express2.
The pDsRed-Express2-1 vector can be transfected into mammalian cells using any standard transfection method. Mammalian cells expressing DsRed-Express2 (excitation and emission maxima: 554 and 591 nm, respectively) can be detected by either fluorescence microscopy or flow cytometry 8–12 hours after transfection. If required, stable transfectants can be selected using G418.

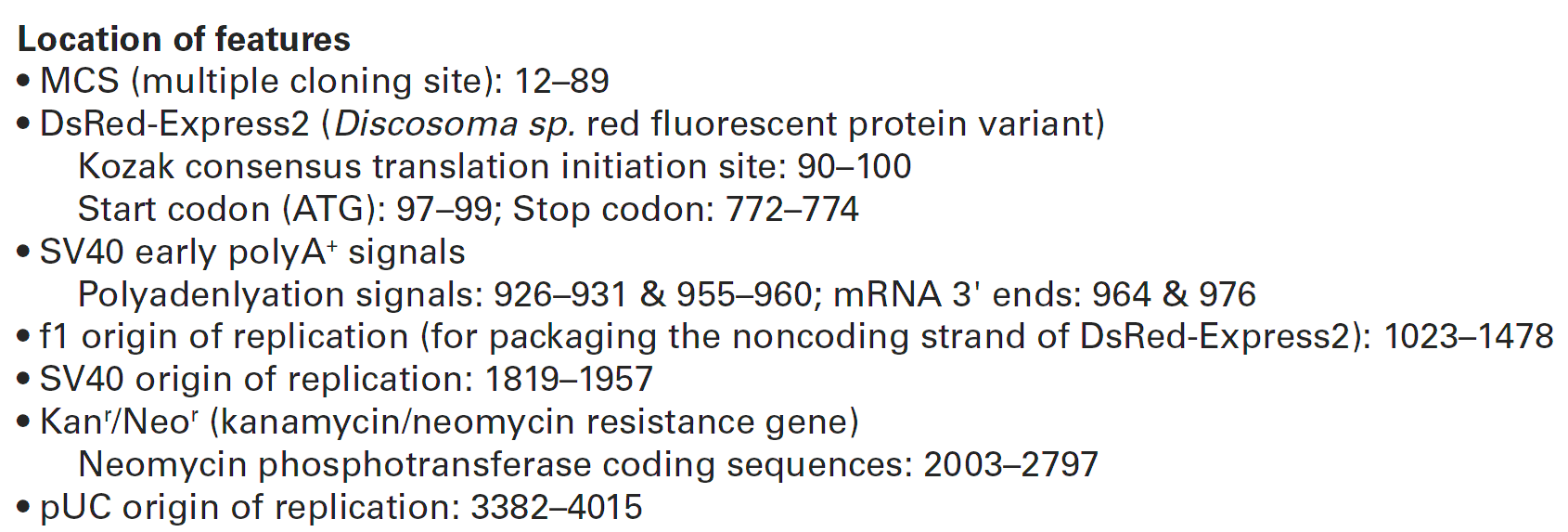

pDsRed-Express2-1载体含有以下元件：

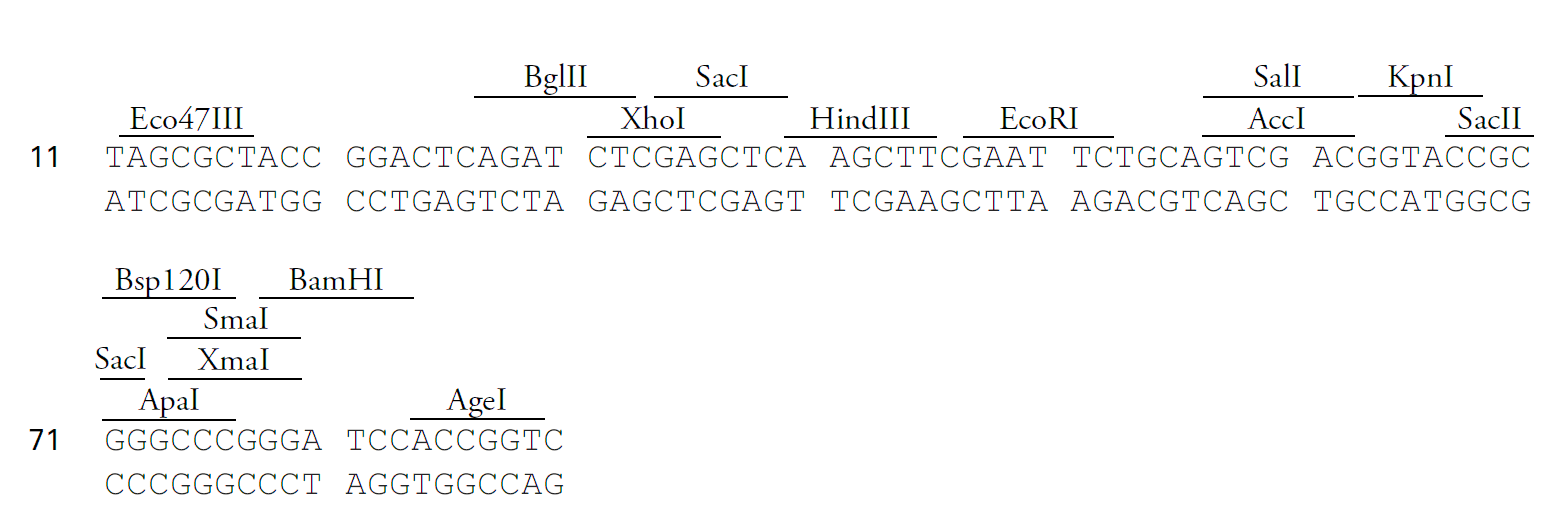

MCS (multiple cloning site): 12–89
DsRed-Express2 (Discosoma sp. red fluorescent protein variant)
Kozak consensus translation initiation site: 90–100
Start codon (ATG): 97–99; Stop codon: 772–774
SV40 early polyA+ signals
Polyadenlyation signals: 926–931 & 955–960; mRNA 3' ends: 964 & 976
f1 origin of replication (for packaging the noncoding strand of DsRed-Express2): 1023–1478
SV40 origin of replication: 1819–1957
Kanr/Neor (kanamycin/neomycin resistance gene)
Neomycin phosphotransferase coding sequences: 2003–2797
pUC origin of replication: 3382–4015
Propagation in E. coli
Recommended host strain: DH5α, HB101, and other general purpose strains. Single-stranded DNA production
requires a host containing an F plasmid such as JM109 or XL1-Blue.
Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) in E. coli hosts.
E. coli replication origin: pUC
Copy number: high
Plasmid incompatibility group: pMB1/ColE1
Excitation and emission maxima of DsRed-Express2
Excitation maximum = 554 nm
Emission maximum = 591 nm
pDsRed-Express2-1质粒序列载体序列
LOCUS pDsRed-Express2-1 4107 bp DNA SYN
DEFINITION pDsRed-Express2-1
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4107
/organism="pDsRed-Express2-1"
/mol_type="other DNA"
CDS 97..774
/label="ORF frame 1"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
gene 100..771
/label="E2_Crimson (variant)"
/gene="E2_Crimson (variant)"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
misc_feature complement(277..297)
/label="dsRed1_N_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
misc_feature 689..712
/label="dsRed1_C_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
misc_feature 986..1005
/label="EBV_rev_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
rep_origin complement(1155..1461)
/label="f1_origin"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
promoter 1540..1568
/label="AmpR_promoter"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
misc_feature complement(1634..1654)
/label="pBABE_3_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
misc_feature complement(1640..1855)
/label="SV40_enhancer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
promoter 1652..1920
/label="SV40_promoter"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
rep_origin 1819..1896
/label="SV40_origin"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
misc_feature 1881..1900
/label="SV40pro_F_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQ*"
CDS 2003..2797
/label="ORF frame 2"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
gene 2006..2794
/label="NeoR/KanR"
/gene="NeoR/KanR"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
CDS complement(2312..2848)
/label="ORF frame 3"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
terminator 2972..3241
/label="TK_PA_terminator"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
rep_origin 3389..4008
/label="pBR322_origin"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
ORIGIN
1 TAGTTATTAC TAGCGCTACC GGACTCAGAT CTCGAGCTCA AGCTTCGAAT TCTGCAGTCG
61 ACGGTACCGC GGGCCCGGGA TCCACCGGTC GCCACCATGG ATAGCACTGA GAACGTCATC
121 AAGCCCTTCA TGCGCTTCAA GGTGCACATG GAGGGCTCCG TGAACGGCCA CGAGTTCGAG
181 ATCGAGGGCG AGGGCGAGGG CAAGCCCTAC GAGGGCACCC AGACCGCCAA GCTGCAGGTG
241 ACCAAGGGCG GCCCCCTGCC CTTCGCCTGG GACATCCTGT CCCCCCAGTT CCAGTACGGC
301 TCCAAGGTGT ACGTGAAGCA CCCCGCCGAC ATCCCCGACT ACAAGAAGCT GTCCTTCCCC
361 GAGGGCTTCA AGTGGGAGCG CGTGATGAAC TTCGAGGACG GCGGCGTGGT GACCGTGACC
421 CAGGACTCCT CCCTGCAGGA CGGCACCTTC ATCTACCACG TGAAGTTCAT CGGCGTGAAC
481 TTCCCCTCCG ACGGCCCCGT AATGCAGAAG AAGACTCTGG GCTGGGAGCC CTCCACCGAG
541 CGCCTGTACC CCCGCGACGG CGTGCTGAAG GGCGAGATCC ACAAGGCGCT GAAGCTGAAG
601 GGCGGCGGCC ACTACCTGGT GGAGTTCAAG TCAATCTACA TGGCCAAGAA GCCCGTGAAG
661 CTGCCCGGCT ACTACTACGT GGACTCCAAG CTGGACATCA CCTCCCACAA CGAGGACTAC
721 ACCGTGGTGG AGCAGTACGA GCGCGCCGAG GCCCGCCACC ACCTGTTCCA GTAGCGGCCG
781 CGACTCTAGA TCATAATCAG CCATACCACA TTTGTAGAGG TTTTACTTGC TTTAAAAAAC
841 CTCCCACACC TCCCCCTGAA CCTGAAACAT AAAATGAATG CAATTGTTGT TGTTAACTTG
901 TTTATTGCAG CTTATAATGG TTACAAATAA AGCAATAGCA TCACAAATTT CACAAATAAA
961 GCATTTTTTT CACTGCATTC TAGTTGTGGT TTGTCCAAAC TCATCAATGT ATCTTAAGGC
1021 GTAAATTGTA AGCGTTAATA TTTTGTTAAA ATTCGCGTTA AATTTTTGTT AAATCAGCTC
1081 ATTTTTTAAC CAATAGGCCG AAATCGGCAA AATCCCTTAT AAATCAAAAG AATAGACCGA
1141 GATAGGGTTG AGTGTTGTTC CAGTTTGGAA CAAGAGTCCA CTATTAAAGA ACGTGGACTC
1201 CAACGTCAAA GGGCGAAAAA CCGTCTATCA GGGCGATGGC CCACTACGTG AACCATCACC
1261 CTAATCAAGT TTTTTGGGGT CGAGGTGCCG TAAAGCACTA AATCGGAACC CTAAAGGGAG
1321 CCCCCGATTT AGAGCTTGAC GGGGAAAGCC GGCGAACGTG GCGAGAAAGG AAGGGAAGAA
1381 AGCGAAAGGA GCGGGCGCTA GGGCGCTGGC AAGTGTAGCG GTCACGCTGC GCGTAACCAC
1441 CACACCCGCC GCGCTTAATG CGCCGCTACA GGGCGCGTCA GGTGGCACTT TTCGGGGAAA
1501 TGTGCGCGGA ACCCCTATTT GTTTATTTTT CTAAATACAT TCAAATATGT ATCCGCTCAT
1561 GAGACAATAA CCCTGATAAA TGCTTCAATA ATATTGAAAA AGGAAGAGTC CTGAGGCGGA
1621 AAGAACCAGC TGTGGAATGT GTGTCAGTTA GGGTGTGGAA AGTCCCCAGG CTCCCCAGCA
1681 GGCAGAAGTA TGCAAAGCAT GCATCTCAAT TAGTCAGCAA CCAGGTGTGG AAAGTCCCCA
1741 GGCTCCCCAG CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC AACCATAGTC
1801 CCGCCCCTAA CTCCGCCCAT CCCGCCCCTA ACTCCGCCCA GTTCCGCCCA TTCTCCGCCC
1861 CATGGCTGAC TAATTTTTTT TATTTATGCA GAGGCCGAGG CCGCCTCGGC CTCTGAGCTA
1921 TTCCAGAAGT AGTGAGGAGG CTTTTTTGGA GGCCTAGGCT TTTGCAAAGA TCGATCAAGA
1981 GACAGGATGA GGATCGTTTC GCATGATTGA ACAAGATGGA TTGCACGCAG GTTCTCCGGC
2041 CGCTTGGGTG GAGAGGCTAT TCGGCTATGA CTGGGCACAA CAGACAATCG GCTGCTCTGA
2101 TGCCGCCGTG TTCCGGCTGT CAGCGCAGGG GCGCCCGGTT CTTTTTGTCA AGACCGACCT
2161 GTCCGGTGCC CTGAATGAAC TGCAAGACGA GGCAGCGCGG CTATCGTGGC TGGCCACGAC
2221 GGGCGTTCCT TGCGCAGCTG TGCTCGACGT TGTCACTGAA GCGGGAAGGG ACTGGCTGCT
2281 ATTGGGCGAA GTGCCGGGGC AGGATCTCCT GTCATCTCAC CTTGCTCCTG CCGAGAAAGT
2341 ATCCATCATG GCTGATGCAA TGCGGCGGCT GCATACGCTT GATCCGGCTA CCTGCCCATT
2401 CGACCACCAA GCGAAACATC GCATCGAGCG AGCACGTACT CGGATGGAAG CCGGTCTTGT
2461 CGATCAGGAT GATCTGGACG AAGAGCATCA GGGGCTCGCG CCAGCCGAAC TGTTCGCCAG
2521 GCTCAAGGCG AGCATGCCCG ACGGCGAGGA TCTCGTCGTG ACCCATGGCG ATGCCTGCTT
2581 GCCGAATATC ATGGTGGAAA ATGGCCGCTT TTCTGGATTC ATCGACTGTG GCCGGCTGGG
2641 TGTGGCGGAC CGCTATCAGG ACATAGCGTT GGCTACCCGT GATATTGCTG AAGAGCTTGG
2701 CGGCGAATGG GCTGACCGCT TCCTCGTGCT TTACGGTATC GCCGCTCCCG ATTCGCAGCG
2761 CATCGCCTTC TATCGCCTTC TTGACGAGTT CTTCTGAGCG GGACTCTGGG GTTCGAAATG
2821 ACCGACCAAG CGACGCCCAA CCTGCCATCA CGAGATTTCG ATTCCACCGC CGCCTTCTAT
2881 GAAAGGTTGG GCTTCGGAAT CGTTTTCCGG GACGCCGGCT GGATGATCCT CCAGCGCGGG
2941 GATCTCATGC TGGAGTTCTT CGCCCACCCT AGGGGGAGGC TAACTGAAAC ACGGAAGGAG
3001 ACAATACCGG AAGGAACCCG CGCTATGACG GCAATAAAAA GACAGAATAA AACGCACGGT
3061 GTTGGGTCGT TTGTTCATAA ACGCGGGGTT CGGTCCCAGG GCTGGCACTC TGTCGATACC
3121 CCACCGAGAC CCCATTGGGG CCAATACGCC CGCGTTTCTT CCTTTTCCCC ACCCCACCCC
3181 CCAAGTTCGG GTGAAGGCCC AGGGCTCGCA GCCAACGTCG GGGCGGCAGG CCCTGCCATA
3241 GCCTCAGGTT ACTCATATAT ACTTTAGATT GATTTAAAAC TTCATTTTTA ATTTAAAAGG
3301 ATCTAGGTGA AGATCCTTTT TGATAATCTC ATGACCAAAA TCCCTTAACG TGAGTTTTCG
3361 TTCCACTGAG CGTCAGACCC CGTAGAAAAG ATCAAAGGAT CTTCTTGAGA TCCTTTTTTT
3421 CTGCGCGTAA TCTGCTGCTT GCAAACAAAA AAACCACCGC TACCAGCGGT GGTTTGTTTG
3481 CCGGATCAAG AGCTACCAAC TCTTTTTCCG AAGGTAACTG GCTTCAGCAG AGCGCAGATA
3541 CCAAATACTG TTCTTCTAGT GTAGCCGTAG TTAGGCCACC ACTTCAAGAA CTCTGTAGCA
3601 CCGCCTACAT ACCTCGCTCT GCTAATCCTG TTACCAGTGG CTGCTGCCAG TGGCGATAAG
3661 TCGTGTCTTA CCGGGTTGGA CTCAAGACGA TAGTTACCGG ATAAGGCGCA GCGGTCGGGC
3721 TGAACGGGGG GTTCGTGCAC ACAGCCCAGC TTGGAGCGAA CGACCTACAC CGAACTGAGA
3781 TACCTACAGC GTGAGCTATG AGAAAGCGCC ACGCTTCCCG AAGGGAGAAA GGCGGACAGG
3841 TATCCGGTAA GCGGCAGGGT CGGAACAGGA GAGCGCACGA GGGAGCTTCC AGGGGGAAAC
3901 GCCTGGTATC TTTATAGTCC TGTCGGGTTT CGCCACCTCT GACTTGAGCG TCGATTTTTG
3961 TGATGCTCGT CAGGGGGGCG GAGCCTATGG AAAAACGCCA GCAACGCGGC CTTTTTACGG
4021 TTCCTGGCCT TTTGCTGGCC TTTTGCTCAC ATGTTCTTTC CTGCGTTATC CCCTGATTCT
4081 GTGGATAACC GTATTACCGC CATGCAT
//
pDsRed-Express2-1载体图谱质粒图谱pdf版和pDsRed-Express2-1载体序列质粒序列等相关资料下载
pDsRed-Express2-1质粒载体应用举例
- 上一篇：pDsRed-Express-DR
- 下一篇：pTimer-1
