pECFP-MEM载体质粒基本信息

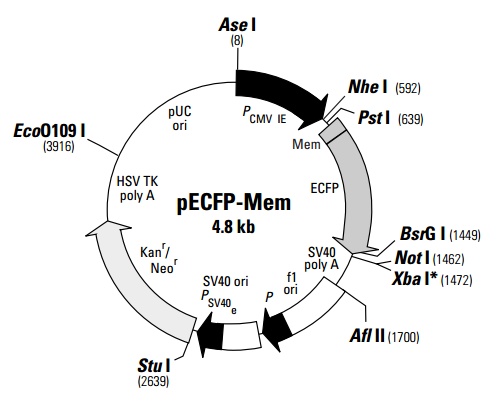

pECFP-MEM质粒图谱载体图谱和pECFP-MEM载体序列质粒序列多克隆位点信息
pECFP-MEM质粒载体简介
pECFP-MEM质粒序列载体序列
LOCUS pECFP-MEM 4793 bp DNA circular SYN 12-JUL-2023
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 4793)
AUTHORS Biofeng
TITLE Direct Submission
JOURNAL Exported Jul 12, 2023 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..4793
/mol_type="other DNA"
/organism="synthetic DNA construct"
enhancer 61..364
/label=CMV enhancer
/note="human cytomegalovirus immediate early enhancer"
promoter 365..568
/label=CMV promoter
/note="human cytomegalovirus (CMV) immediate early
promoter"
misc_feature 591..671
/label=MCS
/note="multiple cloning site"
CDS 739..1458
/codon_start=1
/product="enhanced CFP"
/label=ECFP
/note="mammalian codon-optimized"
/translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
KFICTTGKLPVPWPTLVTTLTWGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYISHNVYITADKQKNGIK
ANFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
EFVTAAGITLGMDELYK"
polyA_signal 1581..1702
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
rep_origin complement(1709..2164)
/direction=LEFT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
promoter 2191..2295
/gene="bla"
/label=AmpR promoter
promoter 2297..2654
/label=SV40 promoter
/note="SV40 enhancer and early promoter"
rep_origin 2505..2640
/label=SV40 ori
/note="SV40 origin of replication"
CDS 2689..3483
/codon_start=1
/gene="aph(3')-II (or nptII)"
/product="aminoglycoside phosphotransferase from Tn5"
/label=NeoR/KanR
/note="confers resistance to neomycin, kanamycin, and G418
(Geneticin(R))"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
polyA_signal 3715..3762
/label=HSV TK poly(A) signal
/note="herpes simplex virus thymidine kinase
polyadenylation signal (Cole and Stacy, 1985)"
rep_origin 4091..4679
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
ORIGIN
1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg
661 gatccaccgg tcgccaccat gctgtgctgt atgagaagaa ccaaacaggt tgaaaagaat
721 gatgaggacc aaaagatcat ggtgagcaag ggcgaggagc tgttcaccgg ggtggtgccc
781 atcctggtcg agctggacgg cgacgtaaac ggccacaagt tcagcgtgtc cggcgagggc
841 gagggcgatg ccacctacgg caagctgacc ctgaagttca tctgcaccac cggcaagctg
901 cccgtgccct ggcccaccct cgtgaccacc ctgacctggg gcgtgcagtg cttcagccgc
961 taccccgacc acatgaagca gcacgacttc ttcaagtccg ccatgcccga aggctacgtc
1021 caggagcgca ccatcttctt caaggacgac ggcaactaca agacccgcgc cgaggtgaag
1081 ttcgagggcg acaccctggt gaaccgcatc gagctgaagg gcatcgactt caaggaggac
1141 ggcaacatcc tggggcacaa gctggagtac aactacatca gccacaacgt ctatatcacc
1201 gccgacaagc agaagaacgg catcaaggcc aacttcaaga tccgccacaa catcgaggac
1261 ggcagcgtgc agctcgccga ccactaccag cagaacaccc ccatcggcga cggccccgtg
1321 ctgctgcccg acaaccacta cctgagcacc cagtccgccc tgagcaaaga ccccaacgag
1381 aagcgcgatc acatggtcct gctggagttc gtgaccgccg ccgggatcac tctcggcatg
1441 gacgagctgt acaagtaaag cggccgcgac tctagatcat aatcagccat accacatttg
1501 tagaggtttt acttgcttta aaaaacctcc cacacctccc cctgaacctg aaacataaaa
1561 tgaatgcaat tgttgttgtt aacttgttta ttgcagctta taatggttac aaataaagca
1621 atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt
1681 ccaaactcat caatgtatct taaggcgtaa attgtaagcg ttaatatttt gttaaaattc
1741 gcgttaaatt tttgttaaat cagctcattt tttaaccaat aggccgaaat cggcaaaatc
1801 ccttataaat caaaagaata gaccgagata gggttgagtg ttgttccagt ttggaacaag
1861 agtccactat taaagaacgt ggactccaac gtcaaagggc gaaaaaccgt ctatcagggc
1921 gatggcccac tacgtgaacc atcaccctaa tcaagttttt tggggtcgag gtgccgtaaa
1981 gcactaaatc ggaaccctaa agggagcccc cgatttagag cttgacgggg aaagccggcg
2041 aacgtggcga gaaaggaagg gaagaaagcg aaaggagcgg gcgctagggc gctggcaagt
2101 gtagcggtca cgctgcgcgt aaccaccaca cccgccgcgc ttaatgcgcc gctacagggc
2161 gcgtcaggtg gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt atttttctaa
2221 atacattcaa atatgtatcc gctcatgaga caataaccct gataaatgct tcaataatat
2281 tgaaaaagga agagtcctga ggcggaaaga accagctgtg gaatgtgtgt cagttagggt
2341 gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt
2401 cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc
2461 atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc
2521 cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg
2581 ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc
2641 taggcttttg caaagatcga tcaagagaca ggatgaggat cgtttcgcat gattgaacaa
2701 gatggattgc acgcaggttc tccggccgct tgggtggaga ggctattcgg ctatgactgg
2761 gcacaacaga caatcggctg ctctgatgcc gccgtgttcc ggctgtcagc gcaggggcgc
2821 ccggttcttt ttgtcaagac cgacctgtcc ggtgccctga atgaactgca agacgaggca
2881 gcgcggctat cgtggctggc cacgacgggc gttccttgcg cagctgtgct cgacgttgtc
2941 actgaagcgg gaagggactg gctgctattg ggcgaagtgc cggggcagga tctcctgtca
3001 tctcaccttg ctcctgccga gaaagtatcc atcatggctg atgcaatgcg gcggctgcat
3061 acgcttgatc cggctacctg cccattcgac caccaagcga aacatcgcat cgagcgagca
3121 cgtactcgga tggaagccgg tcttgtcgat caggatgatc tggacgaaga gcatcagggg
3181 ctcgcgccag ccgaactgtt cgccaggctc aaggcgagca tgcccgacgg cgaggatctc
3241 gtcgtgaccc atggcgatgc ctgcttgccg aatatcatgg tggaaaatgg ccgcttttct
3301 ggattcatcg actgtggccg gctgggtgtg gcggaccgct atcaggacat agcgttggct
3361 acccgtgata ttgctgaaga gcttggcggc gaatgggctg accgcttcct cgtgctttac
3421 ggtatcgccg ctcccgattc gcagcgcatc gccttctatc gccttcttga cgagttcttc
3481 tgagcgggac tctggggttc gaaatgaccg accaagcgac gcccaacctg ccatcacgag
3541 atttcgattc caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg
3601 ccggctggat gatcctccag cgcggggatc tcatgctgga gttcttcgcc caccctaggg
3661 ggaggctaac tgaaacacgg aaggagacaa taccggaagg aacccgcgct atgacggcaa
3721 taaaaagaca gaataaaacg cacggtgttg ggtcgtttgt tcataaacgc ggggttcggt
3781 cccagggctg gcactctgtc gataccccac cgagacccca ttggggccaa tacgcccgcg
3841 tttcttcctt ttccccaccc caccccccaa gttcgggtga aggcccaggg ctcgcagcca
3901 acgtcggggc ggcaggccct gccatagcct caggttactc atatatactt tagattgatt
3961 taaaacttca tttttaattt aaaaggatct aggtgaagat cctttttgat aatctcatga
4021 ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc agaccccgta gaaaagatca
4081 aaggatcttc ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac
4141 caccgctacc agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg
4201 taactggctt cagcagagcg cagataccaa atactgtcct tctagtgtag ccgtagttag
4261 gccaccactt caagaactct gtagcaccgc ctacatacct cgctctgcta atcctgttac
4321 cagtggctgc tgccagtggc gataagtcgt gtcttaccgg gttggactca agacgatagt
4381 taccggataa ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag cccagcttgg
4441 agcgaacgac ctacaccgaa ctgagatacc tacagcgtga gctatgagaa agcgccacgc
4501 ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga acaggagagc
4561 gcacgaggga gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc gggtttcgcc
4621 acctctgact tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc ctatggaaaa
4681 acgccagcaa cgcggccttt ttacggttcc tggccttttg ctggcctttt gctcacatgt
4741 tctttcctgc gttatcccct gattctgtgg ataaccgtat taccgccatg cat
//
