pHcRed1-1

价格:2500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pHcRed1-1载体质粒基本信息

出品公司: Clontech
载体名称: pHcRed1-1
质粒类型: 无启动子载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: 无启动子
载体大小: 4118 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: 红色荧光蛋白HcRed1
载体抗性: 卡那霉素
筛选标记: 新霉素(Neomycin)
克隆菌株: TOP10, DH5α, HB101
宿主细胞(系): 真核细胞
备注: pHcRed1-1载体不含启动子,将待研究的目的启动子插入MCS区,用于研究启动子及顺式转录元件在细胞内的作用水平。
产品目录号: 632411
稳定性: 瞬表达 或 稳表达
组成型/诱导型: --
病毒/非病毒: 非病毒

pHcRed1-1质粒图谱载体图谱和pHcRed1-1载体序列质粒序列多克隆位点信息

pHcRed1-1载体图谱

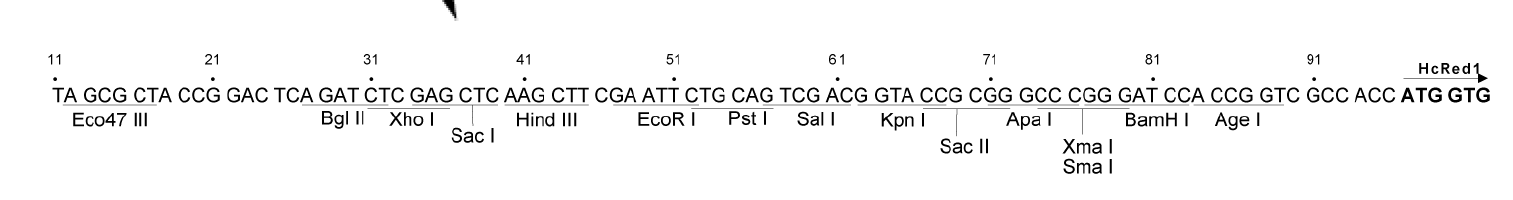

pHcRed1-1 多克隆位点

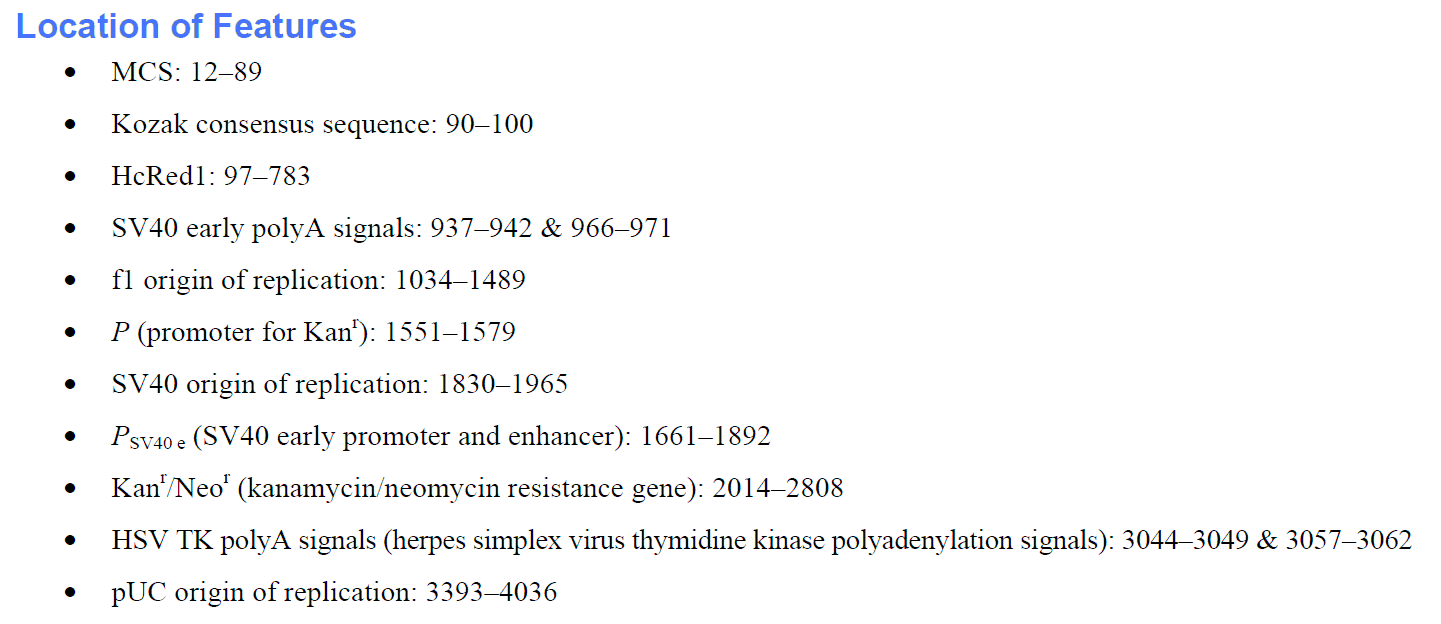

pHcRed1-1 载体特征

pHcRed1-1质粒载体简介

pHcRed1-1质粒序列载体序列

LOCUS       pHcRed1-1	4118 bp 	DNA	SYN
DEFINITION  pHcRed1-1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4118
                     /organism="pHcRed1-1"
                     /mol_type="other DNA"
     CDS             97..783
                     /label="ORF frame 1"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     gene            100..780
                     /label="HcRed1"
                     /gene="HcRed1"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     misc_feature    997..1016
                     /label="EBV_rev_primer"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     rep_origin      complement(1166..1472)
                     /label="f1_origin"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     promoter        1551..1579
                     /label="AmpR_promoter"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     misc_feature    complement(1645..1665)
                     /label="pBABE_3_primer"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     misc_feature    complement(1651..1866)
                     /label="SV40_enhancer"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     promoter        1663..1931
                     /label="SV40_promoter"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     rep_origin      1830..1907
                     /label="SV40_origin"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     misc_feature    1892..1911
                     /label="SV40pro_F_primer"
                     /translation="MVSGLLKESMRIKMYMEGTVNGHYFKCEGEGDGNPFAGTQSMRI
                     HVTEGAPLPFAFDILAPCCEYGSRTFVHHTAEIPDFFKQSFPEGFTWERTTTYEDGGI
                     LTAHQDTSLEGNCLIYKVKVHGTNFPADGPVMKNKSGGWEPSTEVVYPENGVLCGRNV
                     MALKVGDRHLICHHYTSYRSKKAVRALTMPGFHFTDIRLQMLRKKKDEYFELYEASVA
                     RYSDLPEKAN*"
     CDS             2014..2808
                     /label="ORF frame 1"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2017..2805
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2323..2859)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      2983..3252
                     /label="TK_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     rep_origin      3400..4019
                     /label="pBR322_origin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
ORIGIN
    1 TAGTTATTAC TAGCGCTACC GGACTCAGAT CTCGAGCTCA AGCTTCGAAT TCTGCAGTCG
   61 ACGGTACCGC GGGCCCGGGA TCCACCGGTC GCCACCATGG TGAGCGGCCT GCTGAAGGAG
  121 AGTATGCGCA TCAAGATGTA CATGGAGGGC ACCGTGAACG GCCACTACTT CAAGTGCGAG
  181 GGCGAGGGCG ACGGCAACCC CTTCGCCGGC ACCCAGAGCA TGAGAATCCA CGTGACCGAG
  241 GGCGCCCCCC TGCCCTTCGC CTTCGACATC CTGGCCCCCT GCTGCGAGTA CGGCAGCAGG
  301 ACCTTCGTGC ACCACACCGC CGAGATCCCC GACTTCTTCA AGCAGAGCTT CCCCGAGGGC
  361 TTCACCTGGG AGAGAACCAC CACCTACGAG GACGGCGGCA TCCTGACCGC CCACCAGGAC
  421 ACCAGCCTGG AGGGCAACTG CCTGATCTAC AAGGTGAAGG TGCACGGCAC CAACTTCCCC
  481 GCCGACGGCC CCGTGATGAA GAACAAGAGC GGCGGCTGGG AGCCCAGCAC CGAGGTGGTG
  541 TACCCCGAGA ACGGCGTGCT GTGCGGCCGG AACGTGATGG CCCTGAAGGT GGGCGACCGG
  601 CACCTGATCT GCCACCACTA CACCAGCTAC CGGAGCAAGA AGGCCGTGCG CGCCCTGACC
  661 ATGCCCGGCT TCCACTTCAC CGACATCCGG CTCCAGATGC TGCGGAAGAA GAAGGACGAG
  721 TACTTCGAGC TGTACGAGGC CAGCGTGGCC CGGTACAGCG ACCTGCCCGA GAAGGCCAAC
  781 TGAAGCGGCC GCGACTCTAG ATCATAATCA GCCATACCAC ATTTGTAGAG GTTTTACTTG
  841 CTTTAAAAAA CCTCCCACAC CTCCCCCTGA ACCTGAAACA TAAAATGAAT GCAATTGTTG
  901 TTGTTAACTT GTTTATTGCA GCTTATAATG GTTACAAATA AAGCAATAGC ATCACAAATT
  961 TCACAAATAA AGCATTTTTT TCACTGCATT CTAGTTGTGG TTTGTCCAAA CTCATCAATG
 1021 TATCTTAAGG CGTAAATTGT AAGCGTTAAT ATTTTGTTAA AATTCGCGTT AAATTTTTGT
 1081 TAAATCAGCT CATTTTTTAA CCAATAGGCC GAAATCGGCA AAATCCCTTA TAAATCAAAA
 1141 GAATAGACCG AGATAGGGTT GAGTGTTGTT CCAGTTTGGA ACAAGAGTCC ACTATTAAAG
 1201 AACGTGGACT CCAACGTCAA AGGGCGAAAA ACCGTCTATC AGGGCGATGG CCCACTACGT
 1261 GAACCATCAC CCTAATCAAG TTTTTTGGGG TCGAGGTGCC GTAAAGCACT AAATCGGAAC
 1321 CCTAAAGGGA GCCCCCGATT TAGAGCTTGA CGGGGAAAGC CGGCGAACGT GGCGAGAAAG
 1381 GAAGGGAAGA AAGCGAAAGG AGCGGGCGCT AGGGCGCTGG CAAGTGTAGC GGTCACGCTG
 1441 CGCGTAACCA CCACACCCGC CGCGCTTAAT GCGCCGCTAC AGGGCGCGTC AGGTGGCACT
 1501 TTTCGGGGAA ATGTGCGCGG AACCCCTATT TGTTTATTTT TCTAAATACA TTCAAATATG
 1561 TATCCGCTCA TGAGACAATA ACCCTGATAA ATGCTTCAAT AATATTGAAA AAGGAAGAGT
 1621 CCTGAGGCGG AAAGAACCAG CTGTGGAATG TGTGTCAGTT AGGGTGTGGA AAGTCCCCAG
 1681 GCTCCCCAGC AGGCAGAAGT ATGCAAAGCA TGCATCTCAA TTAGTCAGCA ACCAGGTGTG
 1741 GAAAGTCCCC AGGCTCCCCA GCAGGCAGAA GTATGCAAAG CATGCATCTC AATTAGTCAG
 1801 CAACCATAGT CCCGCCCCTA ACTCCGCCCA TCCCGCCCCT AACTCCGCCC AGTTCCGCCC
 1861 ATTCTCCGCC CCATGGCTGA CTAATTTTTT TTATTTATGC AGAGGCCGAG GCCGCCTCGG
 1921 CCTCTGAGCT ATTCCAGAAG TAGTGAGGAG GCTTTTTTGG AGGCCTAGGC TTTTGCAAAG
 1981 ATCGATCAAG AGACAGGATG AGGATCGTTT CGCATGATTG AACAAGATGG ATTGCACGCA
 2041 GGTTCTCCGG CCGCTTGGGT GGAGAGGCTA TTCGGCTATG ACTGGGCACA ACAGACAATC
 2101 GGCTGCTCTG ATGCCGCCGT GTTCCGGCTG TCAGCGCAGG GGCGCCCGGT TCTTTTTGTC
 2161 AAGACCGACC TGTCCGGTGC CCTGAATGAA CTGCAAGACG AGGCAGCGCG GCTATCGTGG
 2221 CTGGCCACGA CGGGCGTTCC TTGCGCAGCT GTGCTCGACG TTGTCACTGA AGCGGGAAGG
 2281 GACTGGCTGC TATTGGGCGA AGTGCCGGGG CAGGATCTCC TGTCATCTCA CCTTGCTCCT
 2341 GCCGAGAAAG TATCCATCAT GGCTGATGCA ATGCGGCGGC TGCATACGCT TGATCCGGCT
 2401 ACCTGCCCAT TCGACCACCA AGCGAAACAT CGCATCGAGC GAGCACGTAC TCGGATGGAA
 2461 GCCGGTCTTG TCGATCAGGA TGATCTGGAC GAAGAGCATC AGGGGCTCGC GCCAGCCGAA
 2521 CTGTTCGCCA GGCTCAAGGC GAGCATGCCC GACGGCGAGG ATCTCGTCGT GACCCATGGC
 2581 GATGCCTGCT TGCCGAATAT CATGGTGGAA AATGGCCGCT TTTCTGGATT CATCGACTGT
 2641 GGCCGGCTGG GTGTGGCGGA CCGCTATCAG GACATAGCGT TGGCTACCCG TGATATTGCT
 2701 GAAGAGCTTG GCGGCGAATG GGCTGACCGC TTCCTCGTGC TTTACGGTAT CGCCGCTCCC
 2761 GATTCGCAGC GCATCGCCTT CTATCGCCTT CTTGACGAGT TCTTCTGAGC GGGACTCTGG
 2821 GGTTCGAAAT GACCGACCAA GCGACGCCCA ACCTGCCATC ACGAGATTTC GATTCCACCG
 2881 CCGCCTTCTA TGAAAGGTTG GGCTTCGGAA TCGTTTTCCG GGACGCCGGC TGGATGATCC
 2941 TCCAGCGCGG GGATCTCATG CTGGAGTTCT TCGCCCACCC TAGGGGGAGG CTAACTGAAA
 3001 CACGGAAGGA GACAATACCG GAAGGAACCC GCGCTATGAC GGCAATAAAA AGACAGAATA
 3061 AAACGCACGG TGTTGGGTCG TTTGTTCATA AACGCGGGGT TCGGTCCCAG GGCTGGCACT
 3121 CTGTCGATAC CCCACCGAGA CCCCATTGGG GCCAATACGC CCGCGTTTCT TCCTTTTCCC
 3181 CACCCCACCC CCCAAGTTCG GGTGAAGGCC CAGGGCTCGC AGCCAACGTC GGGGCGGCAG
 3241 GCCCTGCCAT AGCCTCAGGT TACTCATATA TACTTTAGAT TGATTTAAAA CTTCATTTTT
 3301 AATTTAAAAG GATCTAGGTG AAGATCCTTT TTGATAATCT CATGACCAAA ATCCCTTAAC
 3361 GTGAGTTTTC GTTCCACTGA GCGTCAGACC CCGTAGAAAA GATCAAAGGA TCTTCTTGAG
 3421 ATCCTTTTTT TCTGCGCGTA ATCTGCTGCT TGCAAACAAA AAAACCACCG CTACCAGCGG
 3481 TGGTTTGTTT GCCGGATCAA GAGCTACCAA CTCTTTTTCC GAAGGTAACT GGCTTCAGCA
 3541 GAGCGCAGAT ACCAAATACT GTCCTTCTAG TGTAGCCGTA GTTAGGCCAC CACTTCAAGA
 3601 ACTCTGTAGC ACCGCCTACA TACCTCGCTC TGCTAATCCT GTTACCAGTG GCTGCTGCCA
 3661 GTGGCGATAA GTCGTGTCTT ACCGGGTTGG ACTCAAGACG ATAGTTACCG GATAAGGCGC
 3721 AGCGGTCGGG CTGAACGGGG GGTTCGTGCA CACAGCCCAG CTTGGAGCGA ACGACCTACA
 3781 CCGAACTGAG ATACCTACAG CGTGAGCTAT GAGAAAGCGC CACGCTTCCC GAAGGGAGAA
 3841 AGGCGGACAG GTATCCGGTA AGCGGCAGGG TCGGAACAGG AGAGCGCACG AGGGAGCTTC
 3901 CAGGGGGAAA CGCCTGGTAT CTTTATAGTC CTGTCGGGTT TCGCCACCTC TGACTTGAGC
 3961 GTCGATTTTT GTGATGCTCG TCAGGGGGGC GGAGCCTATG GAAAAACGCC AGCAACGCGG
 4021 CCTTTTTACG GTTCCTGGCC TTTTGCTGGC CTTTTGCTCA CATGTTCTTT CCTGCGTTAT
 4081 CCCCTGATTC TGTGGATAAC CGTATTACCG CCATGCAT
//

pHcRed1-1载体图谱质粒图谱pdf版和pHcRed1-1载体序列质粒序列等相关资料下载

pHcRed1-1质粒载体应用举例
