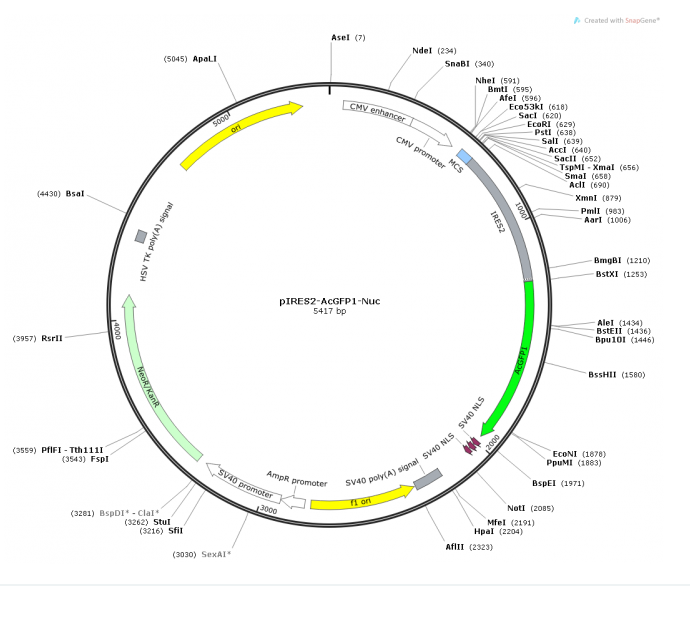

pIRES2-AcGFP1-Nuc

LOCUS       pIRES2-AcGFP1-Nuc                5417 bp DNA     circular SYN 13-JUL-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5417)
  AUTHORS   Biofeng
  TITLE     Direct Submission
  JOURNAL   Exported Jul 13, 2023 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5417
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    609..665
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    667..1253
                     /label=IRES2
                     /note="internal ribosome entry site (IRES) of the
                     encephalomyocarditis virus (EMCV)"
     CDS             1254..1970
                     /codon_start=1
                     /product="Aequorea coerulescens GFP"
                     /label=AcGFP1
                     /note="mammalian codon-optimized"
                     /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFEDD
                     GNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMIYF
                     GFVTAAAITHGMDELYK"
     CDS             1995..2015
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             2019..2039
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             2043..2063
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     polyA_signal    2205..2326
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(2333..2788)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2815..2919
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2921..3278
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3129..3264
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3313..4107
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4339..4386
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4715..5303
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg
      661 gatccgcccc tctccctccc ccccccctaa cgttactggc cgaagccgct tggaataagg
      721 ccggtgtgcg tttgtctata tgttattttc caccatattg ccgtcttttg gcaatgtgag
      781 ggcccggaaa cctggccctg tcttcttgac gagcattcct aggggtcttt cccctctcgc
      841 caaaggaatg caaggtctgt tgaatgtcgt gaaggaagca gttcctctgg aagcttcttg
      901 aagacaaaca acgtctgtag cgaccctttg caggcagcgg aaccccccac ctggcgacag
      961 gtgcctctgc ggccaaaagc cacgtgtata agatacacct gcaaaggcgg cacaacccca
     1021 gtgccacgtt gtgagttgga tagttgtgga aagagtcaaa tggctctcct caagcgtatt
     1081 caacaagggg ctgaaggatg cccagaaggt accccattgt atgggatctg atctggggcc
     1141 tcggtacaca tgctttacat gtgtttagtc gaggttaaaa aaacgtctag gccccccgaa
     1201 ccacggggac gtggttttcc tttgaaaaac acgatgataa tatggccaca accatggtga
     1261 gcaagggcgc cgagctgttc accggcatcg tgcccatcct gatcgagctg aatggcgatg
     1321 tgaatggcca caagttcagc gtgagcggcg agggcgaggg cgatgccacc tacggcaagc
     1381 tgaccctgaa gttcatctgc accaccggca agctgcctgt gccctggccc accctggtga
     1441 ccaccctgag ctacggcgtg cagtgcttct cacgctaccc cgatcacatg aagcagcacg
     1501 acttcttcaa gagcgccatg cctgagggct acatccagga gcgcaccatc ttcttcgagg
     1561 atgacggcaa ctacaagtcg cgcgccgagg tgaagttcga gggcgatacc ctggtgaatc
     1621 gcatcgagct gaccggcacc gatttcaagg aggatggcaa catcctgggc aataagatgg
     1681 agtacaacta caacgcccac aatgtgtaca tcatgaccga caaggccaag aatggcatca
     1741 aggtgaactt caagatccgc cacaacatcg aggatggcag cgtgcagctg gccgaccact
     1801 accagcagaa tacccccatc ggcgatggcc ctgtgctgct gcccgataac cactacctgt
     1861 ccacccagag cgccctgtcc aaggacccca acgagaagcg cgatcacatg atctacttcg
     1921 gcttcgtgac cgccgccgcc atcacccacg gcatggatga gctgtacaag tccggactca
     1981 gatctcgagc tgatccaaaa aagaagagaa aggtagatcc aaaaaagaag agaaaggtag
     2041 atccaaaaaa gaagagaaag gtaggatcca ccggatctag atagcggccg cgactctaga
     2101 tcataatcag ccataccaca tttgtagagg ttttacttgc tttaaaaaac ctcccacacc
     2161 tccccctgaa cctgaaacat aaaatgaatg caattgttgt tgttaacttg tttattgcag
     2221 cttataatgg ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt
     2281 cactgcattc tagttgtggt ttgtccaaac tcatcaatgt atcttaaggc gtaaattgta
     2341 agcgttaata ttttgttaaa attcgcgtta aatttttgtt aaatcagctc attttttaac
     2401 caataggccg aaatcggcaa aatcccttat aaatcaaaag aatagaccga gatagggttg
     2461 agtgttgttc cagtttggaa caagagtcca ctattaaaga acgtggactc caacgtcaaa
     2521 gggcgaaaaa ccgtctatca gggcgatggc ccactacgtg aaccatcacc ctaatcaagt
     2581 tttttggggt cgaggtgccg taaagcacta aatcggaacc ctaaagggag cccccgattt
     2641 agagcttgac ggggaaagcc ggcgaacgtg gcgagaaagg aagggaagaa agcgaaagga
     2701 gcgggcgcta gggcgctggc aagtgtagcg gtcacgctgc gcgtaaccac cacacccgcc
     2761 gcgcttaatg cgccgctaca gggcgcgtca ggtggcactt ttcggggaaa tgtgcgcgga
     2821 acccctattt gtttattttt ctaaatacat tcaaatatgt atccgctcat gagacaataa
     2881 ccctgataaa tgcttcaata atattgaaaa aggaagagtc ctgaggcgga aagaaccagc
     2941 tgtggaatgt gtgtcagtta gggtgtggaa agtccccagg ctccccagca ggcagaagta
     3001 tgcaaagcat gcatctcaat tagtcagcaa ccaggtgtgg aaagtcccca ggctccccag
     3061 caggcagaag tatgcaaagc atgcatctca attagtcagc aaccatagtc ccgcccctaa
     3121 ctccgcccat cccgccccta actccgccca gttccgccca ttctccgccc catggctgac
     3181 taattttttt tatttatgca gaggccgagg ccgcctcggc ctctgagcta ttccagaagt
     3241 agtgaggagg cttttttgga ggcctaggct tttgcaaaga tcgatcaaga gacaggatga
     3301 ggatcgtttc gcatgattga acaagatgga ttgcacgcag gttctccggc cgcttgggtg
     3361 gagaggctat tcggctatga ctgggcacaa cagacaatcg gctgctctga tgccgccgtg
     3421 ttccggctgt cagcgcaggg gcgcccggtt ctttttgtca agaccgacct gtccggtgcc
     3481 ctgaatgaac tgcaagacga ggcagcgcgg ctatcgtggc tggccacgac gggcgttcct
     3541 tgcgcagctg tgctcgacgt tgtcactgaa gcgggaaggg actggctgct attgggcgaa
     3601 gtgccggggc aggatctcct gtcatctcac cttgctcctg ccgagaaagt atccatcatg
     3661 gctgatgcaa tgcggcggct gcatacgctt gatccggcta cctgcccatt cgaccaccaa
     3721 gcgaaacatc gcatcgagcg agcacgtact cggatggaag ccggtcttgt cgatcaggat
     3781 gatctggacg aagagcatca ggggctcgcg ccagccgaac tgttcgccag gctcaaggcg
     3841 agcatgcccg acggcgagga tctcgtcgtg acccatggcg atgcctgctt gccgaatatc
     3901 atggtggaaa atggccgctt ttctggattc atcgactgtg gccggctggg tgtggcggac
     3961 cgctatcagg acatagcgtt ggctacccgt gatattgctg aagagcttgg cggcgaatgg
     4021 gctgaccgct tcctcgtgct ttacggtatc gccgctcccg attcgcagcg catcgccttc
     4081 tatcgccttc ttgacgagtt cttctgagcg ggactctggg gttcgaaatg accgaccaag
     4141 cgacgcccaa cctgccatca cgagatttcg attccaccgc cgccttctat gaaaggttgg
     4201 gcttcggaat cgttttccgg gacgccggct ggatgatcct ccagcgcggg gatctcatgc
     4261 tggagttctt cgcccaccct agggggaggc taactgaaac acggaaggag acaataccgg
     4321 aaggaacccg cgctatgacg gcaataaaaa gacagaataa aacgcacggt gttgggtcgt
     4381 ttgttcataa acgcggggtt cggtcccagg gctggcactc tgtcgatacc ccaccgagac
     4441 cccattgggg ccaatacgcc cgcgtttctt ccttttcccc accccacccc ccaagttcgg
     4501 gtgaaggccc agggctcgca gccaacgtcg gggcggcagg ccctgccata gcctcaggtt
     4561 actcatatat actttagatt gatttaaaac ttcattttta atttaaaagg atctaggtga
     4621 agatcctttt tgataatctc atgaccaaaa tcccttaacg tgagttttcg ttccactgag
     4681 cgtcagaccc cgtagaaaag atcaaaggat cttcttgaga tccttttttt ctgcgcgtaa
     4741 tctgctgctt gcaaacaaaa aaaccaccgc taccagcggt ggtttgtttg ccggatcaag
     4801 agctaccaac tctttttccg aaggtaactg gcttcagcag agcgcagata ccaaatactg
     4861 ttcttctagt gtagccgtag ttaggccacc acttcaagaa ctctgtagca ccgcctacat
     4921 acctcgctct gctaatcctg ttaccagtgg ctgctgccag tggcgataag tcgtgtctta
     4981 ccgggttgga ctcaagacga tagttaccgg ataaggcgca gcggtcgggc tgaacggggg
     5041 gttcgtgcac acagcccagc ttggagcgaa cgacctacac cgaactgaga tacctacagc
     5101 gtgagctatg agaaagcgcc acgcttcccg aagggagaaa ggcggacagg tatccggtaa
     5161 gcggcagggt cggaacagga gagcgcacga gggagcttcc agggggaaac gcctggtatc
     5221 tttatagtcc tgtcgggttt cgccacctct gacttgagcg tcgatttttg tgatgctcgt
     5281 caggggggcg gagcctatgg aaaaacgcca gcaacgcggc ctttttacgg ttcctggcct
     5341 tttgctggcc ttttgctcac atgttctttc ctgcgttatc ccctgattct gtggataacc
     5401 gtattaccgc catgcat
//
