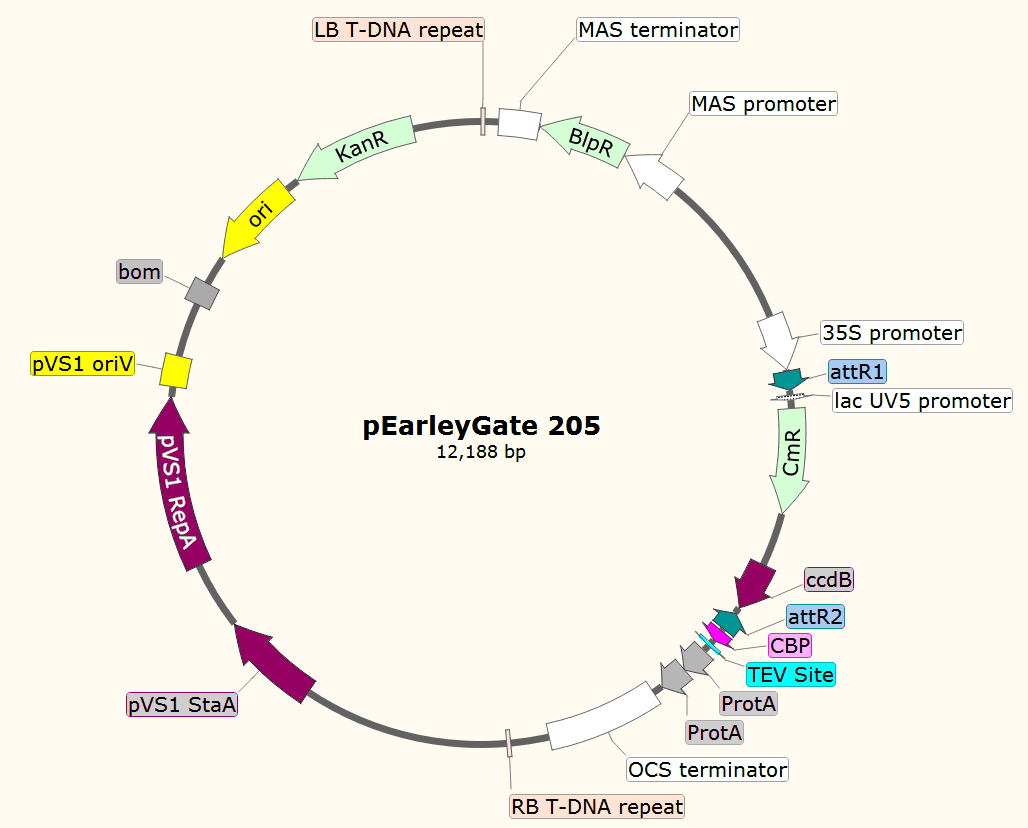

pEarleyGate205

LOCUS       Exported               12188 bp ds-DNA     circular SYN 26-JUL-2016
DEFINITION  Gateway(R)-compatible plant transformation vector with a C-terminal
            TAP tag.
ACCESSION   .
VERSION     .
KEYWORDS    pEarleyGate 205
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 12188)
  AUTHORS   Earley KW, Haag JR, Pontes O, Opper K, Juehne T, Song K, Pikaard CS.
  TITLE     Gateway-compatible vectors for plant functional genomics and
            proteomics.
  JOURNAL   Plant J. 2006;45:616-29.
  PUBMED    16441352
REFERENCE   2  (bases 1 to 12188)
  AUTHORS   Pikaard Lab
  TITLE     Direct Submission
  JOURNAL   Exported Tuesday, July 26, 2016 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
COMMENT     The sequence was corrected by inserting a G at position 8296.
FEATURES             Location/Qualifiers
     source          1..12188
                     /organism="synthetic DNA construct"
                     /lab_host="Plant Cells"
                     /mol_type="other DNA"
     misc_feature    1..25
                     /note="LB T-DNA repeat"
                     /note="left border repeat from nopaline C58 T-DNA"
     terminator      111..363
                     /note="MAS terminator"
                     /note="mannopine synthase terminator"
     CDS             complement(373..924)
                     /codon_start=1
                     /gene="Streptomyces hygroscopicus bar"
                     /product="phosphinothricin acetyltransferase草丁膦（磷丝菌素）
                     乙酰转移酶"
                     /note="BlpR"
                     /note="confers resistance to bialophos or phosphinothricin"
                     /translation="MSPERRPADIRRATEADMPAVCTIVNHYIETSTVNFRTEPQEPQE
                     WTDDLVRLRERYPWLVAEVDGEVAGIAYAGPWKARNAYDWTAESTVYVSPRHQRTGLGS
                     TLYTHLLKSLEAQGFKSVVAVIGLPNDPSVRMHEALGYAPRGMLRAAGFKHGNWHDVGF
                     WQLDFSLPVPPRPVLPVTEI"
     promoter        complement(930..1310)
                     /note="MAS promoter"
                     /note="mannopine synthase promoter (Velten et al., 1984)"
     promoter        2306..2651
                     /note="35S promoter"
                     /note="strong constitutive promoter from cauliflower mosaic
                     virus"
     protein_bind    2663..2782
                     /gene="mutant version of attR"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attR1"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        2812..2842
                     /note="lac UV5 promoter"
                     /note="E. coli lac promoter with an ""up"" mutation"
     CDS             2896..3555
                     /codon_start=1
                     /gene="cat"
                     /product="chloramphenicol acetyltransferase"
                     /note="CmR"
                     /note="confers resistance to chloramphenicol"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFL
                     KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS
                     LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM
                     DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA"
     CDS             3897..4202
                     /codon_start=1
                     /gene="ccdB"
                     /product="CcdB, a bacterial toxin that poisons DNA gyrase"
                     /note="ccdB"
                     /note="Plasmids containing the ccdB gene cannot be
                     propagated in standard E. coli strains."
                     /translation="MQFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDK
                     VSRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI"
     protein_bind    complement(4243..4367)
                     /gene="mutant version of attR"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attR2"
                     /note="recombination site for the Gateway(R) LR reaction"
     CDS             4381..4458
                     /codon_start=1
                     /product="calmodulin-binding peptide"
                     /note="CBP"
                     /note="derived from skeletal muscle myosin light chain
                     kinase; binds calmodulin with nanomolar affinity in the
                     presence of calcium"
                     /translation="KRRWKKNFIAVSAANRFKKISSSGAL"
     CDS             4486..4506
                     /codon_start=1
                     /product="tobacco etch virus (TEV) recognition and cleavage
                     site"
                     /note="TEV Site"
                     /translation="ENLYFQG"
     CDS             4546..4719
                     /codon_start=1
                     /product="IgG-binding unit of Staphylococcus aureus protein
                     A"
                     /note="ProtA"
                     /translation="VDNKFNKEQQNAFYEILHLPNLNEEQRNAFIQSLKDDPSQSANLL
                     AEAKKLNDAQAPK"
     CDS             4720..4893
                     /codon_start=1
                     /product="IgG-binding unit of Staphylococcus aureus protein
                     A"
                     /note="ProtA"
                     /translation="VDNKFNKEQQNAFYEILHLPNLNEEQRNAFIQSLKDDPSQSANLL
                     AEAKKLNGAQAPK"
     terminator      4959..5666
                     /note="OCS terminator"
                     /note="octopine synthase terminator"
     misc_feature    5910..5934
                     /note="RB T-DNA repeat"
                     /note="right border repeat from nopaline C58 T-DNA"
     CDS             7234..7863
                     /codon_start=1
                     /product="stability protein from Pseudomonas plasmid pVS1"
                     /note="pVS1 StaA"
                     /translation="MKVIAVLNQKGGSGKTTIATHLARALQLAGADVLLVDSDPQGSAR
                     DWAAVREDQPLTVVGIDRPTIDRDVKAIGRRDFVVIDGAPQAADLAVSAIKAADFVLIP
                     VQPSPYDIWATADLVELVKQRIEVTDGRLQAAFVVSRAIKGTRIGGEVAEALAGYELPI
                     LESRITQRVSYPGTAAAGTTVLESEPEGDAAREVQALAAEIKSKLI"
     CDS             8292..9365
                     /codon_start=1
                     /product="replication protein from Pseudomonas plasmid
                     pVS1"
                     /note="pVS1 RepA"
                     /translation="MSGRKPSGPVQIGAALGDDLVEKLKAAQAAQRQRIEAEARPGESW
                     QAAADRIRKESRQPPAAGAPSIRKPPKGDEQPDFFVPMLYDVGTRDSRSIMDVAVFRLS
                     KRDRRAGEVIRYELPDGHVEVSAGPAGMASVWDYDLVLMAVSHLTESMNRYREGKGDKP
                     GRVFRPHVADVLKFCRRADGGKQKDDLVETCIRLNTTHVAMQRTKKAKNGRLVTVSEGE
                     ALISRYKIVKSETGRPEYIEIELADWMYREITEGKNPDVLTVHPDYFLIDPGIGRFLYR
                     LARRAAGKAEARWLFKTIYERSGSAGEFKKFCFTVRKLIGSNDLPEYDLKEEAGQAGPI
                     LVMRYRNLIEGEASAGS"
     rep_origin      9431..9625
                     /note="pVS1 oriV"
                     /note="origin of replication for the Pseudomonas plasmid
                     pVS1 (Heeb et al., 2000)"
     misc_feature    9969..10109
                     /note="bom"
                     /note="basis of mobility region from pBR322"
     rep_origin      complement(10295..10883)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(10970..11764)
                     /codon_start=1
                     /gene="aphA-3"
                     /product="aminoglycoside phosphotransferase"
                     /note="KanR"
                     /note="confers resistance to kanamycin"
                     /translation="MAKMRISPELKKLIEKYRCVKDTEGMSPAKVYKLVGENENLYLKM
                     TDSRYKGTTYDVEREKDMMLWLEGKLPVPKVLHFERHDGWSNLLMSEADGVLCSEEYED
                     EQSPEKIIELYAECIRLFHSIDISDCPYTNSLDSRLAELDYLLNNDLADVDCENWEEDT
                     PFKDPRELYDFLKTEKPEEELVFSHGDLGDSNIFVKDGKVSGFIDLGRSGRADKWYDIA
                     FCVRSIREDIGEEQYVELFFDLLGIKPDWEKIKYYILLDELF"
ORIGIN
        1 tggcaggata tattgtggtg taaacaaatt gacgcttaga caacttaata acacattgcg
       61 gacgttttta atgtactgaa ttaacgccga attaattcga gctcggatct gataatttat
      121 ttgaaaattc ataagaaaag caaacgttac atgaattgat gaaacaatac aaagacagat
      181 aaagccacgc acatttagga tattggccga gattactgaa tattgagtaa gatcacggaa
      241 tttctgacag gagcatgtct tcaattcagc ccaaatggca gttgaaatac tcaaaccgcc
      301 ccatatgcag gagcggatca ttcattgttt gtttggttgc ctttgccaac atgggagtcc
      361 aagattctgc agtcaaatct cggtgacggg caggaccgga cggggcggta ccggcaggct
      421 gaagtccagc tgccagaaac ccacgtcatg ccagttcccg tgcttgaagc cggccgcccg
      481 cagcatgccg cggggggcat atccgagcgc ctcgtgcatg cgcacgctcg ggtcgttggg
      541 cagcccgatg acagcgacca cgctcttgaa gccctgtgcc tccagggact tcagcaggtg
      601 ggtgtagagc gtggagccca gtcccgtccg ctggtggcgg ggggagacgt acacggtcga
      661 ctcggccgtc cagtcgtagg cgttgcgtgc cttccagggg cccgcgtagg cgatgccggc
      721 gacctcgccg tccacctcgg cgacgagcca gggatagcgc tcccgcagac ggacgaggtc
      781 gtccgtccac tcctgcggtt cctgcggctc ggtacggaag ttgaccgtgc ttgtctcgat
      841 gtagtggttg acgatggtgc agaccgccgg catgtccgcc tcggtggcac ggcggatgtc
      901 ggccgggcgt cgttctgggc tcatcgattc gatttggtgt atcgagattg gttatgaaat
      961 tcagatgcta gtgtaatgta ttggtaattt gggaagatat aataggaagc aaggctattt
     1021 atccatttct gaaaaggcga aatggcgtca ccgcgagcgt cacgcgcatt ccgttcttgc
     1081 tgtaaagcgt tgtttggtac acttttgact agcgaggctt ggcgtgtcag cgtatctatt
     1141 caaaagtcgt taatggctgc ggatcaagaa aaagttggaa tagaaacaga atacccgcga
     1201 aattcaggcc cggttgccat gtcctacacg ccgaaataaa cgaccaaatt agtagaaaaa
     1261 taaaaactga ctcggatact tacgtcacgt cttgcgcact gatttgaaaa atctcagaat
     1321 tccaatccca caaaaatctg agcttaacag cacagttgct cctctcagag cagaatcggg
     1381 tattcaacac cctcatatca actactacgt tgtgtataac ggtccacatg ccggtatata
     1441 cgatgactgg ggttgtacaa aggcggcaac aaacggcgtt cccggagttg cacacaagaa
     1501 atttgccact attacagagg caagagcagc agctgacgcg tacacaacaa gtcagcaaac
     1561 agacaggttg aacttcatcc ccaaaggaga agctcaactc aagcccaaga gctttgctaa
     1621 ggccctaaca agcccaccaa agcaaaaagc ccactggctc acgctaggaa ccaaaaggcc
     1681 cagcagtgat ccagccccaa aagagatctc ctttgccccg gagattacaa tggacgattt
     1741 cctctatctt tacgatctag gaaggaagtt cgaaggtgaa ggtgacgaca ctatgttcac
     1801 cactgataat gagaaggtta gcctcttcaa tttcagaaag aatgctgacc cacagatggt
     1861 tagagaggcc tacgcagcag gtctcatcaa gacgatctac ccgagtaaca atctccagga
     1921 gatcaaatac cttcccaaga aggttaaaga tgcagtcaaa agattcagga ctaattgcat
     1981 caagaacaca gagaaagaca tatttctcaa gatcagaagt actattccag tatggacgat
     2041 tcaaggcttg cttcataaac caaggcaagt aatagagatt ggagtctcta aaaaggtagt
     2101 tcctactgaa tctaaggcca tgcatggagt ctaagattca aatcgaggat ctaacagaac
     2161 tcgccgtgaa gactggcgaa cagttcatac agagtctttt acgactcaat gacaagaaga
     2221 aaatcttcgt caacatggtg gagcacgaca ctctggtcta ctccaaaaat gtcaaagata
     2281 cagtctcaga agaccaaagg gctattgaga cttttcaaca aaggataatt tcgggaaacc
     2341 tcctcggatt ccattgccca gctatctgtc acttcatcga aaggacagta gaaaaggaag
     2401 gtggctccta caaatgccat cattgcgata aaggaaaggc tatcattcaa gatctctctg
     2461 ccgacagtgg tcccaaagat ggacccccac ccacgaggag catcgtggaa aaagaagacg
     2521 ttccaaccac gtcttcaaag caagtggatt gatgtgacat ctccactgac gtaagggatg
     2581 acgcacaatc ccactatcct tcgcaagacc cttcctctat ataaggaagt tcatttcatt
     2641 tggagaggac acgctcgaga tcacaagttt gtacaaaaaa gctgaacgag aaacgtaaaa
     2701 tgatataaat atcaatatat taaattagat tttgcataaa aaacagacta cataatactg
     2761 taaaacacaa catatccagt catattggcg gccgcattag gcaccccagg ctttacactt
     2821 tatgcttccg gctcgtataa tgtgtggatt ttgagttagg atccgtcgag attttcagga
     2881 gctaaggaag ctaaaatgga gaaaaaaatc actggatata ccaccgttga tatatcccaa
     2941 tggcatcgta aagaacattt tgaggcattt cagtcagttg ctcaatgtac ctataaccag
     3001 accgttcagc tggatattac ggccttttta aagaccgtaa agaaaaataa gcacaagttt
     3061 tatccggcct ttattcacat tcttgcccgc ctgatgaatg ctcatccgga attccgtatg
     3121 gcaatgaaag acggtgagct ggtgatatgg gatagtgttc acccttgtta caccgttttc
     3181 catgagcaaa ctgaaacgtt ttcatcgctc tggagtgaat accacgacga tttccggcag
     3241 tttctacaca tatattcgca agatgtggcg tgttacggtg aaaacctggc ctatttccct
     3301 aaagggttta ttgagaatat gtttttcgtc tcagccaatc cctgggtgag tttcaccagt
     3361 tttgatttaa acgtggccaa tatggacaac ttcttcgccc ccgttttcac catgggcaaa
     3421 tattatacgc aaggcgacaa ggtgctgatg ccgctggcga ttcaggttca tcatgccgtt
     3481 tgtgatggct tccatgtcgg cagaatgctt aatgaattac aacagtactg cgatgagtgg
     3541 cagggcgggg cgtaaacgcg tggatccggc ttactaaaag ccagataaca gtatgcgtat
     3601 ttgcgcgctg atttttgcgg tataagaata tatactgata tgtatacccg aagtatgtca
     3661 aaaagaggta tgctatgaag cagcgtatta cagtgacagt tgacagcgac agctatcagt
     3721 tgctcaaggc atatatgatg tcaatatctc cggtctggta agcacaacca tgcagaatga
     3781 agcccgtcgt ctgcgtgccg aacgctggaa agcggaaaat caggaaggga tggctgaggt
     3841 cgcccggttt attgaaatga acggctcttt tgctgacgag aacaggggct ggtgaaatgc
     3901 agtttaaggt ttacacctat aaaagagaga gccgttatcg tctgtttgtg gatgtacaga
     3961 gtgatattat tgacacgccc gggcgacgga tggtgatccc cctggccagt gcacgtctgc
     4021 tgtcagataa agtctcccgt gaactttacc cggtggtgca tatcggggat gaaagctggc
     4081 gcatgatgac caccgatatg gccagtgtgc cggtctccgt tatcggggaa gaagtggctg
     4141 atctcagcca ccgcgaaaat gacatcaaaa acgccattaa cctgatgttc tggggaatat
     4201 aaatgtcagg ctcccttata cacagccagt ctgcaggtcg accatagtga ctggatatgt
     4261 tgtgttttac agcattatgt agtctgtttt ttatgcaaaa tctaatttaa tatattgata
     4321 tttatatcat tttacgtttc tcgttcagct ttcttgtaca aagtggtgcc taggatggaa
     4381 aagagaagat ggaaaaagaa tttcatagcc gtctcagcag ccaaccgctt taagaaaatc
     4441 tcatcctccg gggcacttga ttatgatatt ccaactactg ctagcgagaa tttgtatttt
     4501 cagggtgagc tcaaaaccgc ggctcttgcg caacacgatg aagccgtgga caacaaattc
     4561 aacaaagaac aacaaaacgc gttctatgag atcttacatt tacctaactt aaacgaagaa
     4621 caacgaaacg ccttcatcca aagtttaaaa gatgacccaa gccaaagcgc taacctttta
     4681 gcagaagcta aaaagctaaa tgatgctcag gcgccgaaag tagacaacaa attcaacaaa
     4741 gaacaacaaa acgcgttcta tgagatctta catttaccta acttaaacga agaacaacga
     4801 aacgccttca tccaaagttt aaaagatgac ccaagccaaa gcgctaacct tttagcagaa
     4861 gctaaaaagc taaatggtgc tcaggcgccg aaagtagacg cgaattccgc ggggaagtca
     4921 acctgattaa ttaagacccg ggactagtcc ctagagtcct gctttaatga gatatgcgag
     4981 acgcctatga tcgcatgata tttgctttca attctgttgt gcacgttgta aaaaacctga
     5041 gcatgtgtag ctcagatcct taccgccggt ttcggttcat tctaatgaat atatcacccg
     5101 ttactatcgt atttttatga ataatattct ccgttcaatt tactgattgt accctactac
     5161 ttatatgtac aatattaaaa tgaaaacaat atattgtgct gaataggttt atagcgacat
     5221 ctatgataga gcgccacaat aacaaacaat tgcgttttat tattacaaat ccaattttaa
     5281 aaaaagcggc agaaccggtc aaacctaaaa gactgattac ataaatctta ttcaaatttc
     5341 aaaagtgccc caggggctag tatctacgac acaccgagcg gcgaactaat aacgctcact
     5401 gaagggaact ccggttcccc gccggcgcgc atgggtgaga ttccttgaag ttgagtattg
     5461 gccgtccgct ctaccgaaag ttacgggcac cattcaaccc ggtccagcac ggcggccggg
     5521 taaccgactt gctgccccga gaattatgca gcattttttt ggtgtatgtg ggccccaaat
     5581 gaagtgcagg tcaaaccttg acagtgacga caaatcgttg ggcgggtcca gggcgaattt
     5641 tgcgacaaca tgtcgaggct cagcaggacc tgcaggcatg caagcttggc actggccgtc
     5701 gttttacaac gtcgtgactg ggaaaaccct ggcgttaccc aacttaatcg ccttgcagca
     5761 catccccctt tcgccagctg gcgtaatagc gaagaggccc gcaccgatcg cccttcccaa
     5821 cagttgcgca gcctgaatgg cgaatgctag agcagcttga gcttggatca gattgtcgtt
     5881 tcccgccttc agtttaaact atcagtgttt gacaggatat attggcgggt aaacctaaga
     5941 gaaaagagcg tttattagaa taacggatat ttaaaagggc gtgaaaaggt ttatccgttc
     6001 gtccatttgt atgtgcatgc caaccacagg gttcccctcg ggatcaaagt actttgatcc
     6061 aacccctccg ctgctatagt gcagtcggct tctgacgttc agtgcagccg tcttctgaaa
     6121 acgacatgtc gcacaagtcc taagttacgc gacaggctgc cgccctgccc ttttcctggc
     6181 gttttcttgt cgcgtgtttt agtcgcataa agtagaatac ttgcgactag aaccggagac
     6241 attacgccat gaacaagagc gccgccgctg gcctgctggg ctatgcccgc gtcagcaccg
     6301 acgaccagga cttgaccaac caacgggccg aactgcacgc ggccggctgc accaagctgt
     6361 tttccgagaa gatcaccggc accaggcgcg accgcccgga gctggccagg atgcttgacc
     6421 acctacgccc tggcgacgtt gtgacagtga ccaggctaga ccgcctggcc cgcagcaccc
     6481 gcgacctact ggacattgcc gagcgcatcc aggaggccgg cgcgggcctg cgtagcctgg
     6541 cagagccgtg ggccgacacc accacgccgg ccggccgcat ggtgttgacc gtgttcgccg
     6601 gcattgccga gttcgagcgt tccctaatca tcgaccgcac ccggagcggg cgcgaggccg
     6661 ccaaggcccg aggcgtgaag tttggccccc gccctaccct caccccggca cagatcgcgc
     6721 acgcccgcga gctgatcgac caggaaggcc gcaccgtgaa agaggcggct gcactgcttg
     6781 gcgtgcatcg ctcgaccctg taccgcgcac ttgagcgcag cgaggaagtg acgcccaccg
     6841 aggccaggcg gcgcggtgcc ttccgtgagg acgcattgac cgaggccgac gccctggcgg
     6901 ccgccgagaa tgaacgccaa gaggaacaag catgaaaccg caccaggacg gccaggacga
     6961 accgtttttc attaccgaag agatcgaggc ggagatgatc gcggccgggt acgtgttcga
     7021 gccgcccgcg cacgtctcaa ccgtgcggct gcatgaaatc ctggccggtt tgtctgatgc
     7081 caagctggcg gcctggccgg ccagcttggc cgctgaagaa accgagcgcc gccgtctaaa
     7141 aaggtgatgt gtatttgagt aaaacagctt gcgtcatgcg gtcgctgcgt atatgatgcg
     7201 atgagtaaat aaacaaatac gcaaggggaa cgcatgaagg ttatcgctgt acttaaccag
     7261 aaaggcgggt caggcaagac gaccatcgca acccatctag cccgcgccct gcaactcgcc
     7321 ggggccgatg ttctgttagt cgattccgat ccccagggca gtgcccgcga ttgggcggcc
     7381 gtgcgggaag atcaaccgct aaccgttgtc ggcatcgacc gcccgacgat tgaccgcgac
     7441 gtgaaggcca tcggccggcg cgacttcgta gtgatcgacg gagcgcccca ggcggcggac
     7501 ttggctgtgt ccgcgatcaa ggcagccgac ttcgtgctga ttccggtgca gccaagccct
     7561 tacgacatat gggccaccgc cgacctggtg gagctggtta agcagcgcat tgaggtcacg
     7621 gatggaaggc tacaagcggc ctttgtcgtg tcgcgggcga tcaaaggcac gcgcatcggc
     7681 ggtgaggttg ccgaggcgct ggccgggtac gagctgccca ttcttgagtc ccgtatcacg
     7741 cagcgcgtga gctacccagg cactgccgcc gccggcacaa ccgttcttga atcagaaccc
     7801 gagggcgacg ctgcccgcga ggtccaggcg ctggccgctg aaattaaatc aaaactcatt
     7861 tgagttaatg aggtaaagag aaaatgagca aaagcacaaa cacgctaagt gccggccgtc
     7921 cgagcgcacg cagcagcaag gctgcaacgt tggccagcct ggcagacacg ccagccatga
     7981 agcgggtcaa ctttcagttg ccggcggagg atcacaccaa gctgaagatg tacgcggtac
     8041 gccaaggcaa gaccattacc gagctgctat ctgaatacat cgcgcagcta ccagagtaaa
     8101 tgagcaaatg aataaatgag tagatgaatt ttagcggcta aaggaggcgg catggaaaat
     8161 caagaacaac caggcaccga cgccgtggaa tgccccatgt gtggaggaac gggcggttgg
     8221 ccaggcgtaa gcggctgggt tgtctgccgg ccctgcaatg gcactggaac ccccaagccc
     8281 gaggaatcgg cgtgagcggt cgcaaaccat ccggcccggt acaaatcggc gcggcgctgg
     8341 gtgatgacct ggtggagaag ttgaaggccg cgcaggccgc ccagcggcaa cgcatcgagg
     8401 cagaagcacg ccccggtgaa tcgtggcaag cggccgctga tcgaatccgc aaagaatccc
     8461 ggcaaccgcc ggcagccggt gcgccgtcga ttaggaagcc gcccaagggc gacgagcaac
     8521 cagatttttt cgttccgatg ctctatgacg tgggcacccg cgatagtcgc agcatcatgg
     8581 acgtggccgt tttccgtctg tcgaagcgtg accgacgagc tggcgaggtg atccgctacg
     8641 agcttccaga cgggcacgta gaggtttccg cagggccggc cggcatggcc agtgtgtggg
     8701 attacgacct ggtactgatg gcggtttccc atctaaccga atccatgaac cgataccggg
     8761 aagggaaggg agacaagccc ggccgcgtgt tccgtccaca cgttgcggac gtactcaagt
     8821 tctgccggcg agccgatggc ggaaagcaga aagacgacct ggtagaaacc tgcattcggt
     8881 taaacaccac gcacgttgcc atgcagcgta cgaagaaggc caagaacggc cgcctggtga
     8941 cggtatccga gggtgaagcc ttgattagcc gctacaagat cgtaaagagc gaaaccgggc
     9001 ggccggagta catcgagatc gagctagctg attggatgta ccgcgagatc acagaaggca
     9061 agaacccgga cgtgctgacg gttcaccccg attacttttt gatcgatccc ggcatcggcc
     9121 gttttctcta ccgcctggca cgccgcgccg caggcaaggc agaagccaga tggttgttca
     9181 agacgatcta cgaacgcagt ggcagcgccg gagagttcaa gaagttctgt ttcaccgtgc
     9241 gcaagctgat cgggtcaaat gacctgccgg agtacgattt gaaggaggag gcggggcagg
     9301 ctggcccgat cctagtcatg cgctaccgca acctgatcga gggcgaagca tccgccggtt
     9361 cctaatgtac ggagcagatg ctagggcaaa ttgccctagc aggggaaaaa ggtcgaaaag
     9421 gtctctttcc tgtggatagc acgtacattg ggaacccaaa gccgtacatt gggaaccgga
     9481 acccgtacat tgggaaccca aagccgtaca ttgggaaccg gtcacacatg taagtgactg
     9541 atataaaaga gaaaaaaggc gatttttccg cctaaaactc tttaaaactt attaaaactc
     9601 ttaaaacccg cctggcctgt gcataactgt ctggccagcg cacagccgaa gagctgcaaa
     9661 aagcgcctac ccttcggtcg ctgcgctccc tacgccccgc cgcttcgcgt cggcctatcg
     9721 cggccgctgg ccgctcaaaa atggctggcc tacggccagg caatctacca gggcgcggac
     9781 aagccgcgcc gtcgccactc gaccgccggc gcccacatca aggcaccctg cctcgcgcgt
     9841 ttcggtgatg acggtgaaaa cctctgacac atgcagctcc cggagacggt cacagcttgt
     9901 ctgtaagcgg atgccgggag cagacaagcc cgtcagggcg cgtcagcggg tgttggcggg
     9961 tgtcggggcg cagccatgac ccagtcacgt agcgatagcg gagtgtatac tggcttaact
    10021 atgcggcatc agagcagatt gtactgagag tgcaccatat gcggtgtgaa ataccgcaca
    10081 gatgcgtaag gagaaaatac cgcatcaggc gctcttccgc ttcctcgctc actgactcgc
    10141 tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt
    10201 tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg
    10261 ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg
    10321 agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat
    10381 accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta
    10441 ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct
    10501 gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc
    10561 ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa
    10621 gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg
    10681 taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact agaaggacag
    10741 tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt
    10801 gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta
    10861 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc
    10921 agtggaacga aaactcacgt taagggattt tggtcatgca ttctaggtac taaaacaatt
    10981 catccagtaa aatataatat tttattttct cccaatcagg cttgatcccc agtaagtcaa
    11041 aaaatagctc gacatactgt tcttccccga tatcctccct gatcgaccgg acgcagaagg
    11101 caatgtcata ccacttgtcc gccctgccgc ttctcccaag atcaataaag ccacttactt
    11161 tgccatcttt cacaaagatg ttgctgtctc ccaggtcgcc gtgggaaaag acaagttcct
    11221 cttcgggctt ttccgtcttt aaaaaatcat acagctcgcg cggatcttta aatggagtgt
    11281 cttcttccca gttttcgcaa tccacatcgg ccagatcgtt attcagtaag taatccaatt
    11341 cggctaagcg gctgtctaag ctattcgtat agggacaatc cgatatgtcg atggagtgaa
    11401 agagcctgat gcactccgca tacagctcga taatcttttc agggctttgt tcatcttcat
    11461 actcttccga gcaaaggacg ccatcggcct cactcatgag cagattgctc cagccatcat
    11521 gccgttcaaa gtgcaggacc tttggaacag gcagctttcc ttccagccat agcatcatgt
    11581 ccttttcccg ttccacatca taggtggtcc ctttataccg gctgtccgtc atttttaaat
    11641 ataggttttc attttctccc accagcttat ataccttagc aggagacatt ccttccgtat
    11701 cttttacgca gcggtatttt tcgatcagtt ttttcaattc cggtgatatt ctcattttag
    11761 ccatttatta tttccttcct cttttctaca gtatttaaag ataccccaag aagctaatta
    11821 taacaagacg aactccaatt cactgttcct tgcattctaa aaccttaaat accagaaaac
    11881 agctttttca aagttgtttt caaagttggc gtataacata gtatcgacgg agccgatttt
    11941 gaaaccgcgg tgatcacagg cagcaacgct ctgtcatcgt tacaatcaac atgctaccct
    12001 ccgcgagatc atccgtgttt caaacccggc agcttagttg ccgttcttcc gaatagcatc
    12061 ggtaacatga gcaaagtctg ccgccttaca acggctctcc cgctgacgcc gtcccggact
    12121 gatgggctgc ctgtatcgag tggtgatttt gtgccgagct gccggtcggg gagctgttgg
    12181 ctggctgg
//
