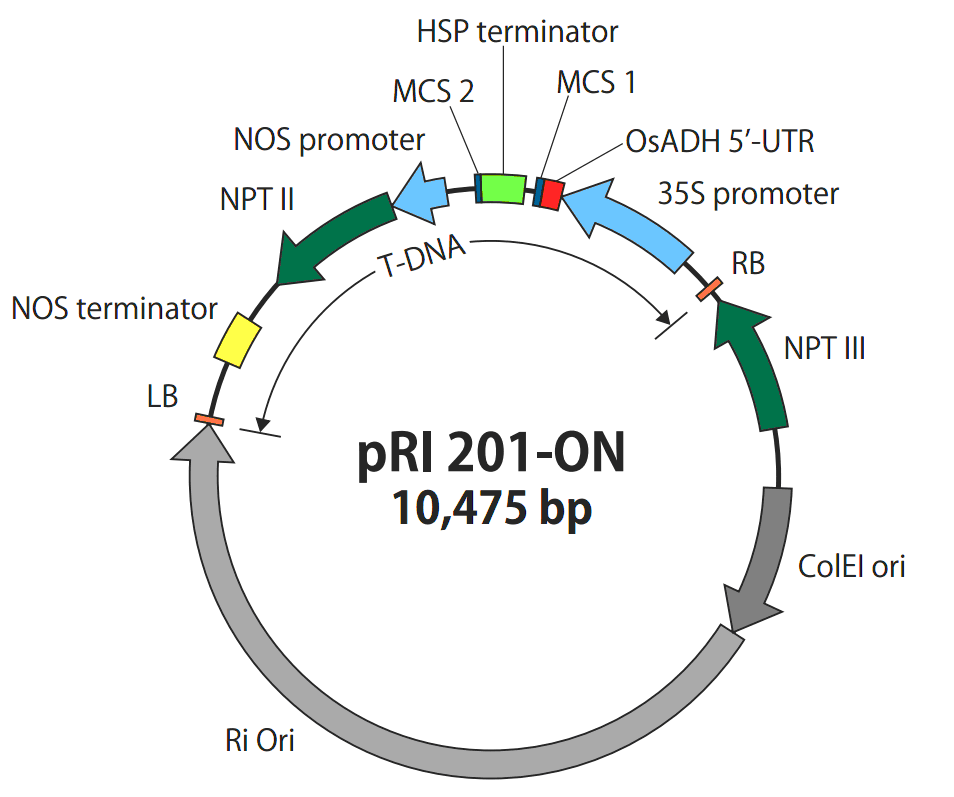

pRI201-ON载体简介
The Ri Plasmid pRI201 is designed for the transformation and expression of target genes from plant cells. This series of binary vectors for plant transformation retains the backbone of the pRI101 vectors, including an alcohol dehydrogenase (ADH) gene-derived 5' untranslated region (5'-UTR) downstream of the cauliflower mosaic virus (CaMV promoter)-derived 35S promoter. Additionally, these vectors have a heat shock protein (HSP) gene-derived terminator in place of the nopaline synthase (NOS) gene-derived terminator, allowing higher target gene expression compared with the pRI101 vector series. Multigene transformation with a single vector can be achieved by integrating an expression cassette containing another gene (promoter + enhancer + gene of interest + terminator) into the vector's second multiple cloning site (MCS2) located downstream of the HSP terminator.
The Ri Plasmid pRI201 binary vector series offers two types of vectors: pRI 201-AN DNA and pRI 201-ON DNA. pRI 201-AN DNA contains an Arabidopsis ADH-derived 5' UTR (AtADH 5'-UTR) and is suitable for dicotyledonous plant transformation. pRI 201-ON DNA contains a rice ADH-derived 5' UTR (OsADH 5'-UTR) and is suitable for monocotyledonous plant transformation. The pRI 201-AN DNA and pRI 201-ON DNA binary vectors for plant transformation have a mutant-type replication origin (Ri ori) from the Rhizobium rhizogenes Ri plasmid. These vectors also contain a replication origin (ColE1 ori) derived from the pUC plasmid; the ColE1 ori allows high copy number replication in E. coli. The vectors' multiple cloning site, located near the right border (RB) of T-DNA, allows stable target gene integration into the plant chromosome.
pRI201-ON载体特征:
Use pRI 201-AN DNA to transform dicotyledonous plant species
Use pRI 201-ON DNA to transform monocotyledonous plant species

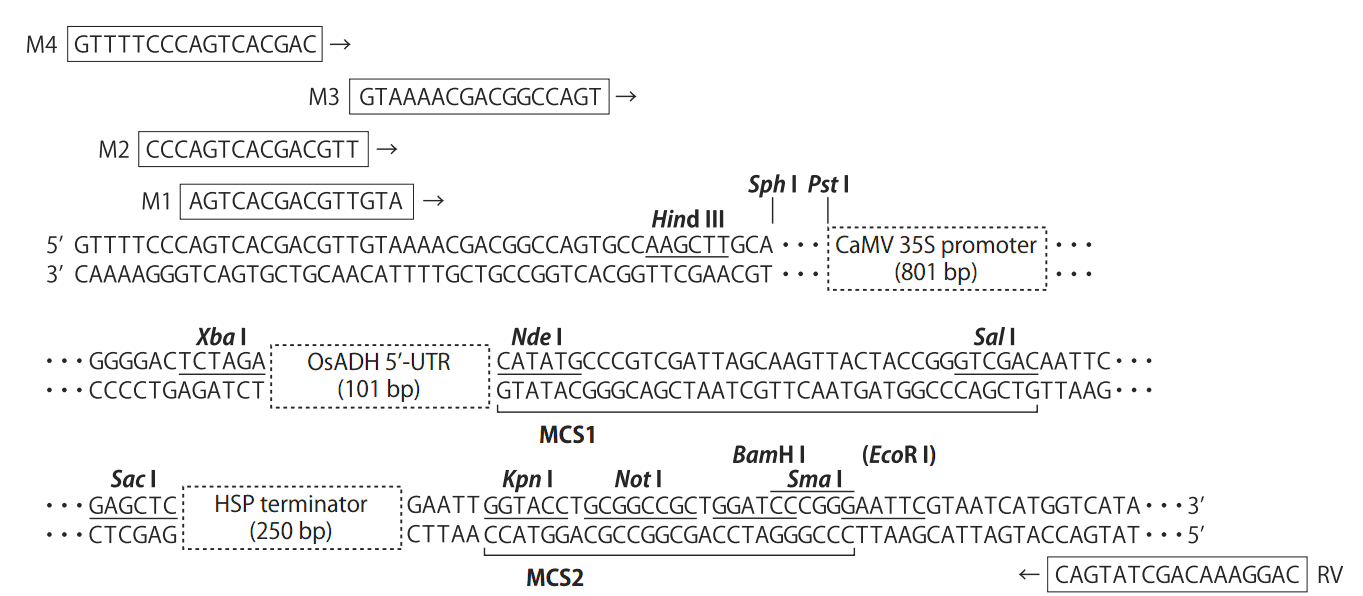

Integrate multiple transgenes using a single vector
High copy number (ColE1 ori) replication in E. coli
pRI201-ON载体应用:
Integration of multiple transgenes
Dicotyledonous plant transformation
Monocotyledonous plant transformation
参考文献:
1. Sugio, T. et al. (2008) J. Biosci. Bioeng. 105(3):300-302.
2. Nagaya, S. et al. (2010) Plant & Cell Physiol. 51(2):328-332.
3. Nishiguchi, R. et al. (1987) Mol. Gen. Genet. 206:1-8.
4. Satoh, J. et al. (2004) J. Biosci. and Bioeng. 98(1):1-8.
5. Sugio, T. et al. (2010) J. Biosci. Bioeng. 109(2):170-173.
TGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTC
CATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGA
AACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCT
CCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTG
GCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAG
CTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTAT
CGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAAC
AGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAAC
TACGGCTACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTC
GGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTT
TTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATC
TTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATG
AGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAATGAAGTTTTAAATCA
ATCTAAAGTATATATGAGTAAACTTGGTCTGACAGTTACCAATGCTTAATCAGTGAGGCA
CCTATCTCAGCGATCTGTCTATTTCGTTCATCCATAGTTGCCTGACTCGATCCTACAAGG
TAGAATCCGCCTGAGTCGCAAGGGTGACTTCGCCTATATTGGACGACGGCGCGCAGAGGG
CGACCTCTTTTTGGGTTACGATTGTAGGATTATCACTAAAACAATACATGAACATATTCA
AATGGCAATCTCTCTAAGGCATTGGAAATAAATACAAATAACAGTTGGGTGGAGTTTTTC
GACCTGAGGGCGTTAACCTTCTGTTAACCTAAAAGCTCTTGCCCAAACAGCAGAATCGGC
GCTAATTGCCAGCGGCGGAACTTTTCCAGTTTCGCGAAAAATATCGCCACTGGCAAGGAA
TGGGTTTGAGATGGCGAAGTCTGTCCTAAAAGCAGCGCCTGTAGTTGTAGGGTTGACGGC
CTTGATGGAGCGTCATGCCGATGCCCTCTCGAGCCAACTTCAAGCACATCATCTTAAGGT
TTTCCCGCCGCATTCCGAGAAGGGTATTCGAACATTCGGGCCATCGGAGGCGTCCAAGCT
GCTCGGCGTTGGCGAGTCATATTTACGGCAGACCGCGTCTGAGATGCCAGAGTTGAATGT
TAGCATGAGCCCAGGTGGCAGGCGAATGTTCTCAATTGAAGATATCCATGTGATTCGGAA
GTATATGGATCAGGTCGGCCGCGGGAACCGGCGCTACCTGCCACATCGTCGAGGCGGCGA
GCAGCTTCAGGTTATCTCTGTGATGAATTTCAAAGGTGGGTCGGGTAAGACCACCACCGC
CGCGCATCTGGCGCAGTACCTCGCTATGCGCGGATATCGAGTCTTGGCCATTGATCTCGA
TCCTCAAGCGAGCCTTTCTGCACTCTTTGGGAGCCAACCGGAGACGGACGTTGGCCCGAA
CGAAACGCTCTACGGCGCTATAAGGTATGATGATGAGCAGGTGGCAATCGAACGAGTCGT
CCGAGGGACTTACATTCCCGACCTCCACCTGATTCCTGGTAACCTTGAGCTGATGGAGTT
TGAACACGATACGCCACGCGCGCTGATGAACCGCAAAGAGGGCGACACGCTCTTTTATGG
TCGCATCAGCCAAGTAATTGAAGATATCGCGGATAACTATGACGTCGTGGTCATCGACTG
CCCTCCCCAGCTTGGGTATCTCACGCTATCCGCATTGACTGCGGCGACGTCCATTCTTGT
CACGGTCCATCCGCAGATGCTGGATGTGATGTCGATGAACCAGTTTCTGGCAATGACATC
GAACCTTTTGCGTGAAATCGAGAATGCTGGCGCCAAGTTCAAGTTTAATTGGATGCGCTA
TCTGATAACCCGTTTCGAACCGAGCGACGGACCACAGAACCAAATGGTAGGTTATCTGCG
GTCGATTTTTGGCGAAAATGTCCTCAATTTTCCGATGCTTAAAACCACCGCGGTTTCGGA
CGCTGGCCTGACAAACCAGACTCTATTCGAAGTGGAGCGTGGCCTGTTCACGCGCTCGAC
CTATGATCGAGCCTTGGAGGCGATGAACGCCGTCAACGACGAGATCGAAACACTGATCAA
AAAAGCATGGGGTAGGCCCACATGAGCCGGAAGCACATCCTTGGCGTCTCAACTGACGCC
CCTGAGACGTCGCCCGCCGACAATAGGACGGCAAAGAACCGCTCCATGCCGCTCCTCGGC
GTAACAAGGAAGGAGCGCGATCCGGCAACGAAGCTCACAGCGAACATTGGTAACGCACTG
CGAGAGCAAAACGATCGTCTTAGCCGTGCCGAAGAGATCGAGCGGCGTCTCGCTGAAGGT
CAGGCAGTGATAGAGTTGGATGCCTCGTCAATAGAACCGTCTTTCGTGCAGGATCGTATG
CGAGGGGACATTGACGGGCTCCTTACTTCGATCCGGGAACAAGGACAGCAAGTCCCAATC
CTTGTGCGACCGCATCCGAGCCAGCCGGGCCGATATCAGGTTGCCTTCGGCCACCGCCGG
CTACGCGCCGTTTCAGAACTCGGACTTCCGGTCAGGGCGGTCGTTCGCGAACTGACGGAC
GAGCAAGTGGTCGTAGCACAGGGTCAGGAAAACAATGTGCGCGAAGATCTTACCTTCATC
GAAAAGGCGCGCTTCGCACATCGCCTGAACAGGCAGTTTTCTCGAGAGATTGTCATCGCC
GCGATGTCGATCGACAAGAGCAATTTGTCCAAGATGCTTCTGCTCGTTGACGCCCTCCCC
TCTGAACTGACCGATGCTATTGGTGCCGCTCCTGGTGTTGGACGGCCGAGTTGGCAACAA
CTTGCCGAGCTGATTGAGAAAGTTTCTTCACCGGCCGACGTGGCTAAATATGCTATGTCG
GAGGAAGTTCAAGCGCTGCCATCGGCAGAACGATTCAAGGCGGTGATCGCTAGTCTGAAG
CCCAGTCGGGTTGCGCGTGGACTTCCCGAGGTCATGGCCACCCCAGACGGCACCAGAATT
GCACAGGTGACGCAGAGCAAGGCCAAACTGGAAATCACGATTGACAGGAAGGCGACGCCC
GATTTTGCGACCTTCGTGCTCGATCATGTGCCAGCGCTGTATCAAGCGTACCACGCTGAG
AACCAACGGAAACGGGGAGAGTAAACCGCAAAAGAAAAGAGCCCCCTCAACGTCGCCGTC
GCGGAAGCCCTTCTGTCTCTCTAGCGCGAACAGAATCGCATTTCCTCGAATCCTCGTCAA
GAGTTTTTAGCGCCGTTTTGGTGAGCTGATTTCCTTTGCCTGCTGAAAGGTGAAAGATGA
TGCAGACAGGAAGTGTAACGACGCCATTCGGGCGGCGGCCAATGACGCTTGCGCTTGTGC
GGCGCCAGACGGCGCTGGCCGATATCAAACAAGGCAAGACAGCGGACAAGTGGAAGGTCT
TTAGGGACGCGTCCGCGGCCATGGAACTACTTGGAATCCAGTCCAACAGTCTTGCCGTCC
TTGATGCGCTATTGAGCTTTCACCCGGAAACGGAGTTGCGTCAGGAGGCACAGCTGATCG
TCTTCCCGTCGAATGCTCAGCTTGCCCTTCGGGCGCATGGGATGGCTGGCGCGACTTTGC
GTAGGCACATCGCCATGCTCGTGGAGTCAGGCTTGATCGTCCGGAAGGATAGCGCCAACG
GAAAGCGTTACGCTCGTAAGGATGGCGCTGGTCAGATCGAGCGCGCGTTTGGCTTCGATT
TGTCTCCGCTTCTCGCGCGGTCCGAAGAGCTAGCGATGATGGCACAGCAGGTGATGGCCG
ATCGAGCAGCATTCAGGATGGCCAAAGAAAGTCTGACGATTTGCCGACGGGACGTTCGGA
AGCTAATTACGGCAGCTATGGAAGAGGGAGCGGAGGGCGACTGGCAAGCTGTCGAGGAAG
TCTATGTGGAACTTGTGGGTAGAATCCCACGCGCCCCGACGCTTGCTGATGTAGAGTCAA
TTCTCGAAGAGATGTGGATGCTCCAGGAAGAGATAATCAACCGGTTGGAAATTAGAGACA
ATTCAGAAAATAATAGCACCAATGCTGCCCAGAGCGAGCAGCACATACAGAACTCAAAAC
CCGAATCCGTTAATGAACTTGAACCTCGCTCTGAAAAGGAGCAGGGCGCTAAGCCGAGTG
AAATAGACCGGGCAAGGAGCGAGCCGATAAAAGCGTTCCCCCTCGGGATGATCCTGAAAG
CGTGCCCGACCATTGGCAATTATGGGCCGAGCGGTGCGGTTGCTAGCTGGCGTGACCTCA
TGTCGGCTGCGGTGGTGGTTCGGTCTATGCTGGGGGTCAGCCCGTCGGCTTACCAAGACG
CGTGTGAGGCAATGGGACCGGAGAATGCGGCAGCAGCGATGGCGTGCATTTTGGAGCGAG
CGAACTTCATCAATTCGCCTGGGGGCTATCTCCGAGATCTGACACGGCGGAGCGAACTCG
GGAAGTTTTCACTTGGCCCGATGATAATGGCGCTCTTGAAGGCTAGCGGGCAGGGGACGT
TGCGGTTTGGCTAGAATTAGCGAGTATGGAGCAGGATGGTCTGTGGTCAGCTGACCACAG
ACCTAATAGGTTGAAAACATGAGCGTTTTTTGGATGATCGACAGACCATCCGATTCCCGG
AGTACCAAGCGTGCTCTGATGGGAGCGATAACATTACTCAACAAGCACGAAGGCCCCATG
CCGATCGTTGATCGTGAAGGAGAGCCTGCTCTACATGCGGCGGTATTTTGCCGGCCGAGG
CATGTAGTCGCGGAGCACTGCCTATTTACTGCCCTAGGCACAAACGTTGACTCTTGGATC
GAGCTGGCAGACAAAGCAATAACCCACACAGAGGACGATTAATGGCTGACGAAGAGATCC
AGAATCCGCCGGACGGTACTGCTGCTGCCGAAGTTGAGCCGGCTGCTCCTAGAGGTAGAA
GAGCAAAGAAAGCACCAGCCGAAACAGCCCGCACGGGATCGTTCAAATCCGTGAAGCCGA
AAACCCGCGGCCTCAGCAACCGAGAAAAACTGGAGAAGATCGGTCAAATCGAAGCTCAGG
TCGCTGGCGGCGCAACCTTGAAGGACGCCGTTAAGATCGTGGGTATTTCCGTTCAGACCT
ATTATCAATGGAAGAGAGCTGCGGTTCAACCTGTCTCACAGAATCCGGCCGTGTCTGTTT
CAGTTGACGATGAACTCGGCGAGTTCATCCAACTCGAGGAGGAAAATCGGCGGCTCAGAA
AGCTAGCTTGTGGCAGGATATATTGTGGTGTAAACAAATTGACGCTTAGACAACTTAATA
ACACATTGCGGACGTTTTTAATGTACTGGGGTGGTTTTTCTTTTCACCAGTGAGACGGGC
AACAGCTGATTGCCCTTCACCGCCTGGCCCTGAGAGAGTTGCAGCAAGCGGTCCACGCTG
GTTTGCCCCAGCAGGCGAAAATCCTGTTTGATGGTGGTTCCGAAATCGGCAAAATCCCTT
ATAAATCAAAAGAATAGCCCGAGATAGGGTTGAGTGTTGTTCCAGTTTGGAACAAGAGTC
CACTATTAAAGAACGTGGACTCCAACGTCAAAGGGCGAAAAACCGTCTATCAGGGCGATG
GCCCAAATTCCCGATCTAGTAACATAGATGACACCGCGCGCGATAATTTATCCTAGTTTG
CGCGCTATATTTTGTTTTCTATCGCGTATTAAATGTATAATTGCGGGACTCTAATCATAA
AAACCCATCTCATAAATAACGTCATGCATTACATGTTAATTATTACATGCTTAACGTAAT
TCAACAGAAATTATATGATAATCATCGCAAGACCGGCAACAGGATTCAATCTTAAGAAAC
TTTATTGCCAAATGTTTGAACGATCGGGGCCCGATCATATTGTCGCTCAGGATCGTGGCG
TTGTGCTTGTCGGCCGTTGCTGTCGTAATGATATCGGCACCTTCGACCGCCTGTTCCGCA
GAGATCCCGTGGGCGAAGAACTCCAGCATGAGATCCCCGCGCTGGAGGATCATCCAGCCG
GCGTCCCGGAAAACGATTCCGAAGCCCAACCTTTCATAGAAGGCGGCGGTGGAATCGAAA
TCTCGTGATGGCAGGTTGGGCGTCGCTTGGTCGGTCATTTCGAACCCCAGAGTCCCGCTC
AGAAGAACTCGTCAAGAAGGCGATAGAAGGCGATGCGCTGCGAATCGGGAGCGGCGATAC
CGTAAAGCACGAGGAAGCGGTCAGCCCATTCGCCGCCAAGCTCTTCAGCAATATCACGGG
TAGCCAACGCTATGTCCTGATAGCGGTCCGCCACACCCAGCCGGCCACAGTCGATGAATC
CAGAAAAGCGGCCATTTTCCACCATGATATTCGGCAAGCAGGCATCGCCATGGGTCACGA
CGAGATCATCGCCGTCGGGCATACGCGCCTTGAGCCTGGCGAACAGTTCGGCTGGCGCGA
GCCCCTGATGCTCTTCGTCCAGATCATCCTGATCGACAAGACCGGCTTCCATCCGAGTAC
GTGCTCGCTCGATGCGATGTTTCGCTTGGTGGTCGAATGGGCAGGTAGCCGGATCAAGCG
TATGCAGCCGCCGCATTGCATCAGCCATGATGGATACTTTCTCGGCAGGAGCAAGGTGAG
ATGACAGGAGATCCTGCCCCGGCACTTCGCCCAATAGCAGCCAGTCCCTTCCCGCTTCAG
TGACAACGTCGAGCACAGCTGCGCAAGGAACGCCCGTCGTGGCCAGCCACGATAGCCGCG
CTGCCTCGTCCTGTAGTTCATTCAGGGCACCGGACAGGTCGGTCTTGACAAAAAGAACCG
GGCGCCCCTGCGCTGACAGCCGGAACACGGCGGCATCAGAGCAGCCGATTGTCTGTTGTG
CCCAGTCATAGCCGAATAGCCTCTCCACCCAAGCGGCCGGAGAACCTGCGTGCAATCCAT
CTTGTTCAATCATGCGAAACGATCCAGATCCGGTGCAGATTATTTGGATTGAGAGTGAAT
ATGAGACTCTAATTGGATACCGAGGGGAATTTATGGAACGTCAGTGGAGCATTTTTGACA
AGAAATATTTGCTAGCTGATAGTGACCTTAGGCGACTTTTGAACGCGCAATAATGGTTTC
TGACGTATGTGCTTAGCTCATTAAACTCCAGAAACCCGCGGCTGAGTGGCTCCTTCAACG
TTGCGGTTCTGTCAGTTCCAAACGTAAAACGGCTTGTCCCGCGTCATCGGCGGGGGTCAT
AACGTGACTCCCTTAATTCTCCGCTCATGATCCTGGCACGACAGGTTTCCCGACTGGAAA
GCGGGCAGTGAGCGCAACGCAATTAATGTGAGTTAGCTCACTCATTAGGCACCCCAGGCT
TTACACTTTATGCTTCCGGCTCGTATGTTGTGTGGAATTGTGAGCGGATAACAATTTCAC
ACAGGAAACAGCTATGACCATGATTACGAATTCCCGGGATCCAGCGGCCGCAGGTACCAA
TTCCTTATCTTTAATCATATTCCATAGTCCATACCATAGCACATACAGTAGTTATATGCG
AAGAGATCCAACAAAACATTCACAATGGATTATAGAAACATTTGTTTATTCATTATAATG
AGATCTTACATTCATTTAATATTAGAAAAAGCCACAAATTCATAACACAACAAGCCAAGA
AAAAAACACAAACTTAAGCACACAAGCTAGCTTTTTATTTGACACACCAAATATTTCATC
TTCATCTTCATAAGAGCTCGGTAGCAATTCCCGAGGCTGTAGCCGACGATGGTGCGCCAG
GAGAGTTGTTGATTCAGAATTGTCGACCCGGTAGTAACTTGCTAATCGACGGGCATATGT
AATCCCCCTCTTTTTCAAAGAACAAGAAACCACTCCGTAGAGATCGAAAGCTCAGGTTTT
CTTTTTTCTTGAATCACTCGCAGTTCGTTGCTTGGAATTCTCTAGAGTCCCCCGTGTTCT
CTCCAAATGAAATGAACTTCCTTATATAGAGGAAGGGTCTTGCGAAGGATAGTGGGATTG
TGCGTCATCCCTTACGTCAGTGGAGATATCACATCAATCCACTTGCTTTGAAGACGTGGT
TGGAACGTCTTCTTTTTCCACGATGCTCCTCGTGGGTGGGGGTCCATCTTTGGGACCACT
GTCGGCAGAGGCATCTTCAACGATGGCCTTTCCTTTATCGCAATGATGGCATTTGTAGGA
GCCACCTTCCTTTTCCACTATCTTCACAATAAAGTGACAGATAGCTGGGCAATGGAATCC
GAGGAGGTTTCCGGATATTACCCTTTGTTGAAAAGTCTCAATTGCCCTTTGGTCTTCTGA
GACTGTATCTTTGATATTTTTGGAGTAGACAAGTGTGTCGTGCTCCACCATGTTGACGAA
GATTTTCTTCTTGTCATTGAGTCGTAAGAGACTCTGTATGAACTGTTCGCCAGTCTTTAC
GGCGAGTTCTGTTAGGTCCTCTATTTGAATCTTTGACTCCATGGCCTTTGATTCAGTGGG
AACTACCTTTTTAGAGACTCCAATCTCTATTACTTGCCTTGGTTTGTGAAGCAAGCCTTG
AATCGTCCATACTGGAATAGTACTTCTGATCTTGAGAAATATATCTTTCTCTGTGTTCTT
GATGCAGTTAGTCCTGAATCTTTTGACTGCATCTTTAACCTTCTTGGGAAGGTATTTGAT
TTCCTGGAGATTATTGCTCGGGTAGATCGTCTTGATGAGACCTGCTGCGTAAGCCTCTCT
AACCATCTGTGGGTTAGCATTCTTTCTGAAATTGAAAAGGCTAATCTGGGGACCTGCAGG
CATGCAAGCTTGGCACTGGCCGTCGTTTTACAACGTCGTGACTGGGAAAACCCTGGCGTT
ACCCAACTTAATCGCCTTGCAGCACATCCCCCTTTCGCCAGGATCAGATTGTCGTTTCCC
GCCTTCAGTTTAAACTATCAGTGTTTGACAGGATATATTGGCGGGTAAACCTAAGAGAAA
AGAGCGTTTATTAGAATAATCGGATATTTAAAAGGGCGTGAAAAGGTTTATCCGTTCGTC
CATTTGTATGTGACTAAAACAATTCATCCAGTAAAATATAATATTTTATTTTCTCCCAAT
CAGGCTTGATCCCCAGTAAGTCAAAAAATAGCTCGACATACTGTTCTTCCCCGATATCCT
CCCTGATCGACCGGACGCAGAAGGCAATGTCATACCACTTGTCCGCCCTGCCGCTTCTCC
CAAGATCAATAAAGCCACTTACTTTGCCATCTTTCACAAAGATGTTGCTGTCTCCCAGGT
CGCCGTGGGAAAAGACAAGTTCCTCTTCGGGCTTTTCCGTCTTTAAAAAATCATACAGCT
CGCGCGGATCTTTAAATGGAGTGTCTTCTTCCCAGTTTTCGCAATCCACATCGGCCAGAT
CGTTATTCAGTAAGTAATCCAATTCGGCTAAGCGGCTGTCTAAGCTATTCGTATAGGGAC
AATCCGATATGTCGATGGAGTGAAAGAGCCTGATGCACTCCGCATACAGCTCGATAATCT
TTTCAGGGCTTTGTTCATCTTCATACTCTTCCGAGCAAAGGACGCCATCGGCCTCACTCA
TGAGCAGATTGCTCCAGCCATCATGCCGTTCAAAGTGCAGGACCTTTGGAACAGGCAGCT
TTCCTTCCAGCCATAGCATCATGTCCTTTTCCCGTTCCACATCATAGGTGGTCCCTTTAT
ACCGGCTGTCCGTCATTTTTAAATATAGGTTTTCATTTTCTCCCACCAGCTTATATACCT
TAGCAGGAGACATTCCTTCCGTATCTTTTACGCAGCGGTATTTTTCGATCAGTTTTTTCA
ATTCCGGTGATATTCTCATTTTAGCCATTTATTATTTCCTTCCTCTTTTCTACAGTATTT
AAAGATACCCCAAGAAGCTAATTATAACAAGACGAACTCCAATTCACTGTTCCTTGCATT
CTAAAACCTTAAATACCAGAAAACAGCTTTTTCAAAGTTGTTTTCAAAGTTGGCGTATAA
CATAGTATCGACGGAGCCGATTTTGAAACCACAATTATGGGTGATGCTGCCAACTTACTG
ATTTAGTGTATGATGGTGTTTTTGAGGTGCTCCAGTGGCTTCTGTTTCTATCAGCTGTCC
CTCCTGTTCAGCTACTGACGGGGTGGTGCGTAACGGCAAAAGCACCGCCGGACATCAGCG
CTATCTCTGCTCTCACTGCCGTAAAACATGGCAAC
