pUB6/V5 His B载体 pUB6/V5HisB质粒基本信息

出品公司:
Invitrogen
载体名称: pUB6/V5 His B
质粒类型: 哺乳细胞表达系统载体
高拷贝/低拷贝: 高拷贝
启动子: UbC
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5467bp
5' 测序引物及序列: T7 Fwd:5'd[TAATACGACTCACTATAGGG]3'
3' 测序引物及序列: --
载体标签: 6X His, V5
载体抗性: Ampicillin
筛选标记: Blasticidin
备注: 可以严格控制表达水平
产品目录号: V25020
稳定性: 瞬表达
组成型: 组成型
病毒/非病毒: 非病毒

pUB6/V5 His B质粒图谱 pUB6/V5HisB载体图谱和pUB6/V5 His B载体序列 pUB6/V5HisB质粒序列多克隆位点信息

pUB6/V5 His B载体图谱

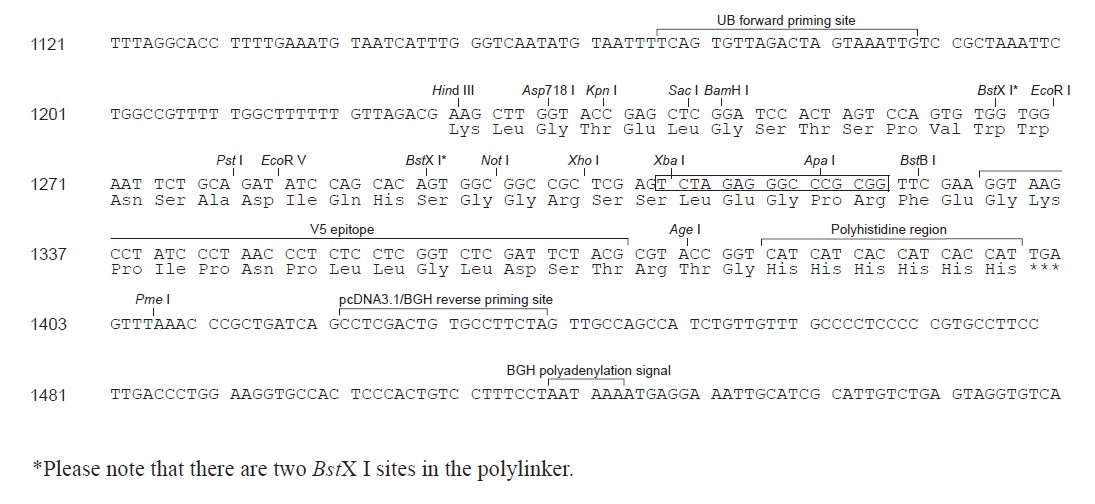

pUB6/V5 His B多克隆位点

pUB6/V5 His B质粒 pUB6/V5HisB载体简介

pUB6/V5 His B质粒序列 pUB6/V5HisB载体序列

LOCUS       pUB6/V5/His B	5467 bp 	DNA	SYN
DEFINITION  pUB6/V5/His B
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5467
                     /organism="pUB6/V5/His B"
                     /mol_type="other DNA"
     promoter        13..1227
                     /label="hUbC_promoter"
     misc_feature    complement(1422..1439)
                     /label="BGH_rev_primer"
     terminator      1425..1652
                     /label="bGH_PA_terminator"
     rep_origin      1715..2021
                     /label="f1_origin"
     misc_feature    complement(2135..2155)
                     /label="pBABE_3_primer"
     misc_feature    complement(2141..2357)
                     /label="SV40_enhancer"
     promoter        2153..2422
                     /label="SV40_promoter"
     rep_origin      2321..2398
                     /label="SV40_origin"
     misc_feature    2383..2402
                     /label="SV40pro_F_primer"
     promoter        2516..2583
                     /label="EM7_promoter"
     gene            2584..2982
                     /label="blast"
                     /gene="blast"
     terminator      3143..3262
                     /label="SV40_PA_terminator"
     misc_feature    3231..3250
                     /label="EBV_rev_primer"
     promoter        complement(3306..3324)
                     /label="M13_reverse_primer"
     misc_feature    complement(3323..3345)
                     /label="M13_pUC_rev_primer"
     promoter        complement(3359..3388)
                     /label="lac_promoter"
     rep_origin      complement(3697..4316)
                     /label="pBR322_origin"
     gene            complement(4471..5331)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4471..5331)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5373..5401)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GACGGATCGG GAGATCTGGC CTCCGCGCCG GGTTTTGGCG CCTCCCGCGG GCGCCCCCCT
   61 CCTCACGGCG AGCGCTGCCA CGTCAGACGA AGGGCGCAGG AGCGTCCTGA TCCTTCCGCC
  121 CGGACGCTCA GGACAGCGGC CCGCTGCTCA TAAGACTCGG CCTTAGAACC CCAGTATCAG
  181 CAGAAGGACA TTTTAGGACG GGACTTGGGT GACTCTAGGG CACTGGTTTT CTTTCCAGAG
  241 AGCGGAACAG GCGAGGAAAA GTAGTCCCTT CTCGGCGATT CTGCGGAGGG ATCTCCGTGG
  301 GGCGGTGAAC GCCGATGATT ATATAAGGAC GCGCCGGGTG TGGCACAGCT AGTTCCGTCG
  361 CAGCCGGGAT TTGGGTCGCG GTTCTTGTTT GTGGATCGCT GTGATCGTCA CTTGGTGAGT
  421 AGCGGGCTGC TGGGCTGGCC GGGGCTTTCG TGGCCGCCGG GCCGCTCGGT GGGACGGAAG
  481 CGTGTGGAGA GACCGCCAAG GGCTGTAGTC TGGGTCCGCG AGCAAGGTTG CCCTGAACTG
  541 GGGGTTGGGG GGAGCGCAGC AAAATGGCGG CTGTTCCCGA GTCTTGAATG GAAGACGCTT
  601 GTGAGGCGGG CTGTGAGGTC GTTGAAACAA GGTGGGGGGC ATGGTGGGCG GCAAGAACCC
  661 AAGGTCTTGA GGCCTTCGCT AATGCGGGAA AGCTCTTATT CGGGTGAGAT GGGCTGGGGC
  721 ACCATCTGGG GACCCTGACG TGAAGTTTGT CACTGACTGG AGAACTCGGT TTGTCGTCTG
  781 TTGCGGGGGC GGCAGTTATG CGGTGCCGTT GGGCAGTGCA CCCGTACCTT TGGGAGCGCG
  841 CGCCCTCGTC GTGTCGTGAC GTCACCCGTT CTGTTGGCTT ATAATGCAGG GTGGGGCCAC
  901 CTGCCGGTAG GTGTGCGGTA GGCTTTTCTC CGTCGCAGGA CGCAGGGTTC GGGCCTAGGG
  961 TAGGCTCTCC TGAATCGACA GGCGCCGGAC CTCTGGTGAG GGGAGGGATA AGTGAGGCGT
 1021 CAGTTTCTTT GGTCGGTTTT ATGTACCTAT CTTCTTAAGT AGCTGAAGCT CCGGTTTTGA
 1081 ACTATGCGCT CGGGGTTGGC GAGTGTGTTT TGTGAAGTTT TTTAGGCACC TTTTGAAATG
 1141 TAATCATTTG GGTCAATATG TAATTTTCAG TGTTAGACTA GTAAATTGTC CGCTAAATTC
 1201 TGGCCGTTTT TGGCTTTTTT GTTAGACGAA GCTTGGTACC GAGCTCGGAT CCACTAGTCC
 1261 AGTGTGGTGG AATTCTGCAG ATATCCAGCA CAGTGGCGGC CGCTCGAGTC TAGAGGGCCC
 1321 GCGGTTCGAA GGTAAGCCTA TCCCTAACCC TCTCCTCGGT CTCGATTCTA CGCGTACCGG
 1381 TCATCATCAC CATCACCATT GAGTTTAAAC CCGCTGATCA GCCTCGACTG TGCCTTCTAG
 1441 TTGCCAGCCA TCTGTTGTTT GCCCCTCCCC CGTGCCTTCC TTGACCCTGG AAGGTGCCAC
 1501 TCCCACTGTC CTTTCCTAAT AAAATGAGGA AATTGCATCG CATTGTCTGA GTAGGTGTCA
 1561 TTCTATTCTG GGGGGTGGGG TGGGGCAGGA CAGCAAGGGG GAGGATTGGG AAGACAATAG
 1621 CAGGCATGCT GGGGATGCGG TGGGCTCTAT GGCTTCTGAG GCGGAAAGAA CCAGCTGGGG
 1681 CTCTAGGGGG TATCCCCACG CGCCCTGTAG CGGCGCATTA AGCGCGGCGG GTGTGGTGGT
 1741 TACGCGCAGC GTGACCGCTA CACTTGCCAG CGCCCTAGCG CCCGCTCCTT TCGCTTTCTT
 1801 CCCTTCCTTT CTCGCCACGT TCGCCGGCTT TCCCCGTCAA GCTCTAAATC GGGGCATCCC
 1861 TTTAGGGTTC CGATTTAGTG CTTTACGGCA CCTCGACCCC AAAAAACTTG ATTAGGGTGA
 1921 TGGTTCACGT AGTGGGCCAT CGCCCTGATA GACGGTTTTT CGCCCTTTGA CGTTGGAGTC
 1981 CACGTTCTTT AATAGTGGAC TCTTGTTCCA AACTGGAACA ACACTCAACC CTATCTCGGT
 2041 CTATTCTTTT GATTTATAAG GGATTTTGGG GATTTCGGCC TATTGGTTAA AAAATGAGCT
 2101 GATTTAACAA AAATTTAACG CGAATTAATT CTGTGGAATG TGTGTCAGTT AGGGTGTGGA
 2161 AAGTCCCCAG GCTCCCCAGG CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC
 2221 AACCAGGTGT GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA AGTATGCAAA GCATGCATCT
 2281 CAATTAGTCA GCAACCATAG TCCCGCCCCT AACTCCGCCC ATCCCGCCCC TAACTCCGCC
 2341 CAGTTCCGCC CATTCTCCGC CCCATGGCTG ACTAATTTTT TTTATTTATG CAGAGGCCGA
 2401 GGCCGCCTCT GCCTCTGAGC TATTCCAGAA GTAGTGAGGA GGCTTTTTTG GAGGCCTAGG
 2461 CTTTTGCAAA AAGCTCCCGG GAGCTTGTAT ATCCATTTTC GGATCTGATC AGCACGTGTT
 2521 GACAATTAAT CATCGGCATA GTATATCGGC ATAGTATAAT ACGACAAGGT GAGGAACTAA
 2581 ACCATGGCCA AGCCTTTGTC TCAAGAAGAA TCCACCCTCA TTGAAAGAGC AACGGCTACA
 2641 ATCAACAGCA TCCCCATCTC TGAAGACTAC AGCGTCGCCA GCGCAGCTCT CTCTAGCGAC
 2701 GGCCGCATCT TCACTGGTGT CAATGTATAT CATTTTACTG GGGGACCTTG TGCAGAACTC
 2761 GTGGTGCTGG GCACTGCTGC TGCTGCGGCA GCTGGCAACC TGACTTGTAT CGTCGCGATC
 2821 GGAAATGAGA ACAGGGGCAT CTTGAGCCCC TGCGGACGGT GCCGACAGGT GCTTCTCGAT
 2881 CTGCATCCTG GGATCAAAGC CATAGTGAAG GACAGTGATG GACAGCCGAC GGCAGTTGGG
 2941 ATTCGTGAAT TGCTGCCCTC TGGTTATGTG TGGGAGGGCT AAGCACTTCG TGGCCGAGGA
 3001 GCAGGACTGA CACGTGCTAC GAGATTTCGA TTCCACCGCC GCCTTCTATG AAAGGTTGGG
 3061 CTTCGGAATC GTTTTCCGGG ACGCCGGCTG GATGATCCTC CAGCGCGGGG ATCTCATGCT
 3121 GGAGTTCTTC GCCCACCCCA ACTTGTTTAT TGCAGCTTAT AATGGTTACA AATAAAGCAA
 3181 TAGCATCACA AATTTCACAA ATAAAGCATT TTTTTCACTG CATTCTAGTT GTGGTTTGTC
 3241 CAAACTCATC AATGTATCTT ATCATGTCTG TATACCGTCG ACCTCTAGCT AGAGCTTGGC
 3301 GTAATCATGG TCATAGCTGT TTCCTGTGTG AAATTGTTAT CCGCTCACAA TTCCACACAA
 3361 CATACGAGCC GGAAGCATAA AGTGTAAAGC CTGGGGTGCC TAATGAGTGA GCTAACTCAC
 3421 ATTAATTGCG TTGCGCTCAC TGCCCGCTTT CCAGTCGGGA AACCTGTCGT GCCAGCTGCA
 3481 TTAATGAATC GGCCAACGCG CGGGGAGAGG CGGTTTGCGT ATTGGGCGCT CTTCCGCTTC
 3541 CTCGCTCACT GACTCGCTGC GCTCGGTCGT TCGGCTGCGG CGAGCGGTAT CAGCTCACTC
 3601 AAAGGCGGTA ATACGGTTAT CCACAGAATC AGGGGATAAC GCAGGAAAGA ACATGTGAGC
 3661 AAAAGGCCAG CAAAAGGCCA GGAACCGTAA AAAGGCCGCG TTGCTGGCGT TTTTCCATAG
 3721 GCTCCGCCCC CCTGACGAGC ATCACAAAAA TCGACGCTCA AGTCAGAGGT GGCGAAACCC
 3781 GACAGGACTA TAAAGATACC AGGCGTTTCC CCCTGGAAGC TCCCTCGTGC GCTCTCCTGT
 3841 TCCGACCCTG CCGCTTACCG GATACCTGTC CGCCTTTCTC CCTTCGGGAA GCGTGGCGCT
 3901 TTCTCAATGC TCACGCTGTA GGTATCTCAG TTCGGTGTAG GTCGTTCGCT CCAAGCTGGG
 3961 CTGTGTGCAC GAACCCCCCG TTCAGCCCGA CCGCTGCGCC TTATCCGGTA ACTATCGTCT
 4021 TGAGTCCAAC CCGGTAAGAC ACGACTTATC GCCACTGGCA GCAGCCACTG GTAACAGGAT
 4081 TAGCAGAGCG AGGTATGTAG GCGGTGCTAC AGAGTTCTTG AAGTGGTGGC CTAACTACGG
 4141 CTACACTAGA AGGACAGTAT TTGGTATCTG CGCTCTGCTG AAGCCAGTTA CCTTCGGAAA
 4201 AAGAGTTGGT AGCTCTTGAT CCGGCAAACA AACCACCGCT GGTAGCGGTG GTTTTTTTGT
 4261 TTGCAAGCAG CAGATTACGC GCAGAAAAAA AGGATCTCAA GAAGATCCTT TGATCTTTTC
 4321 TACGGGGTCT GACGCTCAGT GGAACGAAAA CTCACGTTAA GGGATTTTGG TCATGAGATT
 4381 ATCAAAAAGG ATCTTCACCT AGATCCTTTT AAATTAAAAA TGAAGTTTTA AATCAATCTA
 4441 AAGTATATAT GAGTAAACTT GGTCTGACAG TTACCAATGC TTAATCAGTG AGGCACCTAT
 4501 CTCAGCGATC TGTCTATTTC GTTCATCCAT AGTTGCCTGA CTCCCCGTCG TGTAGATAAC
 4561 TACGATACGG GAGGGCTTAC CATCTGGCCC CAGTGCTGCA ATGATACCGC GAGACCCACG
 4621 CTCACCGGCT CCAGATTTAT CAGCAATAAA CCAGCCAGCC GGAAGGGCCG AGCGCAGAAG
 4681 TGGTCCTGCA ACTTTATCCG CCTCCATCCA GTCTATTAAT TGTTGCCGGG AAGCTAGAGT
 4741 AAGTAGTTCG CCAGTTAATA GTTTGCGCAA CGTTGTTGCC ATTGCTACAG GCATCGTGGT
 4801 GTCACGCTCG TCGTTTGGTA TGGCTTCATT CAGCTCCGGT TCCCAACGAT CAAGGCGAGT
 4861 TACATGATCC CCCATGTTGT GCAAAAAAGC GGTTAGCTCC TTCGGTCCTC CGATCGTTGT
 4921 CAGAAGTAAG TTGGCCGCAG TGTTATCACT CATGGTTATG GCAGCACTGC ATAATTCTCT
 4981 TACTGTCATG CCATCCGTAA GATGCTTTTC TGTGACTGGT GAGTACTCAA CCAAGTCATT
 5041 CTGAGAATAG TGTATGCGGC GACCGAGTTG CTCTTGCCCG GCGTCAATAC GGGATAATAC
 5101 CGCGCCACAT AGCAGAACTT TAAAAGTGCT CATCATTGGA AAACGTTCTT CGGGGCGAAA
 5161 ACTCTCAAGG ATCTTACCGC TGTTGAGATC CAGTTCGATG TAACCCACTC GTGCACCCAA
 5221 CTGATCTTCA GCATCTTTTA CTTTCACCAG CGTTTCTGGG TGAGCAAAAA CAGGAAGGCA
 5281 AAATGCCGCA AAAAAGGGAA TAAGGGCGAC ACGGAAATGT TGAATACTCA TACTCTTCCT
 5341 TTTTCAATAT TATTGAAGCA TTTATCAGGG TTATTGTCTC ATGAGCGGAT ACATATTTGA
 5401 ATGTATTTAG AAAAATAAAC AAATAGGGGT TCCGCGCACA TTTCCCCGAA AAGTGCCACC
 5461 TGACGTC
//

pUB6/V5 His B载体图谱 pUB6/V5HisB质粒图谱pdf版和pUB6/V5 His B载体序列 pUB6/V5HisB质粒序列等相关资料下载

pUB6/V5 His B质粒 pUB6/V5HisB载体应用举例
