| 出品人: | Lynch,M.D. and Gill,R.T. |
|---|---|
| 载体名称: | pBMTB-4 |
| 质粒类型: | 广宿主载体；克隆载体；原核表达载体 |
| 高拷贝/低拷贝: | -- |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | araBAD |
| 载体大小: | 5363 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | -- |
| 载体抗性: | 四环素 |
| 克隆菌株: | DH5α 等 |
| 宿主细胞（系）: | 多个菌属 |
| 备注: | -- |
| 产品目录号: | -- |
| 组成型/诱导型: | 诱导型 |
买家导航
pBMTB-4载体质粒基本信息

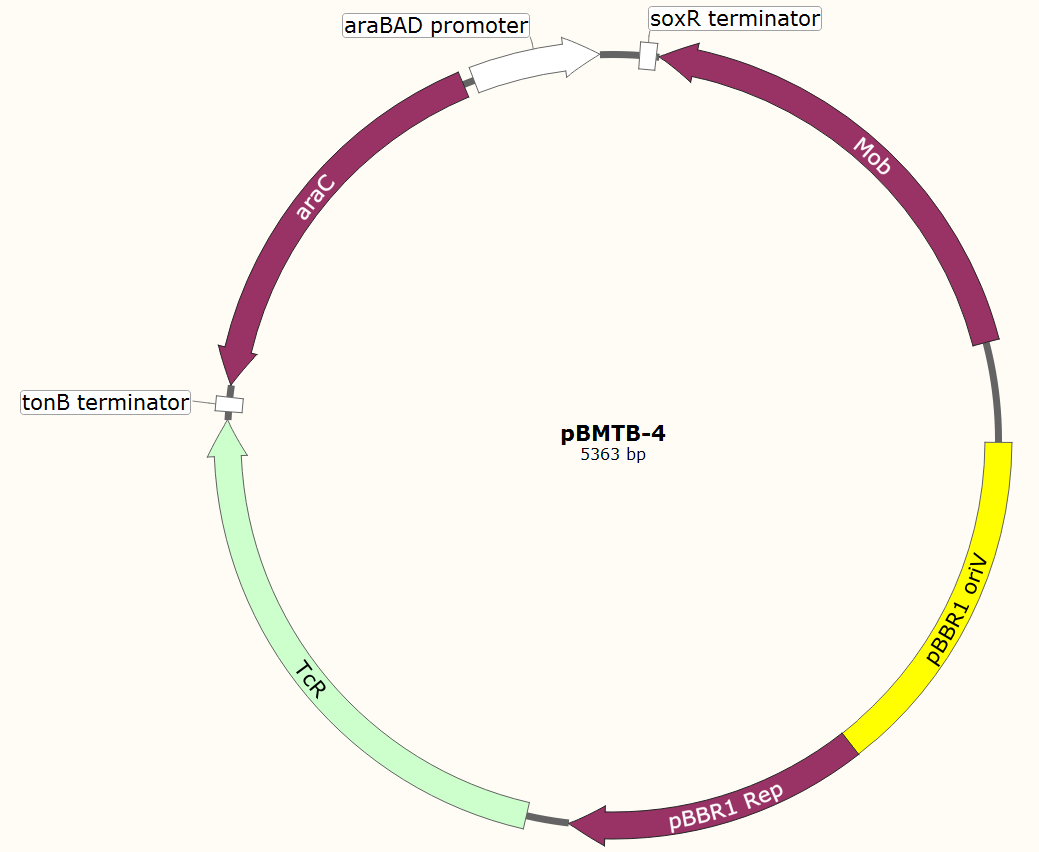

pBMTB-4质粒图谱载体图谱和pBMTB-4载体序列质粒序列多克隆位点信息
pBMTB-4质粒载体简介
pBMTB-4质粒序列载体序列
LOCUS DQ058727 5363 bp DNA circular SYN 08-MAY-2006
DEFINITION Broad host range vector pBMTB-4, complete sequence.
ACCESSION DQ058727
AUTHORS Lynch,M.D. and Gill,R.T.
TITLE Broad host range vectors for stable genomic library construction
JOURNAL Submitted (12-MAY-2005) Chemical & Biological Engineering,
University of Colorado, ECCH 111, Campus Box 424, Boulder, CO
80309, USA
FEATURES Location/Qualifiers
source 1..5363
/organism="Broad host range vector pBMTB-4"
/mol_type="other DNA"
/db_xref="taxon:334959"
regulatory 60..96
/regulatory_class="terminator"
/note="SoxR terminator"
gene complement(104..1123)
/gene="mob"
/note="mob gene from pBBR1MCS, GenBank Accession Number
U02374"
CDS complement(104..1123)
/gene="mob"
/note="required for mobilization"
/codon_start=1
/transl_table=11
/product="Mob"
/protein_id="AAY99709.1"
/db_xref="GI:69048280"
/translation="MAAYAIMRCKKLAKMGNVAASLKHAYRERETPNADASRTPENEH
WAASSTDEAMGRLRELLPEKRRKDAVLAVEYVMTASPEWWKSASQEQQAAFFEKAHKW
LADKYGADRIVTASIHRDETSPHMTAFVVPLTQDGRLSAKEFIGNKAQMTRDQTTFAA
AVADLGLQRGIEGSKARHTRIQAFYEALERPPVGHVTISPQAVEPRAYAPQGLAEKLG
ISKRVETPEAVADRLTKAVRQGYEPALQAAAGAREMRKKADQAQETARDLRERLKPVL
DALGPLNRDMQAKAAAIIKAVGEKLLTEQREVQRQKQAQRQQERGRAHFPEKCHLTSK
KPLLS"
gene 2117..2779
/gene="rep"
/note="rep gene from pBBR1, GenBank Accession Number
X66730"
CDS 2117..2779
/gene="rep"
/note="required for replication"
/codon_start=1
/transl_table=11
/product="Rep"
/protein_id="AAY99710.1"
/db_xref="GI:69048281"
/translation="MATQSREIGIQAKNKPGHWVQTERKAHEAWAGLIARKPTAAMLL
HHLVAQMGHQNAVVVSQKTLSKLIGRSLRTVQYAVKDLVAERWISVVKLNGPGTVSAY
VVNDRVAWGQPRDQLRLSVFSAAVVVDHDDQDESLLGHGDLRRIPTLYPGEQQLPTGP
GEEPPSQPGIPGMEPDLPALTETEEWERRGQQRLPMPDEPCFLDDGEPLEPPTRVTLP
RR"
gene 2876..4066
/gene="tetA"
/note="tetracycline resistance gene from pBR322"
CDS 2876..4066
/gene="tetA"
/codon_start=1
/transl_table=11
/product="tetracycline/H+ antiporter"
/protein_id="AAY99711.1"
/db_xref="GI:69048282"
/translation="MKSNNALIVILGTVTLDAVGIGLVMPVLPGLLRDIVHSDSIASH
YGVLLALYALMQFLCAPVLGALSDRFGRRPVLLASLLGATIDYAIMATTPVLWILYAG
RIVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLH
APFLAAAVLNGLNLLLGCFLMQESHKGERRPMPLRAFNPVSSFRWARGMTIVAALMTV
FFIMQLVGQVPAALWVIFGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGE
KQAIIAGMAADALGYVLLAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQG
QLQGSLAALTSLTSITGPLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSR
ATST"
regulatory 4086..4117
/regulatory_class="terminator"
/note="TonB terminator"
gene complement(4145..5074)
/gene="araC"
CDS complement(4145..5074)
/gene="araC"
/note="regulator"
/codon_start=1
/transl_table=11
/product="AraC"
/protein_id="AAY99712.1"
/db_xref="GI:69048283"
/translation="MQYGQLVSSLNGGSMKSMAEAQNDPLLPGYSFNAHLVAGLTPIE
ANGYLDFFIDRPLGMKGYILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRH
PEAREWYHQWVYFRPRAYWHEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQG
EGRYSELLAINLLEQLLLRRMEAINESLHPPMDNRVREACQYISDHLADSNFDIASVA
QHVCLSPSRLSHLFRQQLGISVLSWREDQRISQAKLLLSTTRMPIATVGRNVGFDDQL
YFSRVFKKCTGASPSEFRAGCEEKVNDVAVKLS"
regulatory 5082..5349
/regulatory_class="promoter"
/note="pBAD promoter"
ORIGIN
1 aacgaattca agcttgatat cattcaggac gagcctcaga ctccagcgta actggactga
61 aaacaaacta aagcgccctt gtggcgcttt agttttgttc cgctcatgat aataatggtt
121 tcttagacgt caggtggcac ttttcgggga aatgtgcgcg cccgcgttcc tgctggcgct
181 gggcctgttt ctggcgctgg acttcccgct gttccgtcag cagcttttcg cccacggcct
241 tgatgatcgc ggcggccttg gcctgcatat cccgattcaa cggccccagg gcgtccagaa
301 cgggcttcag gcgctcccga aggtctcggg ccgtctcttg ggcttgatcg gccttcttgc
361 gcatctcacg cgctcctgcg gcggcctgta gggcaggctc atacccctgc cgaaccgctt
421 ttgtcagccg gtcggccacg gcttccggcg tctcaacgcg ctttgagatt cccagctttt
481 cggccaatcc ctgcggtgca taggcgcgtg gctcgaccgc ttgcgggctg atggtgacgt
541 ggcccactgg tggccgctcc agggcctcgt agaacgcctg aatgcgcgtg tgacgtgcct
601 tgctgccctc gatgccccgt tgcagcccta gatcggccac agcggccgca aacgtggtct
661 ggtcgcgggt catctgcgct ttgttgccga tgaactcctt ggccgacagc ctgccgtcct
721 gcgtcagcgg caccacgaac gcggtcatgt gcgggctggt ttcgtcacgg tggatgctgg
781 ccgtcacgat gcgatccgcc ccgtacttgt ccgccagcca cttgtgcgcc ttctcgaaga
841 acgccgcctg ctgttcttgg ctggccgact tccaccattc cgggctggcc gtcatgacgt
901 actcgaccgc caacacagcg tccttgcgcc gcttctctgg cagcaactcg cgcagtcggc
961 ccatcgcttc atcggtgctg ctggccgccc agtgctcgtt ctctggcgtc ctgctggcgt
1021 cagcgttggg cgtctcgcgc tcgcggtagg cgtgcttgag actggccgcc acgttgccca
1081 ttttcgccag cttcttgcat cgcatgatcg cgtatgccgc catgcctgcc cctccctttt
1141 ggtgtccaac cggctcgacg ggggcagcgc aaggcggtgc ctccggcggg ccactcaatg
1201 cttgagtata ctcactagac tttgcttcgc aaagtcgtga ccgcctacgg cggctgcggc
1261 gccctacggg cttgctctcc gggcttcgcc ctgcgcggtc gctgcgctcc cttgccagcc
1321 cgtggatatg tggacgatgg ccgcgagcgg ccaccggctg gctcgcttcg ctcggcccgt
1381 ggacaaccct gctggacaag ctgatggaca ggctgcgcct gcccacgagc ttgaccacag
1441 ggattgccca ccggctaccc agccttcgac cacataccca ccggctccaa ctgcgcggcc
1501 tgcggccttg ccccatcaat ttttttaatt ttctctgggg aaaagcctcc ggcctgcggc
1561 ctgcgcgctt cgcttgccgg ttggacacca agtggaaggc gggtcaaggc tcgcgcagcg
1621 accgcgcagc ggcttggcct tgacgcgcct ggaacgaccc aagcctatgc gagtgggggc
1681 agtcgaaggc gaagcccgcc cgcctgcccc ccgagcctca cggcggcgag tgcgggggtt
1741 ccaagggggc agcgccacct tgggcaaggc cgaaggccgc gcagtcgatc aacaagcccc
1801 ggaggggcca ctttttgccg gagggggagc cgcgccgaag gcgtggggga accccgcagg
1861 ggtgcccttc tttgggcacc aaagaactag atatagggcg aaatgcgaaa gacttaaaaa
1921 tcaacaactt aaaaaagggg ggtacgcaac agctcattgc ggcacccccc gcaatagctc
1981 attgcgtagg ttaaagaaaa tctgtaattg actgccactt ttacgcaacg cataattgtt
2041 gtcgcgctgc cgaaaagttg cagctgattg cgcatggtgc cgcaaccgtg cggcacccta
2101 ccgcatggag ataagcatgg ccacgcagtc cagagaaatc ggcattcaag ccaagaacaa
2161 gcccggtcac tgggtgcaaa cggaacgcaa agcgcatgag gcgtgggccg ggcttattgc
2221 gaggaaaccc acggcggcaa tgctgctgca tcacctcgtg gcgcagatgg gccaccagaa
2281 cgccgtggtg gtcagccaga agacactttc caagctcatc ggacgttctt tgcggacggt
2341 ccaatacgca gtcaaggact tggtggccga gcgctggatc tccgtcgtga agctcaacgg
2401 ccccggcacc gtgtcggcct acgtggtcaa tgaccgcgtg gcgtggggcc agccccgcga
2461 ccagttgcgc ctgtcggtgt tcagtgccgc cgtggtggtt gatcacgacg accaggacga
2521 atcgctgttg gggcatggcg acctgcgccg catcccgacc ctgtatccgg gcgagcagca
2581 actaccgacc ggccccggcg aggagccgcc cagccagccc ggcattccgg gcatggaacc
2641 agacctgcca gccttgaccg aaacggagga atgggaacgg cgcgggcagc agcgcctgcc
2701 gatgcccgat gagccgtgtt ttctggacga tggcgagccg ttggagccgc cgacacgggt
2761 cacgctgccg cgccggtagt acgtaagagg ttccaacttt caccataatg aaataagatc
2821 actaccgggc gtattttttg agttatcgag attttcagga gctaaggaag ctaaaatgaa
2881 atctaacaat gcgctcatcg tcatcctcgg caccgtcacc ctggatgctg taggcatagg
2941 cttggttatg ccggtactgc cgggcctctt gcgggatatc gtccattccg acagcatcgc
3001 cagtcactat ggcgtgctgc tagcgctata tgcgttgatg caatttctat gcgcacccgt
3061 tctcggagca ctgtccgacc gctttggccg ccgcccagtc ctgctcgctt cgctacttgg
3121 agccactatc gactacgcga tcatggcgac cacacccgtc ctgtggatcc tctacgccgg
3181 acgcatcgtg gccggcatca ccggcgccac aggtgcggtt gctggcgcct atatcgccga
3241 catcaccgat ggggaagatc gggctcgcca cttcgggctc atgagcgctt gtttcggcgt
3301 gggtatggtg gcaggccccg tggccggggg actgttgggc gccatctcct tgcatgcacc
3361 attccttgcg gcggcggtgc tcaacggcct caacctacta ctgggctgct tcctaatgca
3421 ggagtcgcat aagggagagc gtcgaccgat gcccttgaga gccttcaacc cagtcagctc
3481 cttccggtgg gcgcggggca tgactatcgt cgccgcactt atgactgtct tctttatcat
3541 gcaactcgta ggacaggtgc cggcagcgct ctgggtcatt ttcggcgagg accgctttcg
3601 ctggagcgcg acgatgatcg gcctgtcgct tgcggtattc ggaatcttgc acgccctcgc
3661 tcaagccttc gtcactggtc ccgccaccaa acgtttcggc gagaagcagg ccattatcgc
3721 cggcatggcg gccgacgcgc tgggctacgt cttgctggcg ttcgcgacgc gaggctggat
3781 ggccttcccc attatgattc ttctcgcttc cggcggcatc gggatgcccg cgttgcaggc
3841 catgctgtcc aggcaggtag atgacgacca tcagggacag cttcaaggat cgctcgcggc
3901 tcttaccagc ctaacttcga tcactggacc gctgatcgtc acggcgattt atgccgcctc
3961 ggcgagcaca tggaacgggt tggcatggat tgtaggcgcc gccctatacc ttgtctgcct
4021 ccccgcgttg cgtcgcggtg catggagccg ggccacctcg acctgaatgg aagggatccc
4081 cctcaagtca aaagcctccg gtcggaggct tttgactttc tgctatggag gtcaggtatg
4141 atttttatga caacttgacg gctacatcat tcactttttc ttcacaaccg gcacggaact
4201 cgctcgggct ggccccggtg cattttttaa atacccgcga gaaatagagt tgatcgtcaa
4261 aaccaacatt gcgaccgacg gtggcgatag gcatccgggt ggtgctcaaa agcagcttcg
4321 cctggctgat acgttggtcc tcgcgccagc ttaagacgct aatccctaac tgctggcgga
4381 aaagatgtga cagacgcgac ggcgacaagc aaacatgctg tgcgacgctg gcgatatcaa
4441 aattgctgtc tgccaggtga tcgctgatgt actgacaagc ctcgcgtacc cgattatcca
4501 tcggtggatg gagcgactcg ttaatcgctt ccatgcgccg cagtaacaat tgctcaagca
4561 gatttatcgc cagcagctcc gaatagcgcc cttccccttg cccggcgtta atgatttgcc
4621 caaacaggtc gctgaaatgc ggctggtgcg cttcatccgg gcgaaagaac cccgtattgg
4681 caaatattga cggccagtta agccattcat gccagtaggc gcgcggacga aagtaaaccc
4741 actggtgata ccattcgcga gcctccggat gacgaccgta gtgatgaatc tctcctggcg
4801 ggaacagcaa aatatcaccc ggtcggcaaa caaattctcg tccctgattt ttcaccaccc
4861 cctgaccgcg aatggtgaga ttgagaatat aacctttcat tcccagcggt cggtcgataa
4921 aaaaatcgag ataaccgttg gcctcaatcg gcgttaaacc cgccaccaga tgggcattaa
4981 acgagtatcc cggcagcagg ggatcatttt gcgcttcagc catacttttc atactcccgc
5041 cattcagaga agaaaccaat tgtccatatt gcatcagaca ttgccgtcac tgcgtctttt
5101 actggctctt ctcgctaacc aaaccggtaa ccccgcttat taaaagcatt ctgtaacaaa
5161 gcgggaccaa agccatgaca aaaacgcgta acaaaagtgt ctataatcac ggcagaaaag
5221 tccacattga ttatttgcac ggcgtcacac tttgctatgc catagcattt ttatccataa
5281 gattagcgga tcctacctga cgctttttat cgcaactctc tactgtttct ccatacccgt
5341 ttttttgggc tagagaattc gtc
//
