pENTR-L1-pLac-lacZa-R5

价格:2500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pENTR-L1-pLac-lacZa-R5载体质粒基本信息

出品公司: Invitrogen
载体名称: pENTR-L1-pLac-lacZa-R5
质粒类型: 多位点Gateway载体;入门载体
高拷贝/低拷贝: 高拷贝
启动子:
克隆方法: 限制性内切酶;多克隆位点
载体大小: 2968 bp
5' 测序引物及序列: pENTR-F: CTACAAACTCTTCCTGTTAGTTAG
3' 测序引物及序列: pENTR-R: ATGGCTCATAACACCCCTTG
载体标签:
载体抗性: 卡那霉素
真核筛选标记:
克隆菌株: DH5aTOP10感受态细胞
产品目录号: --
病毒/非病毒: 非病毒

pENTR-L1-pLac-lacZa-R5质粒图谱载体图谱和pENTR-L1-pLac-lacZa-R5载体序列质粒序列多克隆位点信息

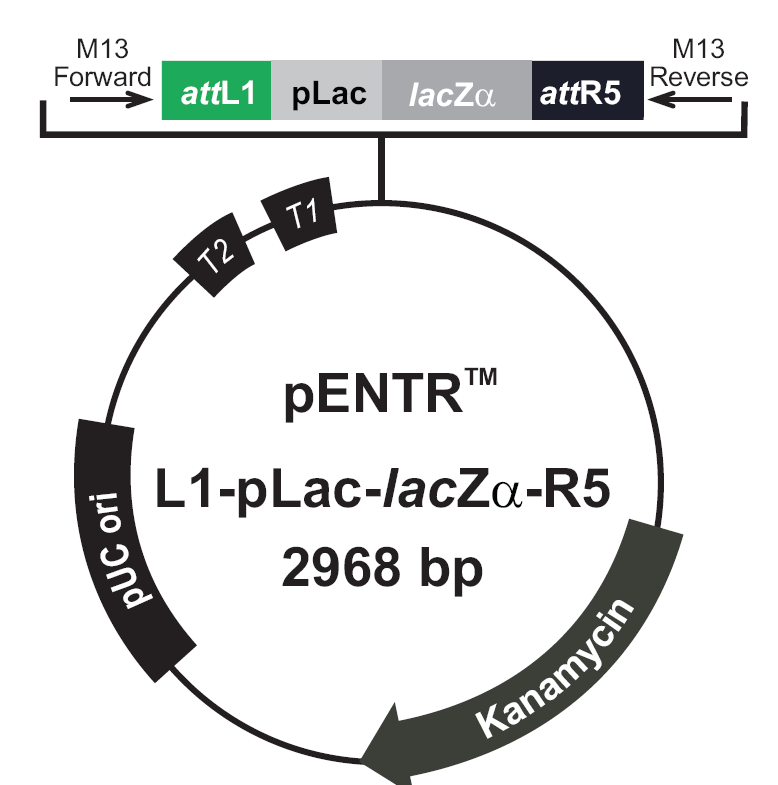

pENTR-L1-pLac-lacZa-R5载体图谱

pENTR-L1-pLac-lacZa-R5质粒载体简介

pENTR-L1-pLac-lacZa-R5质粒序列载体序列

LOCUS       Exported                2968 bp ds-DNA     circular SYN 13-AUG-2016
DEFINITION  synthetic circular DNA
KEYWORDS    pENTR-L1-pLac-lacZa-R5
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2968)
  AUTHORS   Biofeng Lab.
  TITLE     Direct Submission
FEATURES             Location/Qualifiers
     source          1..2968
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     terminator      268..295
                     /note="rrnB T2 terminator"
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     terminator      387..473
                     /gene="Escherichia coli rrnB"
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     primer_bind     537..553
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    569..668
                     /gene="mutant version of attL"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attL1"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        694..724
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     protein_bind    732..748
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     756..772
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     gene            767..983
                     /note="lacZ-alpha"
     misc_feature    785..841
                     /note="MCS"
                     /note="pUC18/19 multiple cloning site"
     primer_bind     complement(842..858)
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    1031..1154
                     /gene="mutant version of attR"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attR5"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        complement(1210..1228)
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1233..1249)
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     CDS             1362..2171
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /note="KanR"
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYGKP
                     DAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGKTA
                     FQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDASD
                     FDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGIAD
                     RYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     rep_origin      2318..2906
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 ctttcctgcg ttatcccctg attctgtgga taaccgtatt accgcctttg agtgagctga
       61 taccgctcgc cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg aagcggaaga
      121 gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca
      181 cgacaggttt cccgactgga aagcgggcag tgagcgcaac gcaattaata cgcgtaccgc
      241 tagccaggaa gagtttgtag aaacgcaaaa aggccatccg tcaggatggc cttctgctta
      301 gtttgatgcc tggcagttta tggcgggcgt cctgcccgcc accctccggg ccgttgcttc
      361 acaacgttca aatccgctcc cggcggattt gtcctactca ggagagcgtt caccgacaaa
      421 caacagataa aacgaaaggc ccagtcttcc gactgagcct ttcgttttat ttgatgcctg
      481 gcagttccct actctcgcgt taacgctagc atggatgttt tcccagtcac gacgttgtaa
      541 aacgacggcc agtcttaagc tcgggcccca aataatgatt ttattttgac tgatagtgac
      601 ctgttcgttg caacaaattg atgagcaatg cttttttata atgccaactt tgtacaaaaa
      661 agcaggctag ctcactcatt aggcacccca ggctttacac tttatgcttc cggctcgtat
      721 gttgtgtgga attgtgagcg gataacaatt tcacacagga aacagctatg accatgatta
      781 cgccaagctt gcatgcctgc aggtcgactc tagaggatcc ccgggtaccg agctcgaatt
      841 cactggccgt cgttttacaa cgtcgtgact gggaaaaccc tggcgttacc caacttaatc
      901 gccttgcagc acatccccct ttcgccagct ggcgtaatag cgaagaggcc cgcaccgatc
      961 gcccttccca acagttgcgc agctaacact ataaaaaggc agtgatgcag acggggcttt
     1021 tttatgcagg caactttgta tacaaaagtt gaacgagaaa cgtaaaatga tataaatatc
     1081 aatatattaa attagatttt gcataaaaaa cagactacat aatactgtaa aacacaacat
     1141 atccagtcac tatgaatcaa ctacttagat ggtattagtg acctgtactg cagggcggcc
     1201 gcgatatccc ctatagtgag tcgtattaca tggtcatagc tgtttcctgg cagctctggc
     1261 ccgtgtctca aaatctctga tgttacattg cacaagataa aaatatatca tcatgaacaa
     1321 taaaactgtc tgcttacata aacagtaata caaggggtgt tatgagccat attcaacggg
     1381 aaacgtcgag gccgcgatta aattccaaca tggatgctga tttatatggg tataaatggg
     1441 ctcgcgataa tgtcgggcaa tcaggtgcga caatctatcg cttgtatggg aagcccgatg
     1501 cgccagagtt gtttctgaaa catggcaaag gtagcgttgc caatgatgtt acagatgaga
     1561 tggtcagact aaactggctg acggaattta tgcctcttcc gaccatcaag cattttatcc
     1621 gtactcctga tgatgcatgg ttactcacca ctgcgatccc cggaaaaaca gcattccagg
     1681 tattagaaga atatcctgat tcaggtgaaa atattgttga tgcgctggca gtgttcctgc
     1741 gccggttgca ttcgattcct gtttgtaatt gtccttttaa cagcgatcgc gtatttcgtc
     1801 tcgctcaggc gcaatcacga atgaataacg gtttggttga tgcgagtgat tttgatgacg
     1861 agcgtaatgg ctggcctgtt gaacaagtct ggaaagaaat gcataaactt ttgccattct
     1921 caccggattc agtcgtcact catggtgatt tctcacttga taaccttatt tttgacgagg
     1981 ggaaattaat aggttgtatt gatgttggac gagtcggaat cgcagaccga taccaggatc
     2041 ttgccatcct atggaactgc ctcggtgagt tttctccttc attacagaaa cggctttttc
     2101 aaaaatatgg tattgataat cctgatatga ataaattgca gtttcatttg atgctcgatg
     2161 agtttttcta atcagaattg gttaattggt tgtaacactg gcagagcatt acgctgactt
     2221 gacgggacgg cgcaagctca tgaccaaaat cccttaacgt gagttacgcg tcgttccact
     2281 gagcgtcaga ccccgtagaa aagatcaaag gatcttcttg agatcctttt tttctgcgcg
     2341 taatctgctg cttgcaaaca aaaaaaccac cgctaccagc ggtggtttgt ttgccggatc
     2401 aagagctacc aactcttttt ccgaaggtaa ctggcttcag cagagcgcag ataccaaata
     2461 ctgttcttct agtgtagccg tagttaggcc accacttcaa gaactctgta gcaccgccta
     2521 catacctcgc tctgctaatc ctgttaccag tggctgctgc cagtggcgat aagtcgtgtc
     2581 ttaccgggtt ggactcaaga cgatagttac cggataaggc gcagcggtcg ggctgaacgg
     2641 ggggttcgtg cacacagccc agcttggagc gaacgaccta caccgaactg agatacctac
     2701 agcgtgagct atgagaaagc gccacgcttc ccgaagggag aaaggcggac aggtatccgg
     2761 taagcggcag ggtcggaaca ggagagcgca cgagggagct tccaggggga aacgcctggt
     2821 atctttatag tcctgtcggg tttcgccacc tctgacttga gcgtcgattt ttgtgatgct
     2881 cgtcaggggg gcggagccta tggaaaaacg ccagcaacgc ggccttttta cggttcctgg
     2941 ccttttgctg gccttttgct cacatgtt
//

pENTR-L1-pLac-lacZa-R5载体图谱质粒图谱pdf版和pENTR-L1-pLac-lacZa-R5载体序列质粒序列等相关资料下载

pENTR-L1-pLac-lacZa-R5质粒载体应用举例
