| 出品公司: | Clontech |
|---|---|
| 载体名称: | pAmCyan1-C1 |
| 质粒类型: | 哺乳动物细胞表达载体；荧光报告载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | CMV IE |
| 载体大小: | 4701 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | AmCyan1(N-端） |
| 载体抗性: | 卡那霉素 |
| 筛选标记: | 新霉素（Neomycin） |
| 克隆菌株: | DH5α, HB101 |
| 宿主细胞（系）: | 常规细胞系，293、CV-1、CHO等 |
| 备注: |
pAmCyan1-C1载体是青色荧光报告载体，表达N端AmCyan1融合蛋白； AmCyan1是AmCyan的突变体，与AmCyan1相比，编码序列经过了优化，更适合在哺乳动物细胞中的表达； 同时突变了两个氨基酸位点，改变了发光特点。 |
| 产品目录号: | 632441 |
| 稳定性: | 瞬表达 或 稳表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航
载体基本信息

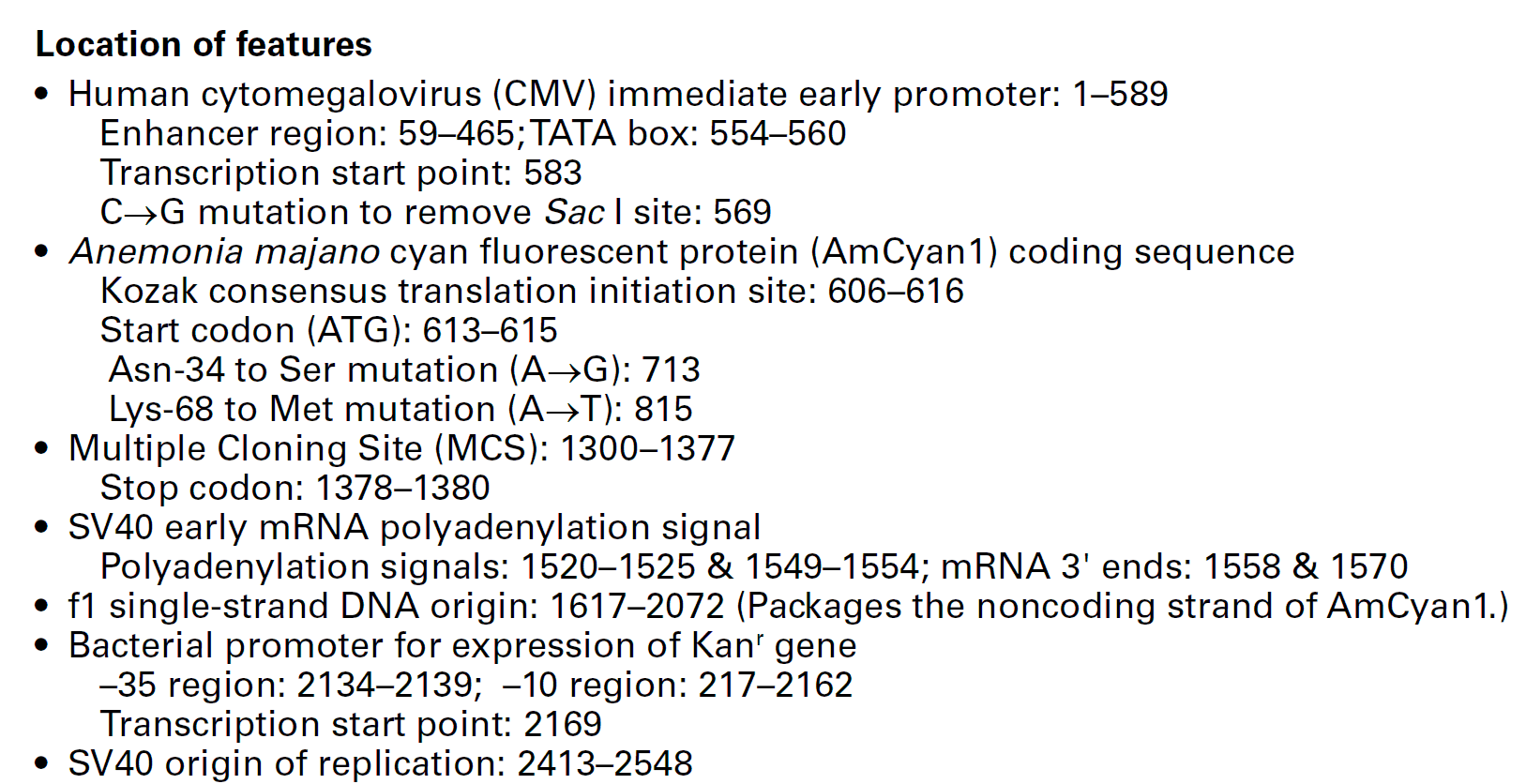

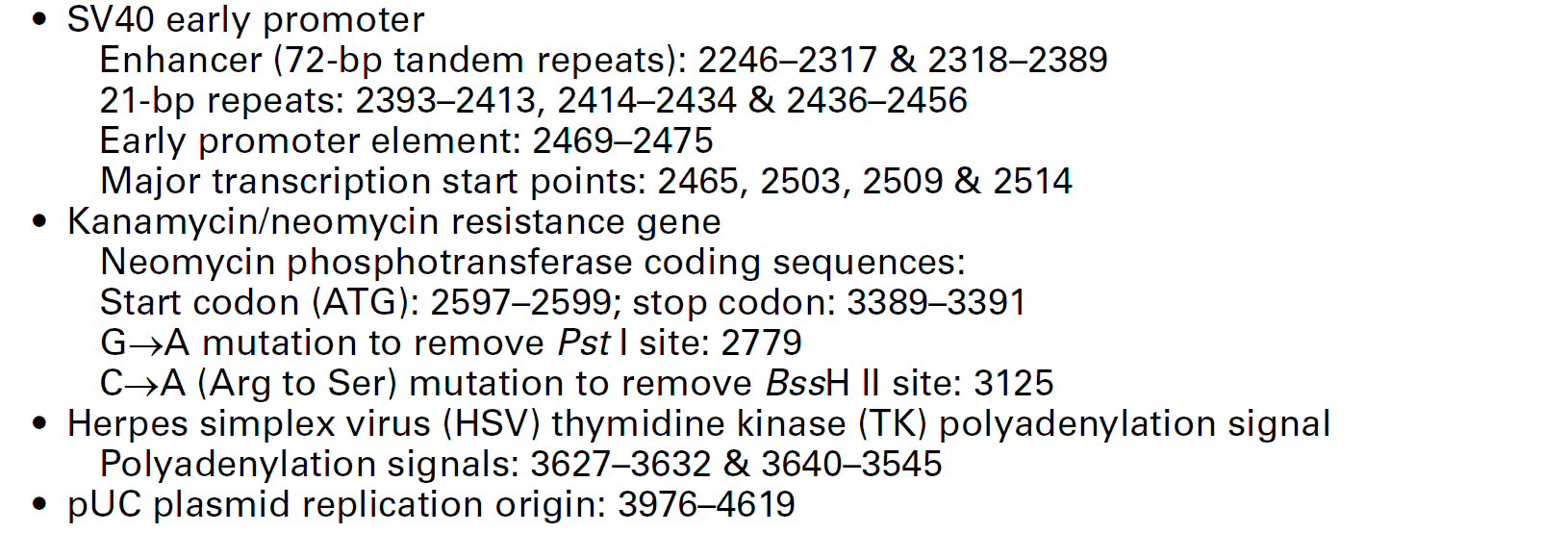

载体图谱质粒图谱和多克隆位点信息
载体简介
pAmCyan1-C1载体描述
pAmCyan1-C1 encodes a human codon-optimized variant of wild-type Anemonia majano cyan fluorescent protein, AmCyan1 (1). The AmCyan1 coding sequence contains a series of silent base-pair changes, which correspond to human codon-usage preferences, for optimal expression in mammalian cells (2). Additionally, an upstream sequence—located just 5' to the AmCyan1 start codon—has been converted to a Kozak consensus translation initiation site (3) to further increase the translation efficiency in eukaryotic cells. Two amino acid substitutions (Asn-34 to Ser; Lys-68 to Met) have been made to enhance the emission characteristics of AmCyan1 (excitation maximum = 458 nm; emission maximum = 489 nm).

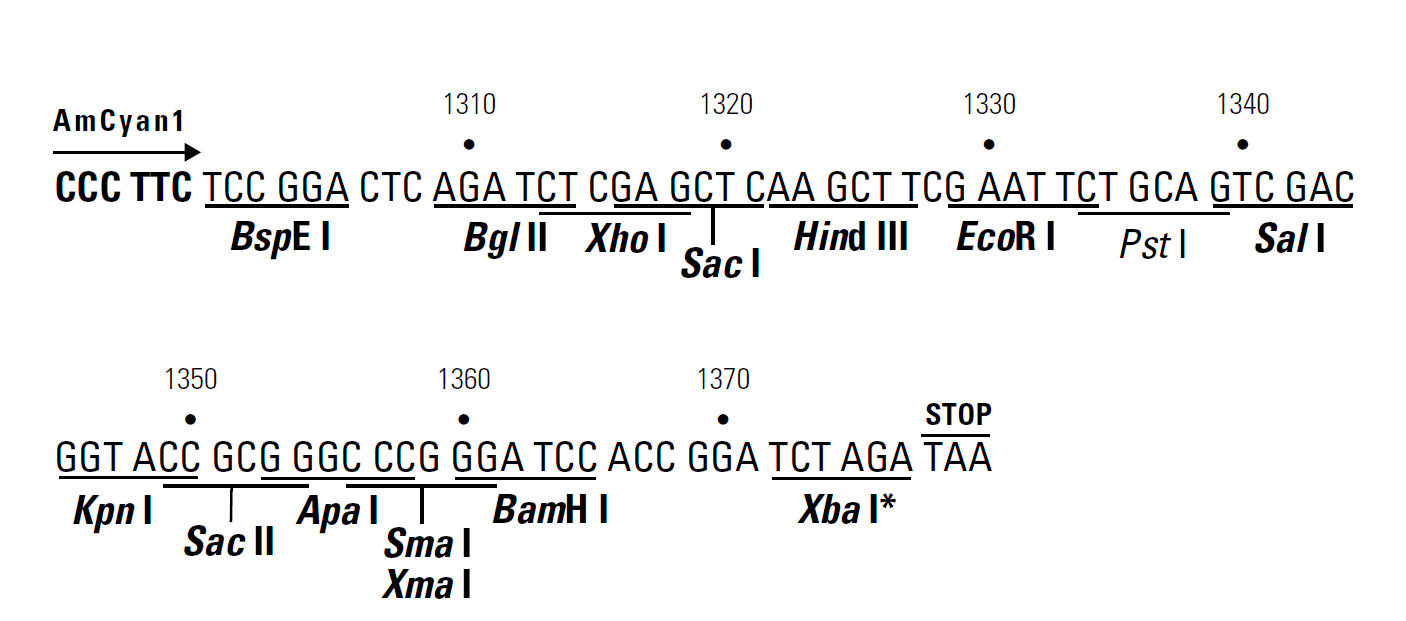

The multiple cloning site (MCS) in pAmCyan1-C1 is positioned between the AmCyan1 coding sequence and a pair of SV40 polyadenylation signals (SV40 poly A). Thus, genes cloned into the MCS will be expressed as fusions to the C-terminus of AmCyan1 if they are in the same reading frame as AmCyan1 and there are no intervening stop codons. Expression of AmCyan1 is driven by the cytomegalovirus immediate-early promoter (PCMV IE). The SV40 poly A signals downstream of the MCS direct proper processing of the 3' end of AmCyan1 mRNA. The vector backbone contains an SV40 origin (SV40 ori) for replication in mammalian cells that express the SV40 T-antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin resistance cassette—consisting of the SV40 early promoter (PSV40e), the neomycin/kanamycin resistance gene of Tn5 (Neor/Kanr), and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK poly A) gene—allows stably transfected eukaryotic cells to be selected using G418 (4). A bacterial promoter (P) upstream of this cassette drives expression of the Neor/Kanr gene in E. coli hosts, which can be selected with kanamycin.Fusions to the C terminus of AmCyan1 retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo. The target gene should be cloned into pAmCyan1-C1 so that it is in frame with the AmCyan1 coding sequence, with no intervening, in-frame stop codons. The recombinant pAmCyan1-C1 vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418. We recommend selecting mammalian cell cultures in 500–1,300 μg/ml G418, depending on the cell line. Be sure to establish a kill curve for each cell line and each lot of G418 to determine the optimal selection concentration. Unmodified (i.e., non-recombinant) pAmCyan1-C1 can also be used simply to express AmCyan1 in a cell line of interest (e.g., as a transfection marker).
Propagation in E. coli
Suitable host strains: DH5α, HB101, and other general purpose strains. Single-stranded DNA production requires
a host containing an F plasmid such as JM109 or XL1-Blue.
Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) to E. coli hosts.
E. coli replication origin: pUC
Copy number: ~500
Plasmid incompatibility group: pMB1/Col E1
载体序列
LOCUS pAmCyan1-C1 4701 bp DNA SYN
DEFINITION pAmCyan1-C1
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4701
/organism="pAmCyan1-C1"
/mol_type="other DNA"
promoter 10..562
/label="CMV_immearly_promoter"
misc_feature 65..352
/label="CAG_enhancer"
misc_feature 519..539
/label="CMV_fwd_primer"
promoter 520..589
/label="CMV_promoter"
CDS complement(598..1398)
/label="ORF frame 1"
/translation="MADYDQLSRSGGSRARGTVDCRIRSLSSRSESGEGHHGGDVGHG
VLGQLHAVAALVQVGSGDAVLHHVVGGHGHGLLGLVGGVELASVVAAALQHQEGGHVA
LQDAVAHGHLLEGGVPAGGLLGHHGAVGGEVHAVEGGLVLEAVALQADLPAGGGHAAV
LVGEGSLVGHAVGEGLLEVVGHAGGVGGEAAVAVHEHGGQDVEGEGQGAAVGHGHLEG
GGLGALVGLAAALALHGEVVAVHAAVHVVGHLHVVADELVGQGHGGDR*"
CDS 613..1380
/label="ORF frame 1"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
terminator 1382..1610
/label="SV40_PA_terminator"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature 1580..1599
/label="EBV_rev_primer"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
rep_origin complement(1749..2055)
/label="f1_origin"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
promoter 2134..2162
/label="AmpR_promoter"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature complement(2228..2248)
/label="pBABE_3_primer"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature complement(2234..2449)
/label="SV40_enhancer"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
promoter 2246..2514
/label="SV40_promoter"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
rep_origin 2413..2490
/label="SV40_origin"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature 2475..2494
/label="SV40pro_F_primer"
/translation="MALSNKFIGDDMKMTYHMDGCVNGHYFTVKGEGSGKPYEGTQTS
TFKVTMANGGPLAFSFDILSTVFMYGNRCFTAYPTSMPDYFKQAFPDGMSYERTFTYE
DGGVATASWEISLKGNCFEHKSTFHGVNFPADGPVMAKKTTGWDPSFEKMTVCDGILK
GDVTAFLMLQGGGNYRCQFHTSYKTKKPVTMPPNHVVEHRIARTDLDKGGNSVQLTEH
AVAHITSVVPFSGLRSRAQASNSAVDGTAGPGSTGSR*"
CDS 2597..3391
/label="ORF frame 2"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
gene 2600..3388
/label="NeoR/KanR"
/gene="NeoR/KanR"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
CDS complement(2906..3442)
/label="ORF frame 3"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
terminator 3566..3835
/label="TK_PA_terminator"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
rep_origin 3983..4602
/label="pBR322_origin"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
ORIGIN
1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
601 CCGGTCGCCA CCATGGCCCT GTCCAACAAG TTCATCGGCG ACGACATGAA GATGACCTAC
661 CACATGGACG GCTGCGTGAA CGGCCACTAC TTCACCGTGA AGGGCGAGGG CAGCGGCAAG
721 CCCTACGAGG GCACCCAGAC CTCCACCTTC AAGGTGACCA TGGCCAACGG CGGCCCCCTG
781 GCCTTCTCCT TCGACATCCT GTCCACCGTG TTCATGTACG GCAACCGCTG CTTCACCGCC
841 TACCCCACCA GCATGCCCGA CTACTTCAAG CAGGCCTTCC CCGACGGCAT GTCCTACGAG
901 AGAACCTTCA CCTACGAGGA CGGCGGCGTG GCCACCGCCA GCTGGGAGAT CAGCCTGAAG
961 GGCAACTGCT TCGAGCACAA GTCCACCTTC CACGGCGTGA ACTTCCCCGC CGACGGCCCC
1021 GTGATGGCCA AGAAGACCAC CGGCTGGGAC CCCTCCTTCG AGAAGATGAC CGTGTGCGAC
1081 GGCATCTTGA AGGGCGACGT GACCGCCTTC CTGATGCTGC AGGGCGGCGG CAACTACAGA
1141 TGCCAGTTCC ACACCTCCTA CAAGACCAAG AAGCCCGTGA CCATGCCCCC CAACCACGTG
1201 GTGGAGCACC GCATCGCCAG AACCGACCTG GACAAGGGCG GCAACAGCGT GCAGCTGACC
1261 GAGCACGCCG TGGCCCACAT CACCTCCGTG GTGCCCTTCT CCGGACTCAG ATCTCGAGCT
1321 CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG GATCCACCGG ATCTAGATAA
1381 CTGATCATAA TCAGCCATAC CACATTTGTA GAGGTTTTAC TTGCTTTAAA AAACCTCCCA
1441 CACCTCCCCC TGAACCTGAA ACATAAAATG AATGCAATTG TTGTTGTTAA CTTGTTTATT
1501 GCAGCTTATA ATGGTTACAA ATAAAGCAAT AGCATCACAA ATTTCACAAA TAAAGCATTT
1561 TTTTCACTGC ATTCTAGTTG TGGTTTGTCC AAACTCATCA ATGTATCTTA ACGCGTAAAT
1621 TGTAAGCGTT AATATTTTGT TAAAATTCGC GTTAAATTTT TGTTAAATCA GCTCATTTTT
1681 TAACCAATAG GCCGAAATCG GCAAAATCCC TTATAAATCA AAAGAATAGA CCGAGATAGG
1741 GTTGAGTGTT GTTCCAGTTT GGAACAAGAG TCCACTATTA AAGAACGTGG ACTCCAACGT
1801 CAAAGGGCGA AAAACCGTCT ATCAGGGCGA TGGCCCACTA CGTGAACCAT CACCCTAATC
1861 AAGTTTTTTG GGGTCGAGGT GCCGTAAAGC ACTAAATCGG AACCCTAAAG GGAGCCCCCG
1921 ATTTAGAGCT TGACGGGGAA AGCCGGCGAA CGTGGCGAGA AAGGAAGGGA AGAAAGCGAA
1981 AGGAGCGGGC GCTAGGGCGC TGGCAAGTGT AGCGGTCACG CTGCGCGTAA CCACCACACC
2041 CGCCGCGCTT AATGCGCCGC TACAGGGCGC GTCAGGTGGC ACTTTTCGGG GAAATGTGCG
2101 CGGAACCCCT ATTTGTTTAT TTTTCTAAAT ACATTCAAAT ATGTATCCGC TCATGAGACA
2161 ATAACCCTGA TAAATGCTTC AATAATATTG AAAAAGGAAG AGTCCTGAGG CGGAAAGAAC
2221 CAGCTGTGGA ATGTGTGTCA GTTAGGGTGT GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA
2281 AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCAGGT GTGGAAAGTC CCCAGGCTCC
2341 CCAGCAGGCA GAAGTATGCA AAGCATGCAT CTCAATTAGT CAGCAACCAT AGTCCCGCCC
2401 CTAACTCCGC CCATCCCGCC CCTAACTCCG CCCAGTTCCG CCCATTCTCC GCCCCATGGC
2461 TGACTAATTT TTTTTATTTA TGCAGAGGCC GAGGCCGCCT CGGCCTCTGA GCTATTCCAG
2521 AAGTAGTGAG GAGGCTTTTT TGGAGGCCTA GGCTTTTGCA AAGATCGATC AAGAGACAGG
2581 ATGAGGATCG TTTCGCATGA TTGAACAAGA TGGATTGCAC GCAGGTTCTC CGGCCGCTTG
2641 GGTGGAGAGG CTATTCGGCT ATGACTGGGC ACAACAGACA ATCGGCTGCT CTGATGCCGC
2701 CGTGTTCCGG CTGTCAGCGC AGGGGCGCCC GGTTCTTTTT GTCAAGACCG ACCTGTCCGG
2761 TGCCCTGAAT GAACTGCAAG ACGAGGCAGC GCGGCTATCG TGGCTGGCCA CGACGGGCGT
2821 TCCTTGCGCA GCTGTGCTCG ACGTTGTCAC TGAAGCGGGA AGGGACTGGC TGCTATTGGG
2881 CGAAGTGCCG GGGCAGGATC TCCTGTCATC TCACCTTGCT CCTGCCGAGA AAGTATCCAT
2941 CATGGCTGAT GCAATGCGGC GGCTGCATAC GCTTGATCCG GCTACCTGCC CATTCGACCA
3001 CCAAGCGAAA CATCGCATCG AGCGAGCACG TACTCGGATG GAAGCCGGTC TTGTCGATCA
3061 GGATGATCTG GACGAAGAGC ATCAGGGGCT CGCGCCAGCC GAACTGTTCG CCAGGCTCAA
3121 GGCGAGCATG CCCGACGGCG AGGATCTCGT CGTGACCCAT GGCGATGCCT GCTTGCCGAA
3181 TATCATGGTG GAAAATGGCC GCTTTTCTGG ATTCATCGAC TGTGGCCGGC TGGGTGTGGC
3241 GGACCGCTAT CAGGACATAG CGTTGGCTAC CCGTGATATT GCTGAAGAGC TTGGCGGCGA
3301 ATGGGCTGAC CGCTTCCTCG TGCTTTACGG TATCGCCGCT CCCGATTCGC AGCGCATCGC
3361 CTTCTATCGC CTTCTTGACG AGTTCTTCTG AGCGGGACTC TGGGGTTCGA AATGACCGAC
3421 CAAGCGACGC CCAACCTGCC ATCACGAGAT TTCGATTCCA CCGCCGCCTT CTATGAAAGG
3481 TTGGGCTTCG GAATCGTTTT CCGGGACGCC GGCTGGATGA TCCTCCAGCG CGGGGATCTC
3541 ATGCTGGAGT TCTTCGCCCA CCCTAGGGGG AGGCTAACTG AAACACGGAA GGAGACAATA
3601 CCGGAAGGAA CCCGCGCTAT GACGGCAATA AAAAGACAGA ATAAAACGCA CGGTGTTGGG
3661 TCGTTTGTTC ATAAACGCGG GGTTCGGTCC CAGGGCTGGC ACTCTGTCGA TACCCCACCG
3721 AGACCCCATT GGGGCCAATA CGCCCGCGTT TCTTCCTTTT CCCCACCCCA CCCCCCAAGT
3781 TCGGGTGAAG GCCCAGGGCT CGCAGCCAAC GTCGGGGCGG CAGGCCCTGC CATAGCCTCA
3841 GGTTACTCAT ATATACTTTA GATTGATTTA AAACTTCATT TTTAATTTAA AAGGATCTAG
3901 GTGAAGATCC TTTTTGATAA TCTCATGACC AAAATCCCTT AACGTGAGTT TTCGTTCCAC
3961 TGAGCGTCAG ACCCCGTAGA AAAGATCAAA GGATCTTCTT GAGATCCTTT TTTTCTGCGC
4021 GTAATCTGCT GCTTGCAAAC AAAAAAACCA CCGCTACCAG CGGTGGTTTG TTTGCCGGAT
4081 CAAGAGCTAC CAACTCTTTT TCCGAAGGTA ACTGGCTTCA GCAGAGCGCA GATACCAAAT
4141 ACTGTCCTTC TAGTGTAGCC GTAGTTAGGC CACCACTTCA AGAACTCTGT AGCACCGCCT
4201 ACATACCTCG CTCTGCTAAT CCTGTTACCA GTGGCTGCTG CCAGTGGCGA TAAGTCGTGT
4261 CTTACCGGGT TGGACTCAAG ACGATAGTTA CCGGATAAGG CGCAGCGGTC GGGCTGAACG
4321 GGGGGTTCGT GCACACAGCC CAGCTTGGAG CGAACGACCT ACACCGAACT GAGATACCTA
4381 CAGCGTGAGC TATGAGAAAG CGCCACGCTT CCCGAAGGGA GAAAGGCGGA CAGGTATCCG
4441 GTAAGCGGCA GGGTCGGAAC AGGAGAGCGC ACGAGGGAGC TTCCAGGGGG AAACGCCTGG
4501 TATCTTTATA GTCCTGTCGG GTTTCGCCAC CTCTGACTTG AGCGTCGATT TTTGTGATGC
4561 TCGTCAGGGG GGCGGAGCCT ATGGAAAAAC GCCAGCAACG CGGCCTTTTT ACGGTTCCTG
4621 GCCTTTTGCT GGCCTTTTGC TCACATGTTC TTTCCTGCGT TATCCCCTGA TTCTGTGGAT
4681 AACCGTATTA CCGCCATGCA T
//
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
- 上一篇：pDsRed-Express-N1
- 下一篇：pAmCyan1-N1
