出品公司: | Clontech |
---|---|
载体名称: | pDsRed-Express-N1 |
质粒类型: | 哺乳动物细胞表达载体;荧光报告载体 |
高拷贝/低拷贝: | 高拷贝 |
克隆方法: | 限制性内切酶,多克隆位点 |
启动子: | CMV IE |
载体大小: | 4689 bp |
5' 测序引物及序列: | 5'd[GTACTGGAACTGGGGGGACAG] |
3' 测序引物及序列: | -- |
载体标签: | V5 Epitope(C-端) |
载体抗性: | 卡那霉素 |
筛选标记: | 新霉素(Neomycin) |
克隆菌株: | DH5α, HB101 |
宿主细胞(系): | 常规细胞系,293、CV-1、CHO等 |
备注: |
pDsRed-Express-N1载体是荧光报告载体,表达C端DsRed-Express融合蛋白; DsRed-Express与DsRed相比,9个氨基酸发生了替换, 因此增加了可溶性,缩短了从转染到检测到红色荧光的时间,同时还减少了残余绿色辐射。 |
产品目录号: | 632429 |
稳定性: | 瞬表达 或 稳表达 |
组成型/诱导型: | 组成型 |
病毒/非病毒: | 非病毒 |
买家导航
pDsRed-Express-N1载体质粒基本信息

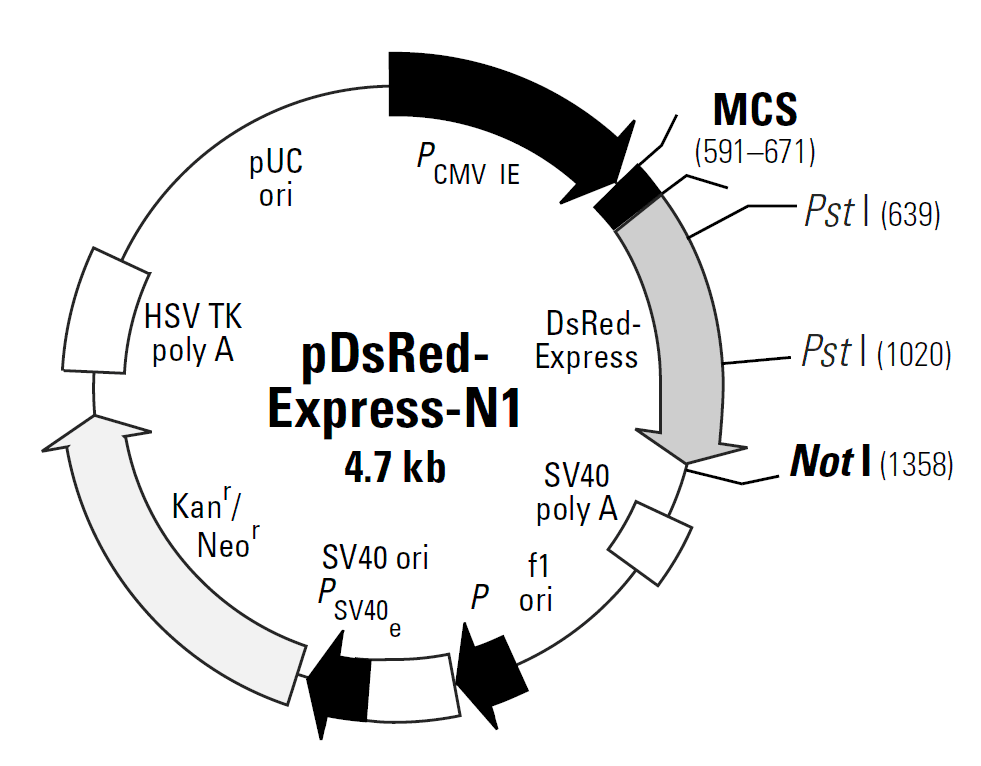

pDsRed-Express-N1质粒图谱载体图谱和pDsRed-Express-N1载体序列质粒序列多克隆位点信息
pDsRed-Express-N1质粒载体简介
pDsRed-Express-N1 is a mammalian expression vector that encodes DsRed-Express, a variant of Discosoma sp. red fluorescent protein (DsRed; 1). DsRed-Express contains nine amino acid substitutions (listed on page 2), which improve the solubility of the protein and reduce the time from transfection to detection of red fluorescence (2). In addition, these substitutions reduce the level of residual green emission (2). When DsRed-Express is expressed in mammalian cell cultures, redemitting cells can be detected by either fluorescence microscopy or flow cytometry 8–12 hours after transfection (DsRed-Express excitation and emission maxima = 557 nm and 579 nm, respectively). Although DsRed-Express most likely forms the same tetrameric structure as wild-type DsRed, DsRed- Express displays a reduced tendency to aggregate (2). The DsRed-Express coding sequence is human codon-optimized for high expression in mammalian cells (3).

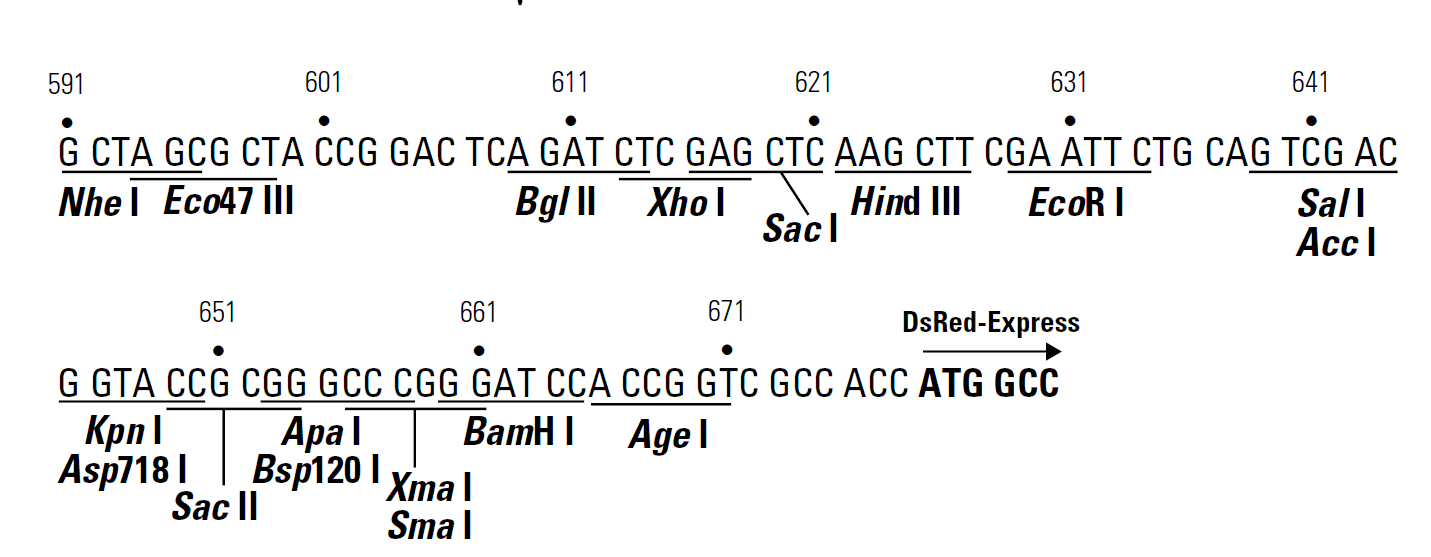

The multiple cloning site (MCS) in pDsRed-Express-N1 is positioned between the immediate early promoter of CMV (PCMV IE) and the DsRed-Express coding sequence. Genes cloned into the MCS are expressed as fusions to the N-terminus of DsRed-Express if they are in the same reading frame as DsRed-Express and there are no intervening stop codons. Sequences upstream of DsRed-Express have been converted to a Kozak consensus translation initiation site to increase translation efficiency in eukaryotic cells (4). SV40 polyadenylation signals downstream of the DsRed-Express gene direct proper processing of the 3' end of the DsRed-Express mRNA. The vector backbone contains an SV40 origin for replication in mammalian cells expressing the SV40 T antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin-resistance cassette (Neor) allows stably transfected eukaryotic cells to be selected using G418. This cassette consists of the SV40 early promoter, the neomycin/kanamycin resistance geneof Tn5, and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK) gene.A bacterial promoter upstream of the cassette confers kanamycin resistance to E. coli.
pDsRed-Express-N1 can be used to construct fusions to the N-terminus of DsRed-Express. If a fusion construct retains the fluorescent properties of the native DsRed-Express protein, its expression can be monitored by flow cytometry and its localization in vivo can be determined by fluorescence microscopy. The target gene should be cloned into pDsRed-Express-N1 so that it is in frame with the DsRed-Express coding sequence, with no intervening in-frame stop codons. The inserted gene should include an initiating ATG codon. Recombinant pDsRed-Express-N1 can be transfected into mammalian cells using any standard transfection method. If required, stable transfectants can be selected using G418 (5). pDsRed-Express-N1 can also be used as a cotransfection marker; the unmodified vector will express DsRed-Express.
Propagation in E. coli
Suitable host strains: DH5α, HB101 and other general purpose strains. Single-stranded DNA production requires
a host containing an F plasmid, such as the JM109 or XL1-Blue strains..
Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) to E. coli hosts.
E. coli replication origin: pUC
Copy number: ≈500
Plasmid incompatibility group: pMB1/ColE1
Excitation and emission maxima of DsRed-Express
Excitation maximum = 557 nm
Emission maximum = 579 nm
pDsRed-Express-N1质粒序列载体序列
LOCUS pDsRed-Express-N1 4689 bp DNA SYN DEFINITION pDsRed-Express-N1 ACCESSION KEYWORDS SOURCE ORGANISM other sequences; artificial sequences; vectors. FEATURES Location/Qualifiers source 1..4689 /organism="pDsRed-Express-N1" /mol_type="other DNA" promoter 10..562 /label="CMV_immearly_promoter" misc_feature 65..352 /label="CAG_enhancer" misc_feature 519..539 /label="CMV_fwd_primer" promoter 520..589 /label="CMV_promoter" CDS complement(607..1386) /label="ORF frame 1" /translation="MADYDLESRPLQEQVVAALGALVLLHDGVVLVVGGDVQLGVHVV VAGQLHGLLGHVDGLELHQVVAAVLQLQGLVDLALQHAVAGVQALGGGLPAHSLLLHY GAVGGEVHADELHLVDEGAVLQGGVLGHGHHAAVLEVHHALPLEALGEGQLLVVGDVG GVLHVHLGAVLELGGQDVPGEGQGAALGHLQLGGLGALVGAALALALDLELVAVHGAL HAHLEAHELLDDVLGGGHGGDRWIPGPRYRRLQNSKLELEI*" gene 679..1356 /label="DsRed_Express_2" /gene="DsRed_Express_2" /translation="MADYDLESRPLQEQVVAALGALVLLHDGVVLVVGGDVQLGVHVV VAGQLHGLLGHVDGLELHQVVAAVLQLQGLVDLALQHAVAGVQALGGGLPAHSLLLHY GAVGGEVHADELHLVDEGAVLQGGVLGHGHHAAVLEVHHALPLEALGEGQLLVVGDVG GVLHVHLGAVLELGGQDVPGEGQGAALGHLQLGGLGALVGAALALALDLELVAVHGAL HAHLEAHELLDDVLGGGHGGDRWIPGPRYRRLQNSKLELEI*" CDS 679..1356 /label="ORF frame 1" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" gene 682..1353 /label="DsRed_Express" /gene="DsRed_Express" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" misc_feature complement(859..879) /label="dsRed1_N_primer" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" misc_feature 1271..1294 /label="dsRed1_C_primer" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" misc_feature 1568..1587 /label="EBV_rev_primer" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" rep_origin complement(1737..2043) /label="f1_origin" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" promoter 2122..2150 /label="AmpR_promoter" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" misc_feature complement(2216..2236) /label="pBABE_3_primer" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" misc_feature complement(2222..2437) /label="SV40_enhancer" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" promoter 2234..2502 /label="SV40_promoter" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" rep_origin 2401..2478 /label="SV40_origin" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" misc_feature 2463..2482 /label="SV40pro_F_primer" /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG GVVTVTQDSSLQDGSFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGE IHKALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERAE GRHHLFL*" CDS 2585..3379 /label="ORF frame 2" /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*" gene 2588..3376 /label="NeoR/KanR" /gene="NeoR/KanR" /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*" CDS complement(2894..3430) /label="ORF frame 3" /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ PPHCISHDGYFLGRSKVR*" terminator 3554..3823 /label="TK_PA_terminator" /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ PPHCISHDGYFLGRSKVR*" rep_origin 3971..4590 /label="pBR322_origin" /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ PPHCISHDGYFLGRSKVR*" ORIGIN 1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG 61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT 121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA 181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC 241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA 301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC 361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG 421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG 481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT 541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA 601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG 661 GATCCACCGG TCGCCACCAT GGCCTCCTCC GAGGACGTCA TCAAGGAGTT CATGCGCTTC 721 AAGGTGCGCA TGGAGGGCTC CGTGAACGGC CACGAGTTCG AGATCGAGGG CGAGGGCGAG 781 GGCCGCCCCT ACGAGGGCAC CCAGACCGCC AAGCTGAAGG TGACCAAGGG CGGCCCCCTG 841 CCCTTCGCCT GGGACATCCT GTCCCCCCAG TTCCAGTACG GCTCCAAGGT GTACGTGAAG 901 CACCCCGCCG ACATCCCCGA CTACAAGAAG CTGTCCTTCC CCGAGGGCTT CAAGTGGGAG 961 CGCGTGATGA ACTTCGAGGA CGGCGGCGTG GTGACCGTGA CCCAGGACTC CTCCCTGCAG 1021 GACGGCTCCT TCATCTACAA GGTGAAGTTC ATCGGCGTGA ACTTCCCCTC CGACGGCCCC 1081 GTAATGCAGA AGAAGACTAT GGGCTGGGAG GCCTCCACCG AGCGCCTGTA CCCCCGCGAC 1141 GGCGTGCTGA AGGGCGAGAT CCACAAGGCC CTGAAGCTGA AGGACGGCGG CCACTACCTG 1201 GTGGAGTTCA AGTCCATCTA CATGGCCAAG AAGCCCGTGC AGCTGCCCGG CTACTACTAC 1261 GTGGACTCCA AGCTGGACAT CACCTCCCAC AACGAGGACT ACACCATCGT GGAGCAGTAC 1321 GAGCGCGCCG AGGGCCGCCA CCACCTGTTC CTGTAGCGGC CGCGACTCTA GATCATAATC 1381 AGCCATACCA CATTTGTAGA GGTTTTACTT GCTTTAAAAA ACCTCCCACA CCTCCCCCTG 1441 AACCTGAAAC ATAAAATGAA TGCAATTGTT GTTGTTAACT TGTTTATTGC AGCTTATAAT 1501 GGTTACAAAT AAAGCAATAG CATCACAAAT TTCACAAATA AAGCATTTTT TTCACTGCAT 1561 TCTAGTTGTG GTTTGTCCAA ACTCATCAAT GTATCTTAAG GCGTAAATTG TAAGCGTTAA 1621 TATTTTGTTA AAATTCGCGT TAAATTTTTG TTAAATCAGC TCATTTTTTA ACCAATAGGC 1681 CGAAATCGGC AAAATCCCTT ATAAATCAAA AGAATAGACC GAGATAGGGT TGAGTGTTGT 1741 TCCAGTTTGG AACAAGAGTC CACTATTAAA GAACGTGGAC TCCAACGTCA AAGGGCGAAA 1801 AACCGTCTAT CAGGGCGATG GCCCACTACG TGAACCATCA CCCTAATCAA GTTTTTTGGG 1861 GTCGAGGTGC CGTAAAGCAC TAAATCGGAA CCCTAAAGGG AGCCCCCGAT TTAGAGCTTG 1921 ACGGGGAAAG CCGGCGAACG TGGCGAGAAA GGAAGGGAAG AAAGCGAAAG GAGCGGGCGC 1981 TAGGGCGCTG GCAAGTGTAG CGGTCACGCT GCGCGTAACC ACCACACCCG CCGCGCTTAA 2041 TGCGCCGCTA CAGGGCGCGT CAGGTGGCAC TTTTCGGGGA AATGTGCGCG GAACCCCTAT 2101 TTGTTTATTT TTCTAAATAC ATTCAAATAT GTATCCGCTC ATGAGACAAT AACCCTGATA 2161 AATGCTTCAA TAATATTGAA AAAGGAAGAG TCCTGAGGCG GAAAGAACCA GCTGTGGAAT 2221 GTGTGTCAGT TAGGGTGTGG AAAGTCCCCA GGCTCCCCAG CAGGCAGAAG TATGCAAAGC 2281 ATGCATCTCA ATTAGTCAGC AACCAGGTGT GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA 2341 AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCATAG TCCCGCCCCT AACTCCGCCC 2401 ATCCCGCCCC TAACTCCGCC CAGTTCCGCC CATTCTCCGC CCCATGGCTG ACTAATTTTT 2461 TTTATTTATG CAGAGGCCGA GGCCGCCTCG GCCTCTGAGC TATTCCAGAA GTAGTGAGGA 2521 GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA GATCGATCAA GAGACAGGAT GAGGATCGTT 2581 TCGCATGATT GAACAAGATG GATTGCACGC AGGTTCTCCG GCCGCTTGGG TGGAGAGGCT 2641 ATTCGGCTAT GACTGGGCAC AACAGACAAT CGGCTGCTCT GATGCCGCCG TGTTCCGGCT 2701 GTCAGCGCAG GGGCGCCCGG TTCTTTTTGT CAAGACCGAC CTGTCCGGTG CCCTGAATGA 2761 ACTGCAAGAC GAGGCAGCGC GGCTATCGTG GCTGGCCACG ACGGGCGTTC CTTGCGCAGC 2821 TGTGCTCGAC GTTGTCACTG AAGCGGGAAG GGACTGGCTG CTATTGGGCG AAGTGCCGGG 2881 GCAGGATCTC CTGTCATCTC ACCTTGCTCC TGCCGAGAAA GTATCCATCA TGGCTGATGC 2941 AATGCGGCGG CTGCATACGC TTGATCCGGC TACCTGCCCA TTCGACCACC AAGCGAAACA 3001 TCGCATCGAG CGAGCACGTA CTCGGATGGA AGCCGGTCTT GTCGATCAGG ATGATCTGGA 3061 CGAAGAGCAT CAGGGGCTCG CGCCAGCCGA ACTGTTCGCC AGGCTCAAGG CGAGCATGCC 3121 CGACGGCGAG GATCTCGTCG TGACCCATGG CGATGCCTGC TTGCCGAATA TCATGGTGGA 3181 AAATGGCCGC TTTTCTGGAT TCATCGACTG TGGCCGGCTG GGTGTGGCGG ACCGCTATCA 3241 GGACATAGCG TTGGCTACCC GTGATATTGC TGAAGAGCTT GGCGGCGAAT GGGCTGACCG 3301 CTTCCTCGTG CTTTACGGTA TCGCCGCTCC CGATTCGCAG CGCATCGCCT TCTATCGCCT 3361 TCTTGACGAG TTCTTCTGAG CGGGACTCTG GGGTTCGAAA TGACCGACCA AGCGACGCCC 3421 AACCTGCCAT CACGAGATTT CGATTCCACC GCCGCCTTCT ATGAAAGGTT GGGCTTCGGA 3481 ATCGTTTTCC GGGACGCCGG CTGGATGATC CTCCAGCGCG GGGATCTCAT GCTGGAGTTC 3541 TTCGCCCACC CTAGGGGGAG GCTAACTGAA ACACGGAAGG AGACAATACC GGAAGGAACC 3601 CGCGCTATGA CGGCAATAAA AAGACAGAAT AAAACGCACG GTGTTGGGTC GTTTGTTCAT 3661 AAACGCGGGG TTCGGTCCCA GGGCTGGCAC TCTGTCGATA CCCCACCGAG ACCCCATTGG 3721 GGCCAATACG CCCGCGTTTC TTCCTTTTCC CCACCCCACC CCCCAAGTTC GGGTGAAGGC 3781 CCAGGGCTCG CAGCCAACGT CGGGGCGGCA GGCCCTGCCA TAGCCTCAGG TTACTCATAT 3841 ATACTTTAGA TTGATTTAAA ACTTCATTTT TAATTTAAAA GGATCTAGGT GAAGATCCTT 3901 TTTGATAATC TCATGACCAA AATCCCTTAA CGTGAGTTTT CGTTCCACTG AGCGTCAGAC 3961 CCCGTAGAAA AGATCAAAGG ATCTTCTTGA GATCCTTTTT TTCTGCGCGT AATCTGCTGC 4021 TTGCAAACAA AAAAACCACC GCTACCAGCG GTGGTTTGTT TGCCGGATCA AGAGCTACCA 4081 ACTCTTTTTC CGAAGGTAAC TGGCTTCAGC AGAGCGCAGA TACCAAATAC TGTCCTTCTA 4141 GTGTAGCCGT AGTTAGGCCA CCACTTCAAG AACTCTGTAG CACCGCCTAC ATACCTCGCT 4201 CTGCTAATCC TGTTACCAGT GGCTGCTGCC AGTGGCGATA AGTCGTGTCT TACCGGGTTG 4261 GACTCAAGAC GATAGTTACC GGATAAGGCG CAGCGGTCGG GCTGAACGGG GGGTTCGTGC 4321 ACACAGCCCA GCTTGGAGCG AACGACCTAC ACCGAACTGA GATACCTACA GCGTGAGCTA 4381 TGAGAAAGCG CCACGCTTCC CGAAGGGAGA AAGGCGGACA GGTATCCGGT AAGCGGCAGG 4441 GTCGGAACAG GAGAGCGCAC GAGGGAGCTT CCAGGGGGAA ACGCCTGGTA TCTTTATAGT 4501 CCTGTCGGGT TTCGCCACCT CTGACTTGAG CGTCGATTTT TGTGATGCTC GTCAGGGGGG 4561 CGGAGCCTAT GGAAAAACGC CAGCAACGCG GCCTTTTTAC GGTTCCTGGC CTTTTGCTGG 4621 CCTTTTGCTC ACATGTTCTT TCCTGCGTTA TCCCCTGATT CTGTGGATAA CCGTATTACC 4681 GCCATGCAT //
