| 出品公司: | Stratagene |
|---|---|
| 载体名称: | pCMV-Tag 4B |
| 质粒类型: | 哺乳动物表达载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 多克隆位点；限制性内切酶 |
| 启动子: | CMV |
| 载体大小: | 4320 bp |
| 5' 测序引物及序列: | CMV Forward : CGCAAATGGGCGGTAGGCGTG |
| 3' 测序引物及序列: | -- |
| 载体标签: | FLAG tag (C-末端） |
| 载体抗性: | 卡那霉素 |
| 筛选标记: | Neomycin |
| 克隆菌株: | XL1-Blue |
| 宿主细胞（系）: | -- |
| 备注: |
FLAG标签含8个氨基酸残基(DYKDDDDK)； pCMV-Tag 4 A,B,C的差别仅在于读码框（阅读框）处。 |
| 产品目录号: | 211174 |
| 稳定性: | 瞬表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航

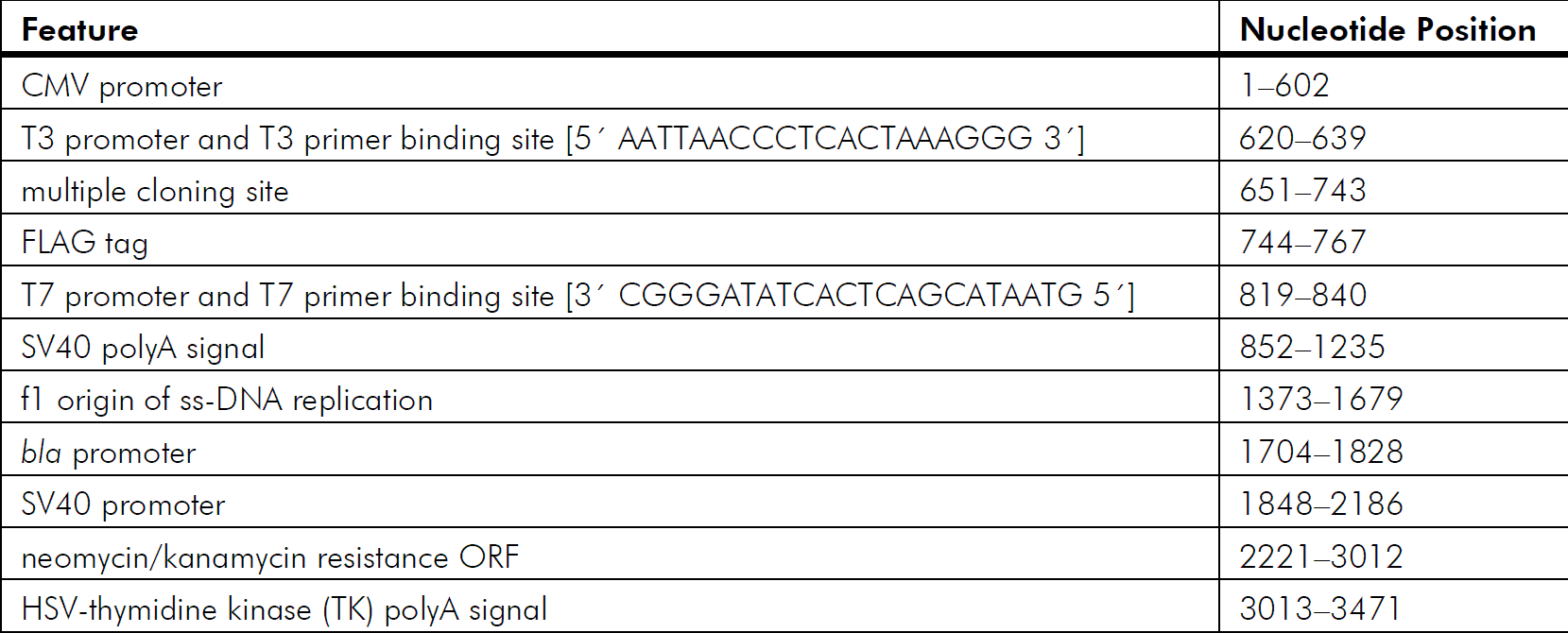

pCMV-Tag 4B载体质粒基本信息
pCMV-Tag 4B质粒图谱载体图谱和pCMV-Tag 4B载体序列质粒序列多克隆位点信息
pCMV-Tag 4B质粒载体简介
ADDITIONAL MATERIALS REQUIRED
T4 DNA ligase
Taq DNA polymerase
Taq DNA polymerase buffer
TE buffer
CIAP
Falcon 2059 polypropylene tubes (15-ml)
Water baths (37°C and 42°C)
XL1-Blue Genotype: recA1 endA1 gyrA96 thi-1 hsdR17 supE44 relA1 lac [F′ proAB lacIqZΔM15 Tn10 (Tetr)].
The XL1-Blue cells supplied with the pCMV-Tag vectors are not competent cells. Refer to Hanahan (1983) for a protocol for producing competent cells.
pCMV-Tag 4B质粒序列载体序列
LOCUS pCMV-Tag 4B 4320 bp DNA SYN
DEFINITION pCMV-Tag 4B
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4320
/organism="pCMV-Tag 4B"
/mol_type="other DNA"
promoter 16..568
/label="CMV_immearly_promoter"
misc_feature 71..358
/label="CAG_enhancer"
misc_feature 525..545
/label="CMV_fwd_primer"
promoter 526..595
/label="CMV_promoter"
promoter 620..639
/label="T3_promoter"
promoter complement(822..840)
/label="T7_promoter"
misc_feature 897..956
/label="SV40_3_splice"
terminator 1007..1235
/label="SV40_PA_terminator"
misc_feature 1205..1224
/label="EBV_rev_primer"
rep_origin complement(1374..1680)
/label="f1_origin"
promoter 1759..1787
/label="AmpR_promoter"
misc_feature complement(1853..1873)
/label="pBABE_3_primer"
misc_feature complement(1859..2074)
/label="SV40_enhancer"
promoter 1871..2139
/label="SV40_promoter"
rep_origin 2038..2115
/label="SV40_origin"
misc_feature 2100..2119
/label="SV40pro_F_primer"
CDS 2222..3016
/label="ORF frame 2"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
gene 2225..3013
/label="NeoR/KanR (variant)"
/gene="NeoR/KanR (variant)"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
CDS complement(2531..3067)
/label="ORF frame 3"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
terminator 3191..3460
/label="TK_PA_terminator"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
rep_origin 3608..4227
/label="pBR322_origin"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
ORIGIN
1 ATGCATTAGT TATTAATAGT AATCAATTAC GGGGTCATTA GTTCATAGCC CATATATGGA
61 GTTCCGCGTT ACATAACTTA CGGTAAATGG CCCGCCTGGC TGACCGCCCA ACGACCCCCG
121 CCCATTGACG TCAATAATGA CGTATGTTCC CATAGTAACG CCAATAGGGA CTTTCCATTG
181 ACGTCAATGG GTGGAGTATT TACGGTAAAC TGCCCACTTG GCAGTACATC AAGTGTATCA
241 TATGCCAAGT ACGCCCCCTA TTGACGTCAA TGACGGTAAA TGGCCCGCCT GGCATTATGC
301 CCAGTACATG ACCTTATGGG ACTTTCCTAC TTGGCAGTAC ATCTACGTAT TAGTCATCGC
361 TATTACCATG GTGATGCGGT TTTGGCAGTA CATCAATGGG CGTGGATAGC GGTTTGACTC
421 ACGGGGATTT CCAAGTCTCC ACCCCATTGA CGTCAATGGG AGTTTGTTTT GGCACCAAAA
481 TCAACGGGAC TTTCCAAAAT GTCGTAACAA CTCCGCCCCA TTGACGCAAA TGGGCGGTAG
541 GCGTGTACGG TGGGAGGTCT ATATAAGCAG AGCTGGTTTA GTGAACCGTC AGATCCGCTA
601 GCGATTACGC CAAGCTCGAA ATTAACCCTC ACTAAAGGGA ACAAAAGCTG GAGCTCCACC
661 GCGGTGGCGG CCGCTCTAGC CCGGGCGGAT CCCCCGGGCT GCAGGAATTC GATATCAAGC
721 TTATCGATAC CGTCGACACT CGAGGATTAC AAGGATGACG ACGATAAGTA GGGCCCGGTA
781 CCTTAATTAA TTAAGGTACC AGGTAAGTGT ACCCAATTCG CCCTATAGTG AGTCGTATTA
841 CAATTCACTC GATCGCCCTT CCCAACAGTT GCGCAGCCTG AATGGCGAAT GGAGATCCAA
901 TTTTTAAGTG TATAATGTGT TAAACTACTG ATTCTAATTG TTTGTGTATT TTAGATTCAC
961 AGTCCCAAGG CTCATTTCAG GCCCCTCAGT CCTCACAGTC TGTTCATGAT CATAATCAGC
1021 CATACCACAT TTGTAGAGGT TTTACTTGCT TTAAAAAACC TCCCACACCT CCCCCTGAAC
1081 CTGAAACATA AAATGAATGC AATTGTTGTT GTTAACTTGT TTATTGCAGC TTATAATGGT
1141 TACAAATAAA GCAATAGCAT CACAAATTTC ACAAATAAAG CATTTTTTTC ACTGCATTCT
1201 AGTTGTGGTT TGTCCAAACT CATCAATGTA TCTTAACGCG TAAATTGTAA GCGTTAATAT
1261 TTTGTTAAAA TTCGCGTTAA ATTTTTGTTA AATCAGCTCA TTTTTTAACC AATAGGCCGA
1321 AATCGGCAAA ATCCCTTATA AATCAAAAGA ATAGACCGAG ATAGGGTTGA GTGTTGTTCC
1381 AGTTTGGAAC AAGAGTCCAC TATTAAAGAA CGTGGACTCC AACGTCAAAG GGCGAAAAAC
1441 CGTCTATCAG GGCGATGGCC CACTACGTGA ACCATCACCC TAATCAAGTT TTTTGGGGTC
1501 GAGGTGCCGT AAAGCACTAA ATCGGAACCC TAAAGGGAGC CCCCGATTTA GAGCTTGACG
1561 GGGAAAGCCG GCGAACGTGG CGAGAAAGGA AGGGAAGAAA GCGAAAGGAG CGGGCGCTAG
1621 GGCGCTGGCA AGTGTAGCGG TCACGCTGCG CGTAACCACC ACACCCGCCG CGCTTAATGC
1681 GCCGCTACAG GGCGCGTCAG GTGGCACTTT TCGGGGAAAT GTGCGCGGAA CCCCTATTTG
1741 TTTATTTTTC TAAATACATT CAAATATGTA TCCGCTCATG AGACAATAAC CCTGATAAAT
1801 GCTTCAATAA TATTGAAAAA GGAAGAATCC TGAGGCGGAA AGAACCAGCT GTGGAATGTG
1861 TGTCAGTTAG GGTGTGGAAA GTCCCCAGGC TCCCCAGCAG GCAGAAGTAT GCAAAGCATG
1921 CATCTCAATT AGTCAGCAAC CAGGTGTGGA AAGTCCCCAG GCTCCCCAGC AGGCAGAAGT
1981 ATGCAAAGCA TGCATCTCAA TTAGTCAGCA ACCATAGTCC CGCCCCTAAC TCCGCCCATC
2041 CCGCCCCTAA CTCCGCCCAG TTCCGCCCAT TCTCCGCCCC ATGGCTGACT AATTTTTTTT
2101 ATTTATGCAG AGGCCGAGGC CGCCTCGGCC TCTGAGCTAT TCCAGAAGTA GTGAGGAGGC
2161 TTTTTTGGAG GCCTAGGCTT TTGCAAAGAT CGATCAAGAG ACAGGATGAG GATCGTTTCG
2221 CATGATTGAA CAAGATGGAT TGCACGCAGG TTCTCCGGCC GCTTGGGTGG AGAGGCTATT
2281 CGGCTATGAC TGGGCACAAC AGACAATCGG CTGCTCTGAT GCCGCCGTGT TCCGGCTGTC
2341 AGCGCAGGGG CGCCCGGTTC TTTTTGTCAA GACCGACCTG TCCGGTGCCC TGAATGAACT
2401 GCAAGACGAG GCAGCGCGGC TATCGTGGCT GGCCACGACG GGCGTTCCTT GCGCAGCTGT
2461 GCTCGACGTT GTCACTGAAG CGGGAAGGGA CTGGCTGCTA TTGGGCGAAG TGCCGGGGCA
2521 GGATCTCCTG TCATCTCACC TTGCTCCTGC CGAGAAAGTA TCCATCATGG CTGATGCAAT
2581 GCGGCGGCTG CATACGCTTG ATCCGGCTAC CTGCCCATTC GACCACCAAG CGAAACATCG
2641 CATCGAGCGA GCACGTACTC GGATGGAAGC CGGTCTTGTC GATCAGGATG ATCTGGACGA
2701 AGAACATCAG GGGCTCGCGC CAGCCGAACT GTTCGCCAGG CTCAAGGCGA GCATGCCCGA
2761 CGGCGAGGAT CTCGTCGTGA CCCATGGCGA TGCCTGCTTG CCGAATATCA TGGTGGAAAA
2821 TGGCCGCTTT TCTGGATTCA TCGACTGTGG CCGGCTGGGT GTGGCGGACC GCTATCAGGA
2881 CATAGCGTTG GCTACCCGTG ATATTGCTGA AGAACTTGGC GGCGAATGGG CTGACCGCTT
2941 CCTCGTGCTT TACGGTATCG CCGCTCCCGA TTCGCAGCGC ATCGCCTTCT ATCGCCTTCT
3001 TGACGAGTTC TTCTGAGCGG GACTCTGGGG TTCGAAATGA CCGACCAAGC GACGCCCAAC
3061 CTGCCATCAC GAGATTTCGA TTCCACCGCC GCCTTCTATG AAAGGTTGGG CTTCGGAATC
3121 GTTTTCCGGG ACGCCGGCTG GATGATCCTC CAGCGCGGGG ATCTCATGCT GGAGTTCTTC
3181 GCCCACCCTA GGGGGAGGCT AACTGAAACA CGGAAGGAGA CAATACCGGA AGGAACCCGC
3241 GCTATGACGG CAATAAAAAG ACAGAATAAA ACGCACGGTG TTGGGTCGTT TGTTCATAAA
3301 CGCGGGGTTC GGTCCCAGGG CTGGCACTCT GTCGATACCC CACCGAGACC CCATTGGGGC
3361 CAATACGCCC GCGTTTCTTC CTTTTCCCCA CCCCACCCCC CAAGTTCGGG TGAAGGCCCA
3421 GGGCTCGCAG CCAACGTCGG GGCGGCAGGC CCTGCCATAG CCTCAGGTTA CTCATATATA
3481 CTTTAGATTG ATTTAAAACT TCATTTTTAA TTTAAAAGGA TCTAGGTGAA GATCCTTTTT
3541 GATAATCTCA TGACCAAAAT CCCTTAACGT GAGTTTTCGT TCCACTGAGC GTCAGACCCC
3601 GTAGAAAAGA TCAAAGGATC TTCTTGAGAT CCTTTTTTTC TGCGCGTAAT CTGCTGCTTG
3661 CAAACAAAAA AACCACCGCT ACCAGCGGTG GTTTGTTTGC CGGATCAAGA GCTACCAACT
3721 CTTTTTCCGA AGGTAACTGG CTTCAGCAGA GCGCAGATAC CAAATACTGT CCTTCTAGTG
3781 TAGCCGTAGT TAGGCCACCA CTTCAAGAAC TCTGTAGCAC CGCCTACATA CCTCGCTCTG
3841 CTAATCCTGT TACCAGTGGC TGCTGCCAGT GGCGATAAGT CGTGTCTTAC CGGGTTGGAC
3901 TCAAGACGAT AGTTACCGGA TAAGGCGCAG CGGTCGGGCT GAACGGGGGG TTCGTGCACA
3961 CAGCCCAGCT TGGAGCGAAC GACCTACACC GAACTGAGAT ACCTACAGCG TGAGCTATGA
4021 GAAAGCGCCA CGCTTCCCGA AGGGAGAAAG GCGGACAGGT ATCCGGTAAG CGGCAGGGTC
4081 GGAACAGGAG AGCGCACGAG GGAGCTTCCA GGGGGAAACG CCTGGTATCT TTATAGTCCT
4141 GTCGGGTTTC GCCACCTCTG ACTTGAGCGT CGATTTTTGT GATGCTCGTC AGGGGGGCGG
4201 AGCCTATGGA AAAACGCCAG CAACGCGGCC TTTTTACGGT TCCTGGCCTT TTGCTGGCCT
4261 TTTGCTCACA TGTTCTTTCC TGCGTTATCC CCTGATTCTG TGGATAACCG TATTACCGCC
//
pCMV-Tag 4B载体图谱质粒图谱pdf版和pCMV-Tag 4B载体序列质粒序列等相关资料下载
pCMV-Tag 4B质粒载体应用举例
