| 出品公司: | Stratagene |
|---|---|
| 载体名称: | pCMV-Tag 4A |
| 质粒类型: | 哺乳动物表达载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 多克隆位点；限制性内切酶 |
| 启动子: | CMV |
| 载体大小: | 4319 bp |
| 5' 测序引物及序列: | CMV Forward: CGCAAATGGGCGGTAGGCGTG |
| 3' 测序引物及序列: | T7 |
| 载体标签: | FLAG tag (C-末端） |
| 载体抗性: | 卡那霉素 |
| 筛选标记: | Neomycin |
| 克隆菌株: | XL1-Blue |
| 宿主细胞（系）: | -- |
| 备注: |
FLAG标签含8个氨基酸残基(DYKDDDDK)； pCMV-Tag 4 A,B,C的差别仅在于读码框（阅读框）处。 |
| 产品目录号: | 211174 |
| 稳定性: | 瞬表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航

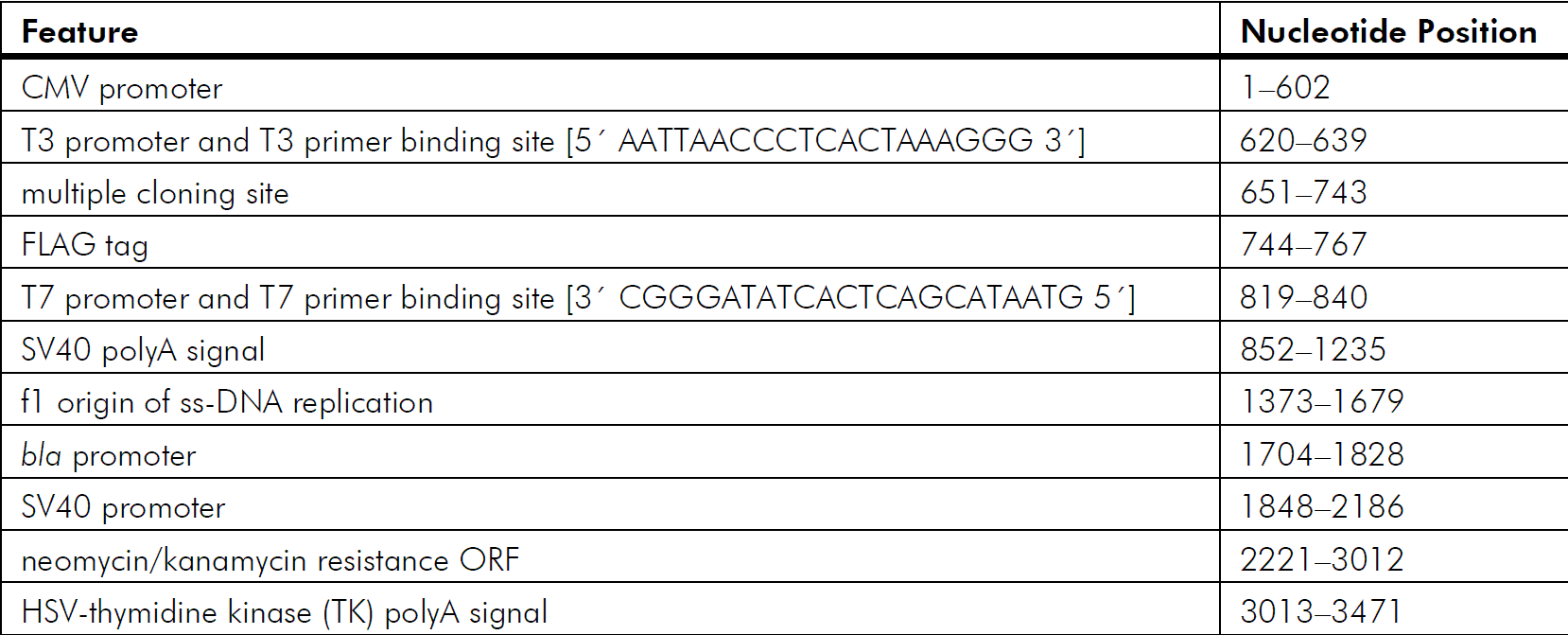

载体基本信息
载体图谱质粒图谱和多克隆位点信息
载体简介
ADDITIONAL MATERIALS REQUIRED
T4 DNA ligase
Taq DNA polymerase
Taq DNA polymerase buffer
TE buffer
CIAP
Falcon 2059 polypropylene tubes (15-ml)
Water baths (37°C and 42°C)
XL1-Blue Genotype: recA1 endA1 gyrA96 thi-1 hsdR17 supE44 relA1 lac [F´ proAB lacIqZΔM15 Tn10 (Tetr)].
The XL1-Blue cells supplied with the pCMV-Tag vectors are not competent cells. Refer to Hanahan (1983) for a protocol for producing competent cells.
载体序列
LOCUS pCMV-Tag 4A 4319 bp DNA SYN
DEFINITION pCMV-Tag 4A
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4319
/organism="pCMV-Tag 4A"
/mol_type="other DNA"
promoter 16..568
/label="CMV_immearly_promoter"
misc_feature 71..358
/label="CAG_enhancer"
misc_feature 525..545
/label="CMV_fwd_primer"
promoter 526..595
/label="CMV_promoter"
promoter 620..639
/label="T3_promoter"
misc_feature complement(726..742)
/label="pBluescriptKS_primer"
promoter complement(821..839)
/label="T7_promoter"
misc_feature 896..955
/label="SV40_3_splice"
terminator 1006..1234
/label="SV40_PA_terminator"
misc_feature 1204..1223
/label="EBV_rev_primer"
rep_origin complement(1373..1679)
/label="f1_origin"
promoter 1758..1786
/label="AmpR_promoter"
misc_feature complement(1852..1872)
/label="pBABE_3_primer"
misc_feature complement(1858..2073)
/label="SV40_enhancer"
promoter 1870..2138
/label="SV40_promoter"
rep_origin 2037..2114
/label="SV40_origin"
misc_feature 2099..2118
/label="SV40pro_F_primer"
CDS 2221..3015
/label="ORF frame 1"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
gene 2224..3012
/label="NeoR/KanR (variant)"
/gene="NeoR/KanR (variant)"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
CDS complement(2530..3066)
/label="ORF frame 3"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
terminator 3190..3459
/label="TK_PA_terminator"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
rep_origin 3607..4226
/label="pBR322_origin"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKFFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMFFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
ORIGIN
1 ATGCATTAGT TATTAATAGT AATCAATTAC GGGGTCATTA GTTCATAGCC CATATATGGA
61 GTTCCGCGTT ACATAACTTA CGGTAAATGG CCCGCCTGGC TGACCGCCCA ACGACCCCCG
121 CCCATTGACG TCAATAATGA CGTATGTTCC CATAGTAACG CCAATAGGGA CTTTCCATTG
181 ACGTCAATGG GTGGAGTATT TACGGTAAAC TGCCCACTTG GCAGTACATC AAGTGTATCA
241 TATGCCAAGT ACGCCCCCTA TTGACGTCAA TGACGGTAAA TGGCCCGCCT GGCATTATGC
301 CCAGTACATG ACCTTATGGG ACTTTCCTAC TTGGCAGTAC ATCTACGTAT TAGTCATCGC
361 TATTACCATG GTGATGCGGT TTTGGCAGTA CATCAATGGG CGTGGATAGC GGTTTGACTC
421 ACGGGGATTT CCAAGTCTCC ACCCCATTGA CGTCAATGGG AGTTTGTTTT GGCACCAAAA
481 TCAACGGGAC TTTCCAAAAT GTCGTAACAA CTCCGCCCCA TTGACGCAAA TGGGCGGTAG
541 GCGTGTACGG TGGGAGGTCT ATATAAGCAG AGCTGGTTTA GTGAACCGTC AGATCCGCTA
601 GCGATTACGC CAAGCTCGAA ATTAACCCTC ACTAAAGGGA ACAAAAGCTG GAGCTCCACC
661 GCGGTGGCGG CCGCTCTAGC CCGGGCGGAT CCCCCGGGCT GCAGGAATTC GATATCAAGC
721 TTATCGATAC CGTCGACCTC GAGGATTACA AGGATGACGA CGATAAGTAG GGCCCGGTAC
781 CTTAATTAAT TAAGGTACCA GGTAAGTGTA CCCAATTCGC CCTATAGTGA GTCGTATTAC
841 AATTCACTCG ATCGCCCTTC CCAACAGTTG CGCAGCCTGA ATGGCGAATG GAGATCCAAT
901 TTTTAAGTGT ATAATGTGTT AAACTACTGA TTCTAATTGT TTGTGTATTT TAGATTCACA
961 GTCCCAAGGC TCATTTCAGG CCCCTCAGTC CTCACAGTCT GTTCATGATC ATAATCAGCC
1021 ATACCACATT TGTAGAGGTT TTACTTGCTT TAAAAAACCT CCCACACCTC CCCCTGAACC
1081 TGAAACATAA AATGAATGCA ATTGTTGTTG TTAACTTGTT TATTGCAGCT TATAATGGTT
1141 ACAAATAAAG CAATAGCATC ACAAATTTCA CAAATAAAGC ATTTTTTTCA CTGCATTCTA
1201 GTTGTGGTTT GTCCAAACTC ATCAATGTAT CTTAACGCGT AAATTGTAAG CGTTAATATT
1261 TTGTTAAAAT TCGCGTTAAA TTTTTGTTAA ATCAGCTCAT TTTTTAACCA ATAGGCCGAA
1321 ATCGGCAAAA TCCCTTATAA ATCAAAAGAA TAGACCGAGA TAGGGTTGAG TGTTGTTCCA
1381 GTTTGGAACA AGAGTCCACT ATTAAAGAAC GTGGACTCCA ACGTCAAAGG GCGAAAAACC
1441 GTCTATCAGG GCGATGGCCC ACTACGTGAA CCATCACCCT AATCAAGTTT TTTGGGGTCG
1501 AGGTGCCGTA AAGCACTAAA TCGGAACCCT AAAGGGAGCC CCCGATTTAG AGCTTGACGG
1561 GGAAAGCCGG CGAACGTGGC GAGAAAGGAA GGGAAGAAAG CGAAAGGAGC GGGCGCTAGG
1621 GCGCTGGCAA GTGTAGCGGT CACGCTGCGC GTAACCACCA CACCCGCCGC GCTTAATGCG
1681 CCGCTACAGG GCGCGTCAGG TGGCACTTTT CGGGGAAATG TGCGCGGAAC CCCTATTTGT
1741 TTATTTTTCT AAATACATTC AAATATGTAT CCGCTCATGA GACAATAACC CTGATAAATG
1801 CTTCAATAAT ATTGAAAAAG GAAGAATCCT GAGGCGGAAA GAACCAGCTG TGGAATGTGT
1861 GTCAGTTAGG GTGTGGAAAG TCCCCAGGCT CCCCAGCAGG CAGAAGTATG CAAAGCATGC
1921 ATCTCAATTA GTCAGCAACC AGGTGTGGAA AGTCCCCAGG CTCCCCAGCA GGCAGAAGTA
1981 TGCAAAGCAT GCATCTCAAT TAGTCAGCAA CCATAGTCCC GCCCCTAACT CCGCCCATCC
2041 CGCCCCTAAC TCCGCCCAGT TCCGCCCATT CTCCGCCCCA TGGCTGACTA ATTTTTTTTA
2101 TTTATGCAGA GGCCGAGGCC GCCTCGGCCT CTGAGCTATT CCAGAAGTAG TGAGGAGGCT
2161 TTTTTGGAGG CCTAGGCTTT TGCAAAGATC GATCAAGAGA CAGGATGAGG ATCGTTTCGC
2221 ATGATTGAAC AAGATGGATT GCACGCAGGT TCTCCGGCCG CTTGGGTGGA GAGGCTATTC
2281 GGCTATGACT GGGCACAACA GACAATCGGC TGCTCTGATG CCGCCGTGTT CCGGCTGTCA
2341 GCGCAGGGGC GCCCGGTTCT TTTTGTCAAG ACCGACCTGT CCGGTGCCCT GAATGAACTG
2401 CAAGACGAGG CAGCGCGGCT ATCGTGGCTG GCCACGACGG GCGTTCCTTG CGCAGCTGTG
2461 CTCGACGTTG TCACTGAAGC GGGAAGGGAC TGGCTGCTAT TGGGCGAAGT GCCGGGGCAG
2521 GATCTCCTGT CATCTCACCT TGCTCCTGCC GAGAAAGTAT CCATCATGGC TGATGCAATG
2581 CGGCGGCTGC ATACGCTTGA TCCGGCTACC TGCCCATTCG ACCACCAAGC GAAACATCGC
2641 ATCGAGCGAG CACGTACTCG GATGGAAGCC GGTCTTGTCG ATCAGGATGA TCTGGACGAA
2701 GAACATCAGG GGCTCGCGCC AGCCGAACTG TTCGCCAGGC TCAAGGCGAG CATGCCCGAC
2761 GGCGAGGATC TCGTCGTGAC CCATGGCGAT GCCTGCTTGC CGAATATCAT GGTGGAAAAT
2821 GGCCGCTTTT CTGGATTCAT CGACTGTGGC CGGCTGGGTG TGGCGGACCG CTATCAGGAC
2881 ATAGCGTTGG CTACCCGTGA TATTGCTGAA GAACTTGGCG GCGAATGGGC TGACCGCTTC
2941 CTCGTGCTTT ACGGTATCGC CGCTCCCGAT TCGCAGCGCA TCGCCTTCTA TCGCCTTCTT
3001 GACGAGTTCT TCTGAGCGGG ACTCTGGGGT TCGAAATGAC CGACCAAGCG ACGCCCAACC
3061 TGCCATCACG AGATTTCGAT TCCACCGCCG CCTTCTATGA AAGGTTGGGC TTCGGAATCG
3121 TTTTCCGGGA CGCCGGCTGG ATGATCCTCC AGCGCGGGGA TCTCATGCTG GAGTTCTTCG
3181 CCCACCCTAG GGGGAGGCTA ACTGAAACAC GGAAGGAGAC AATACCGGAA GGAACCCGCG
3241 CTATGACGGC AATAAAAAGA CAGAATAAAA CGCACGGTGT TGGGTCGTTT GTTCATAAAC
3301 GCGGGGTTCG GTCCCAGGGC TGGCACTCTG TCGATACCCC ACCGAGACCC CATTGGGGCC
3361 AATACGCCCG CGTTTCTTCC TTTTCCCCAC CCCACCCCCC AAGTTCGGGT GAAGGCCCAG
3421 GGCTCGCAGC CAACGTCGGG GCGGCAGGCC CTGCCATAGC CTCAGGTTAC TCATATATAC
3481 TTTAGATTGA TTTAAAACTT CATTTTTAAT TTAAAAGGAT CTAGGTGAAG ATCCTTTTTG
3541 ATAATCTCAT GACCAAAATC CCTTAACGTG AGTTTTCGTT CCACTGAGCG TCAGACCCCG
3601 TAGAAAAGAT CAAAGGATCT TCTTGAGATC CTTTTTTTCT GCGCGTAATC TGCTGCTTGC
3661 AAACAAAAAA ACCACCGCTA CCAGCGGTGG TTTGTTTGCC GGATCAAGAG CTACCAACTC
3721 TTTTTCCGAA GGTAACTGGC TTCAGCAGAG CGCAGATACC AAATACTGTC CTTCTAGTGT
3781 AGCCGTAGTT AGGCCACCAC TTCAAGAACT CTGTAGCACC GCCTACATAC CTCGCTCTGC
3841 TAATCCTGTT ACCAGTGGCT GCTGCCAGTG GCGATAAGTC GTGTCTTACC GGGTTGGACT
3901 CAAGACGATA GTTACCGGAT AAGGCGCAGC GGTCGGGCTG AACGGGGGGT TCGTGCACAC
3961 AGCCCAGCTT GGAGCGAACG ACCTACACCG AACTGAGATA CCTACAGCGT GAGCTATGAG
4021 AAAGCGCCAC GCTTCCCGAA GGGAGAAAGG CGGACAGGTA TCCGGTAAGC GGCAGGGTCG
4081 GAACAGGAGA GCGCACGAGG GAGCTTCCAG GGGGAAACGC CTGGTATCTT TATAGTCCTG
4141 TCGGGTTTCG CCACCTCTGA CTTGAGCGTC GATTTTTGTG ATGCTCGTCA GGGGGGCGGA
4201 GCCTATGGAA AAACGCCAGC AACGCGGCCT TTTTACGGTT CCTGGCCTTT TGCTGGCCTT
4261 TTGCTCACAT GTTCTTTCCT GCGTTATCCC CTGATTCTGT GGATAACCGT ATTACCGCC
//
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
