| 出品公司: | Clontech |
|---|---|
| 载体名称: | pDsRed-Express2-C1 |
| 质粒类型: | 哺乳动物细胞表达载体；荧光报告载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | CMV IE |
| 载体大小: | 4680 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | 红色荧光蛋白DsRed-Express2(N-端） |
| 载体抗性: | 卡那霉素 |
| 筛选标记: | 新霉素（Neomycin） |
| 克隆菌株: | DH5α, HB101 |
| 宿主细胞（系）: | 哺乳动物细胞系，尤其是原代细胞和干细胞 |
| 备注: |
pDsRed-Express2-C1载体是荧光报告载体，表达N端DsRed-Express2融合蛋白； DsRed-Express2细胞毒性低，尤其适用于原代细胞和干细胞的 荧光标记。 |
| 产品目录号: | 632538 |
| 稳定性: | 瞬表达 或 稳表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航
载体基本信息

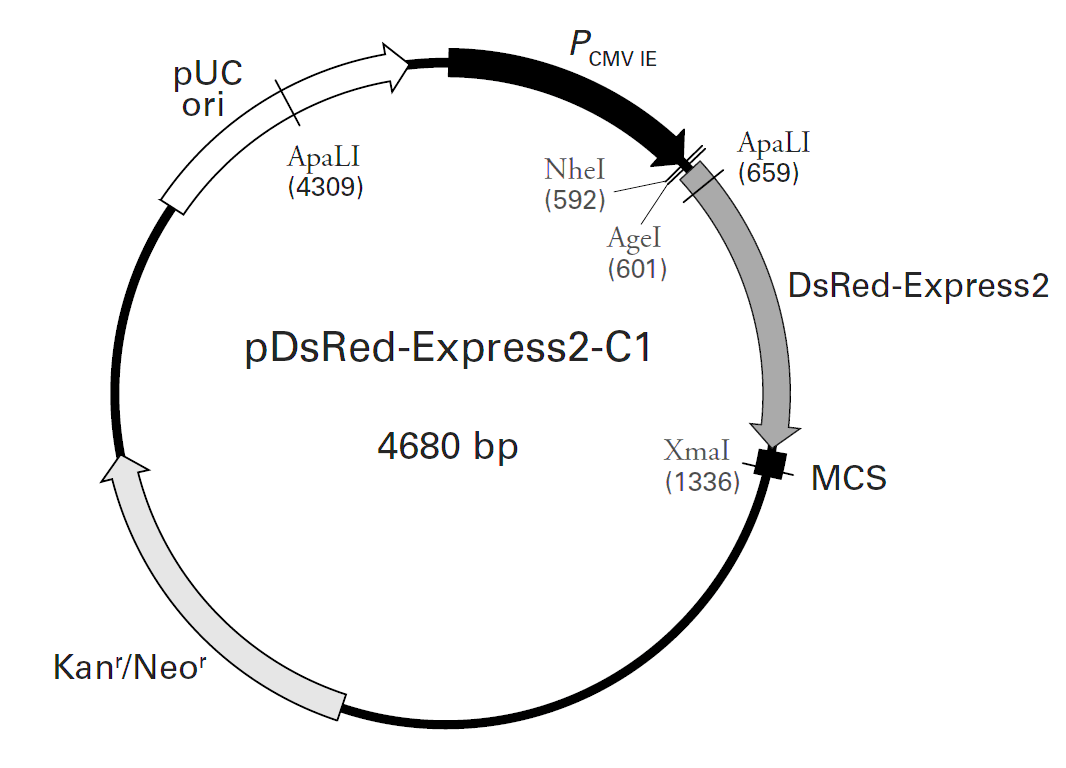

载体图谱质粒图谱和多克隆位点信息
载体简介
pDsRed-Express2-C1载体描述
pDsRed-Express2-C1 is a mammalian expression vector designed to express a protein of interest fused to the C-terminus of DsRed-Express2, a variant of the Discosoma sp. red fluorescent protein, DsRed (1). DsRed-Express2 retains the fast maturation and high photostability characteristic of its predecessor, DsRed-Express (2), and has been engineered (through additional amino acid substitutions) for increased solubility (3). Although it most likely forms the same tetrameric structure as wild-type DsRed, DsRed-Express2 displays a greatly reduced tendency to aggregate, resulting in reduced cyto- and phototoxicity, and making DsRed-Express2 much better suited for in vivo applications involving sensitive cells, such as primary or stem cells. (Please note: Because DsRed-Express2 likely forms tetramers, its suitability as a fusion partner will largely depend on how its tetramerization affects the function of the protein to which it is fused.) DsRed-Express2 also exhibits extremely low residual green fluorescence, which allows cells expressing the protein to be effectively separated from other fluorescently labeled cell populations by flow cytometry.
The multiple cloning site (MCS) in pDsRed-Express2-C1 is positioned downstream of the DsRed-Express2 coding sequence. A Kozak consensus sequence (4), located immediately upstream of DsRed-Express2, enhances translational efficiency in eukaryotic cells. SV40 polyA signals downstream of the MCS direct proper processing of the 3' end of mRNA transcripts.
The vector backbone also contains an SV40 origin for replication in mammalian cells expressing the SV40 large T antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. This vector also has a neomycin-resistance cassette (Neor) that allows G418 selection of stably transfected eukaryotic cells (5). This cassette consists of the SV40 early promoter, a Tn5 kanamycin/neomycin resistance gene, and herpes simplex virus thymidine kinase (HSV TK) polyadenylation signals. A bacterial promoter upstream of this cassette allows kanamycin resistance in E. coli.
To construct a fusion protein, the gene of interest must be cloned into pDsRed-Express2-C1 so that it is in-frame with the DsRed-Express2 coding sequence; it should also contain a proper stop codon at the 3' end of its coding region. pDsRed-Express2-C1 can also be used as a cotransfection marker, as the unmodified vector will express DsRed-Express2 in mammalian cells.
pDsRed-Express2-C1 can be transfected into mammalian cells using any standard transfection method. Fusions that retain the fluorescence properties of the native DsRed-Express2 protein (excitation and emission maxima: 541 and 591, respectively) can be monitored by flow cytometry and localized by fluorescence microscopy. If required, stable transfectants can be selected using G418.
For Western analysis, DsRed-Express2 can be detected with either the Living Colors DsRed Polyclonal Anti-body (Cat. No. 632496) or the Living Colors DsRed Monoclonal Antibody (Cat. Nos. 632392 and 632393)

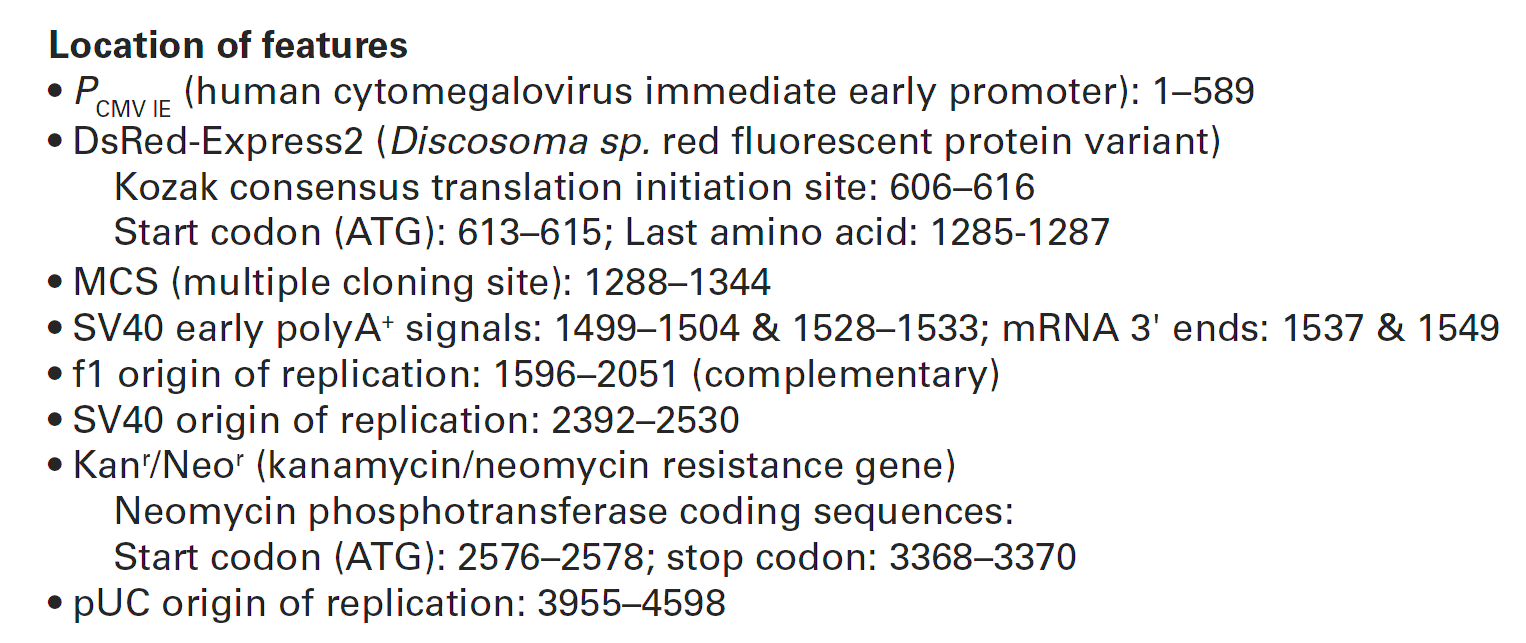

pDsRed-Express2-C1载体含有以下元件：
PCMV IE (human cytomegalovirus immediate early promoter): 1–589
DsRed-Express2 (Discosoma sp. red fluorescent protein variant)
Kozak consensus translation initiation site: 606–616
Start codon (ATG): 613–615; Last amino acid: 1285-1287

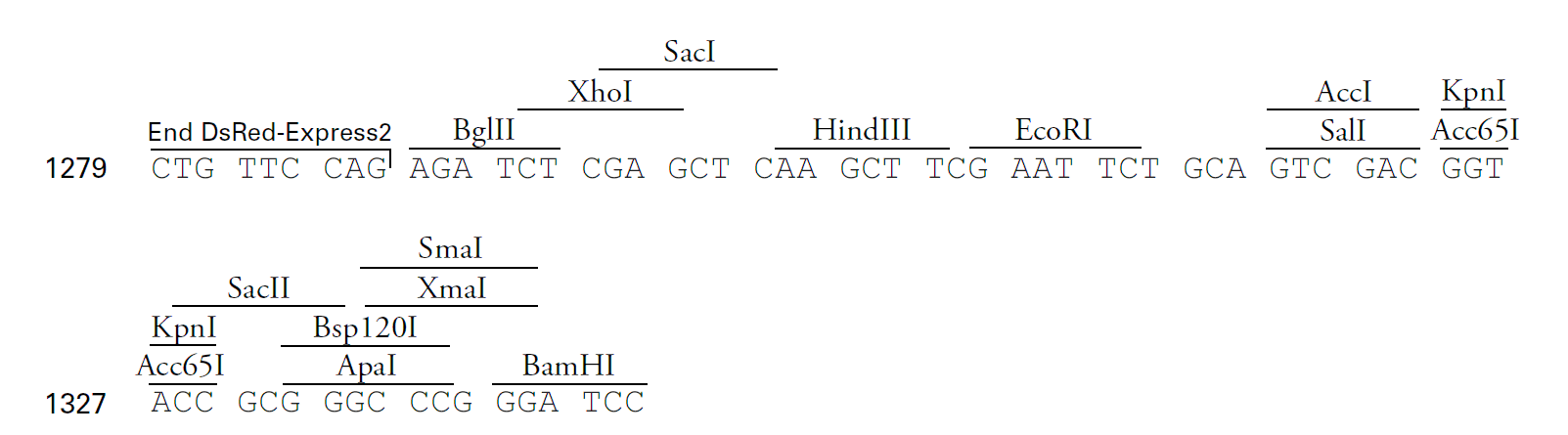

MCS (multiple cloning site): 1288–1344
SV40 early polyA+ signals: 1499–1504 & 1528–1533; mRNA 3' ends: 1537 & 1549
f1 origin of replication: 1596–2051 (complementary)
SV40 origin of replication: 2392–2530
Kanr/Neor (kanamycin/neomycin resistance gene)
Neomycin phosphotransferase coding sequences:
Start codon (ATG): 2576–2578; stop codon: 3368–3370
pUC origin of replication: 3955–4598
Propagation in E. coli
Recommended host strain: DH5α, HB101, and other general purpose strains.
Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) in E. coli hosts.
E. coli replication origin: pUC
Copy number: high
Plasmid incompatibility group: pMB1/ColE1
Excitation and emission maxima of DsRed-Express2
Excitation maximum = 554 nm
Emission maximum = 591 nm
载体序列
LOCUS pDsRed-Express2-C1 4680 bp DNA SYN
DEFINITION pDsRed-Express2-C1
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4680
/organism="pDsRed-Express2-C1"
/mol_type="other DNA"
promoter 10..562
/label="CMV_immearly_promoter"
misc_feature 65..352
/label="CAG_enhancer"
misc_feature 519..539
/label="CMV_fwd_primer"
promoter 520..589
/label="CMV_promoter"
CDS 613..1359
/label="ORF frame 1"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
gene 616..1287
/label="E2_Crimson (variant)"
/gene="E2_Crimson (variant)"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature complement(793..813)
/label="dsRed1_N_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature 1205..1228
/label="dsRed1_C_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
terminator 1361..1589
/label="SV40_PA_terminator"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature 1559..1578
/label="EBV_rev_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
rep_origin complement(1728..2034)
/label="f1_origin"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
promoter 2113..2141
/label="AmpR_promoter"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature complement(2207..2227)
/label="pBABE_3_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature complement(2213..2428)
/label="SV40_enhancer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
promoter 2225..2493
/label="SV40_promoter"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
rep_origin 2392..2469
/label="SV40_origin"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
misc_feature 2454..2473
/label="SV40pro_F_primer"
/translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGEGEGKPYEGTQTA
KLQVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
GVVTVTQDSSLQDGTFIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERLYPRDGVLKGE
IHKALKLKGGGHYLVEFKSIYMAKKPVKLPGYYYVDSKLDITSHNEDYTVVEQYERAE
ARHHLFQRSRAQASNSAVDGTAGPGSTGSR*"
CDS 2576..3370
/label="ORF frame 2"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
gene 2579..3367
/label="NeoR/KanR"
/gene="NeoR/KanR"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
CDS complement(2885..3421)
/label="ORF frame 3"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
terminator 3545..3814
/label="TK_PA_terminator"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
rep_origin 3962..4581
/label="pBR322_origin"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
ORIGIN
1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
601 CCGGTCGCCA CCATGGATAG CACTGAGAAC GTCATCAAGC CCTTCATGCG CTTCAAGGTG
661 CACATGGAGG GCTCCGTGAA CGGCCACGAG TTCGAGATCG AGGGCGAGGG CGAGGGCAAG
721 CCCTACGAGG GCACCCAGAC CGCCAAGCTG CAGGTGACCA AGGGCGGCCC CCTGCCCTTC
781 GCCTGGGACA TCCTGTCCCC CCAGTTCCAG TACGGCTCCA AGGTGTACGT GAAGCACCCC
841 GCCGACATCC CCGACTACAA GAAGCTGTCC TTCCCCGAGG GCTTCAAGTG GGAGCGCGTG
901 ATGAACTTCG AGGACGGCGG CGTGGTGACC GTGACCCAGG ACTCCTCCCT GCAGGACGGC
961 ACCTTCATCT ACCACGTGAA GTTCATCGGC GTGAACTTCC CCTCCGACGG CCCCGTAATG
1021 CAGAAGAAGA CTCTGGGCTG GGAGCCCTCC ACCGAGCGCC TGTACCCCCG CGACGGCGTG
1081 CTGAAGGGCG AGATCCACAA GGCGCTGAAG CTGAAGGGCG GCGGCCACTA CCTGGTGGAG
1141 TTCAAGTCAA TCTACATGGC CAAGAAGCCC GTGAAGCTGC CCGGCTACTA CTACGTGGAC
1201 TCCAAGCTGG ACATCACCTC CCACAACGAG GACTACACCG TGGTGGAGCA GTACGAGCGC
1261 GCCGAGGCCC GCCACCACCT GTTCCAGAGA TCTCGAGCTC AAGCTTCGAA TTCTGCAGTC
1321 GACGGTACCG CGGGCCCGGG ATCCACCGGA TCTAGATAAC TGATCATAAT CAGCCATACC
1381 ACATTTGTAG AGGTTTTACT TGCTTTAAAA AACCTCCCAC ACCTCCCCCT GAACCTGAAA
1441 CATAAAATGA ATGCAATTGT TGTTGTTAAC TTGTTTATTG CAGCTTATAA TGGTTACAAA
1501 TAAAGCAATA GCATCACAAA TTTCACAAAT AAAGCATTTT TTTCACTGCA TTCTAGTTGT
1561 GGTTTGTCCA AACTCATCAA TGTATCTTAA CGCGTAAATT GTAAGCGTTA ATATTTTGTT
1621 AAAATTCGCG TTAAATTTTT GTTAAATCAG CTCATTTTTT AACCAATAGG CCGAAATCGG
1681 CAAAATCCCT TATAAATCAA AAGAATAGAC CGAGATAGGG TTGAGTGTTG TTCCAGTTTG
1741 GAACAAGAGT CCACTATTAA AGAACGTGGA CTCCAACGTC AAAGGGCGAA AAACCGTCTA
1801 TCAGGGCGAT GGCCCACTAC GTGAACCATC ACCCTAATCA AGTTTTTTGG GGTCGAGGTG
1861 CCGTAAAGCA CTAAATCGGA ACCCTAAAGG GAGCCCCCGA TTTAGAGCTT GACGGGGAAA
1921 GCCGGCGAAC GTGGCGAGAA AGGAAGGGAA GAAAGCGAAA GGAGCGGGCG CTAGGGCGCT
1981 GGCAAGTGTA GCGGTCACGC TGCGCGTAAC CACCACACCC GCCGCGCTTA ATGCGCCGCT
2041 ACAGGGCGCG TCAGGTGGCA CTTTTCGGGG AAATGTGCGC GGAACCCCTA TTTGTTTATT
2101 TTTCTAAATA CATTCAAATA TGTATCCGCT CATGAGACAA TAACCCTGAT AAATGCTTCA
2161 ATAATATTGA AAAAGGAAGA GTCCTGAGGC GGAAAGAACC AGCTGTGGAA TGTGTGTCAG
2221 TTAGGGTGTG GAAAGTCCCC AGGCTCCCCA GCAGGCAGAA GTATGCAAAG CATGCATCTC
2281 AATTAGTCAG CAACCAGGTG TGGAAAGTCC CCAGGCTCCC CAGCAGGCAG AAGTATGCAA
2341 AGCATGCATC TCAATTAGTC AGCAACCATA GTCCCGCCCC TAACTCCGCC CATCCCGCCC
2401 CTAACTCCGC CCAGTTCCGC CCATTCTCCG CCCCATGGCT GACTAATTTT TTTTATTTAT
2461 GCAGAGGCCG AGGCCGCCTC GGCCTCTGAG CTATTCCAGA AGTAGTGAGG AGGCTTTTTT
2521 GGAGGCCTAG GCTTTTGCAA AGATCGATCA AGAGACAGGA TGAGGATCGT TTCGCATGAT
2581 TGAACAAGAT GGATTGCACG CAGGTTCTCC GGCCGCTTGG GTGGAGAGGC TATTCGGCTA
2641 TGACTGGGCA CAACAGACAA TCGGCTGCTC TGATGCCGCC GTGTTCCGGC TGTCAGCGCA
2701 GGGGCGCCCG GTTCTTTTTG TCAAGACCGA CCTGTCCGGT GCCCTGAATG AACTGCAAGA
2761 CGAGGCAGCG CGGCTATCGT GGCTGGCCAC GACGGGCGTT CCTTGCGCAG CTGTGCTCGA
2821 CGTTGTCACT GAAGCGGGAA GGGACTGGCT GCTATTGGGC GAAGTGCCGG GGCAGGATCT
2881 CCTGTCATCT CACCTTGCTC CTGCCGAGAA AGTATCCATC ATGGCTGATG CAATGCGGCG
2941 GCTGCATACG CTTGATCCGG CTACCTGCCC ATTCGACCAC CAAGCGAAAC ATCGCATCGA
3001 GCGAGCACGT ACTCGGATGG AAGCCGGTCT TGTCGATCAG GATGATCTGG ACGAAGAGCA
3061 TCAGGGGCTC GCGCCAGCCG AACTGTTCGC CAGGCTCAAG GCGAGCATGC CCGACGGCGA
3121 GGATCTCGTC GTGACCCATG GCGATGCCTG CTTGCCGAAT ATCATGGTGG AAAATGGCCG
3181 CTTTTCTGGA TTCATCGACT GTGGCCGGCT GGGTGTGGCG GACCGCTATC AGGACATAGC
3241 GTTGGCTACC CGTGATATTG CTGAAGAGCT TGGCGGCGAA TGGGCTGACC GCTTCCTCGT
3301 GCTTTACGGT ATCGCCGCTC CCGATTCGCA GCGCATCGCC TTCTATCGCC TTCTTGACGA
3361 GTTCTTCTGA GCGGGACTCT GGGGTTCGAA ATGACCGACC AAGCGACGCC CAACCTGCCA
3421 TCACGAGATT TCGATTCCAC CGCCGCCTTC TATGAAAGGT TGGGCTTCGG AATCGTTTTC
3481 CGGGACGCCG GCTGGATGAT CCTCCAGCGC GGGGATCTCA TGCTGGAGTT CTTCGCCCAC
3541 CCTAGGGGGA GGCTAACTGA AACACGGAAG GAGACAATAC CGGAAGGAAC CCGCGCTATG
3601 ACGGCAATAA AAAGACAGAA TAAAACGCAC GGTGTTGGGT CGTTTGTTCA TAAACGCGGG
3661 GTTCGGTCCC AGGGCTGGCA CTCTGTCGAT ACCCCACCGA GACCCCATTG GGGCCAATAC
3721 GCCCGCGTTT CTTCCTTTTC CCCACCCCAC CCCCCAAGTT CGGGTGAAGG CCCAGGGCTC
3781 GCAGCCAACG TCGGGGCGGC AGGCCCTGCC ATAGCCTCAG GTTACTCATA TATACTTTAG
3841 ATTGATTTAA AACTTCATTT TTAATTTAAA AGGATCTAGG TGAAGATCCT TTTTGATAAT
3901 CTCATGACCA AAATCCCTTA ACGTGAGTTT TCGTTCCACT GAGCGTCAGA CCCCGTAGAA
3961 AAGATCAAAG GATCTTCTTG AGATCCTTTT TTTCTGCGCG TAATCTGCTG CTTGCAAACA
4021 AAAAAACCAC CGCTACCAGC GGTGGTTTGT TTGCCGGATC AAGAGCTACC AACTCTTTTT
4081 CCGAAGGTAA CTGGCTTCAG CAGAGCGCAG ATACCAAATA CTGTTCTTCT AGTGTAGCCG
4141 TAGTTAGGCC ACCACTTCAA GAACTCTGTA GCACCGCCTA CATACCTCGC TCTGCTAATC
4201 CTGTTACCAG TGGCTGCTGC CAGTGGCGAT AAGTCGTGTC TTACCGGGTT GGACTCAAGA
4261 CGATAGTTAC CGGATAAGGC GCAGCGGTCG GGCTGAACGG GGGGTTCGTG CACACAGCCC
4321 AGCTTGGAGC GAACGACCTA CACCGAACTG AGATACCTAC AGCGTGAGCT ATGAGAAAGC
4381 GCCACGCTTC CCGAAGGGAG AAAGGCGGAC AGGTATCCGG TAAGCGGCAG GGTCGGAACA
4441 GGAGAGCGCA CGAGGGAGCT TCCAGGGGGA AACGCCTGGT ATCTTTATAG TCCTGTCGGG
4501 TTTCGCCACC TCTGACTTGA GCGTCGATTT TTGTGATGCT CGTCAGGGGG GCGGAGCCTA
4561 TGGAAAAACG CCAGCAACGC GGCCTTTTTA CGGTTCCTGG CCTTTTGCTG GCCTTTTGCT
4621 CACATGTTCT TTCCTGCGTT ATCCCCTGAT TCTGTGGATA ACCGTATTAC CGCCATGCAT
//
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
- 上一篇：pIRES2-ZsGreen1
- 下一篇：pDsRed-Express2-N1
