pcDNA3.1+N-6HIS

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pcDNA3.1+N-6HIS载体质粒基本信息

出品公司: GenScript
载体名称: pcDNA3.1+N-6HIS
质粒类型: 哺乳动物细胞载体
高拷贝/低拷贝: 高拷贝
克隆方法: --
启动子: --
载体大小: 5.4 kb
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 新霉素/G418(Geneticin)
克隆菌株: --
宿主细胞(系): --
备注: --
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

pcDNA3.1+N-6HIS质粒图谱载体图谱和pcDNA3.1+N-6HIS载体序列质粒序列多克隆位点信息

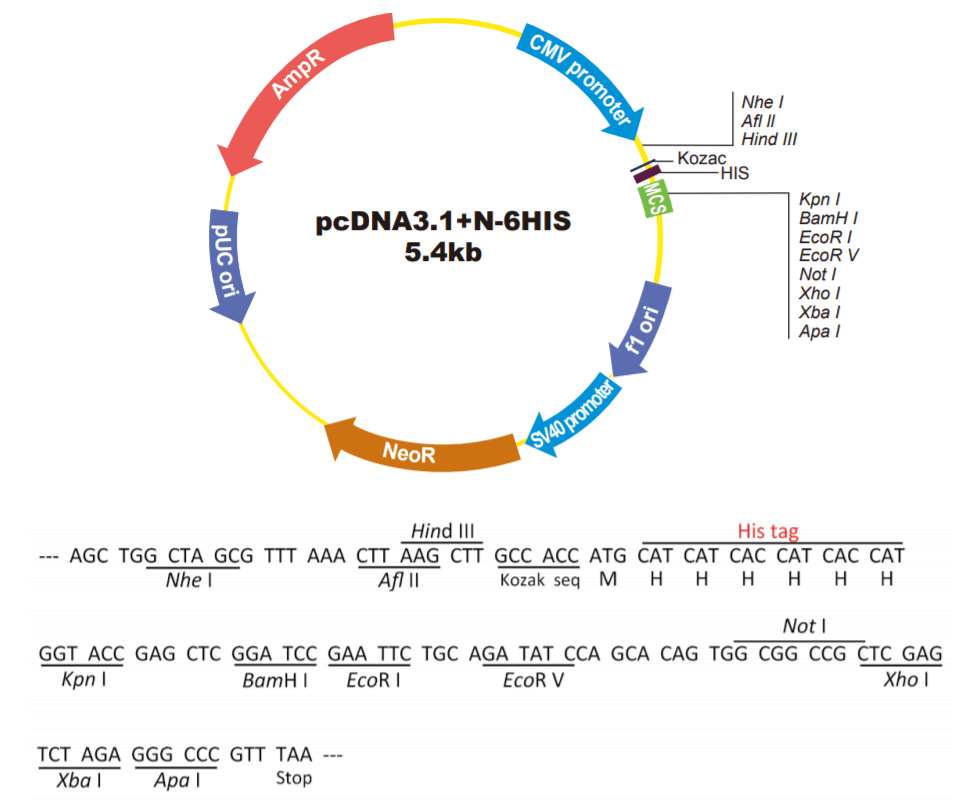

pcDNA3.1+N-6HIS载体图谱

pcDNA3.1+N-6HIS质粒载体简介

pcDNA3.1+N-6HIS质粒序列载体序列

LOCUS       pcDNA3.1+N-6His        5455 bp    DNA     circular SYN 27-AUG-2021
SOURCE
  ORGANISM
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTDATE|-14017131|
COMMENT     VNTDBDATE|-14017131|
COMMENT     LSOWNER|
COMMENT     VNTNAME|pcDNA3.1+N-6His|
COMMENT     VNTAUTHORNAME|Biofeng.com|
COMMENT     VNTAUTHOREML|order@biofeng.com|
COMMENT     VNTOAUTHORNAME|Invitrogen|
COMMENT     VNTOAUTHORTEL|(800)-357-3114|
COMMENT     VNTOAUTHORFAX|(760)-602-6500|
COMMENT     VNTOAUTHOREML|bioinfosales@invitrogen.com|
COMMENT     VNTOAUTHORAD1|Invitrogen Corporation|
COMMENT     VNTOAUTHORAD2|1620 Faraday Avenue|
COMMENT     VNTOAUTHORAD3|Carlsbad, CA 92008 U.S.A.|
FEATURES             Location/Qualifiers
     source          1..5455
                     /invitrogen="124"
                     /vntifkey="98"
     CDS             complement(4459..5319)
                     /invitrogen="1020000"
                     /vntifkey="4"
                     /label=Amp(R)
     polyA_site      1055..1279
                     /invitrogen="1870000"
                     /vntifkey="26"
                     /label=BGH\pA
     primer          complement(1049..1066)
                     /invitrogen="1910000"
                     /vntifkey="27"
                     /label=BGH\reverse\primer
     promoter        complement(5320..5418)
                     /invitrogen="2330000"
                     /vntifkey="30"
                     /label=bla\promoter
     primer          769..789
                     /invitrogen="1930000"
                     /vntifkey="27"
                     /label=CMV\forward\primer
     promoter        232..819
                     /invitrogen="2180000"
                     /vntifkey="29"
                     /label=CMV\promoter
     rep_origin      1325..1753
                     /invitrogen="2500000"
                     /vntifkey="33"
                     /label=f1\origin
     misc_feature    944..1037
                     /invitrogen="1630000"
                     /vntifkey="21"
                     /label=MCS
     CDS             2163..2957
                     /invitrogen="1260000"
                     /vntifkey="4"
                     /label=Neo(R)
     rep_origin      complement(3644..4314)
                     /invitrogen="2540000"
                     /vntifkey="33"
                     /label=pUC\origin
     promoter        1758..2127
                     /invitrogen="2290000"
                     /vntifkey="29"
                     /label=SV40\early\promoter
     polyA_signal    3131..3261
                     /invitrogen="1840000"
                     /vntifkey="25"
                     /label=SV40\pA
     primer          863..882
                     /invitrogen="2100000"
                     /vntifkey="27"
                     /label=T7\primer
     promoter        863..879
                     /invitrogen="2370000"
                     /vntifkey="30"
                     /label=T7\promoter
     misc_feature    917..922
                     /vntifkey="21"
                     /label=Kozak\sequence
     misc_feature    926..943
                     /vntifkey="21"
                     /label=His\Tag
BASE COUNT     1259 a      1423 c      1388 g      1385 t
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatgcatca tcaccatcac catggtaccg agctcggatc
      961 cactagtcca gtgtggtgga attctgcaga tatccagcac agtggcggcc gctcgagtct
     1021 agagggcccg tttaaacccg ctgatcagcc tcgactgtgc cttctagttg ccagccatct
     1081 gttgtttgcc cctcccccgt gccttccttg accctggaag gtgccactcc cactgtcctt
     1141 tcctaataaa atgaggaaat tgcatcgcat tgtctgagta ggtgtcattc tattctgggg
     1201 ggtggggtgg ggcaggacag caagggggag gattgggaag acaatagcag gcatgctggg
     1261 gatgcggtgg gctctatggc ttctgaggcg gaaagaacca gctggggctc tagggggtat
     1321 ccccacgcgc cctgtagcgg cgcattaagc gcggcgggtg tggtggttac gcgcagcgtg
     1381 accgctacac ttgccagcgc cctagcgccc gctcctttcg ctttcttccc ttcctttctc
     1441 gccacgttcg ccggctttcc ccgtcaagct ctaaatcggg ggctcccttt agggttccga
     1501 tttagtgctt tacggcacct cgaccccaaa aaacttgatt agggtgatgg ttcacgtagt
     1561 gggccatcgc cctgatagac ggtttttcgc cctttgacgt tggagtccac gttctttaat
     1621 agtggactct tgttccaaac tggaacaaca ctcaacccta tctcggtcta ttcttttgat
     1681 ttataaggga ttttgccgat ttcggcctat tggttaaaaa atgagctgat ttaacaaaaa
     1741 tttaacgcga attaattctg tggaatgtgt gtcagttagg gtgtggaaag tccccaggct
     1801 ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaacc aggtgtggaa
     1861 agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa
     1921 ccatagtccc gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt
     1981 ctccgcccca tggctgacta atttttttta tttatgcaga ggccgaggcc gcctctgcct
     2041 ctgagctatt ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaaaagc
     2101 tcccgggagc ttgtatatcc attttcggat ctgatcaaga gacaggatga ggatcgtttc
     2161 gcatgattga acaagatgga ttgcacgcag gttctccggc cgcttgggtg gagaggctat
     2221 tcggctatga ctgggcacaa cagacaatcg gctgctctga tgccgccgtg ttccggctgt
     2281 cagcgcaggg gcgcccggtt ctttttgtca agaccgacct gtccggtgcc ctgaatgaac
     2341 tgcaggacga ggcagcgcgg ctatcgtggc tggccacgac gggcgttcct tgcgcagctg
     2401 tgctcgacgt tgtcactgaa gcgggaaggg actggctgct attgggcgaa gtgccggggc
     2461 aggatctcct gtcatctcac cttgctcctg ccgagaaagt atccatcatg gctgatgcaa
     2521 tgcggcggct gcatacgctt gatccggcta cctgcccatt cgaccaccaa gcgaaacatc
     2581 gcatcgagcg agcacgtact cggatggaag ccggtcttgt cgatcaggat gatctggacg
     2641 aagagcatca ggggctcgcg ccagccgaac tgttcgccag gctcaaggcg cgcatgcccg
     2701 acggcgagga tctcgtcgtg acccatggcg atgcctgctt gccgaatatc atggtggaaa
     2761 atggccgctt ttctggattc atcgactgtg gccggctggg tgtggcggac cgctatcagg
     2821 acatagcgtt ggctacccgt gatattgctg aagagcttgg cggcgaatgg gctgaccgct
     2881 tcctcgtgct ttacggtatc gccgctcccg attcgcagcg catcgccttc tatcgccttc
     2941 ttgacgagtt cttctgagcg ggactctggg gttcgaaatg accgaccaag cgacgcccaa
     3001 cctgccatca cgagatttcg attccaccgc cgccttctat gaaaggttgg gcttcggaat
     3061 cgttttccgg gacgccggct ggatgatcct ccagcgcggg gatctcatgc tggagttctt
     3121 cgcccacccc aacttgttta ttgcagctta taatggttac aaataaagca atagcatcac
     3181 aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt ccaaactcat
     3241 caatgtatct tatcatgtct gtataccgtc gacctctagc tagagcttgg cgtaatcatg
     3301 gtcatagctg tttcctgtgt gaaattgtta tccgctcaca attccacaca acatacgagc
     3361 cggaagcata aagtgtaaag cctggggtgc ctaatgagtg agctaactca cattaattgc
     3421 gttgcgctca ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc attaatgaat
     3481 cggccaacgc gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac
     3541 tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt
     3601 aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca
     3661 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
     3721 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
     3781 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
     3841 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
     3901 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
     3961 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
     4021 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
     4081 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
     4141 aagaacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
     4201 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ttttttgttt gcaagcagca
     4261 gattacgcgc agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga
     4321 cgctcagtgg aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat
     4381 cttcacctag atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga
     4441 gtaaacttgg tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg
     4501 tctatttcgt tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga
     4561 gggcttacca tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc
     4621 agatttatca gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac
     4681 tttatccgcc tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc
     4741 agttaatagt ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc
     4801 gtttggtatg gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc
     4861 catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt
     4921 ggccgcagtg ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc
     4981 atccgtaaga tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg
     5041 tatgcggcga ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag
     5101 cagaacttta aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat
     5161 cttaccgctg ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc
     5221 atcttttact ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa
     5281 aaagggaata agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta
     5341 ttgaagcatt tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa
     5401 aaataaacaa ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtc
//

pcDNA3.1+N-6HIS载体图谱质粒图谱pdf版和pcDNA3.1+N-6HIS载体序列质粒序列等相关资料下载

pcDNA3.1+N-6HIS质粒载体应用举例
