pcDNA3.3-TOPO

价格:6500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pcDNA3.3-TOPO载体质粒基本信息

出品公司: Invitrogen
载体名称: pcDNA3.3-TOPO
质粒类型: 哺乳动物表达载体;TOPO载体;分泌表达载体
高拷贝/低拷贝: 低拷贝
克隆方法: TOPO-TA
启动子: CMV
载体大小: 5407 bp
5' 测序引物及序列: CMV forward 5’-CGCAAATGGGCGGTAGGCGTG-3’
3' 测序引物及序列: TK polyA reverse 5-CTTCCGTGTTTCAGTTAGC-3
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: Neomycin
克隆菌株: TOP10, E.coli
宿主细胞(系): Freestyle 293
备注: pcDNA3.3-TOPO载体用于高水平、分泌型表达天然蛋白;
将抗体的重链和轻链分别克隆到pcDNA3.3-TOPO载体上,共转染FreeStyle 293细胞,即可高水平表达抗体。
Invitrogen 提供的pcDNA3.3-TOPO是线性的,不能直接转化或者转染细胞。
产品目录号: K8300-01
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

pcDNA3.3-TOPO质粒图谱载体图谱和pcDNA3.3-TOPO载体序列质粒序列多克隆位点信息

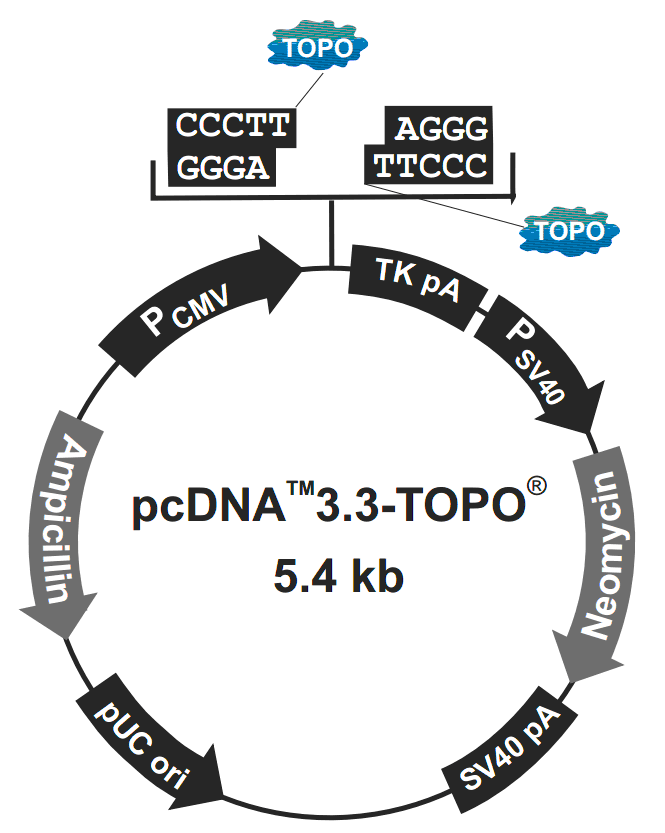

pcDNA3.3-TOPO 载体图谱



pcDNA3.3-TOPO 特征位点
pcDNA3.3-TOPO TOPO克隆位点

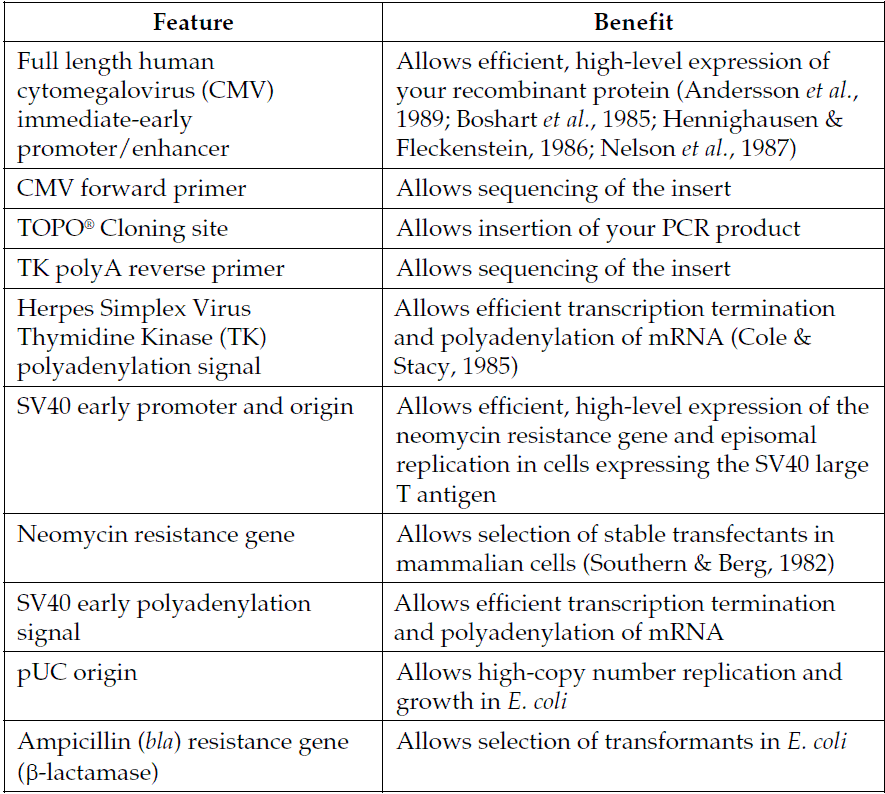

pcDNA3.3-TOPO 载体特征

pcDNA3.3-TOPO质粒载体简介

pcDNA3.3-TOPO载体:

The pcDNA3.3-TOPO vector is a TOPO-adapted plasmid that allows rapid cloning of a PCR product containing a gene of interest downstream of the CMV promoter. The pcDNA3.3-TOPO vector can be used for high level expression of a native protein in adherent mammalian tissue culture cells following transient transfection, or high level expression of secreted, native protein using the FreeStyle MAX CHO and FreeStyle MAX 293 systems.
The pcDNA3.3-TOPO vector is also included with the OptiCHO Antibody Express System for cloning the light and heavy chains of your antibody of choice.


载体特征:

 Full-length human cytomegalovirus (CMV) immediate-early promoter/enhancer for high-level gene expression in a wide range of mammalian cells
 TOPO Cloning site for rapid and efficient cloning of Taq-amplified PCR products
 Herpes Simplex Virus thymidine kinase polyadenylation signal for proper termination and processing of the recombinant transcript
 Neomycin resistance gene for selection of stable cell lines with Geneticin
 pUC origin for high copy replication and maintenance of the plasmid in E. coli
 Ampicillin (bla) resistance gene for selection in E. coli

CMV Promoter
The human cytomegalovirus immediate-early (HCMV IE1) gene promoter in the pcDNA3.3-TOPO vector is 680 bp and contains the native transcriptional start site (Hennighausen & Fleckenstein, 1986). This sequence results in high levels of transgene expression.


TOPO技术简介:

The pcDNA3.3-TOPO vector is supplied linearized with:
 Single 3′ thymidine (T) overhangs for TA Cloning
 Topoisomerase covalently bound to the vector (this is referred to as“activated” vector) Taq polymerase has a nontemplate-dependent terminal transferase activity that adds a single deoxyadenosine (A) to the 3′ ends of PCR products. The linearized vector supplied in this kit has single, overhanging 3′ deoxythymidine (T) residues. This allows PCR inserts to ligate efficiently with the vector. Topoisomerase I from Vaccinia virus binds to duplex DNA at specific sites and cleaves the phosphodiester backbone after 5′-CCCTT in one strand (Shuman, 1991). The energy from the broken phosphodiester backbone is conserved by formation of a covalent bond between the 3′ phosphate of the cleaved strand and a tyrosyl residue (Tyr-274) of topoisomerase I. The phospho-tyrosyl bond between the DNA and enzyme can subsequently be attacked by the 5′ hydroxyl of the original cleaved strand, reversing the reaction and releasing topoisomerase (Shuman, 1994). TOPO Cloning exploits this reaction to efficiently clone PCR products.Once the PCR product is cloned into the pcDNA3.3-TOPO vector and the transformants are analyzed for correct orientation and reading frame, the expression plasmid may be transfected into your cell line of choice.

实验流程:

To TOPO Clone your gene of interest into pcDNA3.3-TOPO, you will perform the following steps:
1. Generate a PCR product containing your gene of interest with Taq polymerase.
2. TOPO Clone your PCR product into the pcDNA3.3-TOPO vector and use the reaction to transform One Shot TOP10 Chemically Competent E. coli.
3. Pick colonies, isolate plasmid DNA, and screen for insert directionality by sequencing expression clones with the primers provided in the kit.

建立稳定细胞系:

After creation of your four clones, you will then use the OptiCHO Antibody Express Kit to transiently transfect two of each of the plasmid constructs (one of each pcDNA3.3 and pOptiVEC) containing the heavy and light chains into CHO cells. You may also perform several stable transfections directly in DG44 cells with various combinations of pOptiVEC-TOPO and pcDNA3.3-TOPO plasmid constructs.

pcDNA3.3-TOPO质粒序列载体序列

LOCUS       pcDNA3.3 TOPO TA	5407 bp 	DNA	SYN
DEFINITION  pcDNA3.3 TOPO TA
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5407
                     /organism="pcDNA3.3 TOPO TA"
                     /mol_type="other DNA"
     promoter        51..627
                     /label="CMV_immearly_promoter"
     misc_feature    130..417
                     /label="CAG_enhancer"
     misc_feature    584..604
                     /label="CMV_fwd_primer"
     promoter        585..654
                     /label="CMV_promoter"
     promoter        597..716
                     /label="CMV2_promoter"
     misc_feature    628..647
                     /label="pCEP_fwd_primer"
     misc_feature    630..654
                     /label="LNCX_primer"
     terminator      780..1050
                     /label="TK_PA_terminator"
     rep_origin      1104..1410
                     /label="f1_origin"
     misc_feature    complement(1524..1544)
                     /label="pBABE_3_primer"
     misc_feature    complement(1530..1745)
                     /label="SV40_enhancer"
     promoter        1542..1810
                     /label="SV40_promoter"
     rep_origin      1709..1786
                     /label="SV40_origin"
     misc_feature    1771..1790
                     /label="SV40pro_F_primer"
     CDS             1925..2719
                     /label="ORF frame 2"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            1928..2716
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     terminator      2898..3017
                     /label="SV40_PA_terminator"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    2986..3005
                     /label="EBV_rev_primer"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     promoter        complement(3061..3079)
                     /label="M13_reverse_primer"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    complement(3078..3100)
                     /label="M13_pUC_rev_primer"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     promoter        complement(3114..3143)
                     /label="lac_promoter"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     rep_origin      complement(3452..4071)
                     /label="pBR322_origin"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            complement(4226..5086)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(4226..5086)
                     /label="ORF frame 1"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5128..5156)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GTTAGGCGTT TTGCGCTGCT TCGCGATGTA CGGGCCAGAT ATACGCGTTG ACATTGATTA
   61 TTGACTAGTT ATTAATAGTA ATCAATTACG GGGTCATTAG TTCATAGCCC ATATATGGAG
  121 TTCCGCGTTA CATAACTTAC GGTAAATGGC CCGCCTGGCT GACCGCCCAA CGACCCCCGC
  181 CCATTGACGT CAATAATGAC GTATGTTCCC ATAGTAACGC CAATAGGGAC TTTCCATTGA
  241 CGTCAATGGG TGGAGTATTT ACGGTAAACT GCCCACTTGG CAGTACATCA AGTGTATCAT
  301 ATGCCAAGTA CGCCCCCTAT TGACGTCAAT GACGGTAAAT GGCCCGCCTG GCATTATGCC
  361 CAGTACATGA CCTTATGGGA CTTTCCTACT TGGCAGTACA TCTACGTATT AGTCATCGCT
  421 ATTACCATGG TGATGCGGTT TTGGCAGTAC ATCAATGGGC GTGGATAGCG GTTTGACTCA
  481 CGGGGATTTC CAAGTCTCCA CCCCATTGAC GTCAATGGGA GTTTGTTTTG GCACCAAAAT
  541 CAACGGGACT TTCCAAAATG TCGTAACAAC TCCGCCCCAT TGACGCAAAT GGGCGGTAGG
  601 CGTGTACGGT GGGAGGTCTA TATAAGCAGA GCTCGTTTAG TGAACCGTCA GATCGCCTGG
  661 AGACGCCATC CACGCTGTTT TGACCTCCAT AGAAGACACC GGGACCGATC CAGCCTCCGG
  721 ACTCTAGAGG ATCGAACCCT TAAGGGTTCG ATCCCTACCG GTTAGTAATG AGTTTAAACG
  781 GGGGAGGCTA ACTGAAACAC GGAAGGAGAC AATACCGGAA GGAACCCGCG CTATGACGGC
  841 AATAAAAAGA CAGAATAAAA CGCACGGGTG TTGGGTCGTT TGTTCATAAA CGCGGGGTTC
  901 GGTCCCAGGG CTGGCACTCT GTCGATACCC CACCGAGACC CCATTGGGGC CAATACGCCC
  961 GCGTTTCTTC CTTTTCCCCA CCCCACCCCC CAAGTTCGGG TGAAGGCCCA GGGCTCGCAG
 1021 CCAACGTCGG GGCGGCAGGC CCTGCCATAG CAGATCTGCG CAGCTGGGGC TCTAGGGGGT
 1081 ATCCCCACGC GCCCTGTAGC GGCGCATTAA GCGCGGCGGG TGTGGTGGTT ACGCGCAGCG
 1141 TGACCGCTAC ACTTGCCAGC GCCCTAGCGC CCGCTCCTTT CGCTTTCTTC CCTTCCTTTC
 1201 TCGCCACGTT CGCCGGCTTT CCCCGTCAAG CTCTAAATCG GGGCATCCCT TTAGGGTTCC
 1261 GATTTAGTGC TTTACGGCAC CTCGACCCCA AAAAACTTGA TTAGGGTGAT GGTTCACGTA
 1321 GTGGGCCATC GCCCTGATAG ACGGTTTTTC GCCCTTTGAC GTTGGAGTCC ACGTTCTTTA
 1381 ATAGTGGACT CTTGTTCCAA ACTGGAACAA CACTCAACCC TATCTCGGTC TATTCTTTTG
 1441 ATTTATAAGG GATTTTGGGG ATTTCGGCCT ATTGGTTAAA AAATGAGCTG ATTTAACAAA
 1501 AATTTAACGC GAATTAATTC TGTGGAATGT GTGTCAGTTA GGGTGTGGAA AGTCCCCAGG
 1561 CTCCCCAGCA GGCAGAAGTA TGCAAAGCAT GCATCTCAAT TAGTCAGCAA CCAGGTGTGG
 1621 AAAGTCCCCA GGCTCCCCAG CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC
 1681 AACCATAGTC CCGCCCCTAA CTCCGCCCAT CCCGCCCCTA ACTCCGCCCA GTTCCGCCCA
 1741 TTCTCCGCCC CATGGCTGAC TAATTTTTTT TATTTATGCA GAGGCCGAGG CCGCCTCTGC
 1801 CTCTGAGCTA TTCCAGAAGT AGTGAGGAGG CTTTTTTGGA GGCCTAGGCT TTTGCAAAAA
 1861 GCTCCCGGGA GCTTGTATAT CCATTTTCGG ATCTGATCAA GAGACAGGAT GAGGATCGTT
 1921 TCGCATGATT GAACAAGATG GATTGCACGC AGGTTCTCCG GCCGCTTGGG TGGAGAGGCT
 1981 ATTCGGCTAT GACTGGGCAC AACAGACAAT CGGCTGCTCT GATGCCGCCG TGTTCCGGCT
 2041 GTCAGCGCAG GGGCGCCCGG TTCTTTTTGT CAAGACCGAC CTGTCCGGTG CCCTGAATGA
 2101 ACTGCAGGAC GAGGCAGCGC GGCTATCGTG GCTGGCCACG ACGGGCGTTC CTTGCGCAGC
 2161 TGTGCTCGAC GTTGTCACTG AAGCGGGAAG GGACTGGCTG CTATTGGGCG AAGTGCCGGG
 2221 GCAGGATCTC CTGTCATCTC ACCTTGCTCC TGCCGAGAAA GTATCCATCA TGGCTGATGC
 2281 AATGCGGCGG CTGCATACGC TTGATCCGGC TACCTGCCCA TTCGACCACC AAGCGAAACA
 2341 TCGCATCGAG CGAGCACGTA CTCGGATGGA AGCCGGTCTT GTCGATCAGG ATGATCTGGA
 2401 CGAAGAGCAT CAGGGGCTCG CGCCAGCCGA ACTGTTCGCC AGGCTCAAGG CGCGCATGCC
 2461 CGACGGCGAG GATCTCGTCG TGACCCATGG CGATGCCTGC TTGCCGAATA TCATGGTGGA
 2521 AAATGGCCGC TTTTCTGGAT TCATCGACTG TGGCCGGCTG GGTGTGGCGG ACCGCTATCA
 2581 GGACATAGCG TTGGCTACCC GTGATATTGC TGAAGAGCTT GGCGGCGAAT GGGCTGACCG
 2641 CTTCCTCGTG CTTTACGGTA TCGCCGCTCC CGATTCGCAG CGCATCGCCT TCTATCGCCT
 2701 TCTTGACGAG TTCTTCTGAG CGGGACTCTG GGGTTCGCGA AATGACCGAC CAAGCGACGC
 2761 CCAACCTGCC ATCACGAGAT TTCGATTCCA CCGCCGCCTT CTATGAAAGG TTGGGCTTCG
 2821 GAATCGTTTT CCGGGACGCC GGCTGGATGA TCCTCCAGCG CGGGGATCTC ATGCTGGAGT
 2881 TCTTCGCCCA CCCCAACTTG TTTATTGCAG CTTATAATGG TTACAAATAA AGCAATAGCA
 2941 TCACAAATTT CACAAATAAA GCATTTTTTT CACTGCATTC TAGTTGTGGT TTGTCCAAAC
 3001 TCATCAATGT ATCTTATCAT GTCTGTATAC CGTCGACCTC TAGCTAGAGC TTGGCGTAAT
 3061 CATGGTCATA GCTGTTTCCT GTGTGAAATT GTTATCCGCT CACAATTCCA CACAACATAC
 3121 GAGCCGGAAG CATAAAGTGT AAAGCCTGGG GTGCCTAATG AGTGAGCTAA CTCACATTAA
 3181 TTGCGTTGCG CTCACTGCCC GCTTTCCAGT CGGGAAACCT GTCGTGCCAG CTGCATTAAT
 3241 GAATCGGCCA ACGCGCGGGG AGAGGCGGTT TGCGTATTGG GCGCTCTTCC GCTTCCTCGC
 3301 TCACTGACTC GCTGCGCTCG GTCGTTCGGC TGCGGCGAGC GGTATCAGCT CACTCAAAGG
 3361 CGGTAATACG GTTATCCACA GAATCAGGGG ATAACGCAGG AAAGAACATG TGAGCAAAAG
 3421 GCCAGCAAAA GGCCAGGAAC CGTAAAAAGG CCGCGTTGCT GGCGTTTTTC CATAGGCTCC
 3481 GCCCCCCTGA CGAGCATCAC AAAAATCGAC GCTCAAGTCA GAGGTGGCGA AACCCGACAG
 3541 GACTATAAAG ATACCAGGCG TTTCCCCCTG GAAGCTCCCT CGTGCGCTCT CCTGTTCCGA
 3601 CCCTGCCGCT TACCGGATAC CTGTCCGCCT TTCTCCCTTC GGGAAGCGTG GCGCTTTCTC
 3661 AATGCTCACG CTGTAGGTAT CTCAGTTCGG TGTAGGTCGT TCGCTCCAAG CTGGGCTGTG
 3721 TGCACGAACC CCCCGTTCAG CCCGACCGCT GCGCCTTATC CGGTAACTAT CGTCTTGAGT
 3781 CCAACCCGGT AAGACACGAC TTATCGCCAC TGGCAGCAGC CACTGGTAAC AGGATTAGCA
 3841 GAGCGAGGTA TGTAGGCGGT GCTACAGAGT TCTTGAAGTG GTGGCCTAAC TACGGCTACA
 3901 CTAGAAGGAC AGTATTTGGT ATCTGCGCTC TGCTGAAGCC AGTTACCTTC GGAAAAAGAG
 3961 TTGGTAGCTC TTGATCCGGC AAACAAACCA CCGCTGGTAG CGGTGGTTTT TTTGTTTGCA
 4021 AGCAGCAGAT TACGCGCAGA AAAAAAGGAT CTCAAGAAGA TCCTTTGATC TTTTCTACGG
 4081 GGTCTGACGC TCAGTGGAAC GAAAACTCAC GTTAAGGGAT TTTGGTCATG AGATTATCAA
 4141 AAAGGATCTT CACCTAGATC CTTTTAAATT AAAAATGAAG TTTTAAATCA ATCTAAAGTA
 4201 TATATGAGTA AACTTGGTCT GACAGTTACC AATGCTTAAT CAGTGAGGCA CCTATCTCAG
 4261 CGATCTGTCT ATTTCGTTCA TCCATAGTTG CCTGACTCCC CGTCGTGTAG ATAACTACGA
 4321 TACGGGAGGG CTTACCATCT GGCCCCAGTG CTGCAATGAT ACCGCGAGAC CCACGCTCAC
 4381 CGGCTCCAGA TTTATCAGCA ATAAACCAGC CAGCCGGAAG GGCCGAGCGC AGAAGTGGTC
 4441 CTGCAACTTT ATCCGCCTCC ATCCAGTCTA TTAATTGTTG CCGGGAAGCT AGAGTAAGTA
 4501 GTTCGCCAGT TAATAGTTTG CGCAACGTTG TTGCCATTGC TACAGGCATC GTGGTGTCAC
 4561 GCTCGTCGTT TGGTATGGCT TCATTCAGCT CCGGTTCCCA ACGATCAAGG CGAGTTACAT
 4621 GATCCCCCAT GTTGTGCAAA AAAGCGGTTA GCTCCTTCGG TCCTCCGATC GTTGTCAGAA
 4681 GTAAGTTGGC CGCAGTGTTA TCACTCATGG TTATGGCAGC ACTGCATAAT TCTCTTACTG
 4741 TCATGCCATC CGTAAGATGC TTTTCTGTGA CTGGTGAGTA CTCAACCAAG TCATTCTGAG
 4801 AATAGTGTAT GCGGCGACCG AGTTGCTCTT GCCCGGCGTC AATACGGGAT AATACCGCGC
 4861 CACATAGCAG AACTTTAAAA GTGCTCATCA TTGGAAAACG TTCTTCGGGG CGAAAACTCT
 4921 CAAGGATCTT ACCGCTGTTG AGATCCAGTT CGATGTAACC CACTCGTGCA CCCAACTGAT
 4981 CTTCAGCATC TTTTACTTTC ACCAGCGTTT CTGGGTGAGC AAAAACAGGA AGGCAAAATG
 5041 CCGCAAAAAA GGGAATAAGG GCGACACGGA AATGTTGAAT ACTCATACTC TTCCTTTTTC
 5101 AATATTATTG AAGCATTTAT CAGGGTTATT GTCTCATGAG CGGATACATA TTTGAATGTA
 5161 TTTAGAAAAA TAAACAAATA GGGGTTCCGC GCACATTTCC CCGAAAAGTG CCACCTGACG
 5221 TCGACGGATC GGGAGATCTC CCGATCCCCT ATGGTCGACT CTCAGTACAA TCTGCTCTGA
 5281 TGCCGCATAG TTAAGCCAGT ATCTGCTCCC TGCTTGTGTG TTGGAGGTCG CTGAGTAGTG
 5341 CGCGAGCAAA ATTTAAGCTA CAACAAGGCA AGGCTTGACC GACAATTGCA TGAAGAATCT
 5401 GCTTAGG
//

pcDNA3.3-TOPO载体图谱质粒图谱pdf版和pcDNA3.3-TOPO载体序列质粒序列等相关资料下载

pcDNA3.3-TOPO质粒载体应用举例

分享到:

全部质粒载体分类

相关质粒载体

相关质粒载体文章

相关载体质粒问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
