| 出品公司: | GE |
|---|---|
| 别名: | pGEX-6P-2, pGEX6P2, pGEX 6P 2 |
| 质粒类型: | 大肠杆菌蛋白表达载体 |
| 表达水平: | 高拷贝 |
| 启动子: | Tac |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 4985 bp |
| 5' 测序引物及序列: | pGEX5': GGGCTGGCAAGCCACGTTTGGTG |
| 3' 测序引物及序列: | pGEX3': CCGGGAGCTGCATGTGTCAGAGG |
| 载体标签: | N-GST |
| 载体抗性: | Ampicillin 氨苄 |
| 备注: |
复制子是pMB1
|
| 产品目录号: | 27-4598-01 |
| 稳定性: | 瞬时表达 Transient |
| 组成型: | 诱导表达 |
| 病毒/非病毒: | 非病毒 |
买家导航
pGEX-6P-2载体 pGEX6P2质粒基本信息

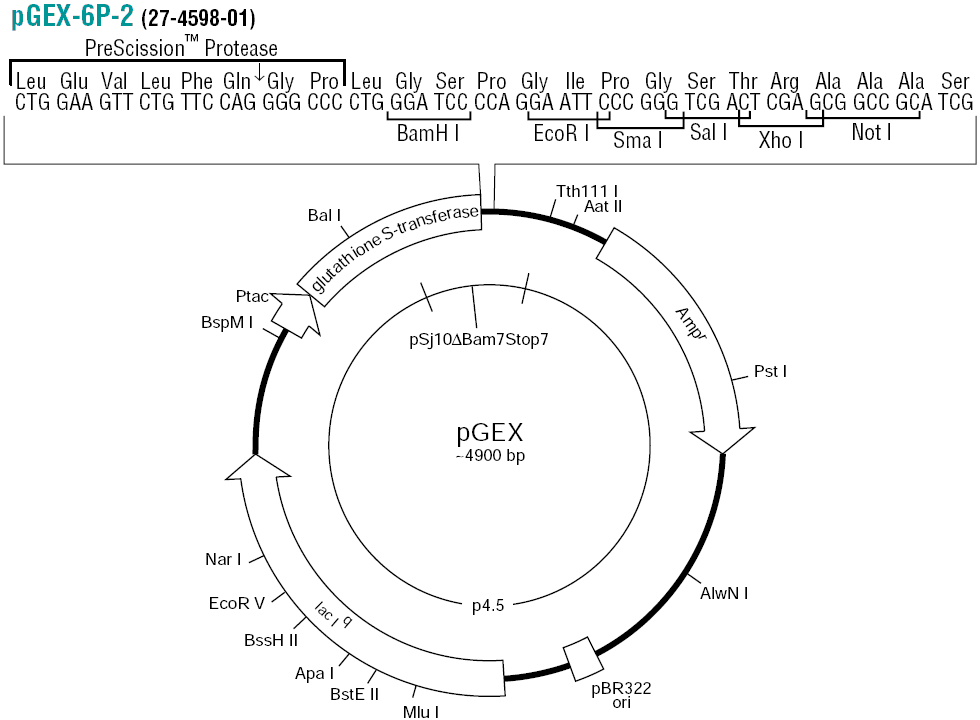

pGEX-6P-2质粒图谱 pGEX6P2载体图谱和pGEX-6P-2载体序列 pGEX6P2质粒序列多克隆位点信息
pGEX-6P-2质粒 pGEX6P2载体简介
pGEX-6P-2质粒序列 pGEX6P2载体序列
LOCUS pGEX-6P-2 4985 bp DNA circular SYN
DEFINITION pGEX-6P-2
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
COMMENT This file is created by Vector NTI
http://www.biofeng.com/
COMMENT VNTAUTHORNAME|biofeng.com|
FEATURES Location/Qualifiers
source 1..4985
/organism="pGEX-6P-2"
/mol_type="other DNA"
promoter 184..212
/label="tac_promoter"
misc_feature 224..246
/label="M13_pUC_rev_primer"
gene 258..993
/label="GST"
/gene="GST"
CDS 258..989
/label="ORF frame 3"
misc_feature 918..938
/label="precision"
misc_feature complement(1035..1057)
/label="pGEX_3_primer"
promoter 1323..1351
/label="AmpR_promoter"
gene 1393..2253
/label="Ampicillin"
/gene="Ampicillin"
CDS 1393..2253
/label="ORF frame 1"
rep_origin 2408..3027
/label="pBR322_origin"
misc_feature 3325..4416
/label="lacI"
CDS 3457..4416
/label="ORF frame 1"
promoter 4465..4494
/label="lac_promoter"
misc_feature 4508..4530
/label="M13_pUC_rev_primer"
promoter 4529..4547
/label="M13_reverse_primer"
CDS 4539..81
/label="ORF frame 3"
misc_feature 4556..4711
/label="lacZ_a"
promoter complement(4559..4575)
/label="M13_forward20_primer"
misc_feature complement(4568..4590)
/label="M13_pUC_fwd_primer"
ORIGIN
1 ACGTTATCGA CTGCACGGTG CACCAATGCT TCTGGCGTCA GGCAGCCATC GGAAGCTGTG
61 GTATGGCTGT GCAGGTCGTA AATCACTGCA TAATTCGTGT CGCTCAAGGC GCACTCCCGT
121 TCTGGATAAT GTTTTTTGCG CCGACATCAT AACGGTTCTG GCAAATATTC TGAAATGAGC
181 TGTTGACAAT TAATCATCGG CTCGTATAAT GTGTGGAATT GTGAGCGGAT AACAATTTCA
241 CACAGGAAAC AGTATTCATG TCCCCTATAC TAGGTTATTG GAAAATTAAG GGCCTTGTGC
301 AACCCACTCG ACTTCTTTTG GAATATCTTG AAGAAAAATA TGAAGAGCAT TTGTATGAGC
361 GCGATGAAGG TGATAAATGG CGAAACAAAA AGTTTGAATT GGGTTTGGAG TTTCCCAATC
421 TTCCTTATTA TATTGATGGT GATGTTAAAT TAACACAGTC TATGGCCATC ATACGTTATA
481 TAGCTGACAA GCACAACATG TTGGGTGGTT GTCCAAAAGA GCGTGCAGAG ATTTCAATGC
541 TTGAAGGAGC GGTTTTGGAT ATTAGATACG GTGTTTCGAG AATTGCATAT AGTAAAGACT
601 TTGAAACTCT CAAAGTTGAT TTTCTTAGCA AGCTACCTGA AATGCTGAAA ATGTTCGAAG
661 ATCGTTTATG TCATAAAACA TATTTAAATG GTGATCATGT AACCCATCCT GACTTCATGT
721 TGTATGACGC TCTTGATGTT GTTTTATACA TGGACCCAAT GTGCCTGGAT GCGTTCCCAA
781 AATTAGTTTG TTTTAAAAAA CGTATTGAAG CTATCCCACA AATTGATAAG TACTTGAAAT
841 CCAGCAAGTA TATAGCATGG CCTTTGCAGG GCTGGCAAGC CACGTTTGGT GGTGGCGACC
901 ATCCTCCAAA ATCGGATCTG GAAGTTCTGT TCCAGGGGCC CCTGGGATCC CCAGGAATTC
961 CCGGGTCGAC TCGAGCGGCC GCATCGTGAC TGACTGACGA TCTGCCTCGC GCGTTTCGGT
1021 GATGACGGTG AAAACCTCTG ACACATGCAG CTCCCGGAGA CGGTCACAGC TTGTCTGTAA
1081 GCGGATGCCG GGAGCAGACA AGCCCGTCAG GGCGCGTCAG CGGGTGTTGG CGGGTGTCGG
1141 GGCGCAGCCA TGACCCAGTC ACGTAGCGAT AGCGGAGTGT ATAATTCTTG AAGACGAAAG
1201 GGCCTCGTGA TACGCCTATT TTTATAGGTT AATGTCATGA TAATAATGGT TTCTTAGACG
1261 TCAGGTGGCA CTTTTCGGGG AAATGTGCGC GGAACCCCTA TTTGTTTATT TTTCTAAATA
1321 CATTCAAATA TGTATCCGCT CATGAGACAA TAACCCTGAT AAATGCTTCA ATAATATTGA
1381 AAAAGGAAGA GTATGAGTAT TCAACATTTC CGTGTCGCCC TTATTCCCTT TTTTGCGGCA
1441 TTTTGCCTTC CTGTTTTTGC TCACCCAGAA ACGCTGGTGA AAGTAAAAGA TGCTGAAGAT
1501 CAGTTGGGTG CACGAGTGGG TTACATCGAA CTGGATCTCA ACAGCGGTAA GATCCTTGAG
1561 AGTTTTCGCC CCGAAGAACG TTTTCCAATG ATGAGCACTT TTAAAGTTCT GCTATGTGGC
1621 GCGGTATTAT CCCGTGTTGA CGCCGGGCAA GAGCAACTCG GTCGCCGCAT ACACTATTCT
1681 CAGAATGACT TGGTTGAGTA CTCACCAGTC ACAGAAAAGC ATCTTACGGA TGGCATGACA
1741 GTAAGAGAAT TATGCAGTGC TGCCATAACC ATGAGTGATA ACACTGCGGC CAACTTACTT
1801 CTGACAACGA TCGGAGGACC GAAGGAGCTA ACCGCTTTTT TGCACAACAT GGGGGATCAT
1861 GTAACTCGCC TTGATCGTTG GGAACCGGAG CTGAATGAAG CCATACCAAA CGACGAGCGT
1921 GACACCACGA TGCCTGCAGC AATGGCAACA ACGTTGCGCA AACTATTAAC TGGCGAACTA
1981 CTTACTCTAG CTTCCCGGCA ACAATTAATA GACTGGATGG AGGCGGATAA AGTTGCAGGA
2041 CCACTTCTGC GCTCGGCCCT TCCGGCTGGC TGGTTTATTG CTGATAAATC TGGAGCCGGT
2101 GAGCGTGGGT CTCGCGGTAT CATTGCAGCA CTGGGGCCAG ATGGTAAGCC CTCCCGTATC
2161 GTAGTTATCT ACACGACGGG GAGTCAGGCA ACTATGGATG AACGAAATAG ACAGATCGCT
2221 GAGATAGGTG CCTCACTGAT TAAGCATTGG TAACTGTCAG ACCAAGTTTA CTCATATATA
2281 CTTTAGATTG ATTTAAAACT TCATTTTTAA TTTAAAAGGA TCTAGGTGAA GATCCTTTTT
2341 GATAATCTCA TGACCAAAAT CCCTTAACGT GAGTTTTCGT TCCACTGAGC GTCAGACCCC
2401 GTAGAAAAGA TCAAAGGATC TTCTTGAGAT CCTTTTTTTC TGCGCGTAAT CTGCTGCTTG
2461 CAAACAAAAA AACCACCGCT ACCAGCGGTG GTTTGTTTGC CGGATCAAGA GCTACCAACT
2521 CTTTTTCCGA AGGTAACTGG CTTCAGCAGA GCGCAGATAC CAAATACTGT CCTTCTAGTG
2581 TAGCCGTAGT TAGGCCACCA CTTCAAGAAC TCTGTAGCAC CGCCTACATA CCTCGCTCTG
2641 CTAATCCTGT TACCAGTGGC TGCTGCCAGT GGCGATAAGT CGTGTCTTAC CGGGTTGGAC
2701 TCAAGACGAT AGTTACCGGA TAAGGCGCAG CGGTCGGGCT GAACGGGGGG TTCGTGCACA
2761 CAGCCCAGCT TGGAGCGAAC GACCTACACC GAACTGAGAT ACCTACAGCG TGAGCTATGA
2821 GAAAGCGCCA CGCTTCCCGA AGGGAGAAAG GCGGACAGGT ATCCGGTAAG CGGCAGGGTC
2881 GGAACAGGAG AGCGCACGAG GGAGCTTCCA GGGGGAAACG CCTGGTATCT TTATAGTCCT
2941 GTCGGGTTTC GCCACCTCTG ACTTGAGCGT CGATTTTTGT GATGCTCGTC AGGGGGGCGG
3001 AGCCTATGGA AAAACGCCAG CAACGCGGCC TTTTTACGGT TCCTGGCCTT TTGCTGGCCT
3061 TTTGCTCACA TGTTCTTTCC TGCGTTATCC CCTGATTCTG TGGATAACCG TATTACCGCC
3121 TTTGAGTGAG CTGATACCGC TCGCCGCAGC CGAACGACCG AGCGCAGCGA GTCAGTGAGC
3181 GAGGAAGCGG AAGAGCGCCT GATGCGGTAT TTTCTCCTTA CGCATCTGTG CGGTATTTCA
3241 CACCGCATAA ATTCCGACAC CATCGAATGG TGCAAAACCT TTCGCGGTAT GGCATGATAG
3301 CGCCCGGAAG AGAGTCAATT CAGGGTGGTG AATGTGAAAC CAGTAACGTT ATACGATGTC
3361 GCAGAGTATG CCGGTGTCTC TTATCAGACC GTTTCCCGCG TGGTGAACCA GGCCAGCCAC
3421 GTTTCTGCGA AAACGCGGGA AAAAGTGGAA GCGGCGATGG CGGAGCTGAA TTACATTCCC
3481 AACCGCGTGG CACAACAACT GGCGGGCAAA CAGTCGTTGC TGATTGGCGT TGCCACCTCC
3541 AGTCTGGCCC TGCACGCGCC GTCGCAAATT GTCGCGGCGA TTAAATCTCG CGCCGATCAA
3601 CTGGGTGCCA GCGTGGTGGT GTCGATGGTA GAACGAAGCG GCGTCGAAGC CTGTAAAGCG
3661 GCGGTGCACA ATCTTCTCGC GCAACGCGTC AGTGGGCTGA TCATTAACTA TCCGCTGGAT
3721 GACCAGGATG CCATTGCTGT GGAAGCTGCC TGCACTAATG TTCCGGCGTT ATTTCTTGAT
3781 GTCTCTGACC AGACACCCAT CAACAGTATT ATTTTCTCCC ATGAAGACGG TACGCGACTG
3841 GGCGTGGAGC ATCTGGTCGC ATTGGGTCAC CAGCAAATCG CGCTGTTAGC GGGCCCATTA
3901 AGTTCTGTCT CGGCGCGTCT GCGTCTGGCT GGCTGGCATA AATATCTCAC TCGCAATCAA
3961 ATTCAGCCGA TAGCGGAACG GGAAGGCGAC TGGAGTGCCA TGTCCGGTTT TCAACAAACC
4021 ATGCAAATGC TGAATGAGGG CATCGTTCCC ACTGCGATGC TGGTTGCCAA CGATCAGATG
4081 GCGCTGGGCG CAATGCGCGC CATTACCGAG TCCGGGCTGC GCGTTGGTGC GGATATCTCG
4141 GTAGTGGGAT ACGACGATAC CGAAGACAGC TCATGTTATA TCCCGCCGTC AACCACCATC
4201 AAACAGGATT TTCGCCTGCT GGGGCAAACC AGCGTGGACC GCTTGCTGCA ACTCTCTCAG
4261 GGCCAGGCGG TGAAGGGCAA TCAGCTGTTG CCCGTCTCAC TGGTGAAAAG AAAAACCACC
4321 CTGGCGCCCA ATACGCAAAC CGCCTCTCCC CGCGCGTTGG CCGATTCATT AATGCAGCTG
4381 GCACGACAGG TTTCCCGACT GGAAAGCGGG CAGTGAGCGC AACGCAATTA ATGTGAGTTA
4441 GCTCACTCAT TAGGCACCCC AGGCTTTACA CTTTATGCTT CCGGCTCGTA TGTTGTGTGG
4501 AATTGTGAGC GGATAACAAT TTCACACAGG AAACAGCTAT GACCATGATT ACGGATTCAC
4561 TGGCCGTCGT TTTACAACGT CGTGACTGGG AAAACCCTGG CGTTACCCAA CTTAATCGCC
4621 TTGCAGCACA TCCCCCTTTC GCCAGCTGGC GTAATAGCGA AGAGGCCCGC ACCGATCGCC
4681 CTTCCCAACA GTTGCGCAGC CTGAATGGCG AATGGCGCTT TGCCTGGTTT CCGGCACCAG
4741 AAGCGGTGCC GGAAAGCTGG CTGGAGTGCG ATCTTCCTGA GGCCGATACT GTCGTCGTCC
4801 CCTCAAACTG GCAGATGCAC GGTTACGATG CGCCCATCTA CACCAACGTA ACCTATCCCA
4861 TTACGGTCAA TCCGCCGTTT GTTCCCACGG AGAATCCGAC GGGTTGTTAC TCGCTCACAT
4921 TTAATGTTGA TGAAAGCTGG CTACAGGAAG GCCAGACGCG AATTATTTTT GATGGCGTTG
4981 GAATT
//
